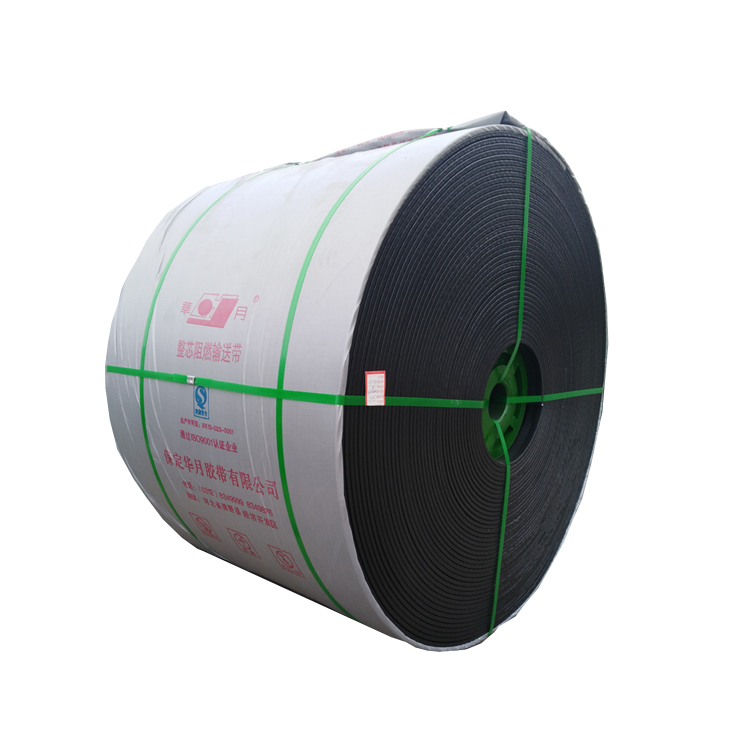

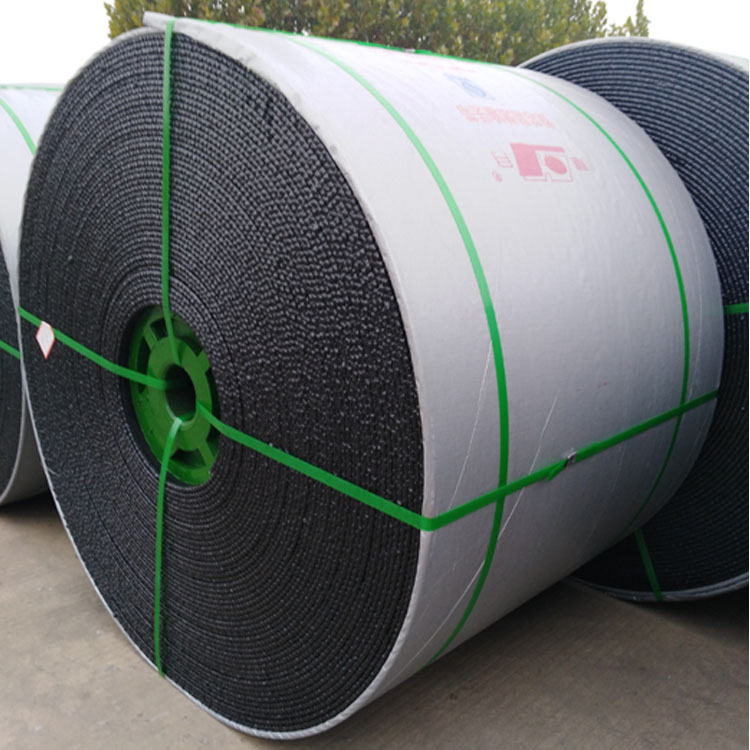

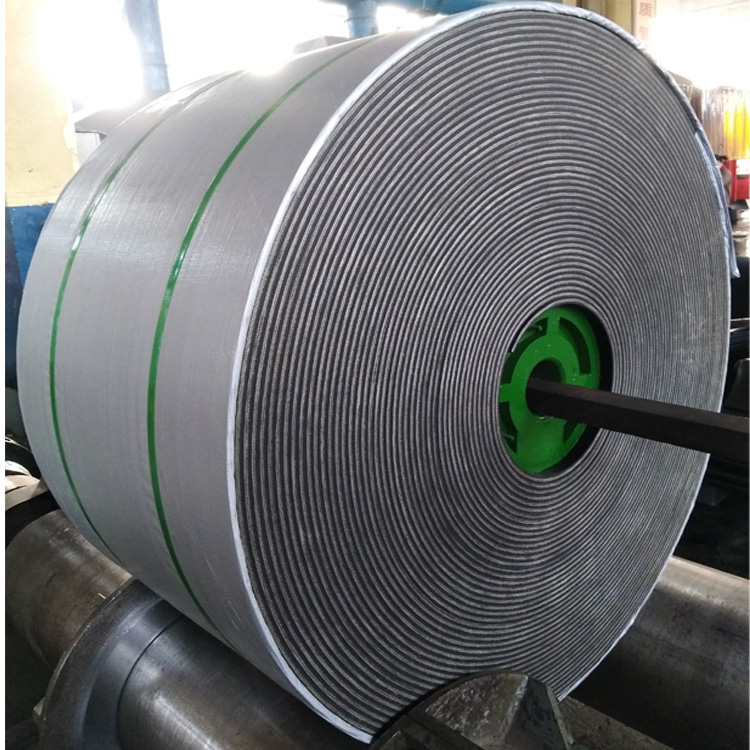

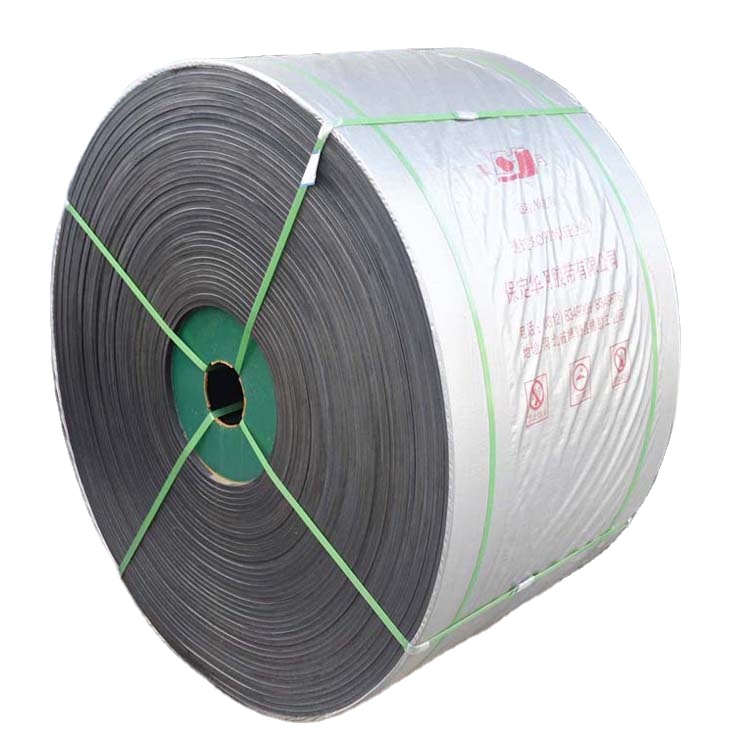

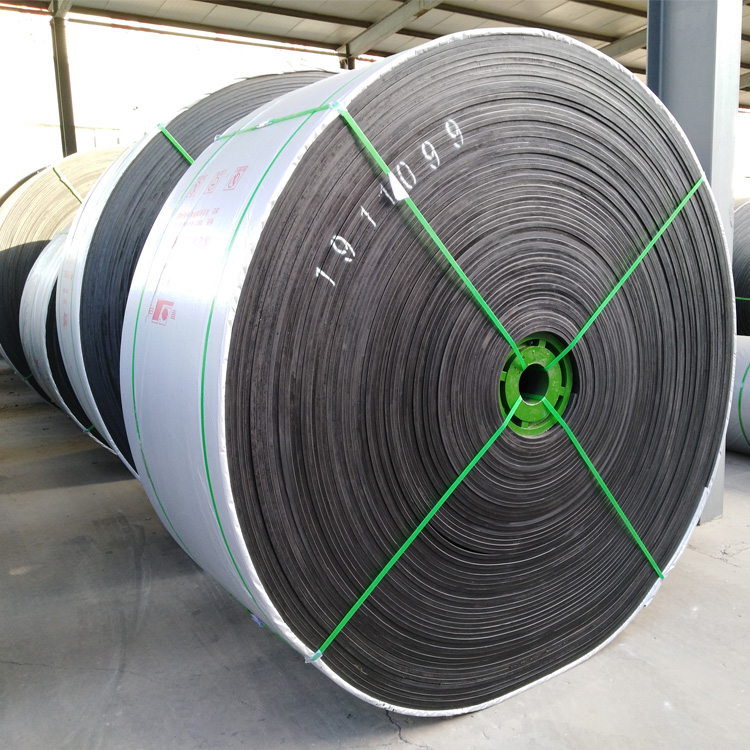

4 Ply EP200x4 DIN X Impact Resistant Rubber Conveyor Belt Global Manufacturer

Product Description

4 Ply EP200x4 DIN X Impact Resistant Rubber Conveyor Belt
Impact Resistant Rubber Conveyor Belt
Rubber Conveyor Belt Hot Sale
Product Description
Separator

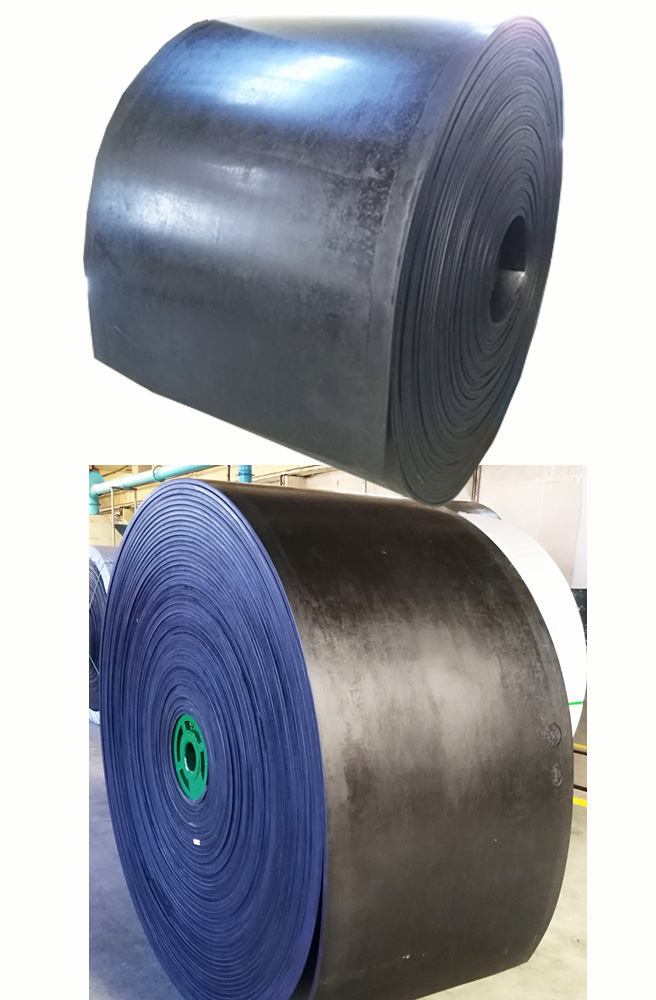

Product Specs Diagram

1. Specification of Multi-ply Polyester Conveyor Belt

Fabric Type Fabric Structure Fabric Specs Fabric ply No. Belt width (mm) Length (m) Cover Thickness (mm)
Warp Weft Top Bottom
Polyester (EP) Polyester (E) Polyamide (P) EP100 2-6 400-2200 5-500 2-12 1.5-6
EP200 2-6 400-2200 5-500 2-12 1.5-6
EP300 2-6 400-2200 5-500 2-12 1.5-6
EP500 2-6 400-2200 5-500 2-12 1.5-6

2. Physical Properties of Rubber Cover (DIN 22102-1)

Grade Tensile Strength (Mpa) ≥ Breaking Elongation (%) ≥ Abrasion Loss (mm³) ≤
DIN W 18 400 90
DIN X 25 450 120
DIN Y 20 400 150
DIN Z 15 350 250

3. Ply Adhesion Strength

Item Ply to ply Rubber cover to ply
Thickness ≤1.5mm Thickness >1.5mm
Average value (N/mm) ≥ 4.5 3.2 3.5
Min peak value (N/mm) ≥ 3.9 2.4 2.9
Wide Range in Application
Application Range
About Our Production
Production Process
Why Choose Our Belts
Why Choose Us
Packaging & Shipping
Packaging and Shipping
FAQ Header
Are you a professional manufacturer?
Yes, we have been specialized in producing and selling high-quality conveyor belts since 1982, serving global industrial needs.
Can you provide customized branding (OEM)?
Yes, we offer professional OEM services and can produce conveyor belts with your own brand and specific design requirements.
What is the typical lead time for orders?
Samples are usually ready within 5-7 days. For bulk orders, the lead time typically ranges from 15-30 days depending on the total quantity.
What payment terms do you accept?
We primarily accept T/T (30% advance, balance against B/L copy) and L/C (sight or deferred). Other approved terms can also be discussed.
How is the product quality guaranteed?
We maintain an independent R&D center and a testing laboratory. Every belt undergoes rigorous testing for materials, rubber property, and fabric strength before delivery.
What fabric types are available for the belts?
We offer various specs including EP100, EP150, EP200, EP250, EP300, EP400, and EP500 to suit different impact and tension requirements.
