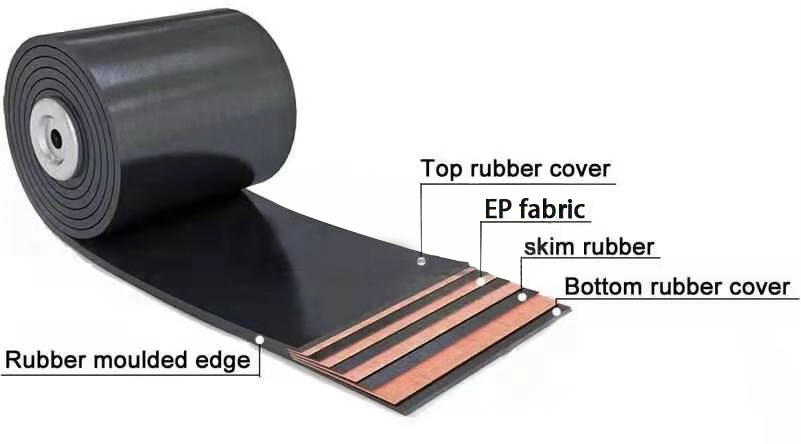

Rubber conveyor belts can be customized with properties depending on the application environment:
| Specification Item | Details |
|---|---|
| 1. Width and length | 1000mm and 200m |
| 2. The belt whole Tensile Strength (Carcass) | 630N/mm |

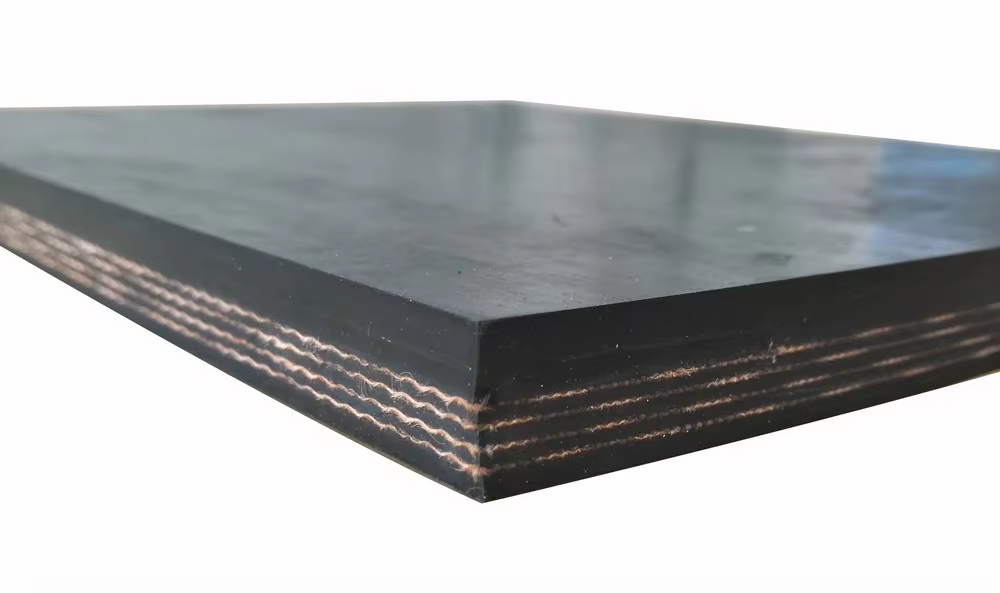

| 3. Numbers of fabric (Carcass) | 4 plies |

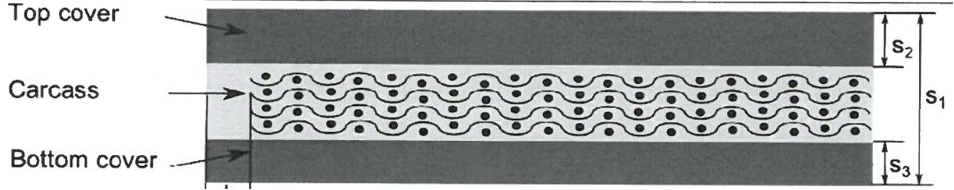

| 4. Top cover rubber thickness S2 | 4 mm |
| 5. Bottom cover rubber thickness S3 | 2 mm |
| 6. Cover rubber quality grade | DIN W |
| 7. Mould edge or Cutting edge | Mould edge |
| Parameter | Specification Range / Standards |
|---|---|
| Cover Rubber Grade |
8MPA, 10MPA, 12MPA, 15MPA, 17MPA, 18MPA, 20MPA, 24MPA, 25MPA DIN22012, ISO14890, AS1332, JIS K6322, SANS1173, GOST20-85 |
| Belt Width |
mm: 300, 350, 400, 450, 500, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2200, 2400, 2500, 2800 ~ 6000 Inch: 18, 20, 24, 30, 36, 40, 42, 48, 60, 72, 78, 86, 94 |
| Fabric Tensile Strength (Carcass) | EP315/3, EP400/3, EP500/3, EP500/4, EP600/3, EP630/4, EP1000/4, EP1000/5, EP1200/4, EP1250/5, EP1200/6, ~ EP2500/5 ... |
| Top Rubber Thickness (S2) | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12 ~ 50 mm |
| Bottom Rubber Thickness (S3) | 0, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, ~ 50 mm |
| Belt Length | ≤ 600 meters |
| Edge Type | Mould Edge or Cut Edge |
