Premium quality components engineered for long-term durability
Standard and custom parameters designed to meet industrial needs
Custom tensile configurations (EP Series) are available on demand. Check standard ranges below.
| Parameter | Standard Specification Range |
|---|---|
| Belt width | 300 mm — 2600 mm |
| Belt thickness | 6 mm — 25 mm |
| Number of plies | 2 — 6 plies (higher ply options available upon request) |
| Tensile strength | EP100, EP125, EP150, EP200, EP300, EP350, EP400, EP500, etc. |
| Cover thickness | Top cover: 1.5 mm — 8 mm | Bottom cover: 0.5 mm — 4 mm |
| Elongation | ≤ 1.5% when the belt is fully loaded |
| Operating temperature | -60°C to 60°C (standard rubber); up to 600°C (instantaneous 800°C for burn-resistant belts) |
| MOG (Minimum Order Quantity) | 50 meters |

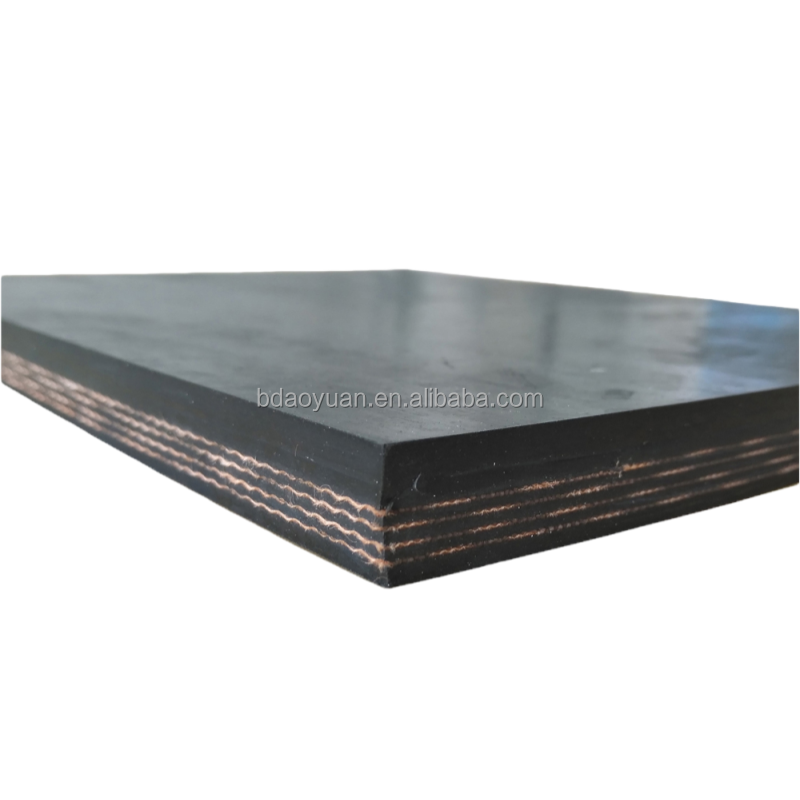

Visual breakdown of products, surfaces, and reinforcement fabrics
Find quick answers to common questions about our conveyor belts
