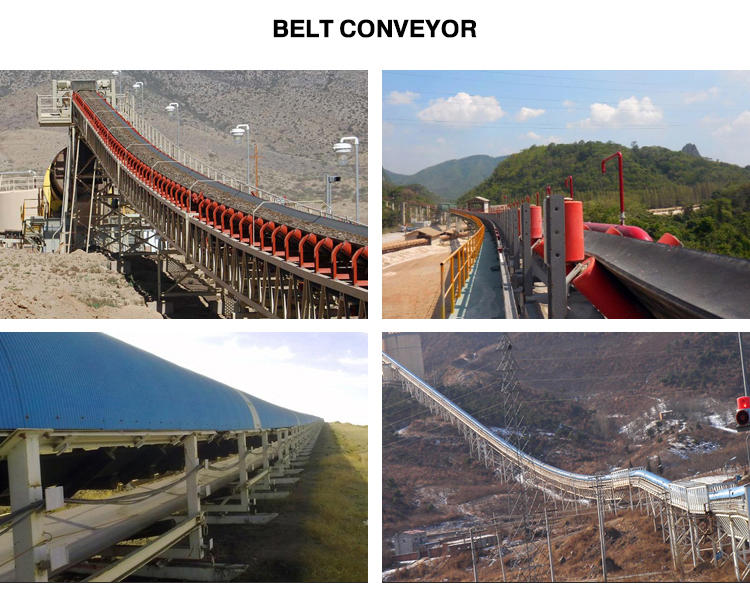

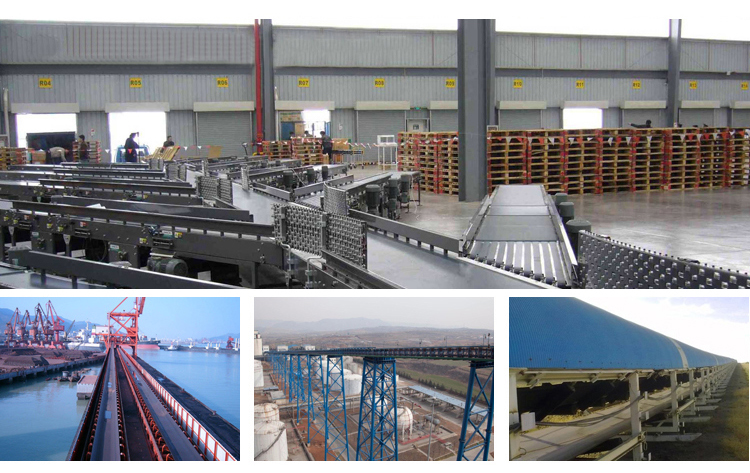

Belt conveyors are the most commonly used powered conveyors because they are the most versatile and the least expensive. Product is conveyed directly on the belt so both regular and irregular shaped objects, large or small, light and heavy, can be transported successfully. Only the highest quality premium belting products are used, which reduces belt stretch and results in less maintenance for tension adjustments. Belt conveyors can be used to transport product in a straight line or through changes in elevation or direction. In certain applications they can also be used for static accumulation or cartons.
500-1000 (mm)
25-980 (m³/h)

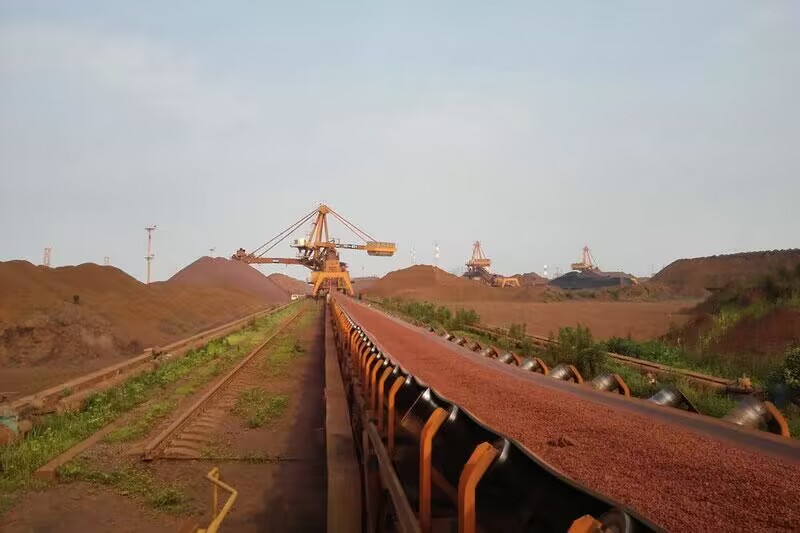

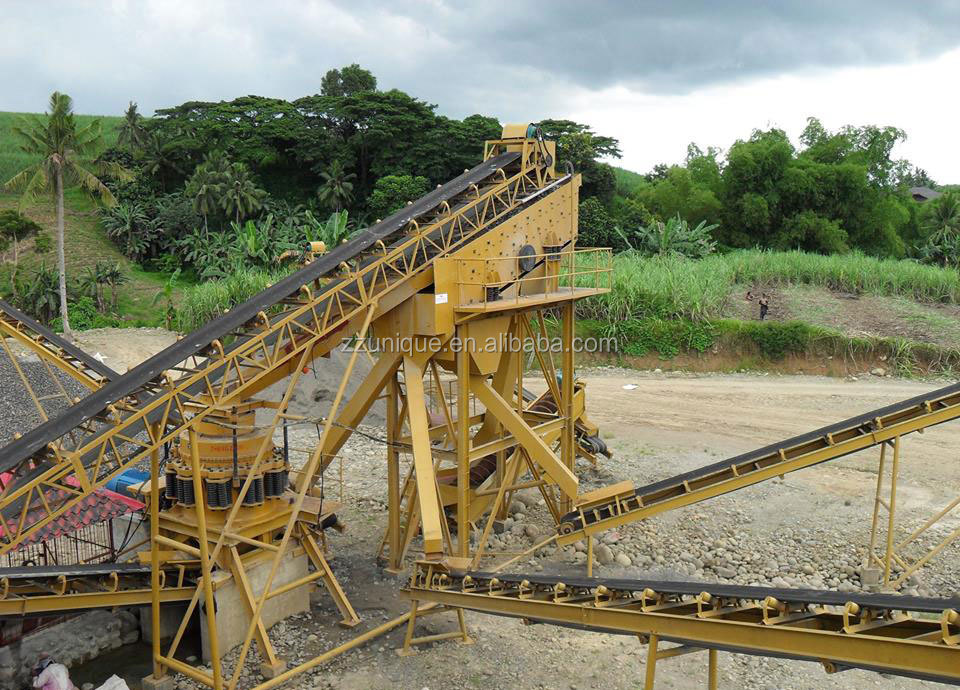

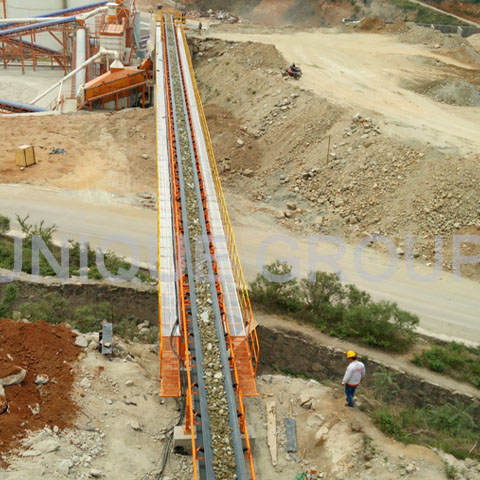

Sandstone yard, mining, metallurgy, mineral processing, coal mining and other industrial sectors.
River pebble, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.
Generally, this philosophy calls for belt cleaners that are:
The belt shall be electrostatic prevention belt or ordinary belt. The line support can adopt alumina or steel structure. The line can realise straight convey, turning, upslope or downslope convey as well as continuous convey, interval convey, convey at adjustable speeds by the support of control system. The belt conveyer can be used under ambient temperature of -20°C~+40°C and the temperature of materials shall be below 50°C.

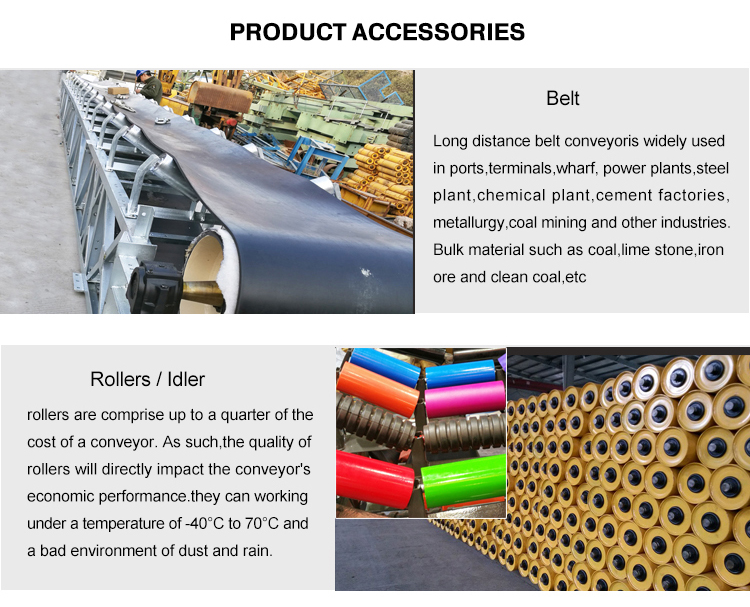

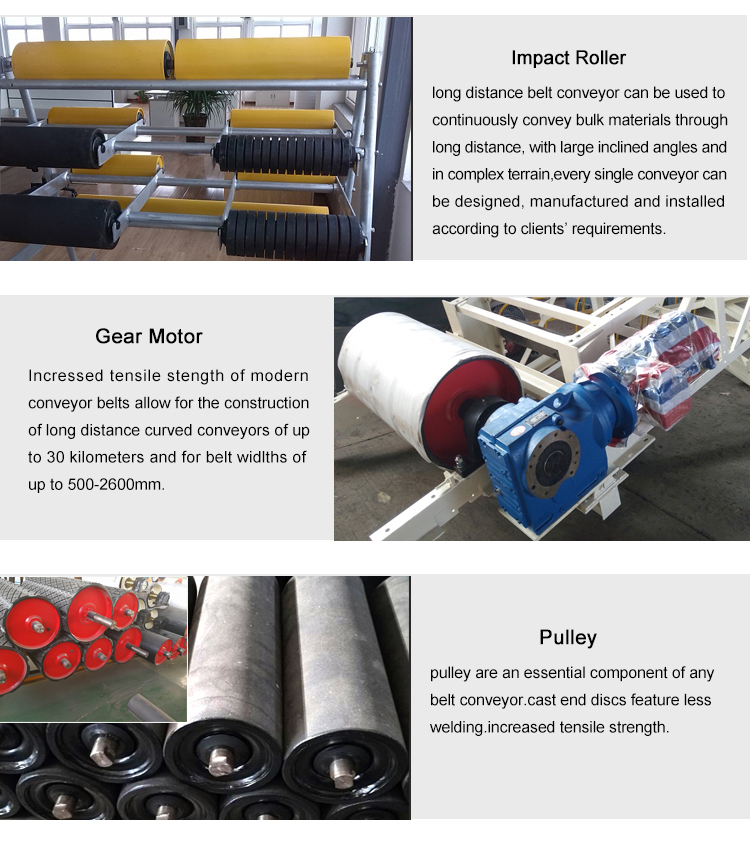

Belt conveyor is mainly composed of frame, conveyor belt, belt roller, tensioning device and transmission device. The fuselage is made of high-quality steel plates, and the frame is formed by the height difference of the front and rear legs, and the plane is inclined at a certain angle. The frame is equipped with belt roller, roller and so on, which is used to drive and support the conveying belt. There are two modes of motor drive and motor drum drive.
| Belt Width (mm) | Belt Length (m) / Power (kw) | Belt Speed (m/s) | Capacity (t/h) | ||
|---|---|---|---|---|---|
| 400 | ≤12 / 1.5 | 12-20 / 2.2-4 | 20-25 / 3.5-7.5 | 1.3-1.6 | 450-80 |
| 500 | ≤12 / 3 | 12-20 / 4-5.5 | 20-30 / 5.5-7.5 | 1.3-1.6 | 45-100 |
| 650 | ≤12 / 4 | 12-20 / 5.5 | 20-30 / 7.5-11 | 1.3-1.6 | 70-120 |
| 800 | ≤6 / 4 | 6-15 / 5.5 | 15-30 / 7.5-15 | 1.3-1.6 | 120-180 |
| 1000 | ≤10 / 5.5 | 10-20 / 7.5-11 | 20-40 / 11-12 | 1.3-2.0 | 160-250 |
| 1200 | ≤10 / 7.5 | 10-20 / 11 | 20-40 / 15-30 | 1.3-2.0 | 200-400 |

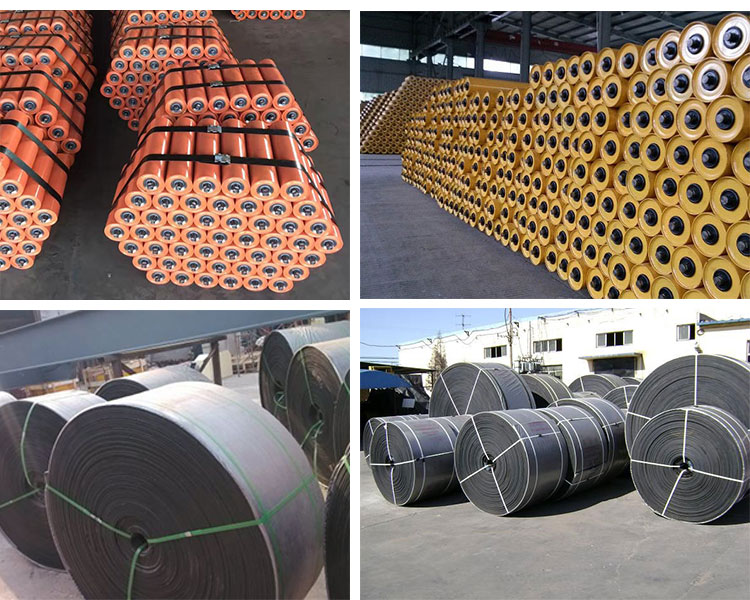

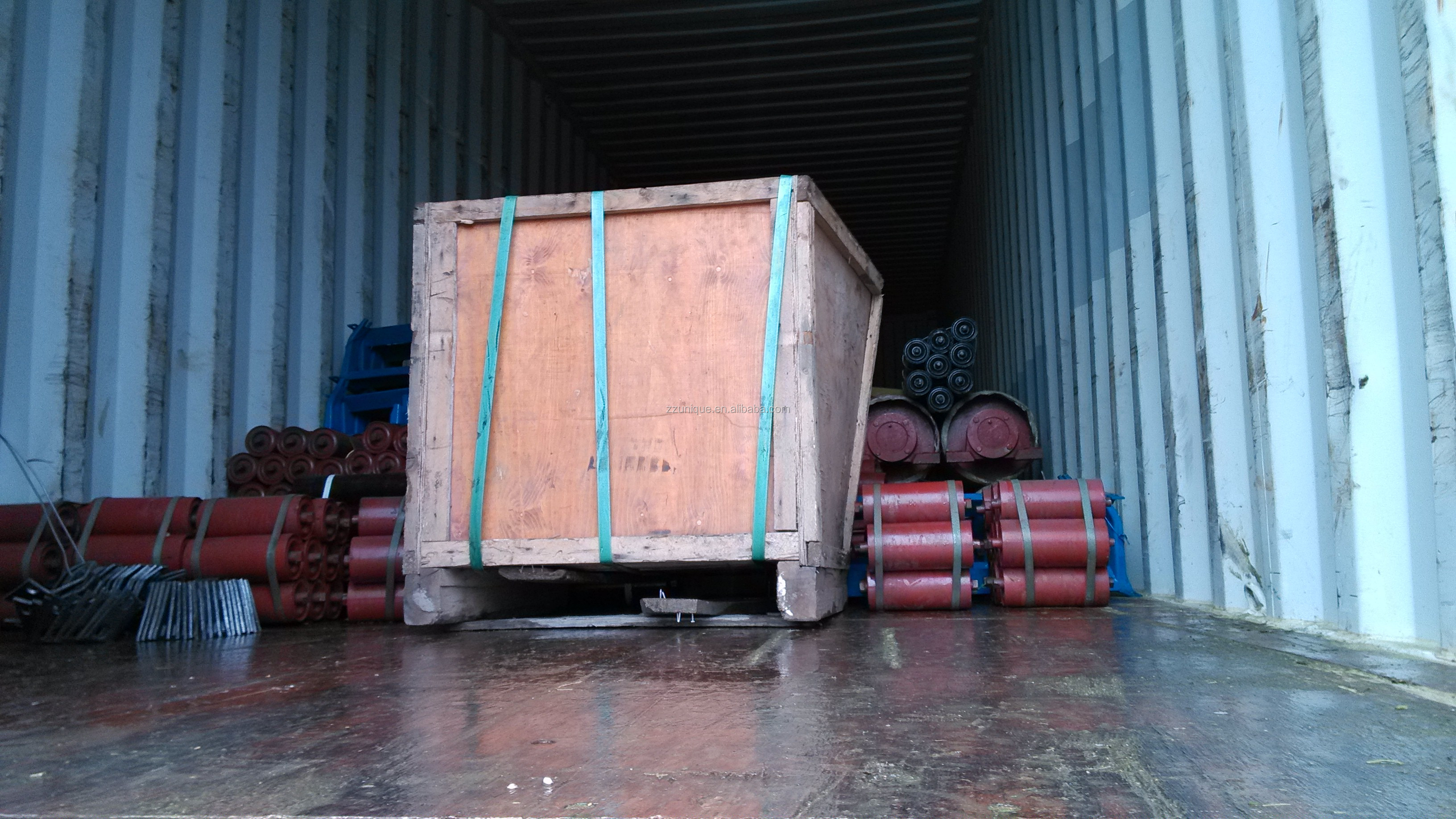

Packaging: standard Container, standard Packs or in Bulk. The electrical motor or spare parts will be packed by wooden case or steel frame. Various ways of package are offered, including fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Workers make sure all equipment are steady and fixed before closing the door of the container, ensuring there will be no damage during transportation and shipment.
Shipping: cargo is delivered to main sea ports, such as Qingdao, Tianjin, Shanghai etc. And then the container will be transported to your country by sea.
Normally, equipment spares will be offered at manufacturing cost for at least 10 years after the order is placed. To establish long term cooperation, clients are contacted regularly by call and email to check the equipment working condition, offer suggestions for maintenance, and if necessary, visits will be paid to solve the problems caused during equipment working.
