| Model | HN-R001 |
| As your requirements or pallet size | CPG or SEW brand |
| Roller diameter | 76 or 89mm |
| Roller material | Galvanized steel |
| Load Capacity | 2000kg |
| Table height | 500mm (50mm adjustable also can be customized) |
| Voltage | 220V-480V 3phase |
| Motor power | 0.75-1.5KW 50HZ/60HZ |
| Conveyor length | As your requirements or depend on your pallet size |
| Conveyor speed | 10-15m/min |
| Warranty period | one year |
| Control system | As Required |
| Drive type | Motor driven |

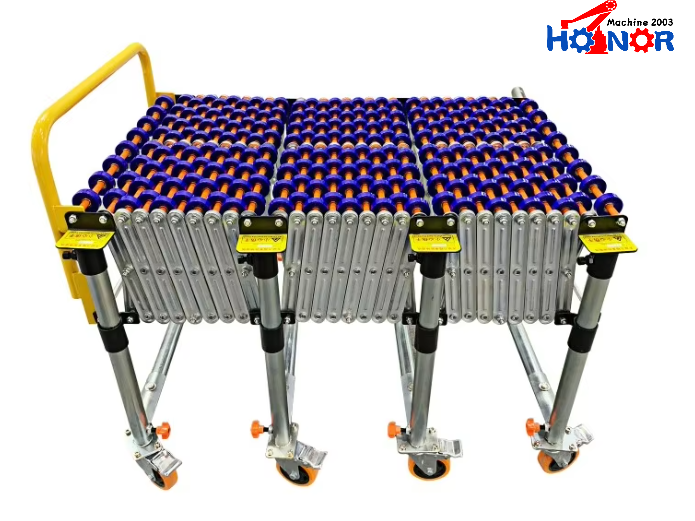

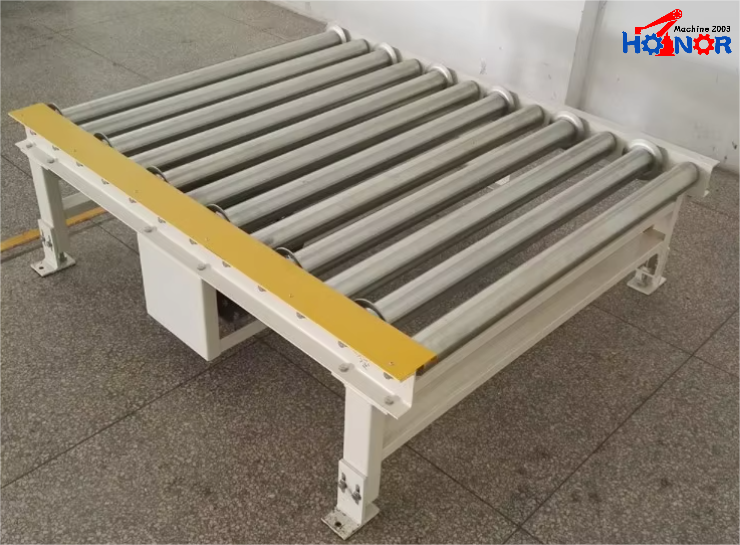

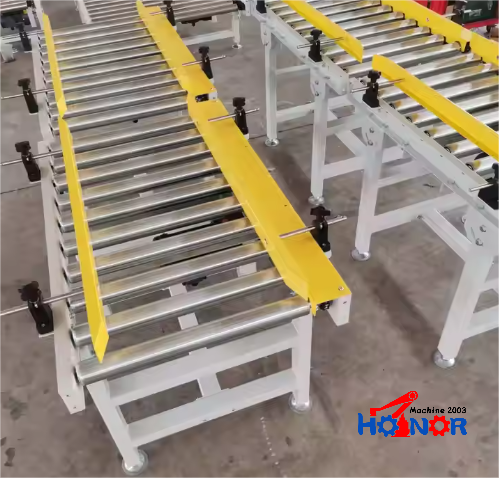

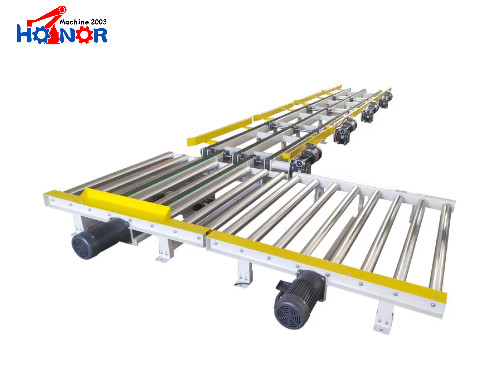

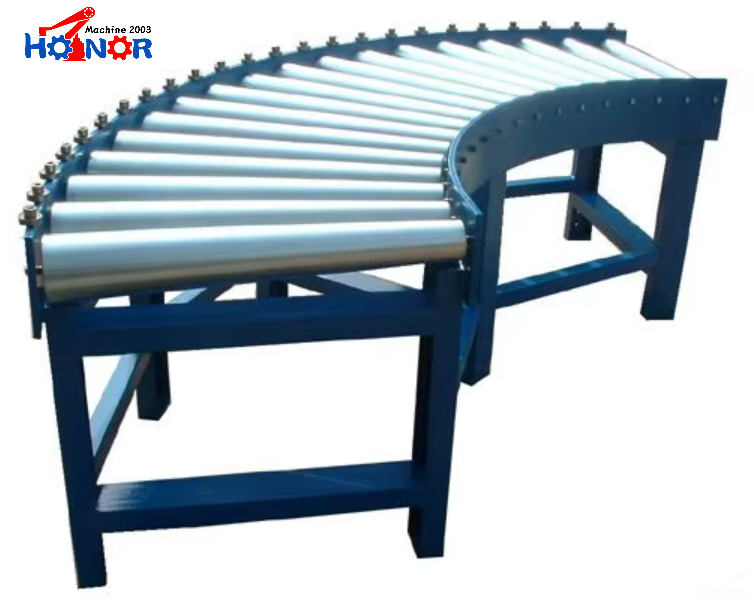

ROLLER CONVEYORS HIGH RELIABILITY, EASY TO USE AND MAINTAIN. ROLLER CONVEYORS CAN BE DIVIDED INTO POWER CONVEYORS AND UNPOWERED CONVEYORS ACCORDING TO THE CONVEYING MODE.

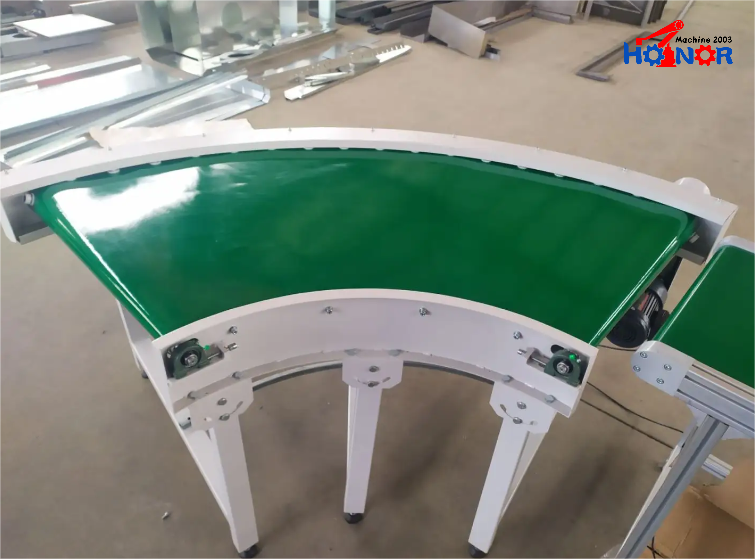

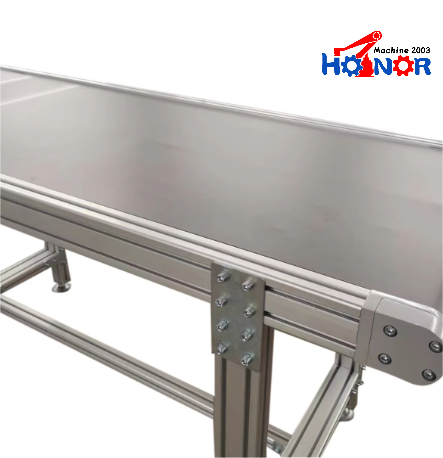

IT HAS HIGH EFFICIENCY, LONG TRANSPORTATION DISTANCE. THE BELT CONVEYOR HAS LOW POWER CONSUMPTION AND STABLE AND RELIABLE.

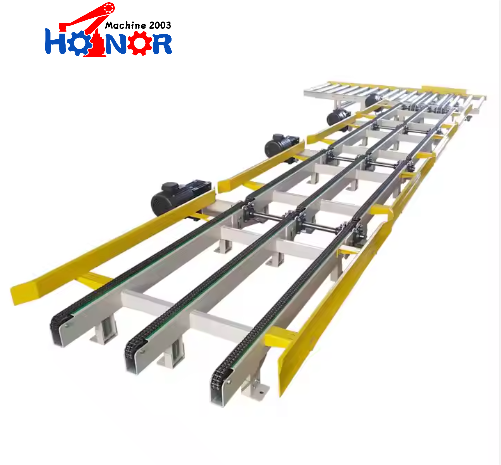

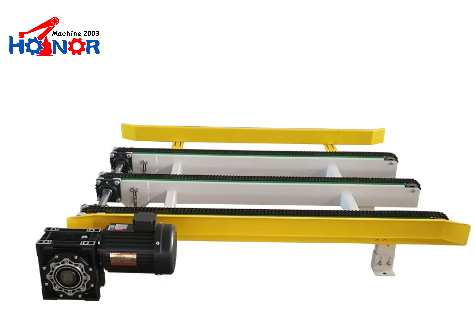

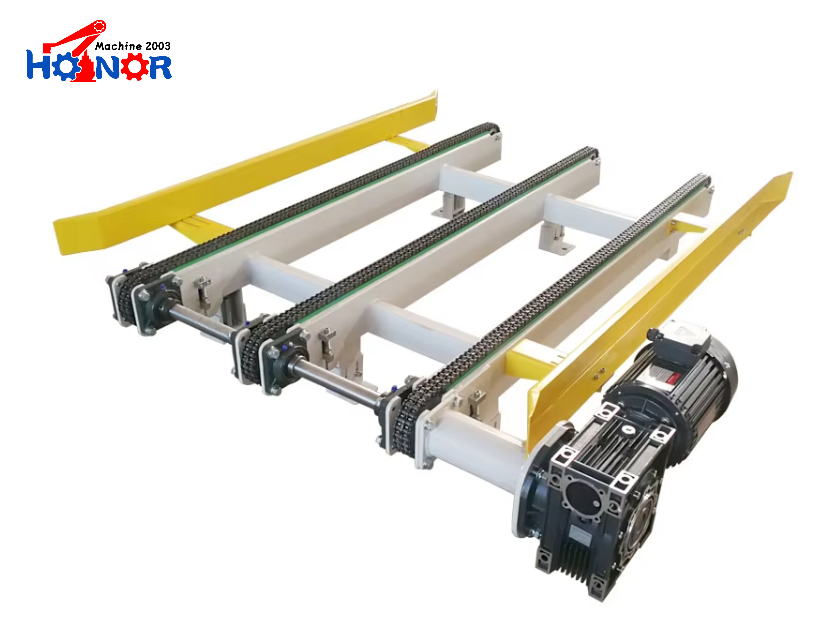

CHAIN CONVEYOR COMES WITH 3 STRANDS OF 1500 mm LENGTH 10A (15.875 mm Pitch) DUPLEX ROLLER CHAINS. GUIDED BY UHMWPE CHAIN TRACK, DRIVEN BY 1.5 Kw GPG / CPG MOTOR AND MADE UP OF 100 mm x 50 mm x 4.0 mm POWDER PAINTED STEEL RECTANGLE TUBE FRAME, LOAD CAPACITY OF THIS MODEL IS UP TO 2000 kg.

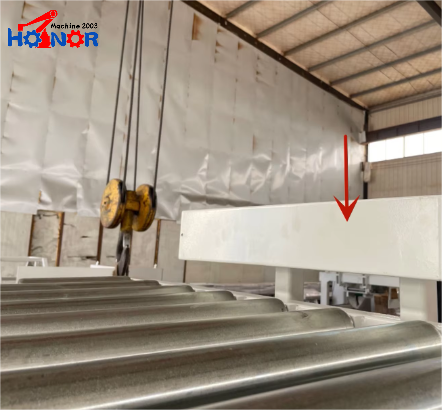

THE ADVANTAGES OF LOW MODIFICATION COST AND HIGH EASE OF USE. A BAFFLE IS PROVIDED AT THE END OF THE CONVEYING SURFACE OF THE CONVEYING DEVICE.

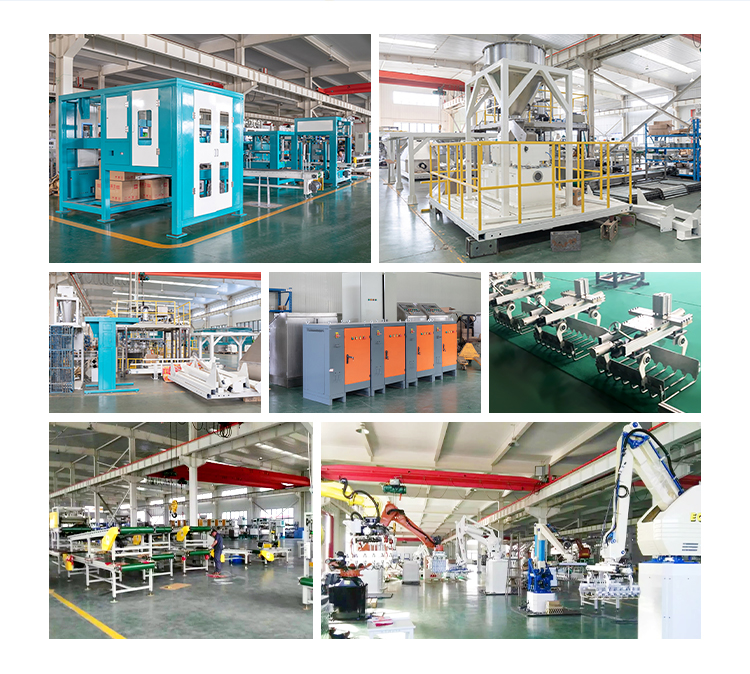

Our company has more than 20 years of grain dryer, packing machine, and palletizing robot experience. We maintain strong R&D capabilities with a dedicated staff of more than 500 people, including over 60 technology and research & development specialists.

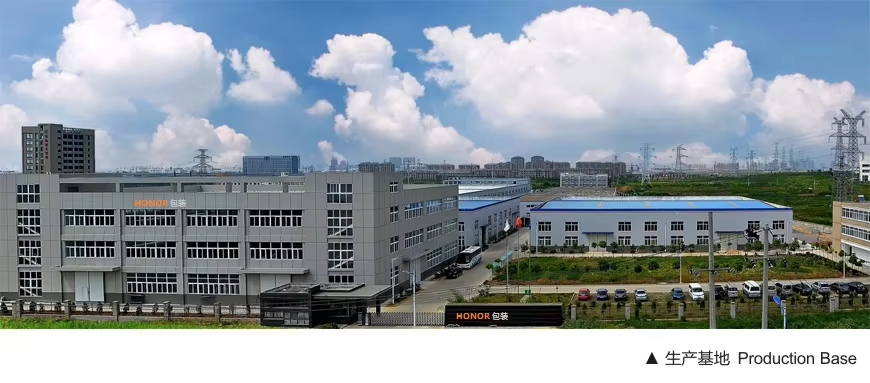

Founded in 2003, we are a professional packing machine, conveyor, and palletizing robot manufacturer in China. We welcome customers to visit our factory.
We are specialized in automated packing and palletizing line research, development, production, sales, and service. Our R&D institutions cover automation technology, electronic technology, mechanical design, and other fields, forming a highly qualified talent team with strong development capabilities.

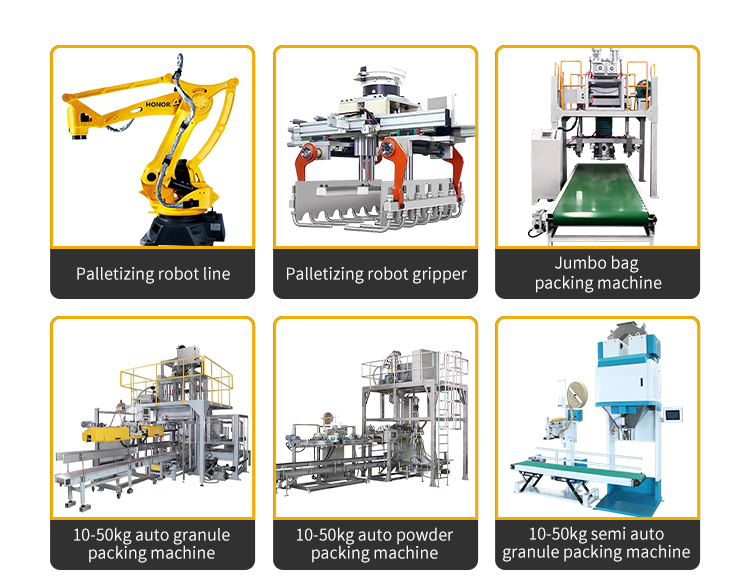

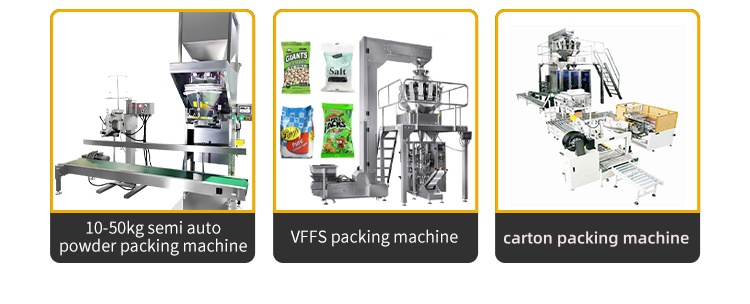

We have successfully developed full automatic, semi-automatic, and automatic packing machine systems, forming complete sets of automated assembly line products. These solutions are widely applied in chemical industries, building materials, food, beverages, beer, automated logistics, and other fields.
