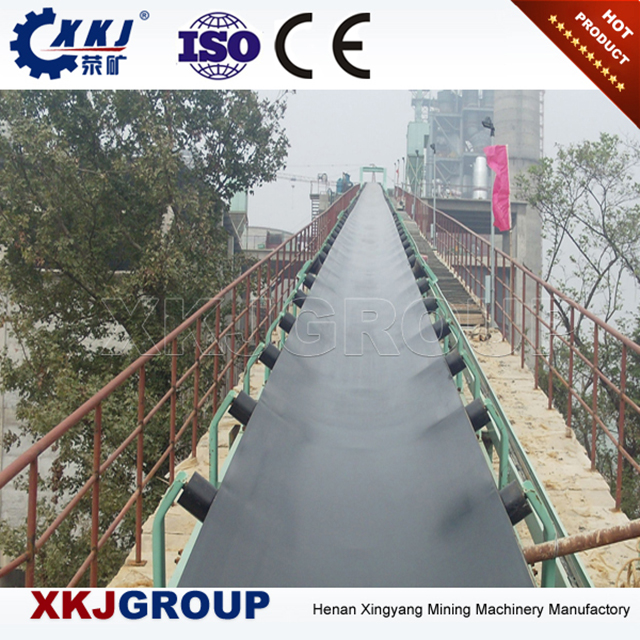

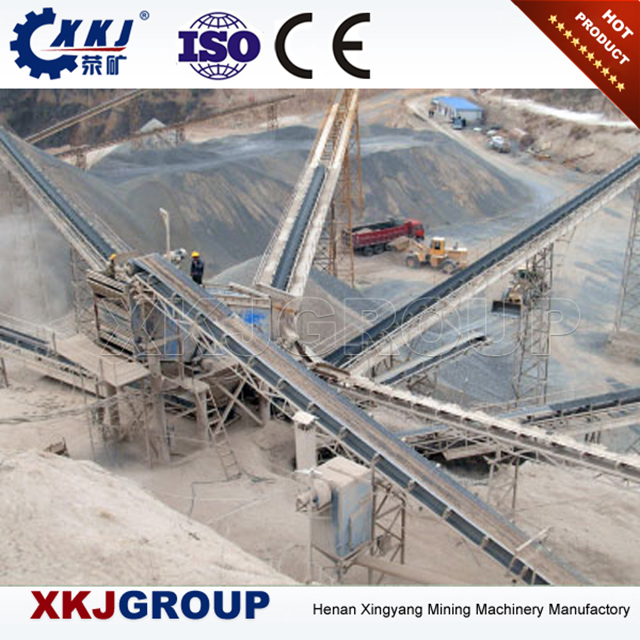

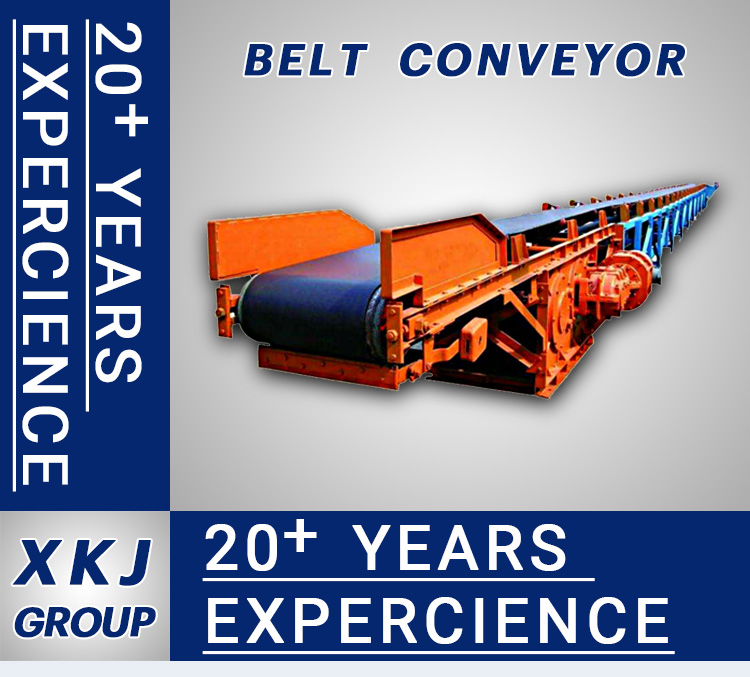

Belt conveyor is a kind of friction driven to transport materials in a continuous way machinery.
It can put the material on a certain conveying line and form a conveying process of material from the initial feeding point to the final unloading point.

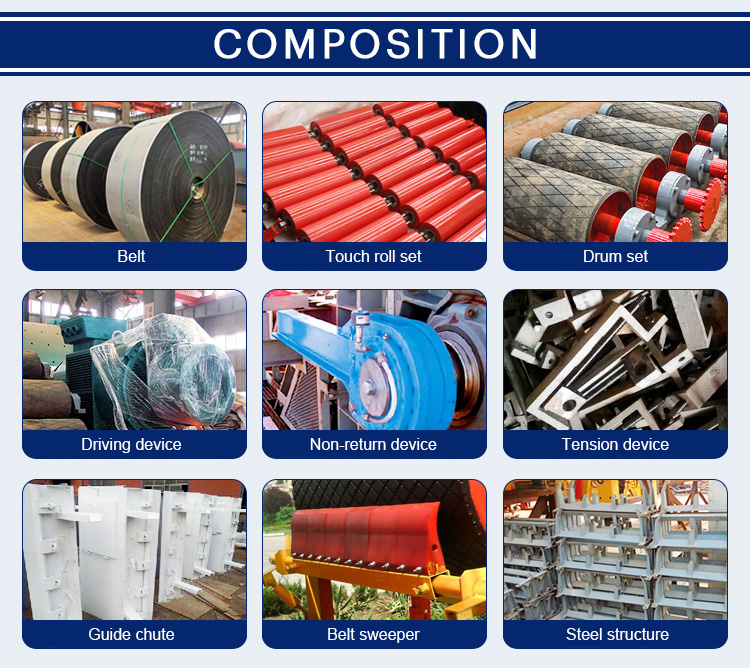

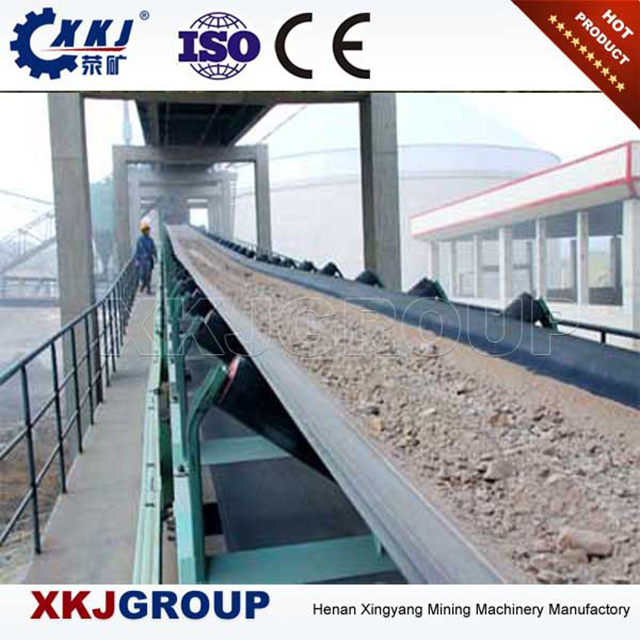

It is mainly composed of frame, belt, touch roll, drum, tensioning device, belt sweeper and driving device.
It also includes some paints and solvents for field repainting, oils and lubricants for commissioning, and consumables, wearing parts and special instruments for installation and commissioning.

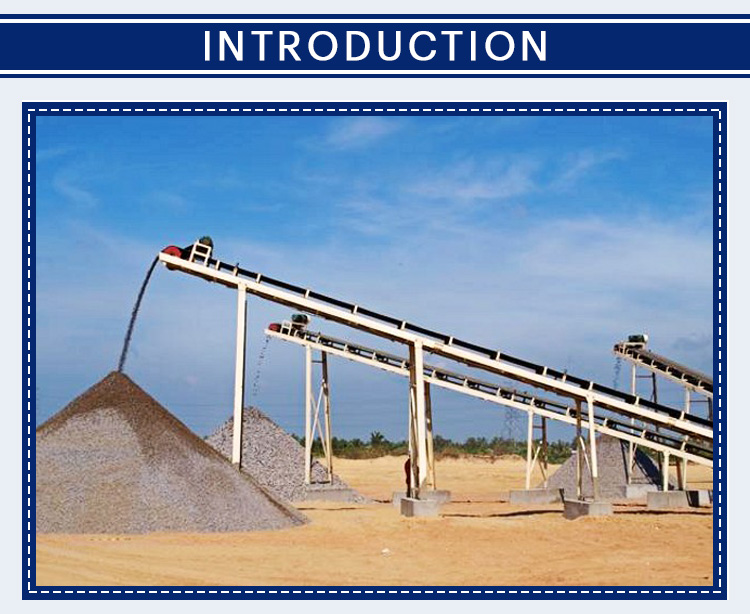

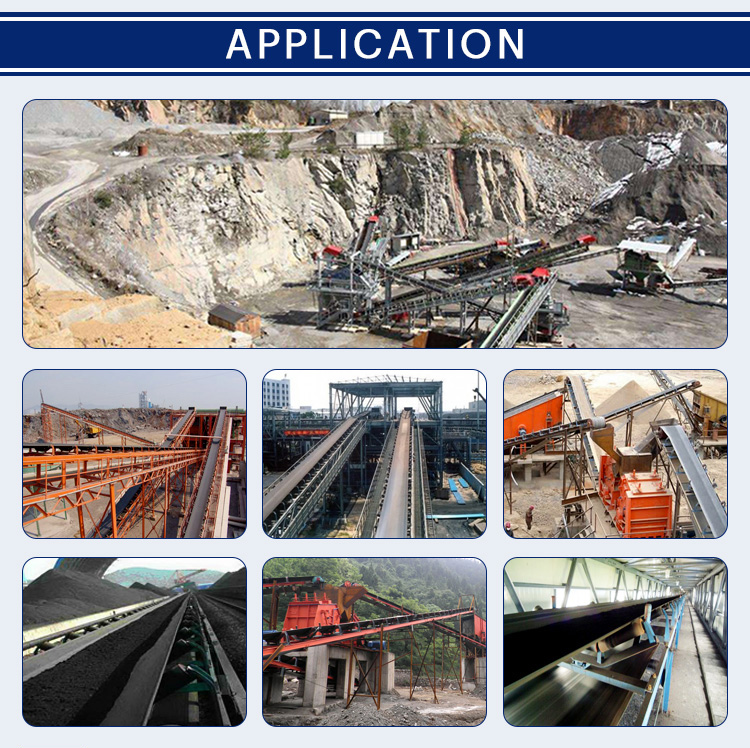

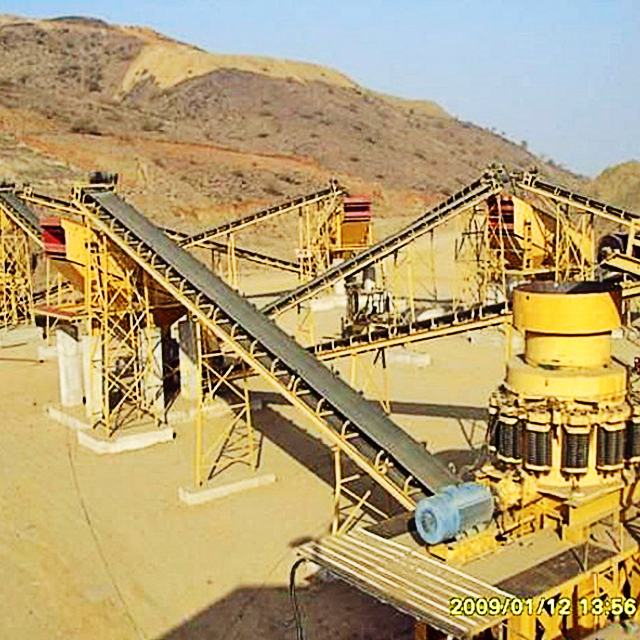

It can be used for horizontal transport or inclined transport, the use is very convenient, widely used in a variety of modern industrial enterprises, such as: quarry, construction industry, concentrator, coal industry, chemical industry and so on.
| Touch roll form | Belt speed (m/s) | Belt width (mm) | |||||
|---|---|---|---|---|---|---|---|
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Capacity (t/h) | |||||||
| Groove touch roll | 0.8 | 78 | 104 | / | / | / | / |
| 1.0 | 97 | 131 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 318 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 646 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 551 | 1033 | 1556 | 2118 | |
| 3.15 | / | / | 824 | 1233 | 1858 | 2528 | |
| 4.0 | / | / | / | / | 2202 | 2995 | |
| Parallel touch roll | 0.8 | 41 | 67 | 118 | / | / | / |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 558 | 753 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
1. Throughput in the table is in the material density of 1-1.6 t/m³, conveyor angle ≤18°, condition of material accumulation angle of 30 °.
2. The density of transportable material is below 2.5t/m³.
3. Delivery length is not limited to the values listed in the table, can be designed according to customer requirements.

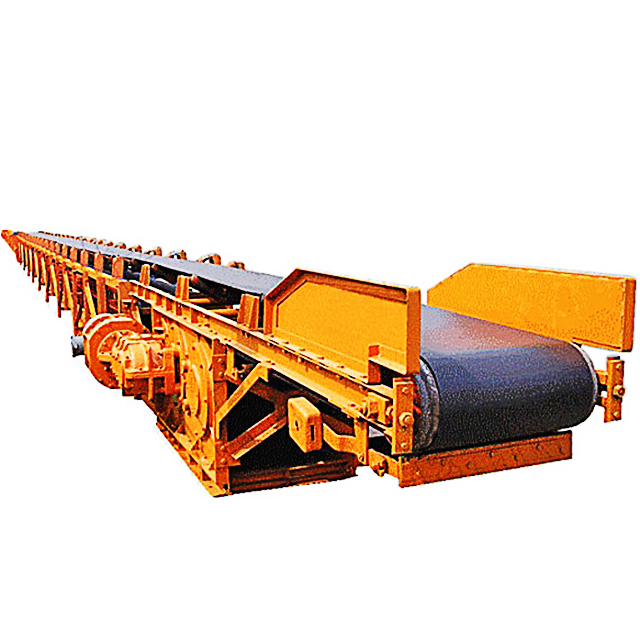

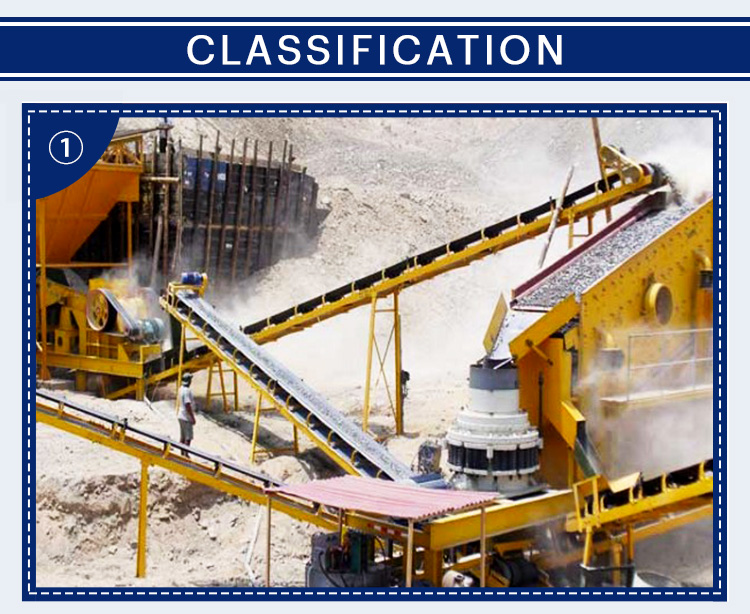

Heavy belt conveyor, also known as mine belt conveyor, is mainly used in conveying ore, sand, coal powder, cement and other materials.
Mining heavy belt conveyor has big dust and serious pollution, belt machine can be equipped with dust removal equipment to achieve dust-free transport, in the high pressure of environmental protection, to ensure that users normal production operations.

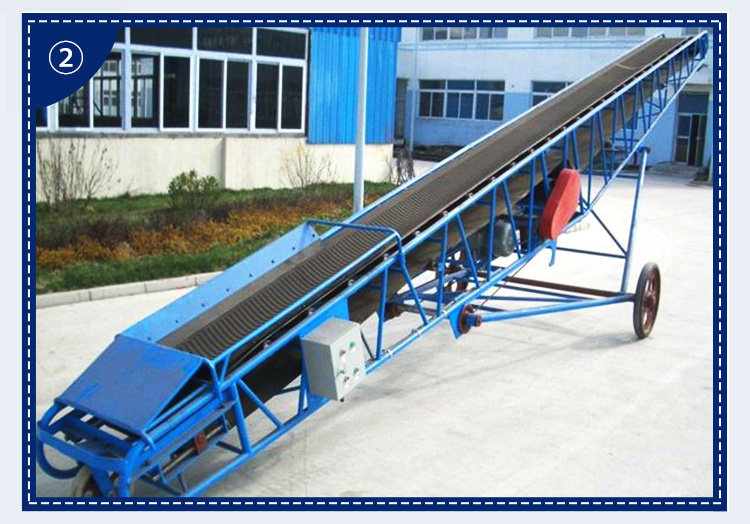

Mobile belt conveyor is composed of body frame, walking wheel, universal wheel, lifting device, etc. It is widely used in indoor and outdoor loading and transferring operations of grain, bulk materials, light industry and packaging materials.
The main frame is made of steel tube to reduce its weight. The bottom of the frame is equipped with universal wheels, which can be moved at will according to the stacking position of materials.

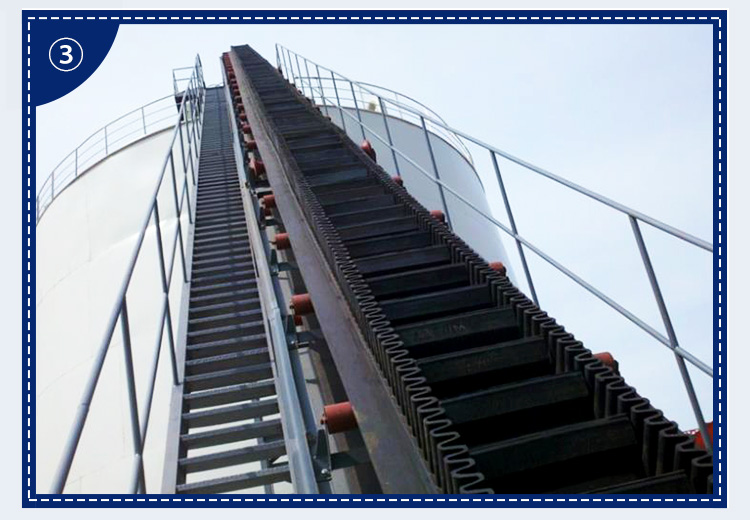

The most prominent advantage of the belt conveyor with large inclination angle is that it can be vertical conveying with high conveying height, occupies a small area and has a large conveying capacity. It is widely used in coal, grain, building materials, construction, metallurgy, electric power, chemical industry and light industry and other industries.
The high-angle belt conveyor adopts corrugated flanged conveyor belt, with the conveying height up to 203m and the conveying capacity up to 6000t/h.
The corrugated side conveyor belt is adopted to avoid spillage and leakage of materials during transportation.
Standard containers, bare main machine, motors and small parts are packed in wooden cases.
Within 45 days Qingdao, Shanghai, Tianjin and other ports.
