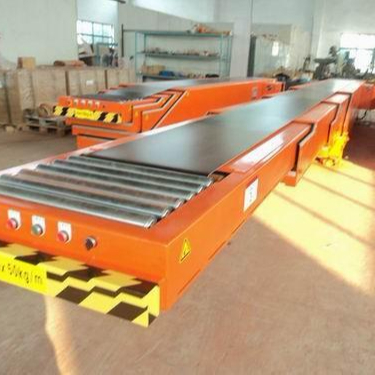

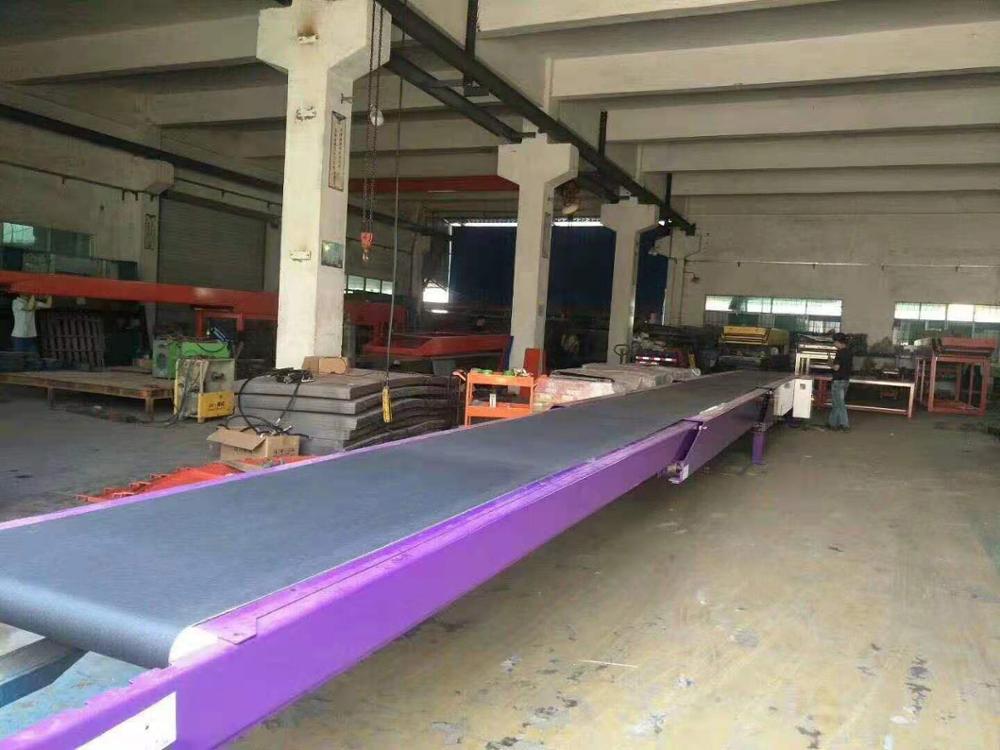

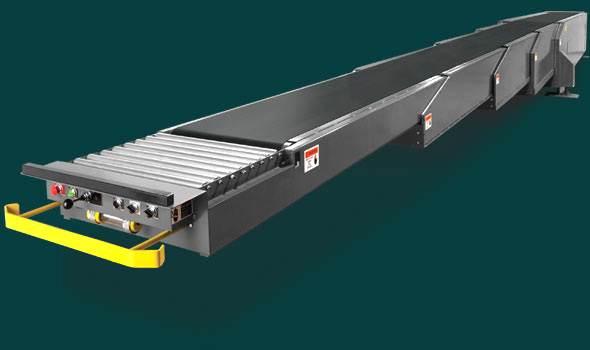

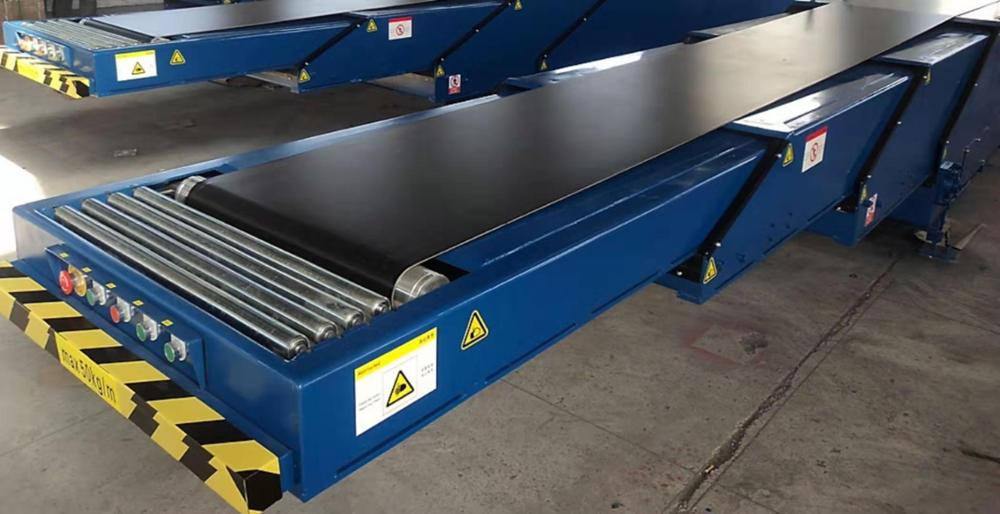

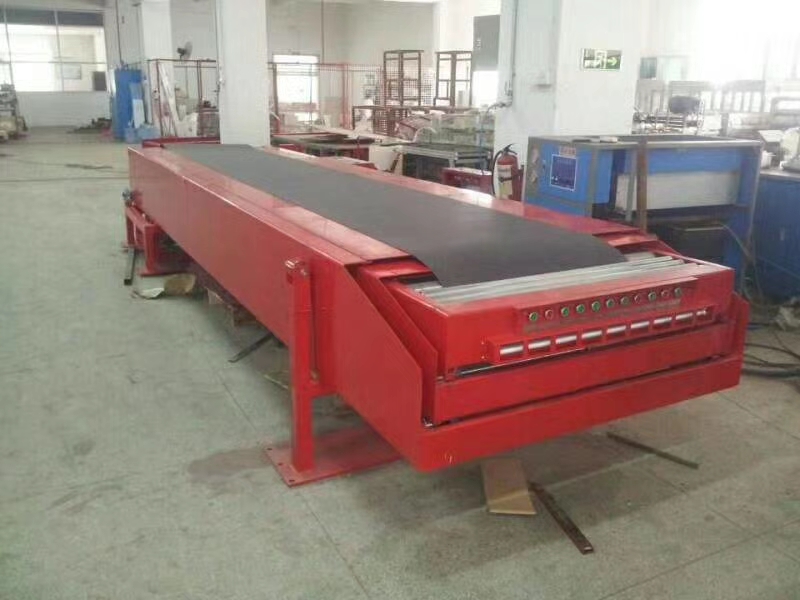

Telescopic conveyor, safe and efficient for loading and unloading. Its biggest advantage is providing ergonomic operating conditions, the operator could adjust the conveyor to achieve a perfect position via buttons and joystick control of its extending and retracting, loading and unloading easily and effectively. All actions will receive real-time feedback to the operator via electronics.
According to your vehicle cargo compartment length, we have several standard models for your option.
Product Features
Conveyor speed range: 10-40 meters/minute
Motor Power: 1.5KW / 0.75KW
Capacity: no more than 60KG/meter
Belt material: PVK 3.0
Fast loading and unloading

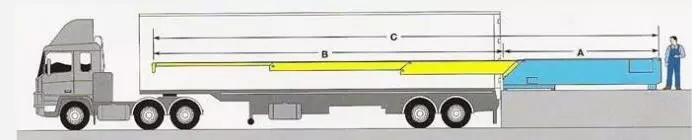

Model Specifications
Model
Section
A(mm)
B(mm)
C(mm)
Belt-W(mm)
JS-M2-5/4
2-section
5000
4000
9000
500/600/800
JS-M3-5/7
3-section
5000
7000
12000
500/600/800
JS-M3-6/8.5
3-section
6000
8500
14500
500/600/800
JS-M3-7/10
3-section
7000
10000
17000
500/600/800
JS-M4-6/12
4-section
6000
12000
18000
500/600/800
JS-M4-7/14
4-section
7000
14000
21000
500/600/800

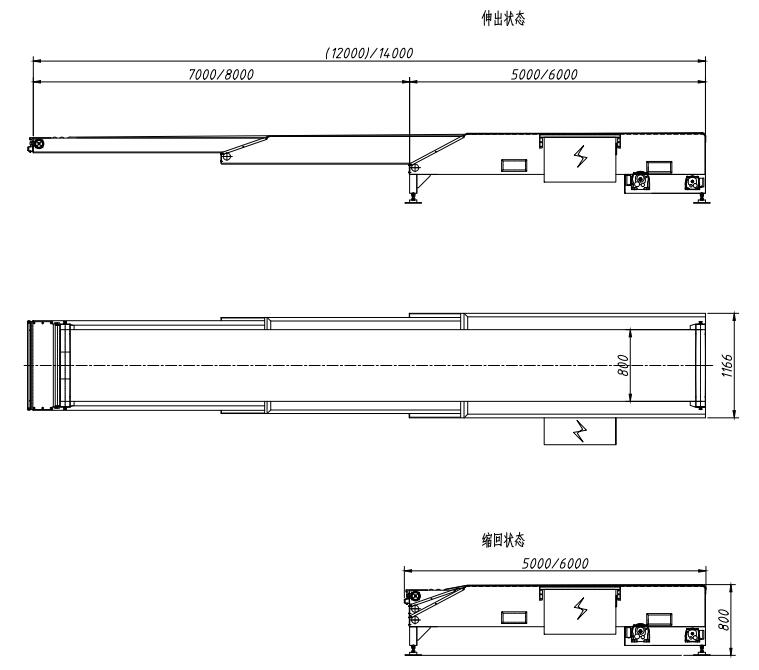

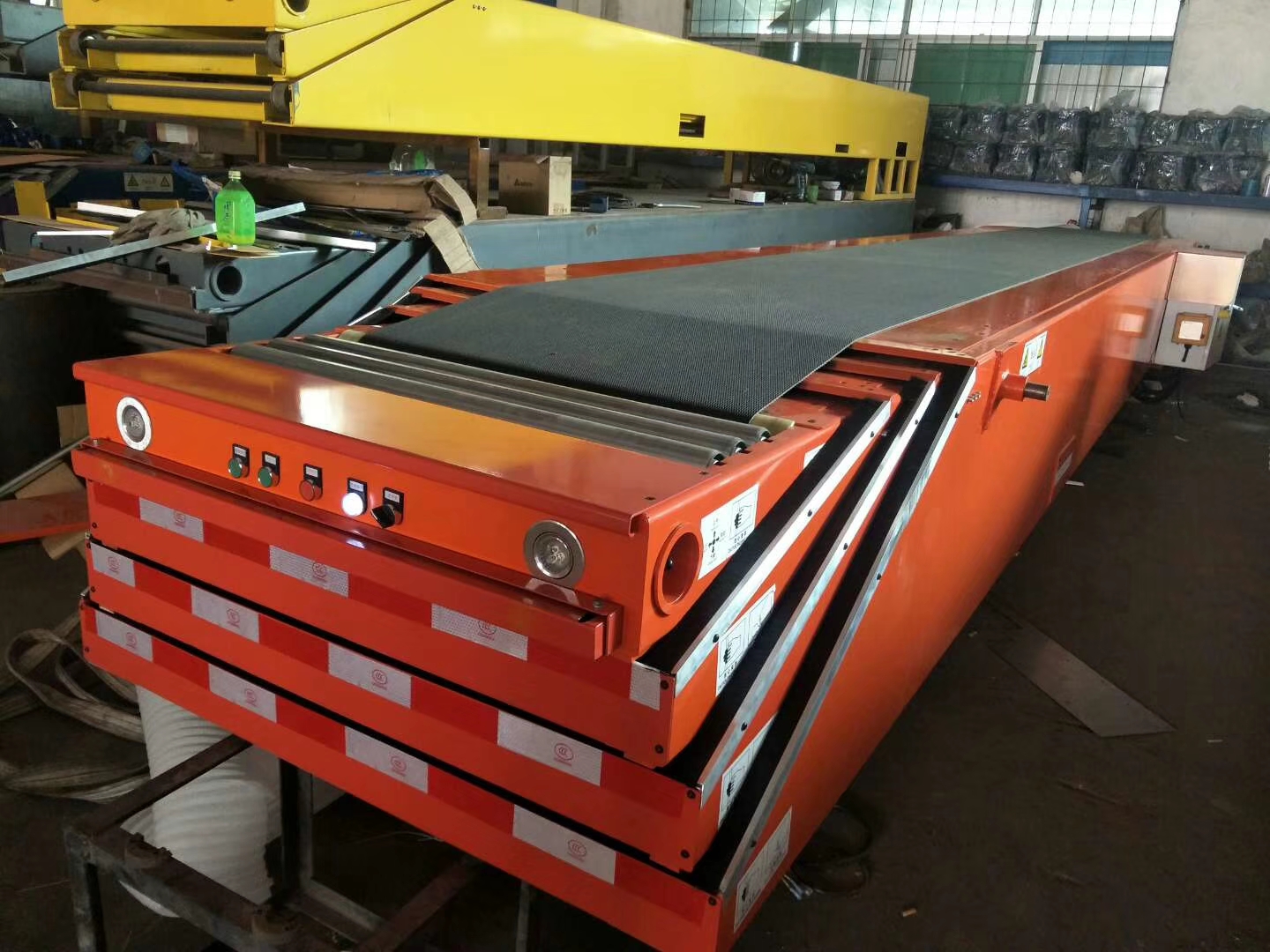

Drawing & Pictures

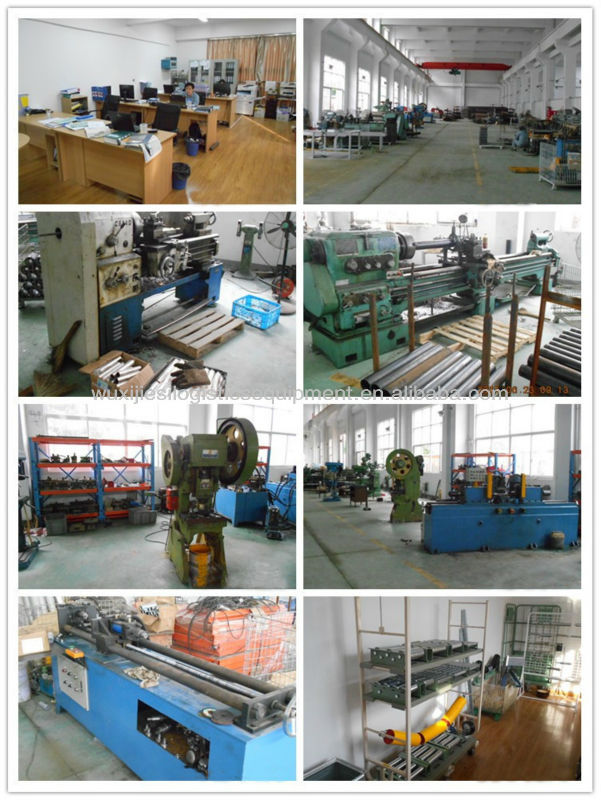

Workshop and Machine
How to choose the right roller conveyor for your warehouse or workshop, please follow:
1. What is the conveying working environment?
Frequently Asked Questions (FAQ)
QWhat is a telescopic conveyor used for?
A telescopic conveyor is designed for efficient and safe loading and unloading of vehicles. Its extendable and retractable mechanism allows it to reach directly inside truck trailers or cargo compartments to facilitate ergonomic manual handling.
QWhat is the maximum load capacity of the telescopic belt conveyor?
The maximum load capacity of these standard telescopic conveyor models is designed to handle no more than 60 KG per meter.
QWhat speed range does the conveyor support?
The conveyor belt speed is adjustable, offering a range of 10 to 40 meters per minute to match different workflow demands.
QWhat sizes and models are available for selection?
We offer various standard models ranging from 2-section to 4-section setups, with total extended lengths from 9,000mm up to 21,000mm, and adjustable belt widths of 500mm, 600mm, or 800mm.
QWhat materials are used for the conveyor belt?
These units are built using PVK 3.0 belt material, which is highly durable and optimized for continuous loading and unloading applications.
QHow do I choose the correct conveyor layout for my facility?
You should consider your working environment, the specifications of the items being moved, and the dimensions of your vehicle cargo compartments to select the appropriate model and section type.
