| Model NO. | conveyor modular belt |
| Inside Material | POM PP |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Tensile Strength | Strong |
| Designe Standard | Food Standard Conveyor Belt |
| Warranty Period | 1 Year |
| Business Type | Manufacturer |
| Certificate of Equipment | SGS/FDA |
| Transport Package | by Wooden Box |
| Specification | different width can be customized |
| Origin | China |
| HS Code | 3925900000 |
| Production Capacity | 5000 Sqm Month |

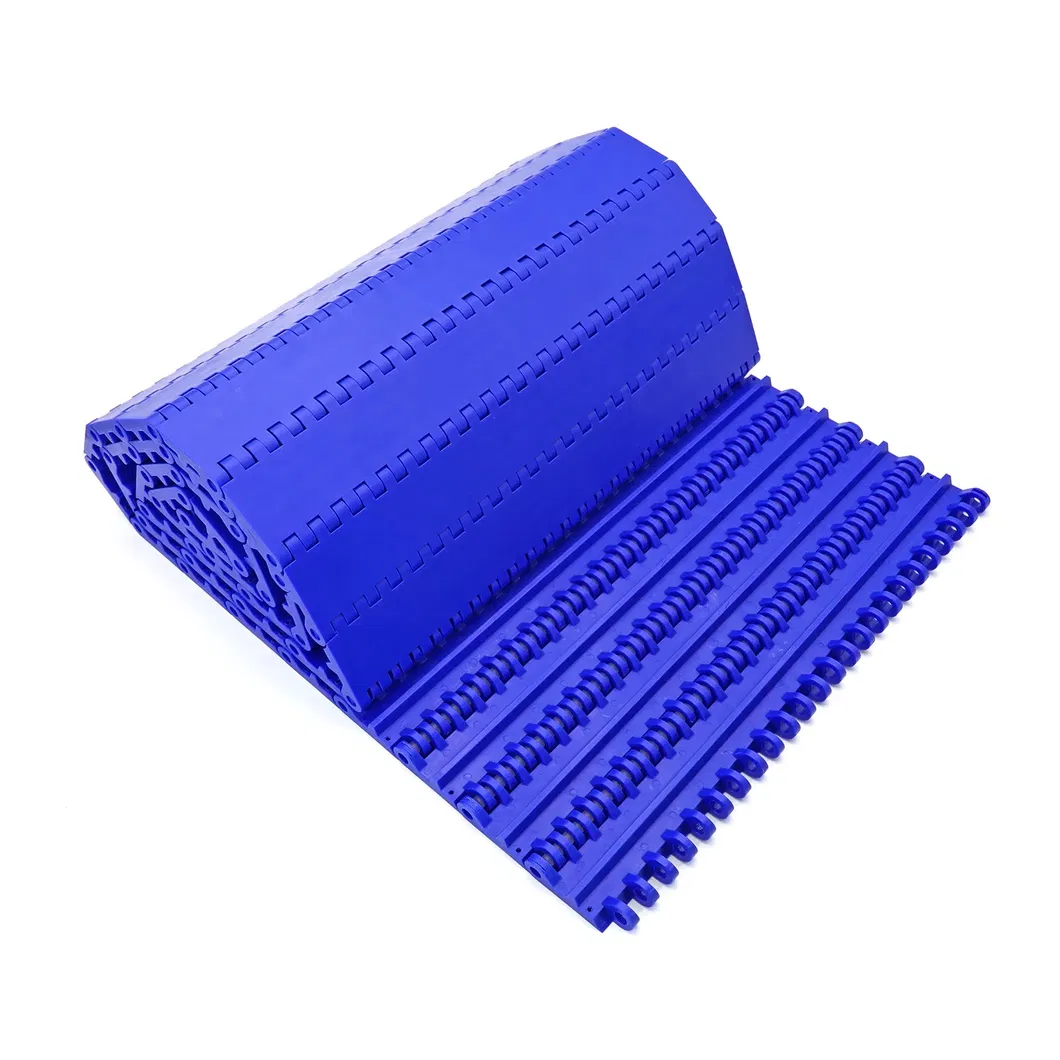

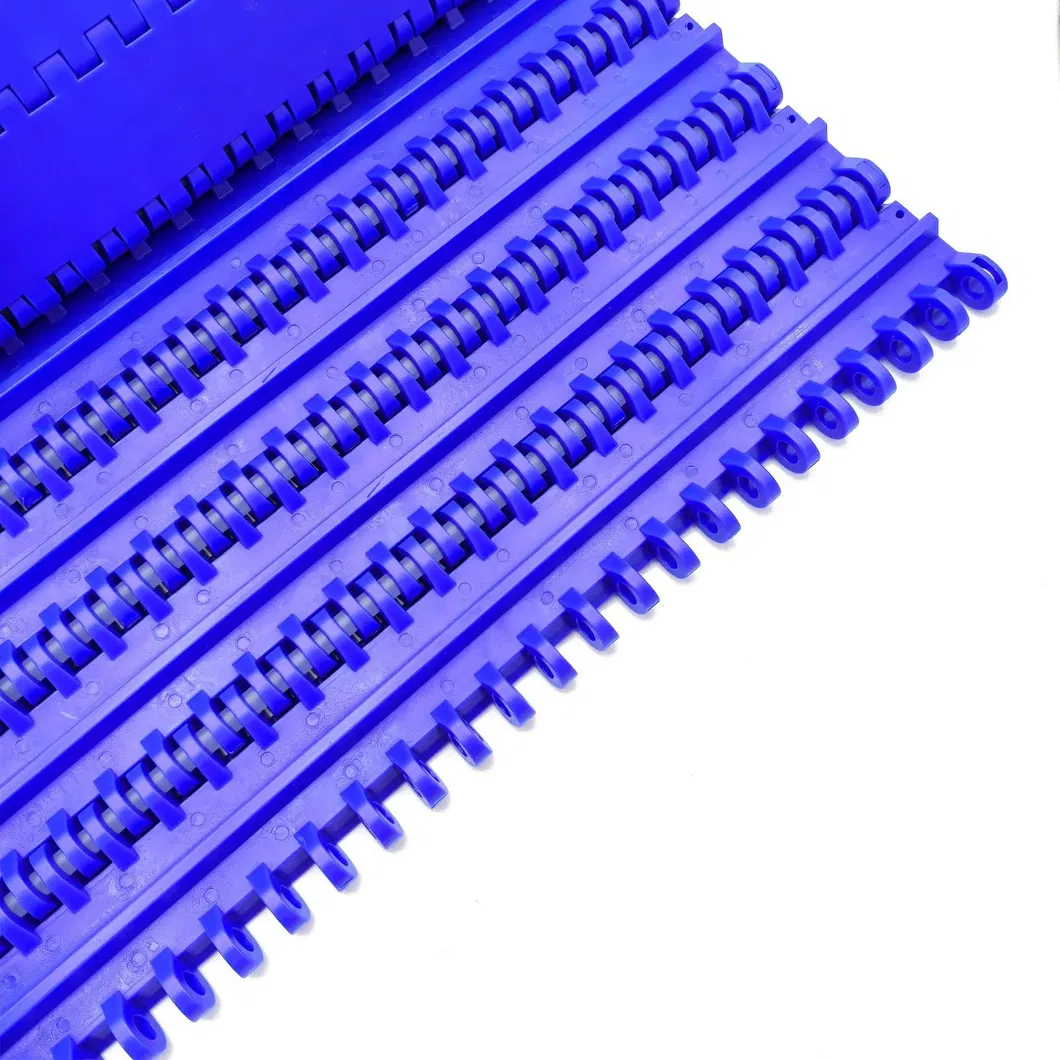

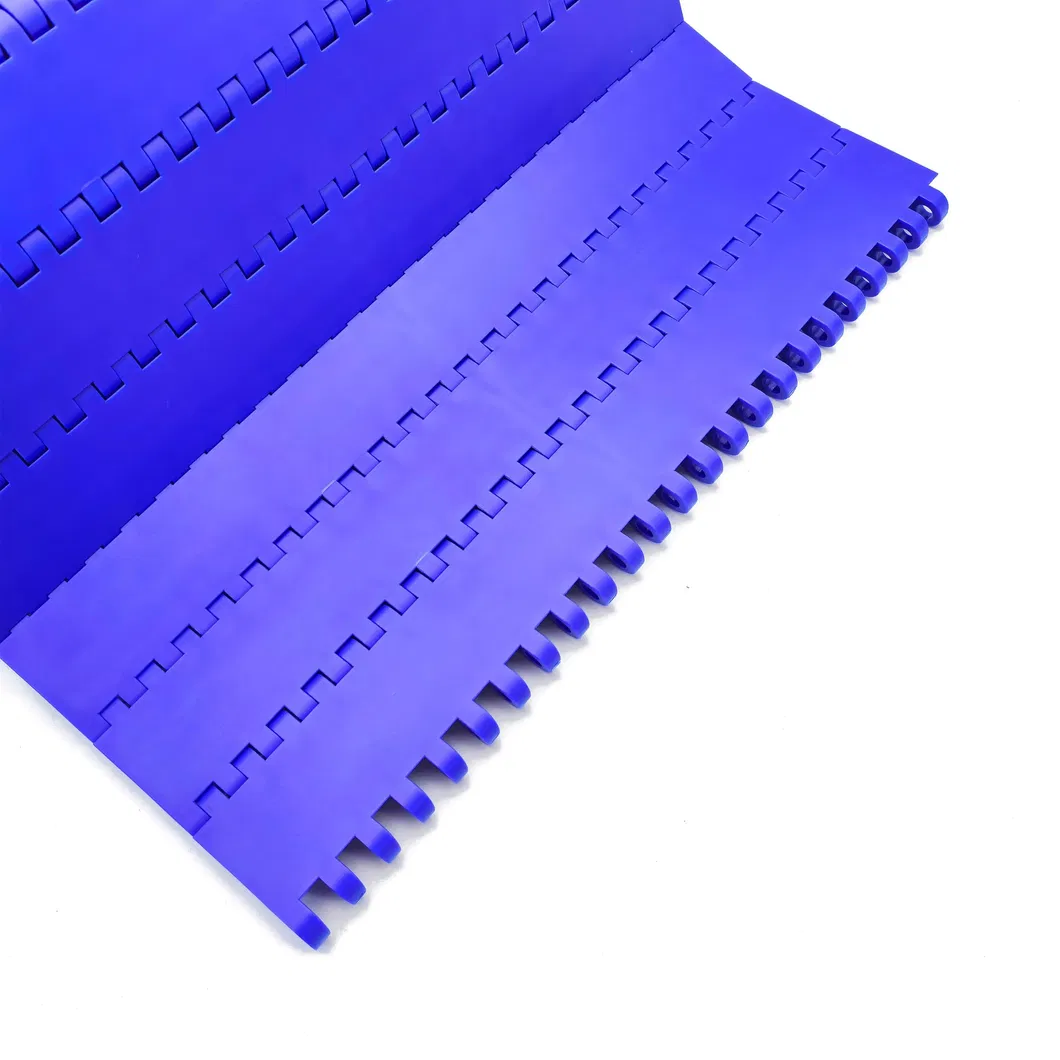

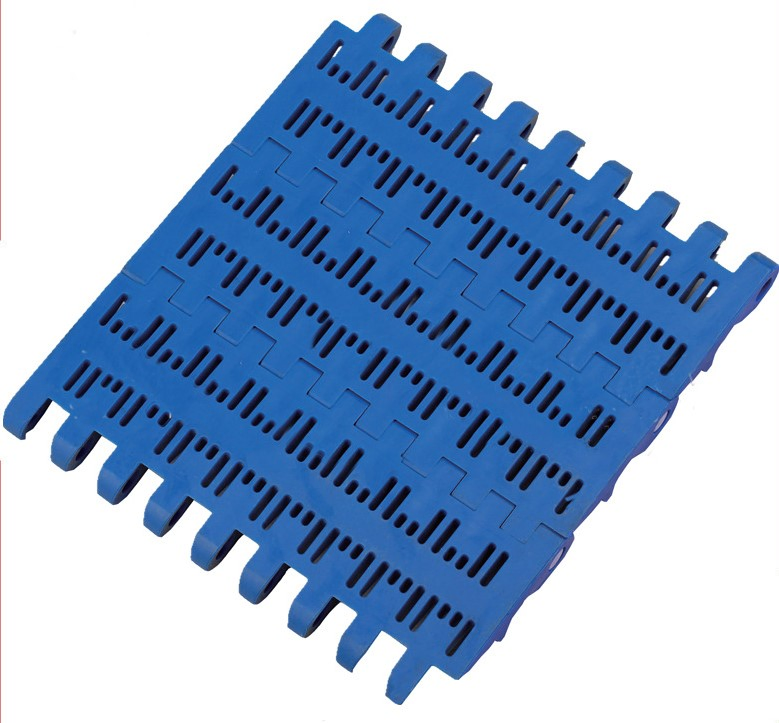

The 800 Series Modular Belt is a premium-quality modular plastic conveyor belt designed to meet the demanding requirements of modern automated conveying systems. Manufactured by a professional modular belt manufacturer in China, this product offers the perfect balance of durability, hygiene, and efficiency.
The 800 Series is one of our most popular modular belt models. It is suitable for food processing, beverage production, packaging, and factory automation. With strong mechanical performance and excellent chemical resistance, this belt delivers smooth conveying even under continuous, high-speed operations.
The modular structure allows easy maintenance and flexible customization, enabling customers to build or upgrade their conveyor lines according to specific layout requirements. Whether you are conveying bottled beverages, packaged foods, or industrial materials, the 800 Series Modular Belt ensures reliable, efficient, and long-lasting operation.

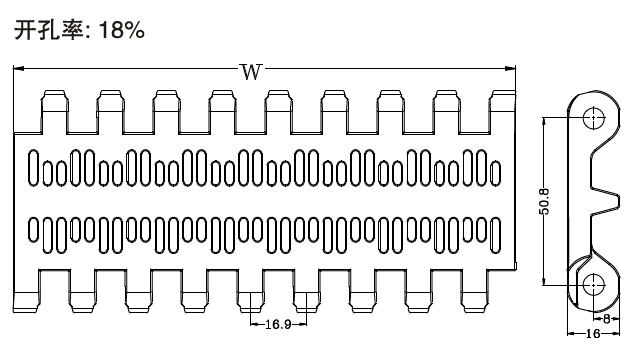

| Pitch | 50.8mm |
| Material | POM PP PE |
| Thickness | 16mm |
| Color | Blue, white, grey |
| Standard width | Multiple of 152.4mm |
| Optional width | Added by 16.9, 16.9...mm based on 152.4mm |

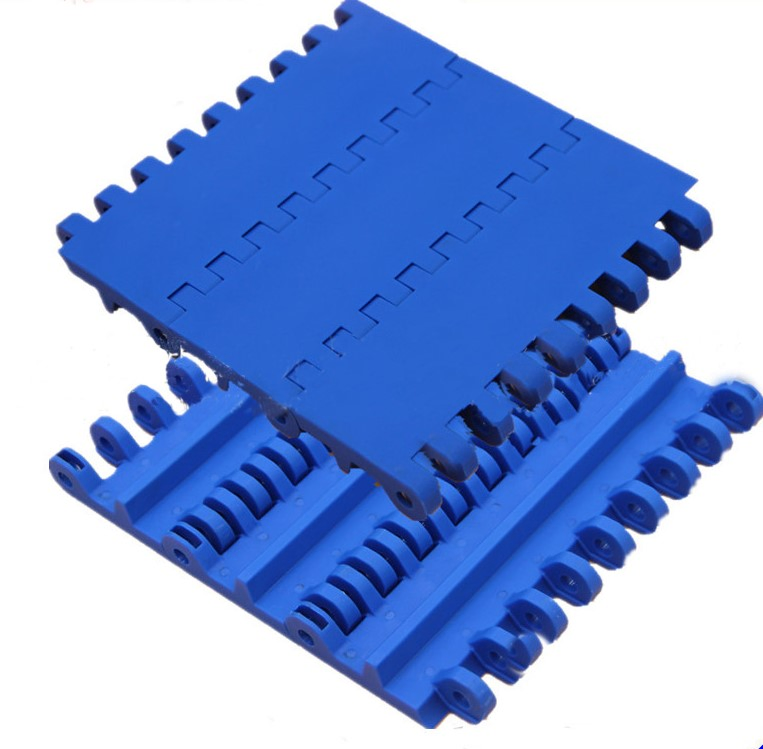

The 800 Series belt is composed of individual plastic modules connected by hinge pins. Each module can be easily replaced when damaged, eliminating the need to change the entire belt. This design reduces downtime, simplifies maintenance, and lowers overall operation costs.
Made from high-strength PP, PE, or POM materials, the modular belt offers excellent tensile resistance and stability. Its robust design ensures high load capacity and long service life, even under demanding production conditions such as beverage bottling or heavy packaging lines.
Precision-molded modules provide a flat and stable conveying surface. The belt runs smoothly and quietly, minimizing product damage and improving production comfort.
All materials used in the 800 Series Modular Belt comply with FDA and EU food contact standards, making it suitable for food and beverage applications where hygiene and safety are critical. The open-grid design allows quick cleaning and effective drainage, preventing residue buildup and bacterial growth.

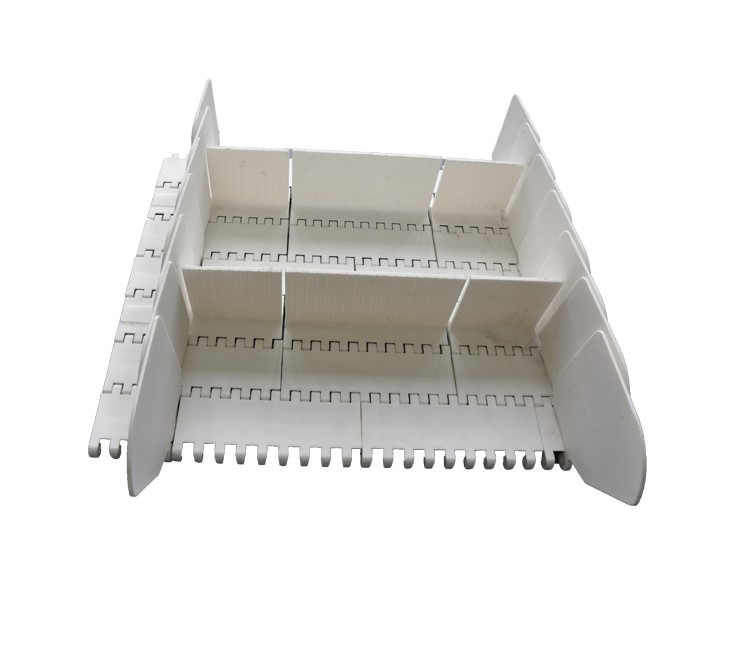

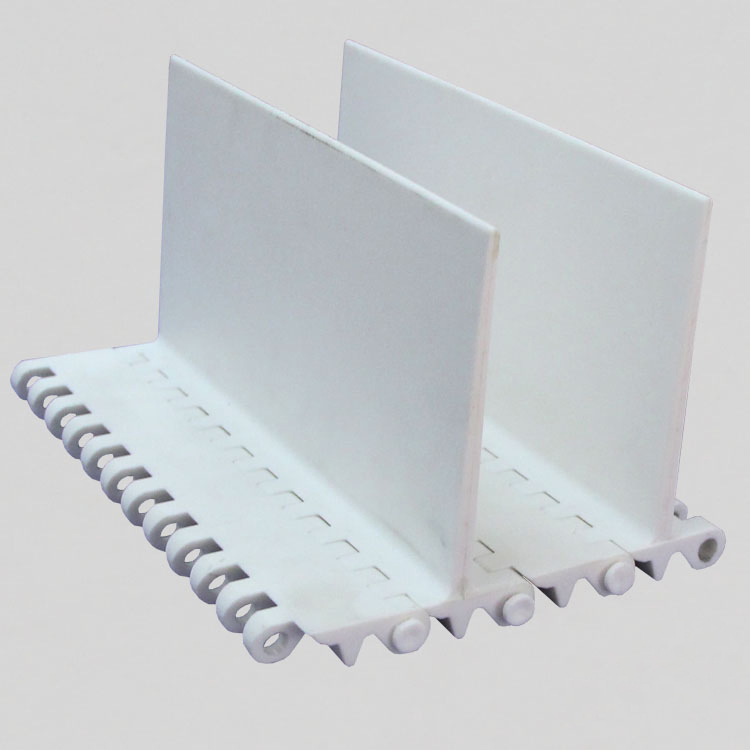

The modular design supports different surface types such as flat top, flush grid, roller top, or friction top. It can be configured for straight conveyors, curves, inclines, declines, or spiral cooling systems, offering great flexibility in plant layout. Belt width can be customized from 152 mm up to 1200 mm to fit any production requirement.
The belt maintains stable performance under extreme working conditions, with a temperature range from -10°C to +90°C. It is resistant to most cleaning agents, oils, and chemicals used in the food and packaging industries.
The modular plastic belt requires minimal lubrication and offers low friction, reducing energy consumption and operating noise. Its long lifespan and low maintenance needs make it a cost-effective alternative to traditional PVC or rubber belts.
We are a professional automation conveying system manufacturer with more than 30,000 m² factory and 20+ experienced engineers specialized in modular belts, conveyor chains, and conveying equipment design.
With 14 years of foreign trade experience, we have successfully exported to Europe, America, South Korea, Russia, and Africa, and established long-term cooperation with global food and beverage factories. Our principle: "High Quality, High Efficiency."
| Conveyor Length | 1-25m, depending on your project design |
| Conveyor Width | 0.3-3m, for smaller width, we recommend use chain conveyor |
| Conveyor Height | Adjustable. Wheels and brake are available |
| Frame material | Stainless steel/ Carbon steel with coating/ Aluminum |
| Belt material | POM/PP plastic modular belt |
| Other belts | PVC/PU/Mesh belt/ Plastic chain/Stainless chain all available depending on the products that transfer |
| Motor | Italy brand/INTERNATIONAL/China brand |
| Voltage | 380V(415V)/50HZ(60HZ) |
| Certificate of equipment | SGS/FDA |
| Certificate of original | FORM E/F/P/A/L/M |
| Price terms | FOB/CIF |
| Business type | Manufacturer |
| Conveyor system | All kinds of the automatic conveyor system |
| Modular belt | All kinds of modular belt, FT/FG/RIB/ROLLER TOP series |
| Plastic chain | Plastic top chain, Flexible chain, Stainless steel chain |
| Industry belt | PVC/PU belt, TPU belt, timing belt |
| Conveyor roller | Stainless steel roller, PVC roller |
| Other conveyor spare parts | Guard rails, Wear strips, Foot basis, Bearing, Connection parts |
The belt is available in POM (Polyoxymethylene), PP (Polypropylene), and PE (Polyethylene) to meet different load capacities, chemical environments, and operating temperature requirements.
Yes, all materials used in the production of our 800 Series Modular Belts comply with FDA and EU food contact standards, making them safe and hygienic for food processing and packaging lines.
Yes. Standard width increases in multiples of 152.4mm. However, customized widths can also be accommodated by adding increments of 16.9mm to best fit your specific conveyor design.
Because the belt is constructed of individual plastic interlocking modules, if any damage occurs, only the damaged section needs to be replaced. There is no need to replace the entire belt, which significantly cuts maintenance costs and downtime.
The belt exhibits stable performance within a wide working temperature range of -10°C to +90°C, making it suitable for both cooling applications and moderate-heat processes.
Our modular belts and conveying equipment are fully certified by SGS and meet strict FDA food contact safety compliance requirements.
