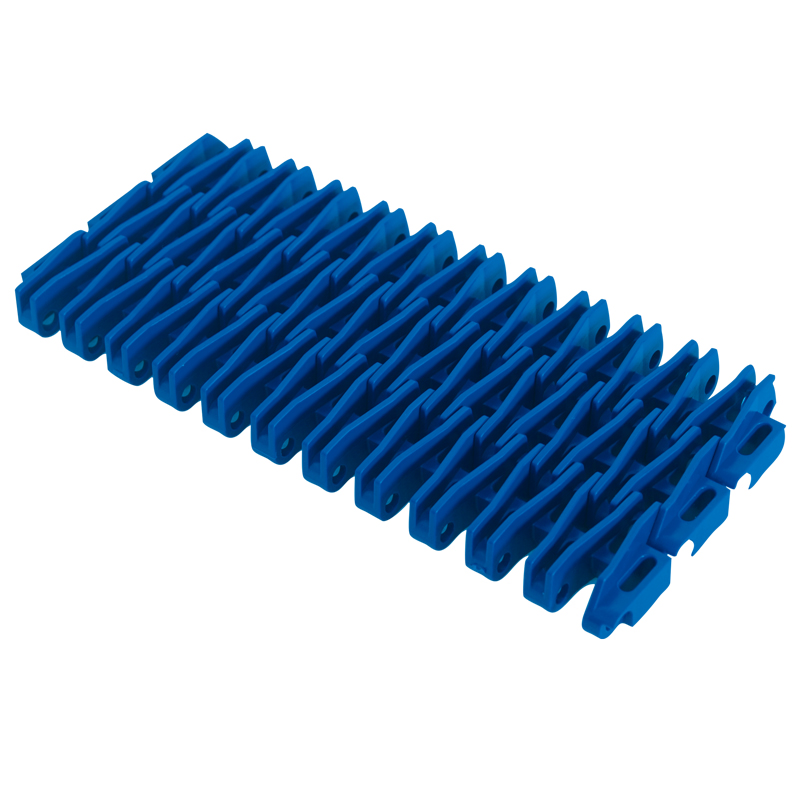

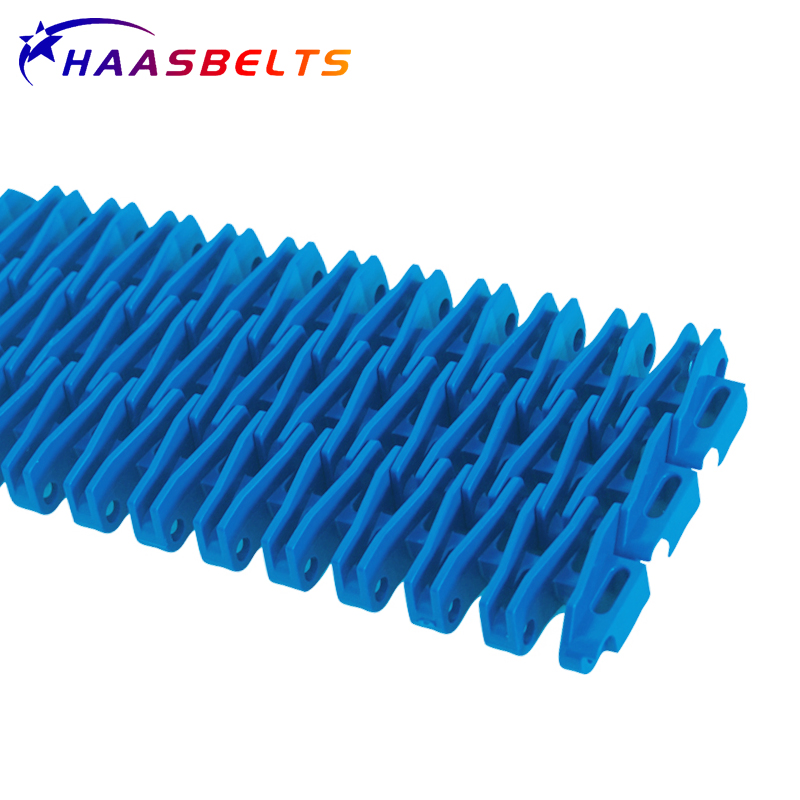

Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
1 / 5
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt
Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt

Haasbelts Chains Raised Rib (M2531) Modular Straightrun Linear Transmission Plastic Conveyor Belt

Customization: Available
After-sales Service: 3 Month
Warranty: 3 Month
Send Inquiry

Product Description

Basic Info

Model NO. M2531
Certification ISO9001
Type Conveyor
Material POM/PP
Colour White/Blue

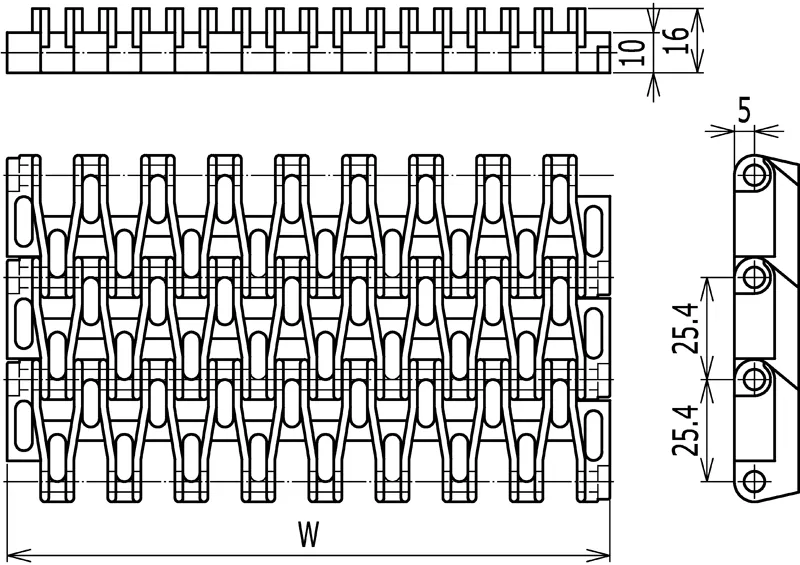

Belt Pitch 25.4mm
Belt Thickness 16mm
Transport Package by carton
Specification SGS
HS Code 3926901000
Production Capacity 3000 Square Meters/Month

Product Gallery

Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt
Modular Straightrun Linear Transmission Plastic Conveyor Belt

Product Description

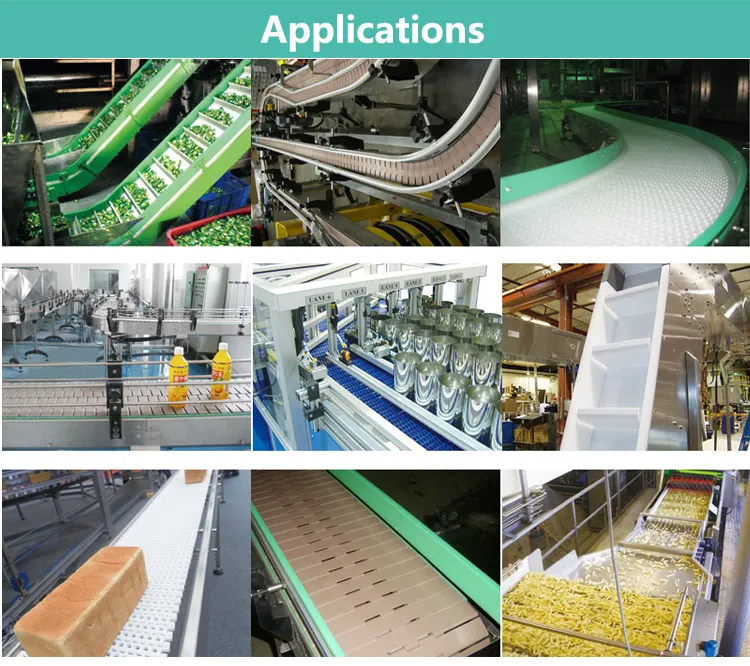

Applications by Industry

  • Beverage Industry: Ideal for acceleration lines, depalletizers, and accumulation tables.
  • Food Industry: Perfect for cooling lines and packaging lines.

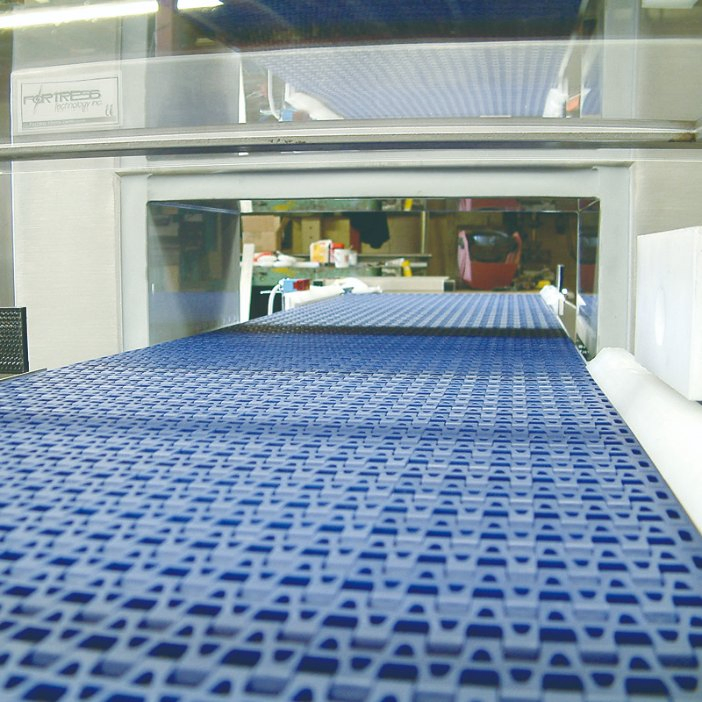

  • Meat Industry: Well-suited for tray packaging lines and metal detector integration.

Specifications

  • Belt Pitch: 25.4mm
  • Open Area: 35%
  • Assembling Method: Connected securely with rods
  • Belt Material: POM / PP
  • Backflex Radius: 50mm

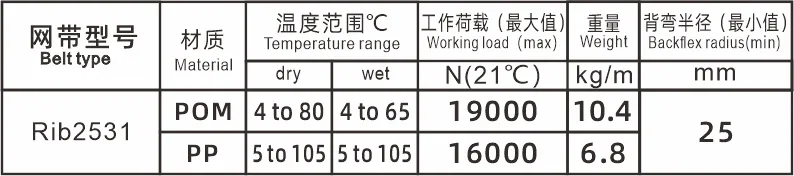

Belt Type Belt Material Working Load (max) Belt Weight (KG/M²) Temp. Range Backflex Radius (min) (mm)
N/M (21°C) IBF/FT (21°C) DRY WET
M2531 PP 16000 1096 6.8 +5 to +104°C +5 to +104°C 50
M2531 POM 19000 1300 10.4 +5 to +80°C +5 to +65°C 50

Frequently Asked Questions

What is the pitch and thickness of the M2531 modular belt?
The M2531 modular belt features a belt pitch of 25.4mm and a thickness of 16mm.
What materials are available for this conveyor belt?
This conveyor belt is available in POM (Polyoxymethylene) and PP (Polypropylene) options, offering choices based on your specific application and load requirements.
What is the maximum working load of the M2531 belt?
At 21°C, the maximum working load is 16,000 N/M for the PP version and 19,000 N/M for the POM version.
In which industries can this modular belt be used?
It is highly suitable for the food and beverage industry (cooling lines, packaging, accumulation, depalletizing) as well as the meat processing sector (tray pack lines and metal detector integration).
What is the operating temperature range for the POM and PP options?
For the PP material, the temperature range is +5°C to +104°C for both dry and wet conditions. For the POM material, the range is +5°C to +80°C under dry conditions and +5°C to +65°C under wet conditions.
What is the minimum backflex radius required?
The minimum backflex radius required for the M2531 modular conveyor belt is 50mm.
