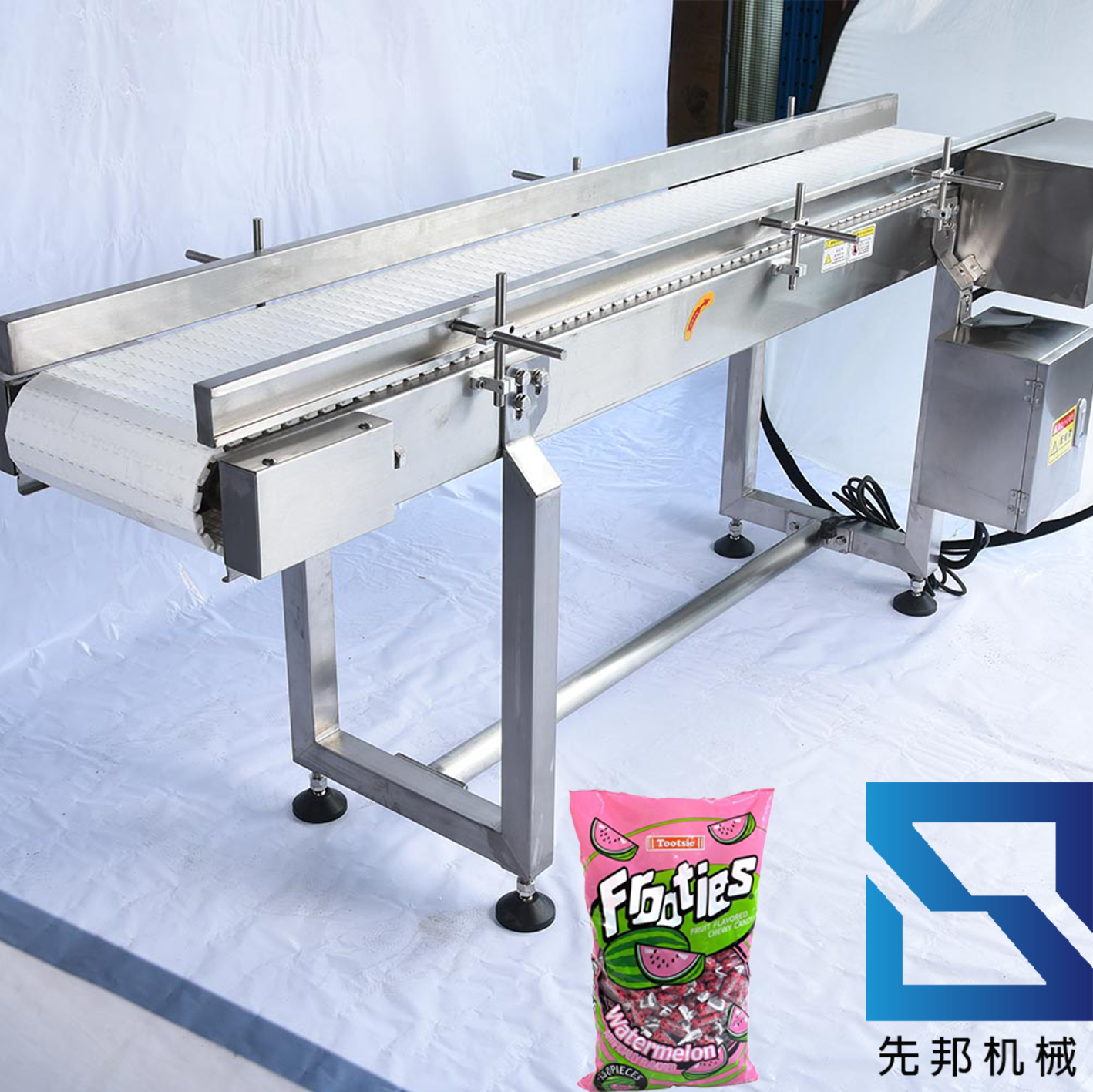

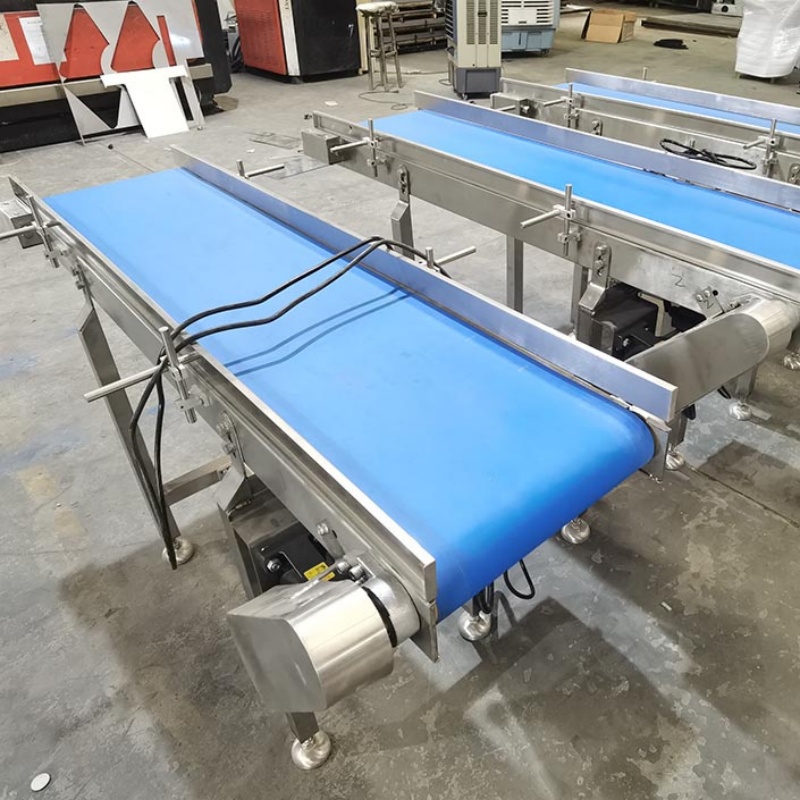

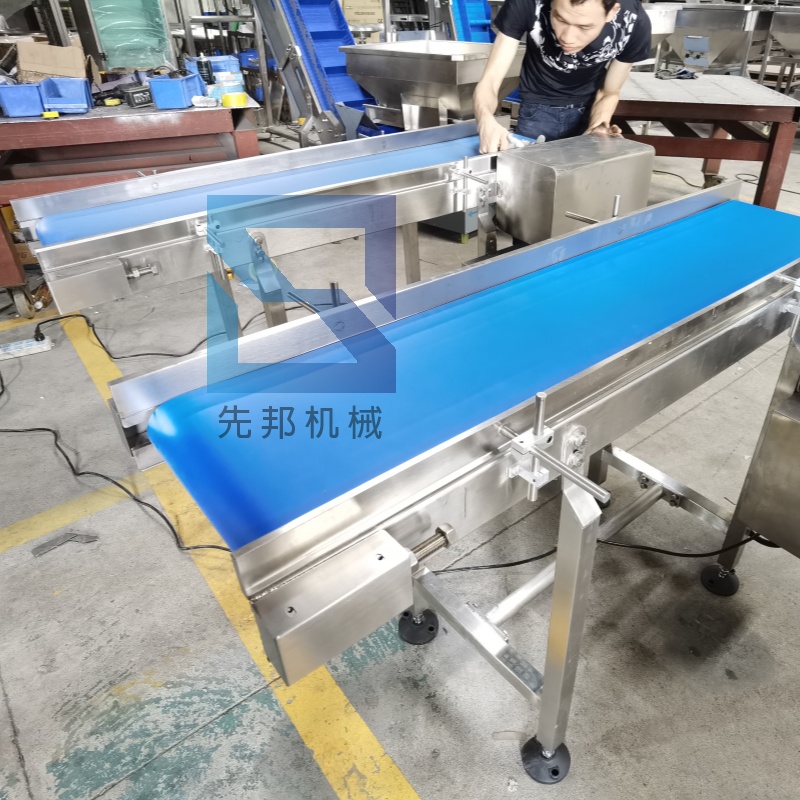

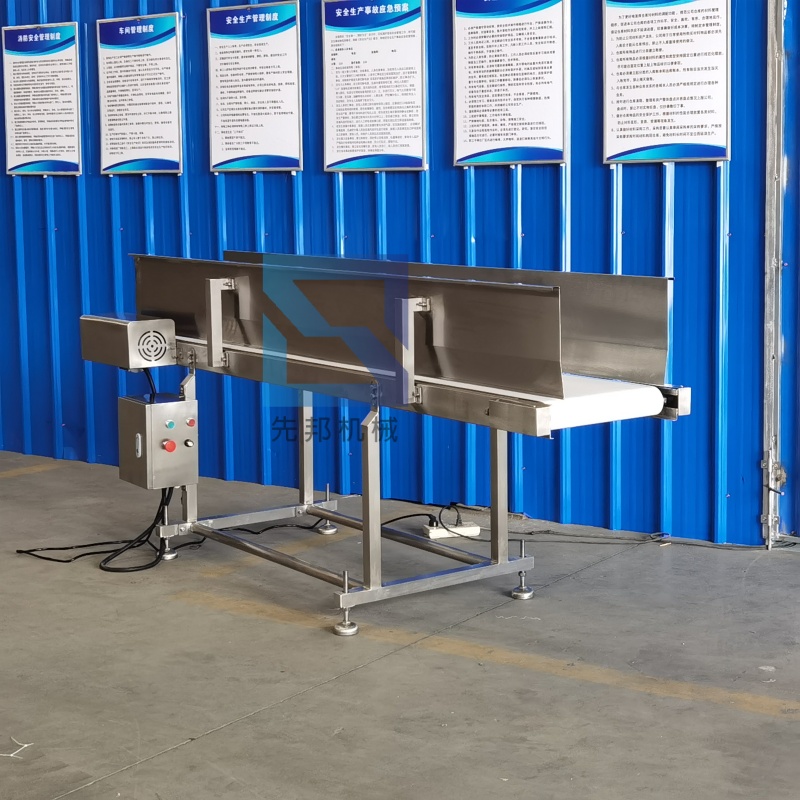

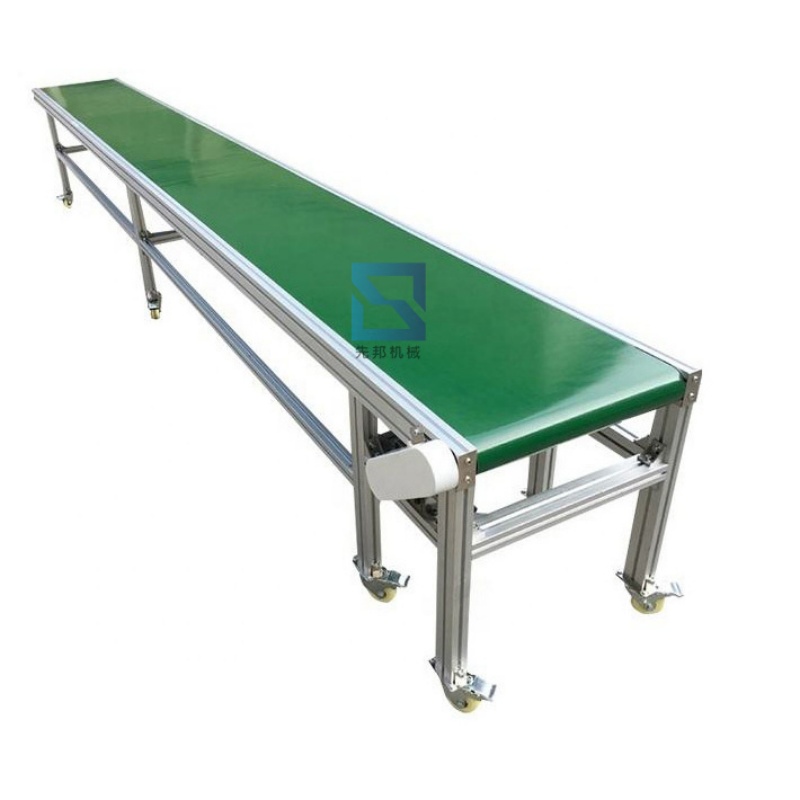

| Machine Specification: Horizontal Conveyor | |
|---|---|
| Model | XY-SQ50, XY-SQ55 |
| Machine material | #304 stainless steel, carbon steel Stainless steel, painted steel |

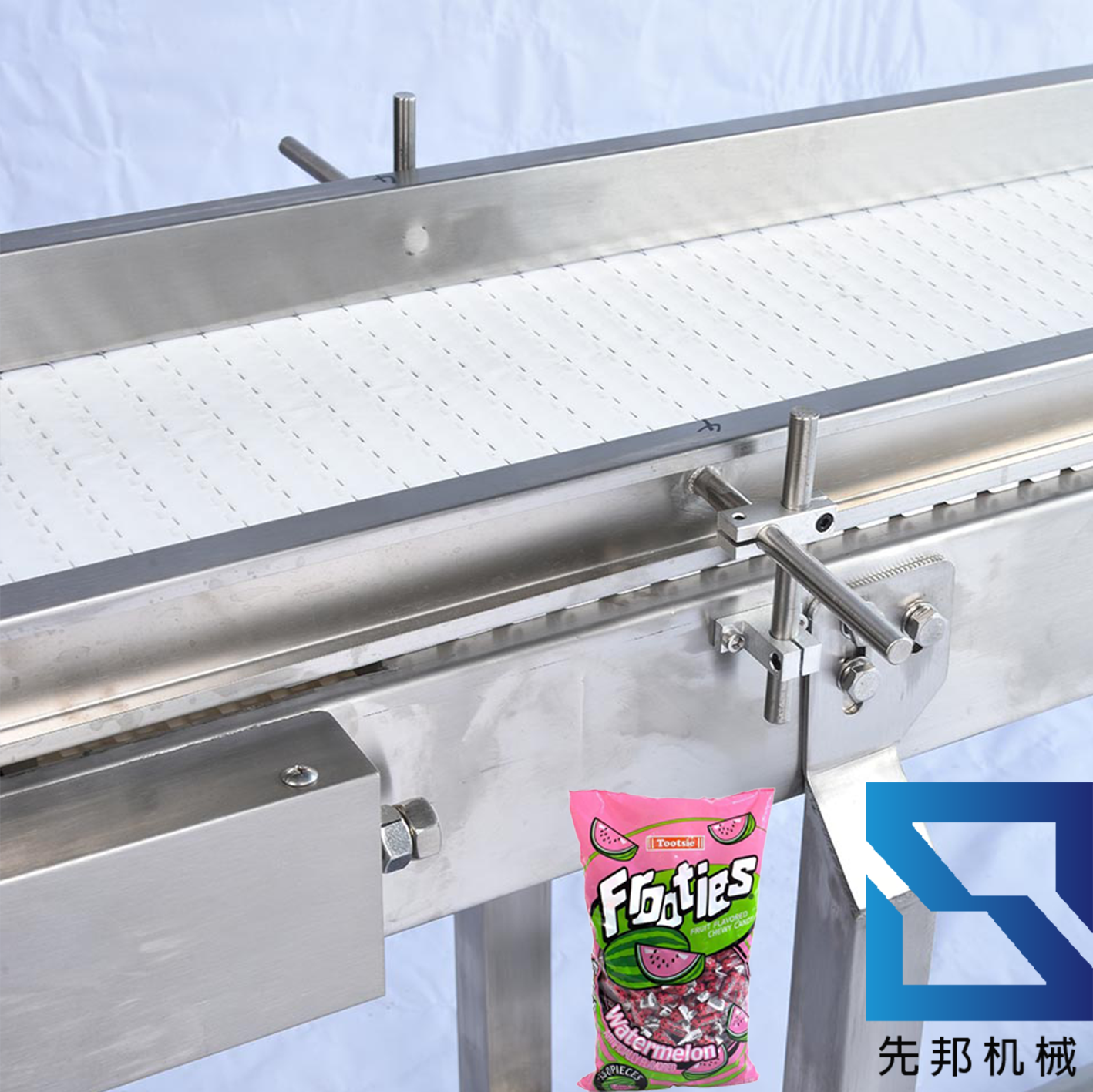

| Conveyor chain | PU, PVC belt, PP, PE, POM chain plate or 304# |
| Production capacity | 4-10 m³ /H |
| Machine height | 300-1000mm (can be customized according to customer requirements) |
| Conveying length | 1000-32000MM (can be customized according to customer requirements) |
| Voltage | Single or three-wire 180-220V three-wire 350V-450V, 50-90Hz |
| Power supply | 0.8KW (can be customized according to the conveying length) |

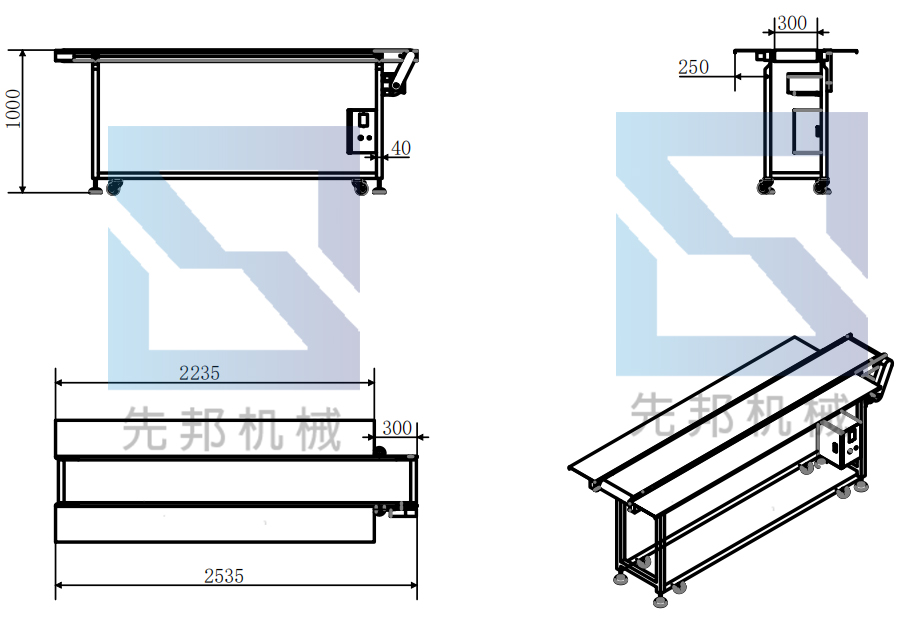

| Packing size | L2250mm*W800mm*H*1000mm (standard length 2000 meters) |
| Weight | 350KG (standard length 2000 meters) |
