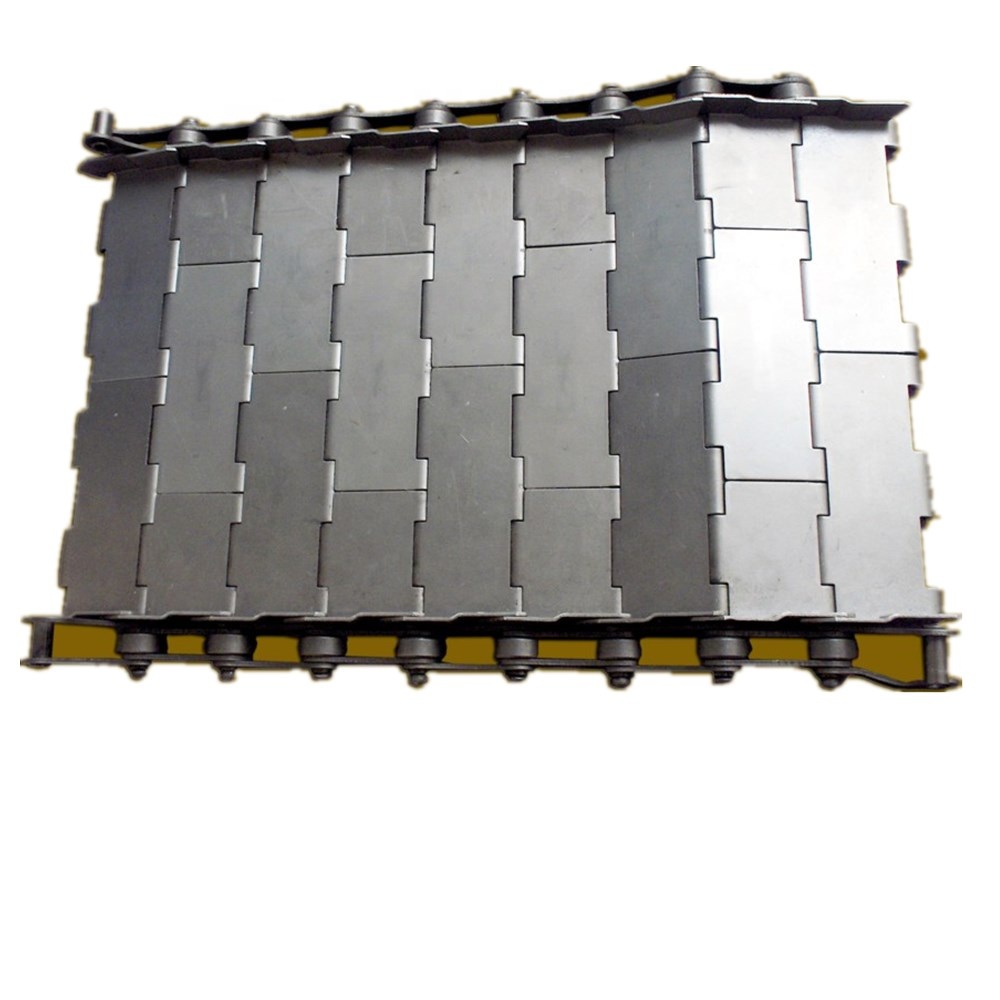

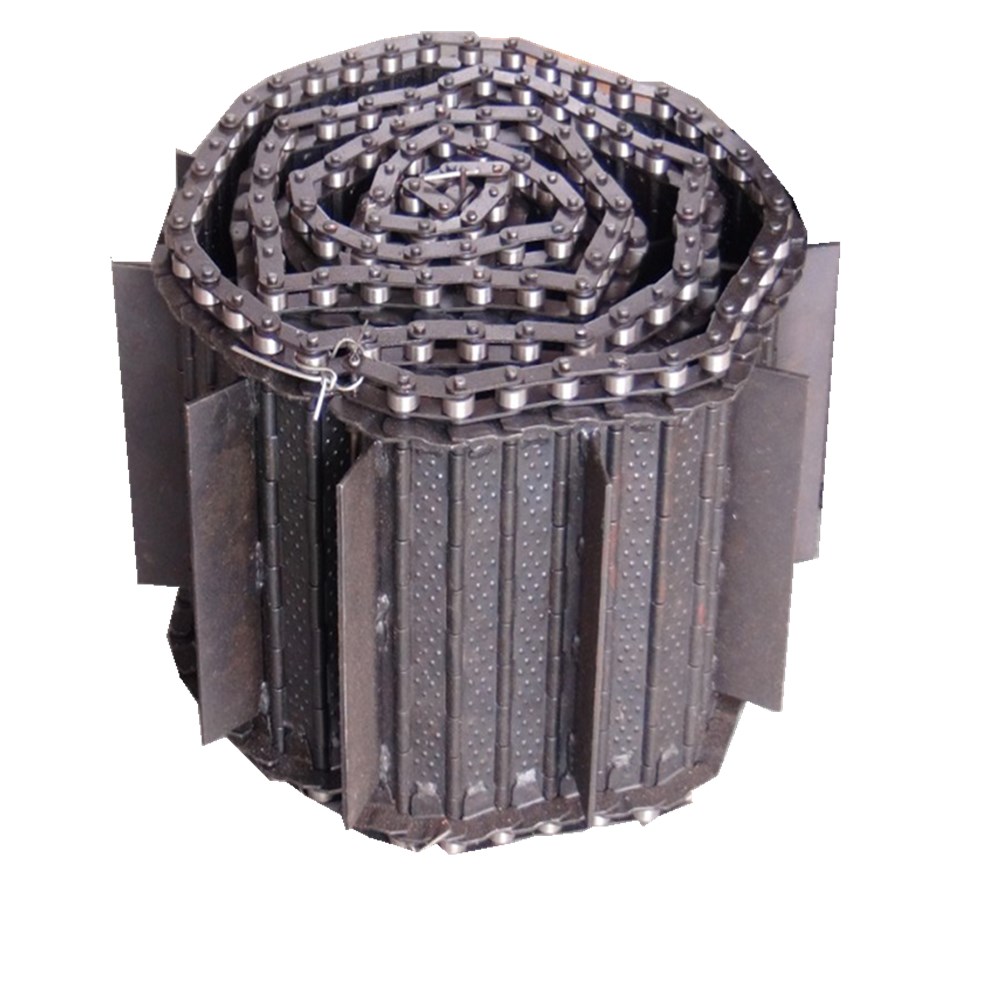

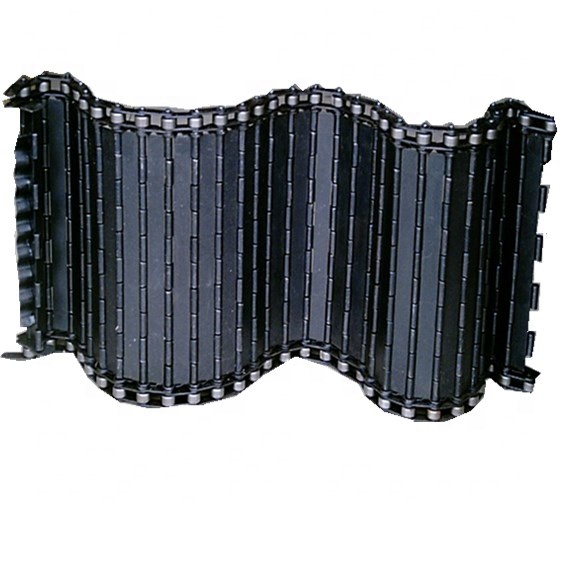

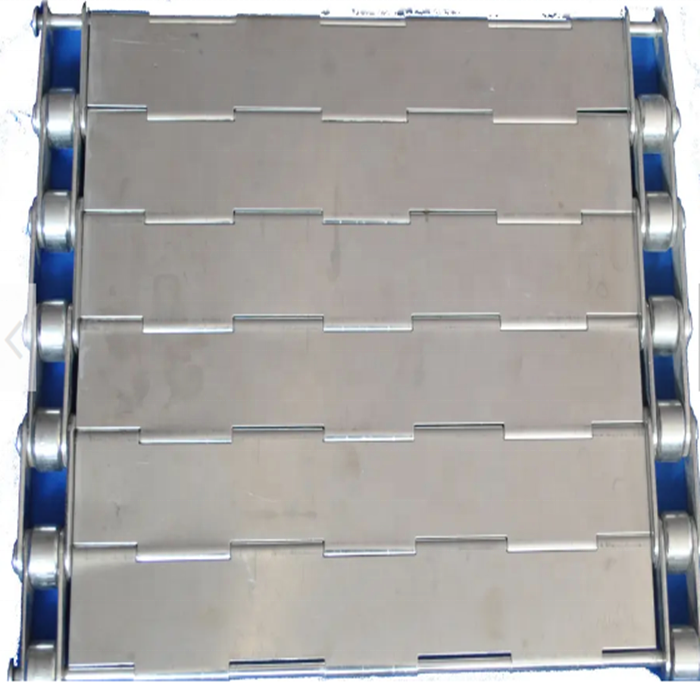

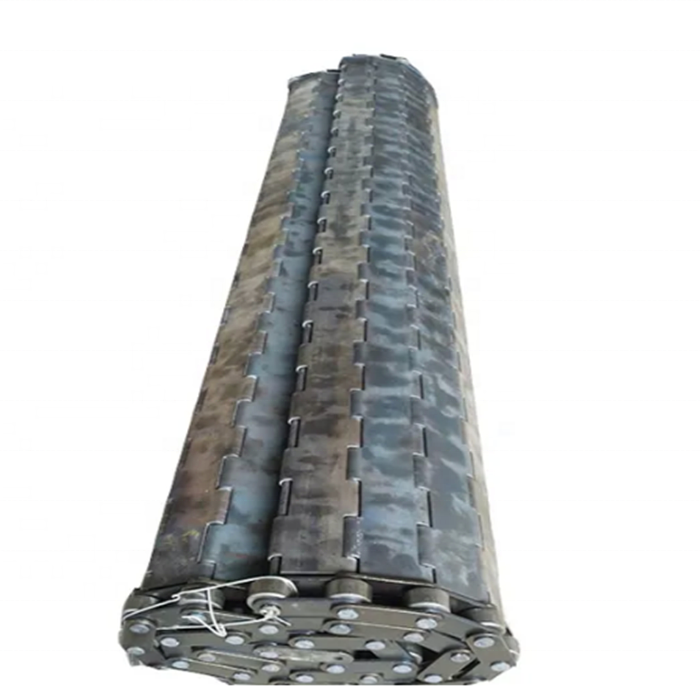

Industrial Heavy Duty Chain Metal Mesh High Temperature Resistance Stainless Steel Plate Conveyor Belt

Product Description

Certification
Certification Documents
Certification Verification
Product Description
Chip Conveyor Belt Widely used in various types of machining centers and flexible production lines and other highly automated machine tools, can be used as stamping, cold pier machine tool small parts conveyor. It is also the main chip removal function component of the combined machine coolant processing system. It plays the role of improving the operating environment, reducing labor intensity, and increasing the degree of automation of the whole machine.

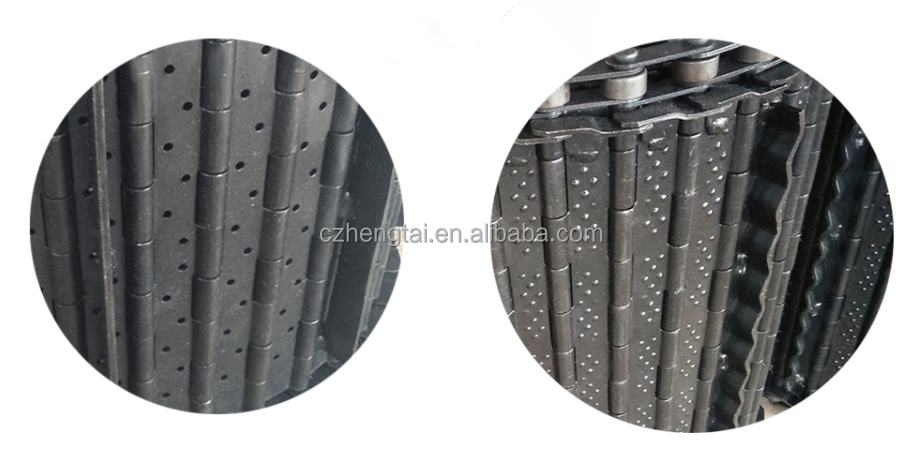

Chip Conveyor View 1

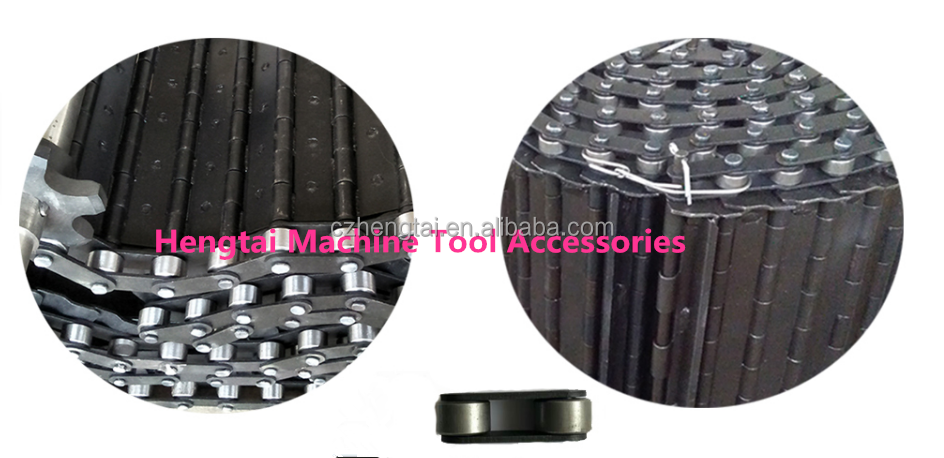

Chip Conveyor View 2

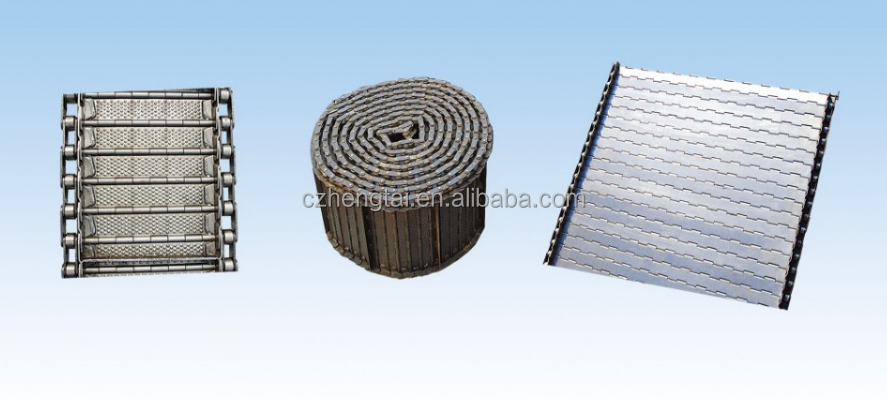

Chip Conveyor View 3

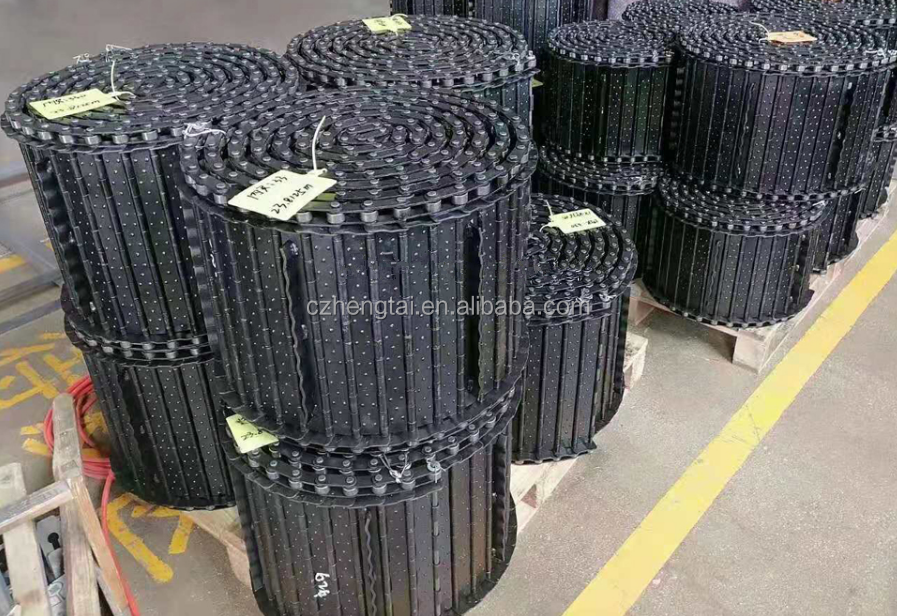

Chip Conveyor Details 1

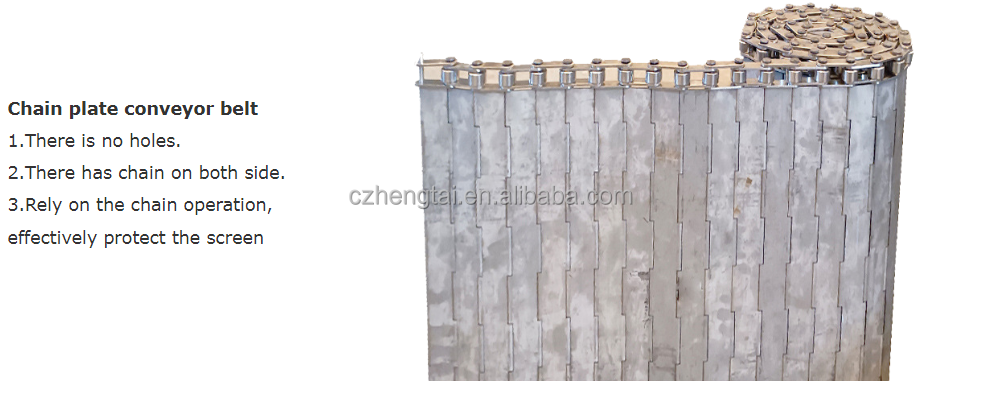

Chip Conveyor Details 2
Specification
Pitch Specifications:
• 31.75mm pitch steel conveyor belt (chip conveyor chain plate) single row ultimate tensile load 22KN, suitable for small machinery or short distance transportation.
• The single-row ultimate tensile load of 32KN (38.1mm) chip conveyor chain (steel conveyor belt) is suitable for short-distance transportation.
• 50.8mm pitch steel conveyor belt single row ultimate tensile load 58KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.
• 101.6mm pitch steel conveyor belt single row ultimate tensile load 226.8KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.

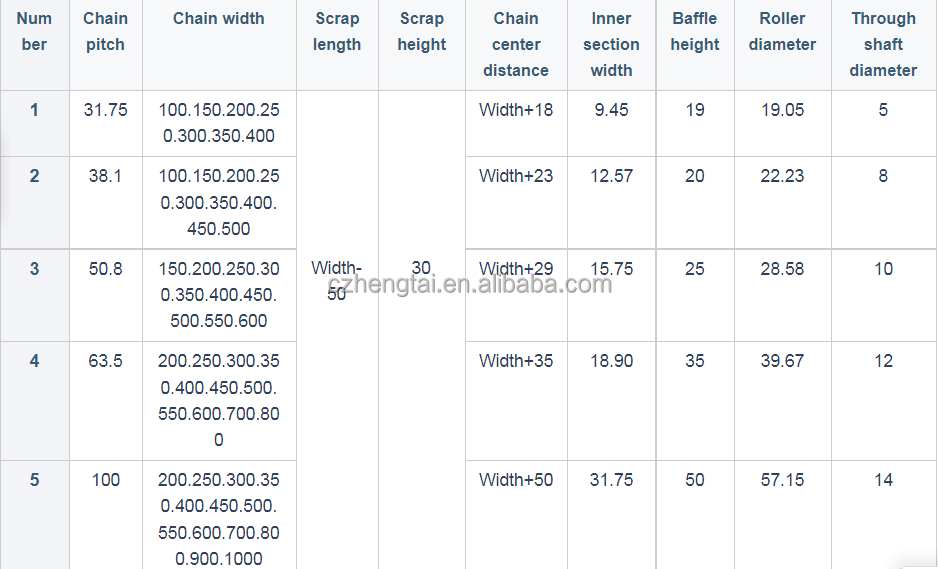

Specification Diagram 1

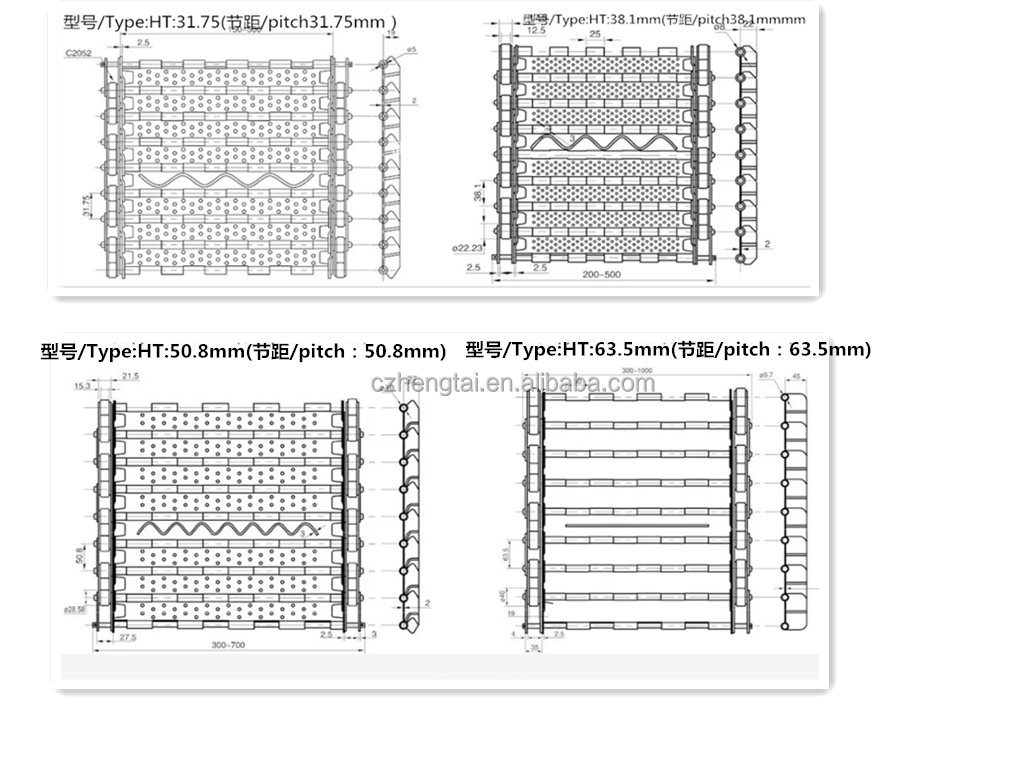

Specification Diagram 2
Parameter Details / Values
ConditionNew
Applicable IndustriesCNC/NC Machinery Industry
Weight (KG)7
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Warranty1 Year
Core ComponentsCarbon steel belt
Products nameStainless Steel Conveyor Belt
MaterialCarbon steel/A3/Stainless steel
TypeChip Chain Plate
SizeCustomized Size
MOQ1 Piece
ColorSilver
CertificationISO 9001 / CE
Pitch Options31.75 / 38.1 / 50.8 / 63.5 / 100mm
Thickness of Scraper30mm
Width Of beltCustomized
Packing & Delivery
Packing Solution 1
Packing Solution 2
Packaging Details:
Selling Units: Single item
Single package size: 10X10X5 cm
Single gross weight: 5.000 kg
Package Type:
  1. Standard cartons: Available dimensions include 40*40*35cm, 60*60*30cm, 80*80*35cm, customized according to order quantity.
  2. Heavy-duty protective plywood cases, designed custom to standard quantity requirements.
Company Profile

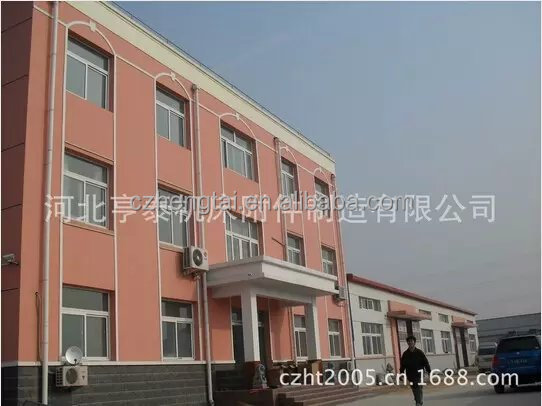

Factory View 1

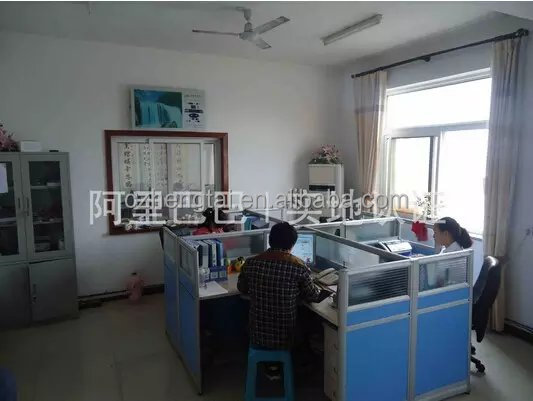

Factory View 2

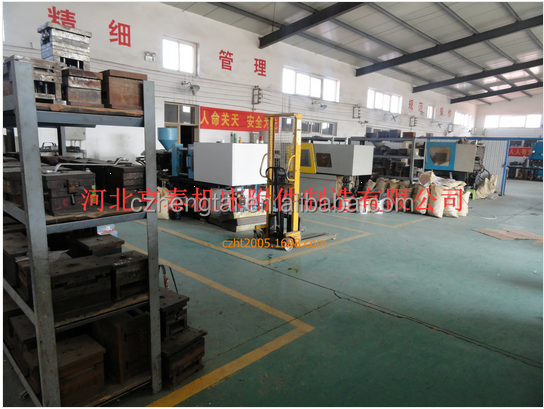

Office View
We are a large machine tool accessories factory and exporter. We manage our own research, production, sales, and delivery. Having passed the ISO 9001 quality system certification, we implement precision production equipment, precise testing instruments, and a professional foreign technical team working in unison.

Our facility maintains 3 advanced production lines offering more than 300 kinds of products. The main product line-up includes plastic cable drag chains, steel cable drag chains, CNC machine shield series, CNC mounts, industrial lamps, and more. The production facilities are being actively expanded to integrate more advanced machinery and new production methods.

Driven by market demands, we have built a solid reputation for top-quality goods, reliable service, and credit standing. We retain a strong sales department, exporting products globally to regions such as North America, Europe, Australia, and Asia.
Customer Photos
Customer Visit 1
Customer Visit 2
Customer Cooperation
Frequently Asked Questions
1. What kind of products do you supply?
We manufacture high-grade machine tool accessories, including plastic cable drag chains, steel cable drag chains, machine protective shields, mounts, and flexible metallic hoses.
2. How is the product quality guaranteed?
We maintain strict quality control standards. A pre-production sample is tested before mass manufacturing starts, and a comprehensive final inspection is performed before shipment.
3. Do you accept customization for chip conveyor belts?
Yes, we provide fully customized sizes for our conveyor belts, chain plates, and scrapers to suit the precise dimensions and specifications of your machinery.
4. What delivery terms and payment currencies do you support?
We support standard delivery terms including FOB, CFR, CIF, and EXW. Payments are accepted in USD via T/T, L/C, and MoneyGram.
5. What packaging options are available for orders?
Orders are typically packed in standard cardboard boxes for regular shipments. For special or larger orders, we design custom plywood cases to prevent damage during transport.
6. What certifications do your products have?
Our manufacturing systems and products have passed the ISO 9001 quality system certification and comply with CE standards to guarantee quality and safety.
