Our products with good quality and reasonable price can be applied in many areas including can, crate, container, meat, beverage, dairy industries and so on.
We are one of the most competitive manufacturers in China on plastic conveyor chain and belts. The products have been exported to many countries including India, Australia, South Africa and so on.
Belt type
Material
Temperature range
Working load (max.) N/m(21ºC)
Weight Kg/m²
Backflex radius (min.) mm
dry
wet
POM
4 to 80
4 to 65
21000
8.4
M2520
PP
5 to 105
5 to 105
18000
5.5
25
PE
-46 to +66
-46 to +66
9000
5.8
Frequently Asked Questions

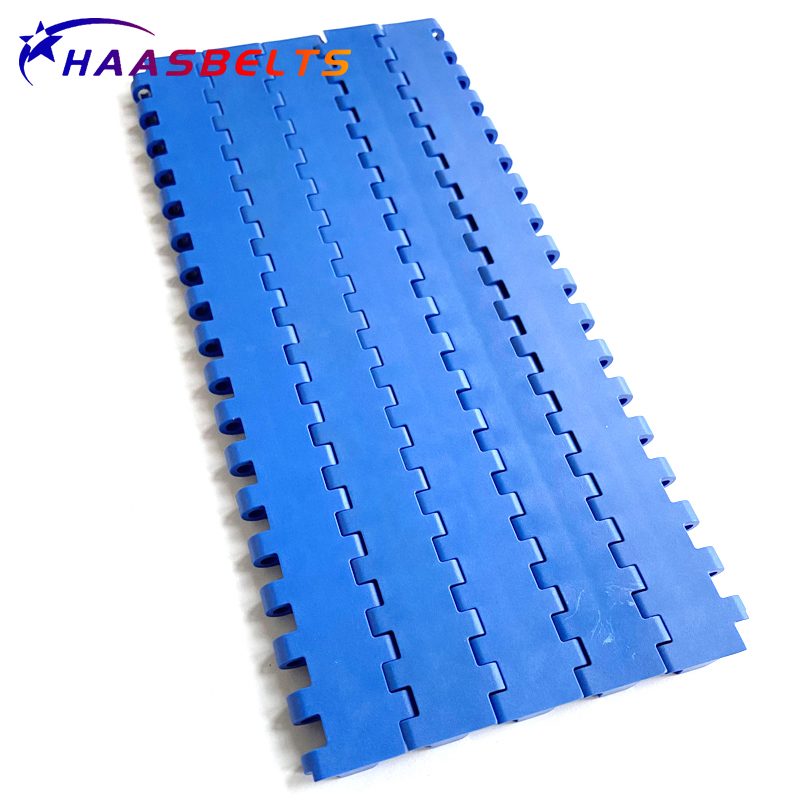

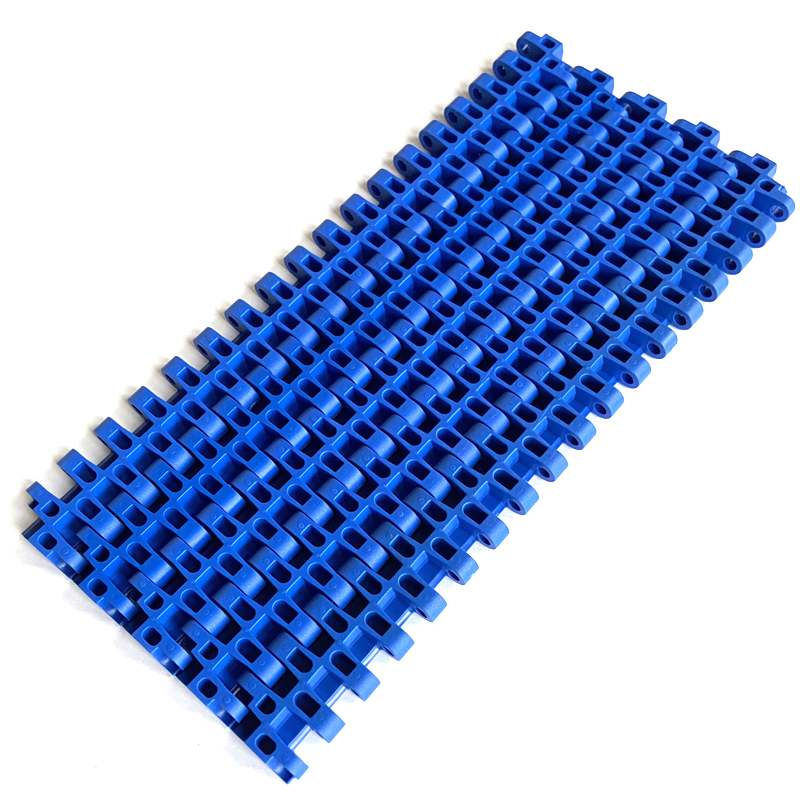

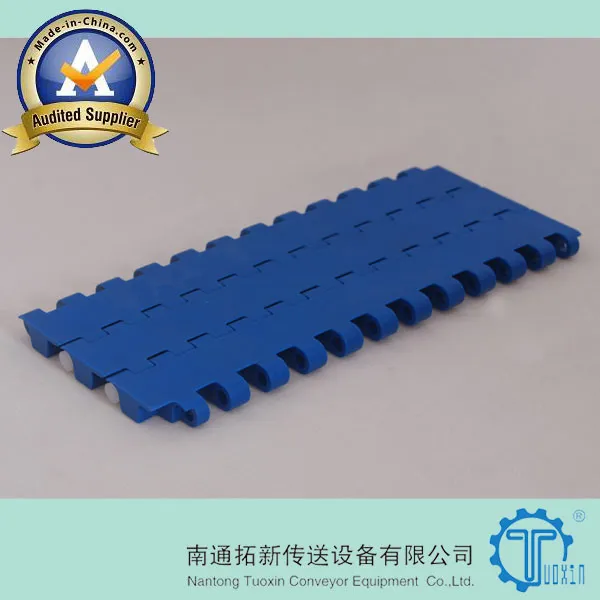

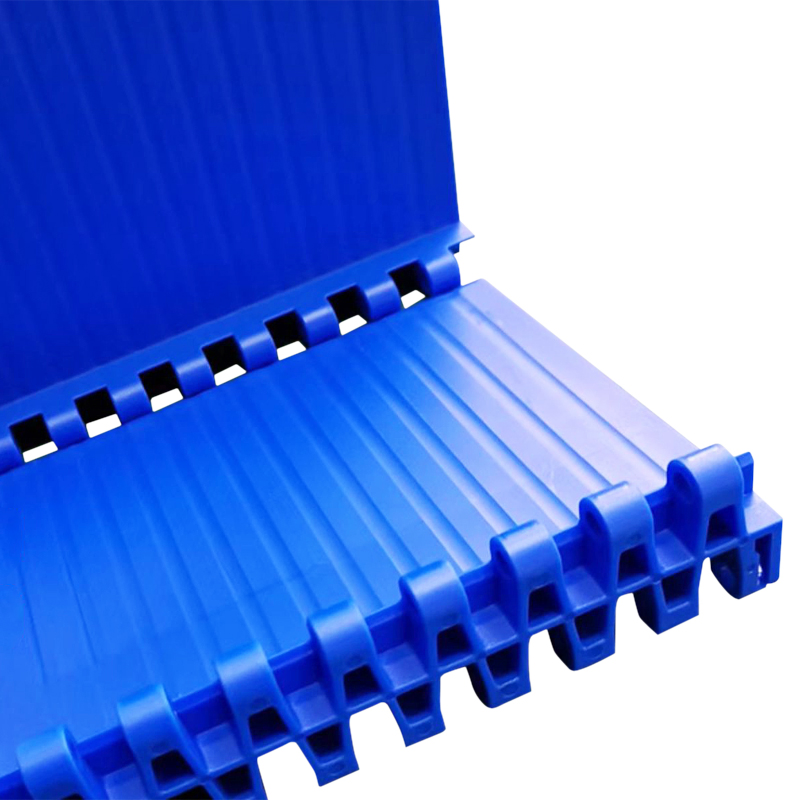

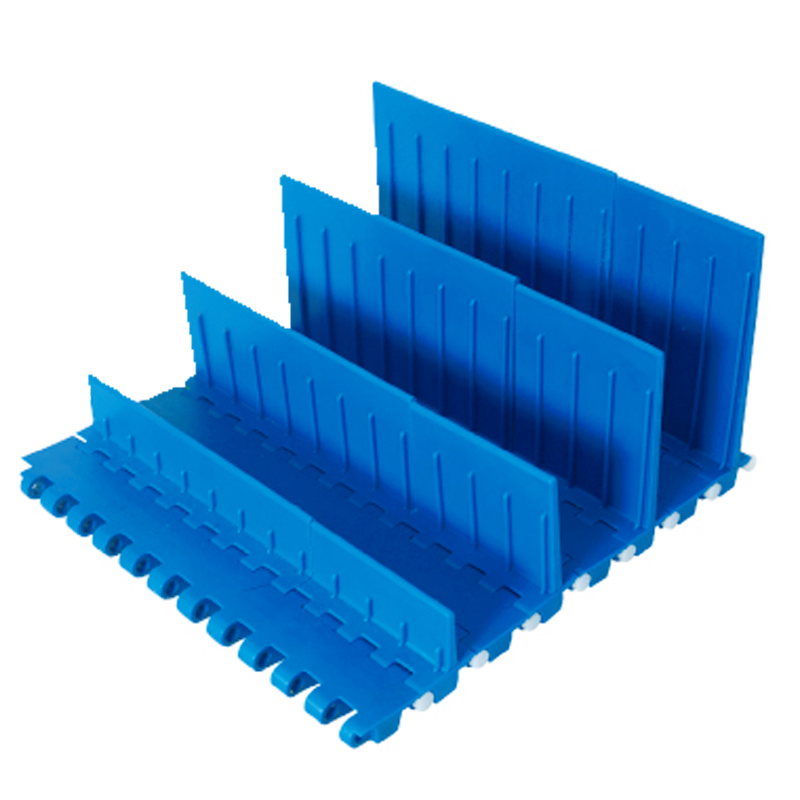

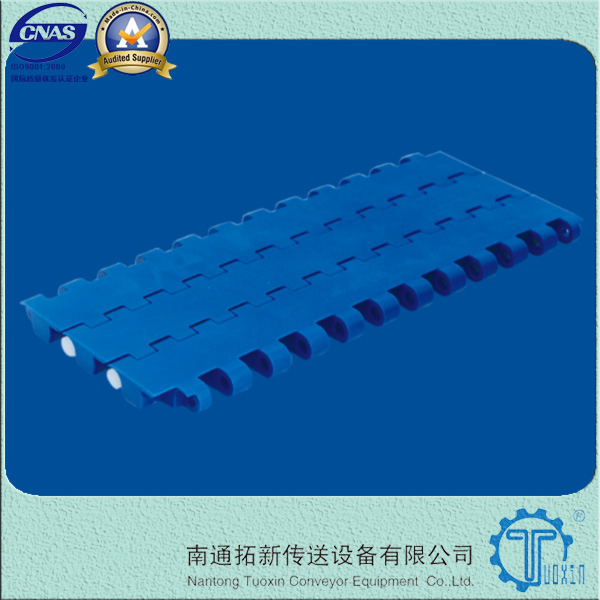

What materials are available for the M2520 Modular Straight Belt?
The M2520 Modular Straight Belt is available in three primary materials: POM (Polyoxymethylene), PP (Polypropylene), and PE (Polyethylene) to fit different industrial environments.
What is the temperature range for the PP material belt?
The PP (Polypropylene) belt can operate in temperatures ranging from 5 to 105 ºC in both dry and wet conditions.
Which belt material provides the highest maximum working load?
POM material provides the highest maximum working load of 21000 N/m at 21ºC, followed by PP at 18000 N/m and PE at 9000 N/m.

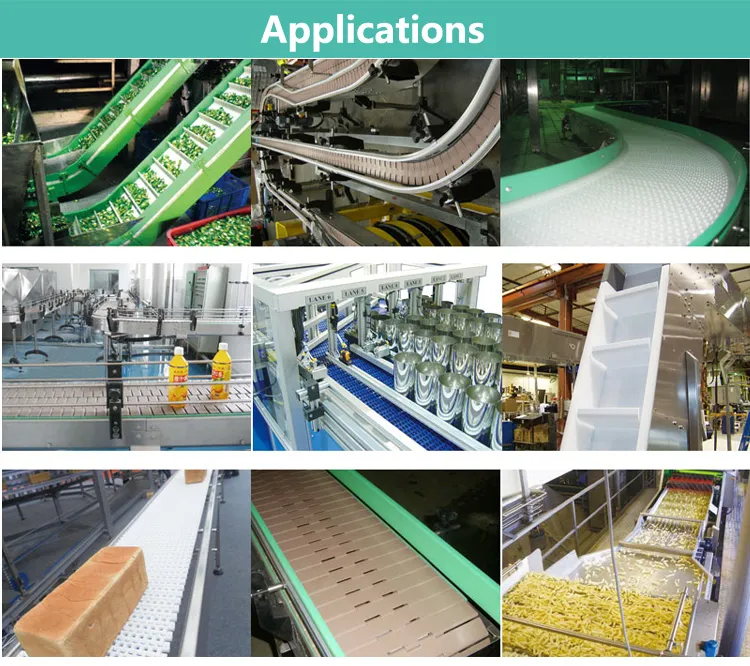

What are the typical application areas for these modular conveyor belts?
These belts are highly versatile and widely applied in several packaging and food processing fields, including can, crate, container, meat, beverage, and dairy industries.
What is the minimum backflex radius for the M2520 PP modular belt?
The M2520 PP modular belt features a minimum backflex radius of 25 mm, allowing for compact and flexible conveyor system designs.
How does PE material compare in extreme cold conditions?
PE (Polyethylene) is excellent for low-temperature applications, performing reliably in temperatures as low as -46 ºC in both dry and wet environments.
