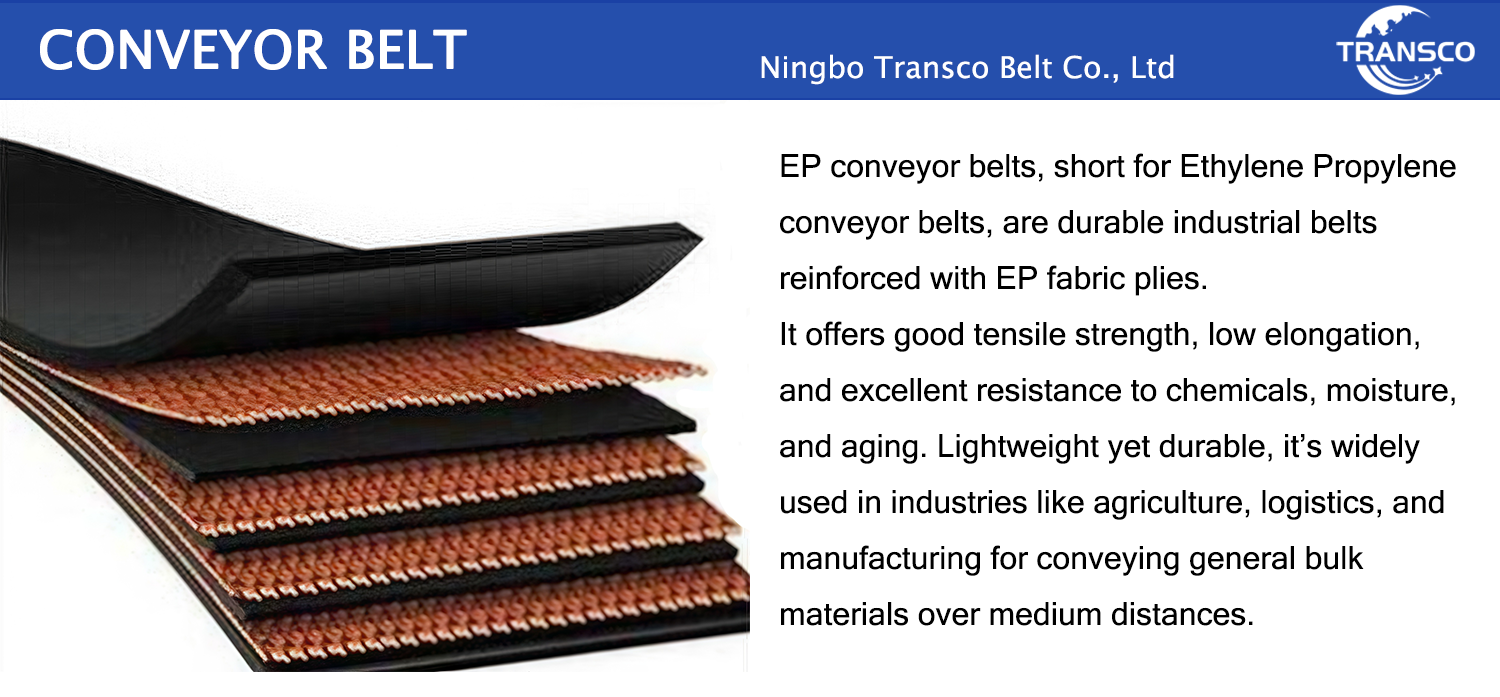

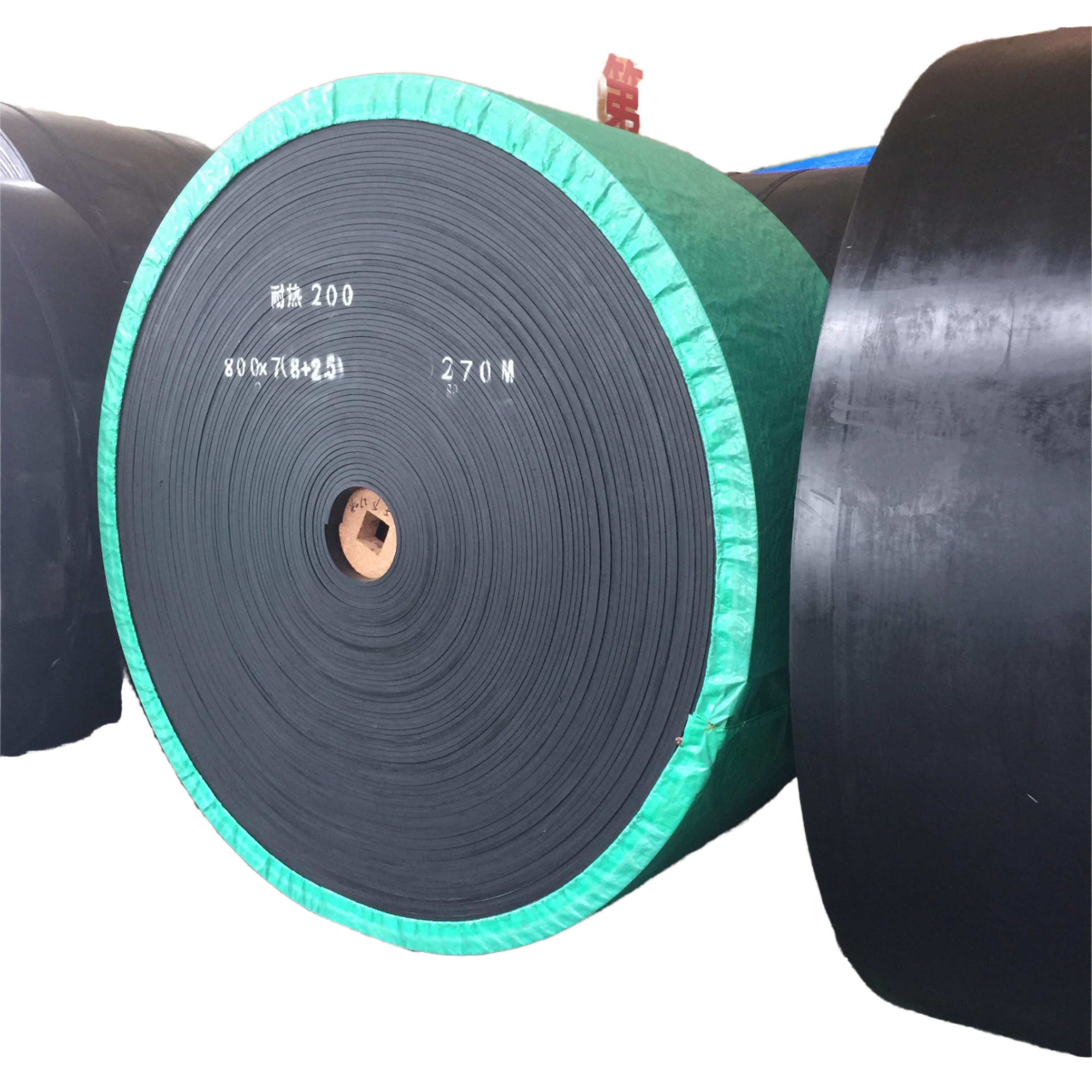

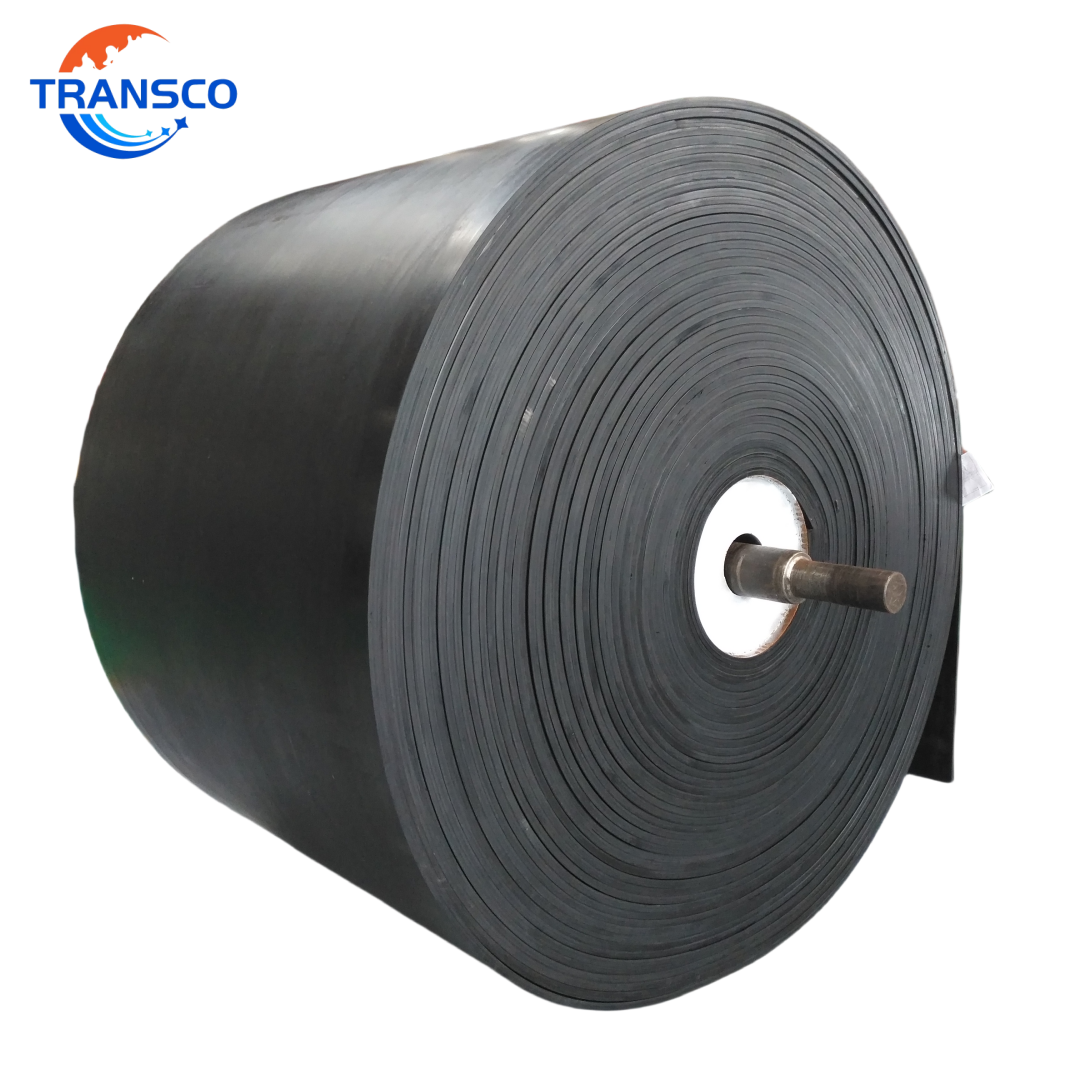

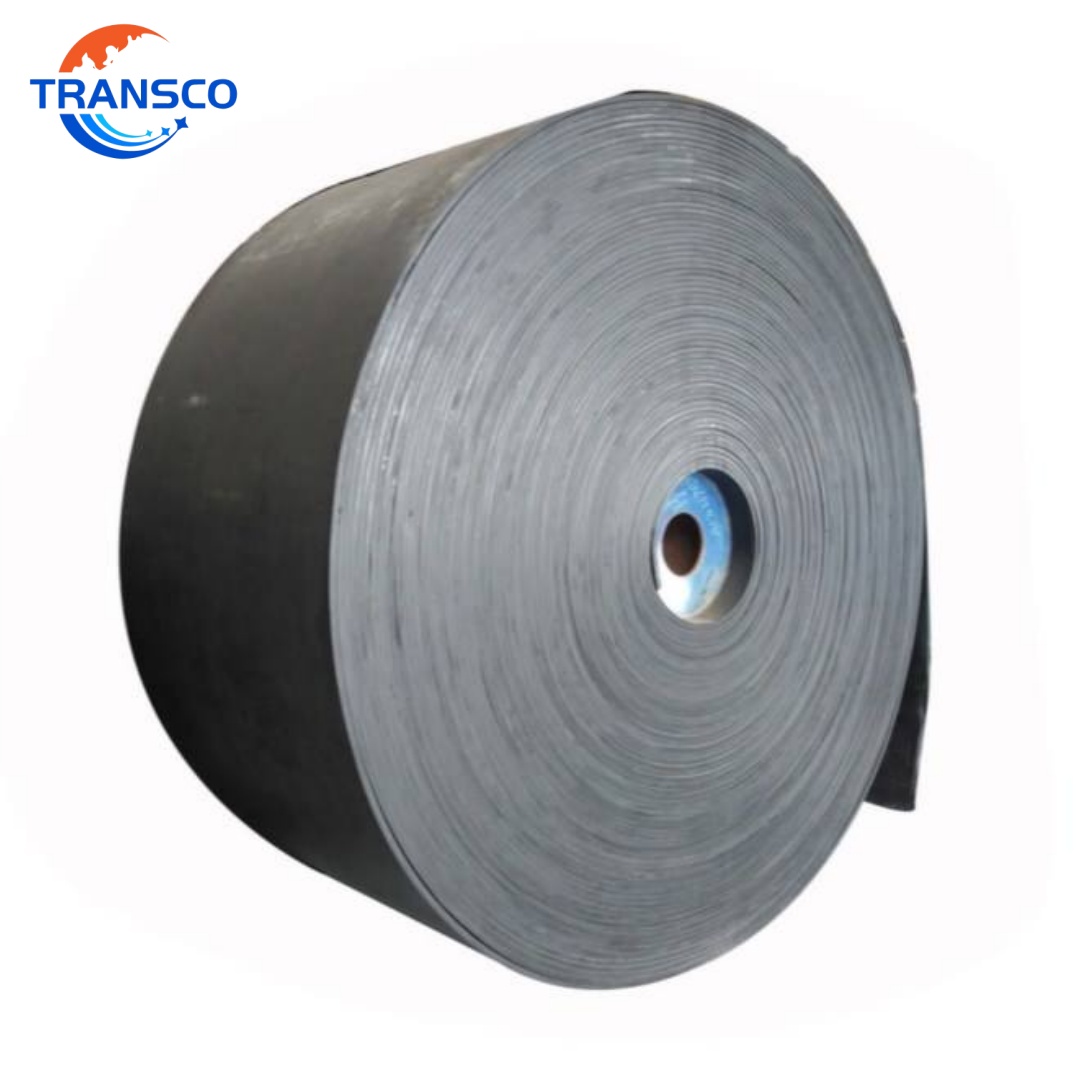

The belt short for Ethylene Propylene conveyor belts, are durable industrial belts reinforced with EP fabric plies.
It provides favorable tensile strength, low elongation, and outstanding resistance to chemicals, moisture, and aging. Being lightweight while still durable, it finds extensive application in sectors such as agriculture, logistics, and manufacturing, used for transporting common bulk materials over moderate - distance routes.

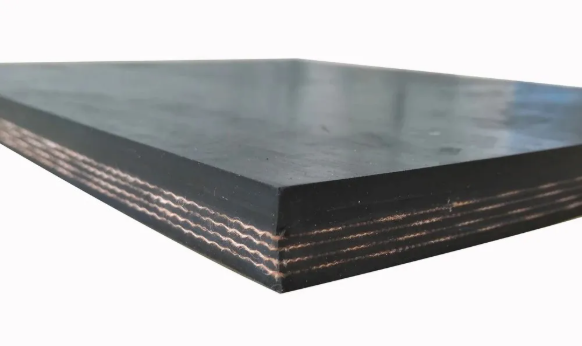

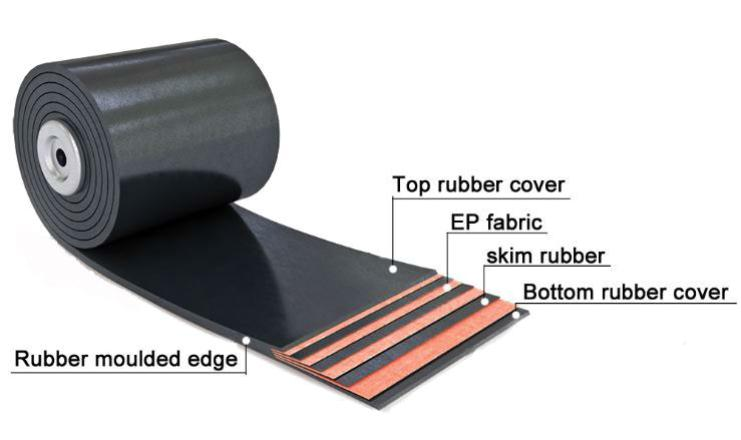

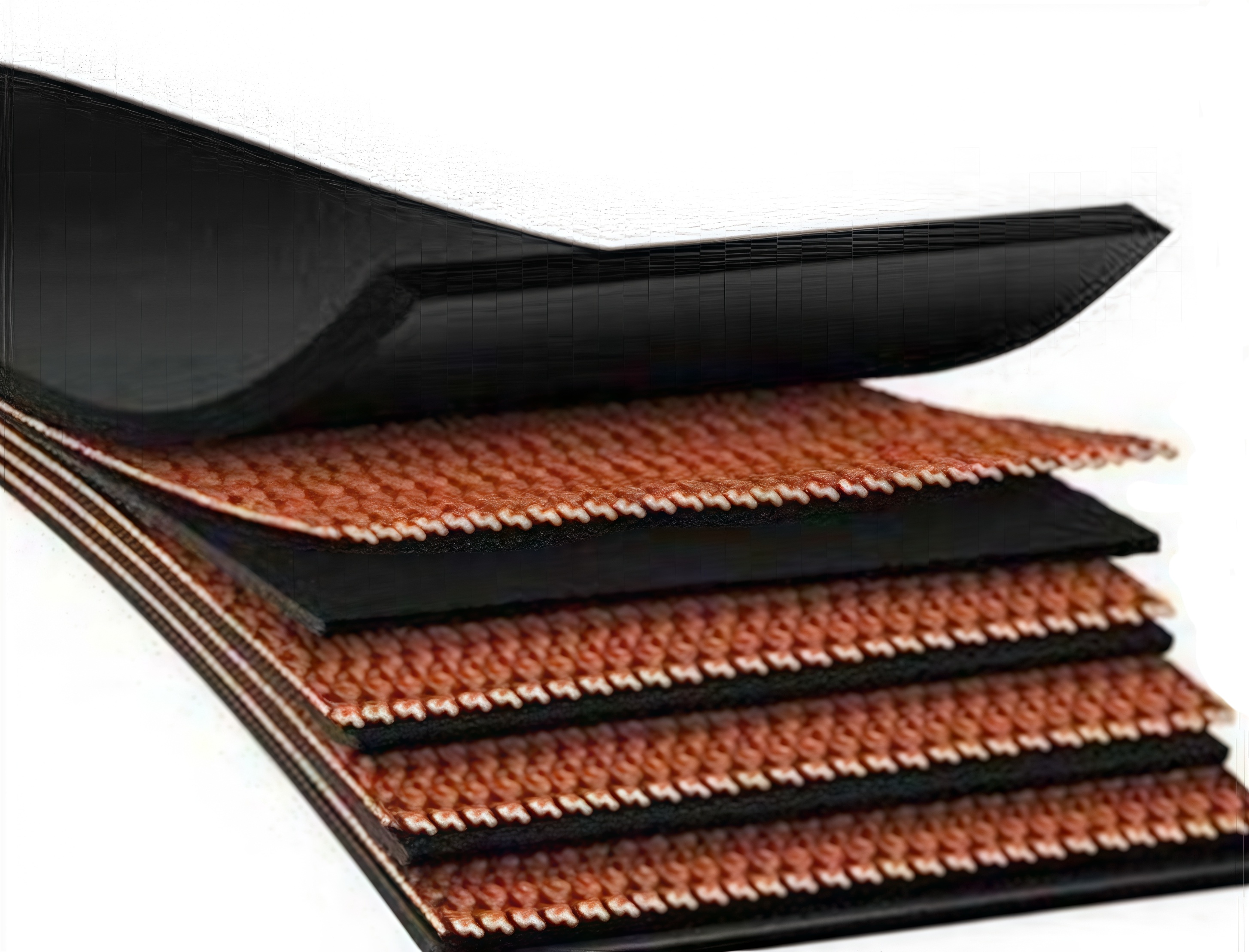

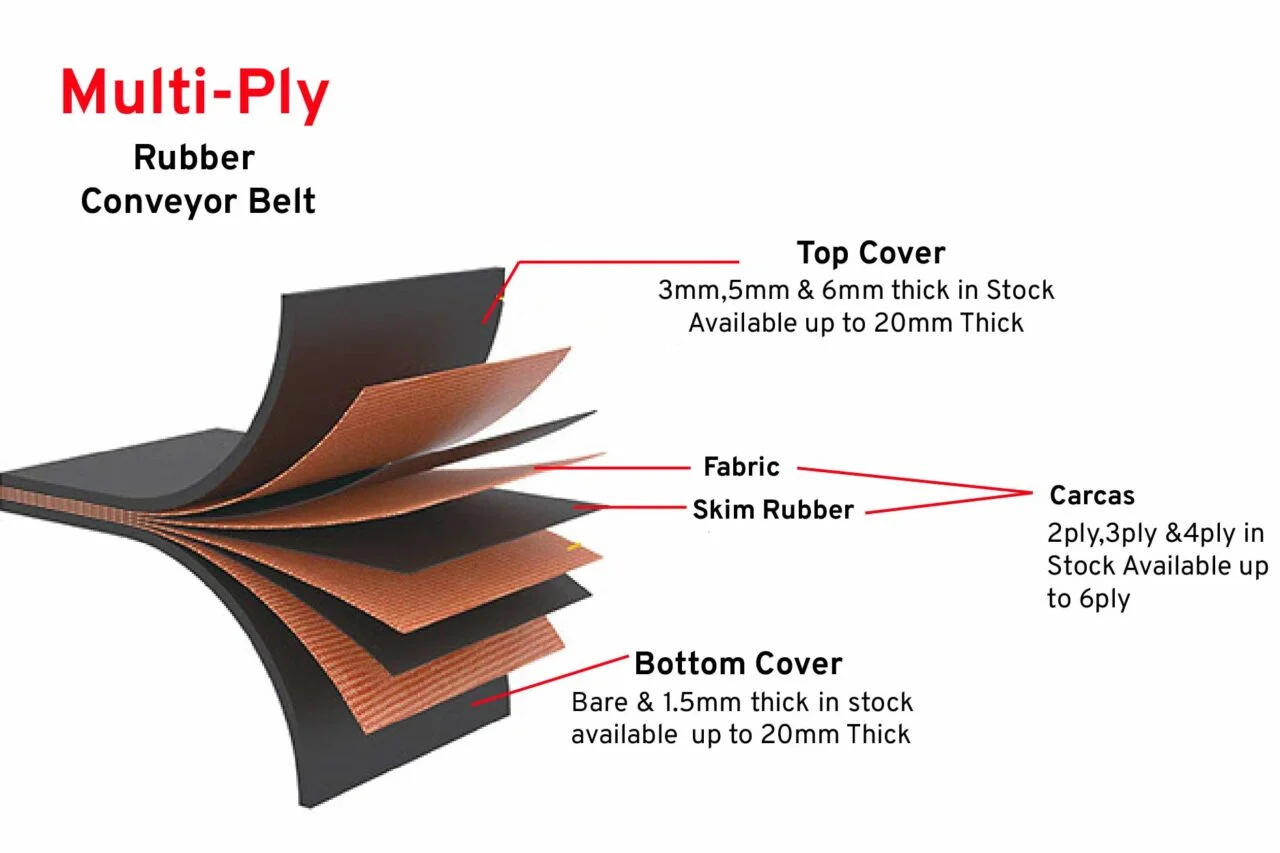

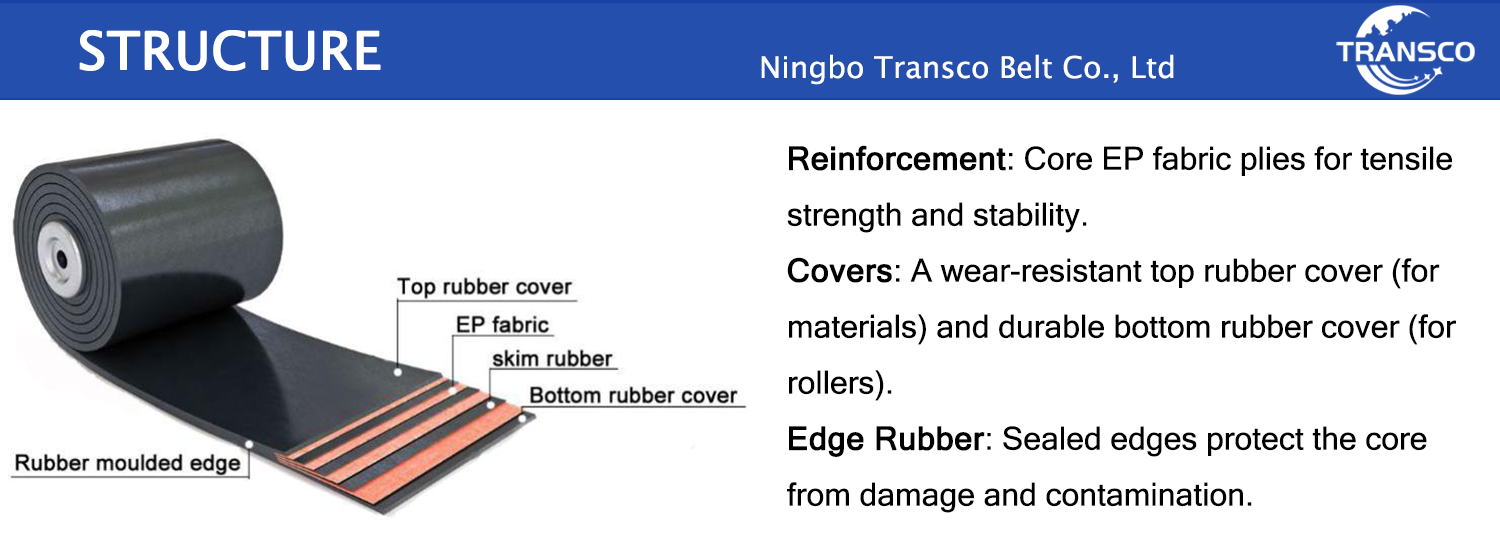

Reinforcement: Core EP fabric plies for tensile strength and stability.
Covers: A wear-resistant top rubber cover (for materials) and durable bottom rubber cover (for rollers).
Edge Rubber: Sealed edges protect the core from damage and contamination.

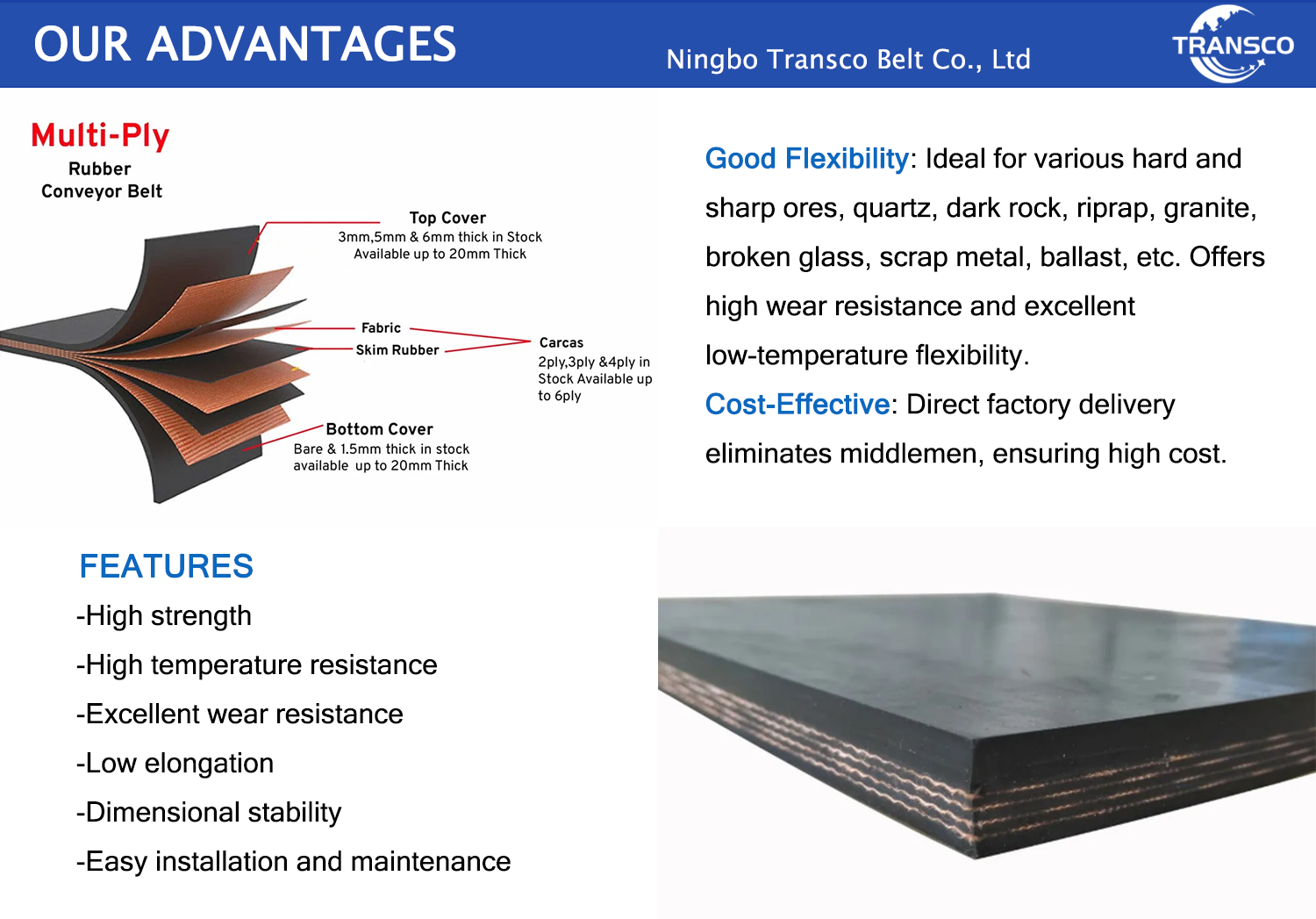

Ideal for various hard and sharp ores, quartz, dark rock, riprap, granite, broken glass, scrap metal, ballast, etc. Offers high wear resistance and excellent low-temperature flexibility.
Cost-Effective: Direct factory delivery eliminates middlemen, ensuring high cost performance.

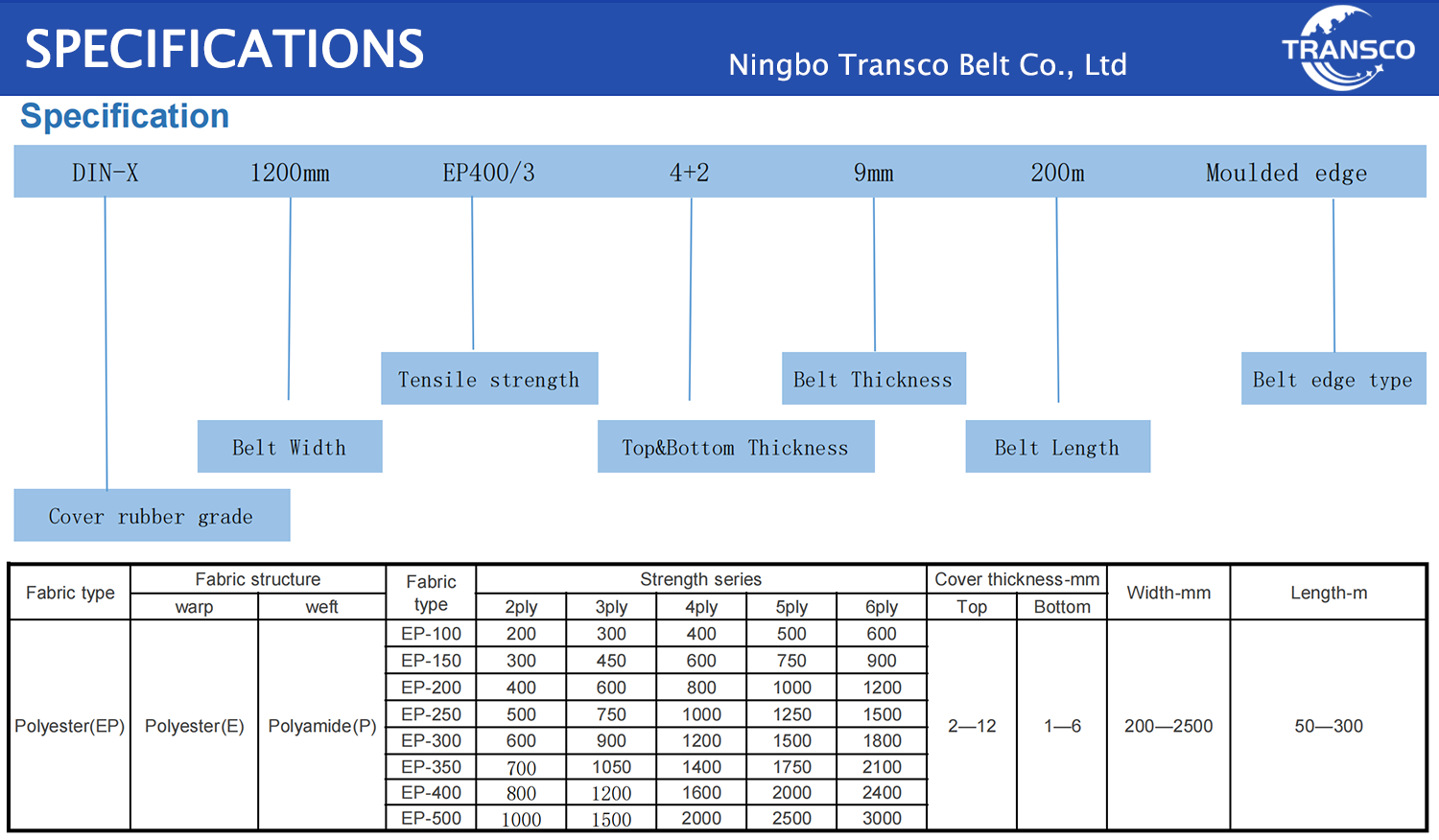

| Fabric Type | Strength Series | Cover Thickness (mm) | Width (mm) | Length (m) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | |||
| EP - 100 | 200 | 300 | 400 | 500 | 600 | 2 — 12 | 1 — 6 | 200 — 2500 | 50 — 300 |
| EP - 150 | 300 | 450 | 600 | 750 | 900 | ||||
| EP - 200 | 400 | 600 | 800 | 1000 | 1200 | ||||
| EP - 250 | 500 | 750 | 1000 | 1250 | 1500 | ||||
| EP - 300 | 600 | 900 | 1200 | 1500 | 1800 | ||||
| EP - 350 | 700 | 1050 | 1400 | 1750 | 2100 | ||||
| EP - 400 | 800 | 1200 | 1600 | 2000 | 2400 | ||||
| EP - 500 | 1000 | 1500 | 2000 | 2500 | 3000 | ||||
| Standards | Cover Rubber | Adhesion | ||||
|---|---|---|---|---|---|---|
| Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply (N/mm) (≤1.5mm) | Cover to Ply (N/mm) (>1.5mm) | Ply to Ply (N/mm) | |
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
| Standards | Cover Rubber | Adhesion | ||||
|---|---|---|---|---|---|---|
| Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply (N/mm) (≤1.9mm) | Cover to Ply (N/mm) (>1.9mm) | Ply to Ply (N/mm) | |
| AS 1332 - N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332 - M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion | ||||
|---|---|---|---|---|---|---|
| Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply (N/mm) (≤1.6mm) | Cover to Ply (N/mm) (>1.6mm) | Ply to Ply (N/mm) | |
| RMA - I | 17 | 400 | 200 | 3 | 4.4 | 4 |
| RMA - II | 14 | 400 | 250 | 3 | 4.4 | 4 |
| Standards | Cover Rubber | Adhesion | |||
|---|---|---|---|---|---|
| Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply (N/mm) | Ply to Ply (N/mm) | |
| SANS 1173 - A | 18 | 400 | 70 | 5 | 7 |
| SANS 1173 - C | 20 | 400 | 150 | 5 | 7 |
| SANS 1173 - M | 25 | 450 | 120 | 5 | 7 |
| SANS 1173 - N | 17 | 400 | 150 | 5 | 7 |

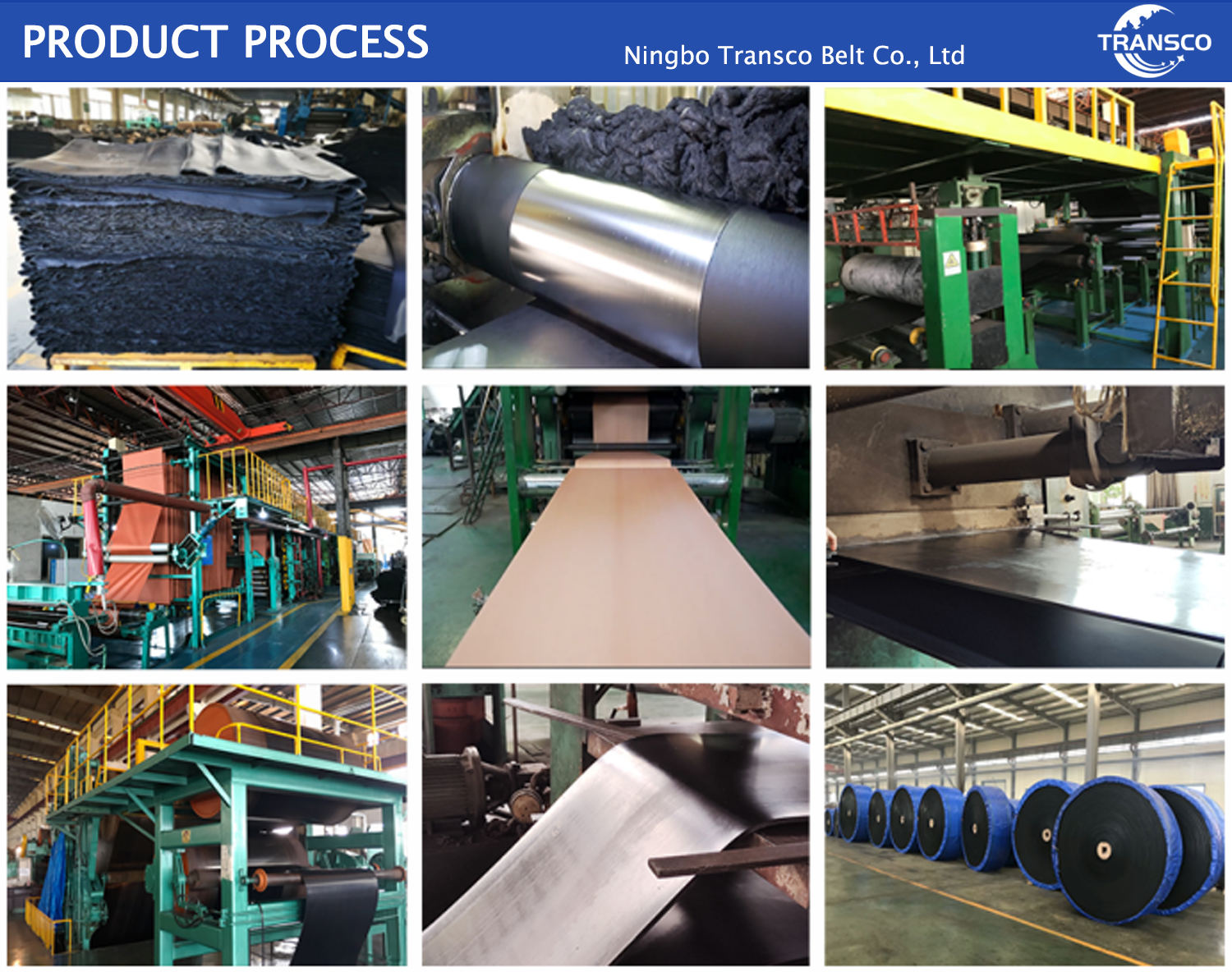

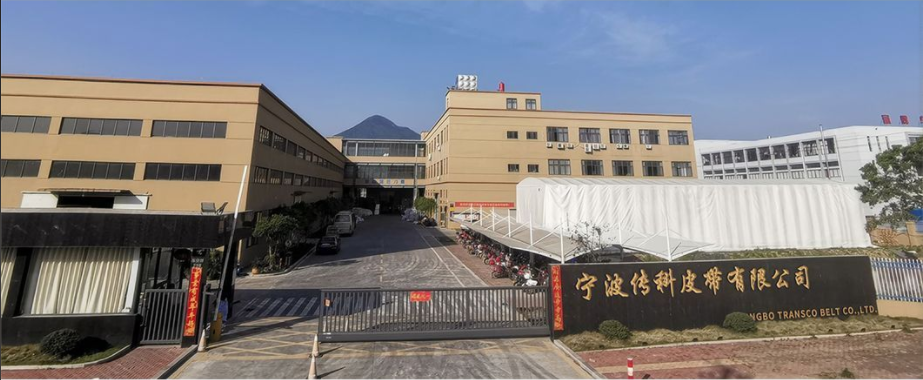

Focusing on Rubber V belts and conveyor belts for more than 20 years. We design, make, sell and install various rubber belts, with a modern production line and advanced testing and control labs.
Are you a manufacturer?
Yes, we have been producing and selling high-quality conveyor belts for more than 20 years.
What about the lead time for orders?
It takes 1 to 2 days for samples, and 10 to 30 days for formal orders depending on the specific order quantity.
What payment methods do you accept?
We accept T/T, L/C, D/P through bank account transfers, as well as global pay portals.
How are the products packaged?
The inner layer is packed on a round steel core with a 30cm diameter and a 12cm x 12cm square hole. The outer layer is wrapped with a single ply of waterproof PP fabric. We also provide steel pallets, iron pallets, frame packaging, or other customized packaging options.
What are the main advantages of EP conveyor belts?
EP conveyor belts offer high tensile strength, outstanding flexibility, low elongation, excellent wear/heat resistance, and dimensional stability, making them highly cost-effective and durable.

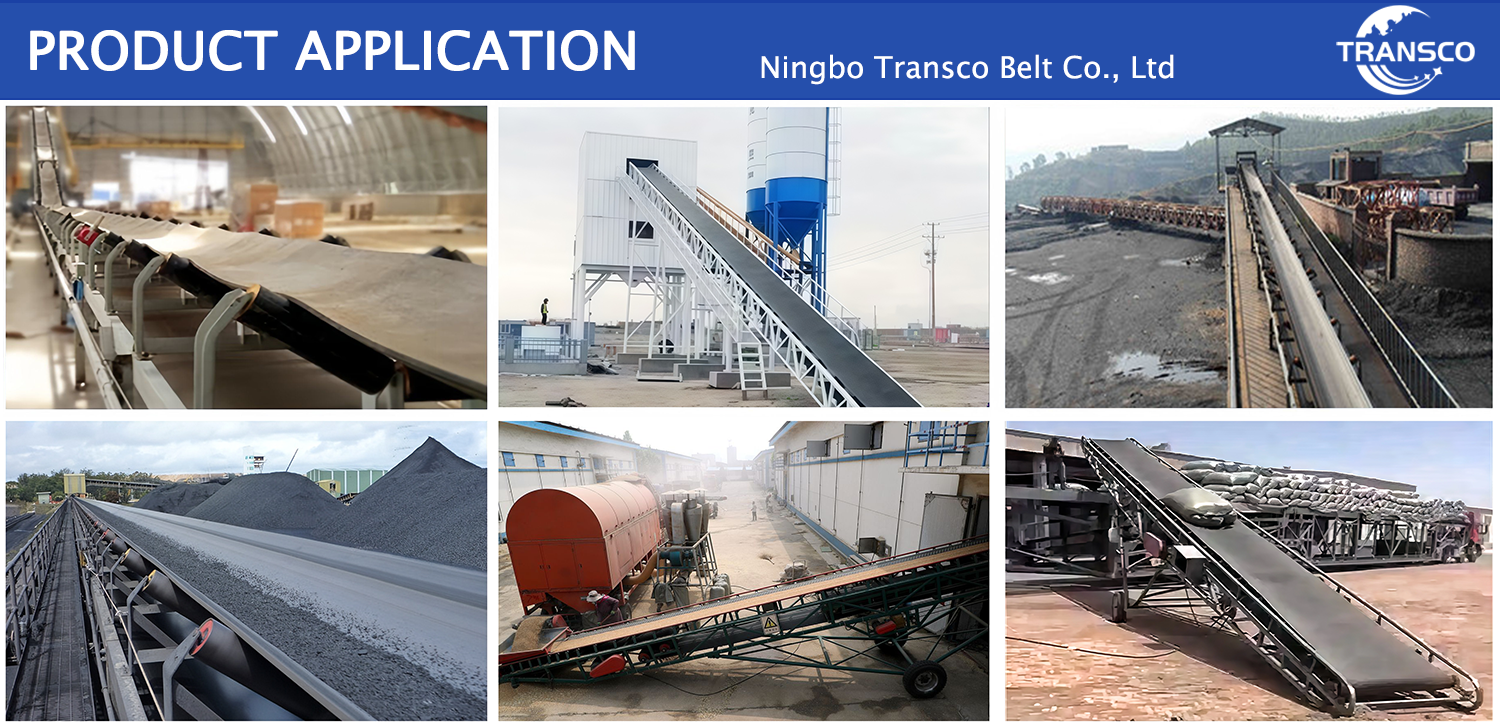

Which industries are these conveyor belts suitable for?
They are widely applied in industrial sectors such as agriculture, logistics, mining, construction, and manufacturing for efficient bulk material transportation.
