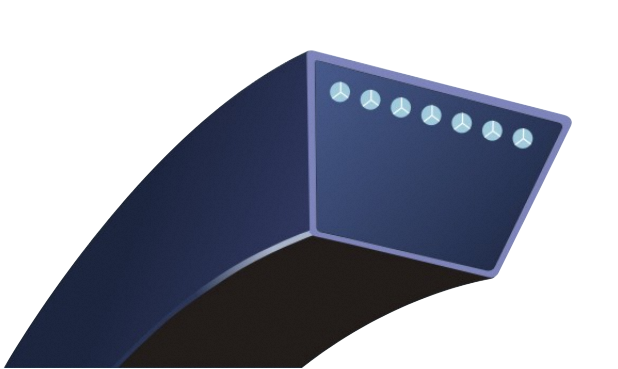

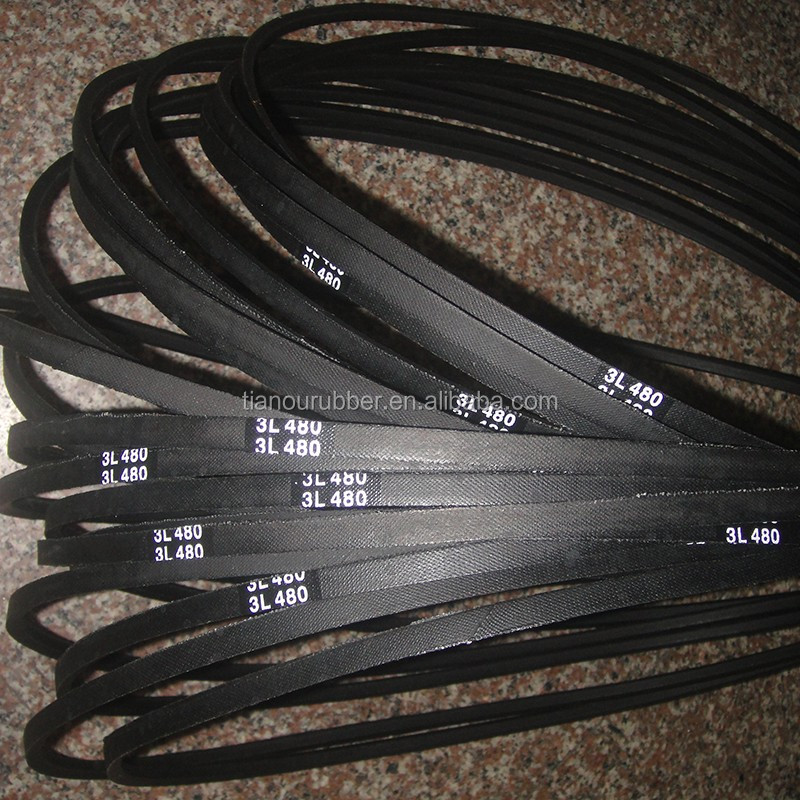

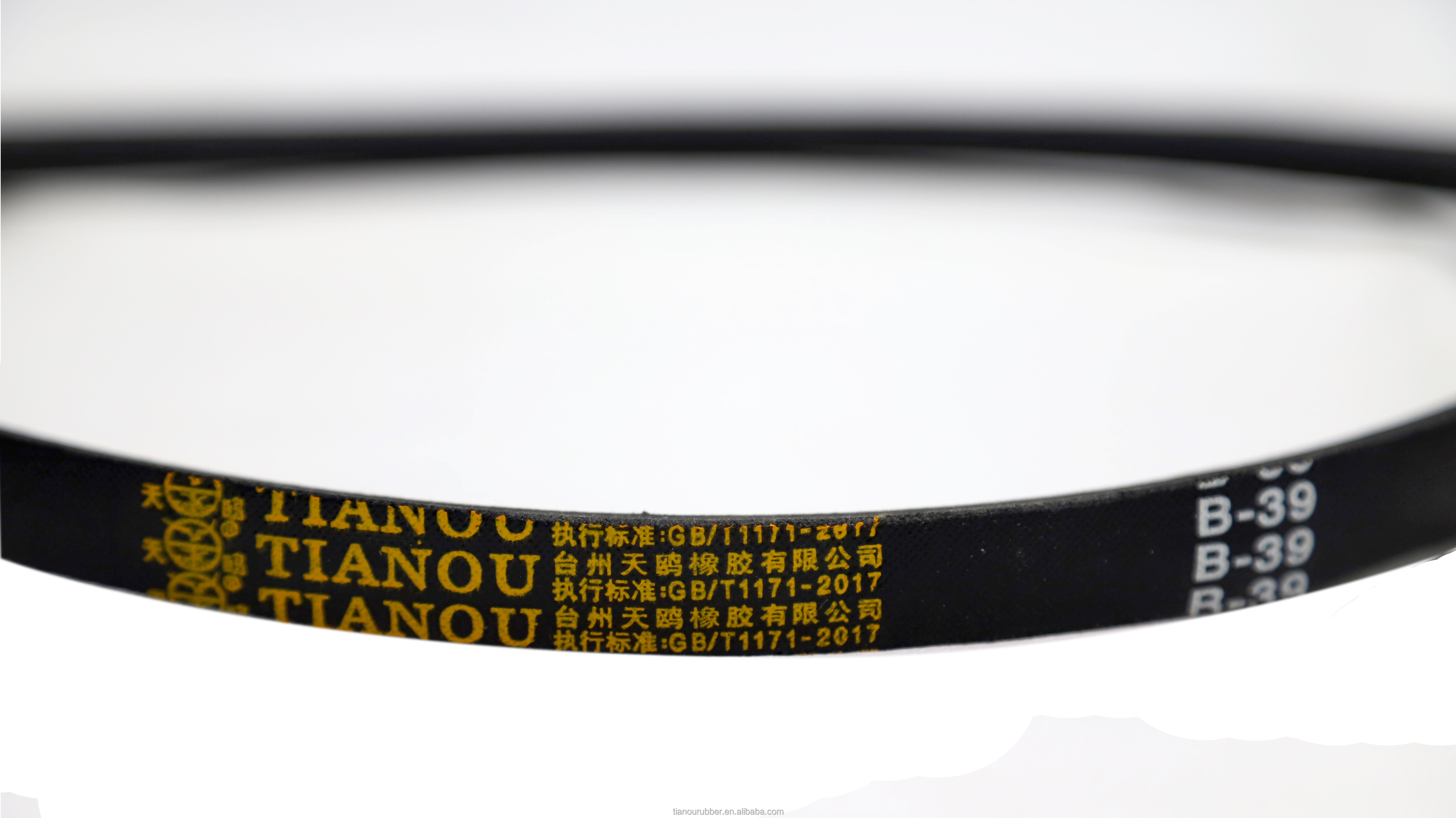

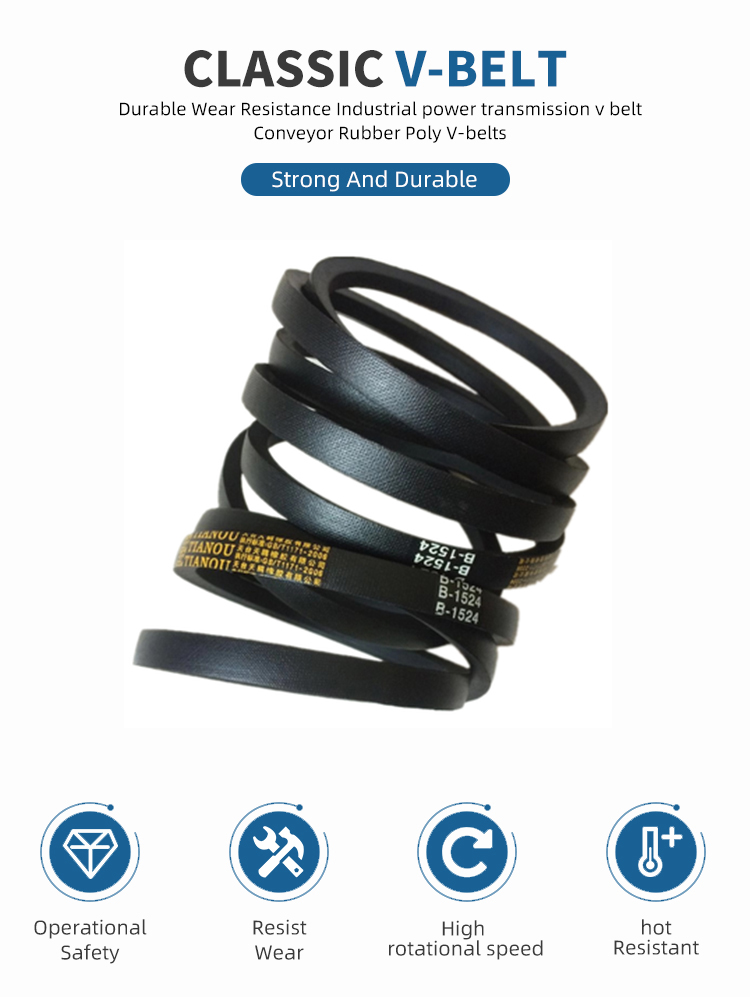

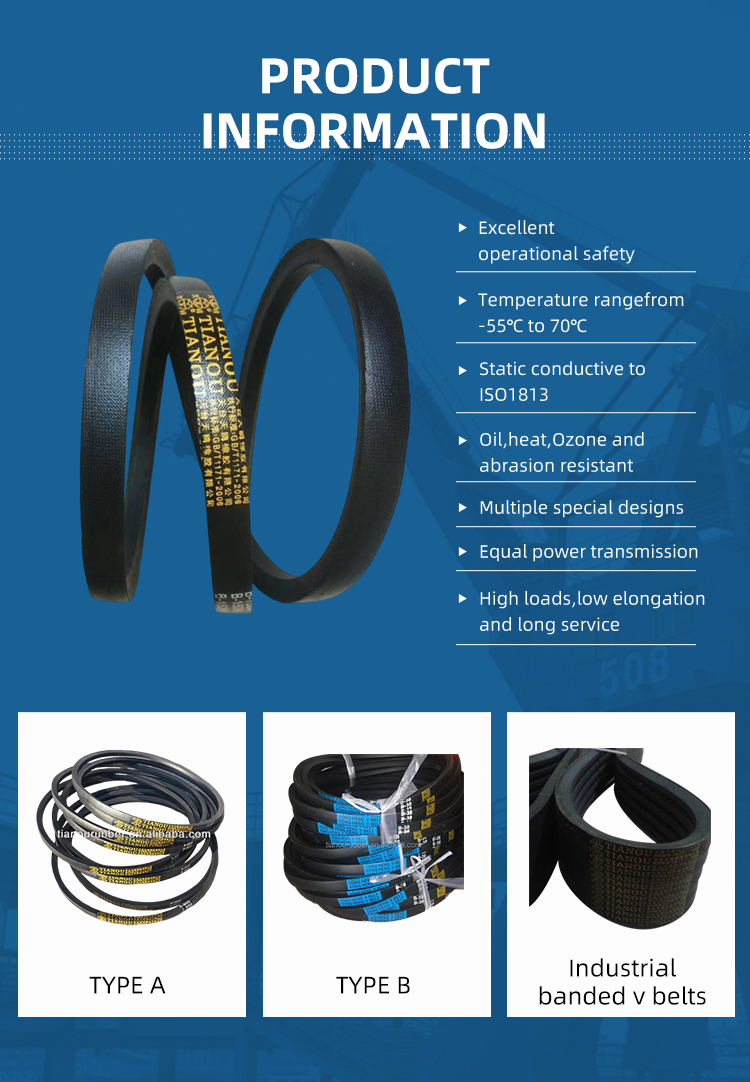

Classical wrapped v-belts feature high strength, low protraction, small matching tolerance, and a fatigue endurance limit of over 10^7 times.
It can offer high transverse stiffness and a transmission power 50-100% higher than classical V-belts. The transmission limiting velocity reaches 40m/s and the transmission efficiency over 95%.

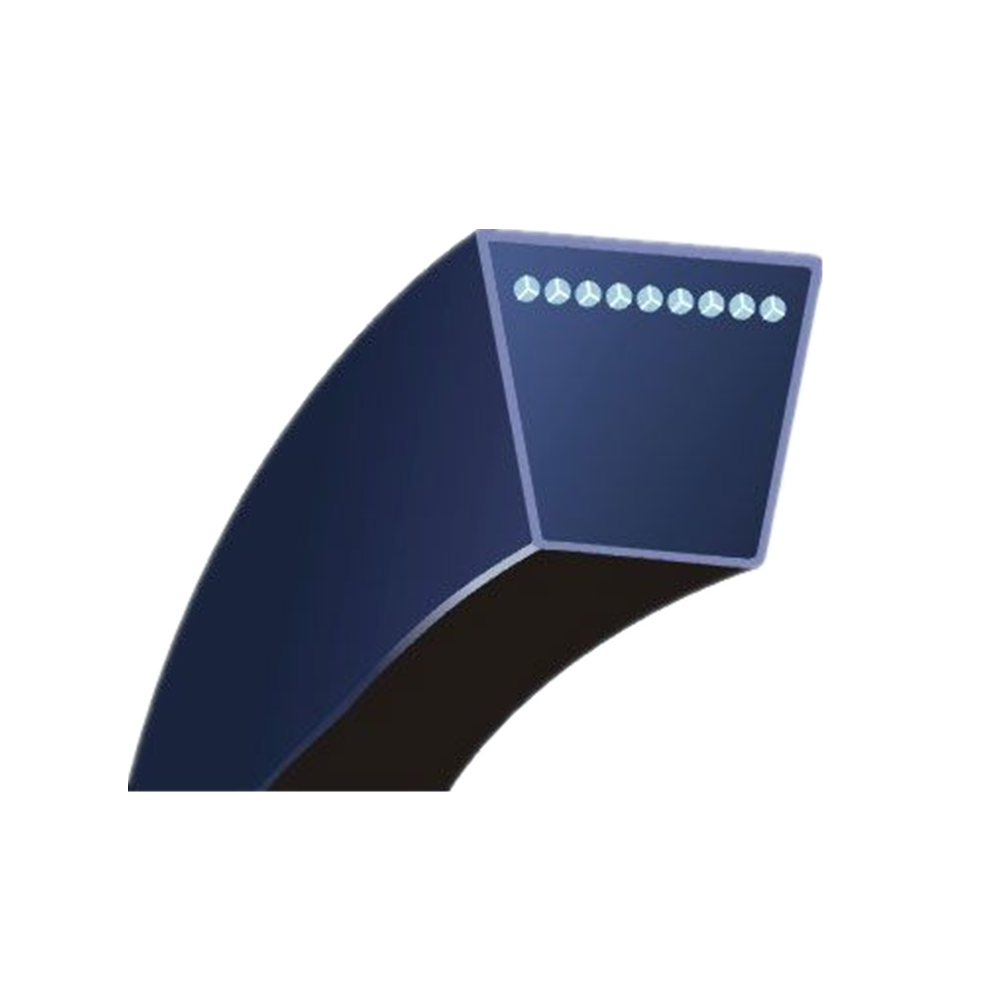

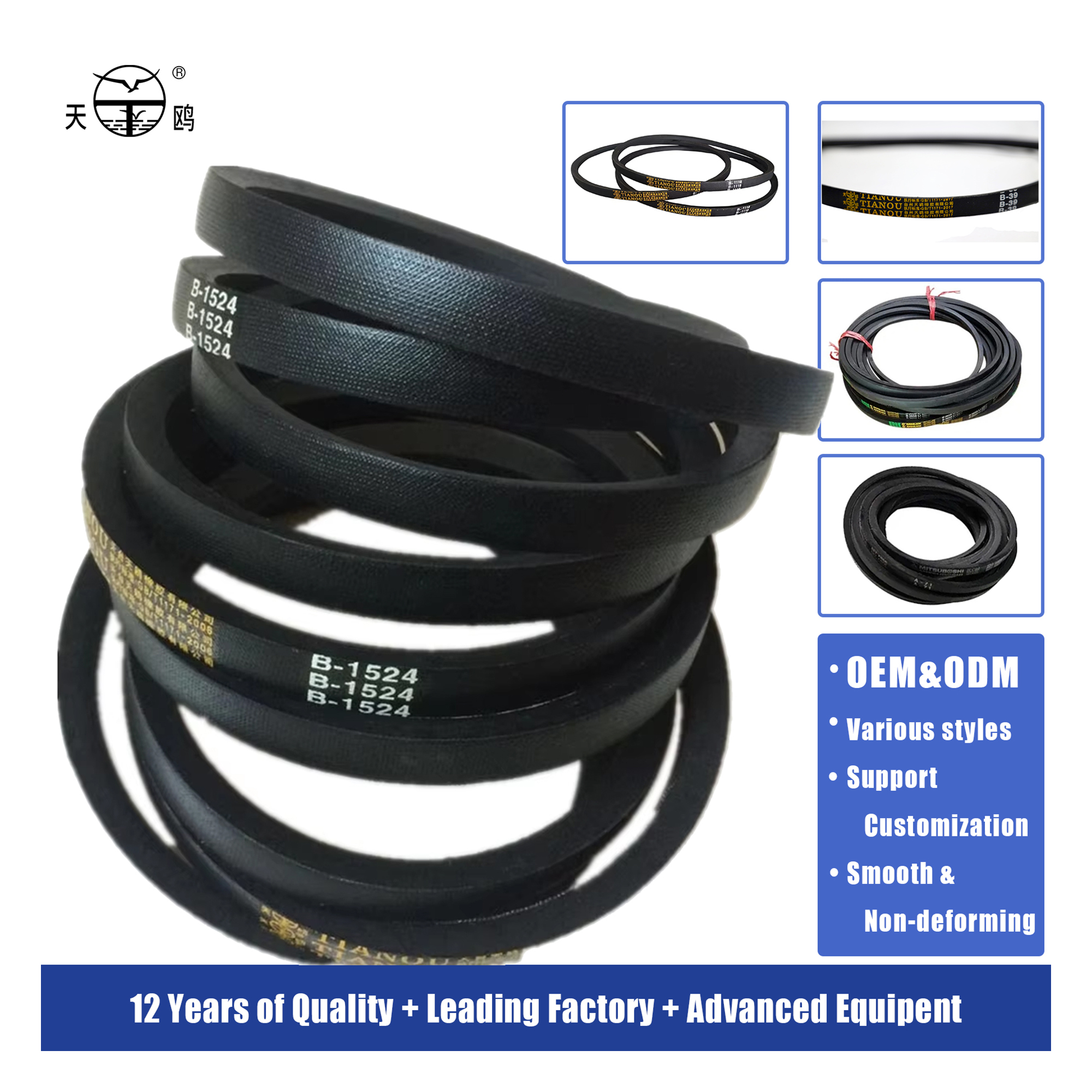

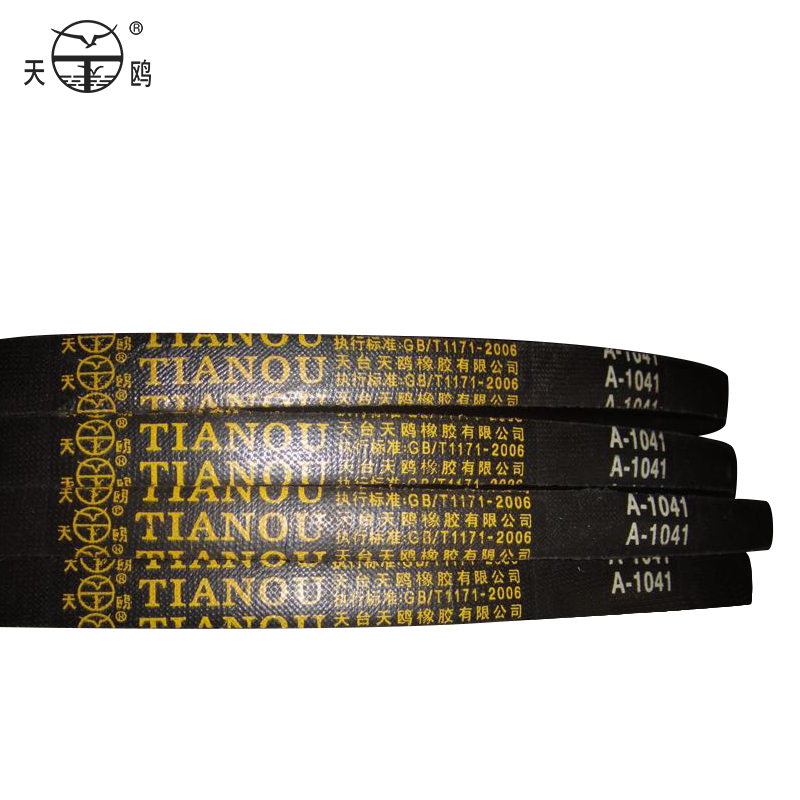

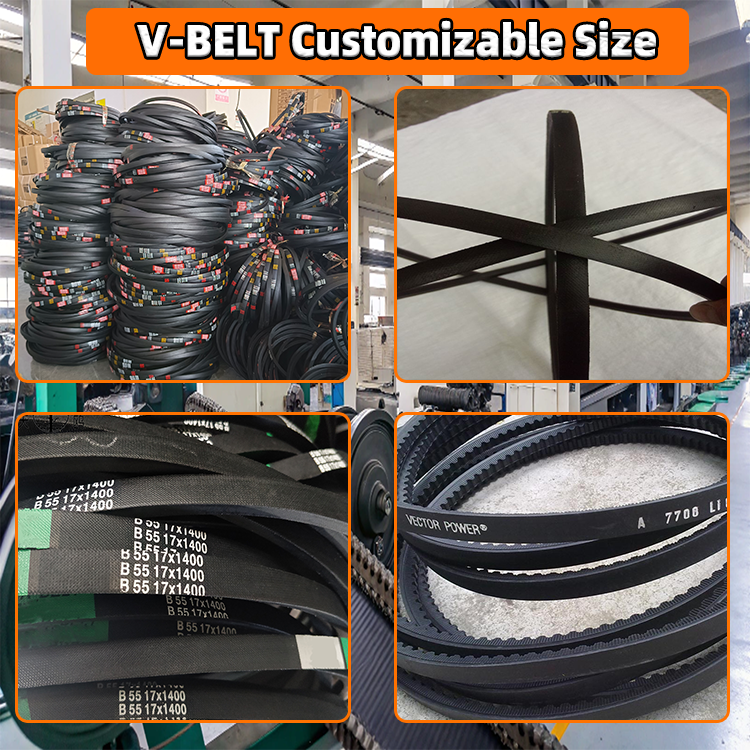

Wedge wrapped V-belts fall into two categories: The metric SP series comprise of SPZ, SPA, SPB and SPC models. The inch V series include 3V (9N), 5V (15N) AND 8V (25n) models. V-belt of these types are marked according to the outside length of factory V- belts. Specific noting should be made on the order list if the customer has special requirements. The length conversion table is available for conversion between various models.

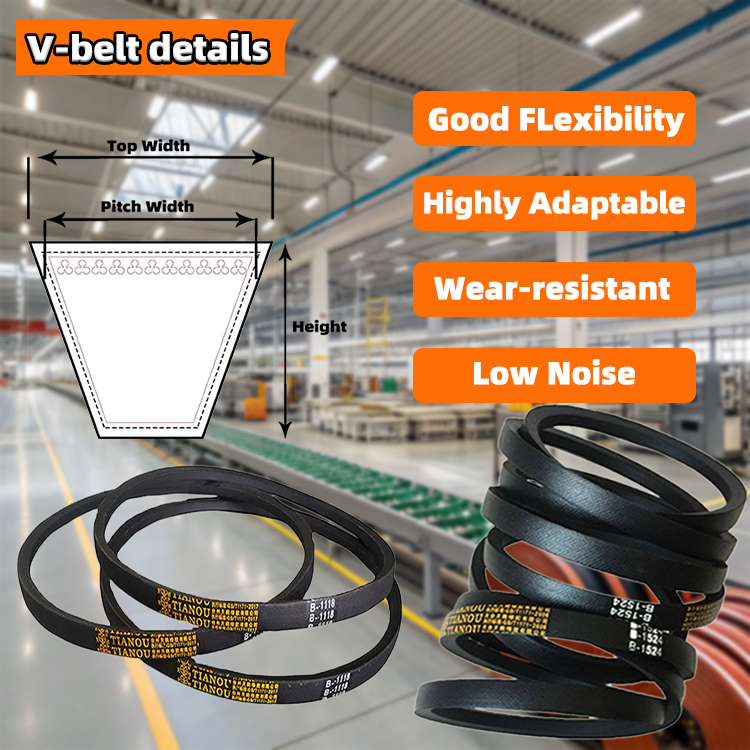

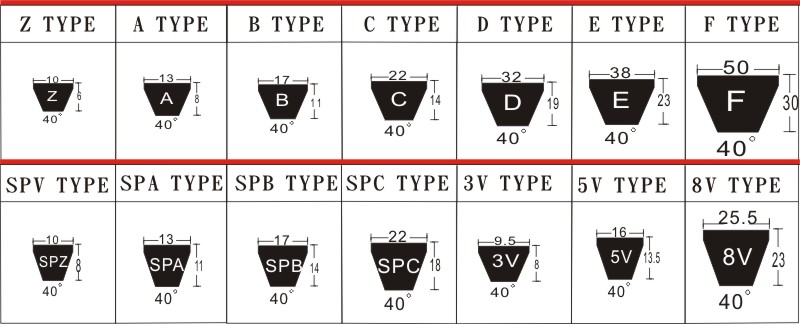

| Type | Top Width (mm) | Pitch Width (mm) | Height (mm) | Length Range (Inch) | Length Range (mm) | Length mark | Angle | Length Conversion |
|---|---|---|---|---|---|---|---|---|
| Z | 10 | 8.5 | 6 | 16"-140" | 408-3556 | Li | 40° | Li=Ld-22 |
| A | 13 | 11 | 8 | 16"-315" | 408-8001 | Li | 40° | Li=Ld-30 |
| B | 17 | 14 | 11 | 24"-587" | 610-14910 | Li | 40° | Li=Ld-40 |
| C | 22 | 19 | 14 | 40"-825" | 1016-20955 | Li | 40° | Li=Ld-58 |
| D | 32 | 27 | 19 | 63"-825" | 1600-20955 | Li | 40° | Li=Ld-75 |
| E | 38 | 32 | 23 | 177"-825" | 4496-20955 | Li | 40° | Li=Ld-80 |
| F | 50 | 42.5 | 30 | 210"-825" | 5334-20955 | Li | 40° | Li=Ld-120 |
| 3V | 9.5 | / | 8 | 200”-210” | 508-5334 | Li | 40° | Ld=Li+50 |
| 5V | 16 | / | 13.5 | 50''-587'' | 1270-14910 | Li | 40° | Ld=Li+82 |
| 8V | 25.5 | / | 23 | 126''-587'' | 3200-14910 | Li | 40° | Ld=Li+144 |
| SPZ | 10 | 8 | 8 | 20'-210'' | 508-5334 | Li | 40° | Lw=Li+30 |
| SPA | 13 | 11 | 10 | 31.5''-236'' | 800-5994 | Li | 40° | Lw=Li+38 |
| SPB | 17 | 14 | 14 | 50''-587'' | 1270-14910 | Li | 40° | Lw=Li+58 |
| SPC | 22 | 19 | 18 | 63”-825” | 1600-20955 | Li | 40° | Lw=Li+73 |
We are specialized in manufacturing V-belt, flat belt and conveyor belt. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, the Middle East, South America, North America, Africa, etc. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

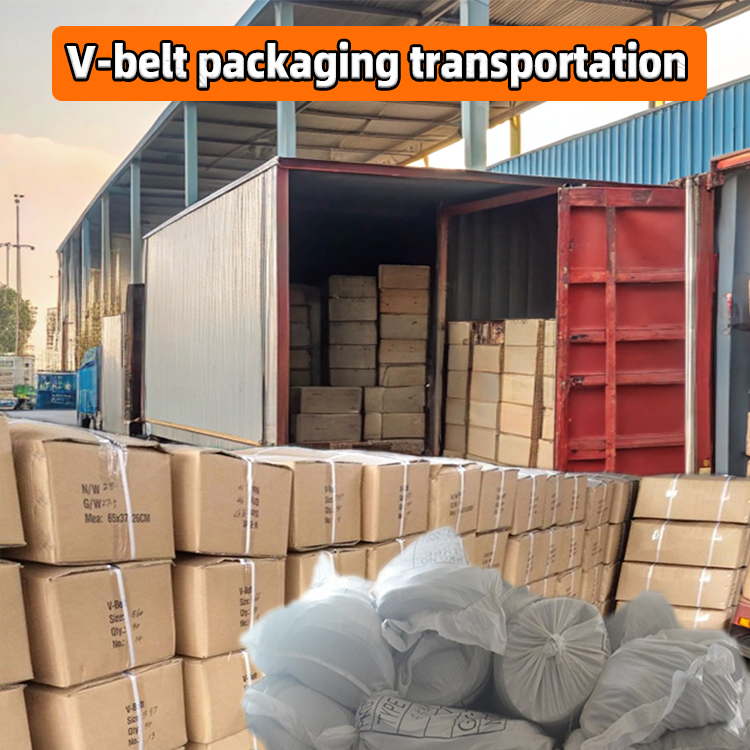

PACKAGE 1: Woven Bag

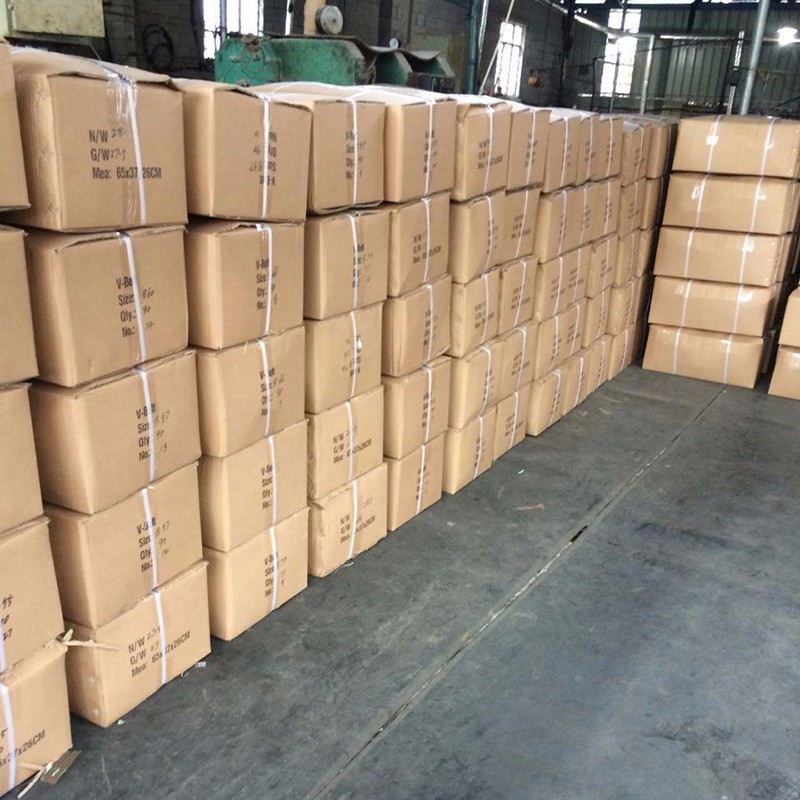

PACKAGE 2: Carton
