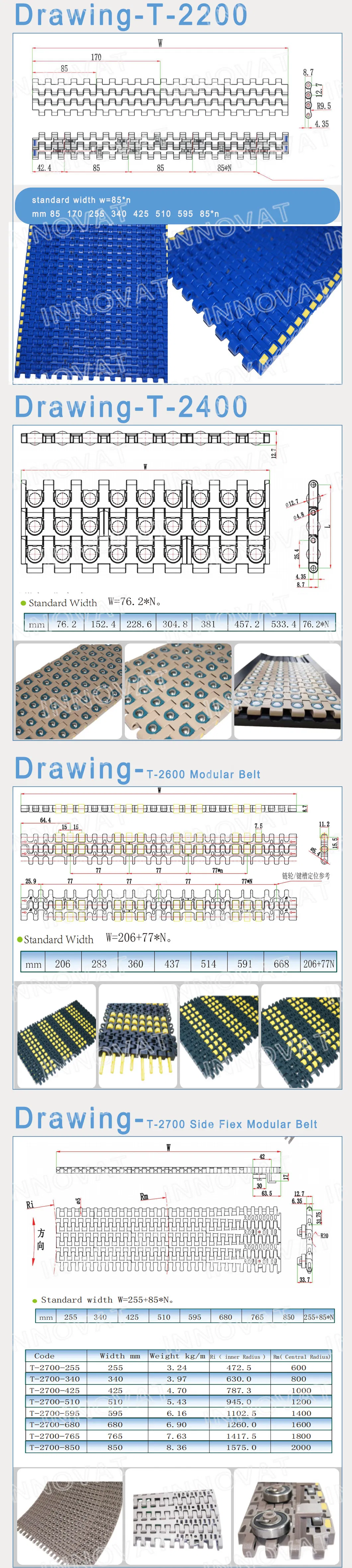

| Name | T-2200 Flat Top Modular Belts |
| Mat: | POM. Work temp: -30°C ~ +90 °C. |
| Material | Pin mat.: PP; |
| Color: | blue/dark green Weight:8.6kg/m2 |
| Maximum speed: | Maximum speed 50 m/min lubricant; 30 m/min desiccant. |
| Load | Load: POM 16000N/M ; |

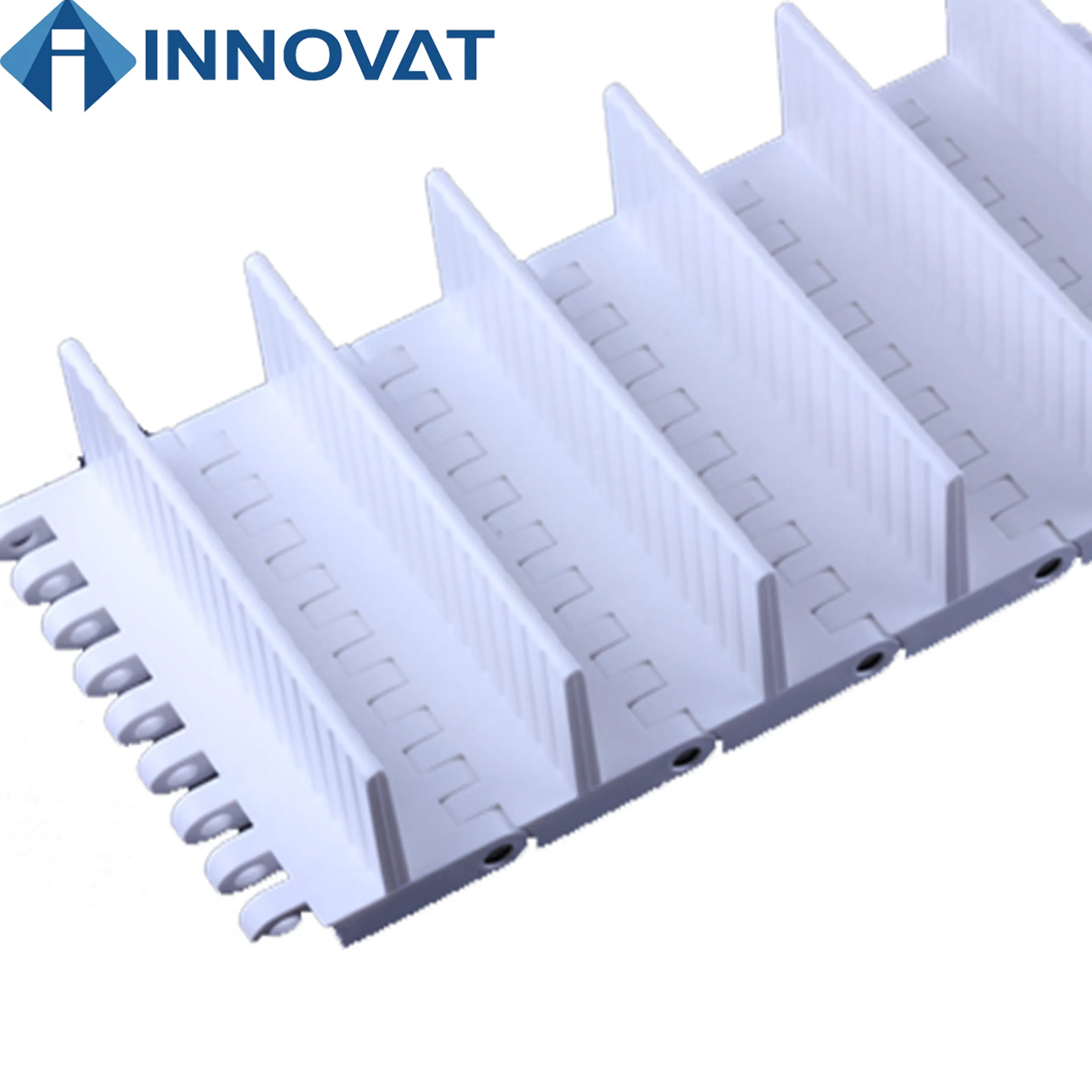

| Name | T-400 Modular Belt with Flight |
| Application | It is suitable for various kinds of food, and packing elevating and conveying system. |
| Flight | The standard flight height(H)is 20/25/30/40/50/75mm. |
| Name | T-1000 Raised Rib Modular Belt |
| Mat: | Mat of belt:POM ; Pin Mat: PP.Work temp: -30ºC~+90ºC. |
| Color: | Color: Dark Green. |
| Load | Work load: POM is 17280N/M, flush grid raito: 38% Weight: 9.55kg/sqm |
| Name | T-1600 Flush Grid with Tab |
| Mat: | Mat: POM. Work temp: -30°C ~ +90 °C; Pin mat.: PP; |
| Color: | Color: blue white weight:6.8kg/m2. |
| Load | Load: POM 15000N/M Open area: 55%; |
| Name | T-2700 Side Flex Modular Belt with Small Radius |
| Mat: | Mat: POM. Work temp: -30°C ~ +90 °C; Pin mat.: PBT. |
| Color: | Color: blue white weight:6.8kg/m2. |
| Load | Load: POM 15000N/M Open area: 55%; |
| App | Packaging industry's most demanding applications, requiring high speed and heavy loads curves; |

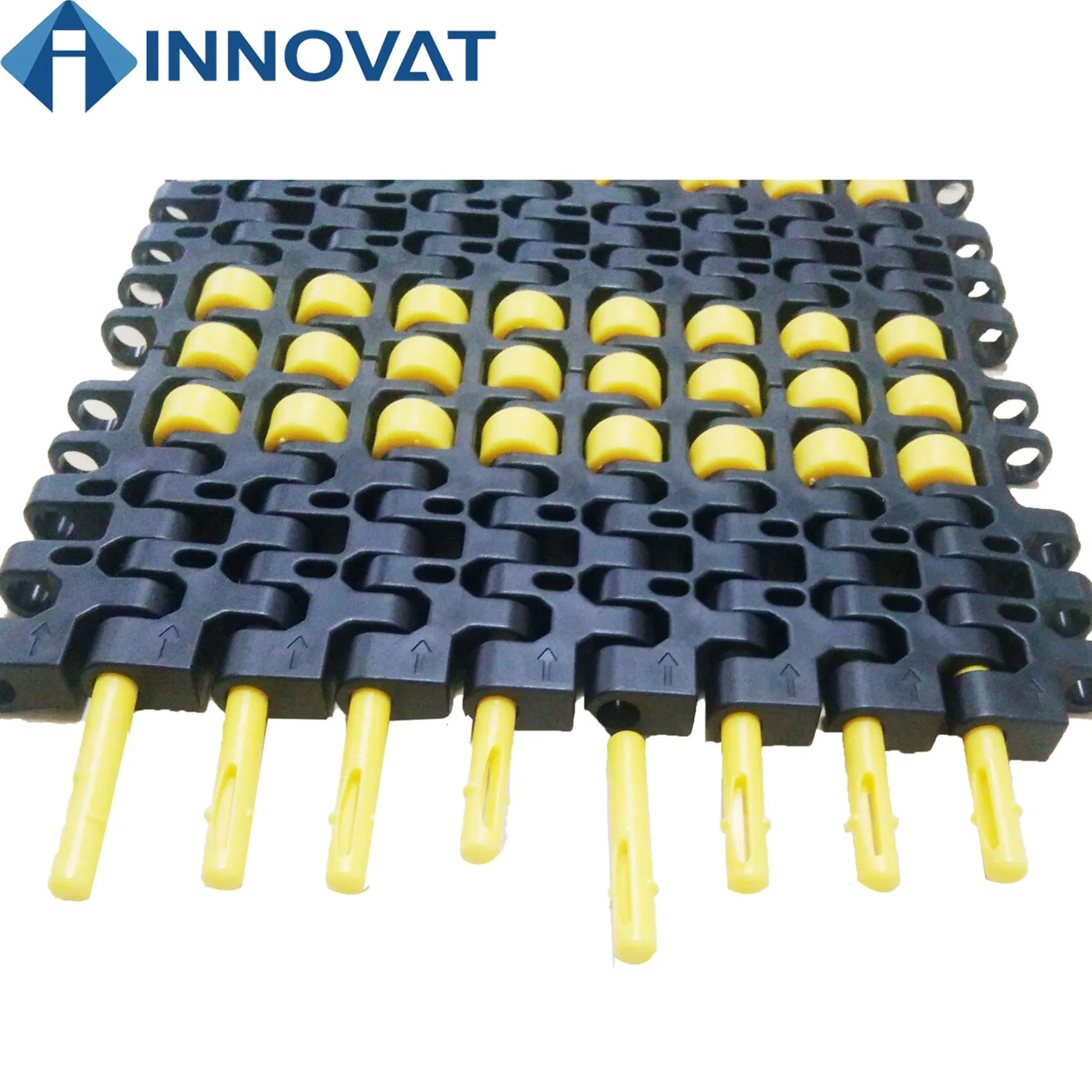

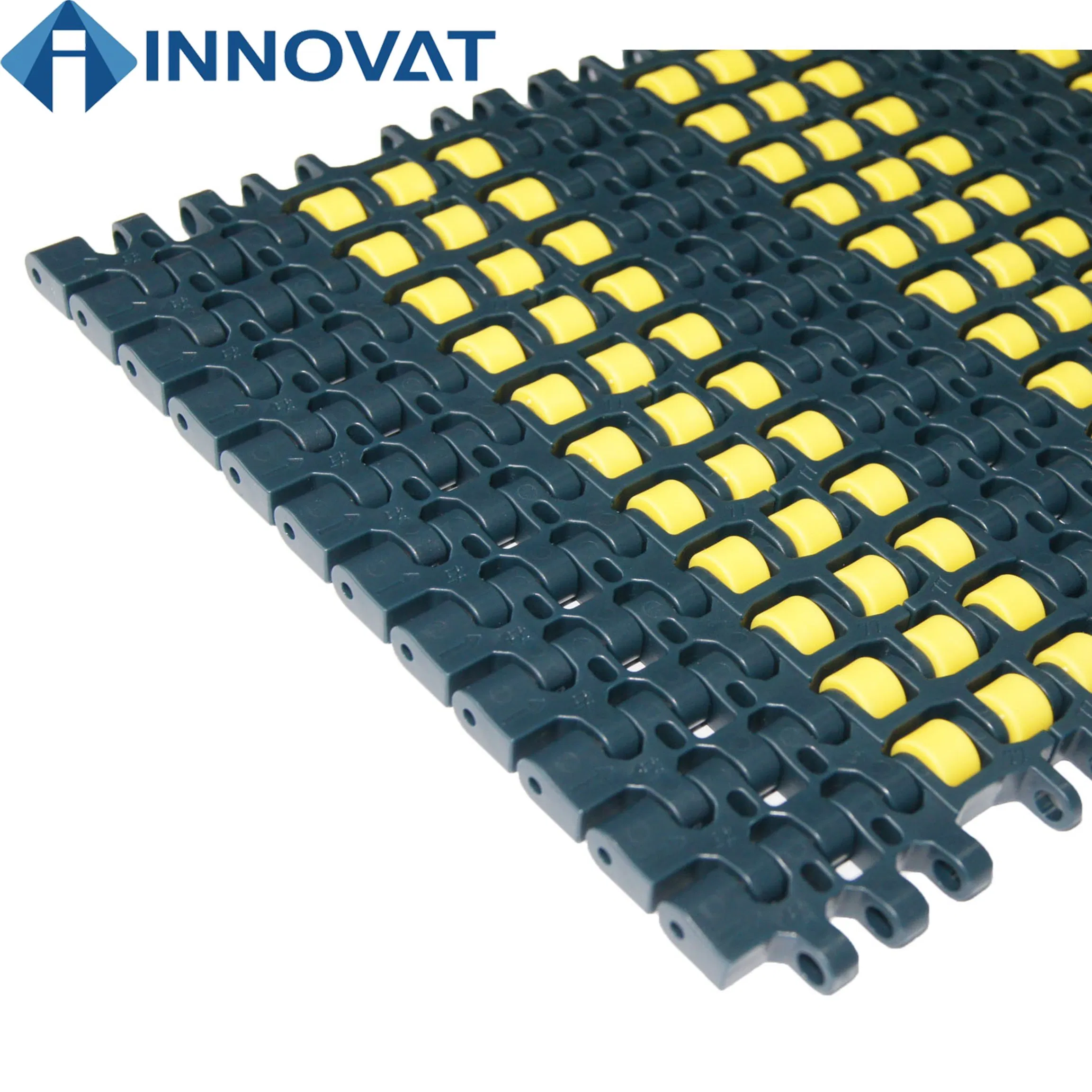

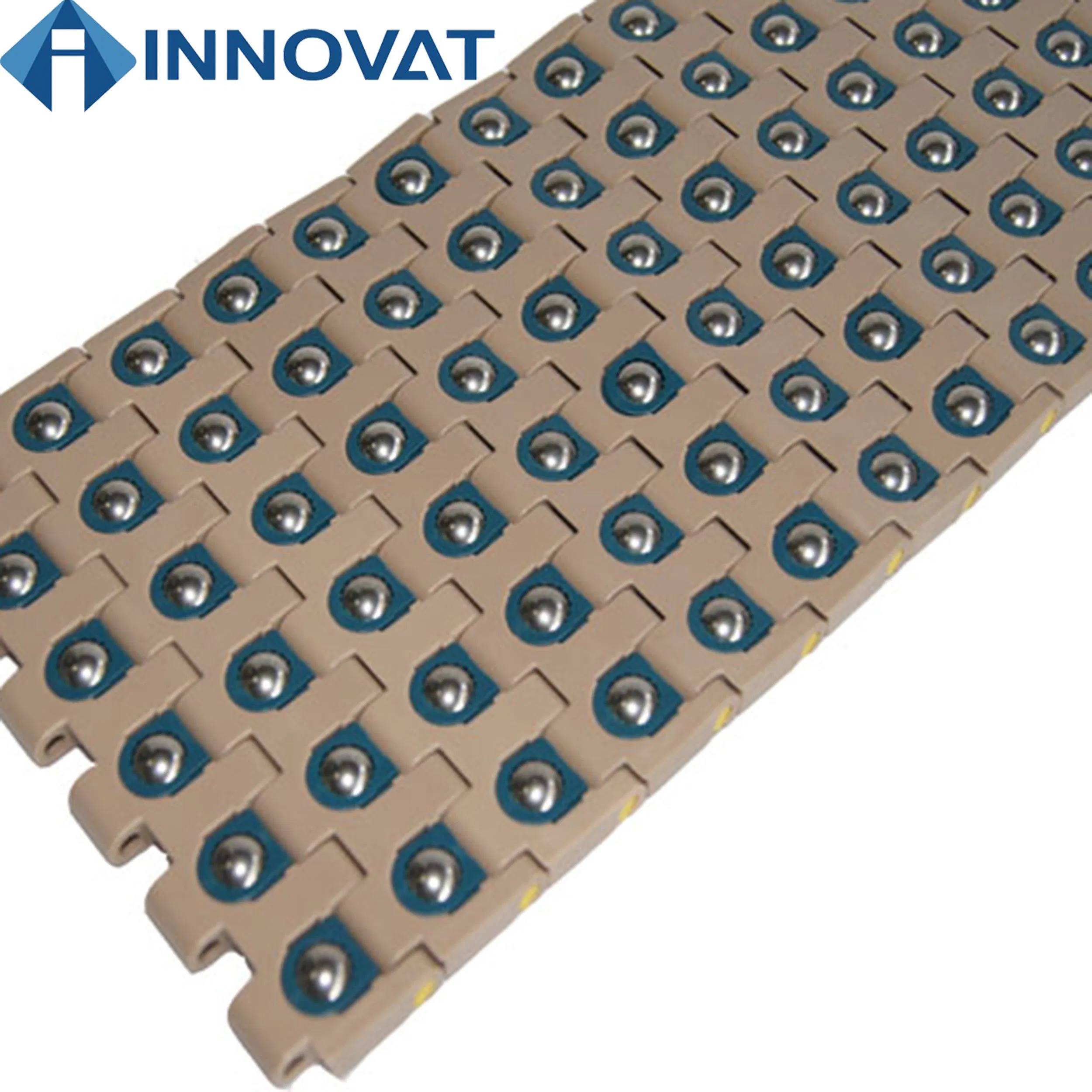

| Name | T-2400 Modular Belt |
| Mat: | POM Work temp: -30°C ~ +90 °C; Pin mat.: PP; Roller mat.: POM/SS304 |
| Color: | Color: blue white weight:6.8kg/m2. |
| Load | Work load: POM is 16000N/M; |
| App | Can be turning 360 degree, most application is for sorting packaging conveyor. |

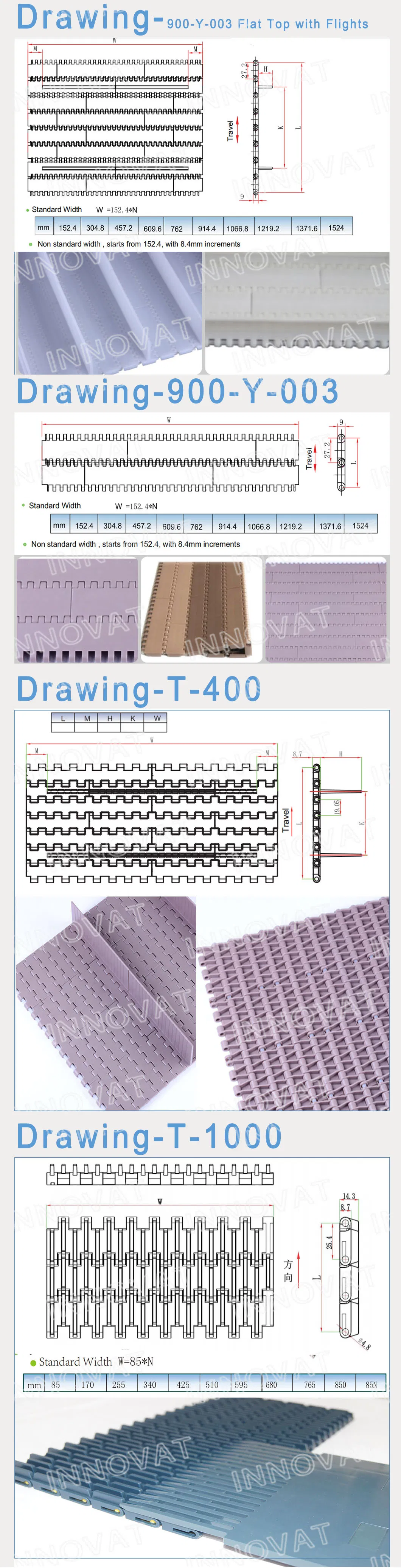

| Name | 900-Y-003 Flat Top Modular Belts |
| Mat: | Mat: POM. Work temp: -30°C to +90°C; Work Load: (POM) 17280N/M; |
| Weight | Weight: (POM) 7.69kg/m2; |
| App | Middle pitch load cans, boxes, bottles conveyor; |
| Name | 900-Y-003 Flat Top with Flights Modular Belts |
| Mat: | Mat: POM. Work temp: -30°C to +90°C; Work Load: (POM) 17280N/M; |
| Color: | Weight: (POM) 7.69kg/m2; |
| Load | Middle pitch load cans, boxes, bottles conveyor; |
| Height of flights: | H=25, 50; |
| Name | T-1600 Flush Grid with Tab |
| Mat: | Belt material: (POM), Working Temp: -30ºC~+90ºC; Pin mat.: POM; |
| Color: | Color: Belt/roller: Dark Green/yellow; Weight: 7.71kg/m2. |
| Load | Working load: POM 11900N/M; Open area: 12.5%. |
| Name | (B-2)+(B-3) Modular belts |
| Flight | Distance between belt side to flight: 33.8/50.7/16.9*n; |
| Height of flights: | Height of flights: H= 25.4,32,50,76,102; |
| Name | B-5 Modular Belts |
| Mat: | Mat: POM. Work temp: -30°C ~ +90 °C; Mat: PP. Work temp: +1°C ~ +80 °C; Pin mat: PP. |
| Color: | Color: white Backflex radius: 75mm. |
| Load | Work Load: POM 22000N/M, PP 8800N/M; |

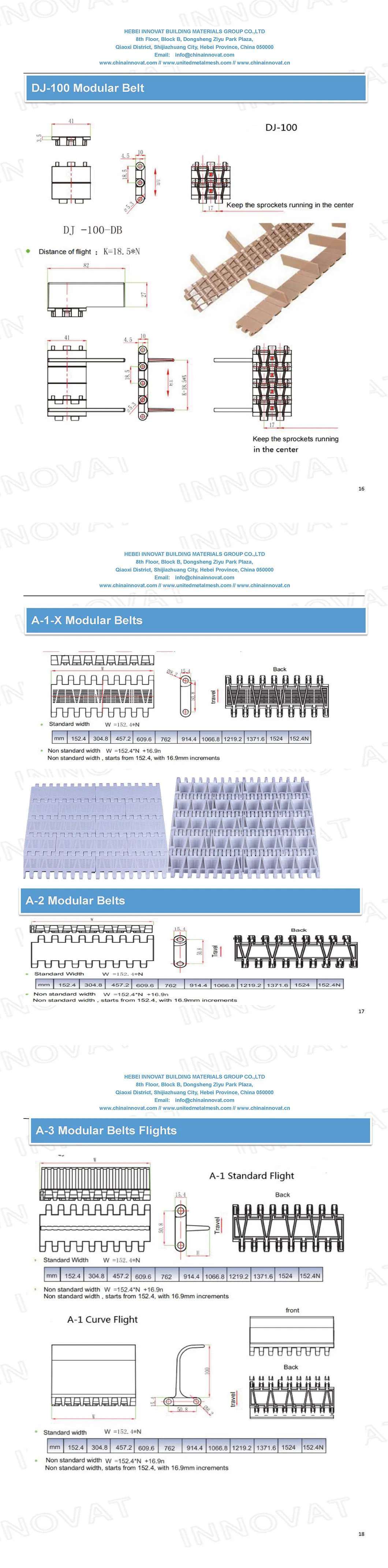

| Name | A-1-X Modular Belts |
| Mat: | Material: PP. Work temp: +1°C to 98°C, acidproof |
| Color: | Color: White, blue; Open ratio: 18%; |
| Load | For food transportation, packing machines; Work load: (PP) 8800N/M; |
| Name | A-2 Modular Belts |
| Mat: | Material: PP. Work temp: +1°C to 98°C, acidproof; Weigh: (PP) 7.29kgs/m2. |
| Color: | Color: White, blue; Open area: 0%; |
| Load | Work Load: (PP) 8800N/M; Applications: For food transportation, as well as in packing machines; |

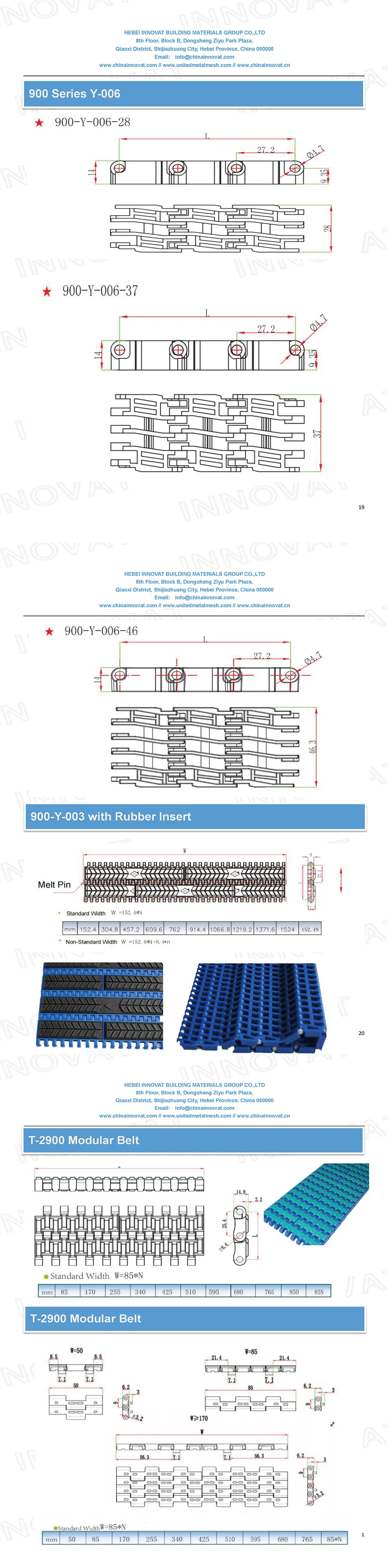

| Name | 900-Y-003 with Rubber Insert |
| Mat: | Mat: PP + Rubber; Weight: (POM) 7.93kg/m2 |
| Color: | Color: Blue. Rubber Color: Dark |
| Load | Work Load: (PP) 8080N/M, Pin Mat: PP; Application: bottles, cans and etc transportation; |
| Name | T-2900 Modular Belt |
| Mat: | Mat: POM+Rubber. Work temp: -30°C ~ +80 °C; Pin mat.: PP; |
| Color: | Color: blue Weight: 8.4kg/m2. |
| Load | Load: POM 8640N/M Sprockets same as T-1500; |
| Application | For all kinds of cartons, packages inclined conveyors. The surface rubber increases the friction and protects products above. |
| Name | T-2500 Flush Grid Modular Belt |
| Mat: | Mat: POM Work temp: -30°C ~ +90 °C; Pin mat.: POM Color: coffee; |
| Color: | Color: blue Weight: 8.4kg/m2. |
| Load | Load: POM 5250N/M Open area: 7%. |
| Application | Pharmaceutical industry, especially small bottles; |
