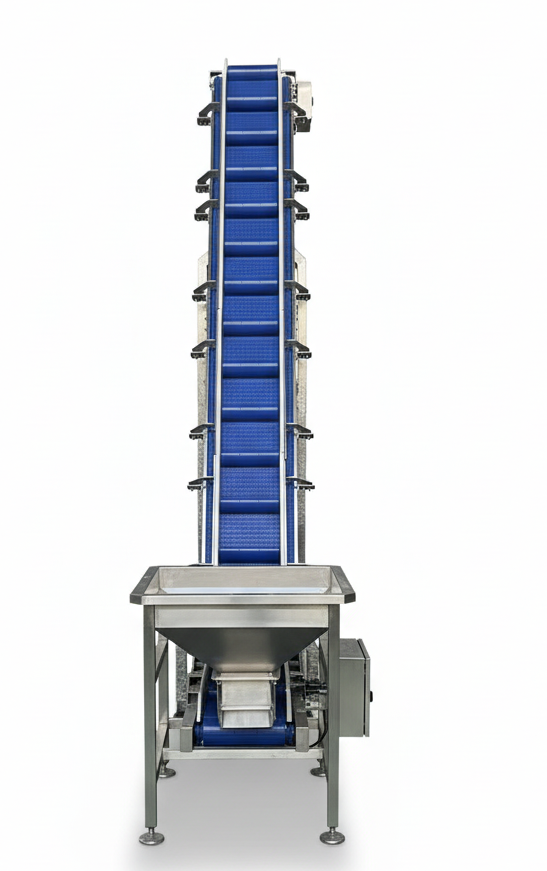

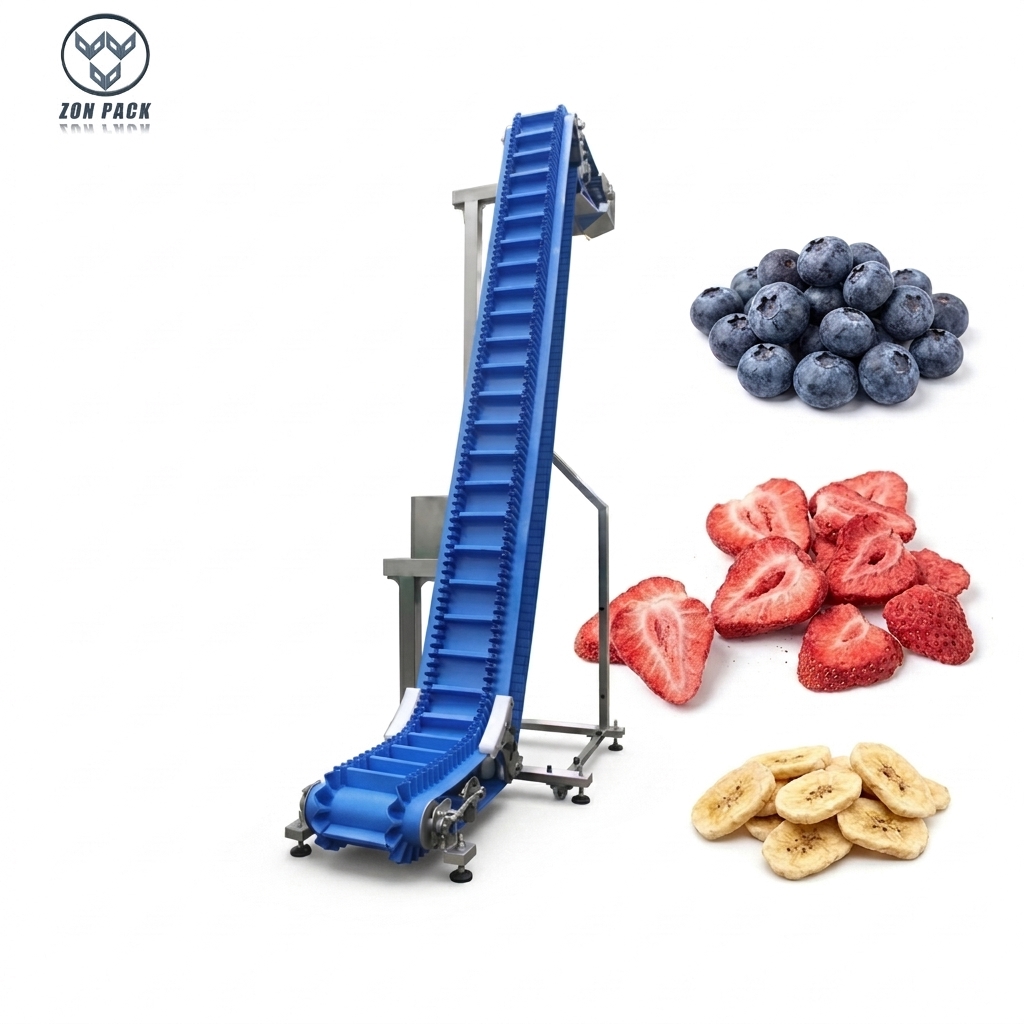

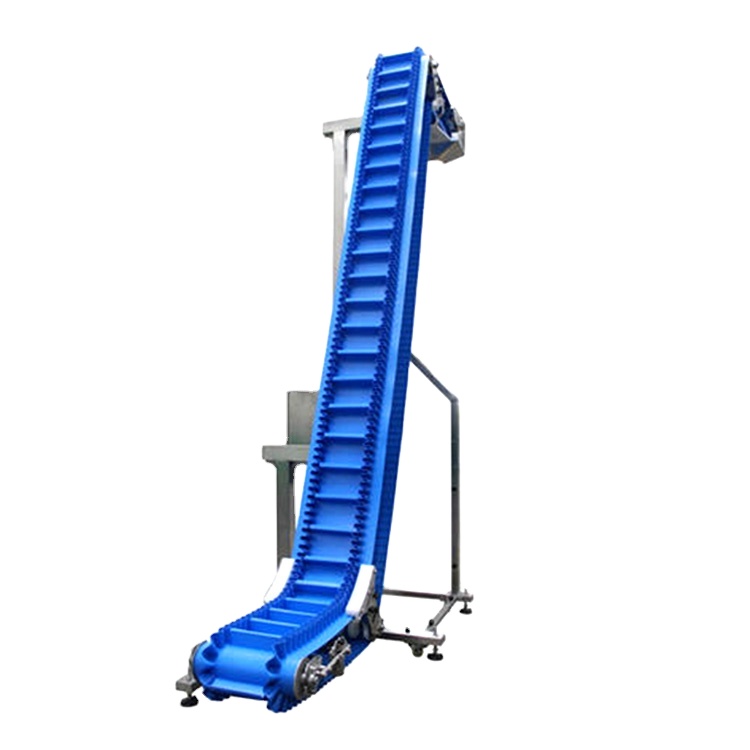

Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
1 / 5
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits
Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits

Easy Operate Automatic Food Grade Inclined Food Belt Conveyor for Frozen Fruits

Send Inquiry

Product Description

Product Description
Technical Specification of Inclined Conveyor
Model ZH-CFL/ ZH-CFP
Frame Material 304SS
Belt Material PP / PVC / PU (Food Grade)
Belt Width 300 / 450mm (can customized)
Baffle Distance 254mm
Baffle Height 75mm
Height 3480mm (Customized)
Capacity 3-7m³/h
Storage Hopper Volume 70L / 110L / 340L (Optional)
Power Parameter 0.75KW AC 220V/AC 380V, 50HZ
For Customized Size / Hopper Volume / Speed / Capacity and More Machine Details, Please Inquire.
Inclined Conveyor
Materials Application

Application Materials: The conveyor is applicable for conveying vegetables and big size products. The product is lifted by the chain plate or PU/PVC belt. For the chain plate option, water can be removed when the product is conveyed. For the belt option, it is designed for easy cleaning.

Application materials
Conveyor Application
Detailed Features
  • Material of structure: Stainless steel 304 or carbon steel.
  • Frequency converter is adopted, easy and stable to tune the speed.
  • PP plate or PU/PVC belt is adopted.
  • Smooth operation and easy to operate.
  • Strong sprocket with running stably and less noise.
  • Easy to install and maintain.

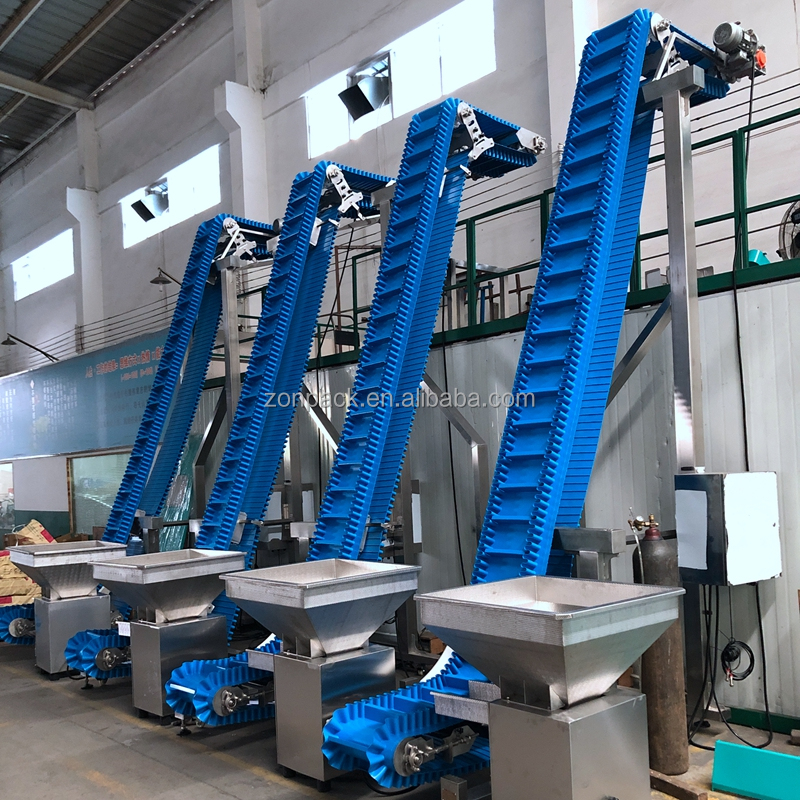

Conveyor detail features
Big Storage Hopper

Our storage hopper dimensions and conveyor heights can be customized. Standard specifications include:

  • 650*650mm hopper: 72L capacity
  • 800*800mm hopper: 112L capacity
  • 1200*1200mm hopper: 342L capacity

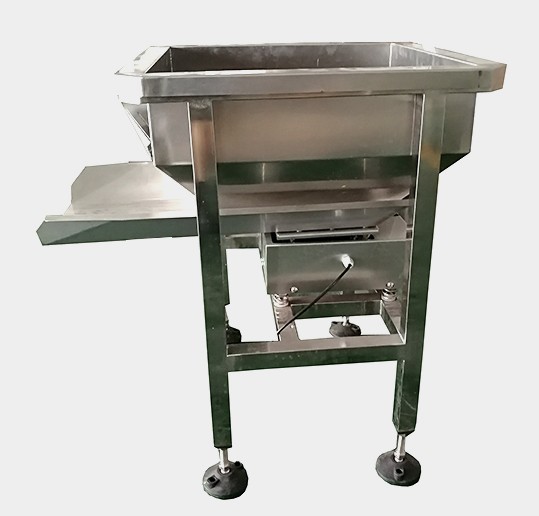

Storage hopper dimensions

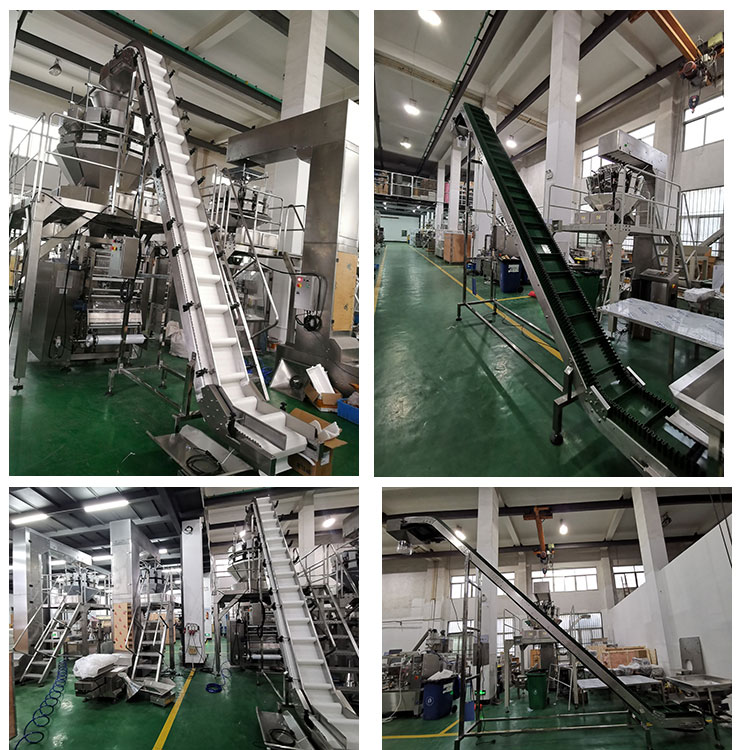

Storage hopper mechanical diagram

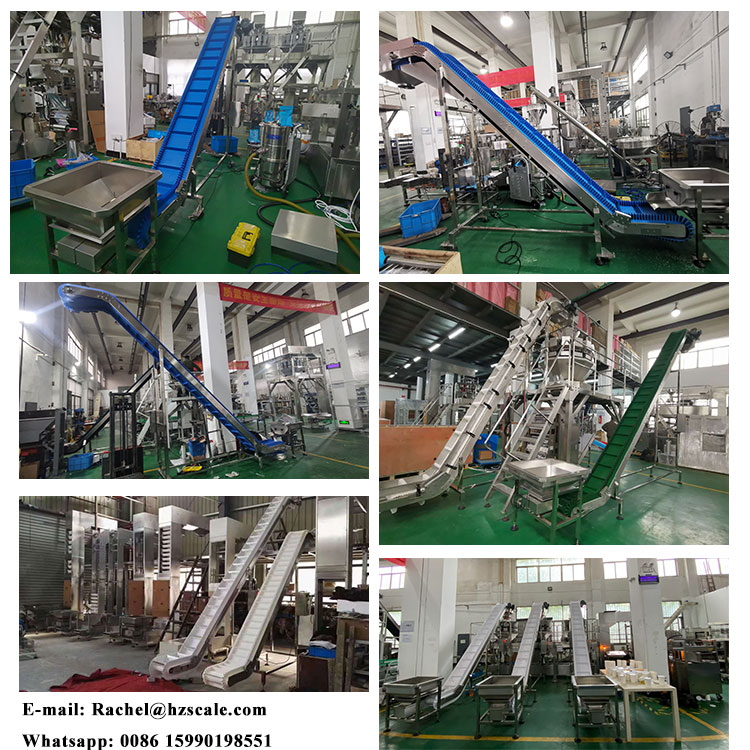

Conveyor structure detail

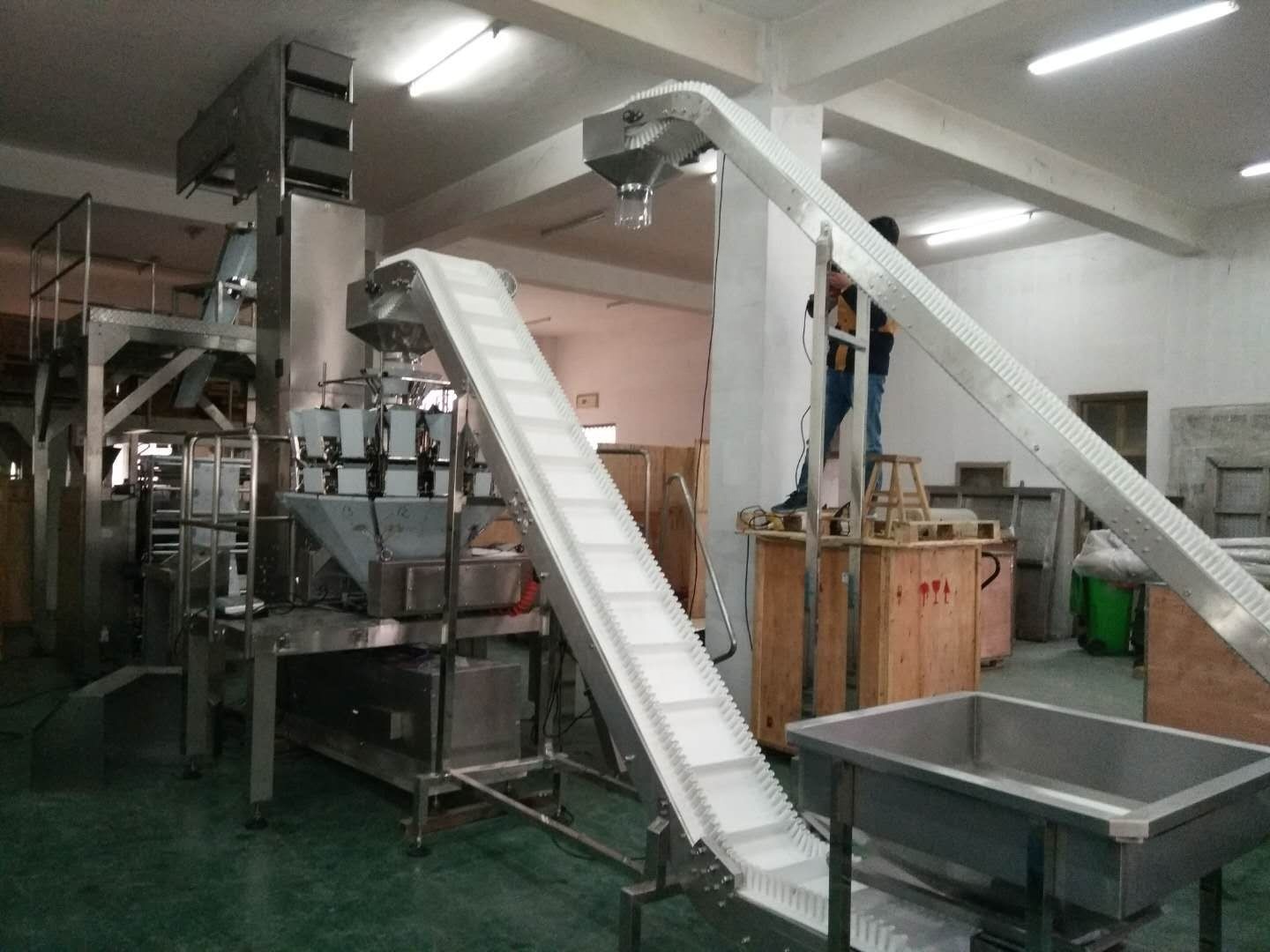

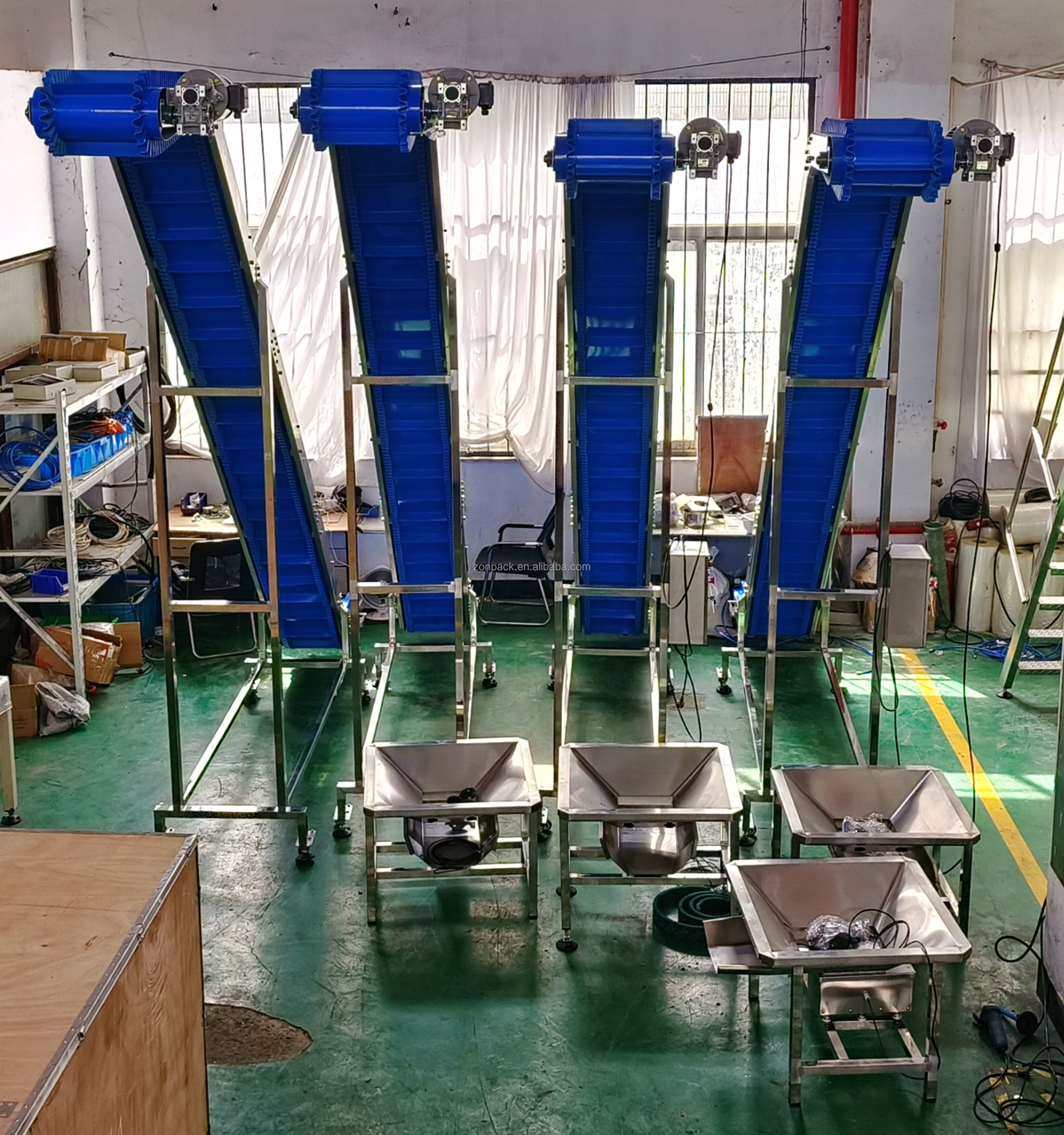

Case Show
Application Cases
Exhibition
Machinery Exhibition
Frequently Asked Questions
What materials are used to construct this inclined conveyor?
The frame of the inclined conveyor is built with durable 304 Stainless Steel (or optional carbon steel) to ensure structural strength and long-term food hygiene safety.
Can the conveyor belt size and material be customized?
Yes, we provide customizable options. Standard belt widths are 300mm and 450mm, and materials include food-grade PP, PVC, and PU depending on your processing needs.
How is the speed of the conveyor regulated?
The machine features an integrated frequency converter that allows for smooth, reliable, and easily adjustable speed control during operation.
What storage hopper volumes are available?
We offer three standard volume configurations for the hopper: 72L (650*650mm), 112L (800*800mm), and 342L (1200*1200mm). The height and dimensions can also be tailored to fit your facility.
Is this conveyor suitable for fresh vegetables or products with moisture?
Yes, when configured with a chain plate belt, the system naturally allows water to be drained from products during conveyance. A standard PU/PVC belt option is also available for fast and easy cleanups.
What are the power configuration requirements?
The machine operates on a 0.75KW motor. Standard power parameters are AC 220V or AC 380V at 50Hz, fitting most standard industrial electrical outputs.
