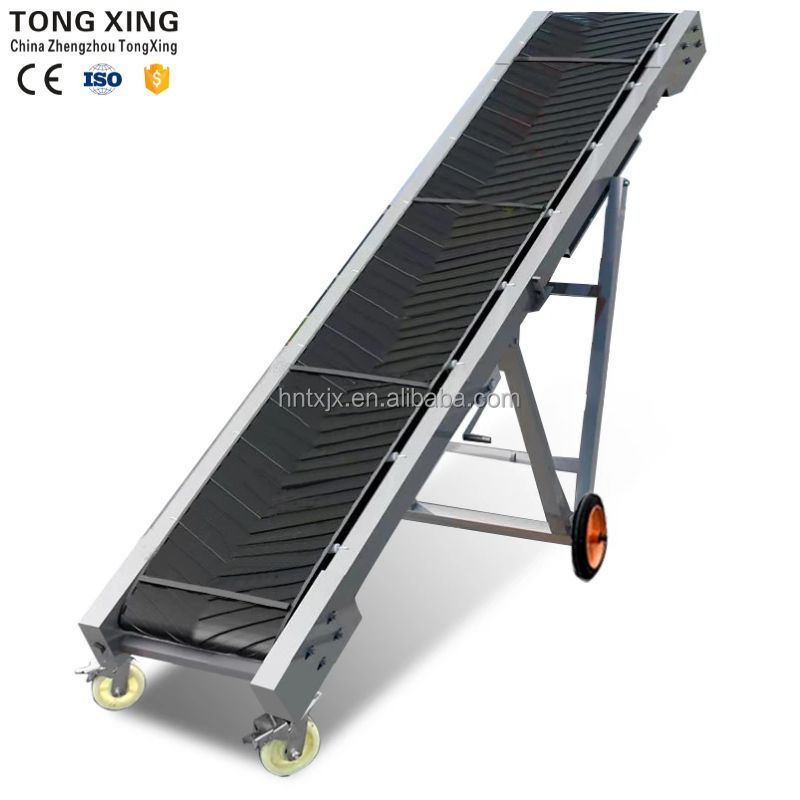

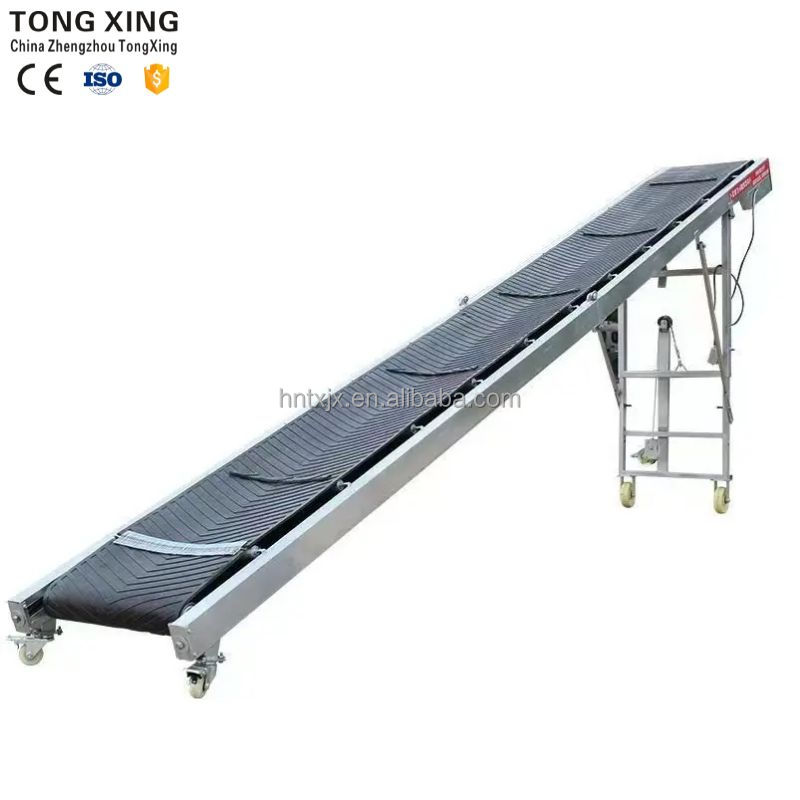

The belt conveyor drives the conveyor belt to move through the driving device, makes use of the bearing capacity and frictional force of the conveyor belt, and with the assistance of the tensioning device and idler rollers, realizes the continuous conveying of materials from the feeding end to the discharging end.
| Belt Width (mm) | Conveyor Length (m) | Power (kW) | Belt Speed (m/s) | Lifting and Lowering Range (m) |
|---|---|---|---|---|
| 600 | 6 | 1.5 | 1.3-1.6 | 1.7-2.5 |
| 600 | 8 | 2.2-3 | 1.3-1.6 | 2.2-3.5 |
| 600 | 10 | 3 | 1.3-1.6 | 2.8-4 |
| 600 | 12 | 3-4 | 1.3-1.6 | 3.5-4.8 |
| 600 | 15 | 4 | 1.3-1.6 | 3.5-5.5 |
| 800 | 6 | 1.5-2.2 | 1.3-1.6 | 1.7-2.5 |
| 800 | 8 | 2.2-3 | 1.3-1.6 | 2.2-3.5 |
| 800 | 10 | 3 | 1.3-1.6 | 2.8-4 |
| 800 | 12 | 3-4 | 1.3-1.6 | 3.2-4.8 |
| 800 | 15 | 4-5 | 1.3-1.6 | 3.5-5.5 |
