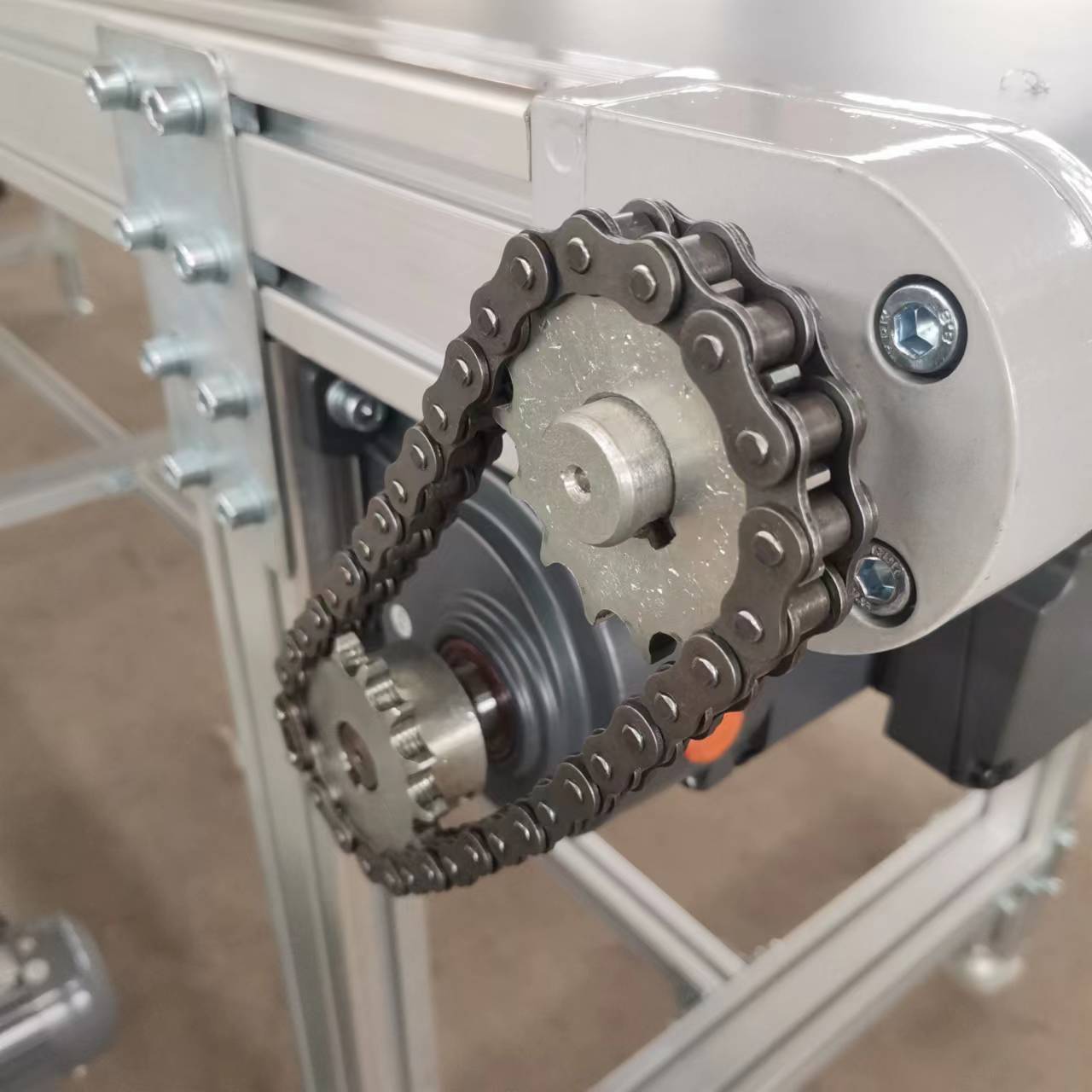

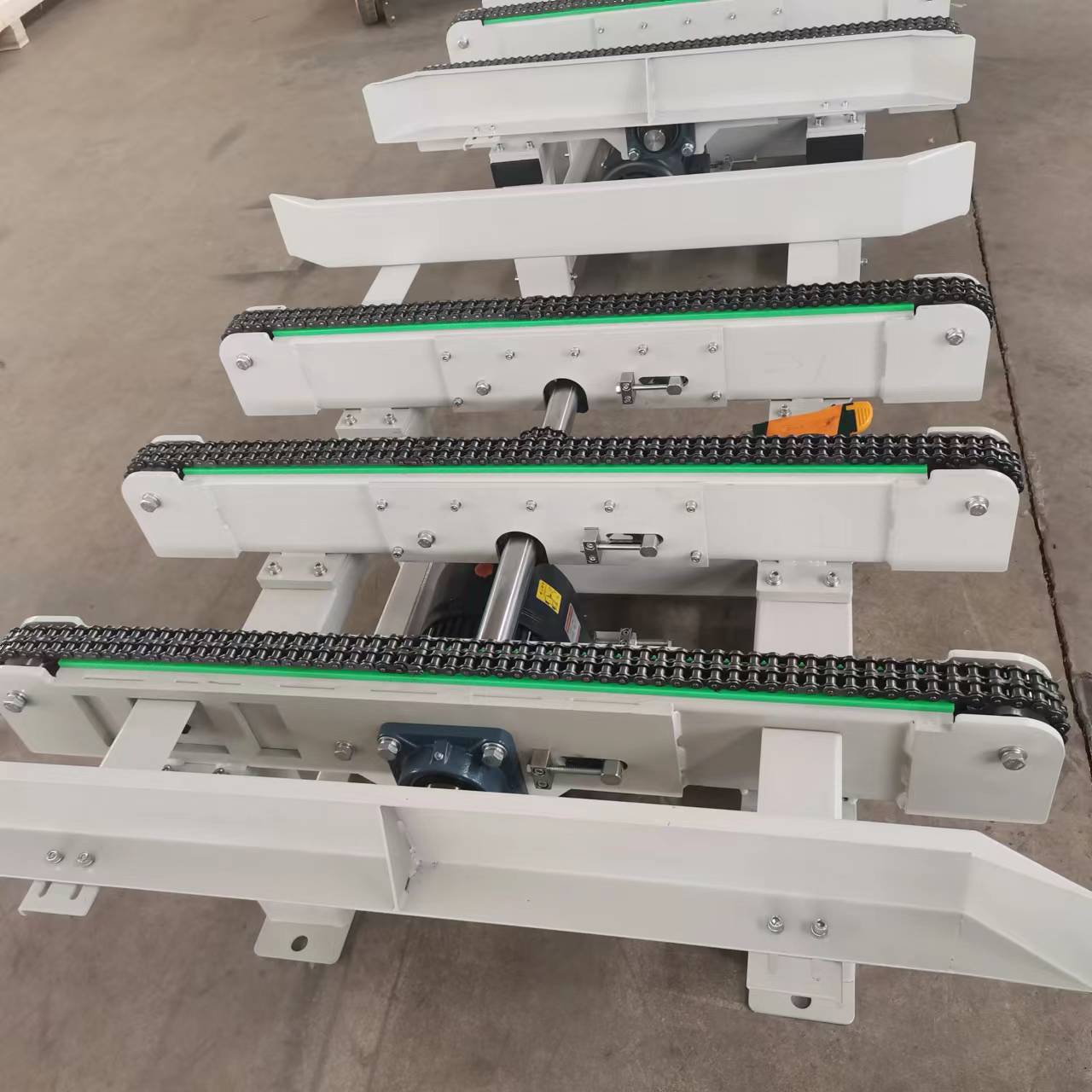

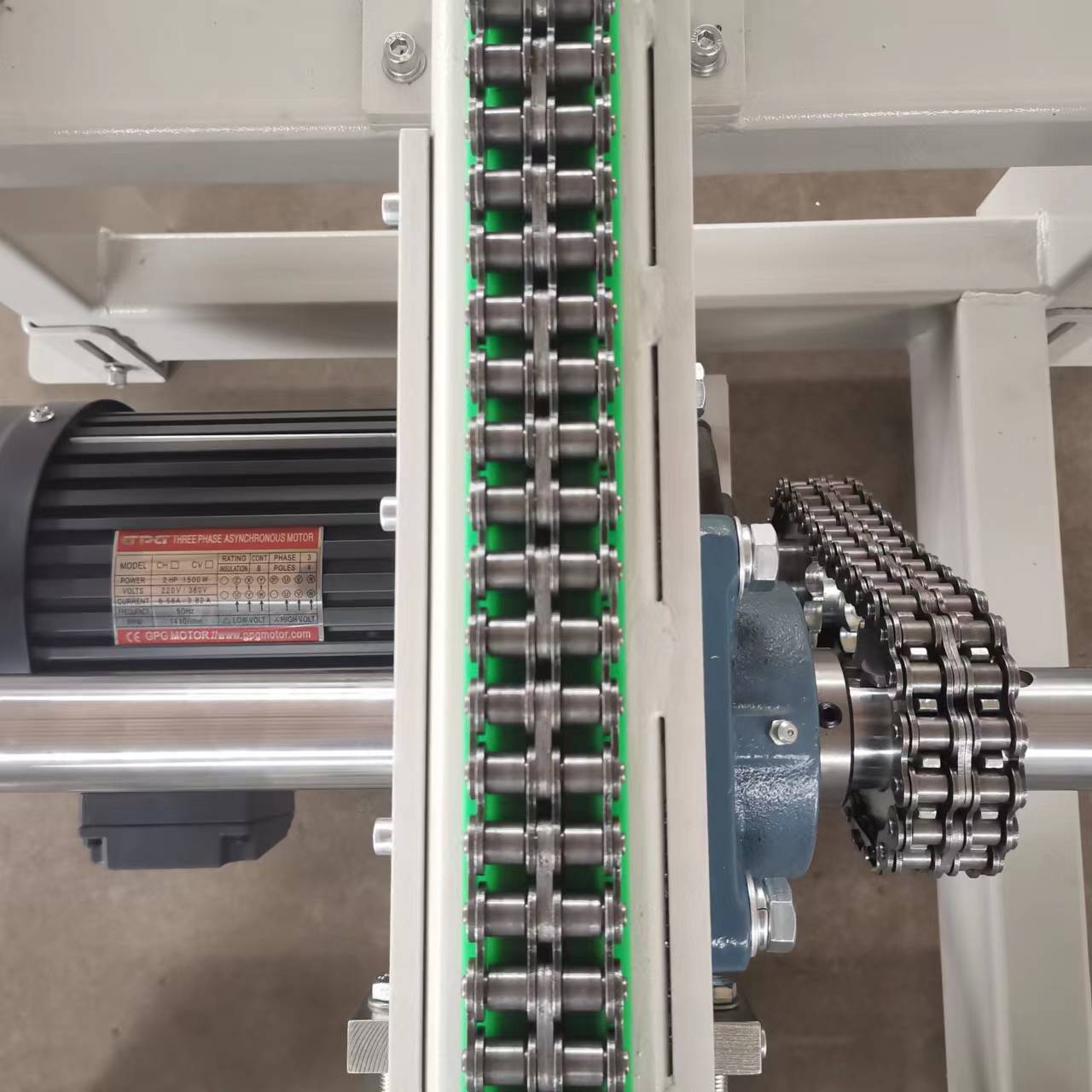

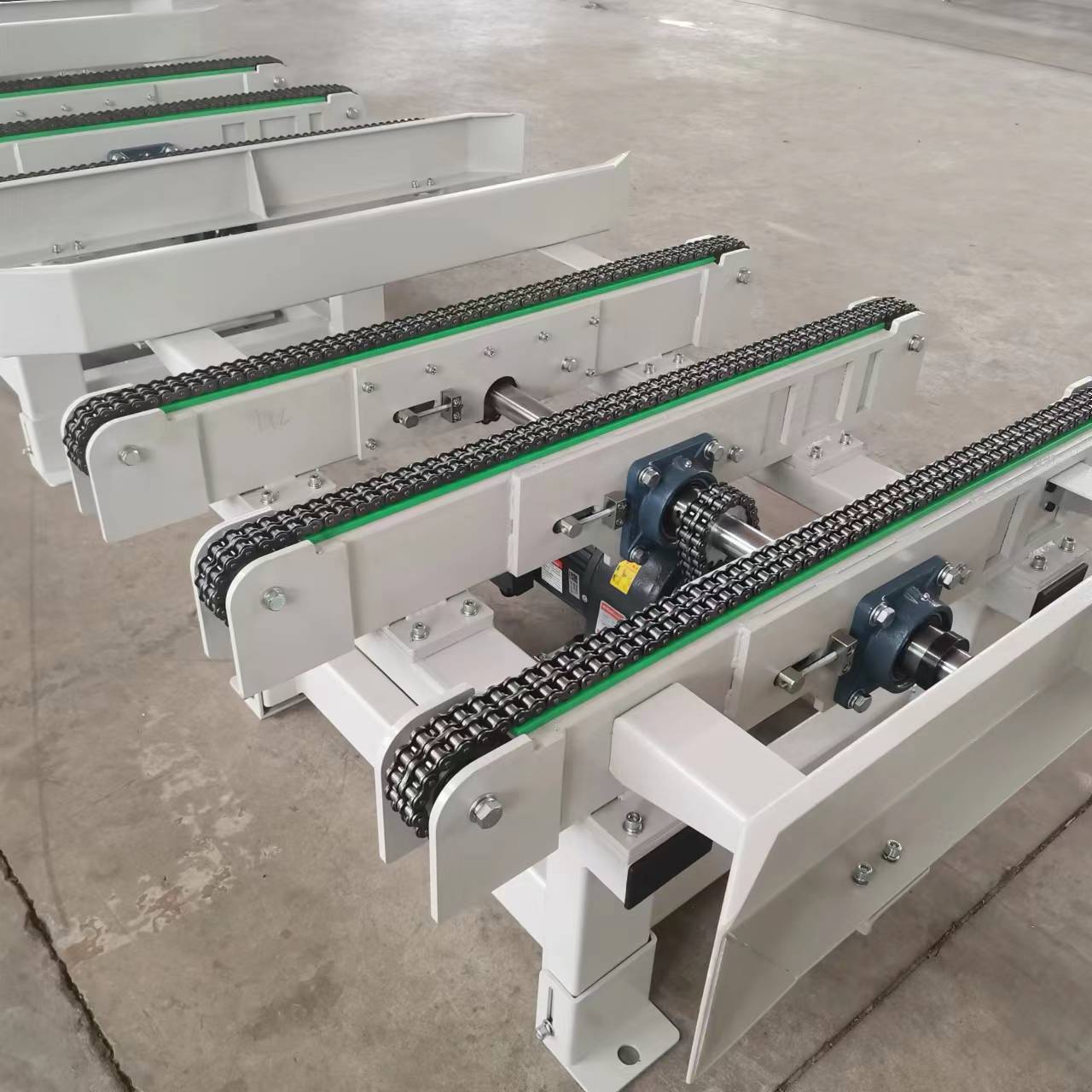

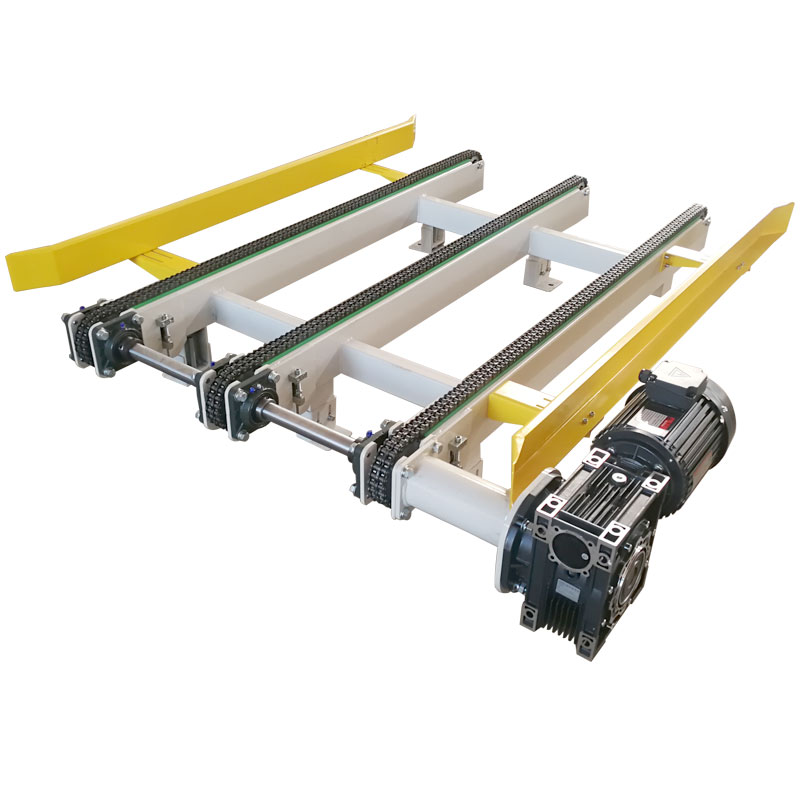

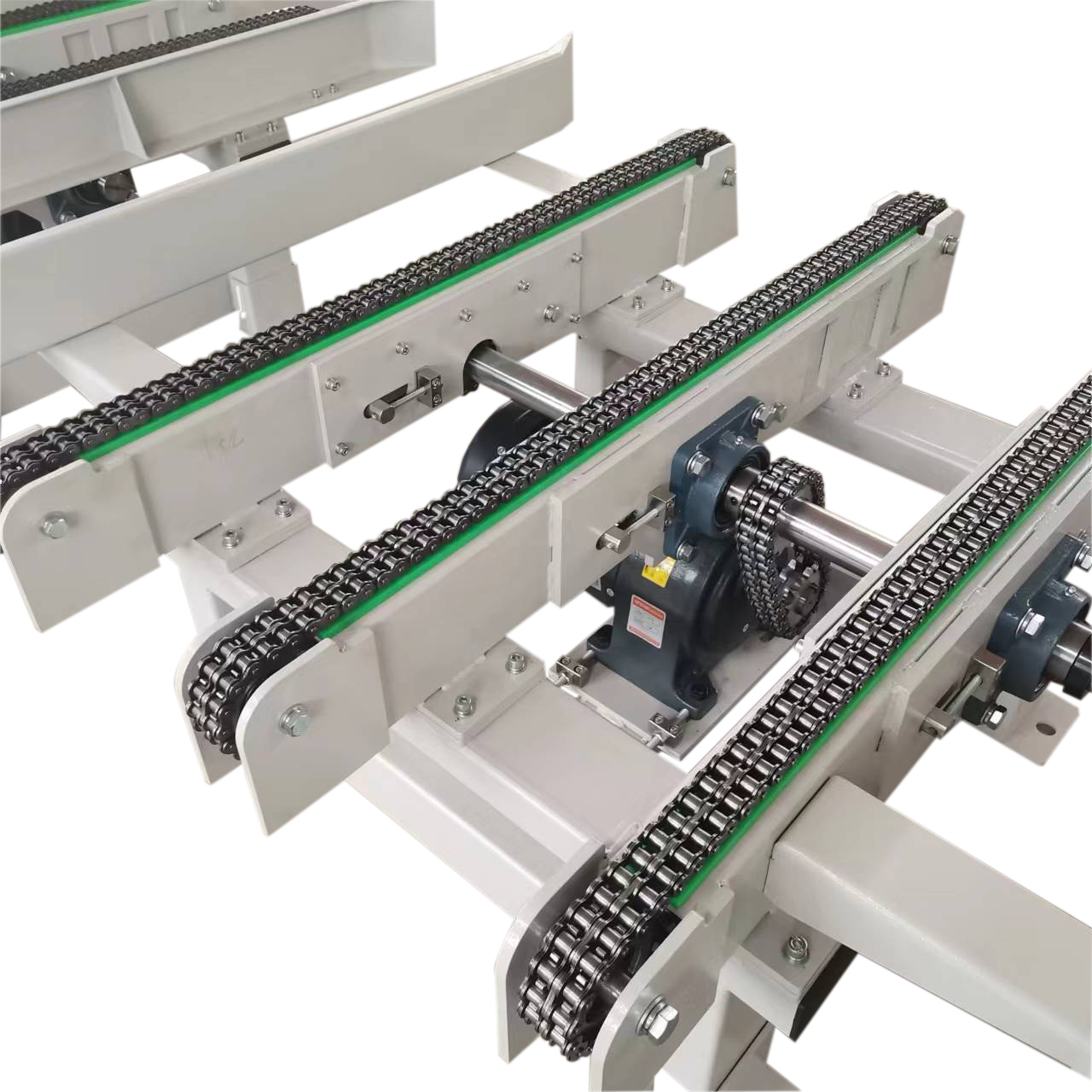

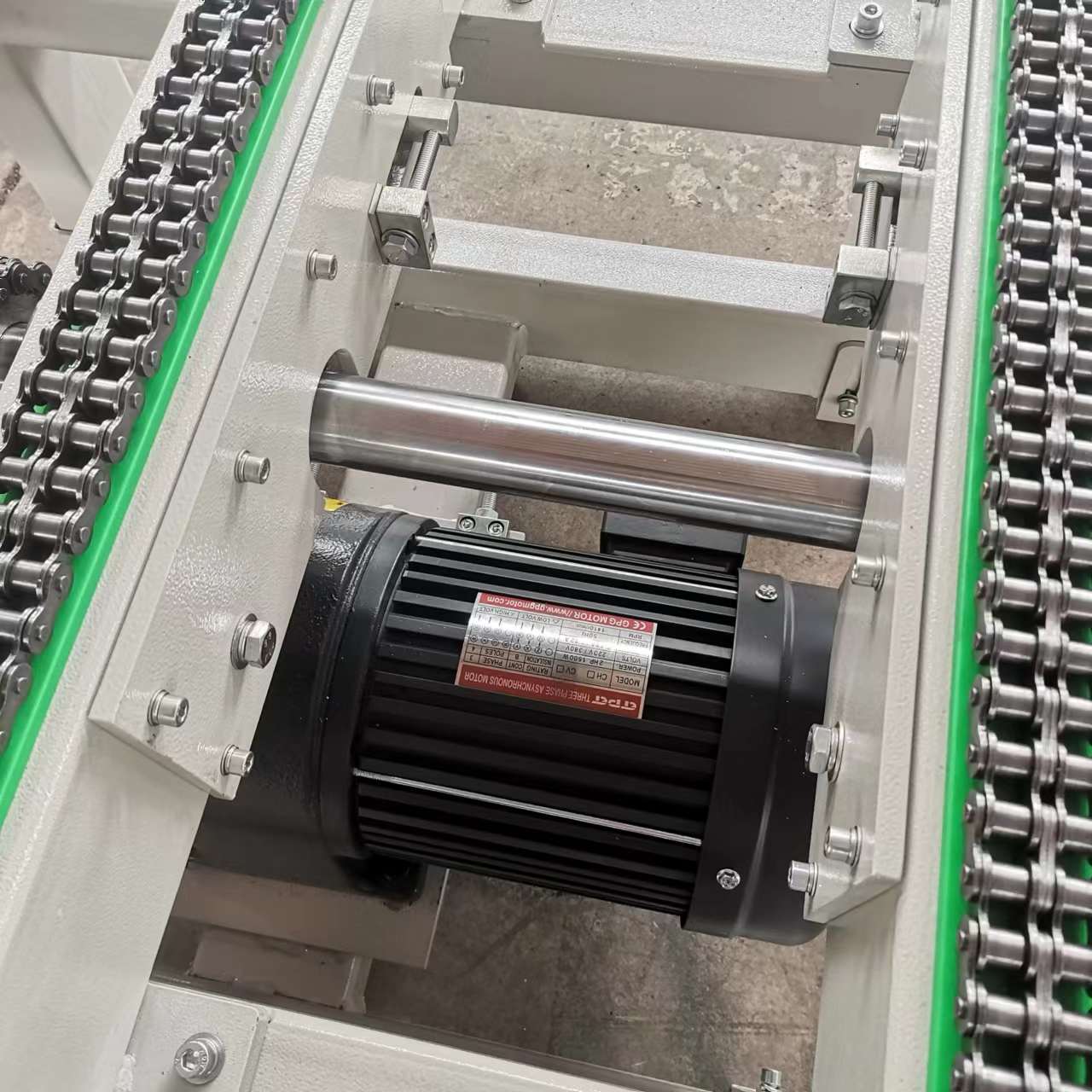

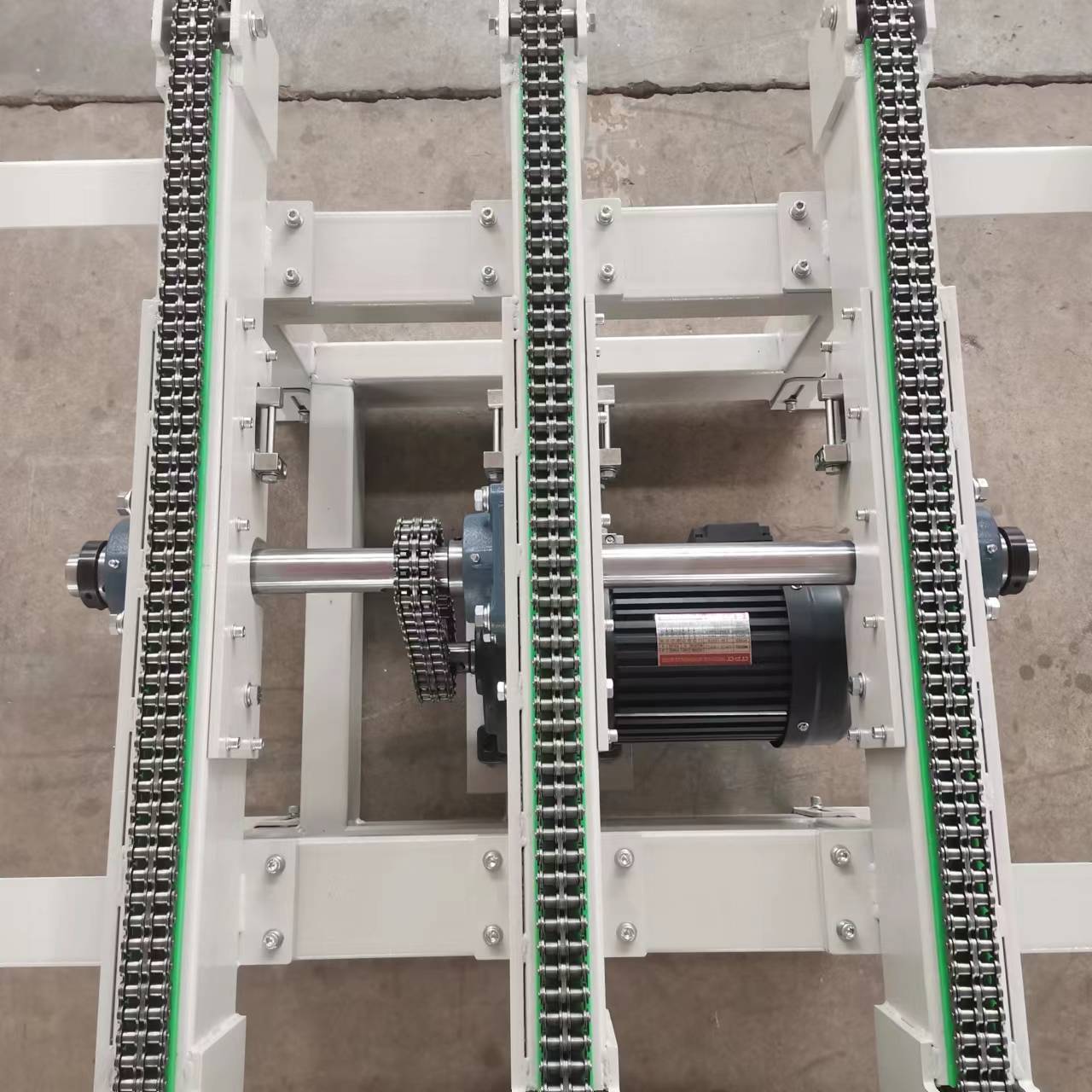

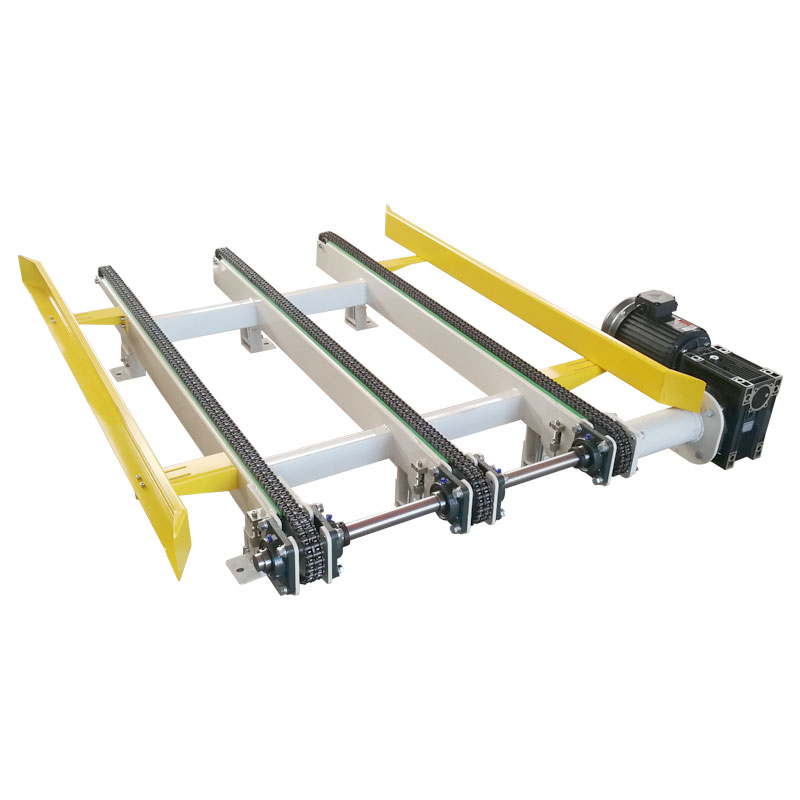

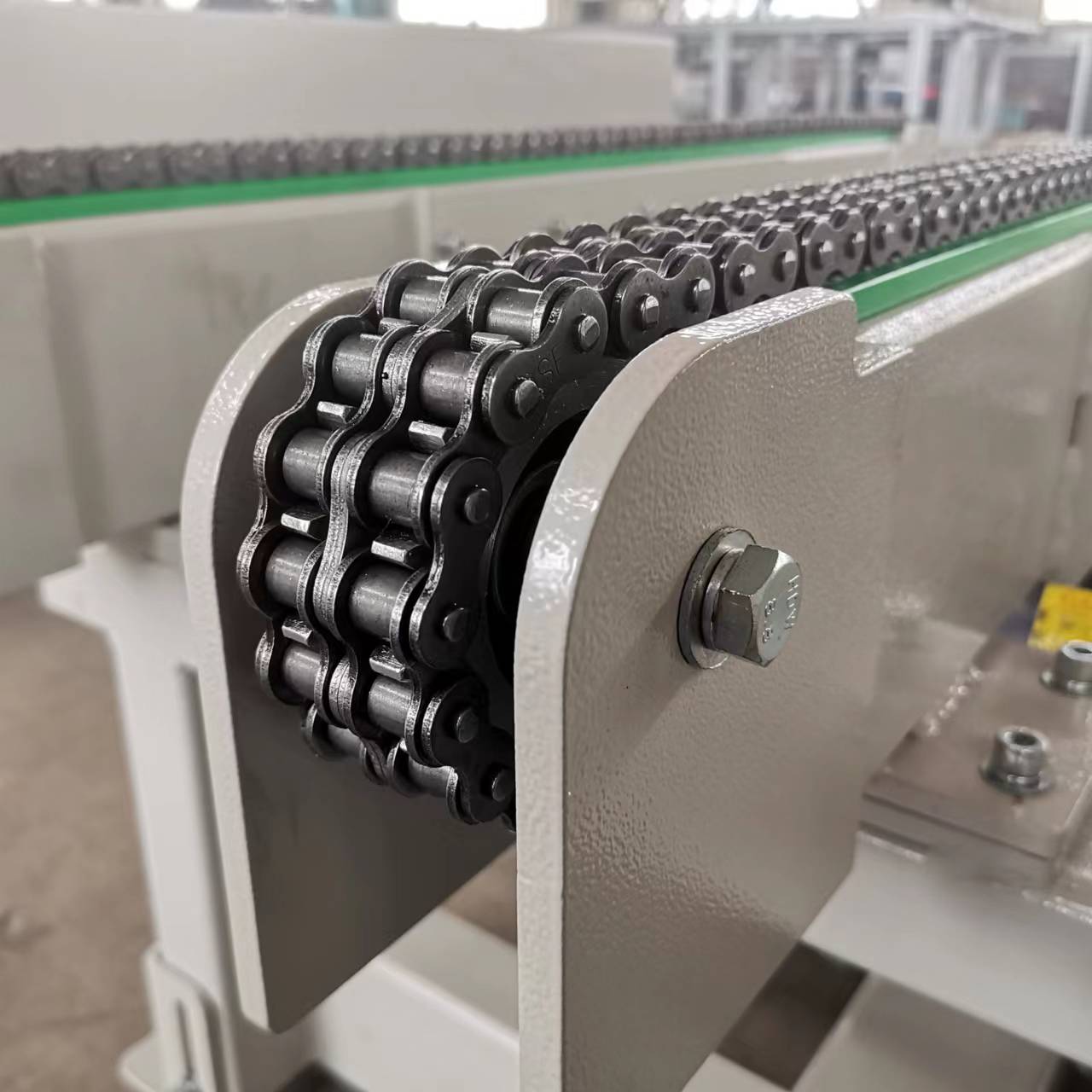

Chain conveyor is also mainly use for conveying products on the pallet. Length 1500 mm, width 1000 mm, can be customized according to your layout and conveyor system project. Scale, security plate, printer function optional.
| Model | ULX-1 | Note |
|---|---|---|
| Conveying Type | Chain | Optional roller/chain type |
| Voltage | AC 220 V - 415 V 50 HZ/60 HZ, 3 phase | Based on your local voltage; |
| Power | 1.5 KW | / |
| Loading | 1000-2000 kg | Based on your local voltage; |
| Frame Size/Material | Carbon Steel | Optional SUS 304 if you want; |
| Width of Transfer | As your pallet size | Can be customized; |
| Height of Transfer | As your requirements (Min.500 mm) | Can be customized; |
| Brand of Motor | CPG | Others if you required; |
| Chain Qty | Double Chain of Each Group | / |
| Time of Rising | 2-4 s | / |
| Speed | 10 m/min or 5-15 m/min adjust | Fixed speed if you want; |
| Length of Transfer | As your requirements (Max.2 m) | As your requirements; |
| Packing | Wooden Case | / |
| Lead Time | As Product | / |

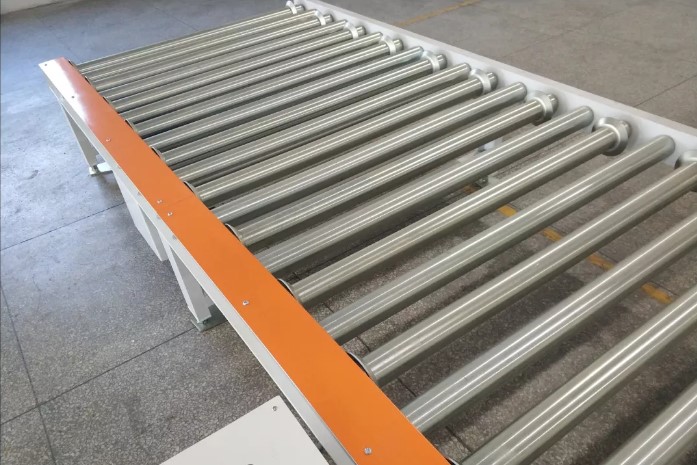

This roller conveyor is especially for conveying products on the pallet. Normally, the width 1300 mm, length 1500 mm per set. Certainly, the size can be customized according to your requirements. Voltage depend on your local power supply. Normally, working along with pallet wrapping machine, chain conveyor, also other kinds pallet machine.
| Model | UC-01 | Note |
|---|---|---|
| Conveying Type | Roller | Optional roller/chain type |
| Voltage | AC 220 V-415 V 3 phase, 50 HZ/60 HZ; | Based on your local voltage; |
| Power | 1.5 kw | / |
| Loading | 1000-2000 kg | Depend on your pallet weight; |
| Frame Material | Carbon Steel | Optional SUS 304 if you want; |
| Width of transfer | As your pallet size | Can be customized; |
| Height of transfer | As your requirements (Min.500 mm) | Can be customized; |
| Brand of motor | CPG | Others if you required; |
| Speed | 10 m/min or 5-15 m/min adjust | Fixed speed if you want; |
| Packing | Wooden case | / |
| Lead time | As product | / |

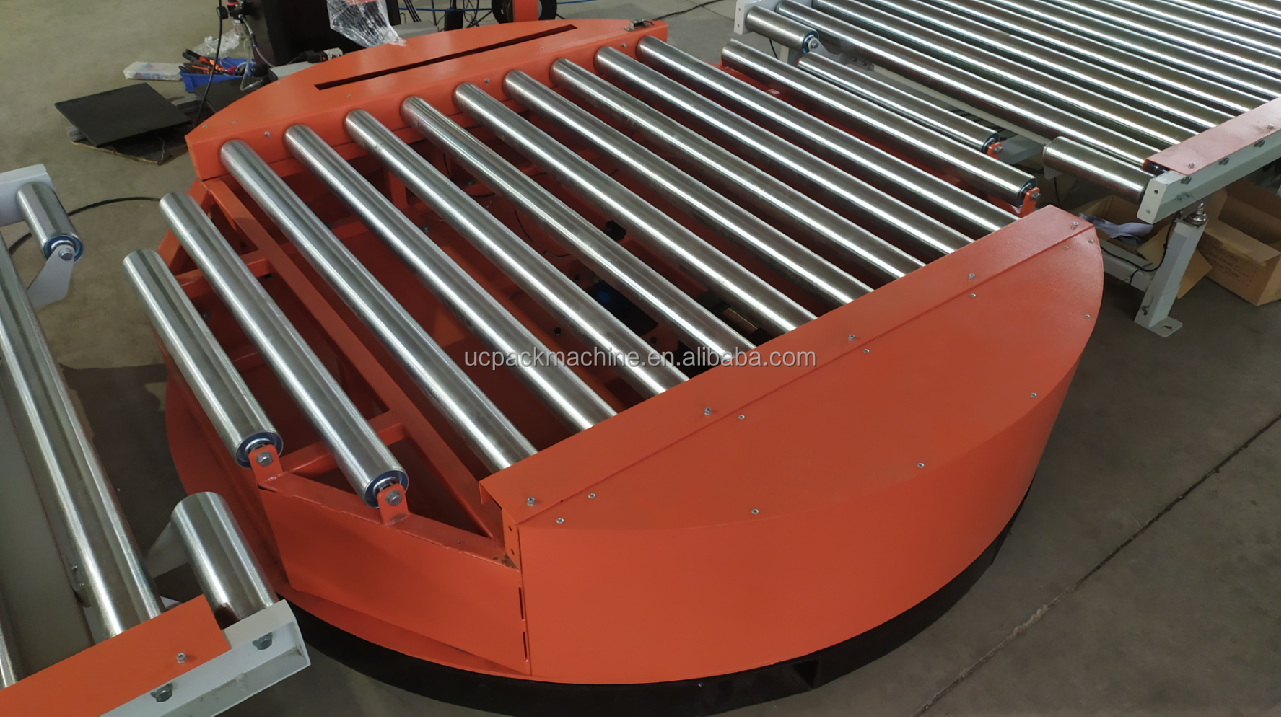

90 degree transfer electric turntable conveyor mainly use for conveying the products on the pallet to transfer 90 degree, also some other products need to transfer 90 degree without bottom pallet.
The size can be customized according to the products size. And the roller line length, width customized. Even optional baffles on roller. Guarantee the goods conveying safely.
| Model | UC-T01 |
|---|---|
| Conveying Type | Turntable |
| Voltage | AC 220 V-415 V 3 phase, 50 HZ/60 HZ; Based on your local voltage; |
| Power | 1.5KW |
| Loading | 1000-2000 kg |
| Frame Material | Carbon Steel |
| Width of transfer | As your pallet size |
| Height of transfer | As your requirements(Min.500mm) |
| Brand of motor | CPG |
| Chain Qty | Double chain of each group |
| Time of rising | 2-4s |
| Speed | 10 m/min or 5-15 m/min adjust |
| Length of transfer | As your requirements (Max. 2 m) |
| Packing | Wooden case |
| Lead time | As product |

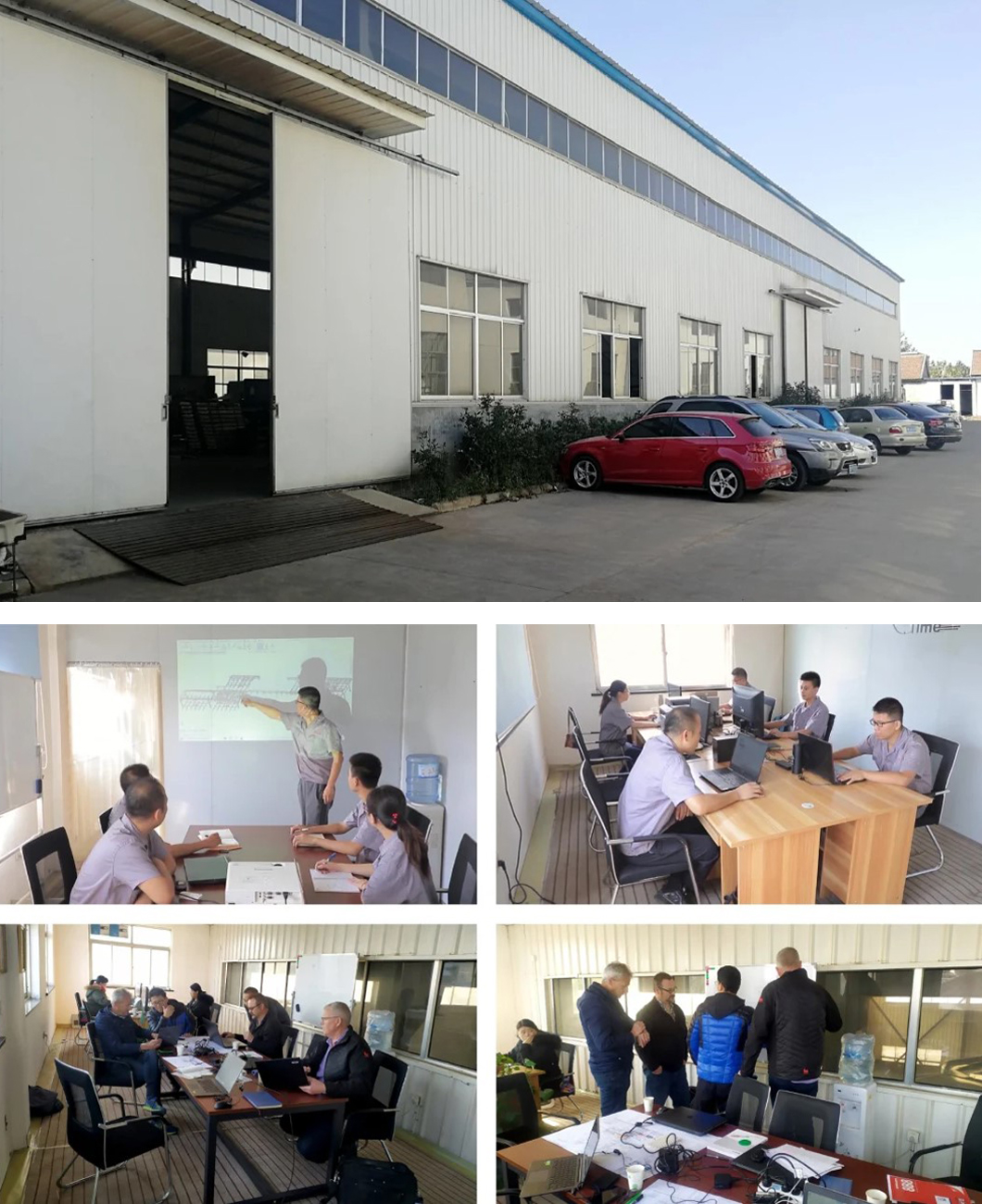

Established in 2015 and located in a seaside city, our factory was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions. With continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customized overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained a number of patented technologies in Shrink Wrapper and Conveyor System. Rely on our excellent product quality and service, we have won lots of customers in the markets of North America, Europe, Australia etc.
