LWT Electric Food Grade Conveyor Belt Packing Line PU Belt Conveyor System

Product Description

Product Description

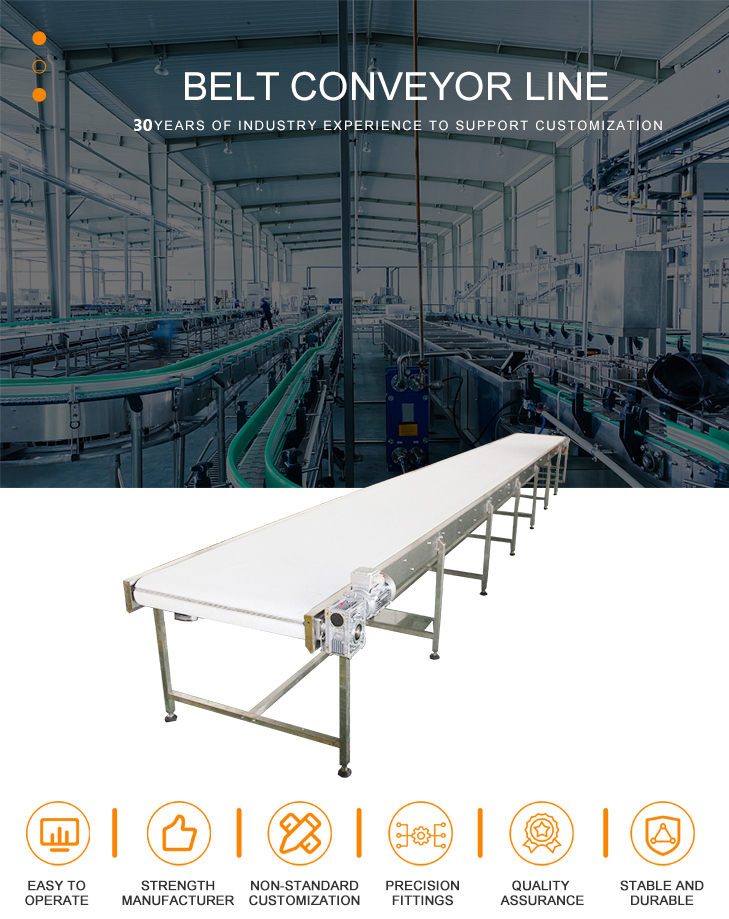

Conveyor Line System
Conveyor line, also known as assembly line, is a general term for mechanical equipment used in material and product transportation in production. Each industry should basically use the conveyor line, which runs through the whole production and circulation process, not only to complete the transportation task of goods, but also to cooperate with the completion of a number of process operations in the transportation process. For on-site production enterprises, logistics enterprises, improve efficiency, reduce labor costs, improve operational stability has an irreplaceable role.
  • The application of three high-power fan, guarantee adequate circulation.
  • The shrinkage temperature voluntary control, the highest temperature up to 280 ℃ ~ 300 ℃.
  • Conveyor speed by frequency control.
  • International brand components guarantee the stability of the equipment.
  • Bolt on casters with bottom equipment can move freely.
  • Flexible height adjustment, can match with different heights of production line.
Specification
Product Name Electric Food Conveyor Belt Packing Line PU Belt Conveyor System
Material Stainless Steel+PVC/PU
Power P=1.5KW/0.75KW
Color White, blue, green
Application Vegetable, fruit, beverage, chemistry, food and drug, glass bottle, plastic bottle, iron can, cardboard box, paper towel and other industries.
Technical Details

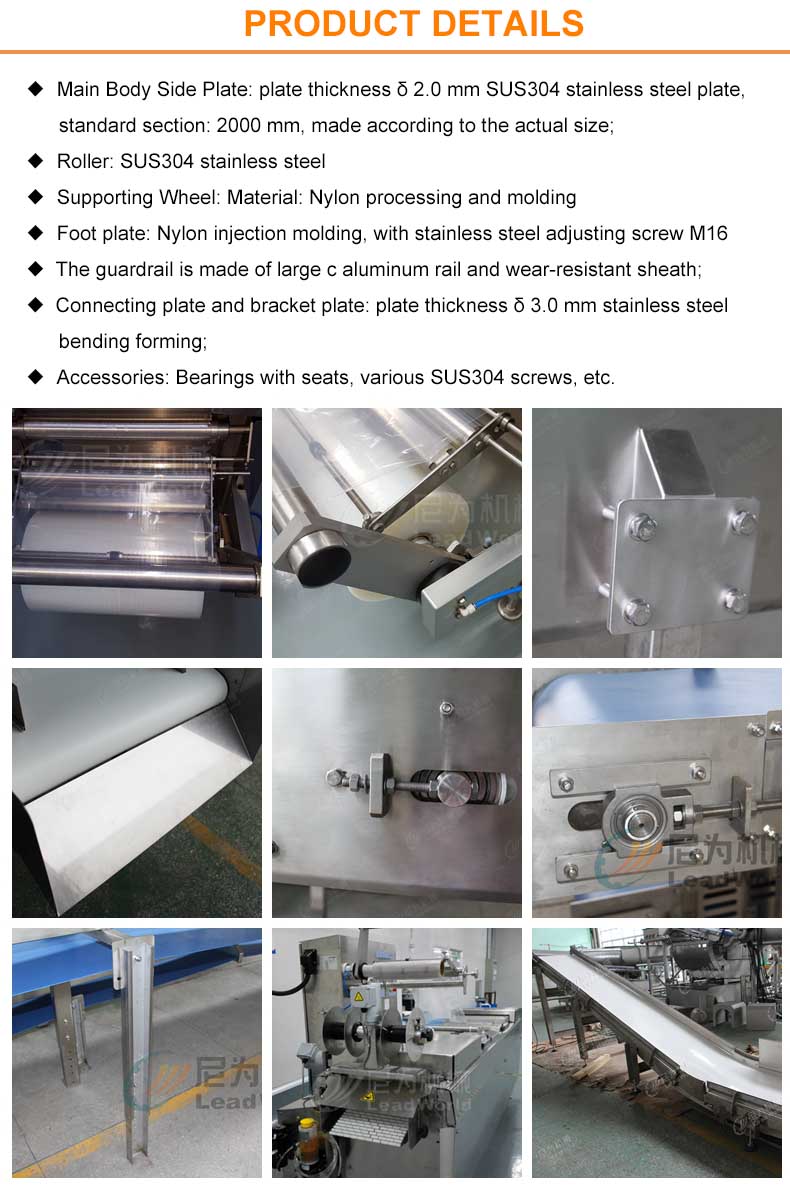

1. Line Body Part
  • Main body side plate: plate thickness δ 2.0 mm SUS304 stainless steel plate, standard section: 2000 mm (customizable)
  • Roller: SUS304 stainless steel, diameter determined by actual load
  • Supporting wheel: Nylon material processing molding
  • Foot plate: Nylon injection molding, with stainless steel adjusting screw M16
  • Guardrail: Large C aluminum rail and wear-resistant sheath
  • Connecting plate & bracket plate: Plate thickness δ 3.0 mm stainless steel
  • Accessories: Bearings with seats, SUS304 screws, etc.
2. Carrier Part
  • Belt size customized to actual requirements
  • Belt edge protection: Apron edge protection and middle baffle height customized to materials
  • Material: PVC, PU
  • Color: White, blue, green

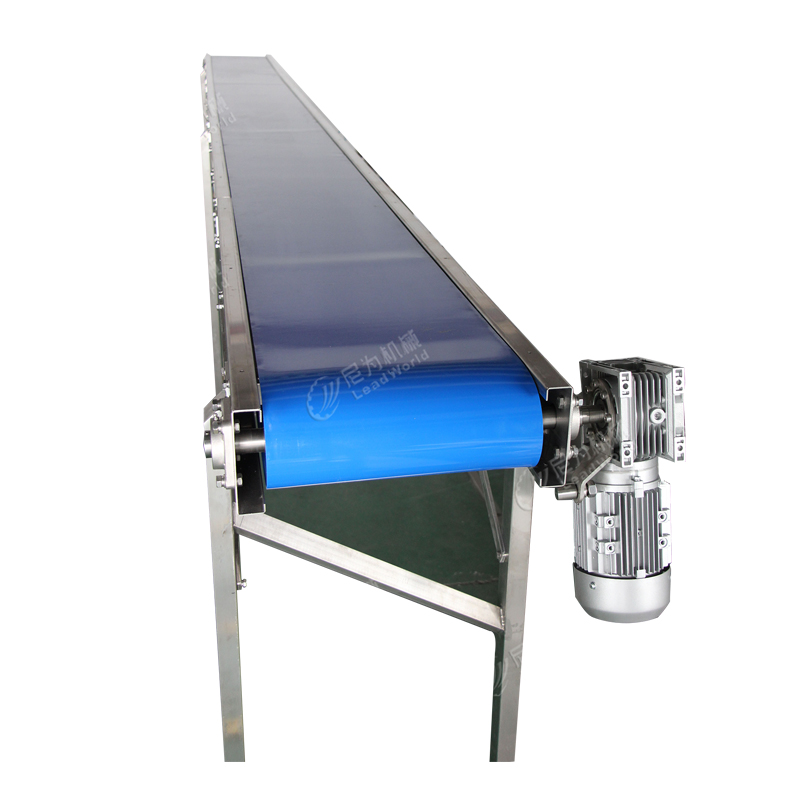

3. Power Part
  • Reduction motor: Power P = 1.5kw / 0.75kw
  • Linear speed: v = 0-25m / min
  • Speed regulation selection: Danfoss frequency converter
4. Control Part
  • Electric control box: 1.5mm SUS304 stainless steel plate bent and welded
  • Electronic control components: Circuit breaker, AC contactor, button switch, and indicator lights from Schneider

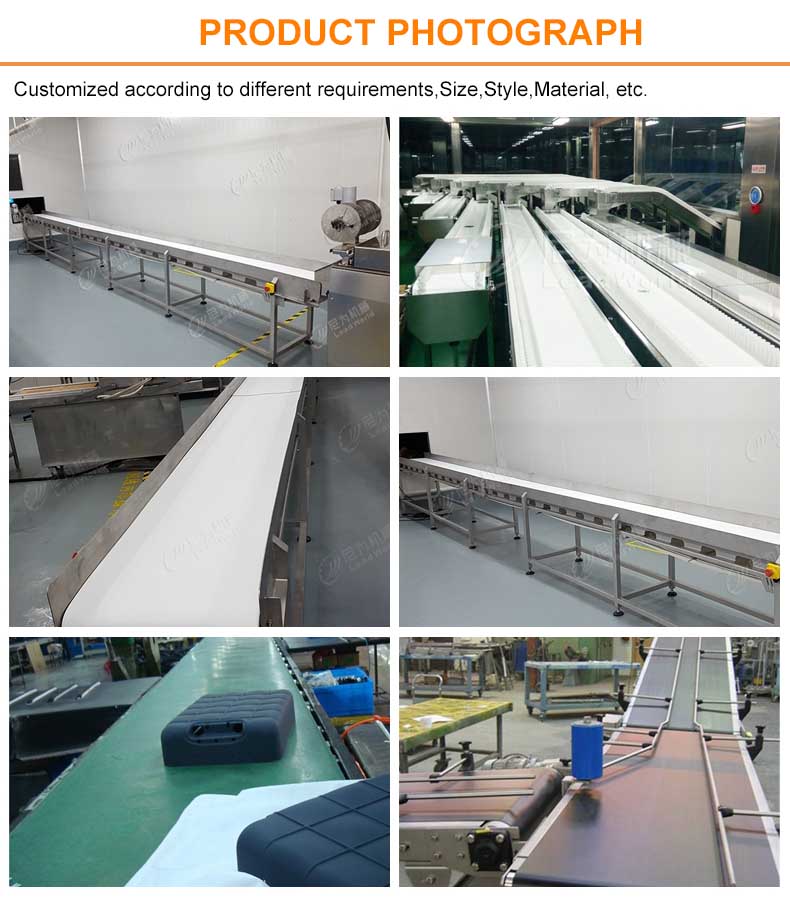

Product Show

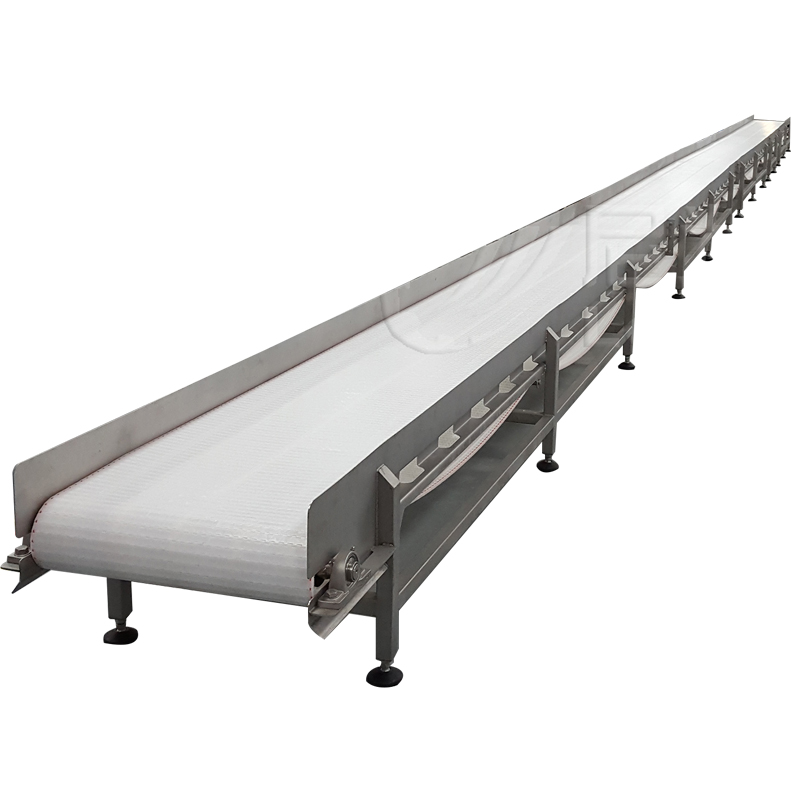

Conveyor System View 1
Conveyor System View 2
Related Product
Related Conveyor Equipment
Project Case
Conveyor Project Case Study
Optional Products
Optional Packaging Machinery
Factory & Production Showcase
Machinery Production Line
Manufacturing Area
Production Workshop
Assembled Equipment
Technical Testing
Assembly Process
Equipment Dispatch
Frequently Asked Questions
What are the main products available?
The primary range includes Palletizers, Conveyors, Filling Production Lines, Sealing Machines, Capping Machines, Packing Machines, and Labeling Machines.
What is the typical delivery timeframe for the equipment?
For most standard machines, the delivery schedule is within 30 working days.
What are the standard terms of payment?
The standard term requires a 30% deposit in advance, with the remaining 70% balanced payment due prior to shipment.
Are you a manufacturing facility or a trading firm?
We are an experienced manufacturer with a dedicated, professional in-house engineering and design team.
How is quality control and assurance managed?
We strictly enforce operational workflows where experienced specialists oversee dedicated stages of assembly. The equipment integrates world-recognized pneumatic and electrical systems, and all completed systems undergo comprehensive running tests. The machinery is CE certified.
Can you customize the machine configurations?
Yes. System specifications can be customized. Machines can be built according to your technical drawings or newly engineered to meet specific project demands.
