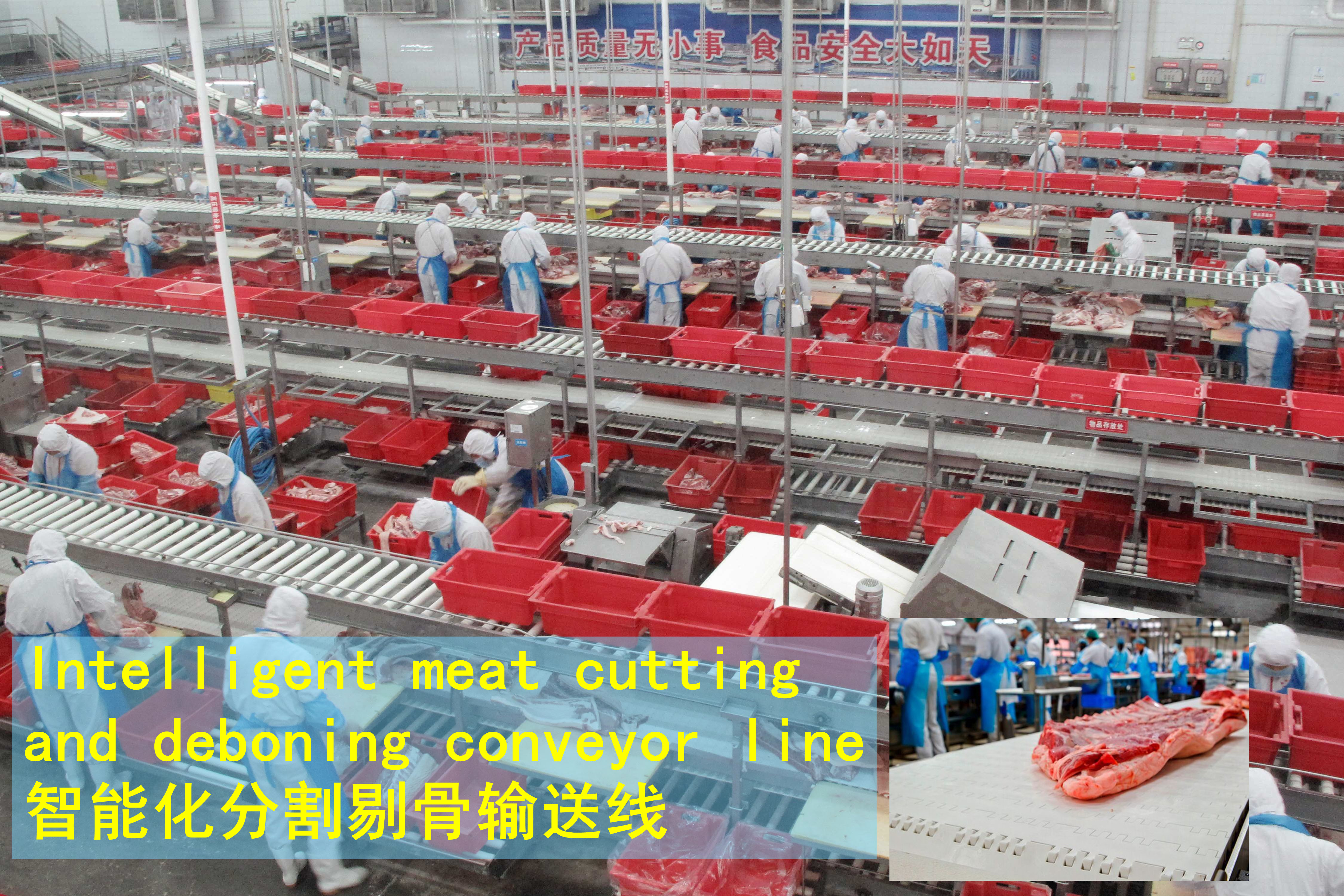

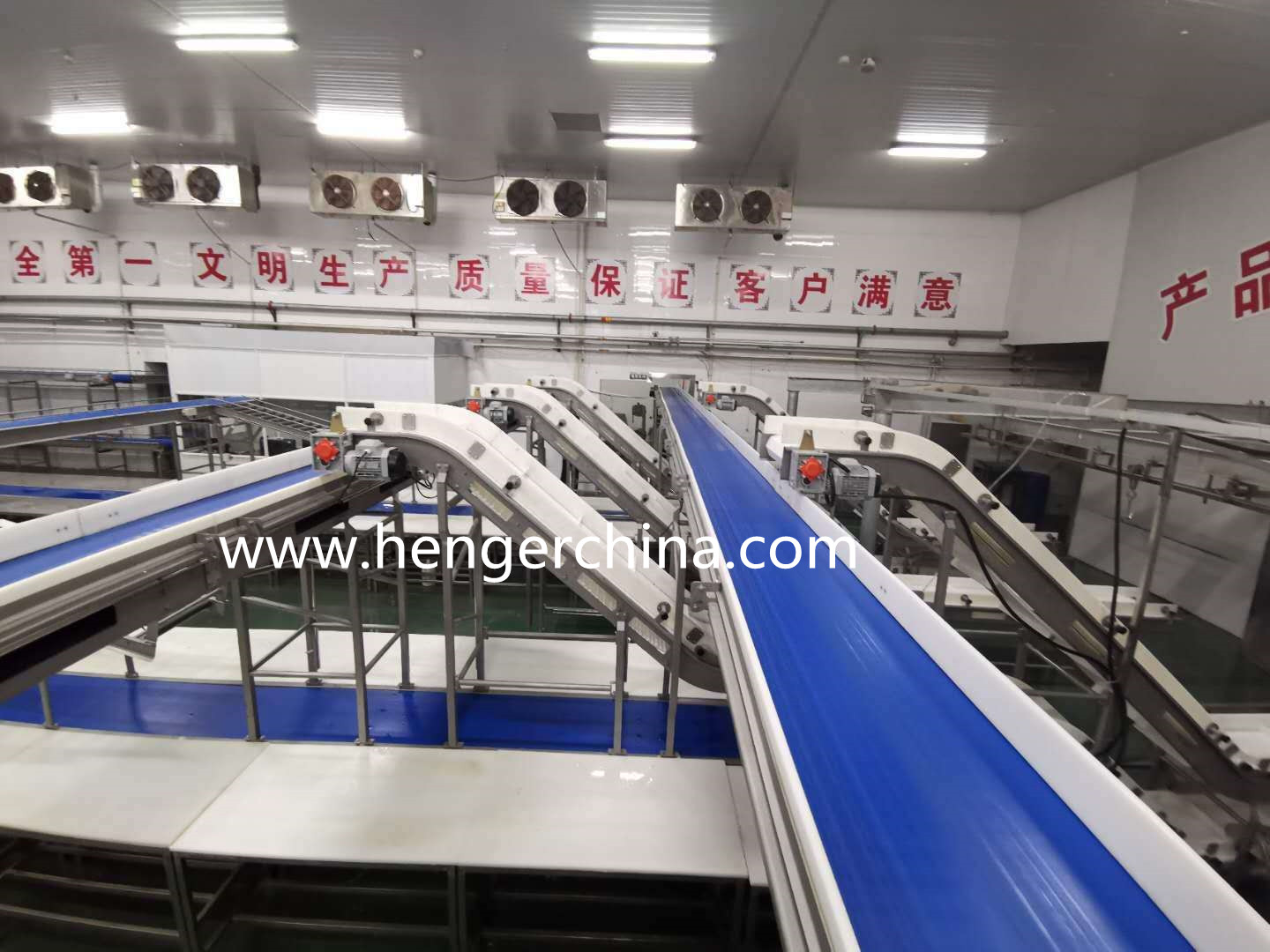

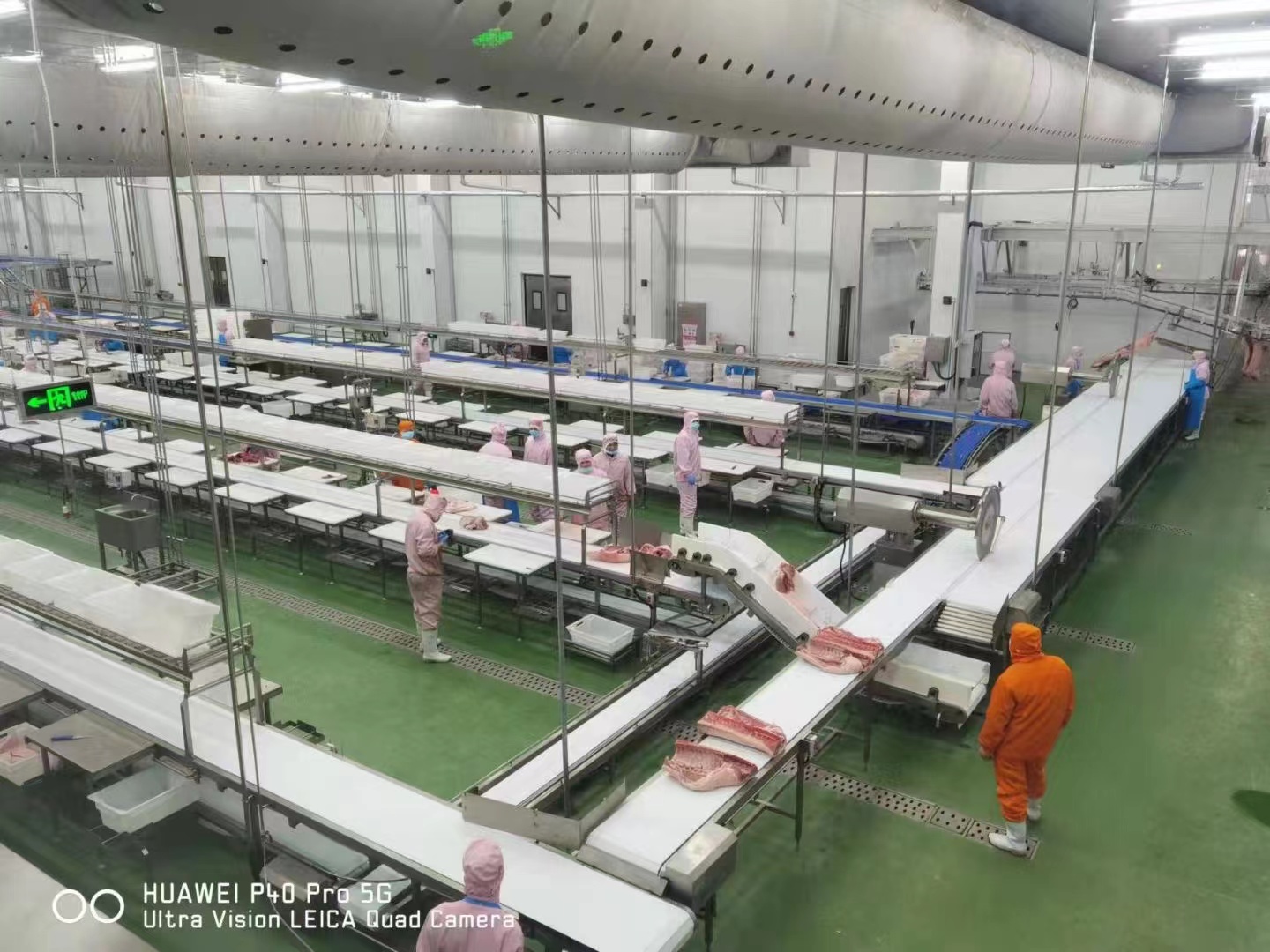

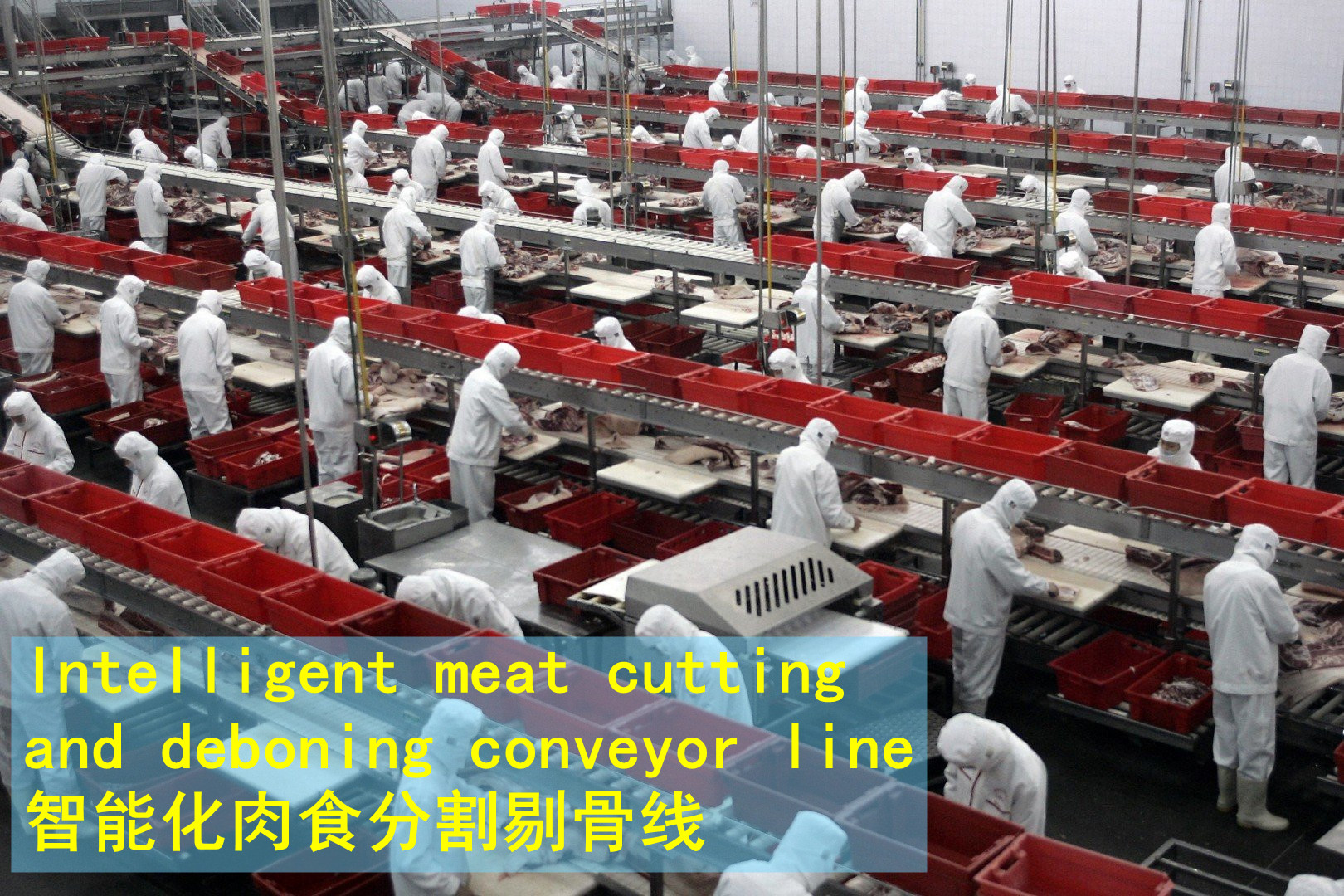

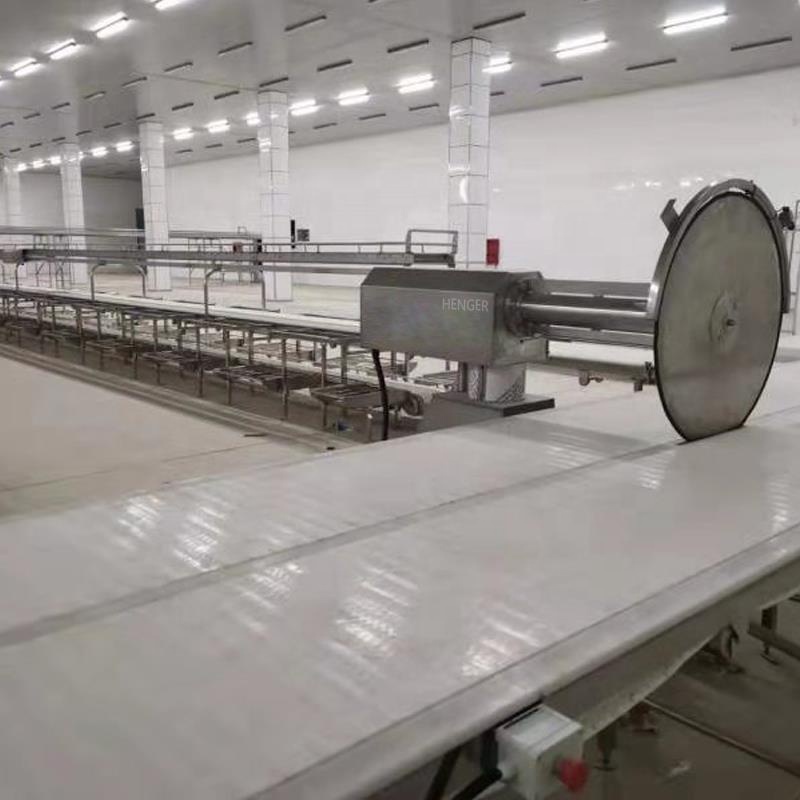

Carcass pre-cut processing line
The two-part body is unloaded by the unloading device and then enters the pre-cut processing area. In front of each circular saw, at least one operator performs segmentation and positioning. The cut back legs, front legs and middle sections enter their respective deboning and dividing processing lines.
1.1 Deboning line for hind legs

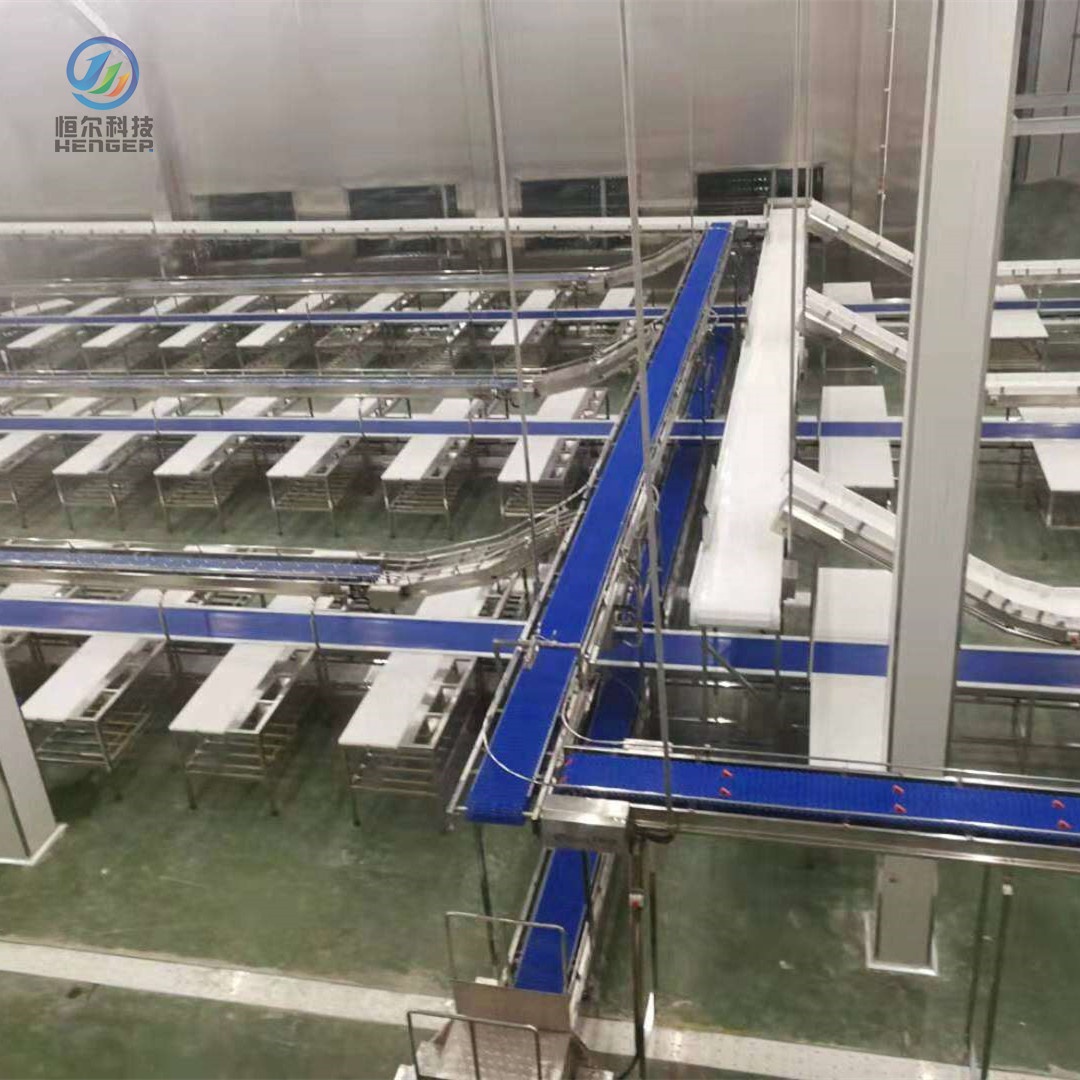

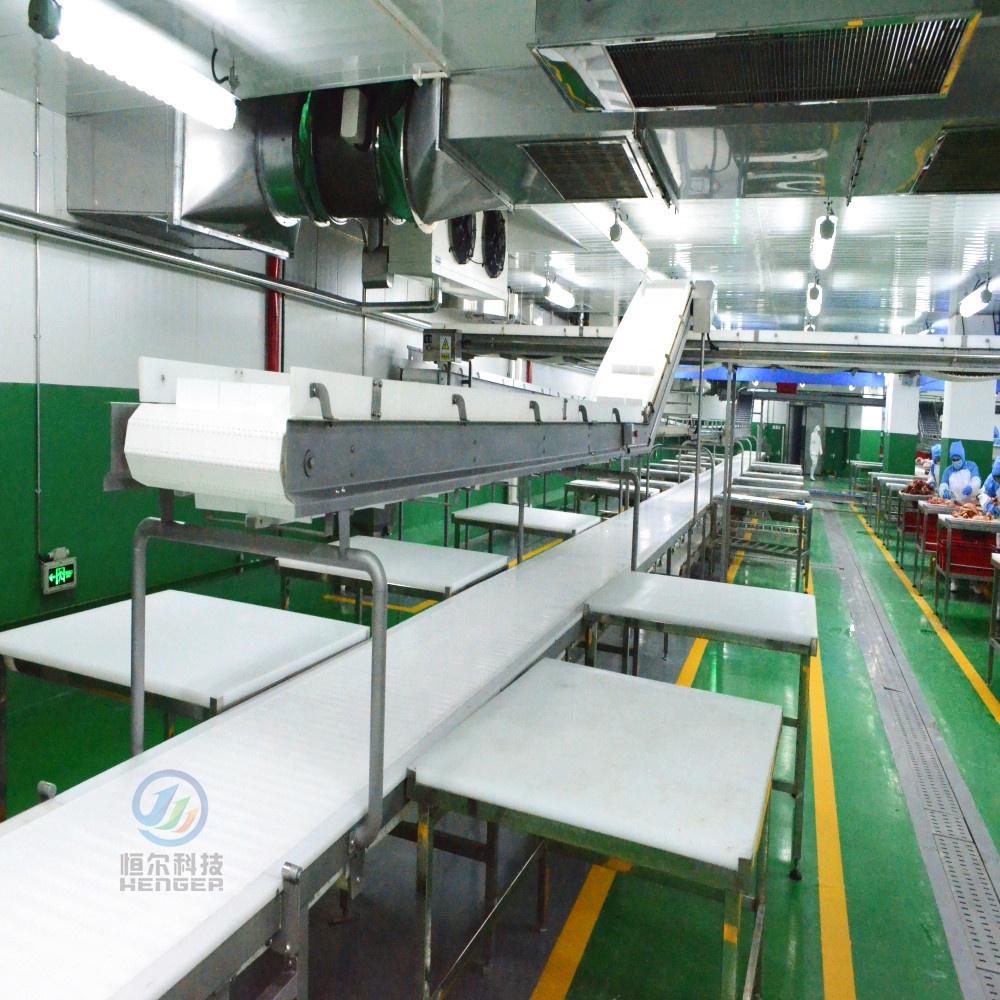

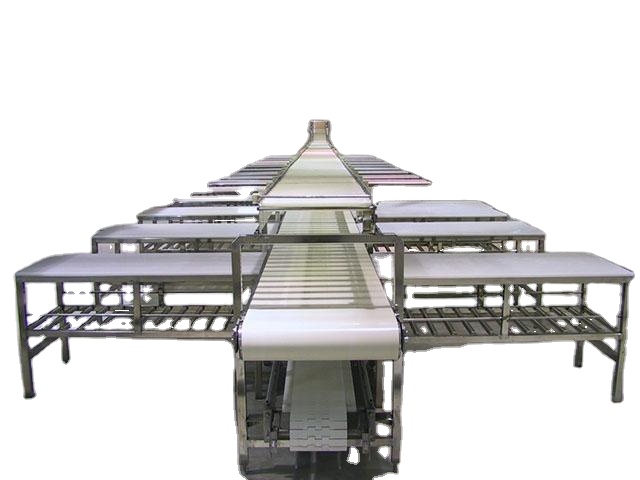

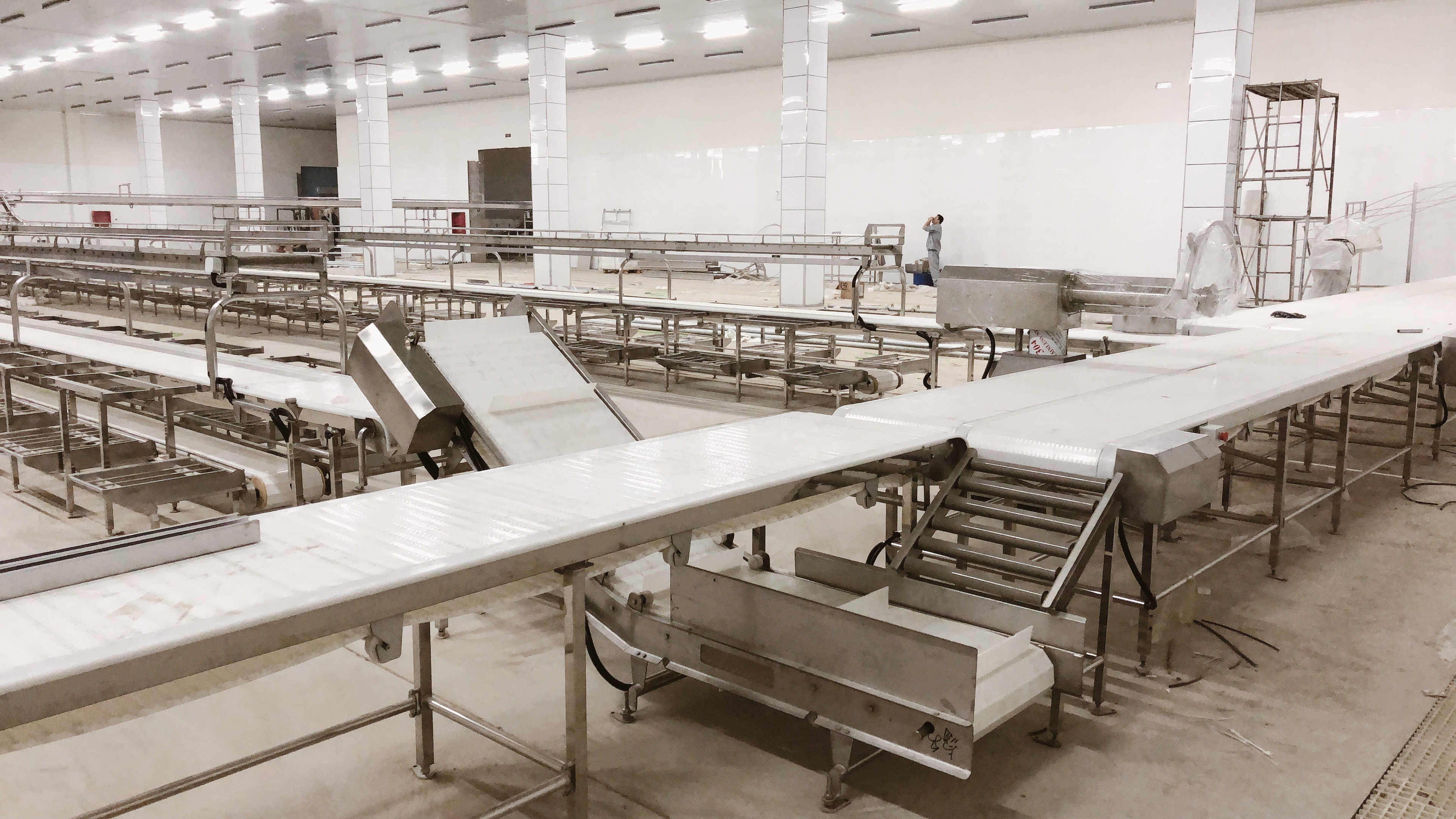

The cut hind legs are conveyed again to the hind leg deboning line. The dividing line is equipped with 30 operating tables. The height of each operating table is 800mm, the length and width are 900mm and 400mm respectively, and these operating tables are connected to the conveyor. The spacing between each console is 600mm. Each operating table is equipped with 2 box racks, one on the left and one on the left, for storing the divided products. The size of the box frame is 620mm long, 420mm wide, and 350mm high. When the turnover box is full, it can be pushed into the heavy box conveyor line under the product conveyor to transport it to the packaging area.

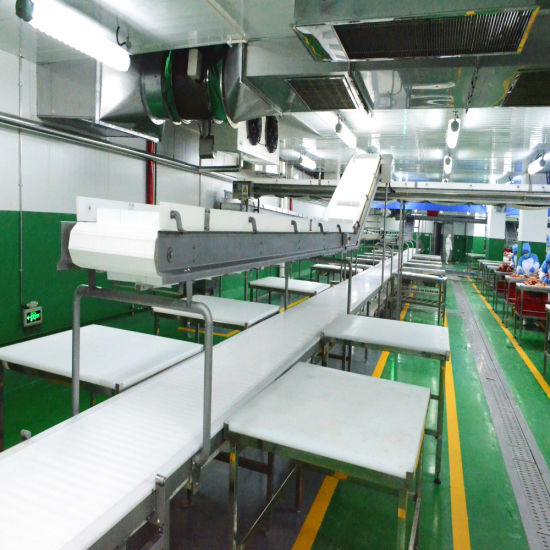

The cut front legs are conveyed again to the front leg deboning line. The dividing line is equipped with 30 operating tables. The height of each operating table is 800mm, the length and width are 900mm and 400mm respectively, and these operating tables are connected to the conveyor. The spacing between each console is 600mm. Each operating table is equipped with 2 box racks, one on the left and one on the left, for storing the divided products. The size of the box frame is 620mm long, 420mm wide, and 350mm high. When the turnover box is full, it can be pushed into the heavy box conveyor line under the product conveyor to transport it to the packaging area.

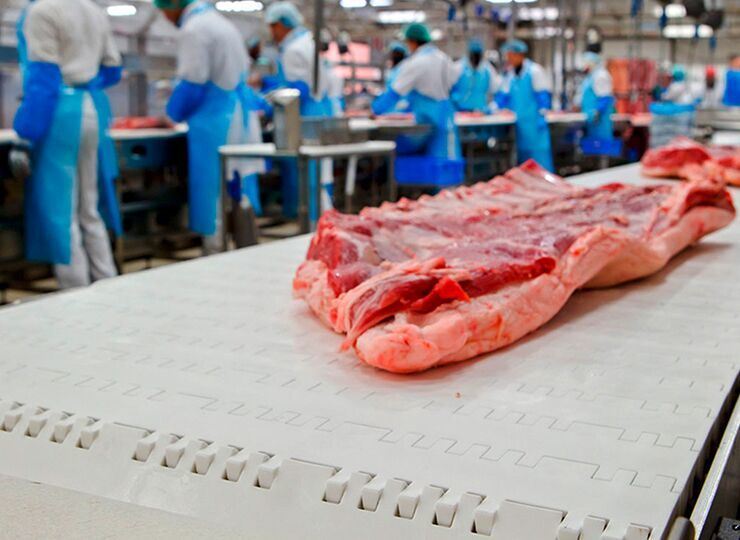

The cut mid-section carcasses are transported again to the mid-section deboning line. The dividing line is equipped with 30 operating tables. The height of each operating table is 800mm, the length and width are 900mm and 400mm respectively, and these tables are connected with the conveyor. The spacing between each console is 600mm. Each operating table is equipped with 2 box racks, one on the left and one on the left, for storing the divided products. The size of the box frame is 620mm long, 420mm wide, and 350mm high. When the turnover box is full, it can be pushed into the heavy box conveyor line under the product conveyor to transport it to the packaging area.

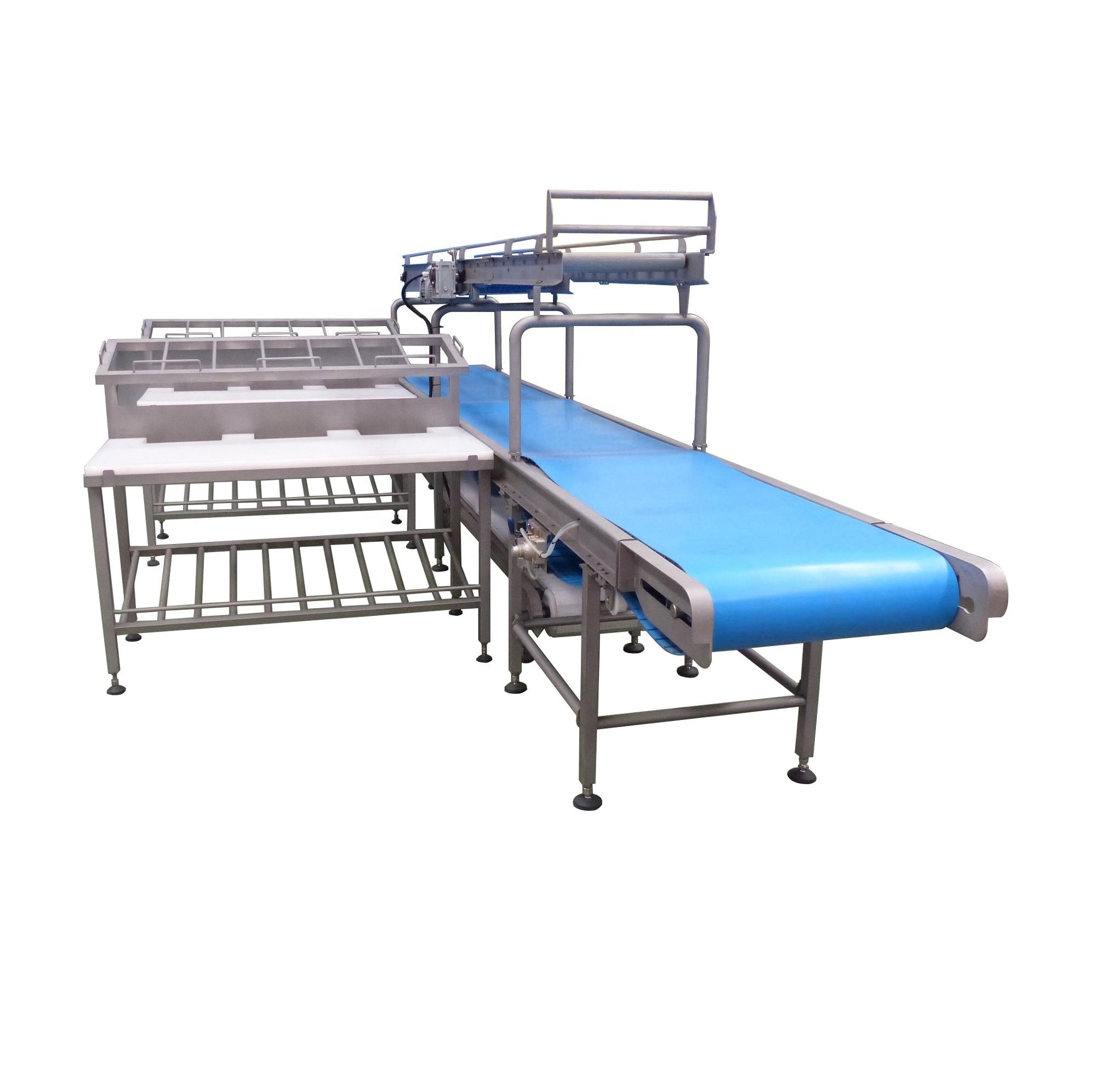

| Name | Meat cutting deboning line |
| Framework Material | Stainless Steel 304 |
| Surface treatment | Sand-blasted |
| Motor Type | Domestic/imported |

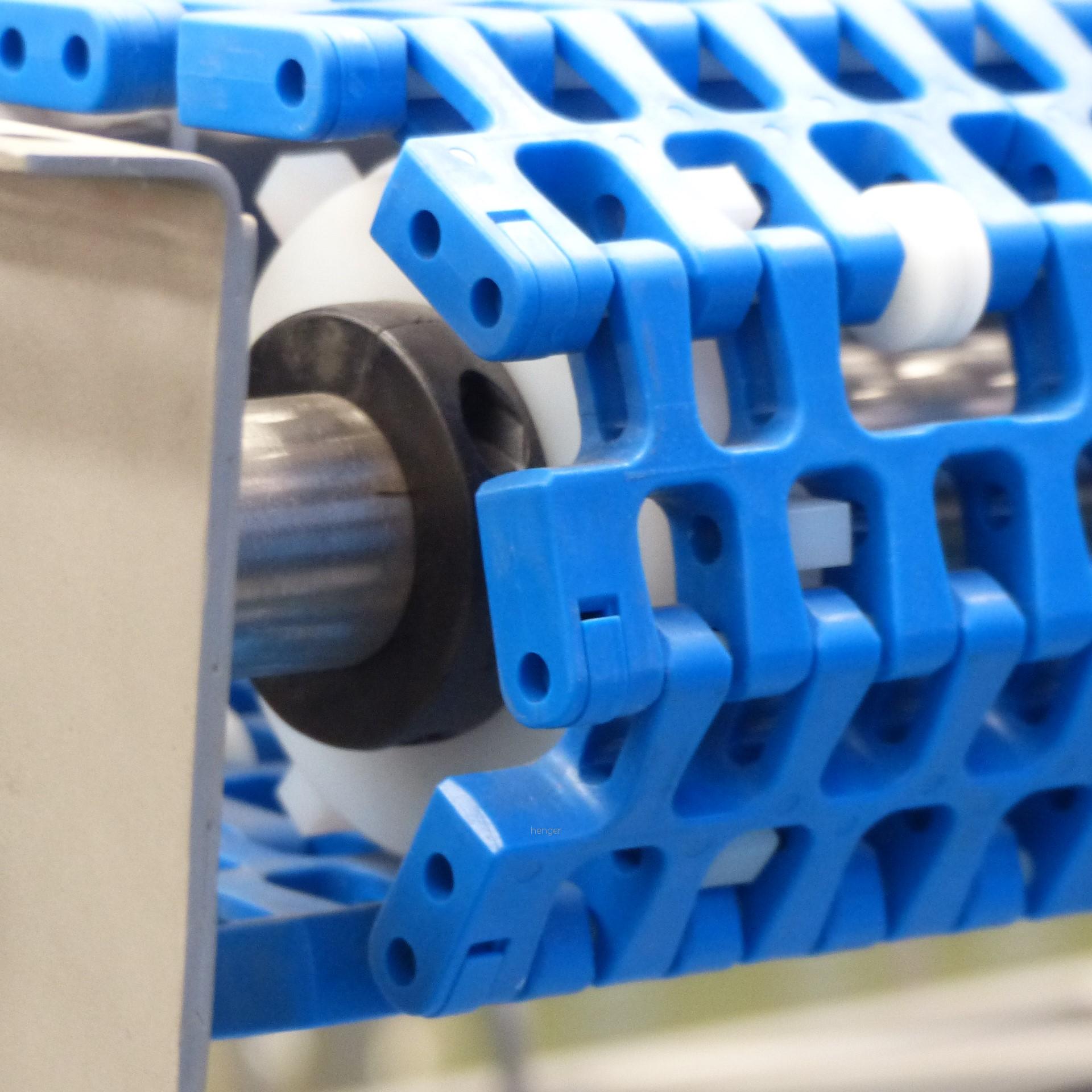

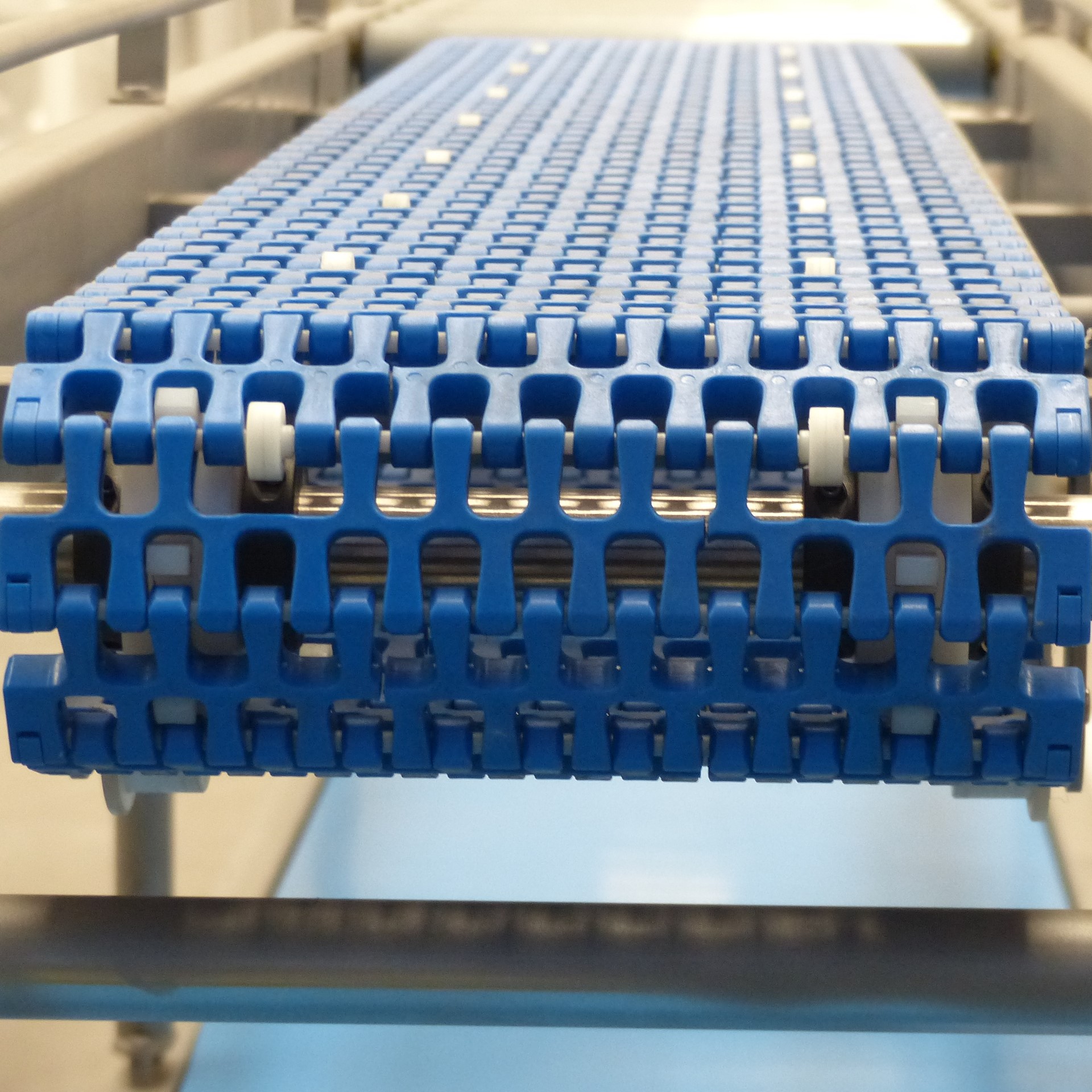

| Conveyor belt material | PU/POM |
| Warranty Period | 1 Year |

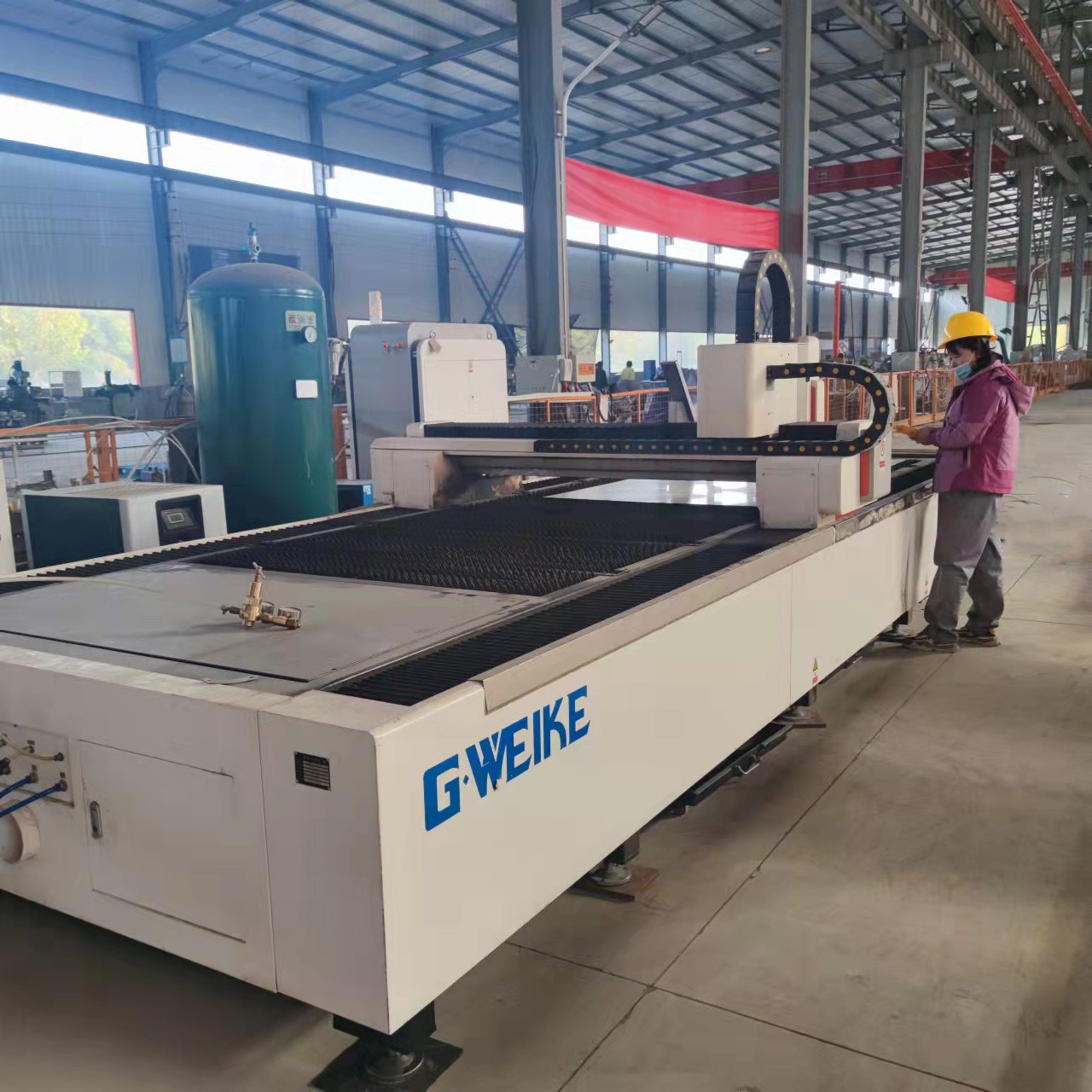

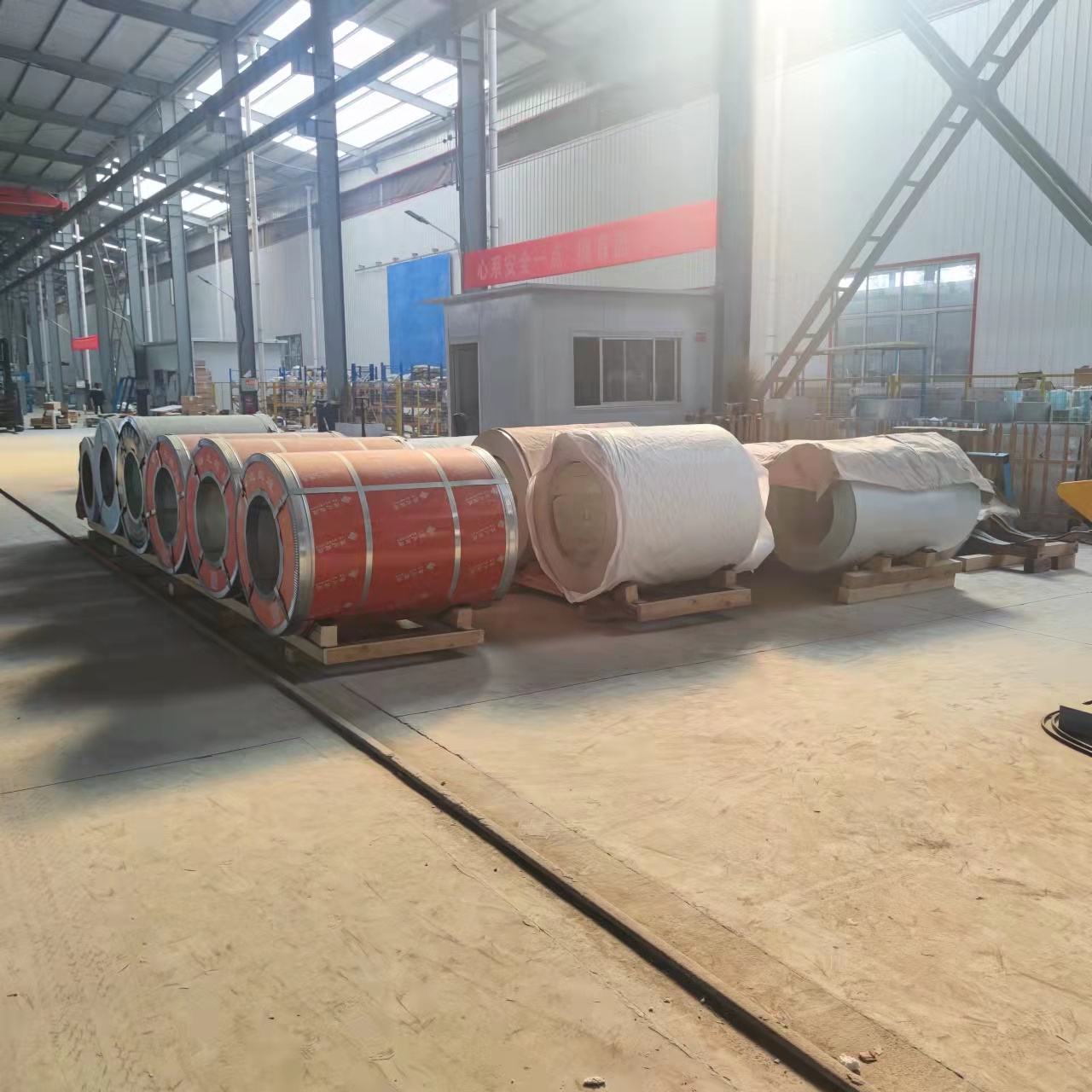

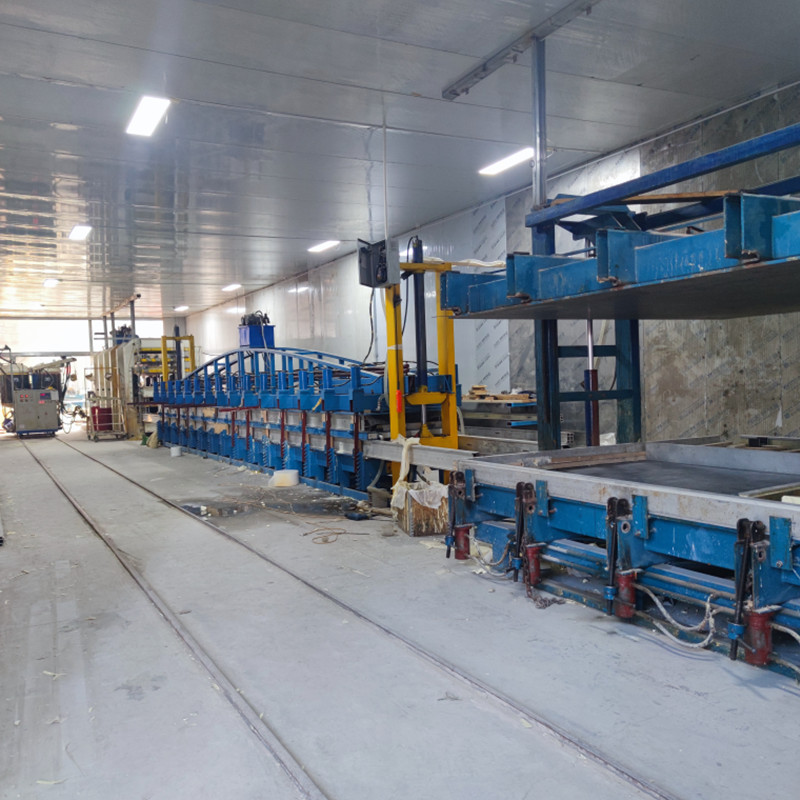

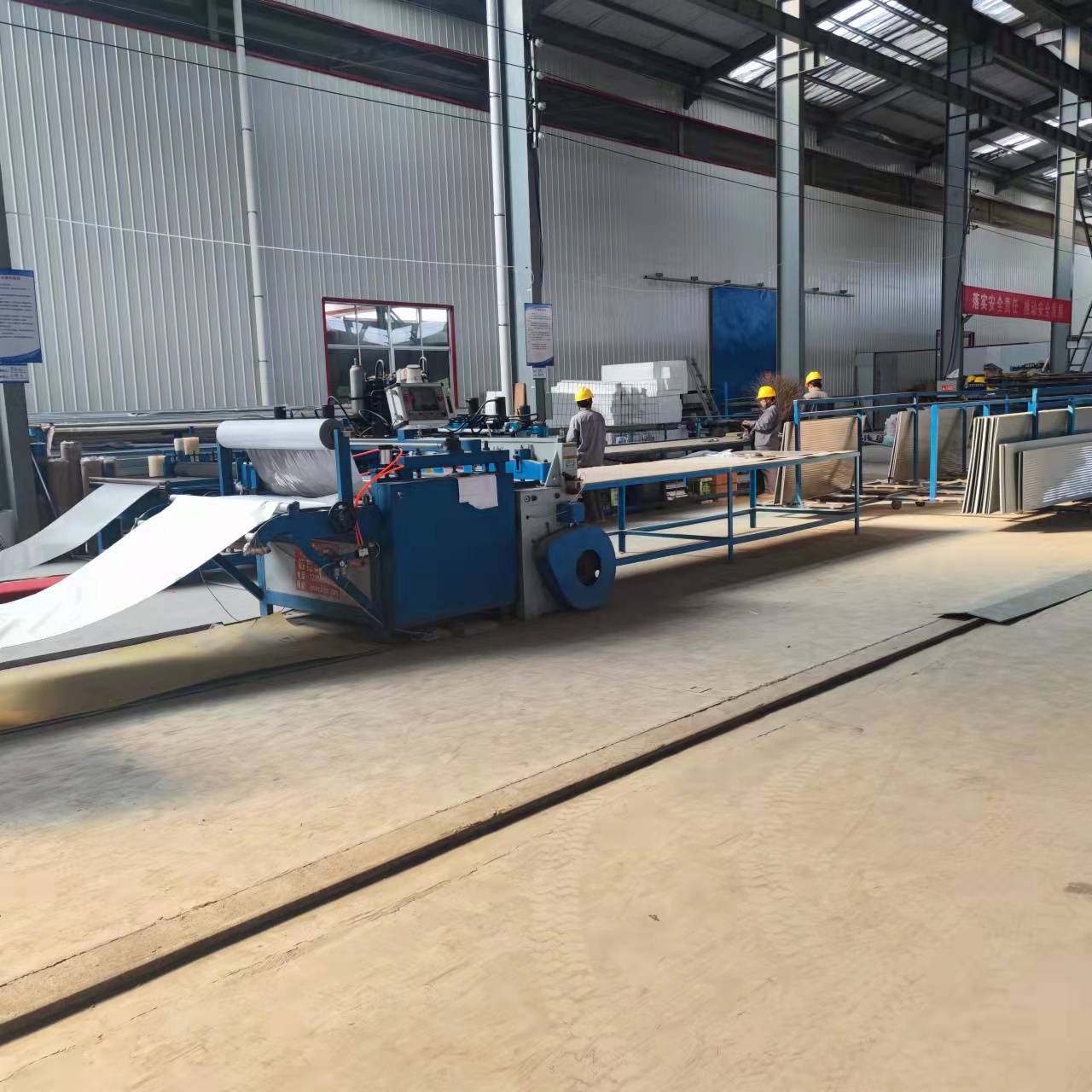

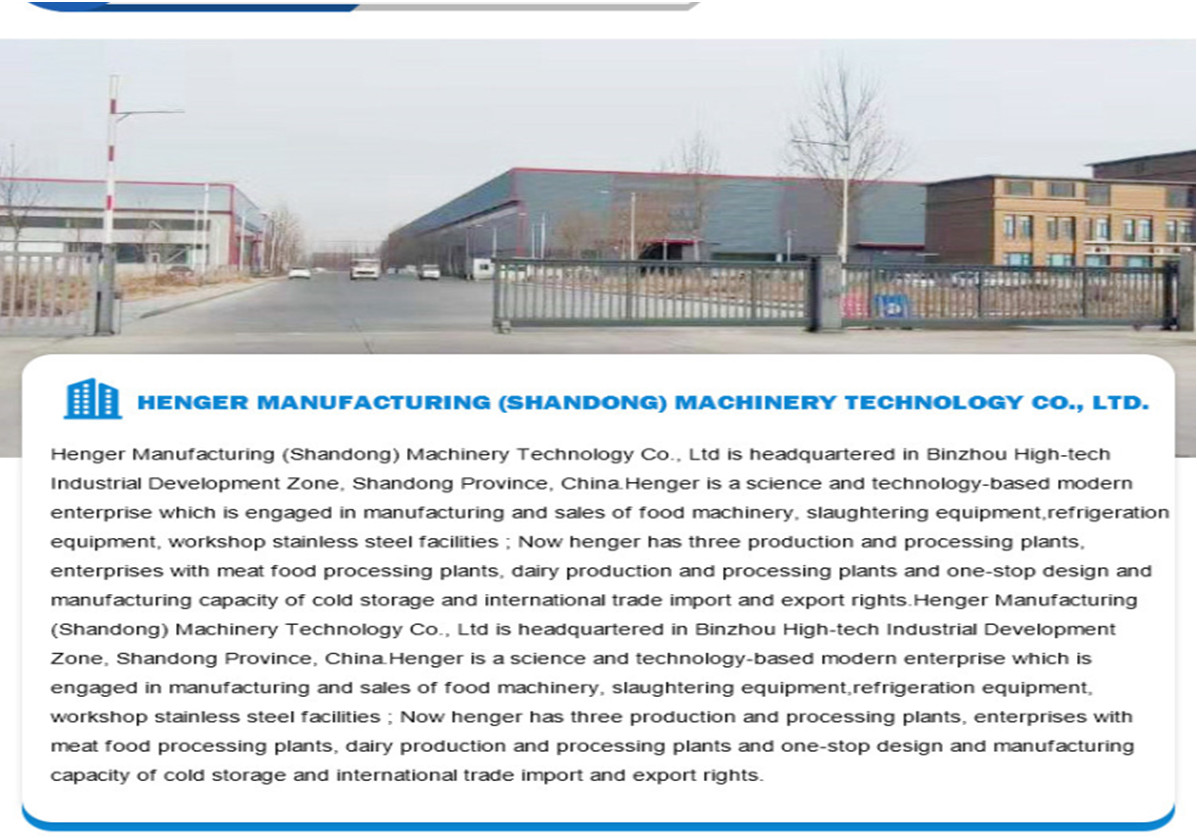

Our factory is located in China. You are welcome to visit our factory facility at any time.
From raw material purchase to production, we implement strict quality controls. We provide a 1-year warranty for all products. ISO 9001 and CE certifications can also be provided.
After you place an order, the production handling time is about 10-25 days, subject to our factory's production schedule.
Yes, we have our own R&D center, and our engineers can provide customized machinery designs and drawings according to your specific requirements.
Yes, our engineers can be delegated abroad for machine installation, setup, and debugging.
Secure insurance order payment is preferred. Payment can be completed securely via wire transfer (T/T) or credit card.
