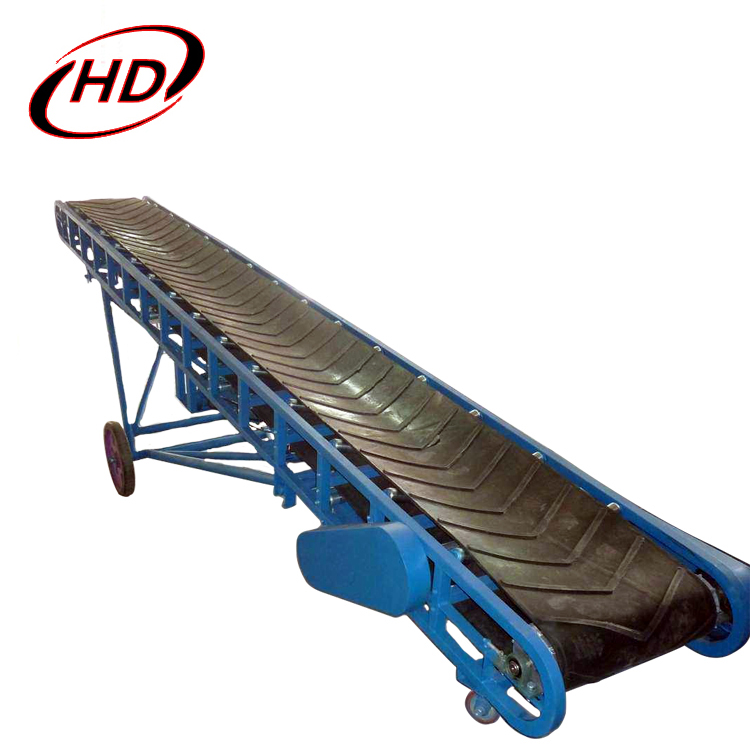

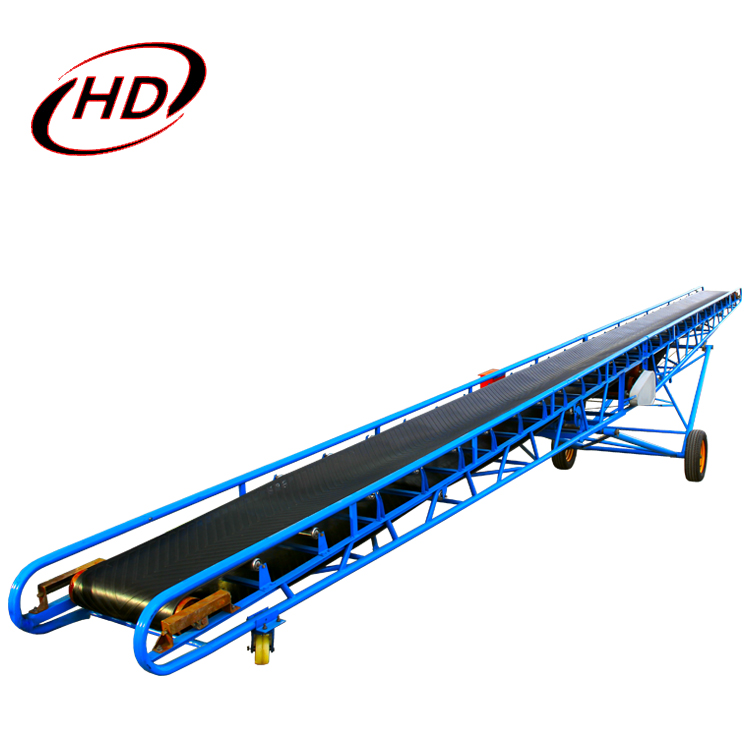

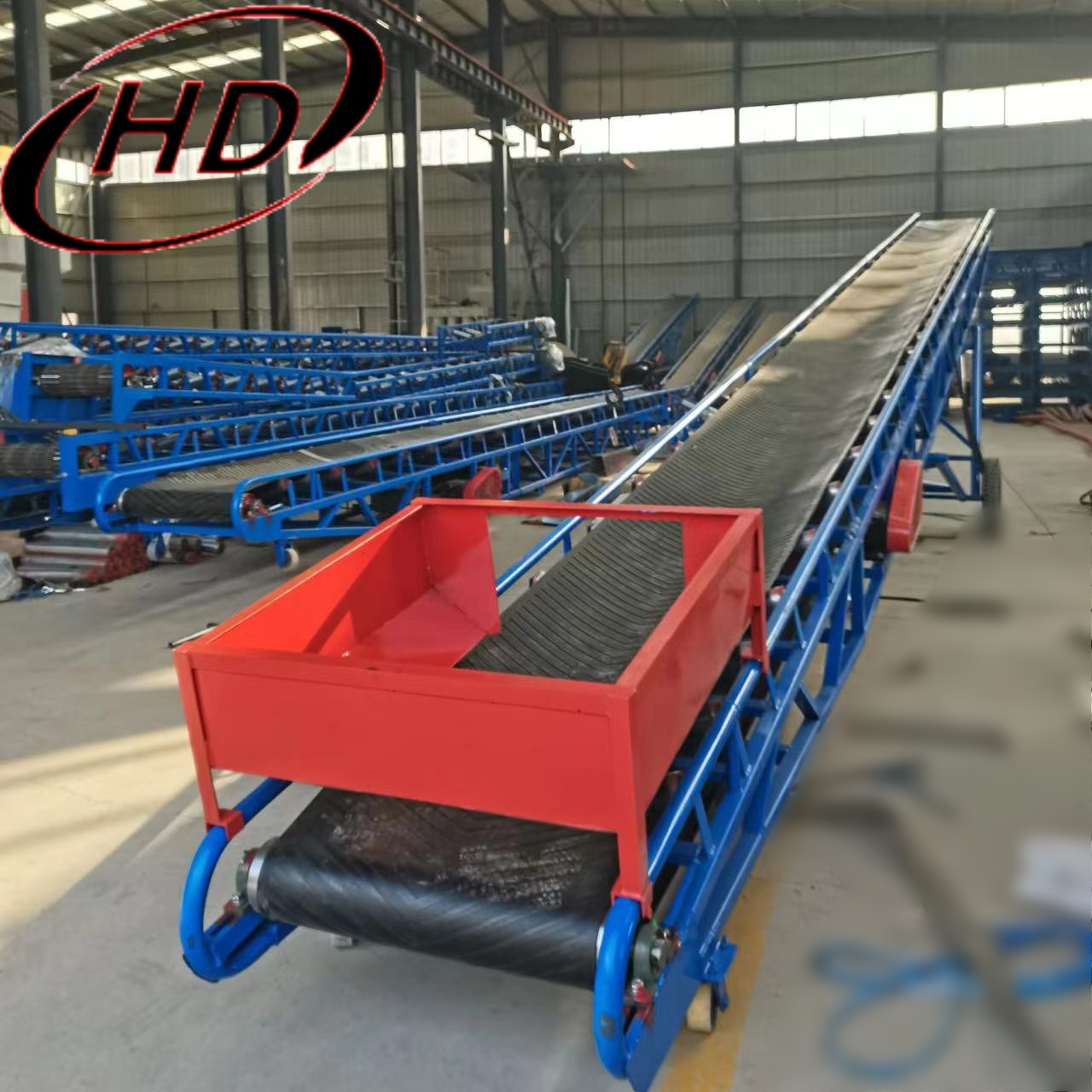

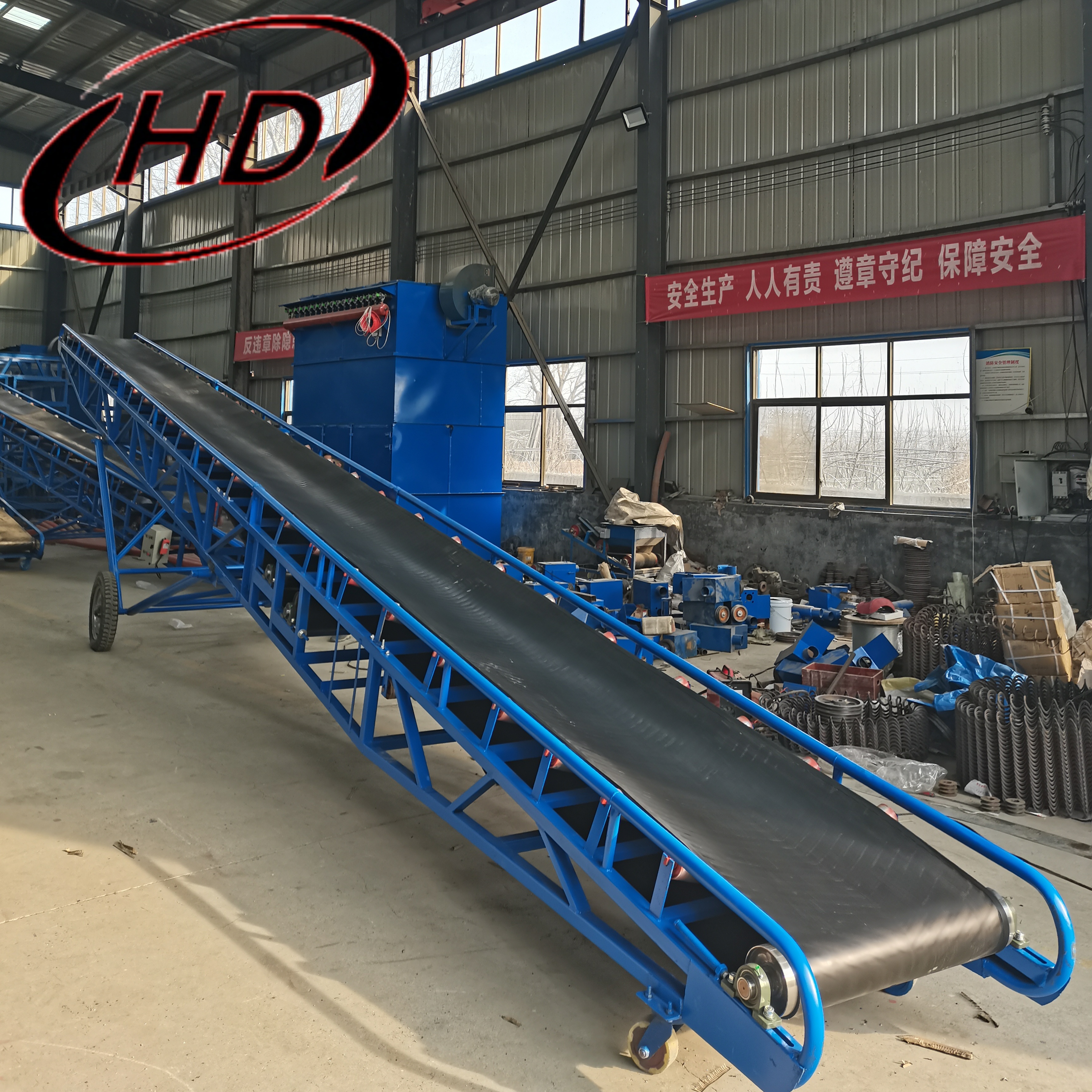

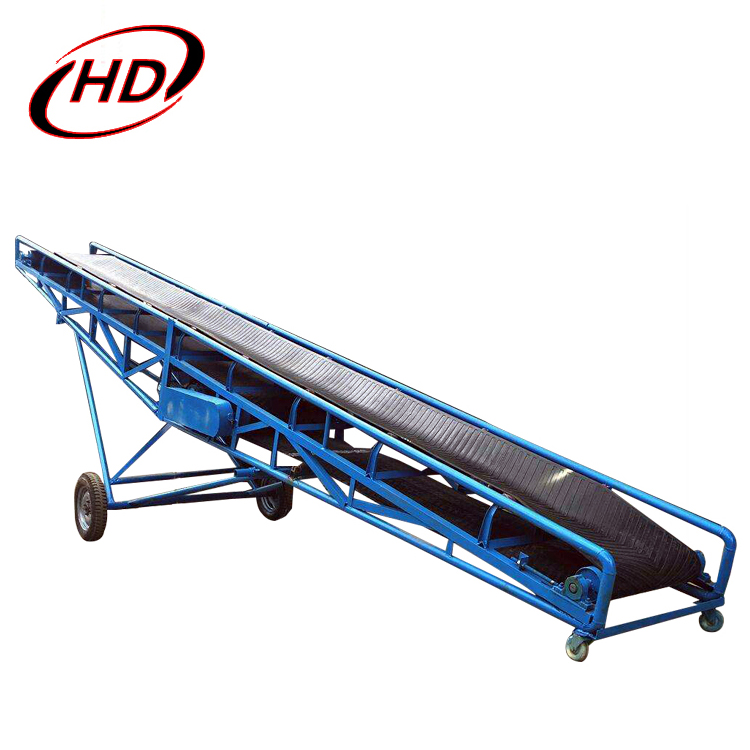

Outdoor chevron belt mobile conveyor for wood pellet and manure used
Key Advantages
1
OEM Service: Customized designs to match specific application demands.
2
Industry Expertise: Over 30 years of experience specializing in varied conveying systems (0-90 degree transportation).
3
Punctual Delivery: Reliable manufacturing schedules ensure delivery on time.
4
Customer Discounts: 3% to 10% discounts available for new customers based on quantity.
5
Engineer Support: A professional engineering team to help choose the ideal model for your project.
Product Description & Specification
The mobile belt conveyor is a highly efficient, safe, and mobile continuous mechanical handling equipment. It is primarily used for short-distance transport, loading/unloading of bulk materials, and items weighing less than 100kg. It is widely applied in changing environments such as ports, terminals, stations, coal yards, warehouses, building sites, sand quarries, and farms.
| Model Parameter |
DY Series Specification |
| Model |
DY series |
| HS Code |
8428330000 |
| Belt Width |
400mm - 2000mm |
| Conveyor Length |
5 - 30 meters |
| Belt Speed |
1.0m/s - 2.0m/s |
| Lifting Height |
As per conveyor length |
| Power |
2.2KW - 30KW |
| Voltages |
220V - 660V |
Key Features
- Simple structure design and easy installation.
- Low breakdown rate and adaptable to different environmental conditions.
- Various design formats meeting requirements of different industries.
- Cost-effective operation with a long working lifespan.
- Easy relocation enabled by specialized mobile wheels.
This mobile belt conveyor is extensively used in mining, gravel fields, metallurgy, building materials, chemical industry, mineral processing, and coal mining. It can convey bulk materials like coal, cement, sand, and cereal, as well as lump materials like rocks, and packaged items like 50kg bags.
Model Technical Data
| Model |
Belt Width (mm) |
Length (m) |
Belt Speed (m/s) |
Lifting Height |
Slope Angle |
Capacity (m³/h) |
| DY-500 |
500 |
Max.20 |
0.8-2.0 |
adjustable |
0-25 |
50-140 |
| DY-650 |
650 |
Max.20 |
0.8-2.0 |
adjustable |
0-25 |
100-250 |
| DY-800 |
800 |
Max.25 |
0.8-2.0 |
adjustable |
0-25 |
170-350 |
| DY-1000 |
1000 |
Max.25 |
0.8-2.0 |
adjustable |
0-25 |
270-550 |
Notes: The parameters above are for reference. Customization is accepted. For other models, please inquiry directly.
How to Confirm the Model?
1
The conveying capacity that you require?
2
What is the material to be conveyed?
3
The conveying length and the width of the belt?
4
Whether you need adjust height of the motor?
5
The conveying angle?
Packaging & Shipment
Packaged: Standard wooden case or full container loads.
Shipment: 5-7 working days after receiving deposit.
Other Main Product Lines
Vibration Equipment
- XZS Rotary vibrating screen
- DZSF Linear vibrating screen
- Dehydration vibrating screen
- YA/YK round vibrating screen
- ZDP Vibrating platform & YBS Tumbler screen
Vibrating Motors
- JZO, Y-Series, TZDC, VB, XVM vibrating motors
- YZUL vertical vibrating motor
- ZSF silo vibrator
- Explosion-proof vibration motor
Conveying Equipment
- TD-75 Rubber belt conveyor
- DY mobile belt conveyor
- DJ sidewall belt conveyor
- LS & GX screw conveyors
- WLS shaftless screw conveyor
Elevating & Feeding
- Bucket elevators (TD Belt, TH Chain, NE Plate types)
- JL rotary feeder (impeller feeder)
- GZG Vibrating feeder & DK disk feeder
- GZ electromagnetic feeder
Related Products

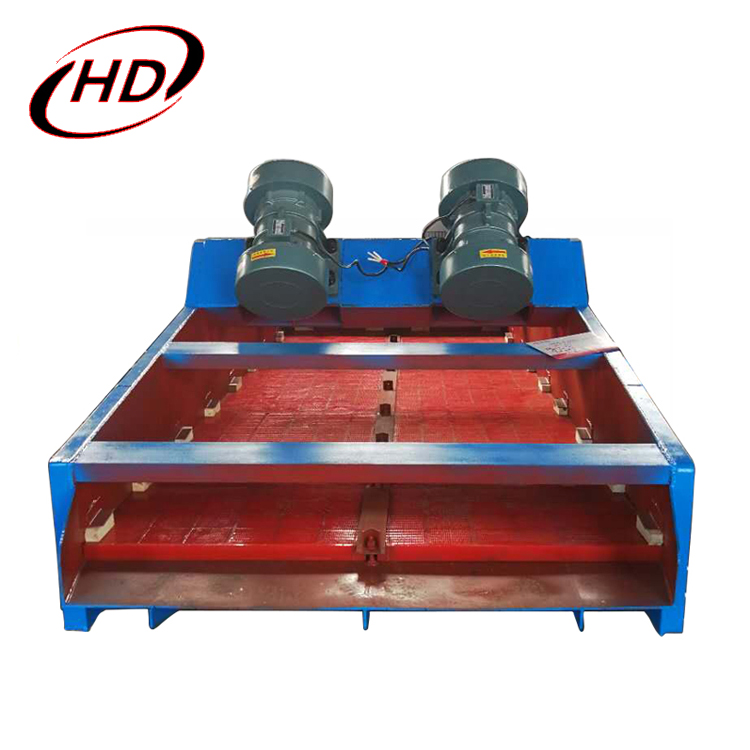

Dewater vibrating sieve
Linear vibrating screen
Rotary vibrating sifter
Frequently Asked Questions
Q1
What payment terms are accepted for transactions?
We accept TT, L/C, and Western Union payment methods for new customers.
Q2
What is the typical delivery schedule for order fulfillment?
Normal delivery time is within 3 working days. A complete production line or larger custom machinery may take longer. Exact schedules will be confirmed upon placing the order.
Q3
How is quality control and verification handled?
You are welcome to visit our production facility to check the quality of your equipment. Additionally, we will send videos and detailed photos of your order before shipment.
Q4
What is the warranty period for this conveyor equipment?
The equipment comes with a standard 12-month warranty, which can be extended to 24 months upon request.
Q5
What details are needed to confirm the correct conveyor model?
To confirm the perfect model, you need to provide the required capacity, material type to be conveyed, required conveying length and belt width, height adjustment requirements, and the conveying angle.
Q6
Do you provide OEM services or purchase discounts?
Yes, we support professional OEM services. We also offer discounts between 3% and 10% for new customers based on order quantities.
