| Fabric Specs | Ply Thickness (mm/P) | Strength Series (N/mm) | Cover Thickness (mm) | Width (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | |||
| EP100 | 1 | 200 | 300 | 400 | 500 | 600 | 2.0-30 | 1.5-20 | 300-2400 |
| EP125 | 1 | 250 | 375 | 500 | 625 | 750 | 2.0-30 | 1.5-20 | 300-2400 |
| EP150 | 1.1 | 300 | 450 | 600 | 750 | 900 | 2.0-30 | 1.5-20 | 300-2400 |
| EP200 | 1.2 | 400 | 600 | 800 | 1000 | 1200 | 2.0-30 | 1.5-20 | 300-2400 |
| EP250 | 1.4 | 500 | 750 | 1000 | 1250 | 1500 | 2.0-30 | 1.5-20 | 300-2400 |
| EP300 | 1.6 | 600 | 900 | 1200 | 1500 | 1800 | 2.0-30 | 1.5-20 | 300-2400 |
| EP350 | 1.8 | 700 | 1050 | 1400 | 1750 | 2100 | 2.0-30 | 1.5-20 | 300-2400 |
| EP400 | 1.9 | 800 | 1200 | 1600 | 2000 | 2400 | 2.0-30 | 1.5-20 | 300-2400 |
| EP500 | 2.1 | 1000 | 1500 | 2000 | 2500 | 3000 | 2.0-30 | 1.5-20 | 300-2400 |
| EP630 | 2.4 | 1260 | 1890 | 2520 | 3150 | 3780 | 2.0-30 | 1.5-20 | 300-2400 |

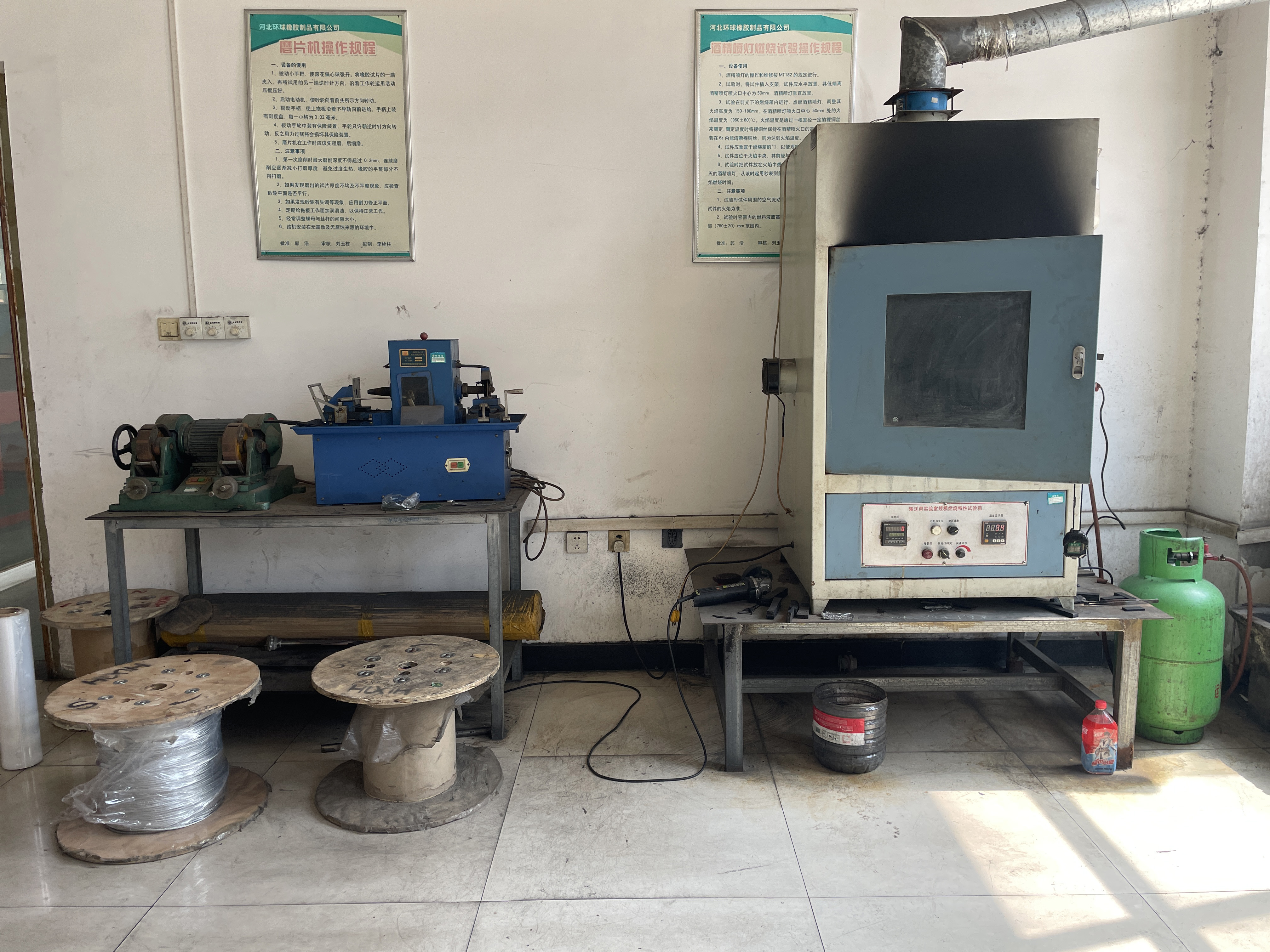

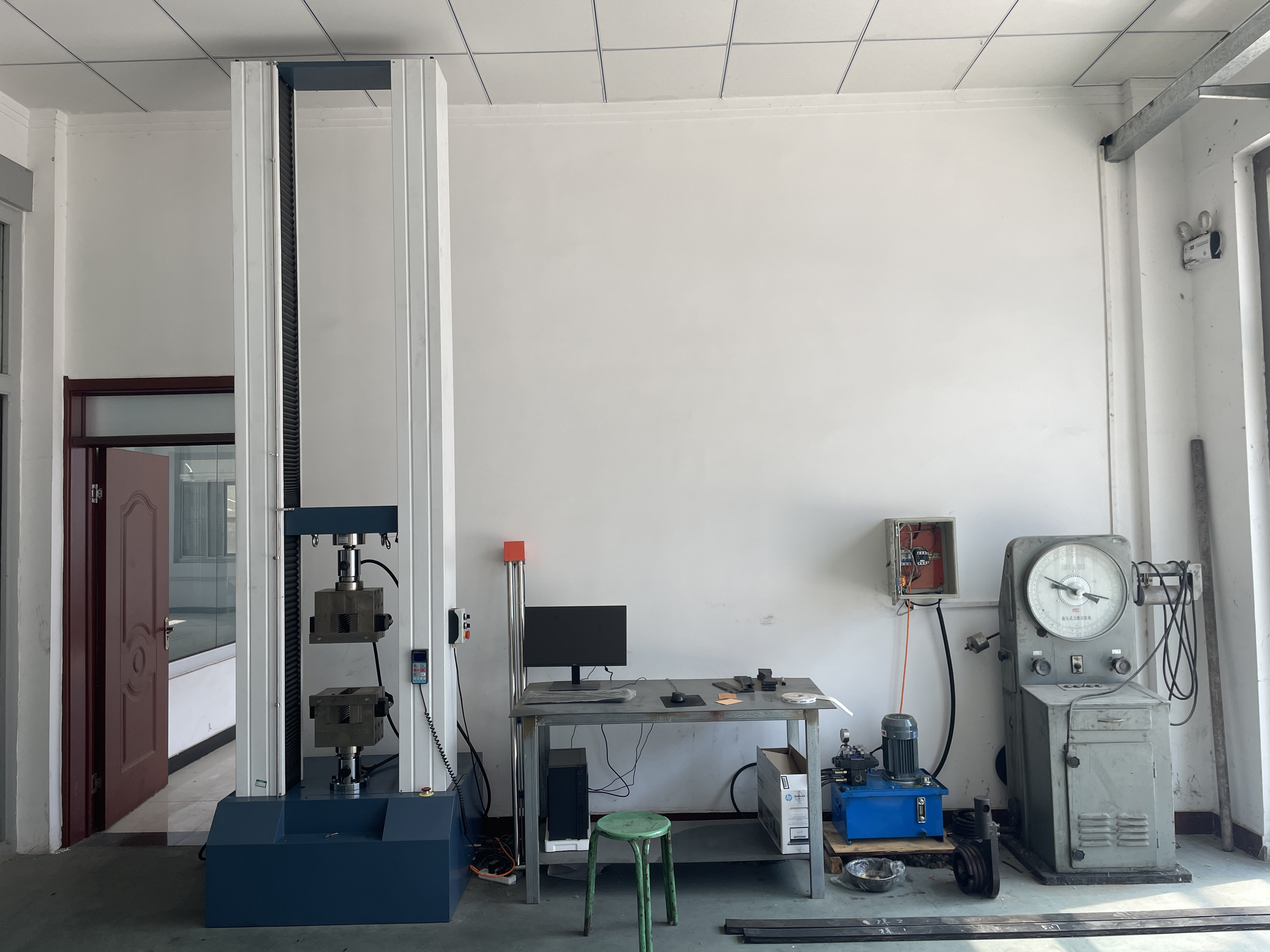

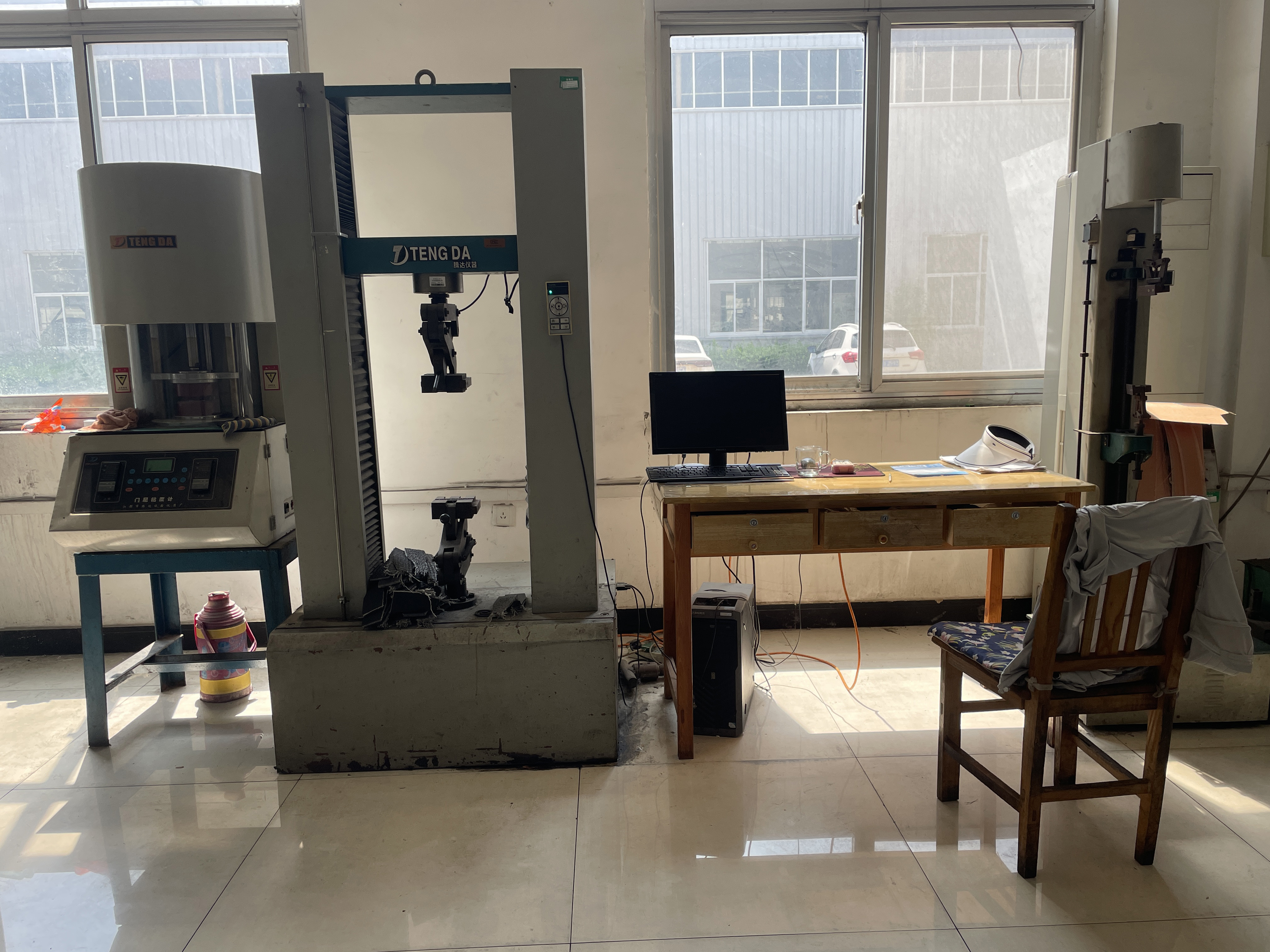

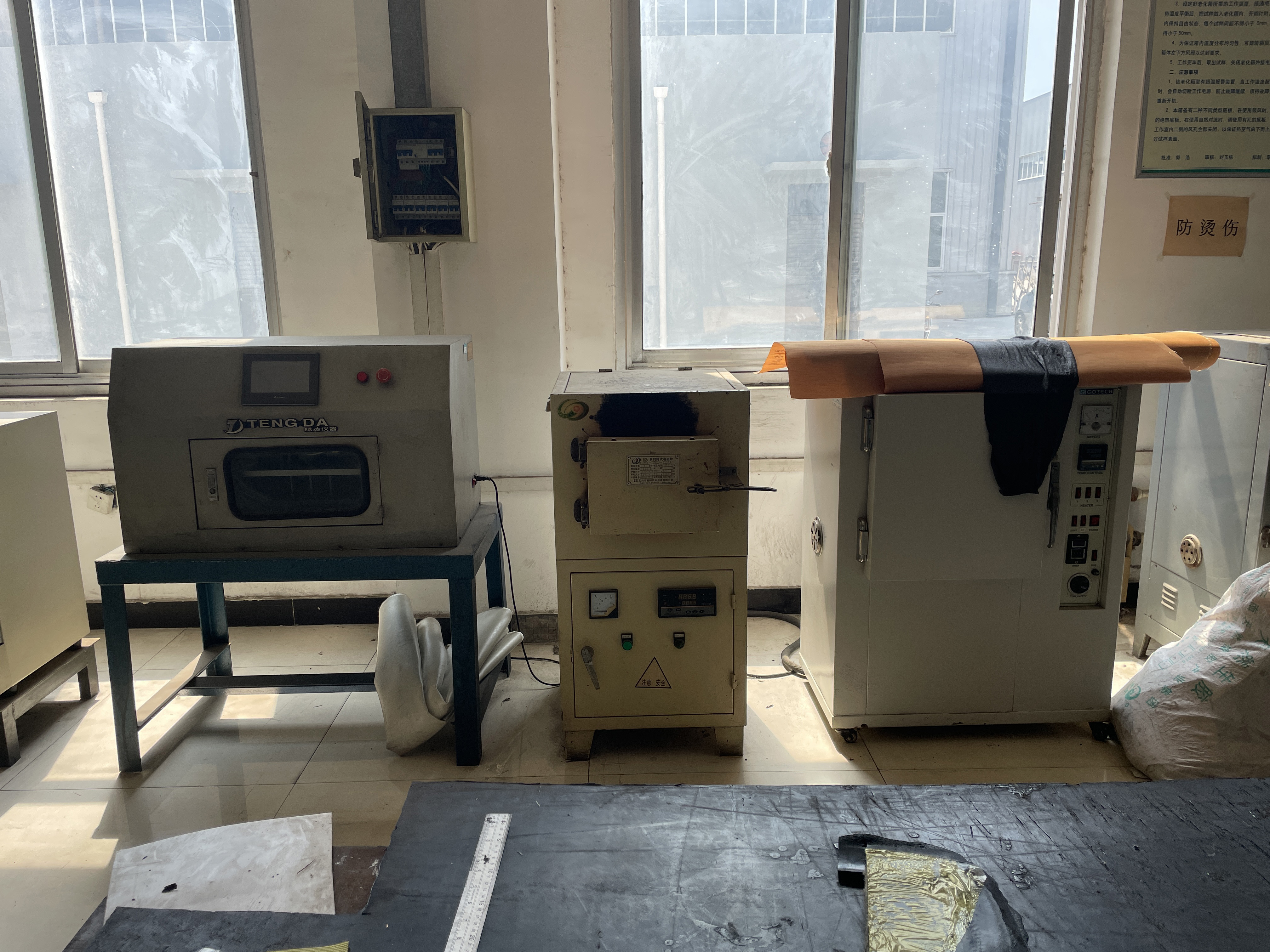

We have a lab to test all raw materials and rubber compounds. For each roll of conveyor belt, the lab will test the following features and issue a Quality Test Report.

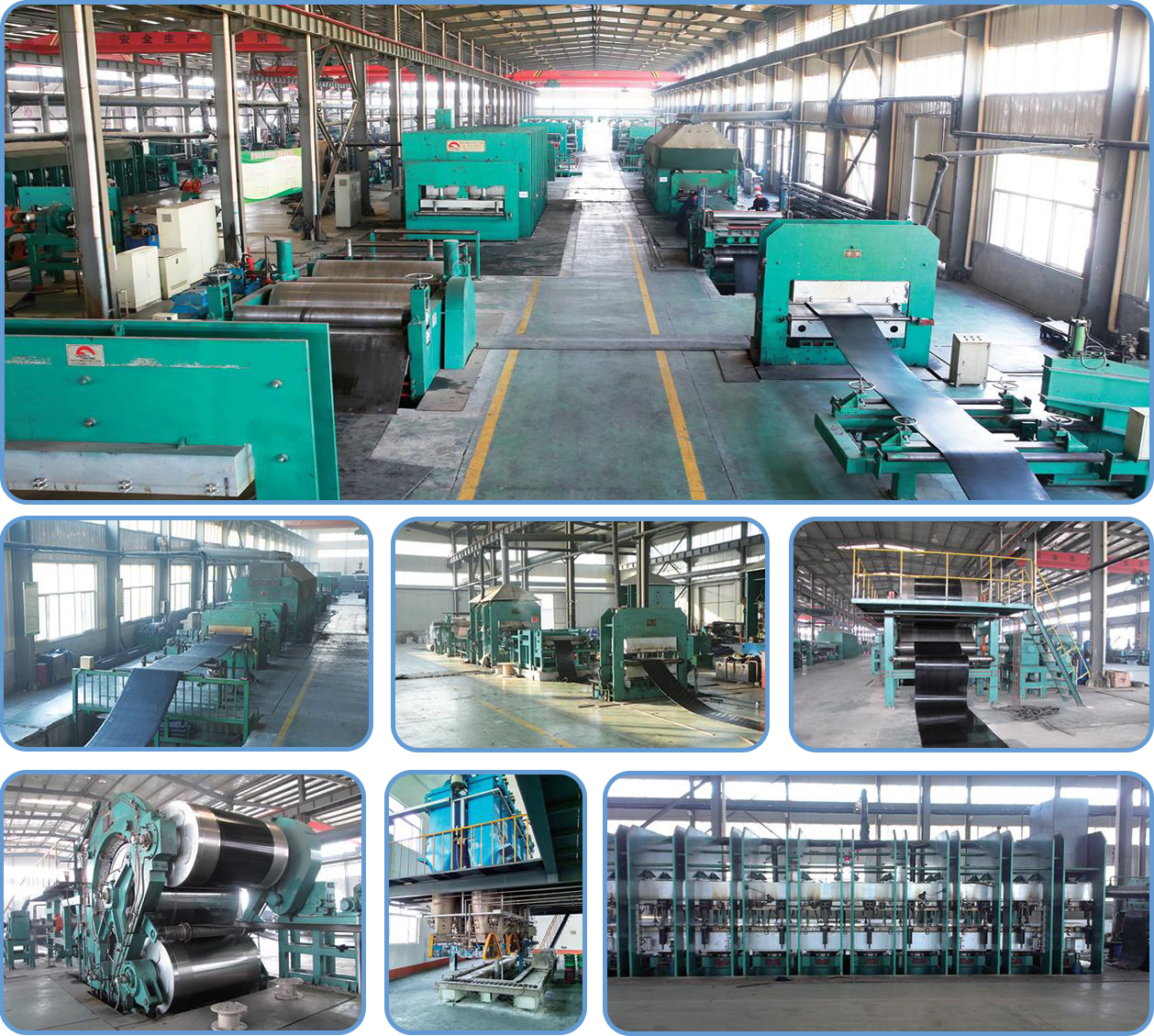

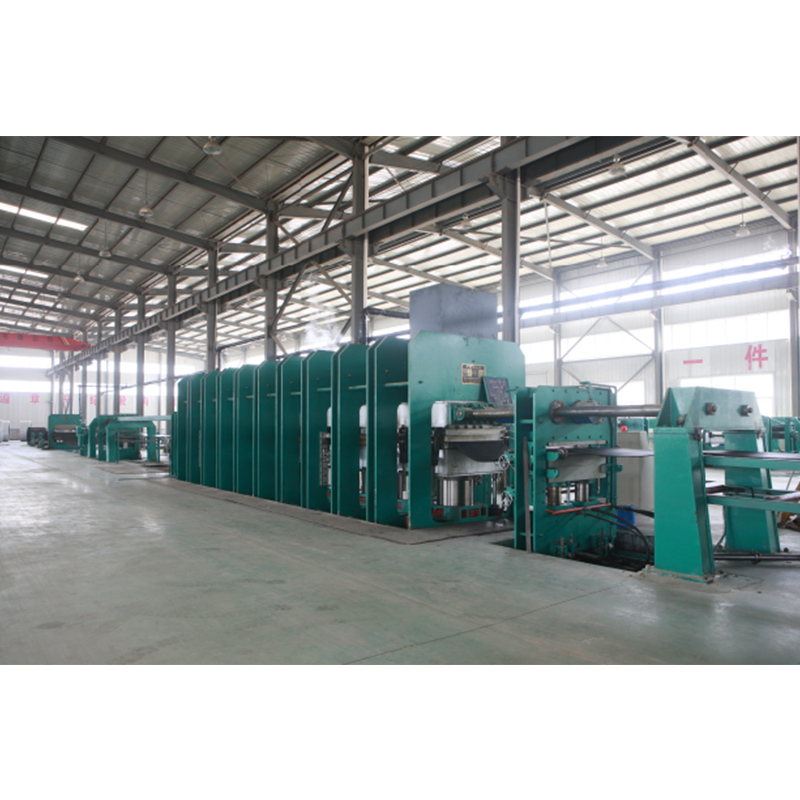

Rollers calender machine is able to stick rubber on both sides of the fabric at one time. This can reduce the strength loss of the rubber during the process.
The forming tension is even between different plies, which can avoid wrinkled fabric and guarantee an even thickness of the belt core.

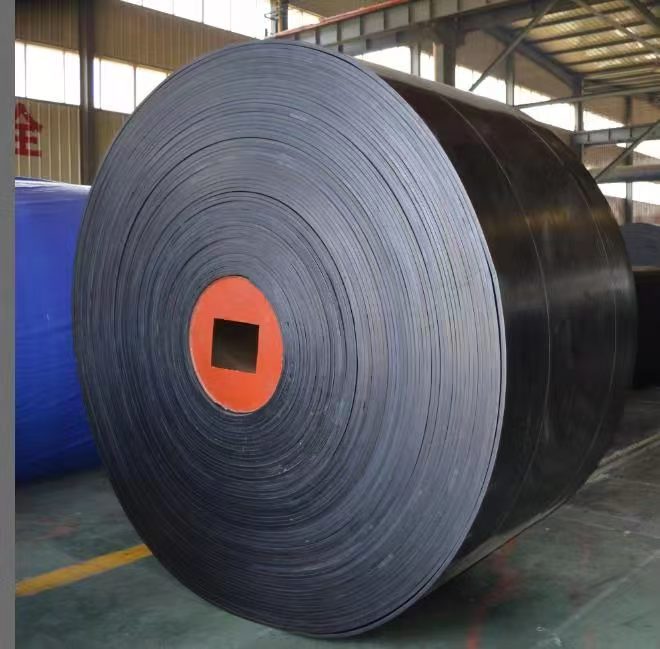

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem is found on the belt surface, we will repair it at once in our factory.

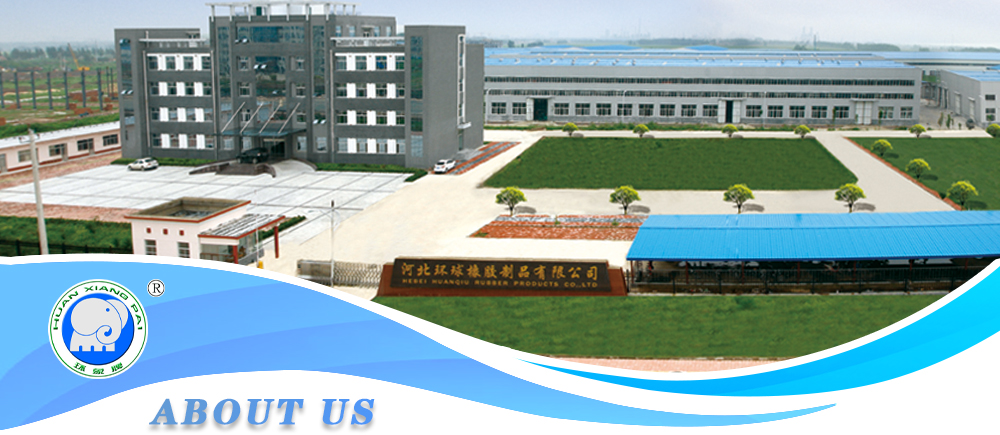

Founded in 2000 with a 140,000m² area, the registered capital is 108 million RMB. We are a professional rubber conveyor belt and conveyor component manufacturer engaged in product design, research, manufacture, marketing, and service. Equipped with 15 production lines and a 5,000m daily output, we can supply all kinds of conveyor belts, rollers, and conveyor components. Our mixing center applies automatic control to ensure the quality of the raw rubber.

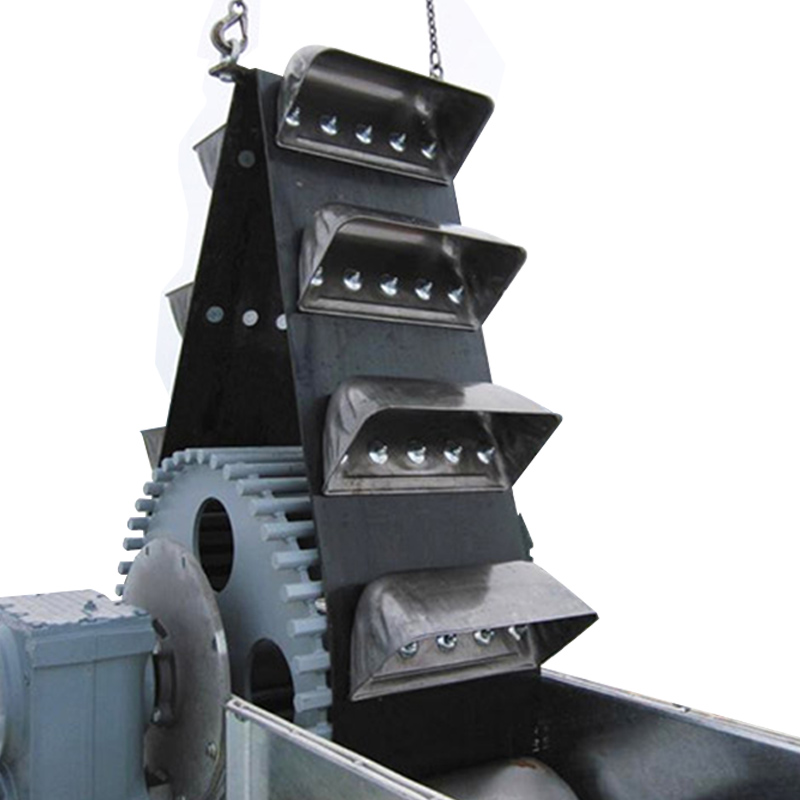

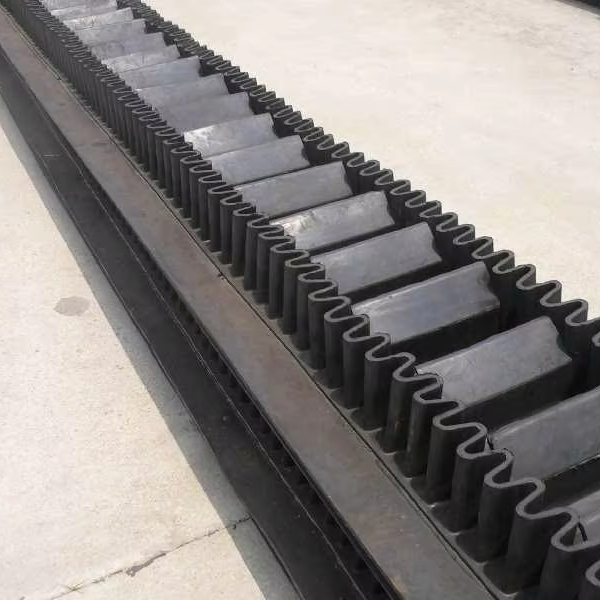

Conveyor belts include Steel Cord Conveyor Belts, Sidewall Conveyor Belts, Chevron Belts, Elevator Belts, Bare Rubber Conveyor Belts, Multi-ply Fabric Conveyor Belts (EP/Nylon/Cotton), PVC/PVG Fire Retardant Conveyor Belts, Pipe Conveyor Belts, Straight Warp Conveyor Belts, and all kinds of special property conveyor belts.
We have passed ISO9001, ISO14001, OHSAS18001, and CE international certifications. Our products meet GB, DIN, RMA, AS, JIS, BS, SABS, and ISO standards with high and stable quality.

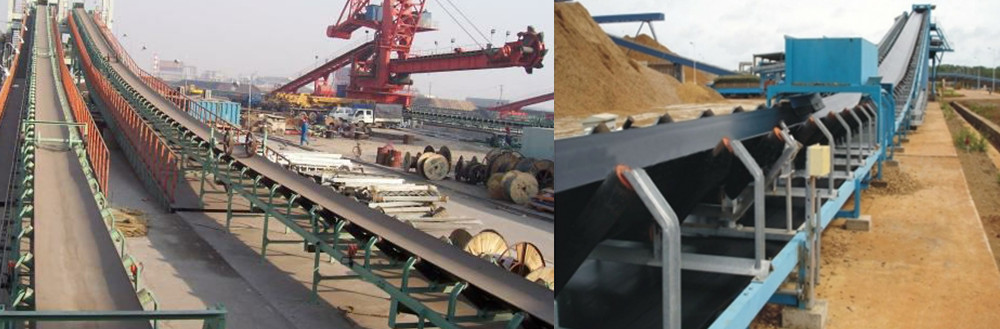

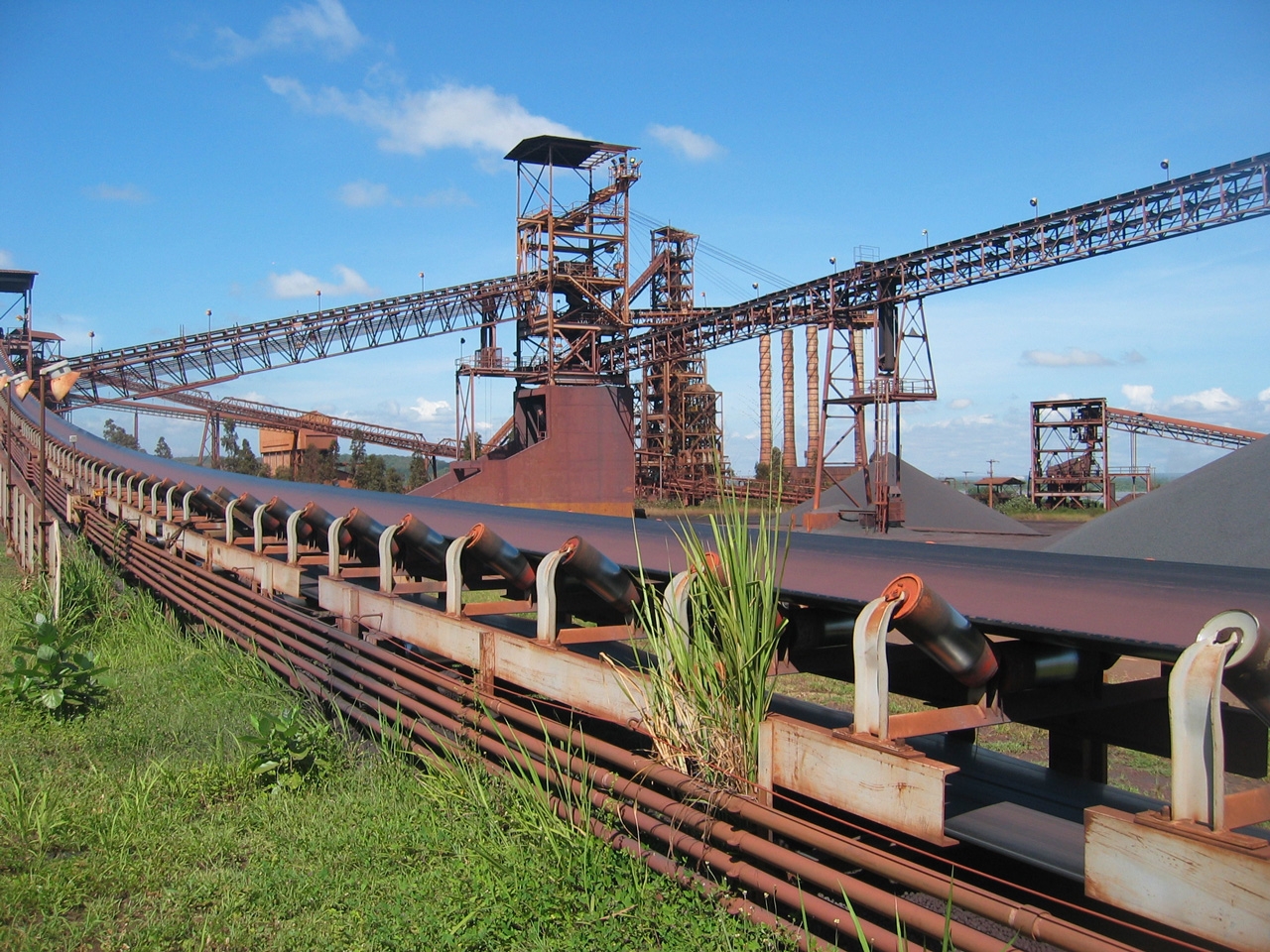

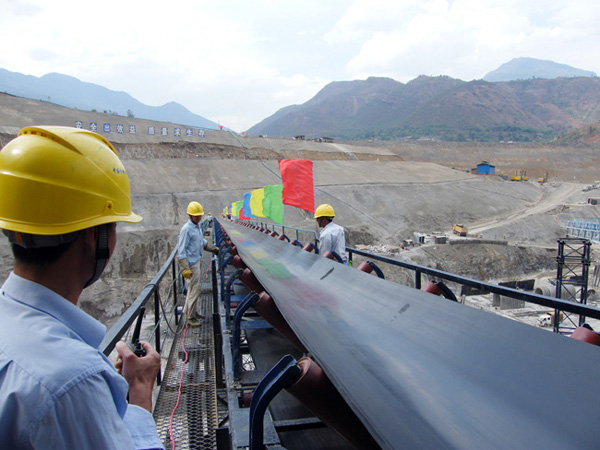

We have rich experience servicing world-famous mining companies, power plants, ports, cement factories, coal industries, grain processors, wholesalers, and distributors, enjoying a good reputation in the global markets.
