Short Introduce for this new design -- Curved hinged chain plate conveyor
Compared to ordinary belt conveyors, this type of conveyor is not very common. Many customers are unaware of its existence. Our conveyor primarily addresses two pain points for customers:
The need for a high lifting height coupled with a larger tilt angle to save space.
The risk of material falling during lifting if the angle is too large, thus affecting the conveying capacity. Therefore, our design perfectly solves these pain points and meets customer needs.

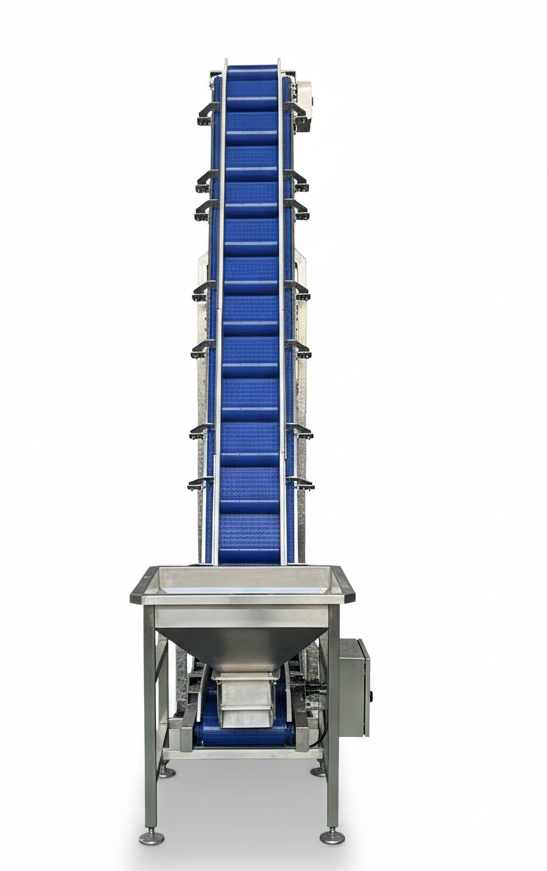

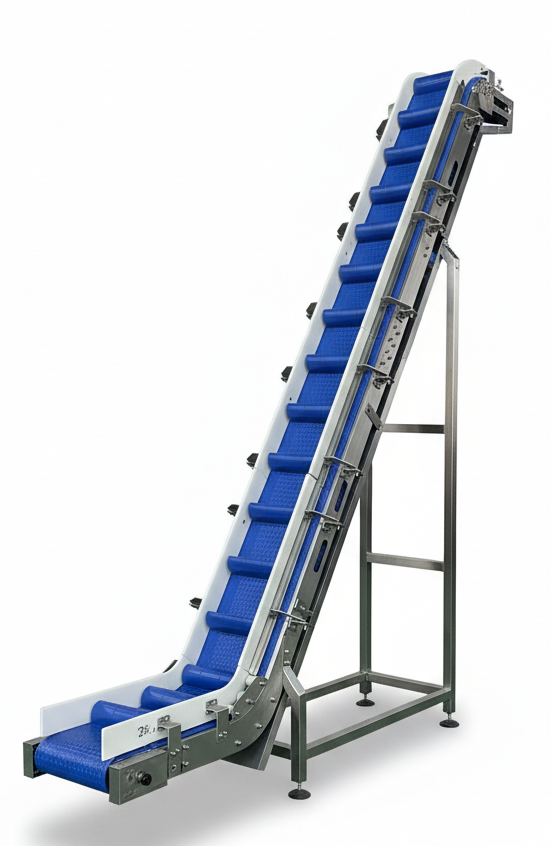

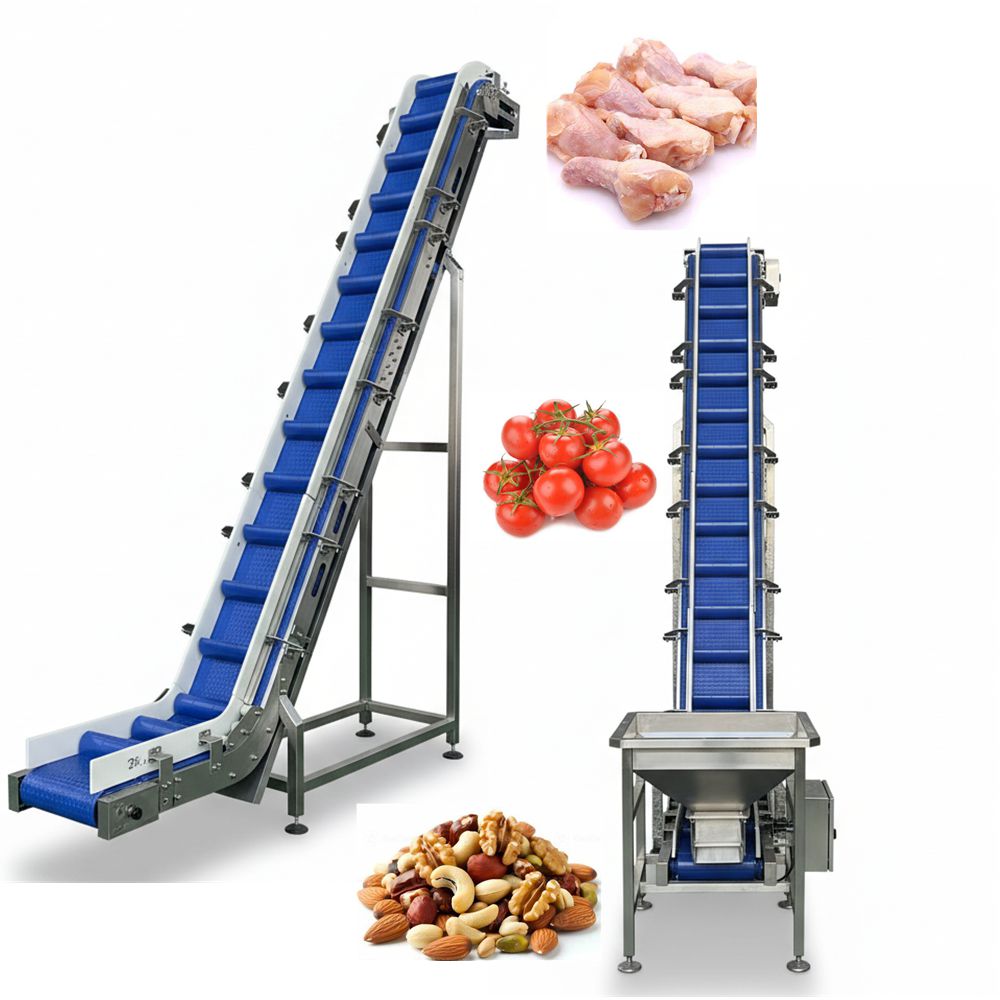

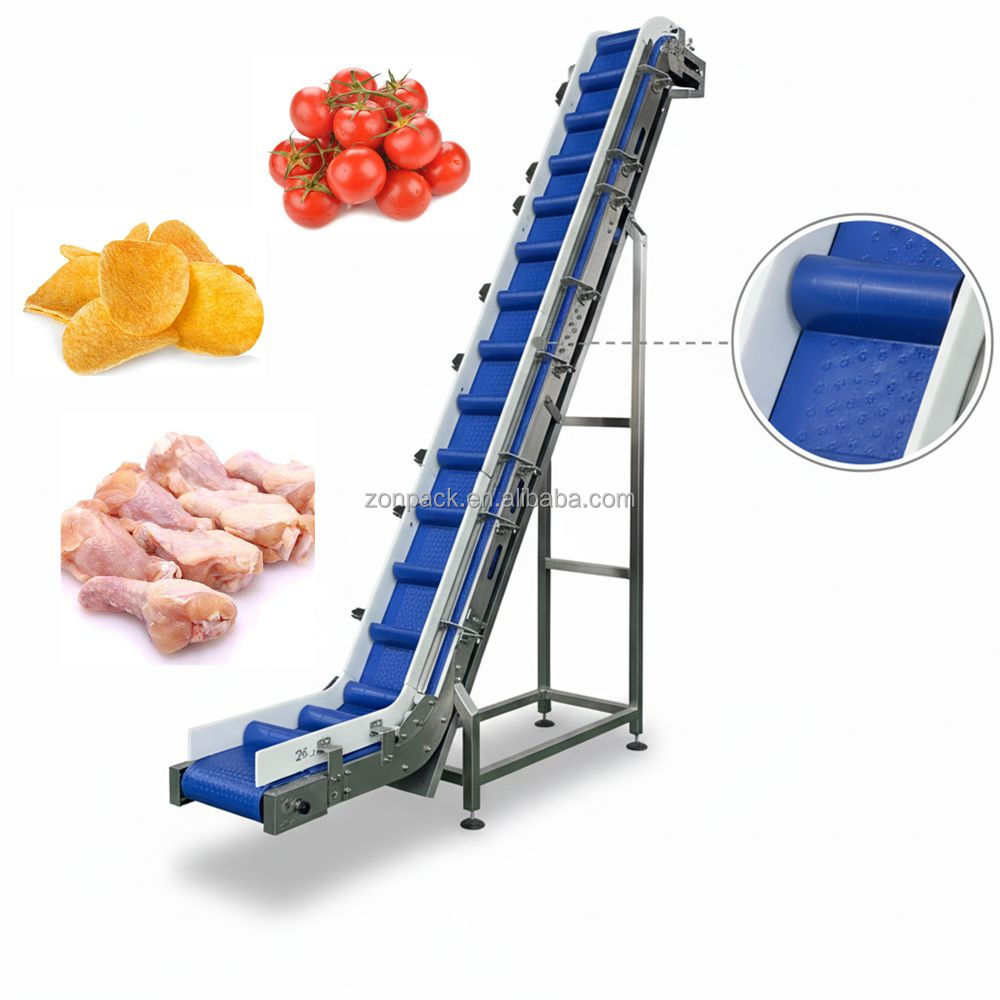

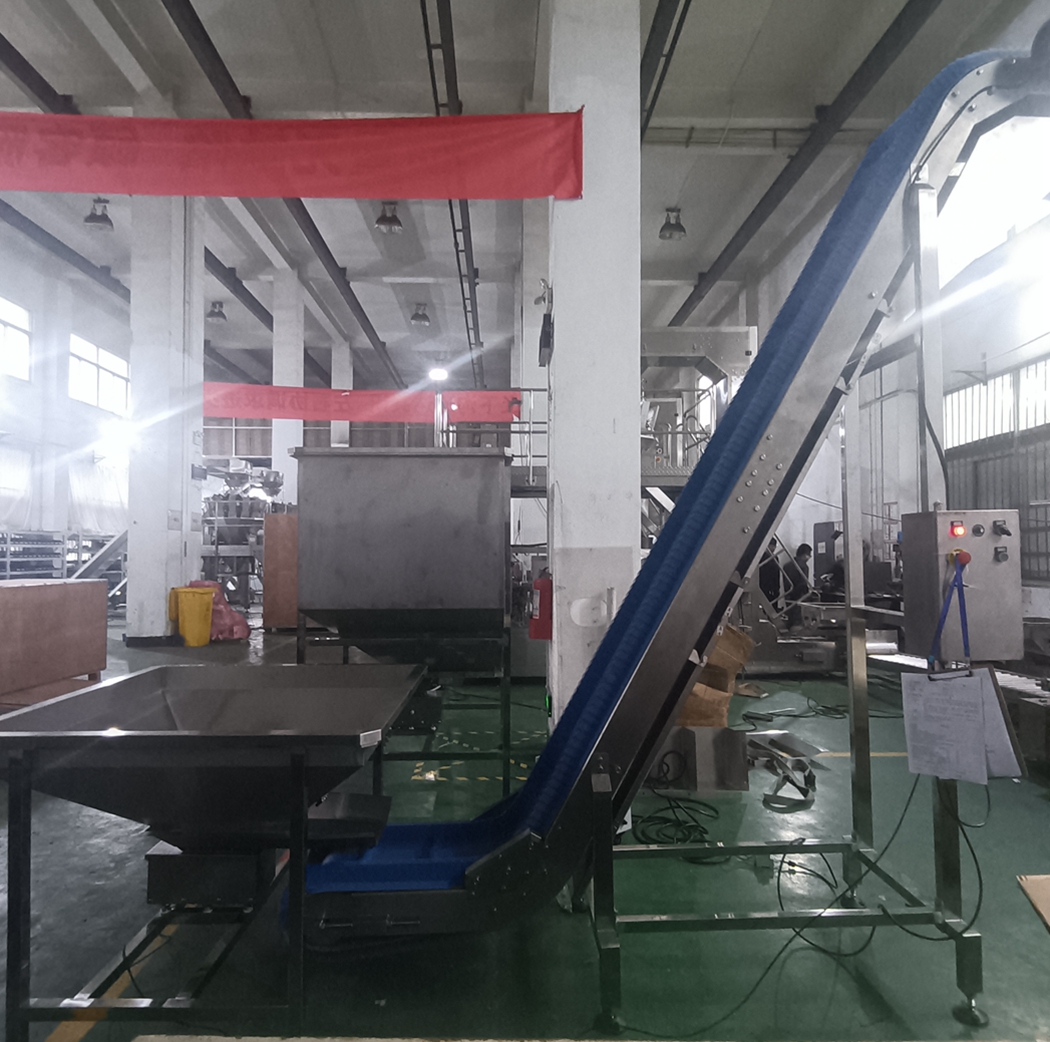

Curved hinged chain plate conveyor
The belt conveyor is very popular for different factories who want to transport the product for high height. This belt conveyor is easy to install and easy to use. Most importantly, it is very easy to clean.
Details

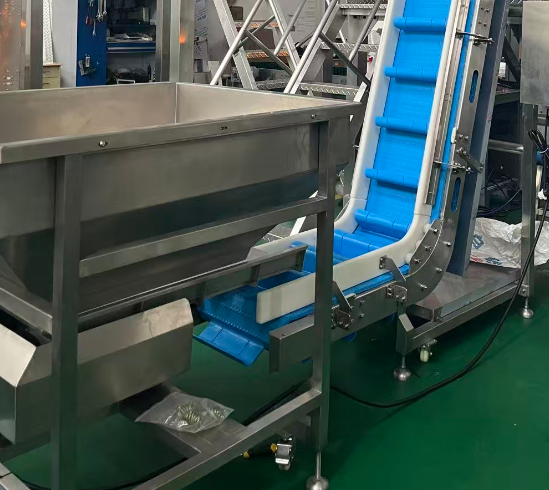

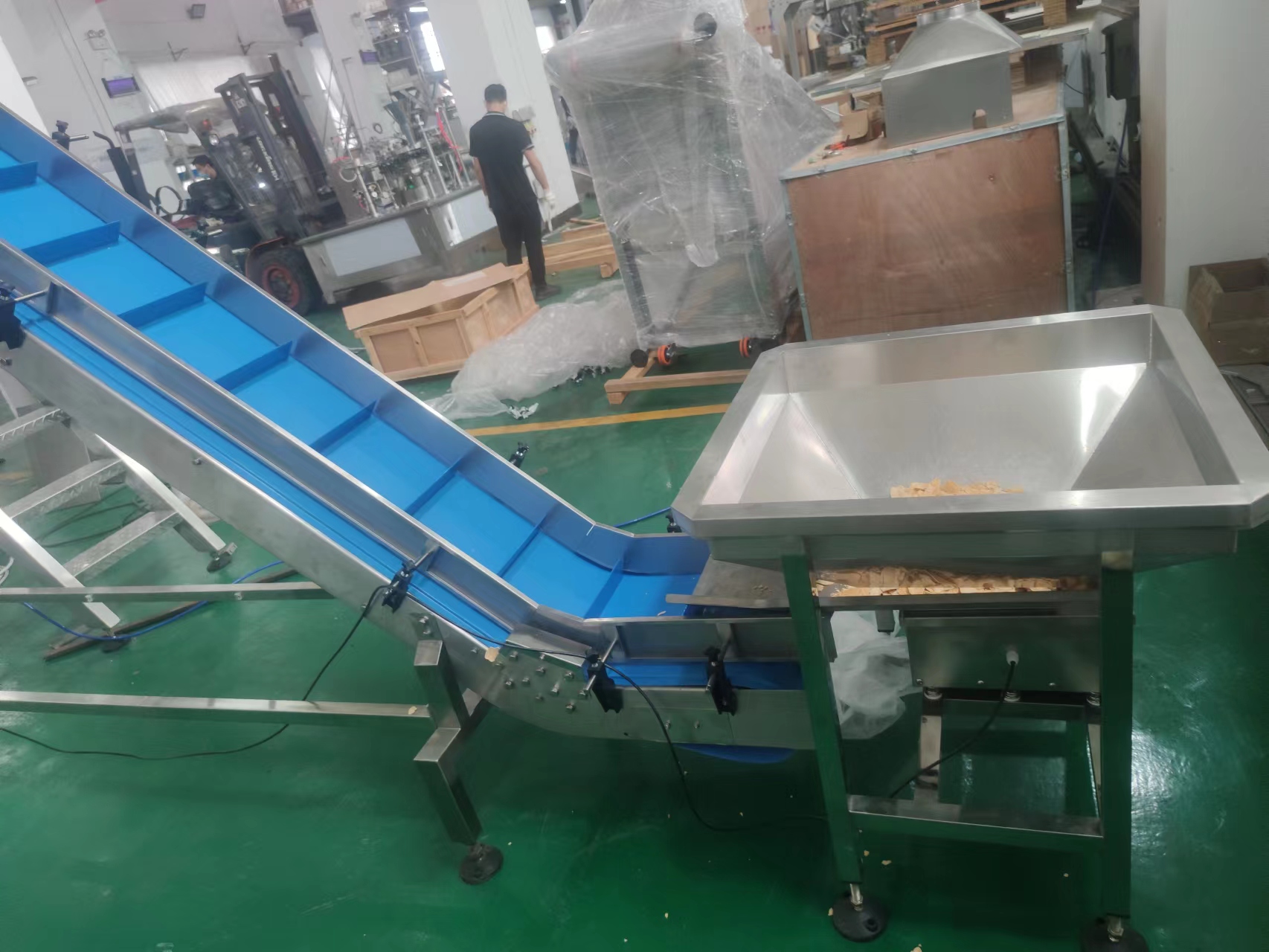

Product Feeding By Vibrator Hopper
And the hopper size can be customized.

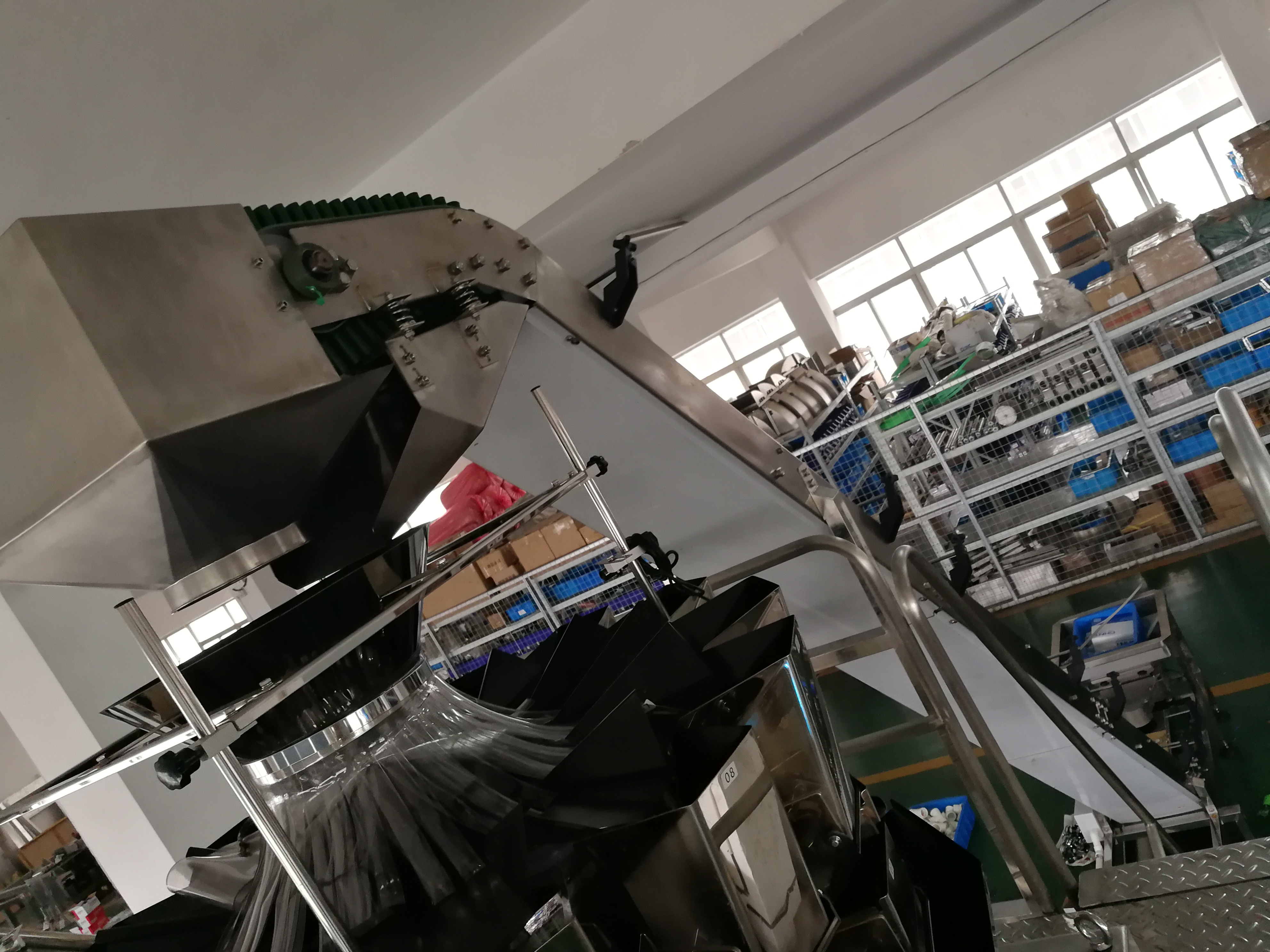

The Filling Part

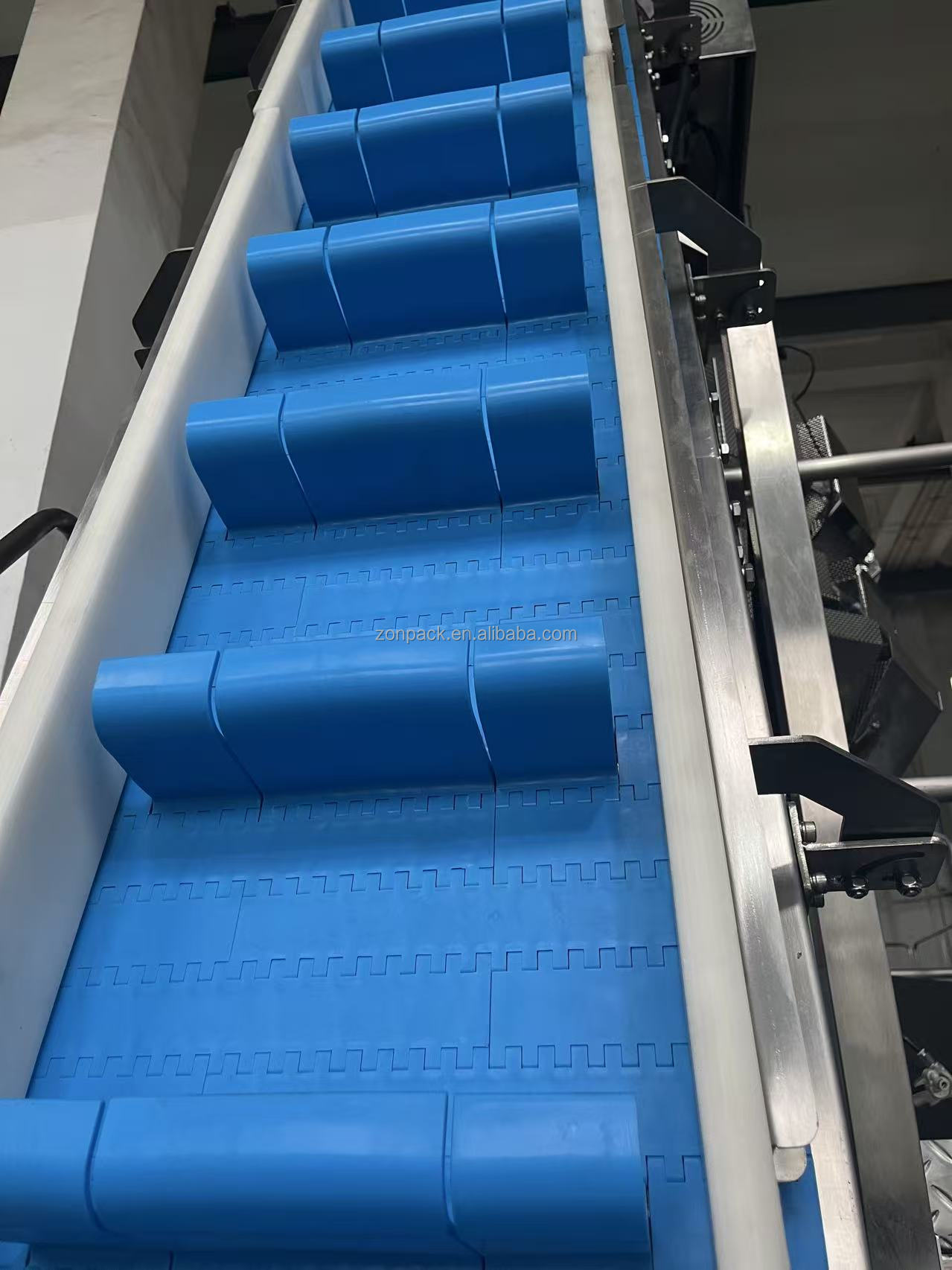

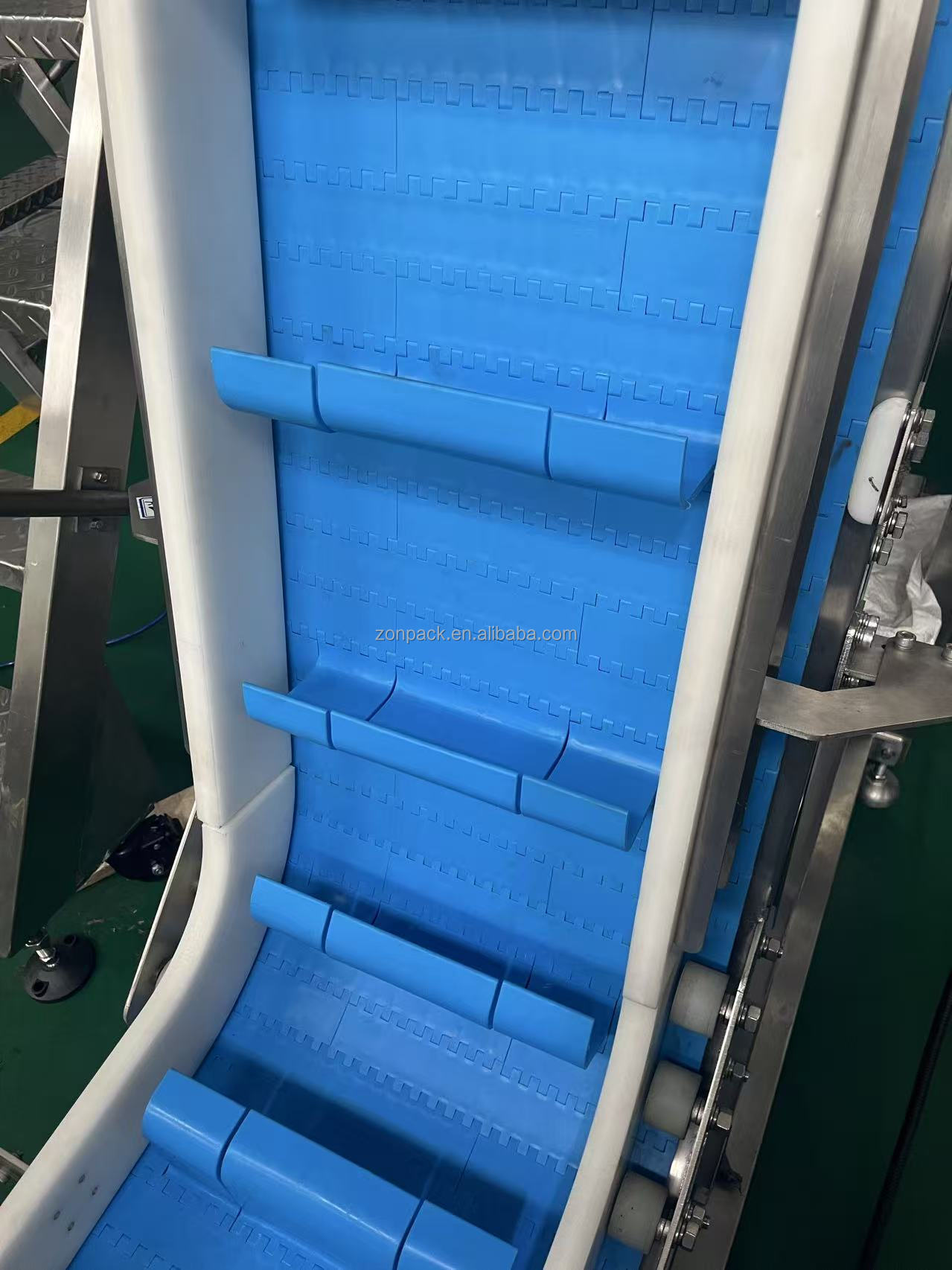

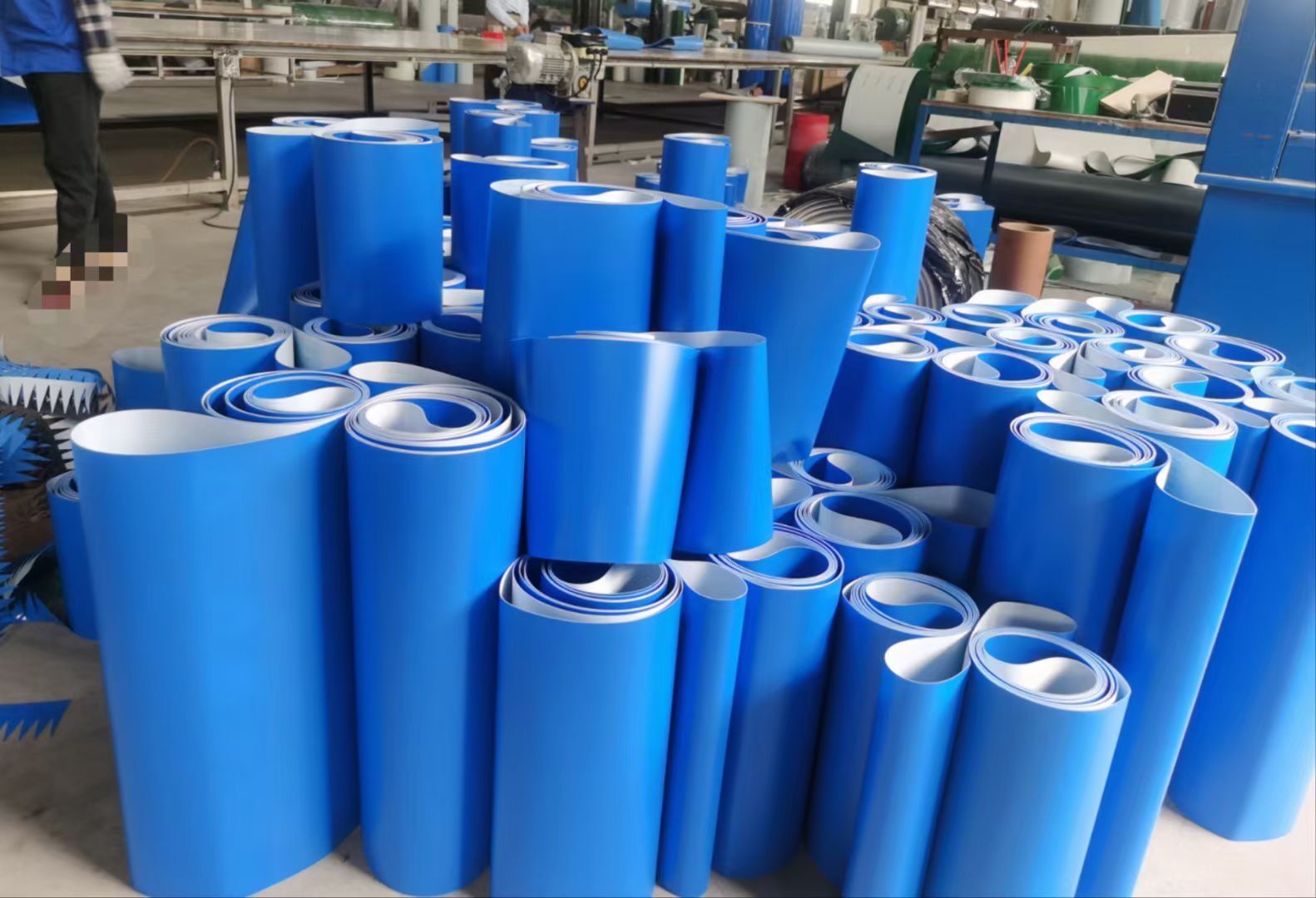

Belt Option
For the material: We have PVC / PU / Stainless steel Options.
For the Belt type: We have belt conveyor / Stainless steel mesh chain / PP Chain plate options.
Q1: What are the main benefits of a curved hinged chain plate conveyor over standard belt conveyors?
A: It resolves two main pain points: the need for a high lifting height combined with a steep angle to save floor space, and the risk of material sliding or falling during steep vertical conveyance.
Q2: What materials and types are available for the conveyor belt?
A: We offer PVC, PU, and Stainless Steel materials. In terms of types, you can choose between standard belt conveyors, Stainless Steel mesh chains, and PP chain plate options.
Q3: Is the feeding hopper size customizable?
A: Yes, the vibrator feeding hopper size can be fully customized according to your production requirements and workshop spatial constraints.
Q4: What frame material is used in this conveyor?
A: The structural frame is built using durable 304 Stainless Steel (304SS), ensuring high hygiene standards and long-lasting durability.
Q5: What is the maximum throughput capacity of this machinery?
A: The conveyor is highly efficient and capable of handling capacities exceeding 6 tons per hour, depending on the material specs and configuration.
Q6: Is this conveyor system easy to clean?
A: Yes, the hinged design allows for quick access, making the belt exceptionally easy to wash down and clean to maintain strict food-grade or industrial hygiene levels.
