Product Description

Product Description

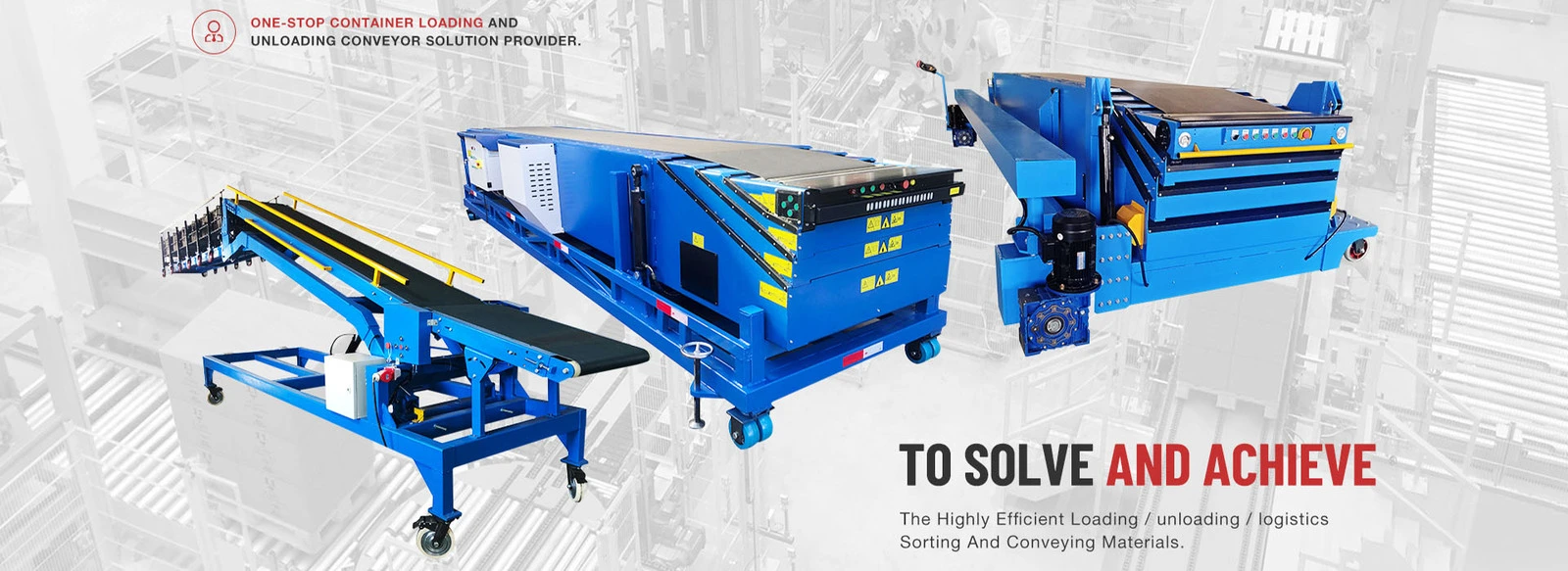

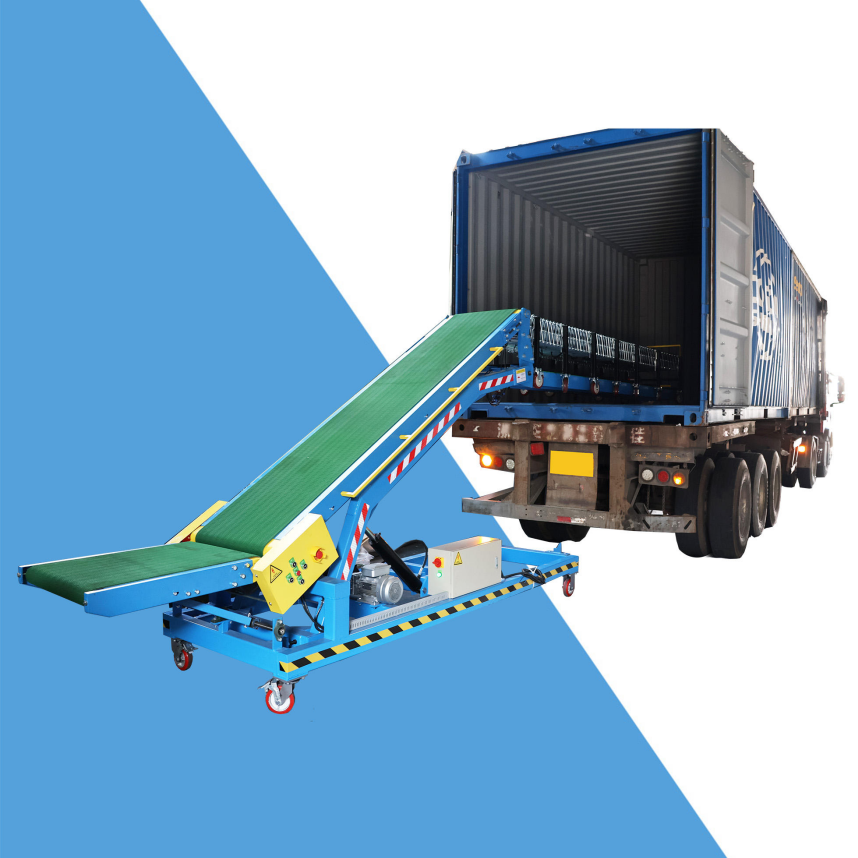

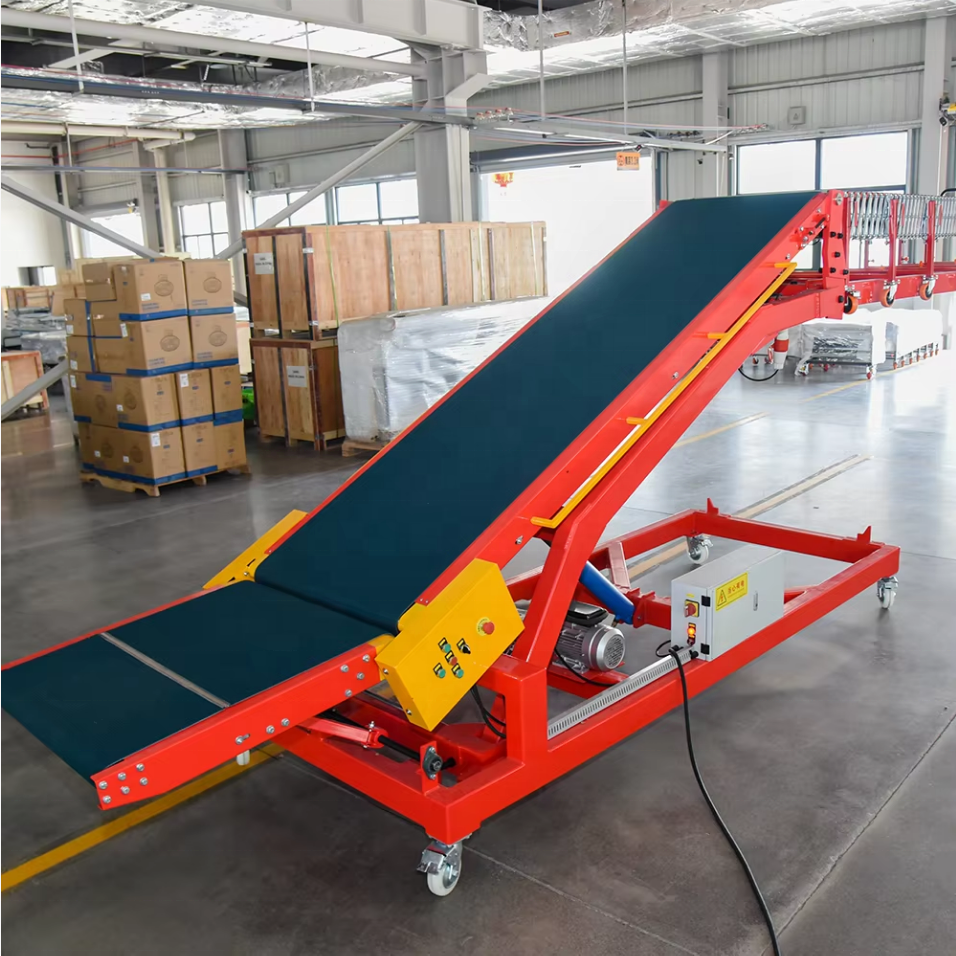

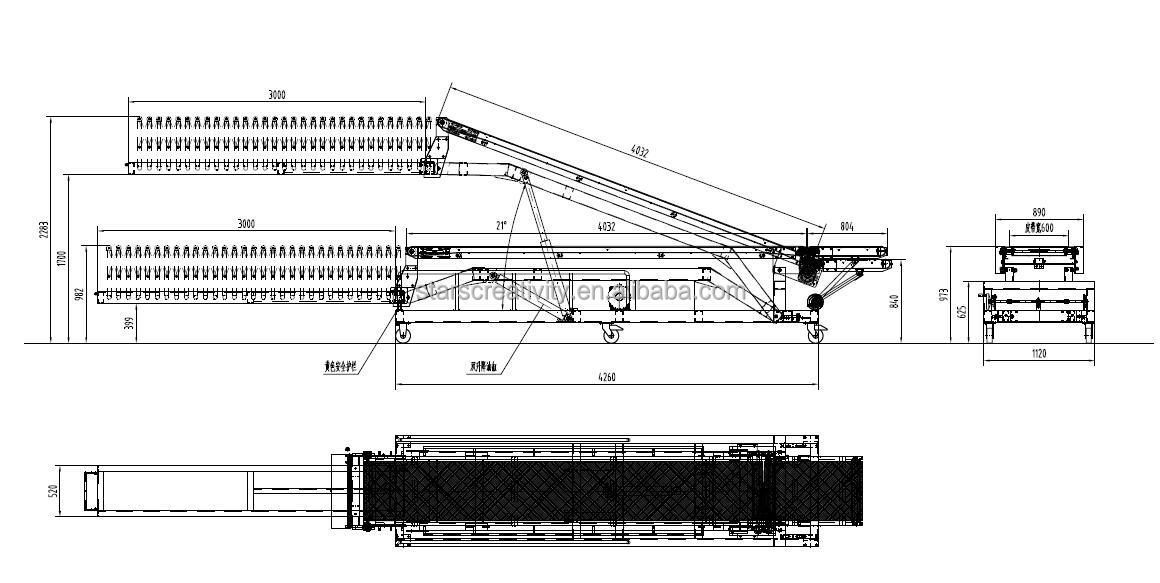

Conveyor Main View
The container loading & unloading conveyor is mainly composed of a motorized inclined belt conveyor and motorized flexible roller conveyor. The front end is a lifting inclined belt conveyor, and the products are transported to the back end of the flexible roller conveyor through the belt. The whole process of products will be automatically transported, saving time and labor. The conveyor is also the most economical and convenient one in the container loading conveyor.

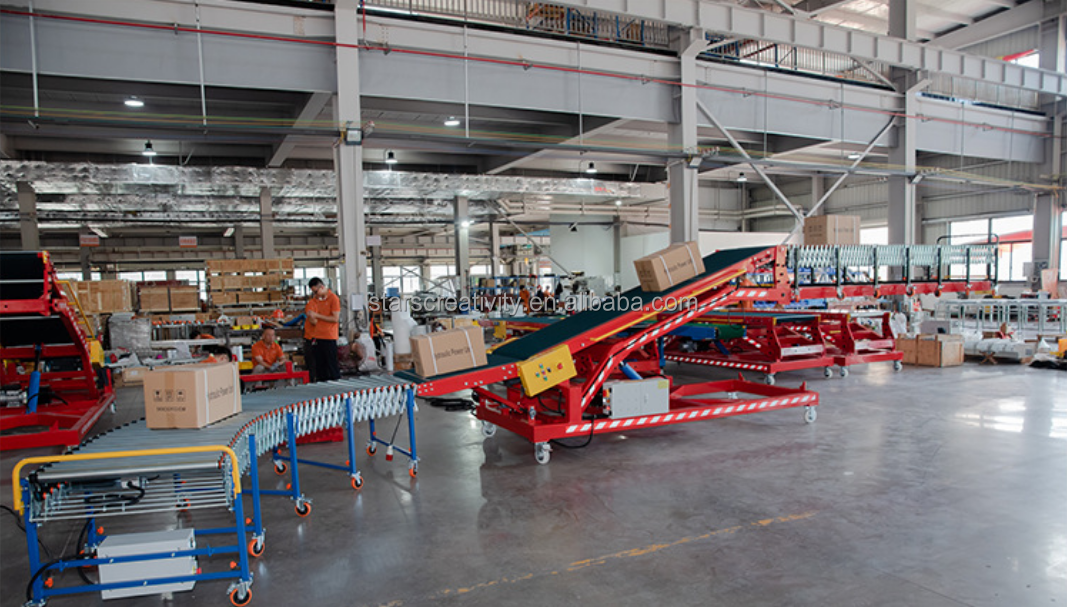

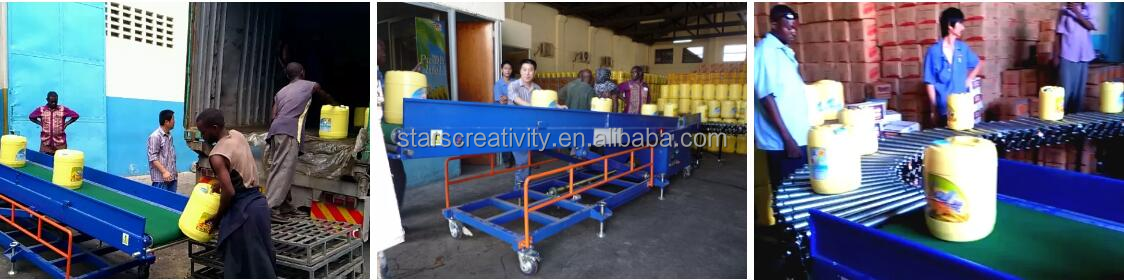

Conveyor Details Side Conveyor Application
Specification
Product Name 20' or 40' Container loading unloading conveyor
Model MBC-800
Conveyor structure color Blue/Red/Black
Belt width 800mm
Overall wide 1320mm
Load height in vehicle 1600-1700mm
Discharge height outside vehicle 850mm from floor
Lifting height 900-1681mm
Maximum tilt angle 30°
Rise-fall Yes
Belt material Anti-skiding PVC belt (thickness 3mm)
Slope length 3000mm
Horizontal length at begining 994mm
Roller diameter 50mm
Max conveying weight 50kg/meter
Conveyor speed 10-20m/min adjustable by inverter
Voltage 220-480V 3Phase 50/60Hz(110-240V 1Phase)
Functional Options 10.5m(35ft) Powered Flexible Roller Conveyor
Details Images

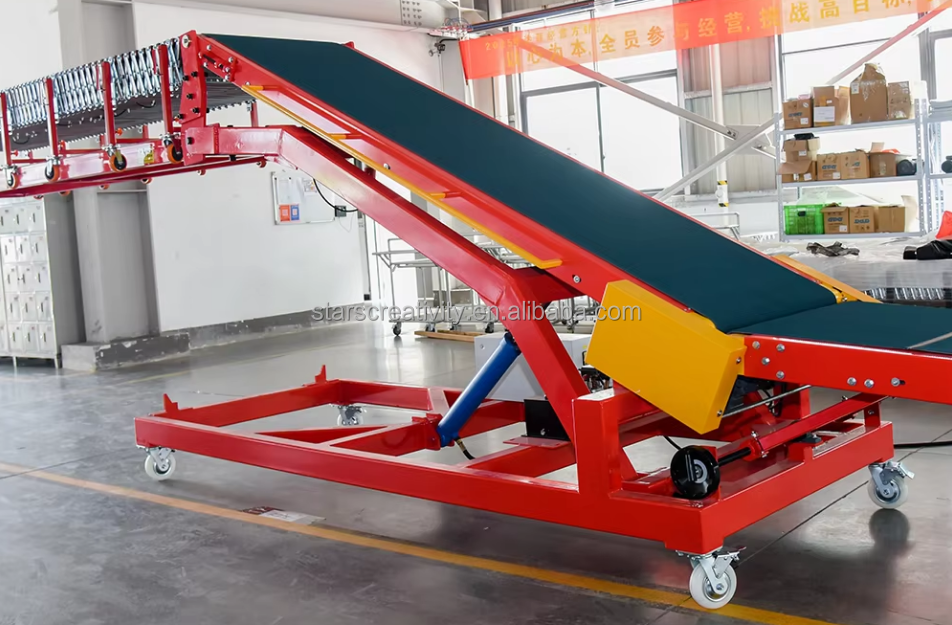

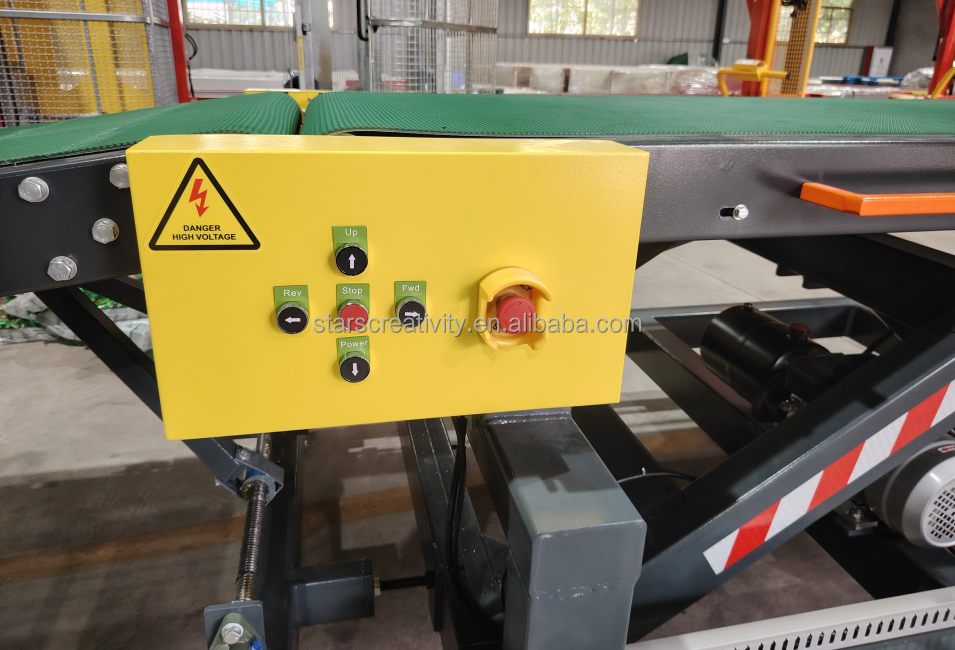

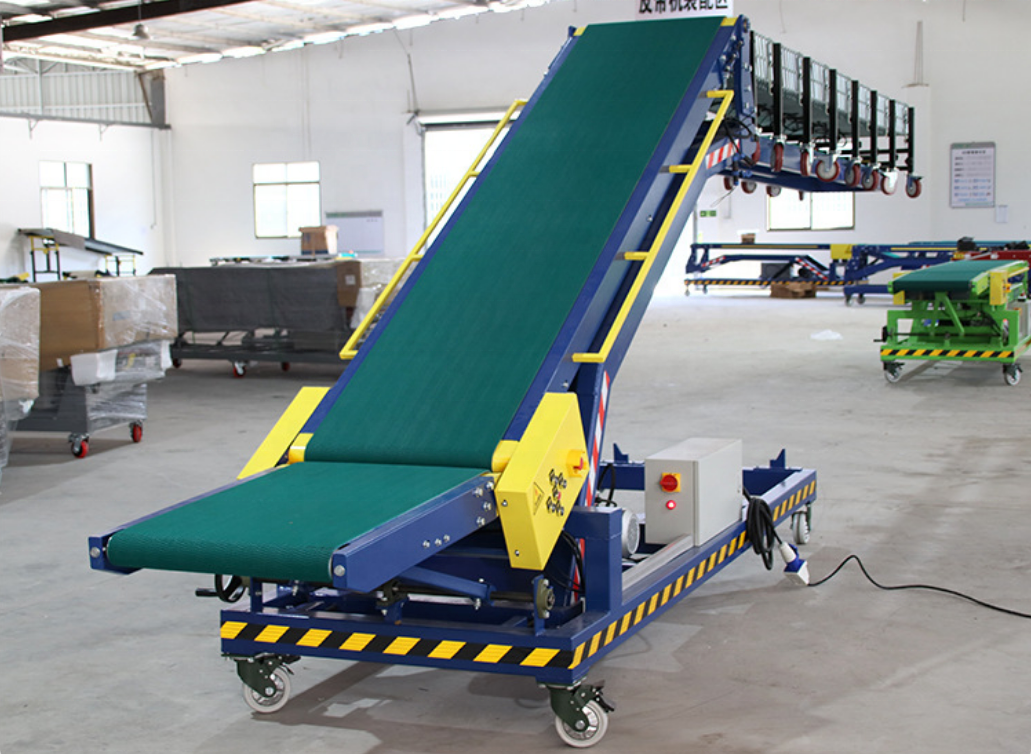

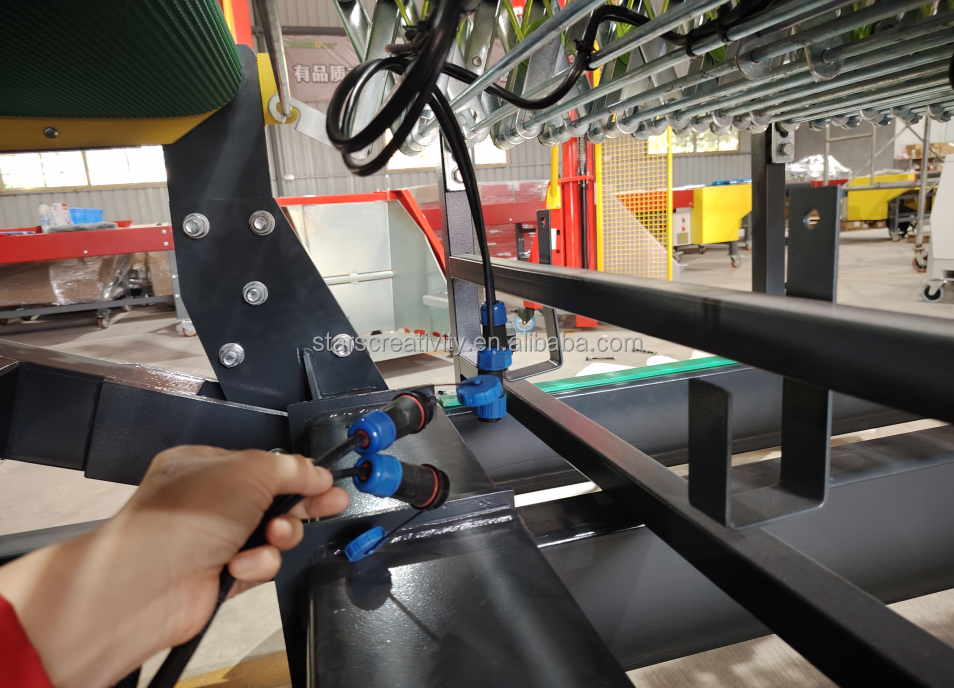

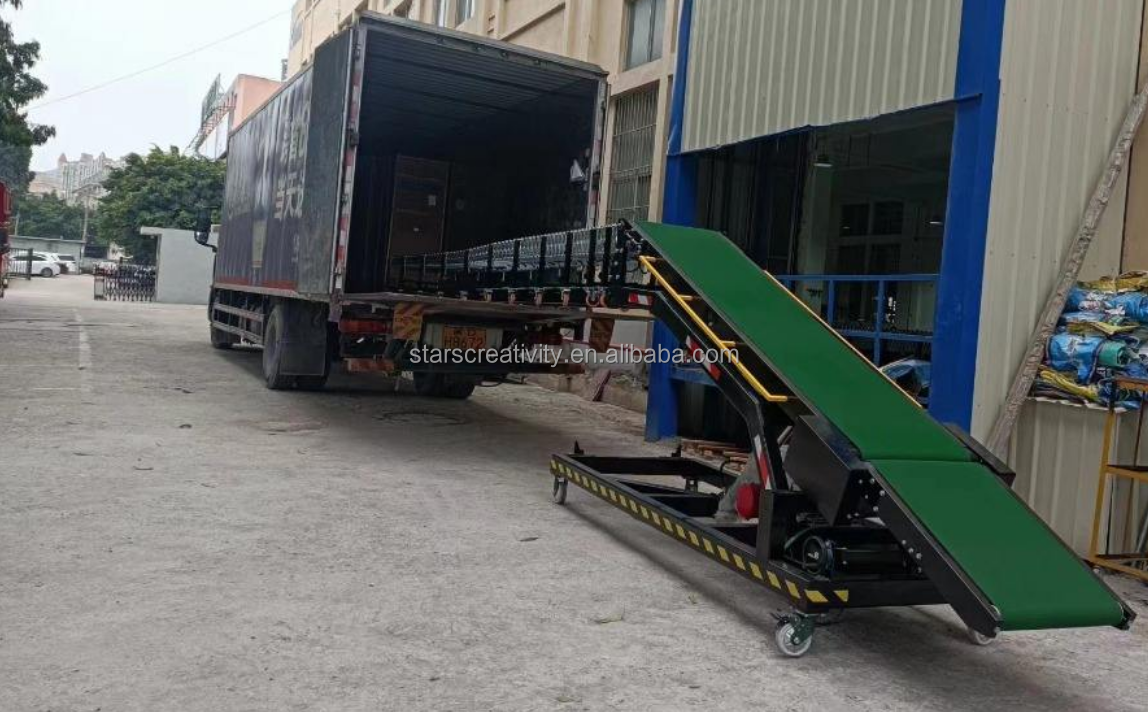

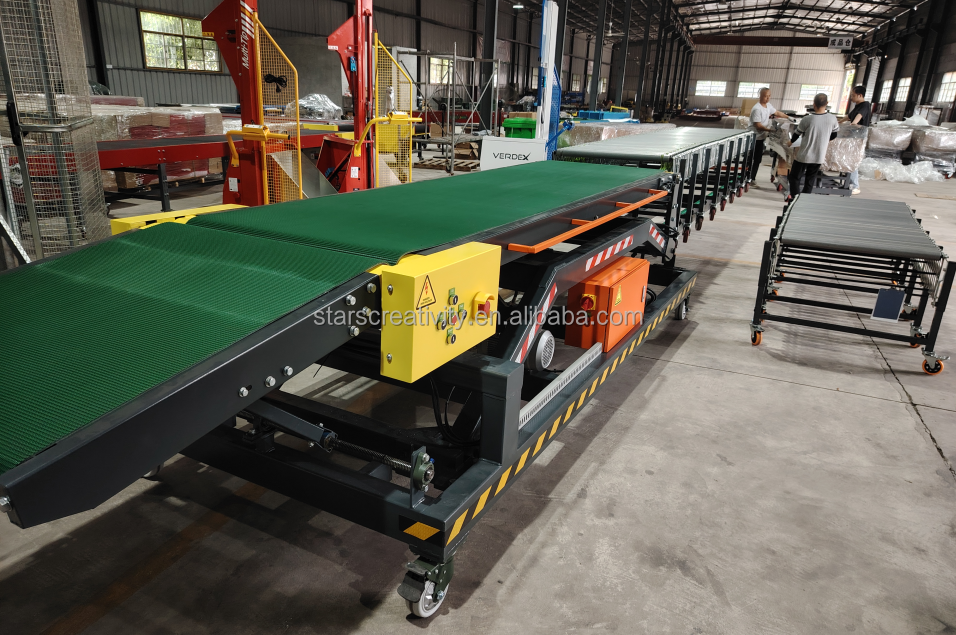

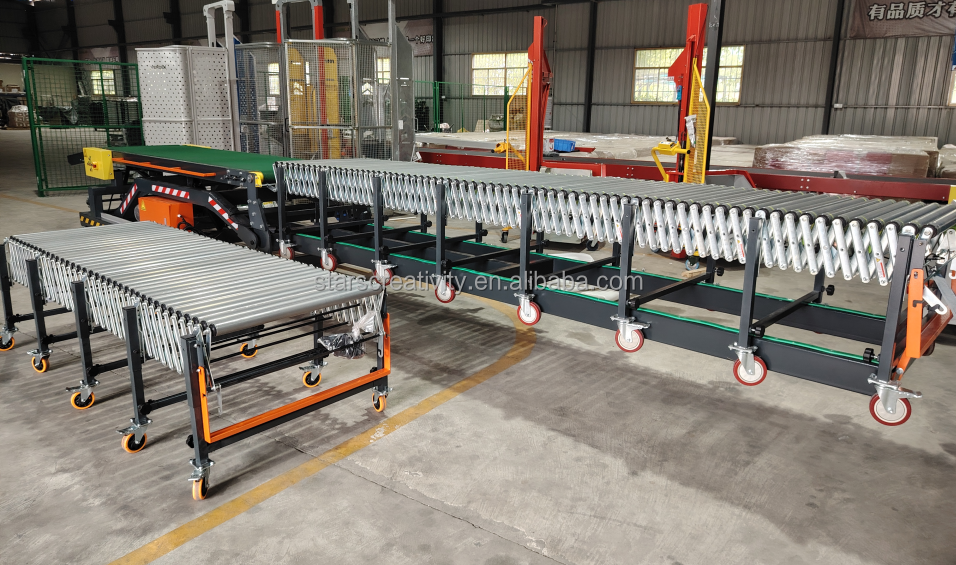

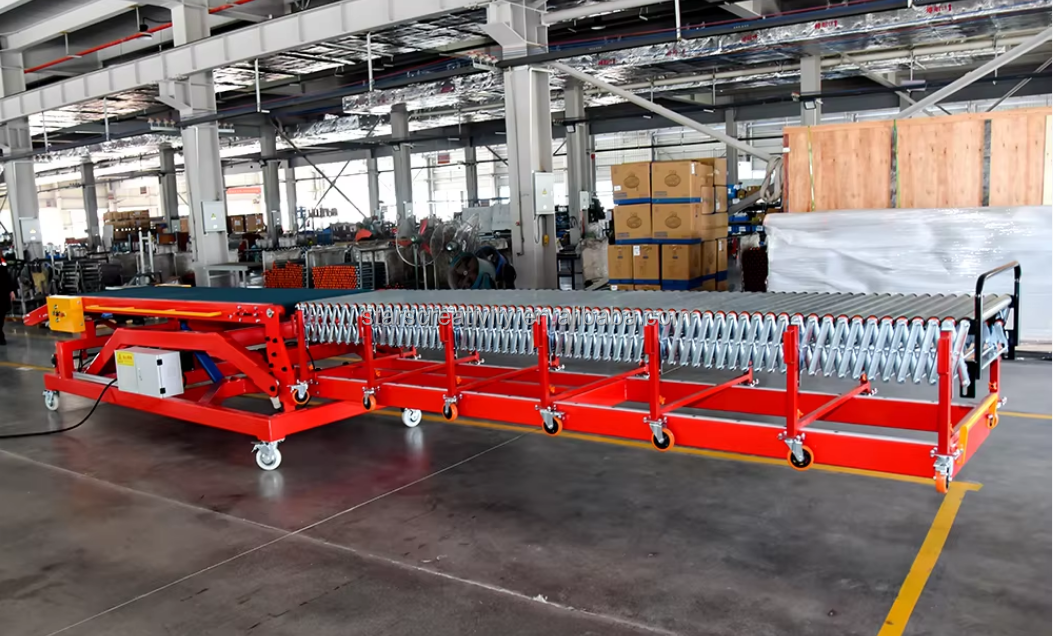

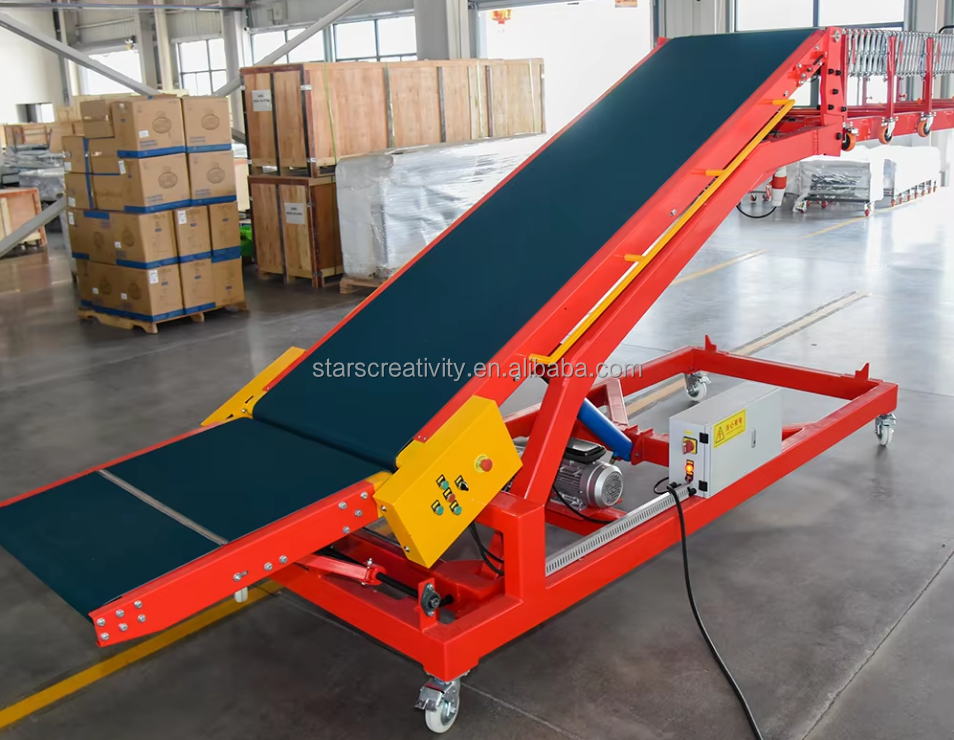

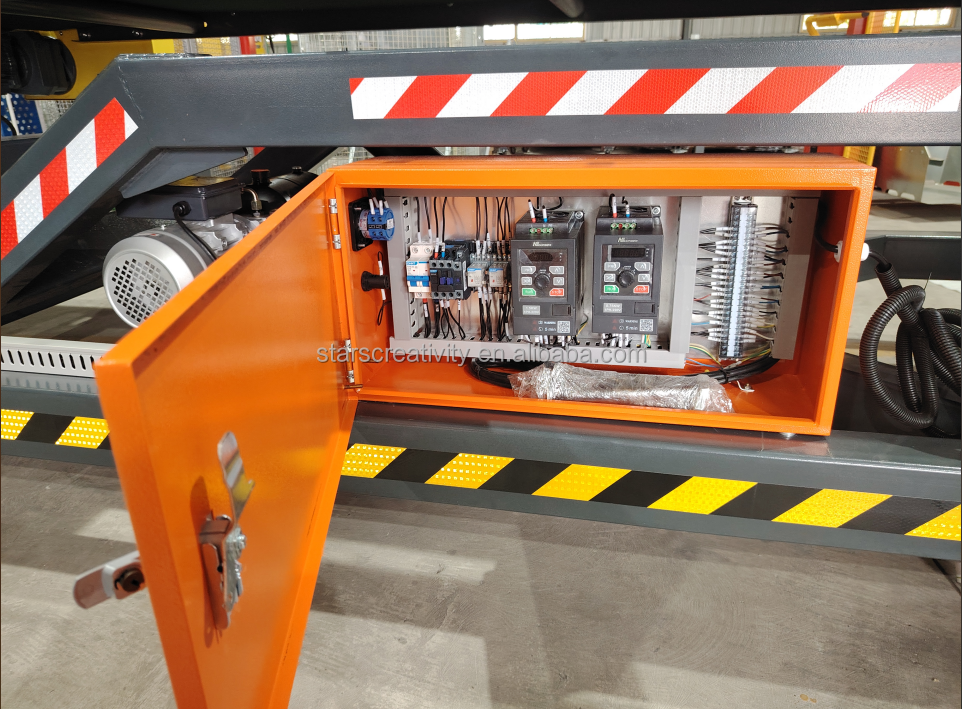

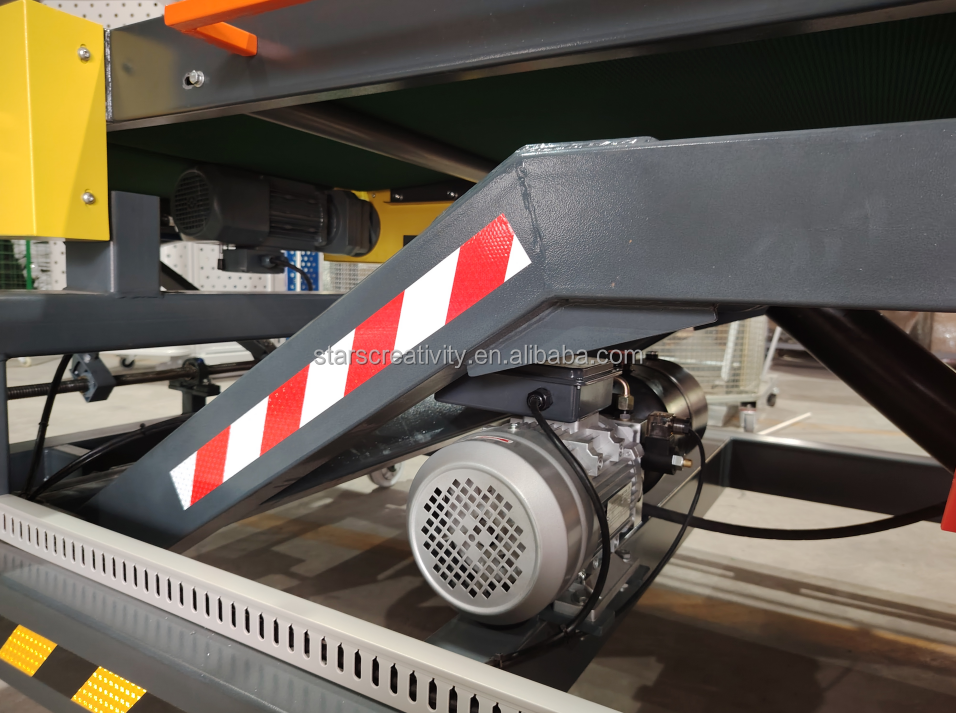

Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5 Detail Image 6 Detail Image 7 Detail Image 8 Detail Image 9 Detail Image 10 Detail Image 11 Detail Image 12 Detail Image 13
Company Profile
We specialize in the sales of packaging equipment. We are one of the professional equipment and solution providers in the field of automatic packaging in China. In recent years, through the continuous development of new products and new fields, we have accumulated rich experience in the design and development of case erector, case sealer, stretch wrapper and so on. We will build up a strong and professional team to provide strong technical support and timely after-sales service in the future.

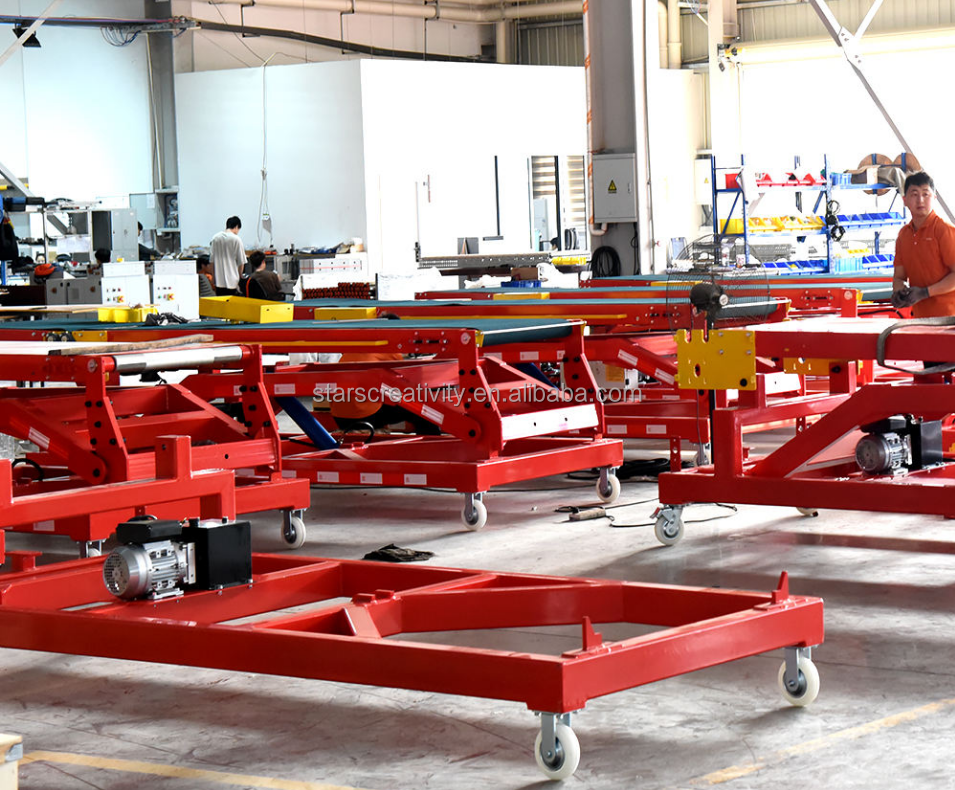

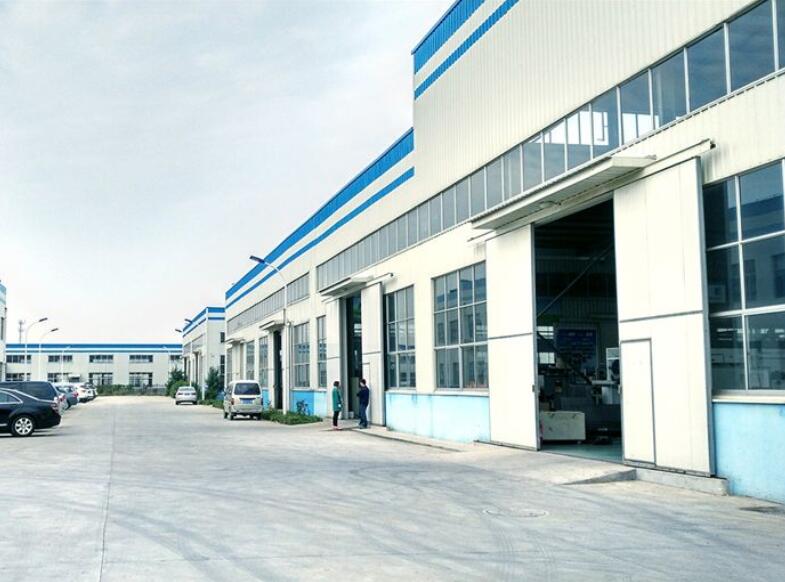

Company Facility

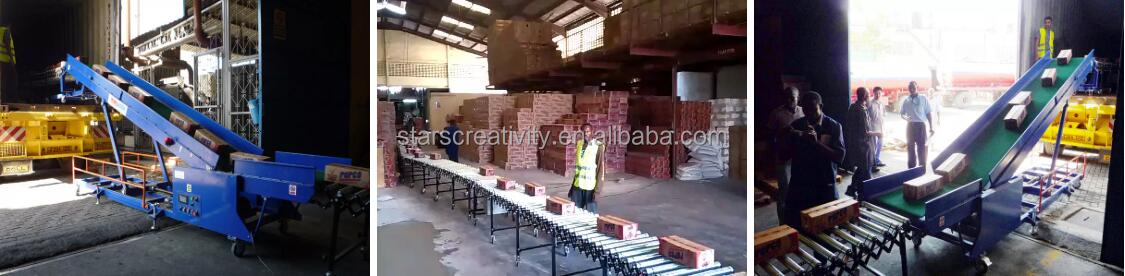

Certificate 1 Certificate 2 Quality Management Patent Display

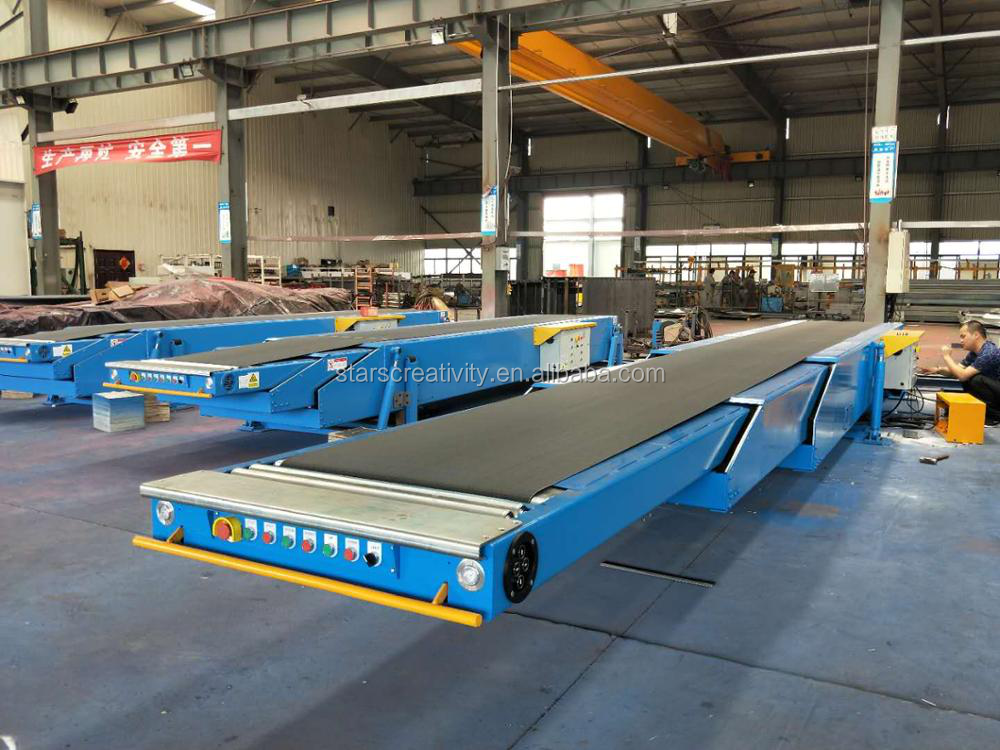

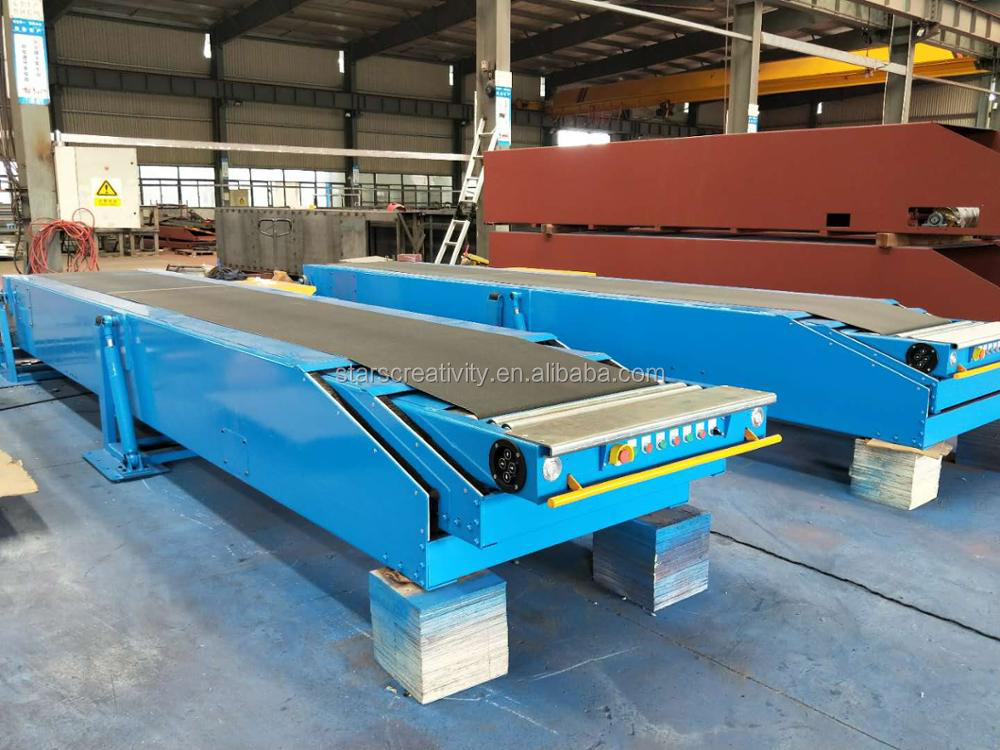

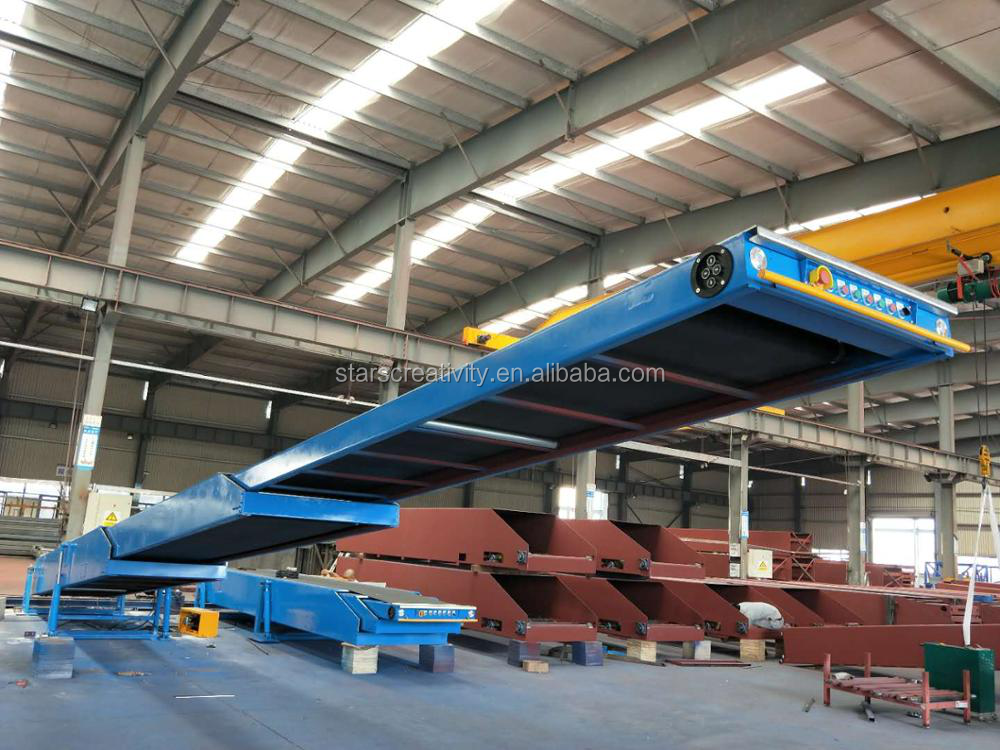

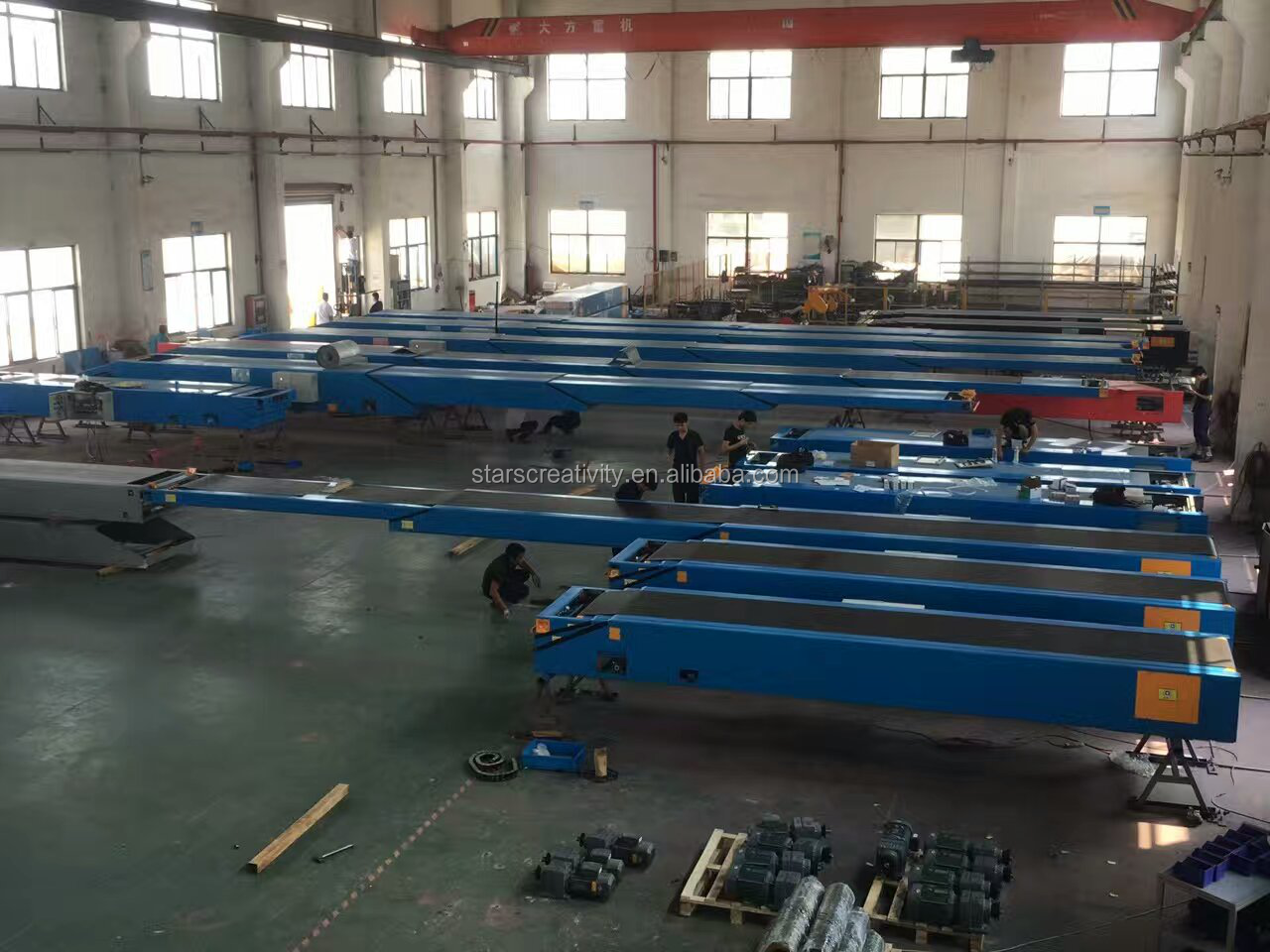

Worksite 1 Worksite 2 Worksite 3 Worksite 4
Recommend Products
FAQ
Q What's the MOQ if we place an order?
MOQ is 1 set.
Q Is custom made service available?
Yes, we can custom made as your requirements.
Q What's the lead time for 1 unit conveyor?
About 10-15 workdays after received the payment.
Q How long is the warranty period?
12 months since received the conveyor.
Q Do you also have other conveyors?
Yes, we also have skate wheel conveyor, flexible roller conveyor, roller conveyor, belt conveyor, top chain conveyor, pallet conveyor.
Q Do you have CE certificate for this conveyor?
Yes, it has approved CE certification.
