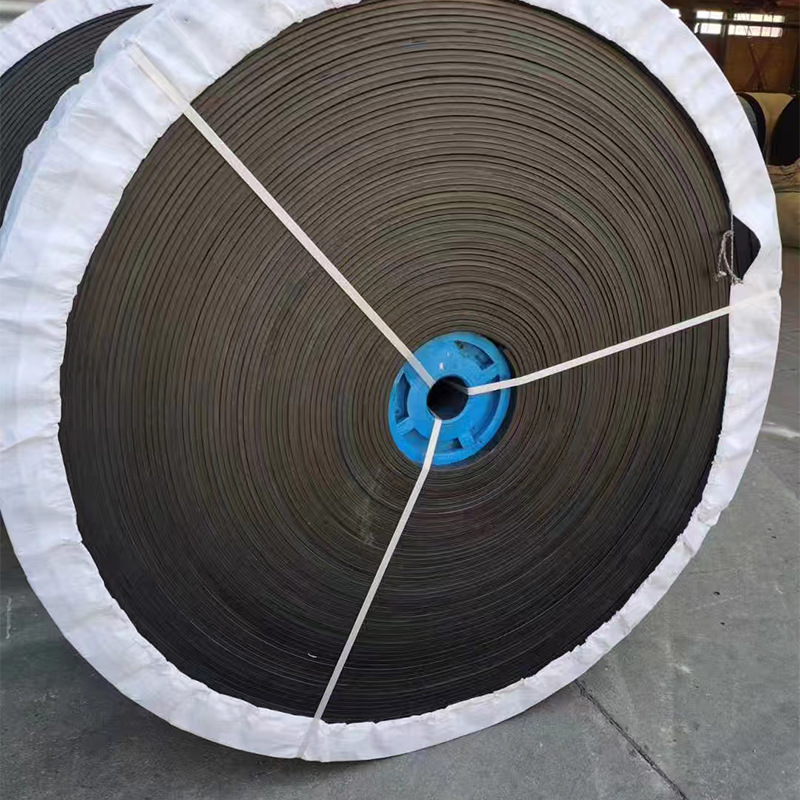

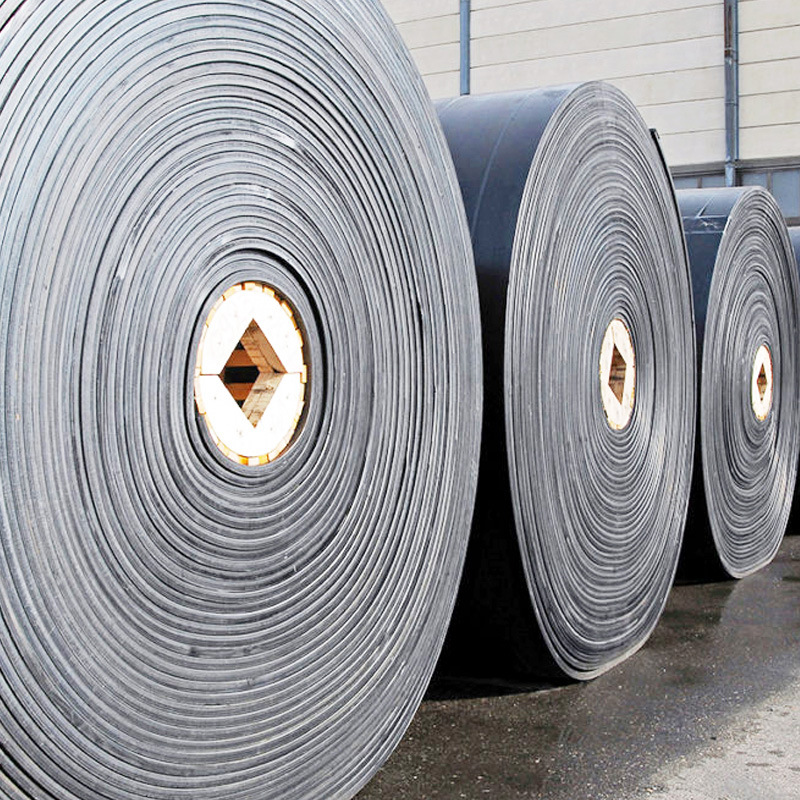

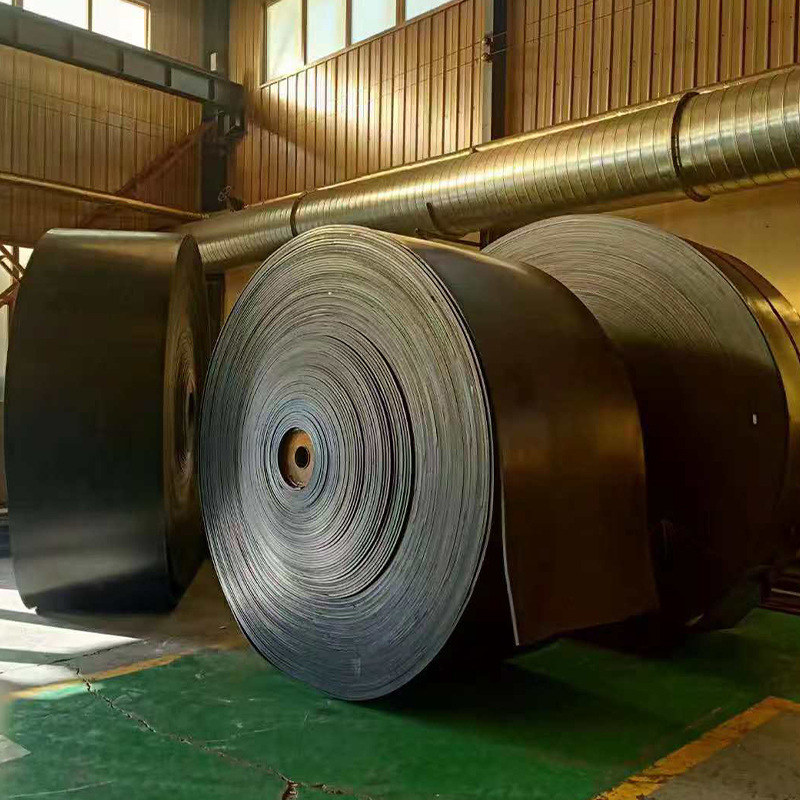

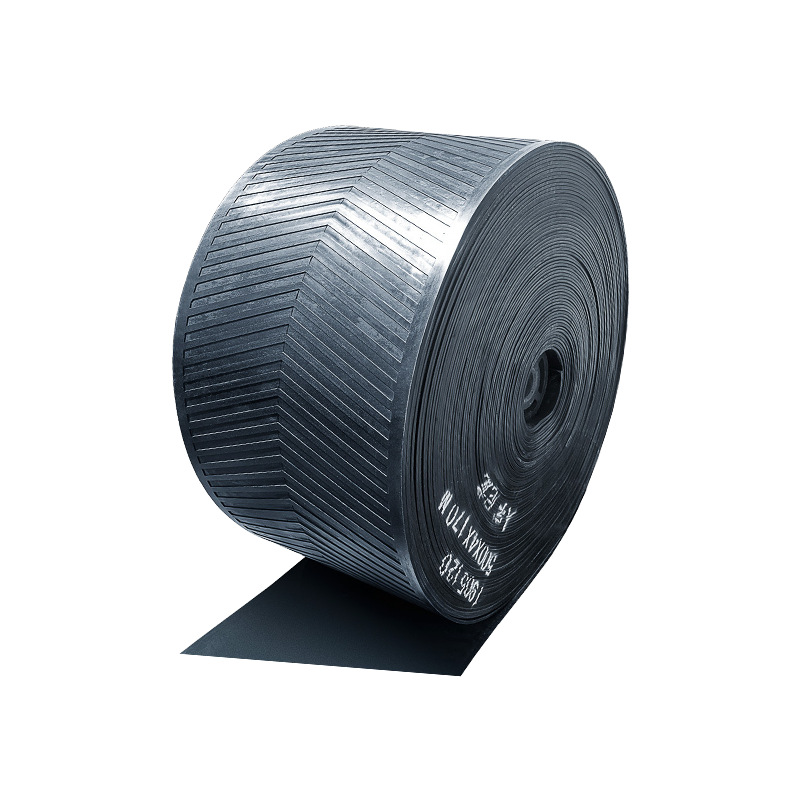

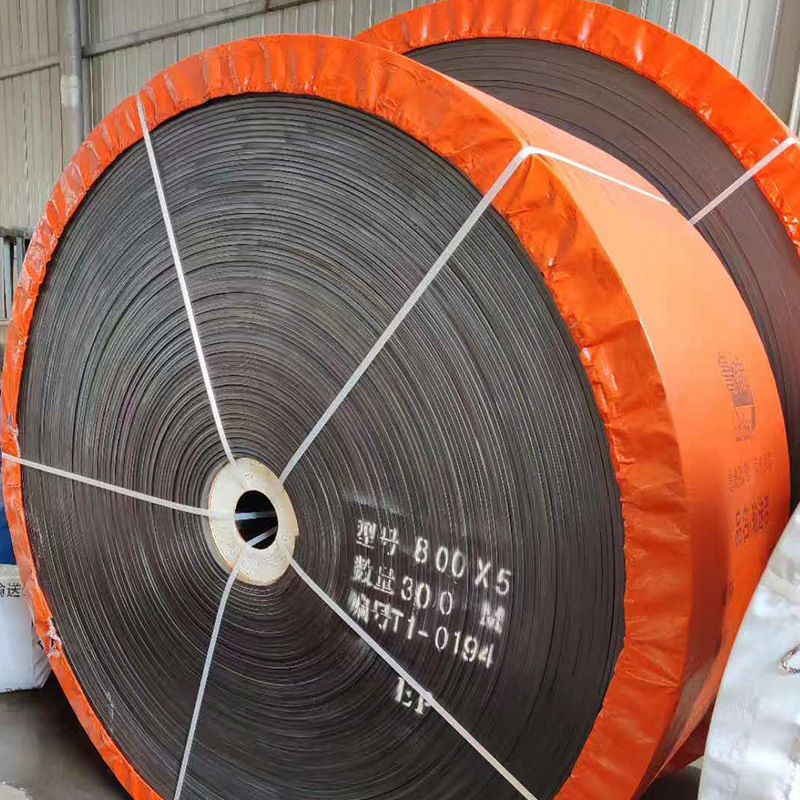

Usually composed of multiple layers of fabric and rubber, or using steel wire rope cores, it has high tensile strength and impact resistance. It can withstand the heavy pressure and impact of large-scale ores, coal, and other materials, ensuring stable operation under long-term heavy loads.

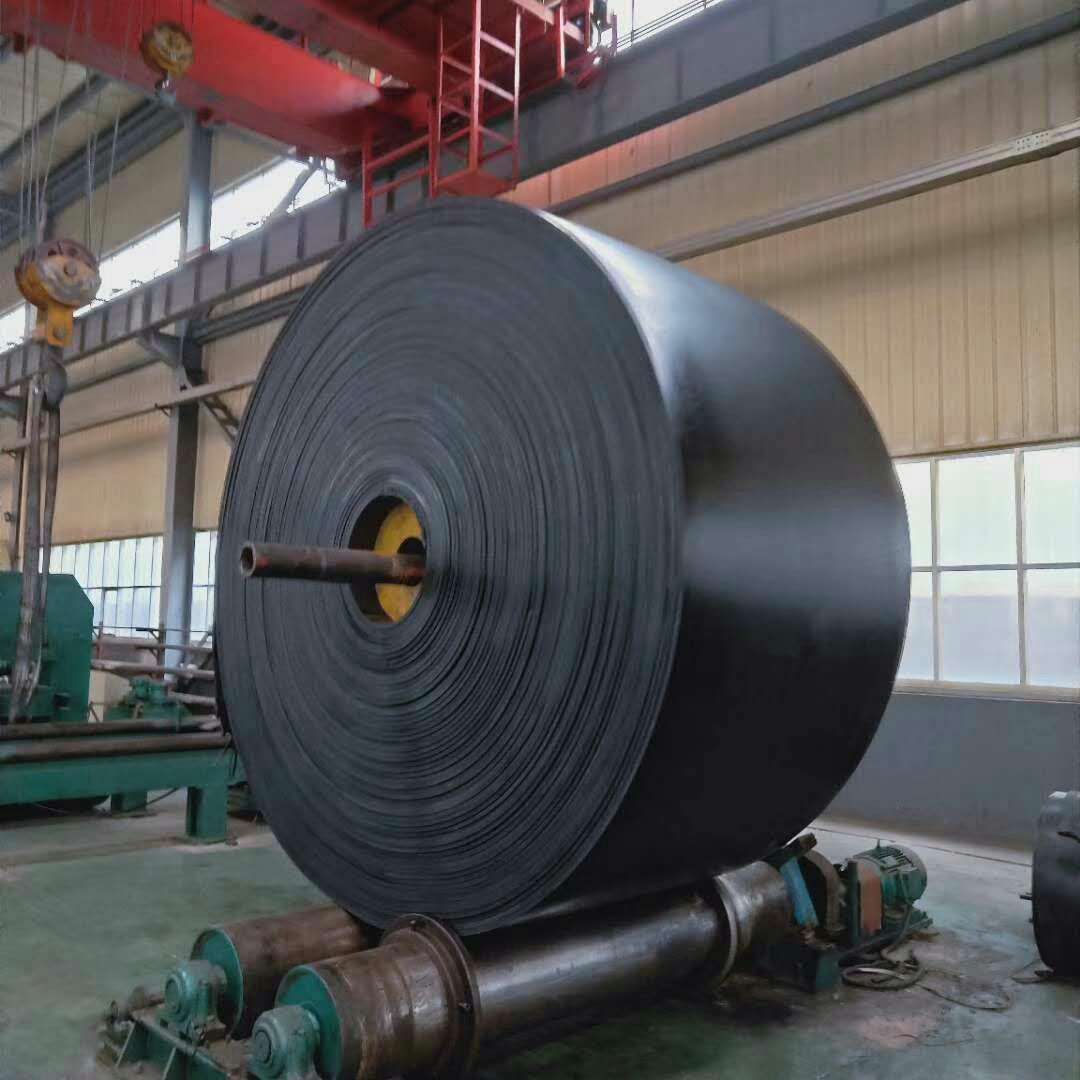

The surface is often coated with a wear - resistant layer, such as a special rubber or polyurethane coating. This can resist the friction and wear of materials like ore and coal during the conveying process, extend the service life of the conveyor belt, reduce the replacement frequency, and lower the maintenance cost.
| Parameter | Specification Details |
|---|---|
| Belt width | 300mm – 2600mm |
| Belt thickness | 6mm – 25mm |
| Number of plies | 2 – 6 (higher available) |
| Tensile strength | EP100, EP125, EP150, EP200, EP300, EP350, EP400, EP500, etc. |
| Cover thickness | Cover thickness 1.5mm – 8mm (top cover), 0.5mm – 4mm (bottom cover) |
| Elongation | ≤1.5% when belt is fully loaded |
| Operating temperature | -60°C – 60°C (standard rubber), up to 600°C, instantaneous 800°C (burn-resistant conveyor belt) |
| MOQ | 50 meters |
| Test items | Steel cord belts | Plied textile belts | ||||
|---|---|---|---|---|---|---|
| L | H | D | L | H | D | |
| Tensile Strength, ≥Mpa | 15 | 20 | 18 | 14 | 17 | 17 |
| Elongation at break, ≥% | 350 | 400 | 400 | 400 | 450 | 450 |
| Abrasion, ≤mm³ | 200 | 200 | 120 | 200 | 175 | 175 |
| Applicable standard | HG/T 3973-2007 | GB/T10822-2014 | ||||
| D - high friction working condition; H - High scrap working condition; L - Common working condition; | ||||||

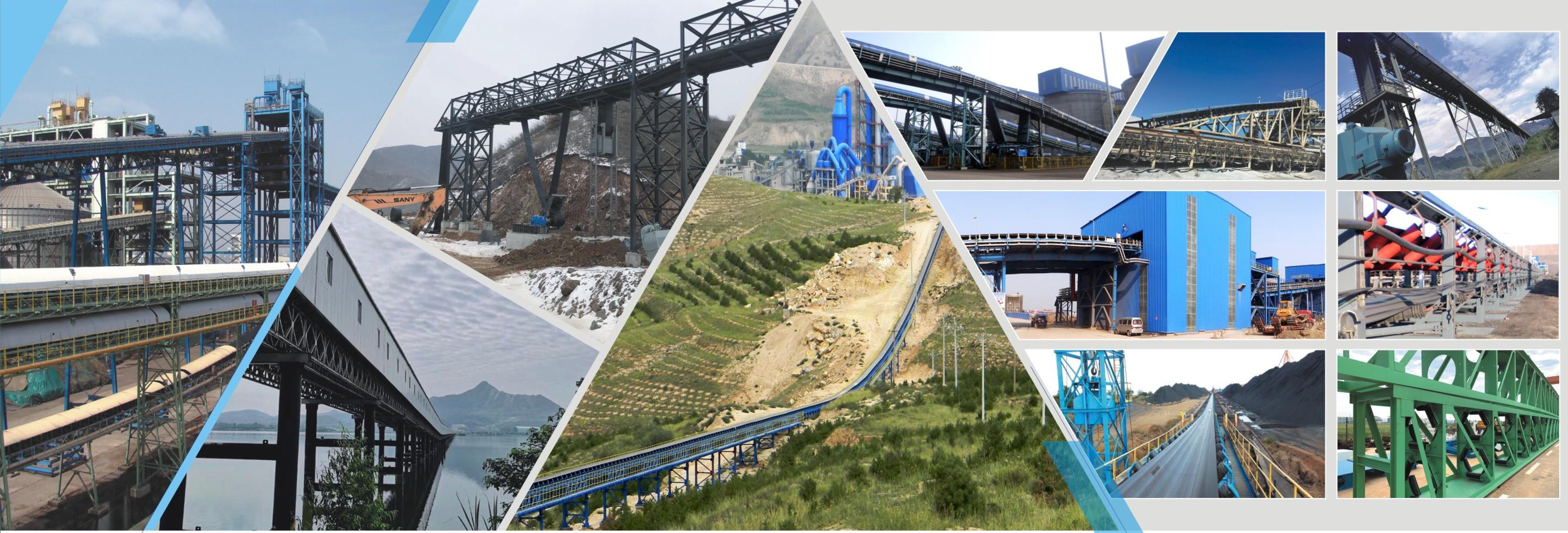

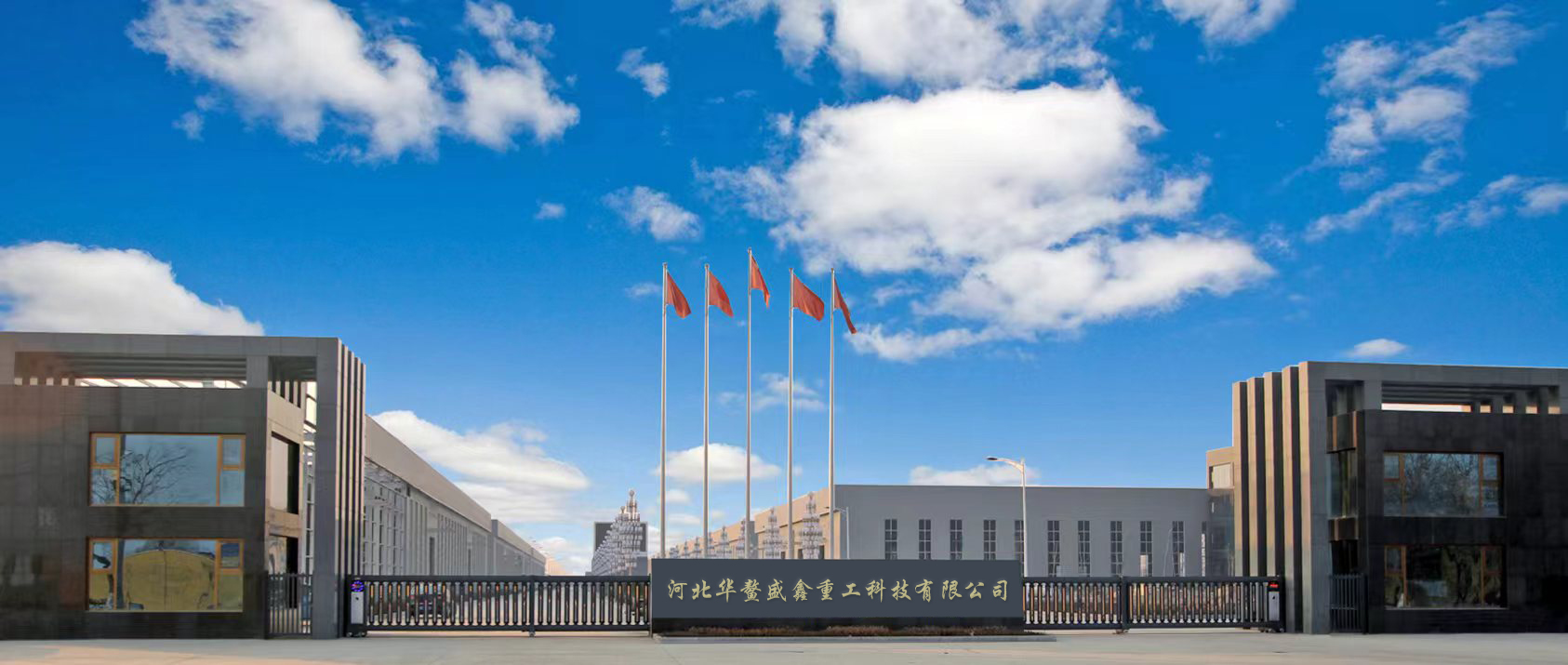

Established on April 1, 2014, as a leading enterprise in the field of intelligent equipment manufacturing, the company focuses on the research and development and manufacturing of high-end equipment for multiple scenarios such as mining, environmental protection, and logistics. Relying on technological innovation and industrial chain integration capabilities, the company has formed a core product matrix including belt conveyors, tubular conveyors, down-transport power generation conveyors, large-inclination conveyors, long-distance curved conveyors, logistics conveyors, airport luggage conveyors, and stacker-reclaimers in material yards, which are widely used in multiple fields such as energy, logistics, and grain processing. Our products are exported to more than ten countries and regions including Russia, Southeast Asia, North Africa and Eastern Europe. Among them, the market competitiveness of long-distance conveyors, tubular conveyors and high-end idlers has continued to rise, occupying an important market share of similar products, and their comprehensive strength has remained at the forefront of the industry.
The company has a strong technical force. We have established in-depth cooperation with universities and research institutions, and possess the capabilities of key component research and development design as well as core technological innovation. The company strictly adheres to authoritative international and domestic standards and has passed ISO9001-2015 quality system certification for products, ISO14001:2015 environmental management system certification, CE certification for products exported to the European Union, SGS certification, electric energy product certification of the national power market, MA safety certification for belt conveyors used in coal mines, etc. And it possesses a number of utility model patent technologies. Among them, the fully automatic idler production line realizes the full-process intelligent production from raw materials to finished products, with the product service life exceeding 50,000 hours and technical indicators leading the industry. The company continuously deepens technological research and development as well as service upgrades. With its exquisite technical strength, reliable product quality and complete customer service system, it creates higher value for customers, contributes to the intelligent and green transformation of the industry, and works hand in hand with partners to embark on a new journey of high-quality development!
