High Temperature PTFE Tape Coating Wire Fabric Mesh Conveyor Belt PTFE Glassfiber Fabric PTFE Belt

1 / 5

High Temperature PTFE Tape Coating Wire Fabric Mesh Conveyor Belt PTFE Glassfiber Fabric PTFE Belt

Send Inquiry

Product Description

Product Name	High Temperature PTFE Tape Coating Wire Fabric Mesh Conveyor Belt PTFE Glassfiber Fabric PTFE Belt
Material	PTFE Coated Fiberglass
Package	Carton + Pallet

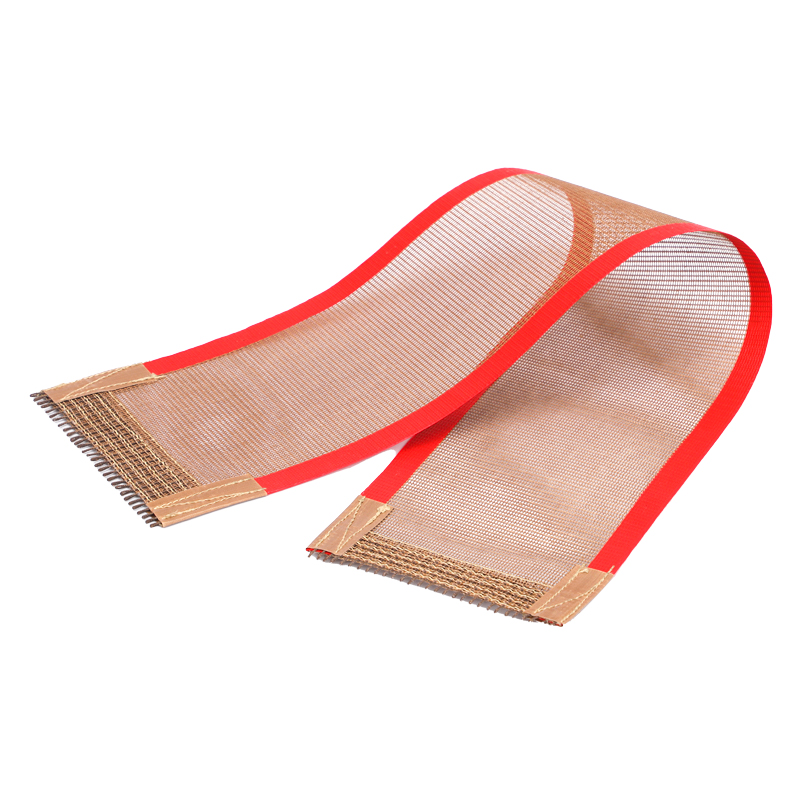

Main Features of PTFE Belt

High temperature resistant, continuously work under -70℃ to 260℃
100% Non-stick surface, all kinds of adhesives, paint, resin and chemicals can be easily removed
Chemical resistant, withstand all most of chemicals
Light weight while high tensile strength
Excellent flex fatigue resistance, can fit small rollers
Open mesh belt has good permeability which help to avoid heat wasting and improve drying efficiency
Lower maintenance cost
Non-toxin, suitable for food processing

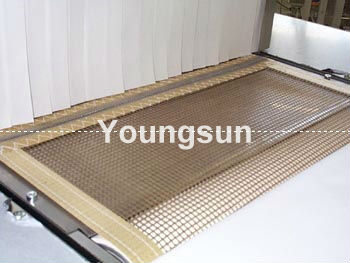

Main Applications of PTFE Belt

UV Drying machine
Shrink tunnels for packaging
Garment fusing press
Rubber profile extrusion and curing
Jerky grilling, food drying and steam cooking
Tortilla pressing
Rotary band sealer
Hygiene Roll and tissue packaging
Automatic Tabber Stringer for solar panel manufacturing
Carpet, Luxury Vinyl Tiles, laminated flooring manufacturing

If you have any questions, please feel free to contact me.

Type of PTFE Belt

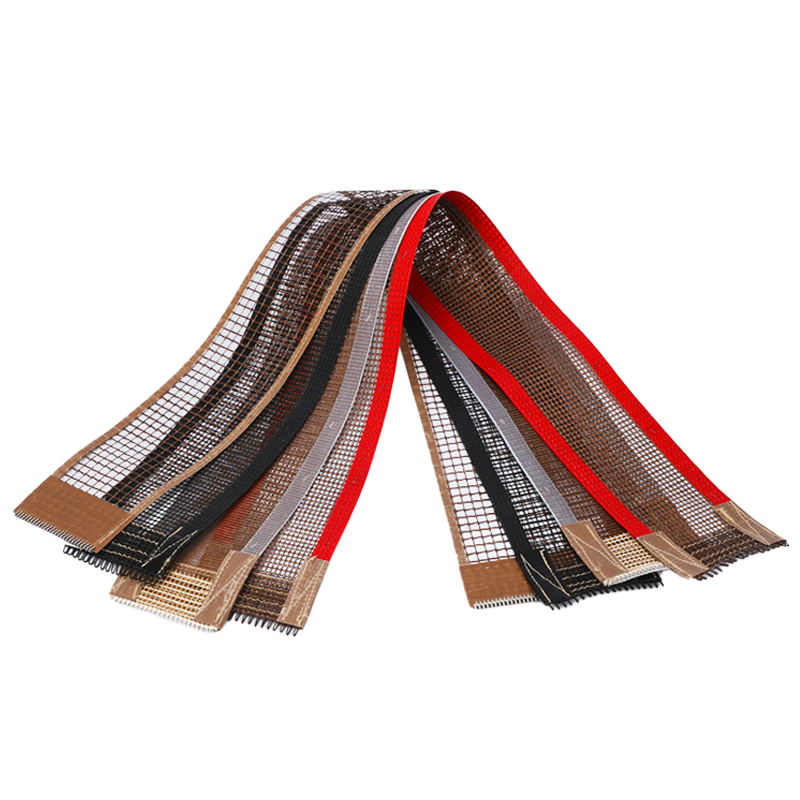

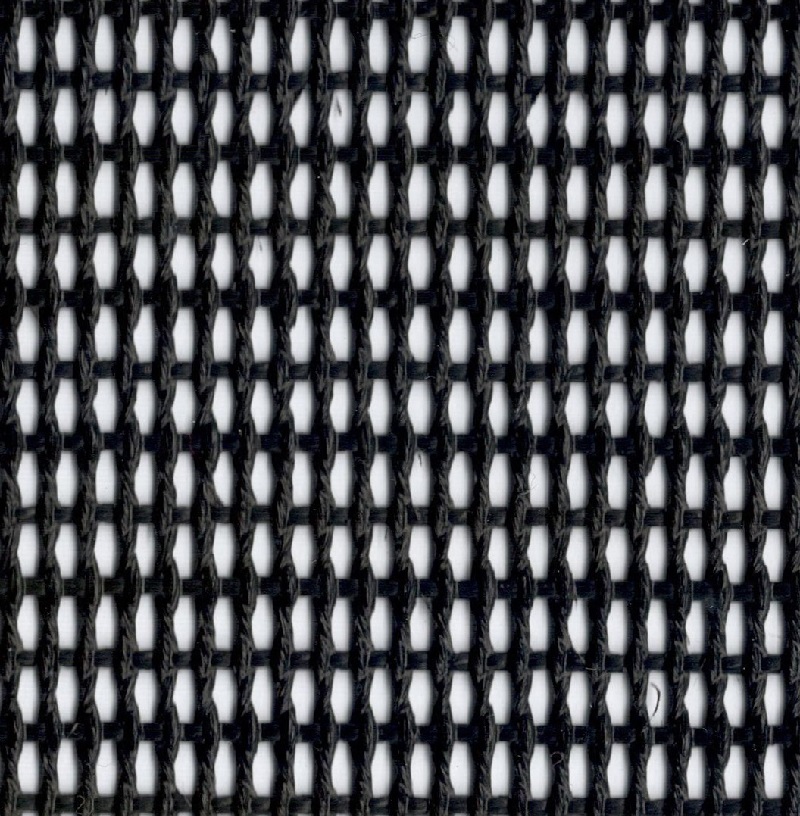

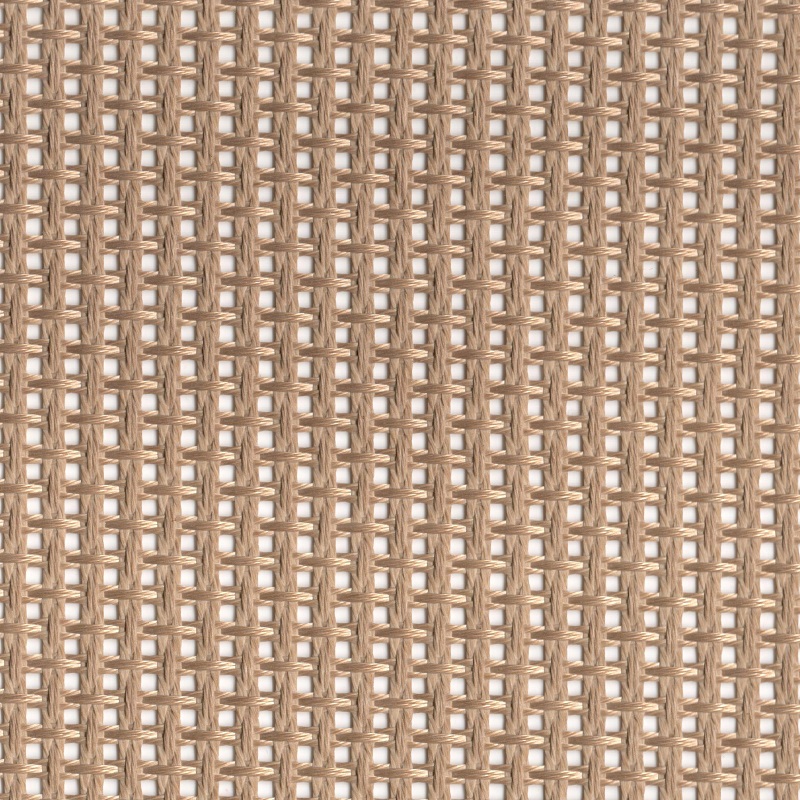

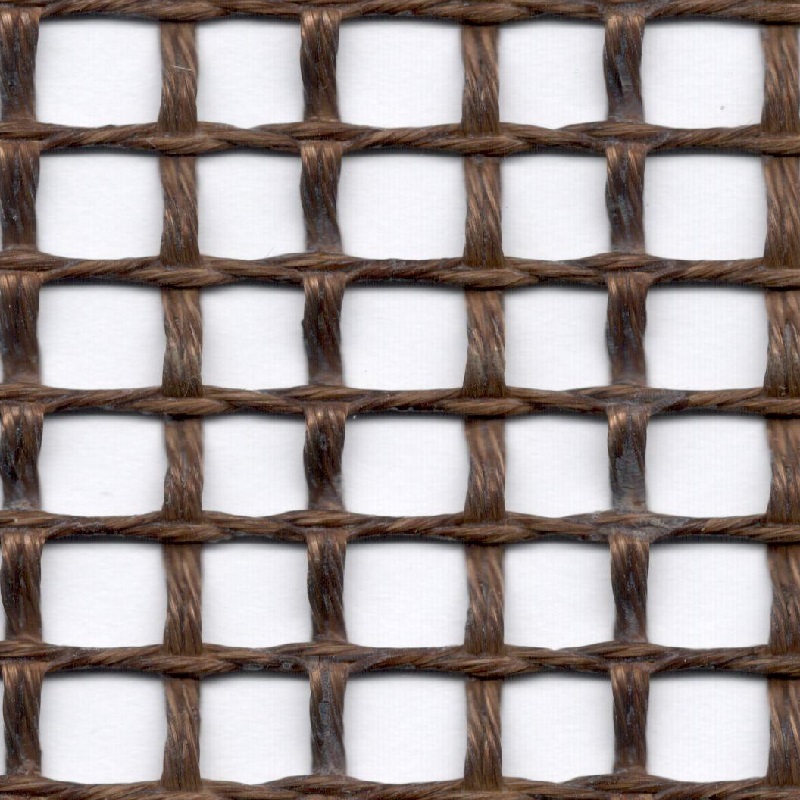

PTFE Mesh Conveyor Belt

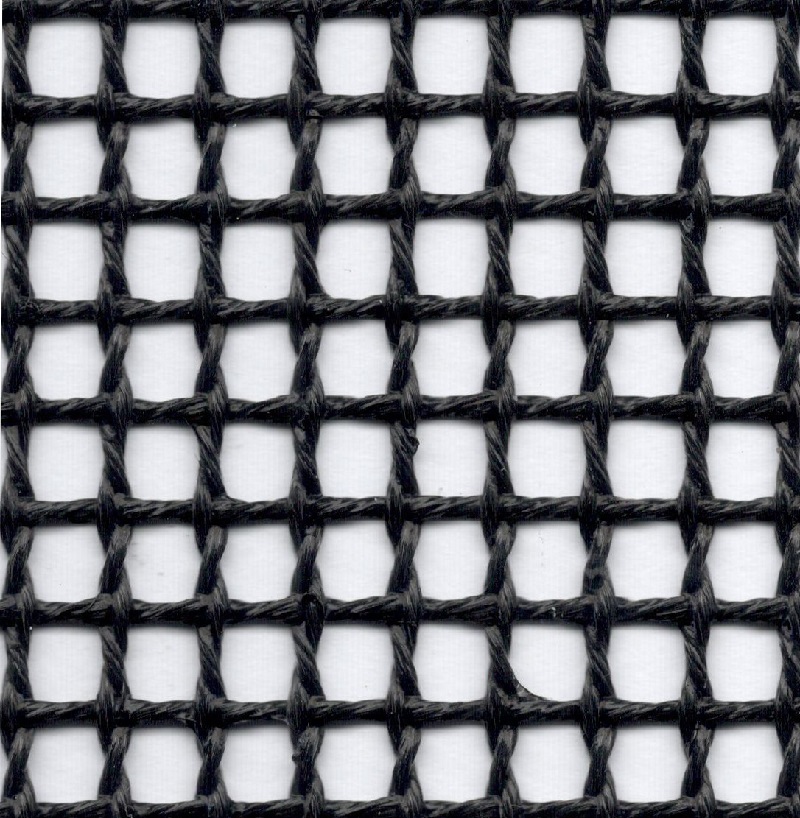

Has different options of mesh hole like 1x1mm, 2x2.5mm, 4x4mm, 8x8mm and 10x10mm. Mesh holes allow airflow pass through and expedite moisture removal during drying process. The mesh used to make PTFE open mesh belt normally with at least double weft to ensure the strength of belt, several options of joints and edge reinforcements for you to select from.

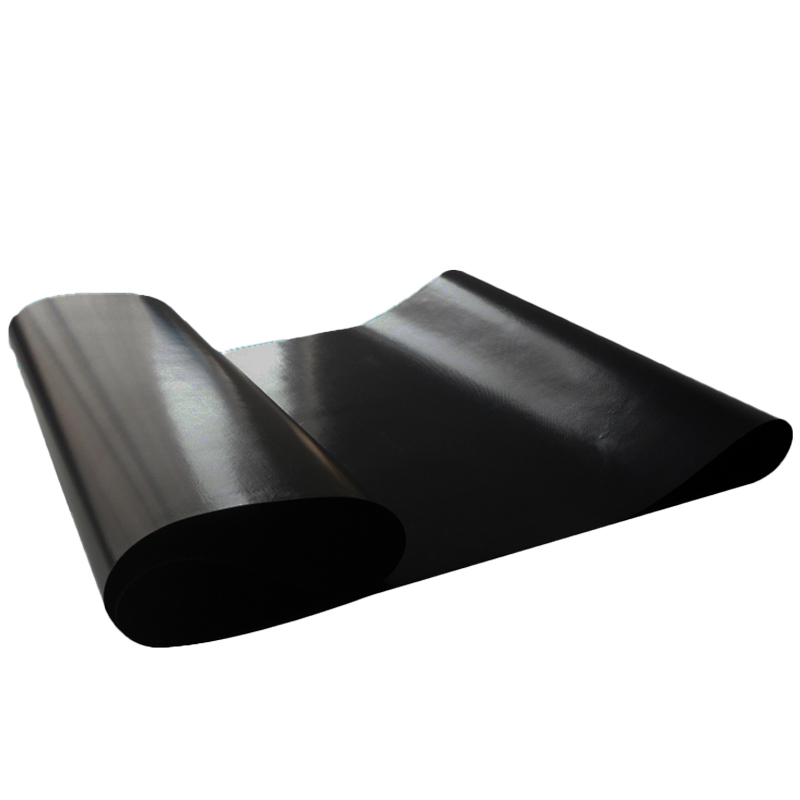

Seamless PTFE Belt

A kind of endless PTFE belt conveyor without any joint on it, the belt is woven into a circular belt first, then impregnated with PTFE. This belt is widely used in fusing machine in garment industry because no joint impression will occur during garment pressing. Typical color of seamless belt is black, it can be anti-static or not, white color and brown color can also be made.

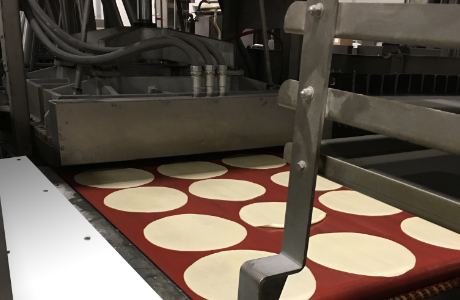

PTFE Belts for Tortilla Machine

Made of special PTFE coated fabric which is oil resistant and abrasion resistant, besides ensuring high release between pressed dough and belt, the importance is that unique coating reduce oil ingression and discoloration of the belt after some time using. Various kinds of joints can be customized, sensing system can be applied on the belt.

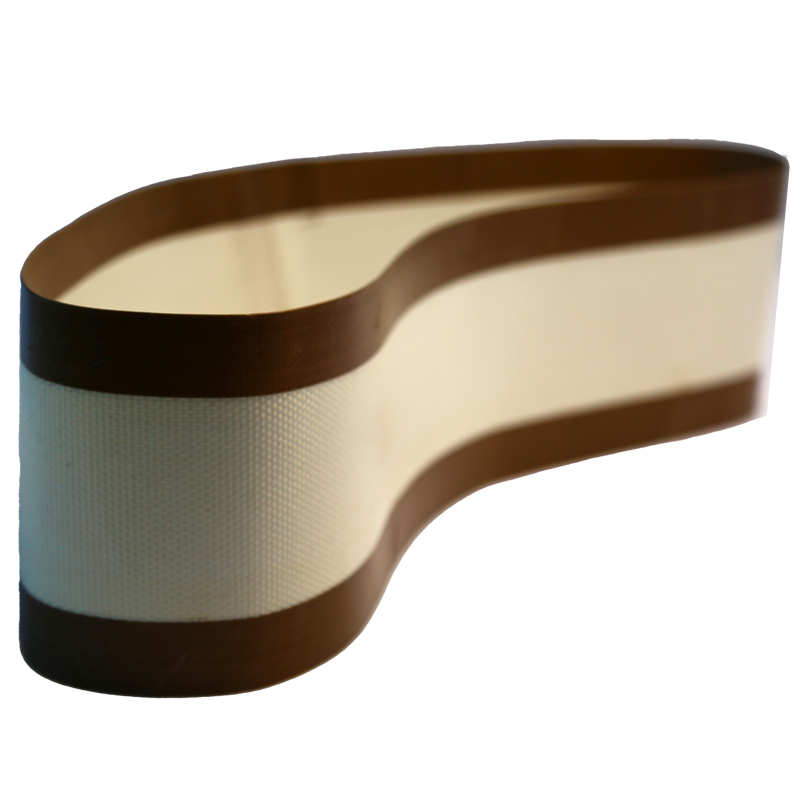

Fabricated Teflon Belts

Made by PTFE coated fiberglass fabric in different thickness, thus these belts are always with joint. Fabricated PTFE coated conveyor belt is always connected with overlap joint which means overlap two ends of the fabric and connected two ends by hot pressing. Various kinds of tracking systems can be customized on the belt to make sure belt running straight.

Laminated PTFE Fiberglass Belt

Made by two layers of PTFE fabrics interlaced and laminated under heat pressing process, the whole belt has continuously the same thickness. Perfect for tortilla press, rubber curing and tabber stringer process.

Packing & Shipping

Company Introduction

If you have any questions, please feel free to contact me.

Our Services & Strength

1. Factory Pricing: Best factory price with grade A quality in market.
2. Flexible Packaging: Offer neutral color box + label + logo although a small order.
3. Artwork Design: Offer Artwork of packing design if needed.
4. Hassle-Free Delivery: Door to door service including tax, you can do nothing.
5. Fast Dispatch: Achieve fast delivery with a large range of stock goods in different sizes.
6. Secure Payments: Paypal, T/T, L/C, Credit card, Western Union and trade assurance payment are ok.
7. Custom Sizes: Size can be customized, please contact us to get more information, you can leave a message, we will contact you as soon as possible.
8. Fast Response: If you have any question for our store products, please feel freely to contact us, we will provide solutions within 8H.

FAQ

How do you charge the sample fees?

If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge. If you need samples with your own logo or if you need a special size, we will charge the sample making fee which is refundable when you place an order. Please contact us for more details.

Can you give me a discount?

Our policy is bigger quantity, cheaper price, so we will give you discount according to your order quantity.

Do you accept customization?

Yes, we do. OEM&ODM service are all available.

What certificates do you have?

We have certificates of LFGB, ROHS, REACH, SVHS.

What about the delivery time?

We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.

Do you have the specific QC department?

Of course we have the specific QC department. Our company applies strict quality control system and service system.
