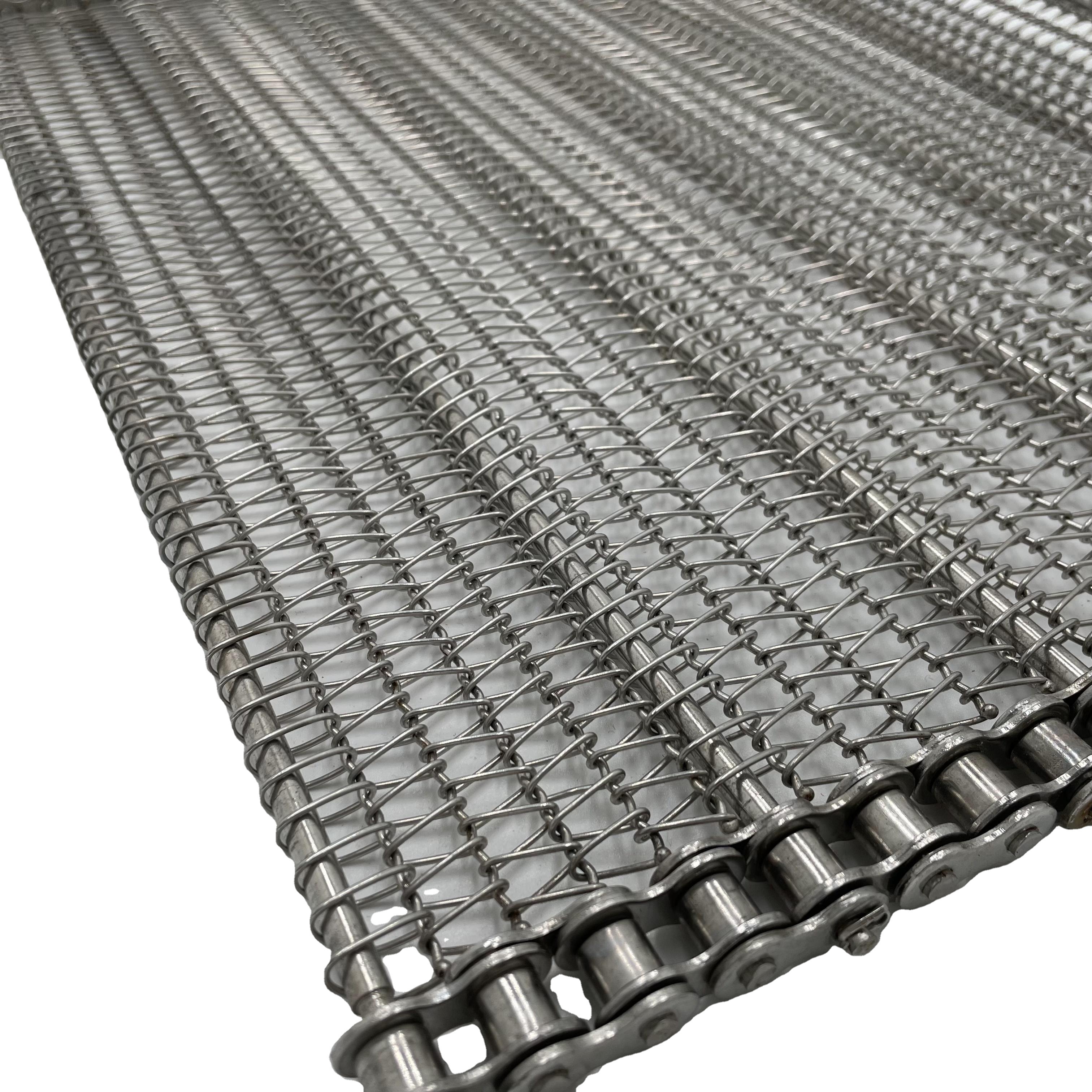

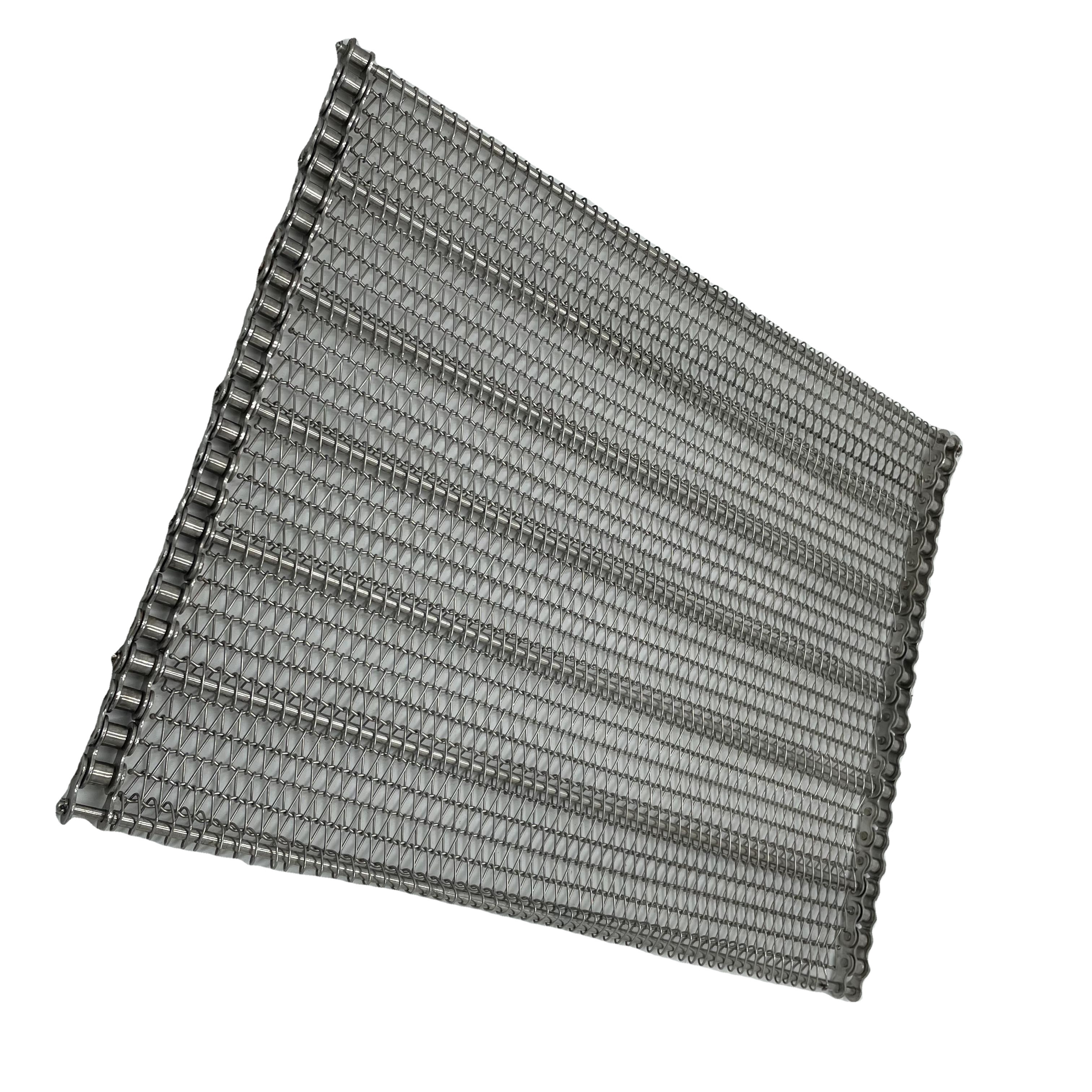

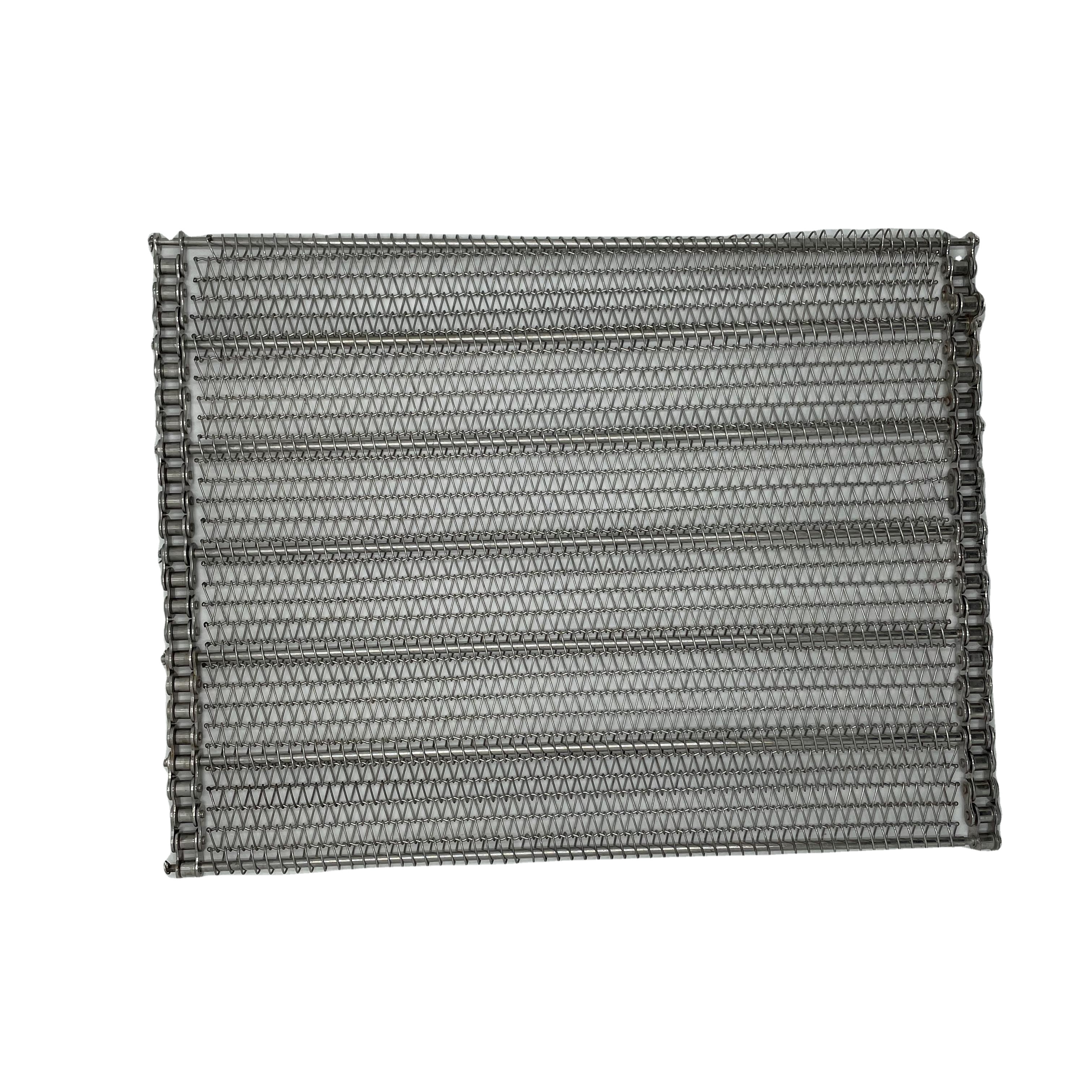

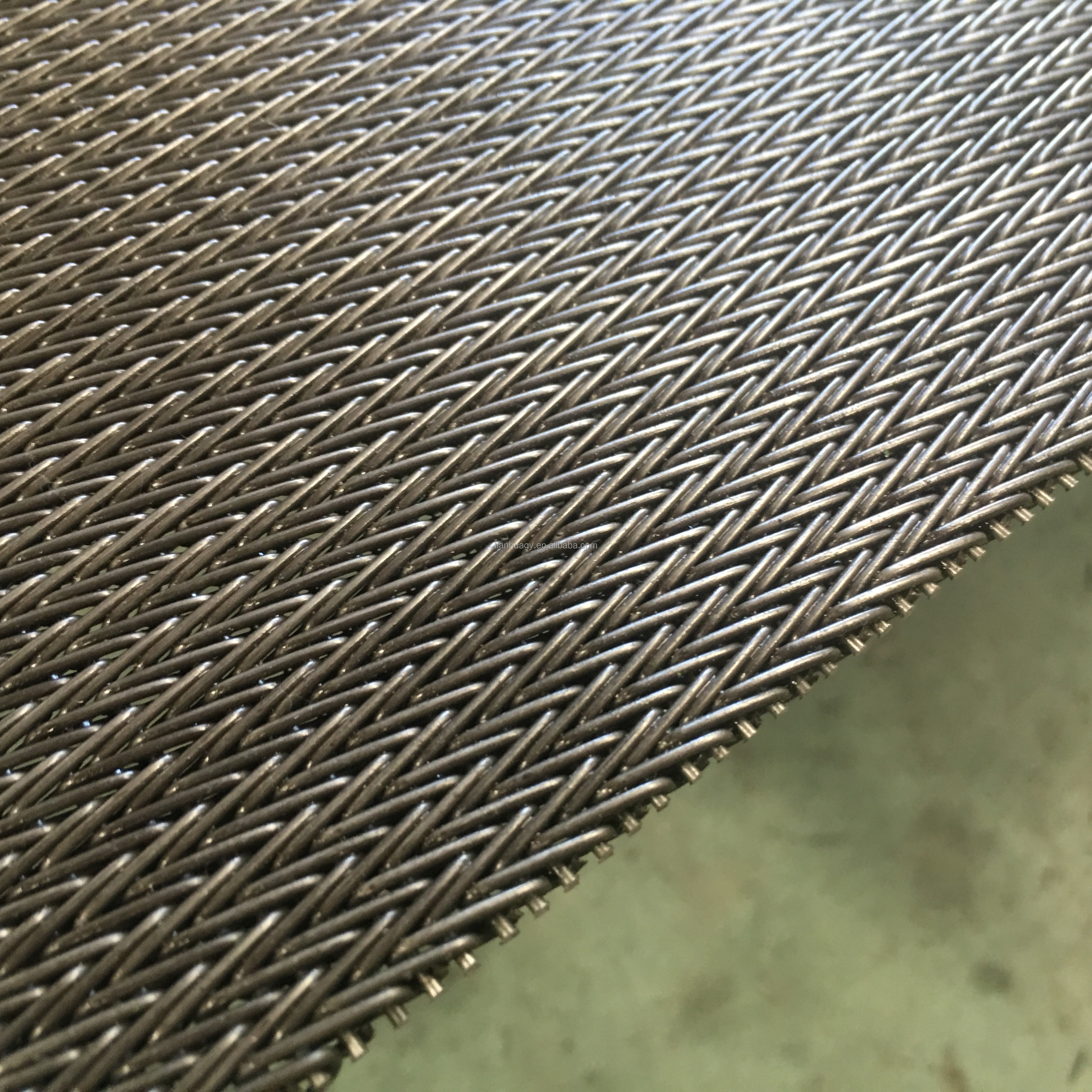

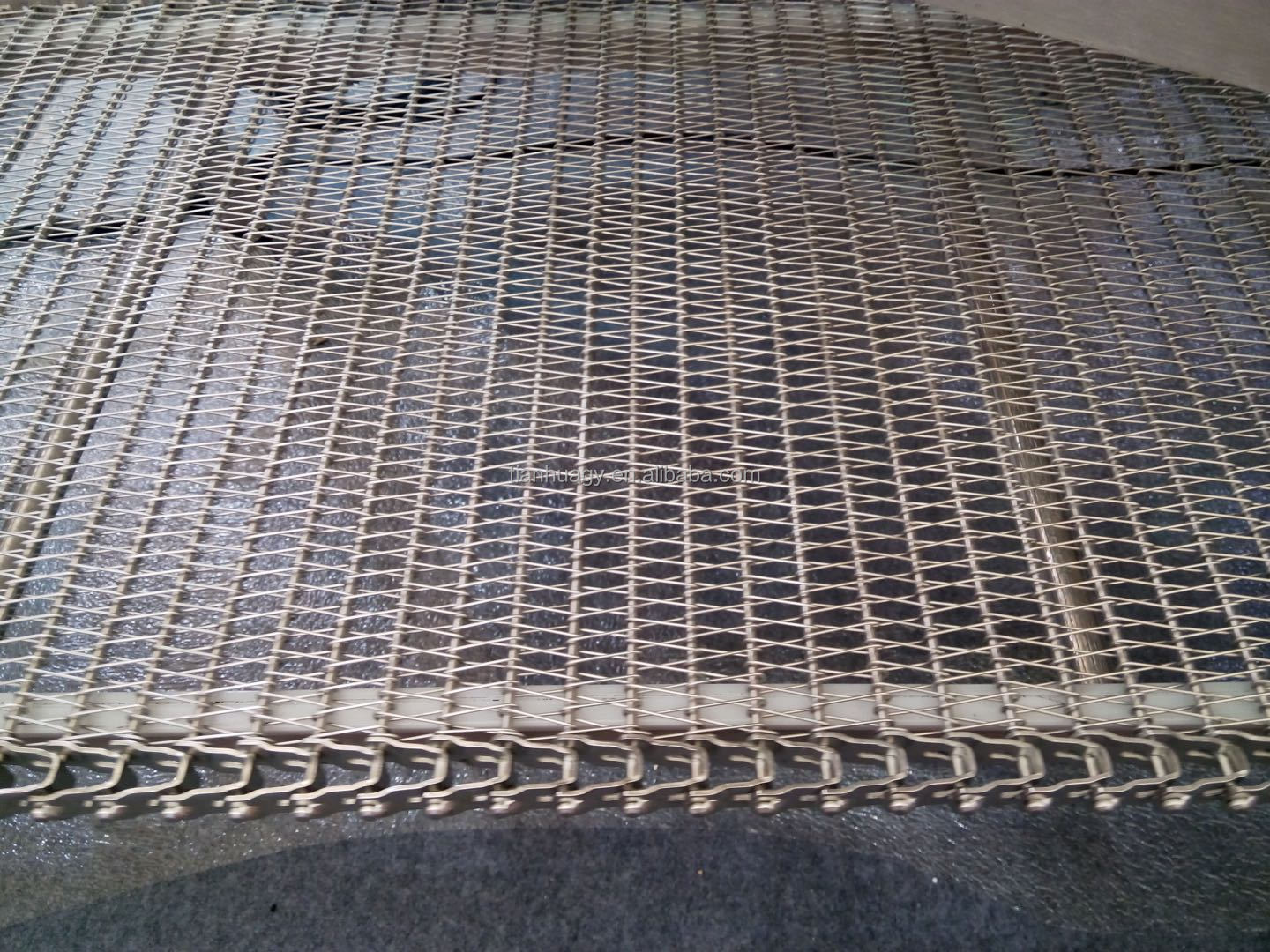

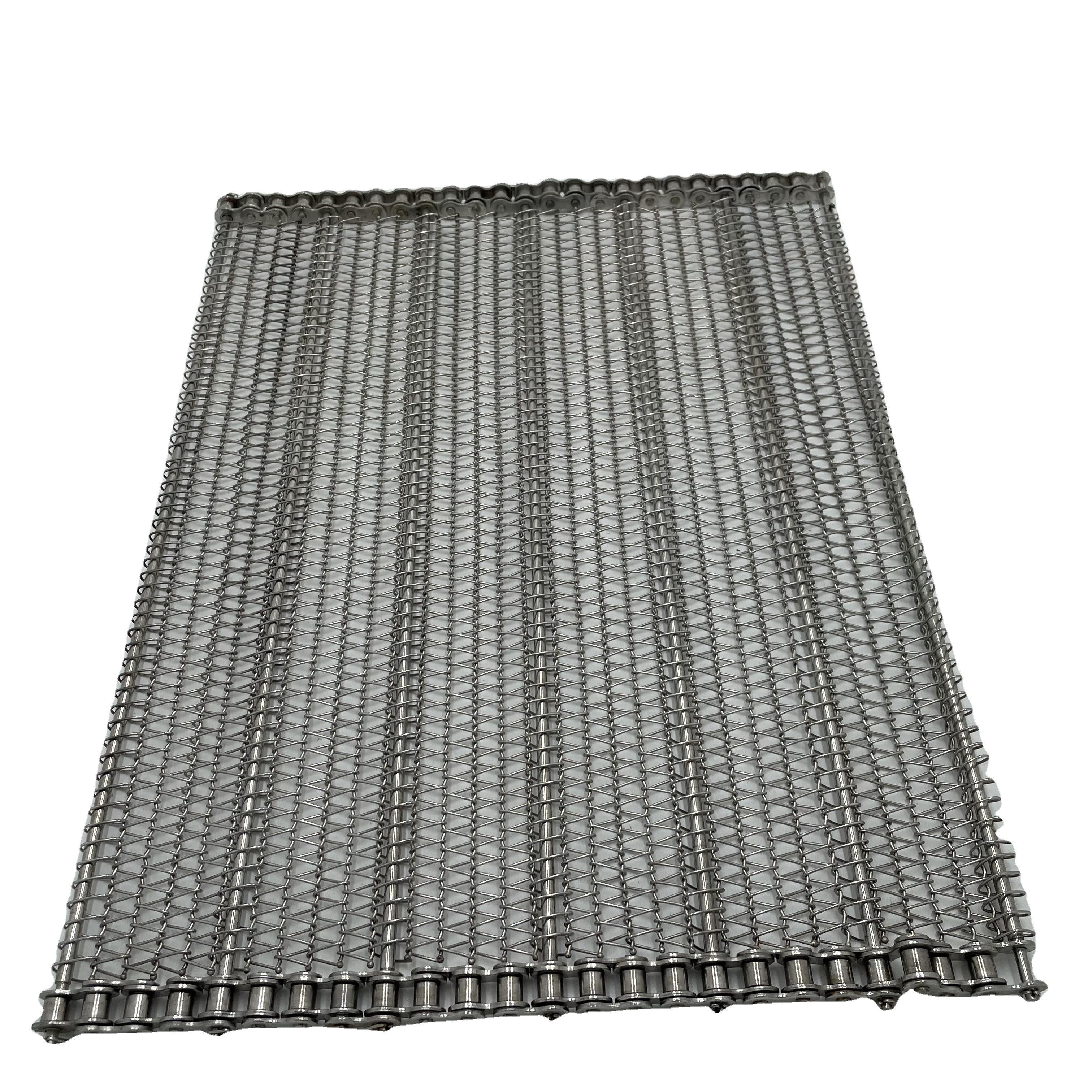

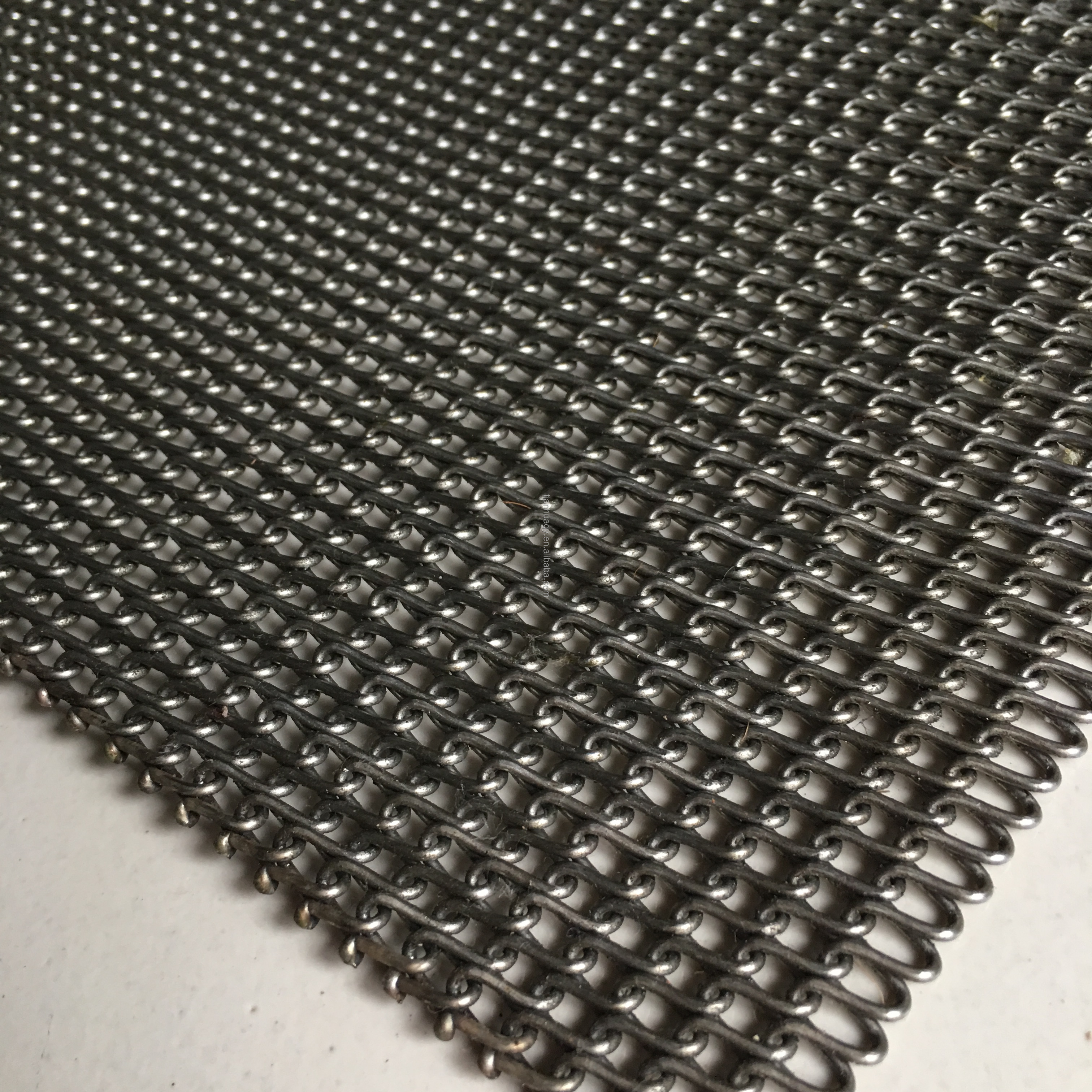

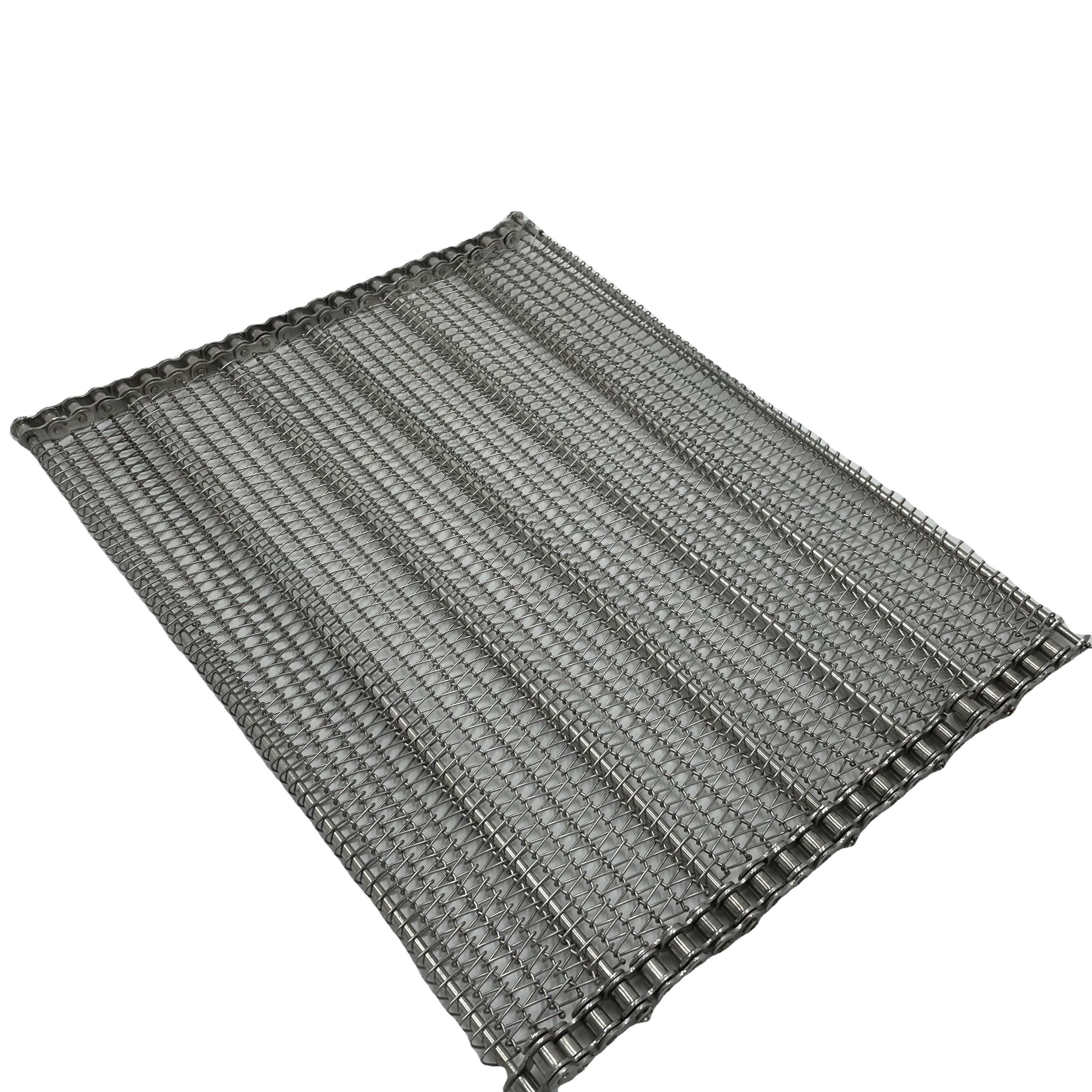

These conveyor belts are used for the treatment of metal products. Spirals of the same direction are arranged systematically to provide structural integrity and performance.

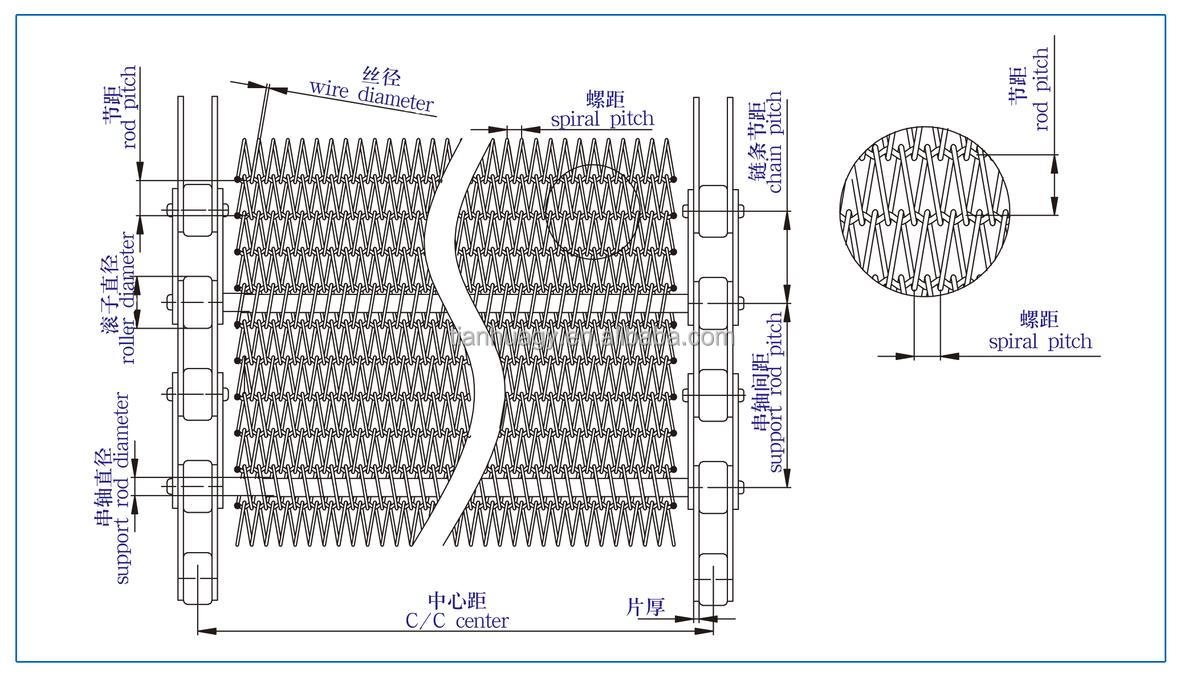

| Specification Parameters | Details |
|---|---|
| Material | Stainless steel 304, 201, 316, 314, carbon steel, etc. |
| Chain Pitch (mm) | 12.7, 15.875, 19.05, 25.4, 31.75, 38.1, 50.8, 63.5, 76.2, 101.6 |
| Support Rod Diameter (mm) | 4-200 |
| Wire Diameter (mm) | 1.0, 1.2, 1.4, 1.5, 1.6, 1.8, 2, 2.5, 3 |
| Spiral Pitch (mm) | 2.8-40 |
| Rod Pitch (mm) | 5-300 |
| Belt Width (mm) | 100-6000 |
After strict control by our quality inspectors and the thorough commissioning and operation of the products, the probability of after-sales issues remains extremely small. We believe that the beginning of service is the beginning of sales.
Yes, our factory manufactures customized products. Simply send your design specifications or drawings to us, and we will coordinate directly with our professional engineering team to meet your needs.
We are a dedicated factory. You are highly welcome to visit our production facility. We believe that a personal visit will provide a much deeper understanding of our product quality and capabilities.
The buying process consists of the following steps:
(1) Provide us with the detailed sizes and specifications required.
(2) We will supply technical drawings for your verification.
(3) Upon your confirmation, a 30% deposit is paid via wire transfer.
(4) We initiate production and provide on-site photos/videos upon completion.
(5) The remaining 70% balance is settled after verification of the finished product photos.
(6) Shipping is arranged under FOB, CFR, CIF, or DDP terms.
We utilize high-quality materials including Stainless Steel 304, 201, 316, and 314, as well as carbon steel and other alloys depending on your application requirements.

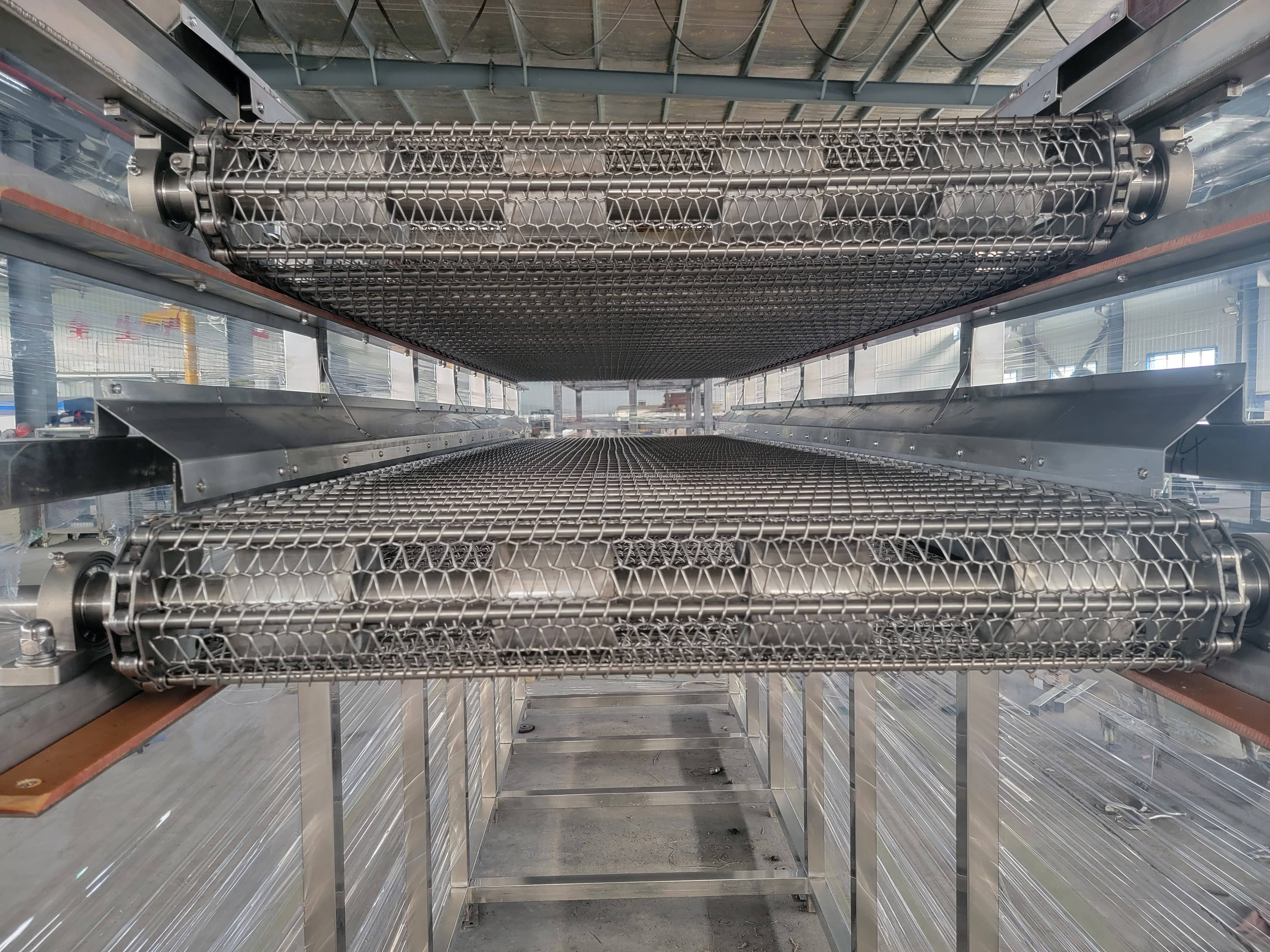

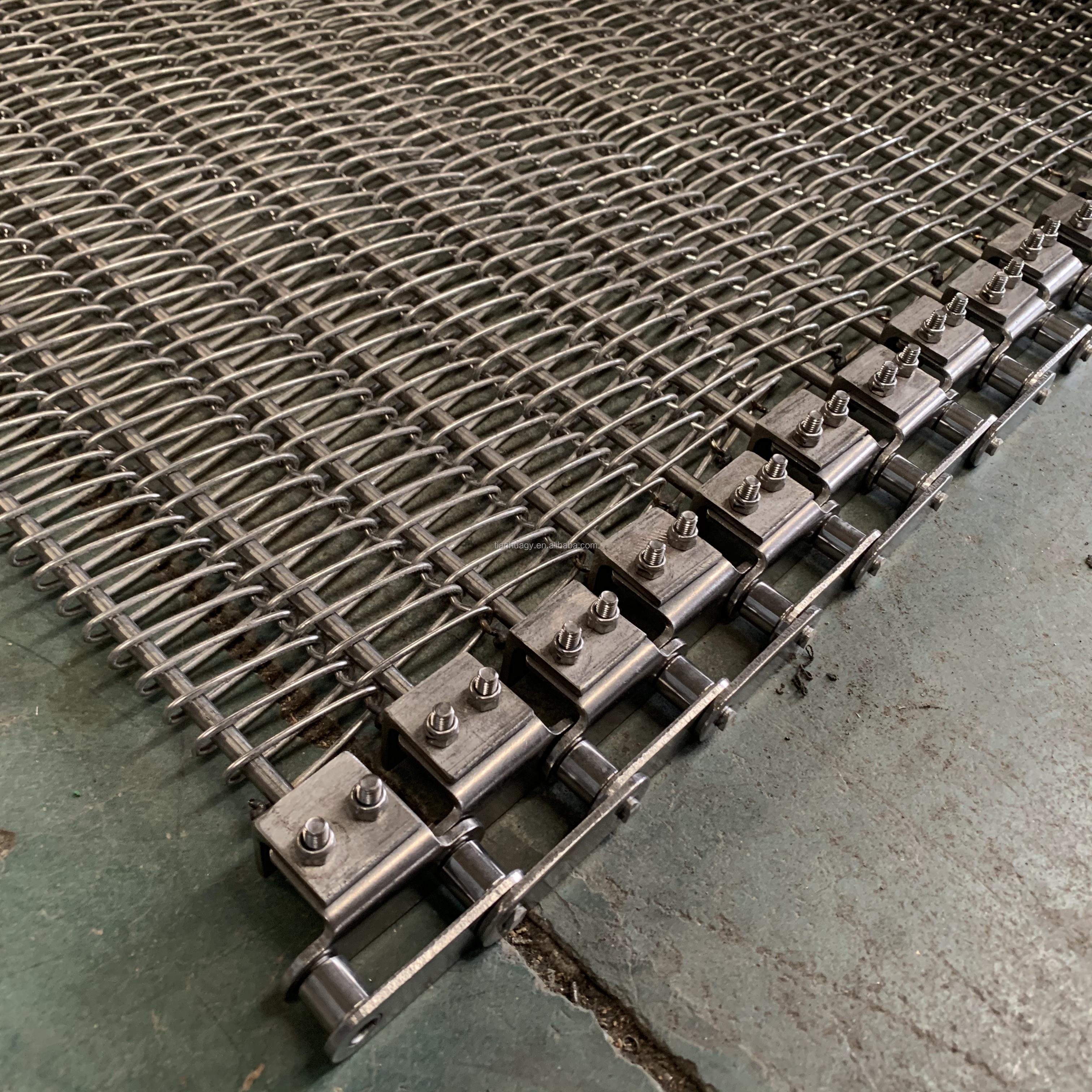

The mesh belt is driven positive-sprocket style. The sprocket drive ensures stable, consistent running, preventing alignment issues and meandering during high-speed or heavy-load processes.
