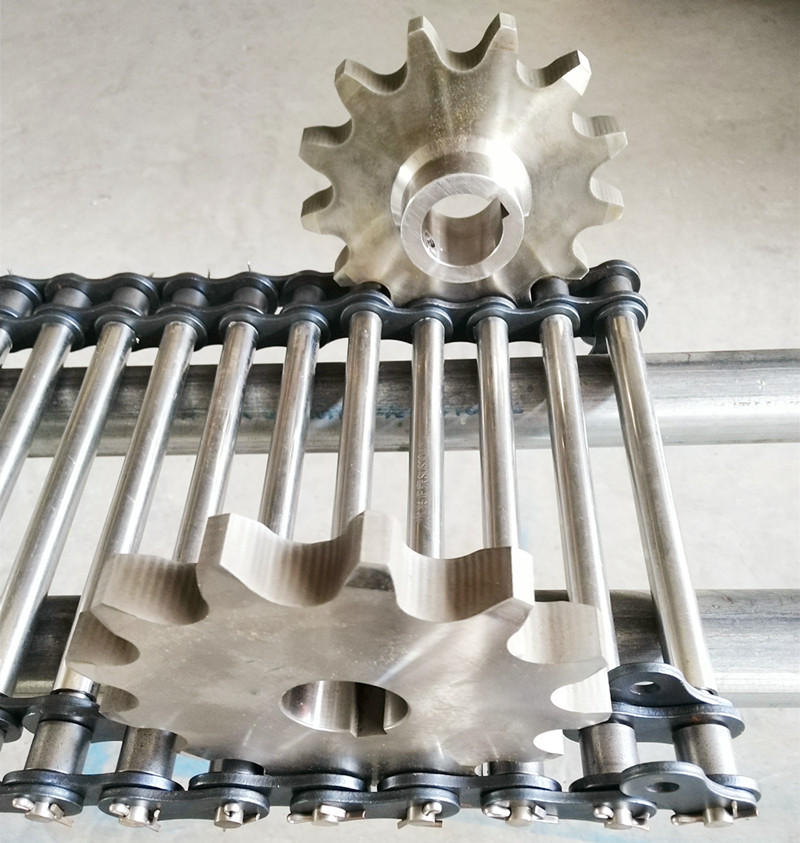

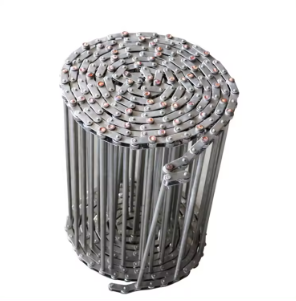

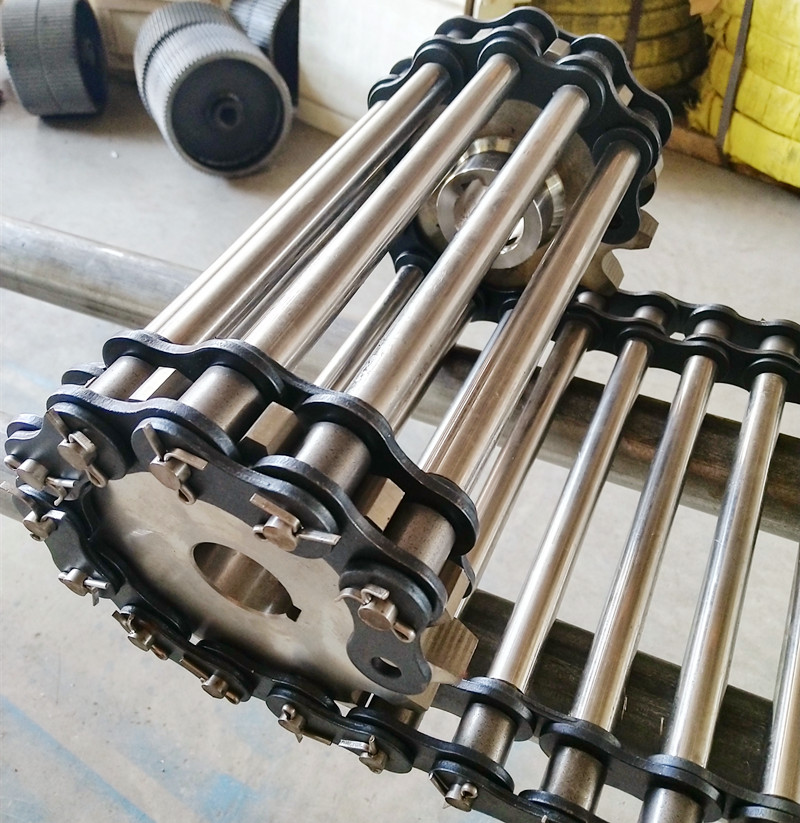

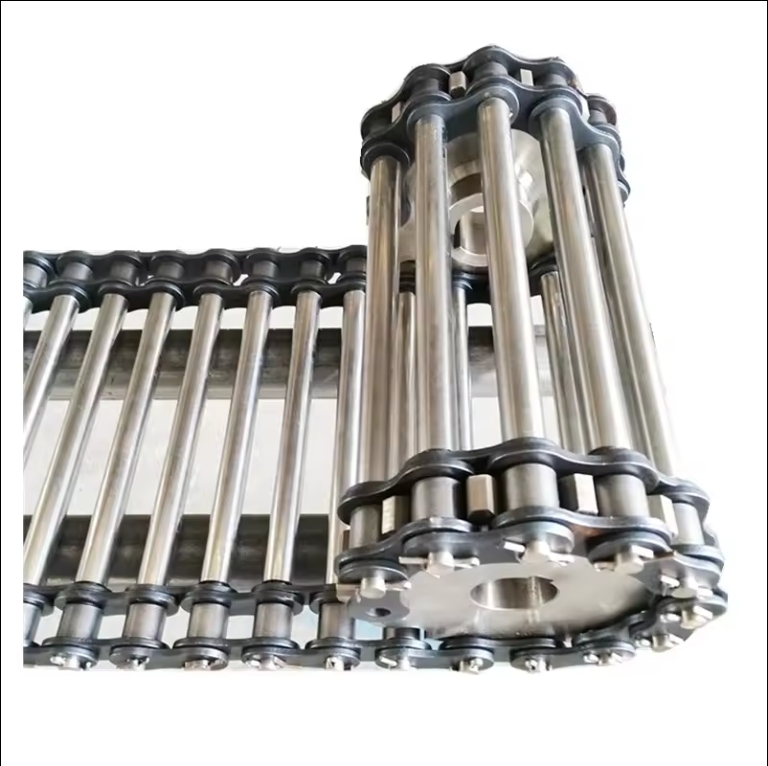

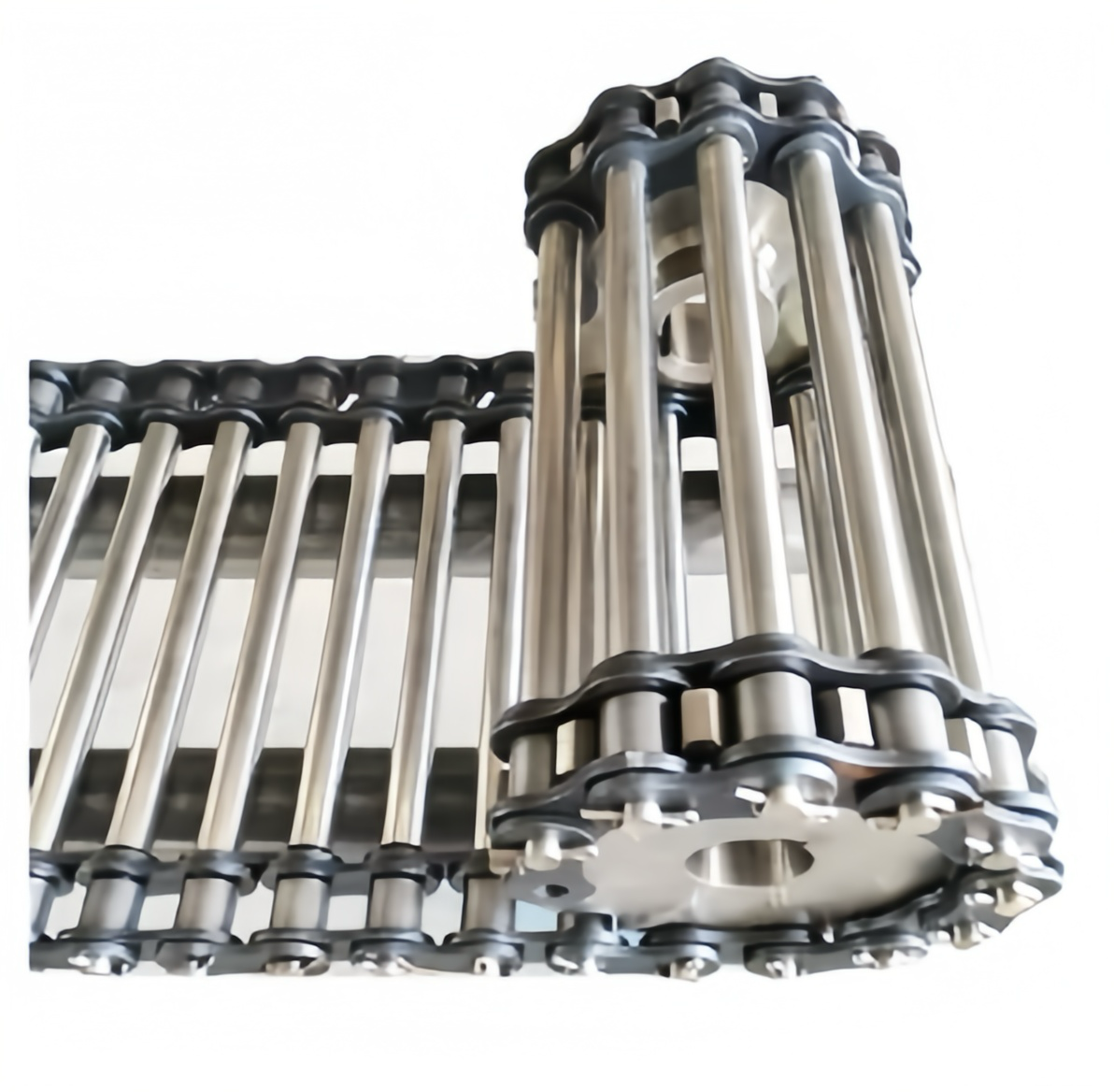

Chain rod type mesh belt is a kind of mesh belt, the use of chain transmission, suitable for large and heavy transmission, its smooth movement, large force, the relative force of the mesh surface is small, can play a protective role in the transmission mesh surface.

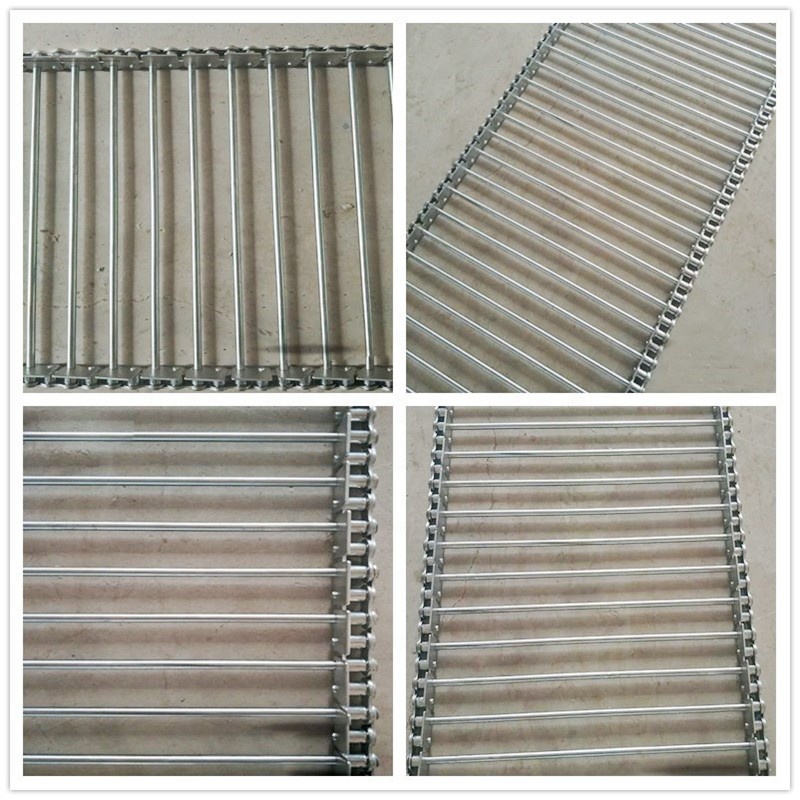

The surface of the mesh belt is flat, even through the hole, standard chain drive, smooth running, no deviation phenomenon, strong load capacity and tensile strength, easy to clean, easy to maintain and other advantages.
With regard to each parameter of the chain plate, we can provide customized service. You just need to tell us the parameters you need.

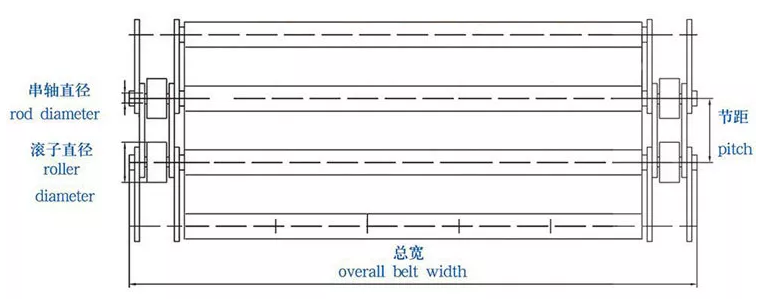

| No | Item | Specification |
|---|---|---|
| 1 | material | carbon steel or SUS304, 306, 310 |
| 2 | pitch | 19.05mm, 25.4mm, 31.75mm, 50.8mm, 76.2mm, 101.6mm or customized |
| 3 | cross rod diameter(mm) | 0.8, 1, 1.2, 1.5, 2, 2.5, 3 or customized |
| 4 | Strip thickness(mm) | 5, 6, 8, 10, 12 or customized |
| 5 | overall width(mm) | 200--4000 |
| 6 | length | customized Size |
| 7 | running gear | Material & sprocket special is customized as per request |
| 8 | spiral pitch(mm) | 0.8, 1, 1.2, 1.5, 2, 2.5, 3 or customized |
| 9 | Function | Parts for Conveyor |

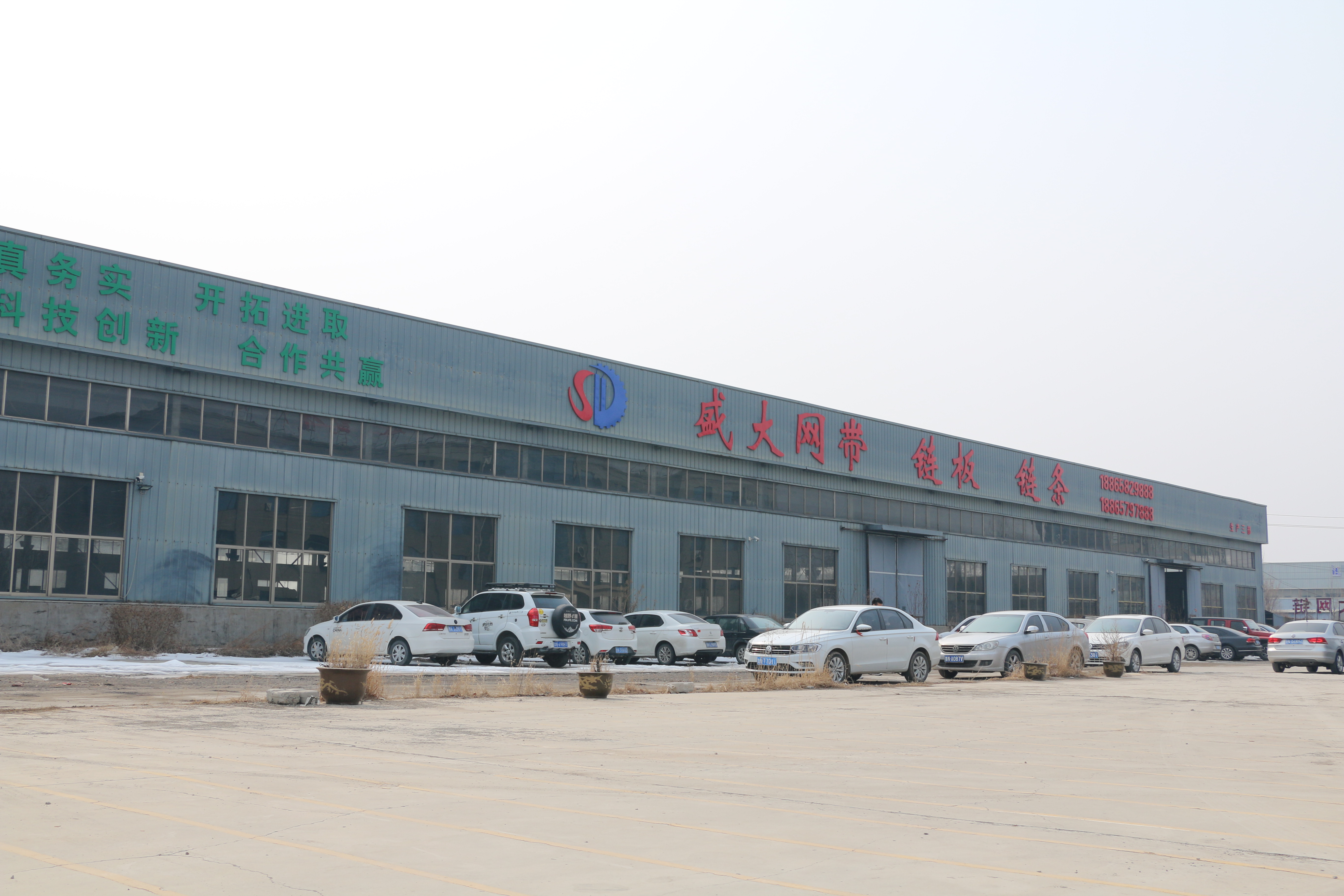

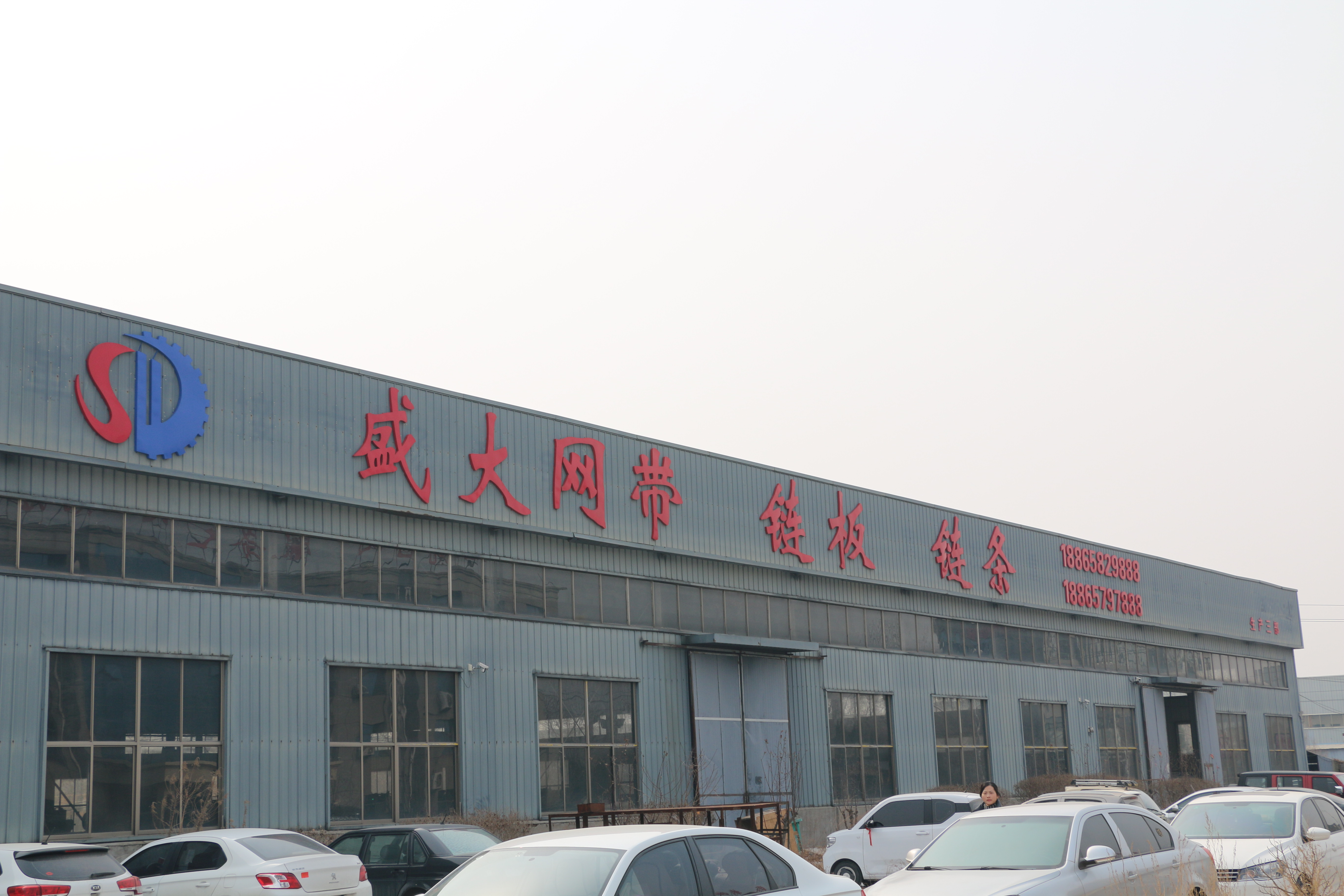

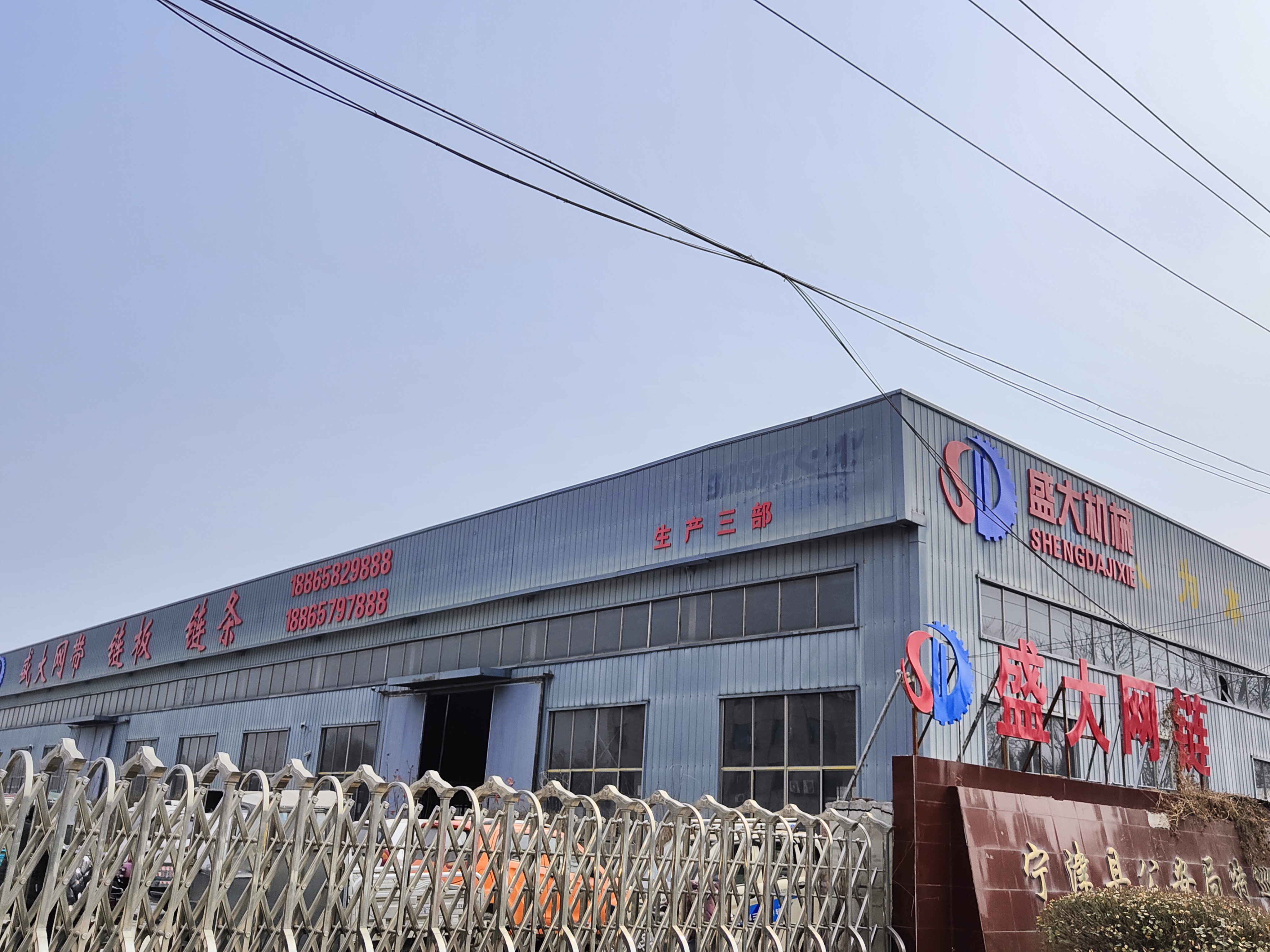

The company currently has four factories covering an area of 20,000 square meters. All factories are in production, we can ensure the speed of shipment and quality at the same time.
