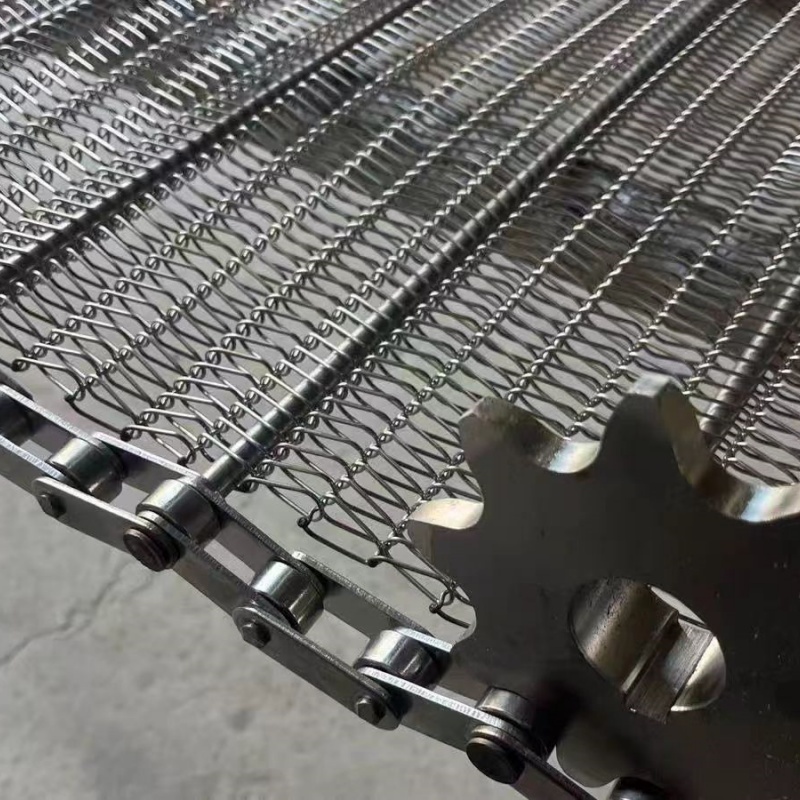

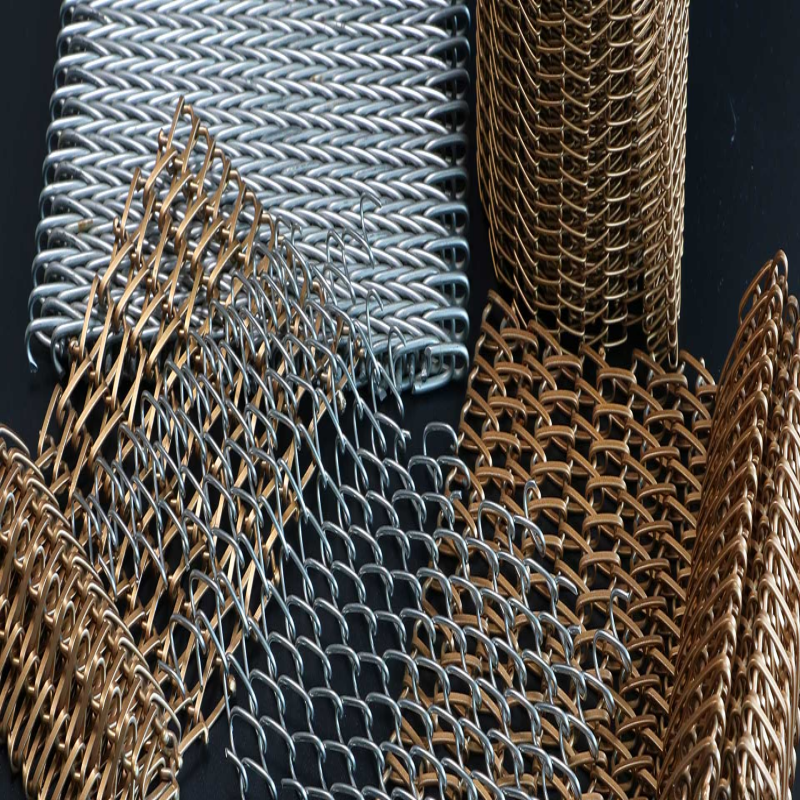

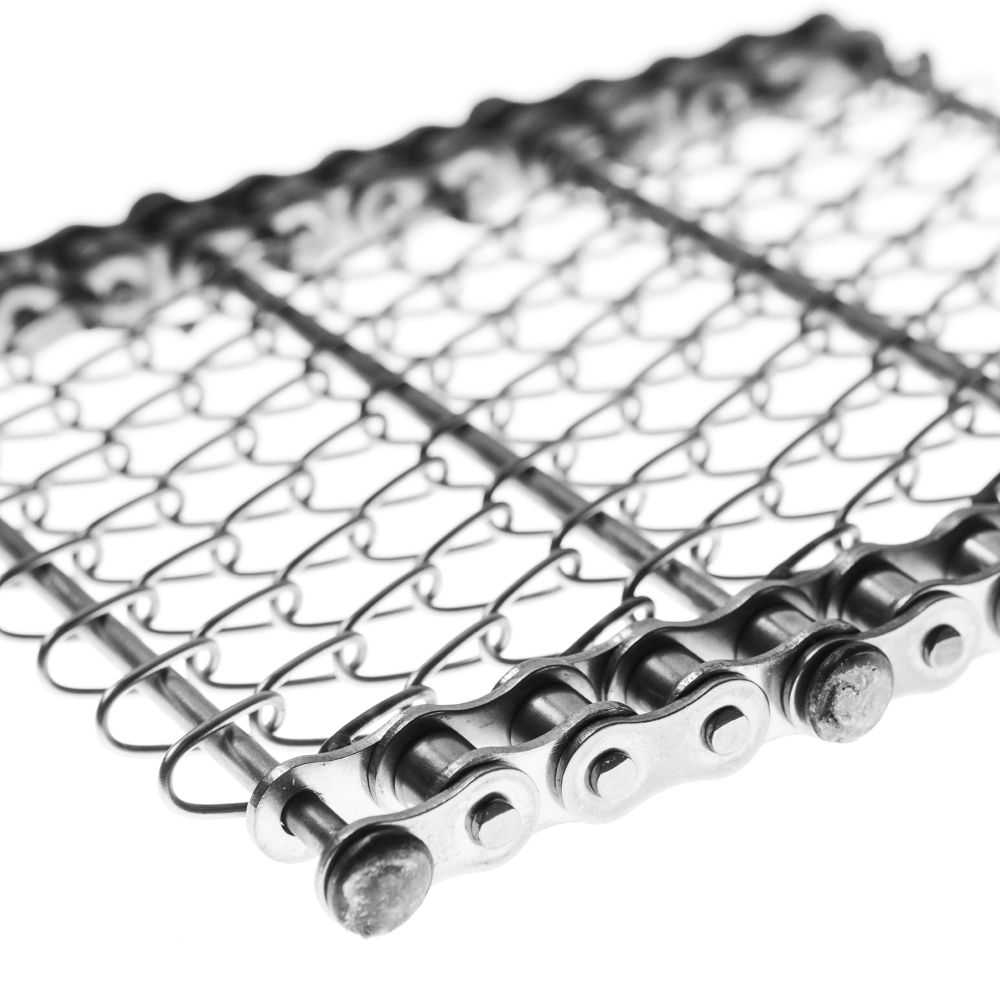

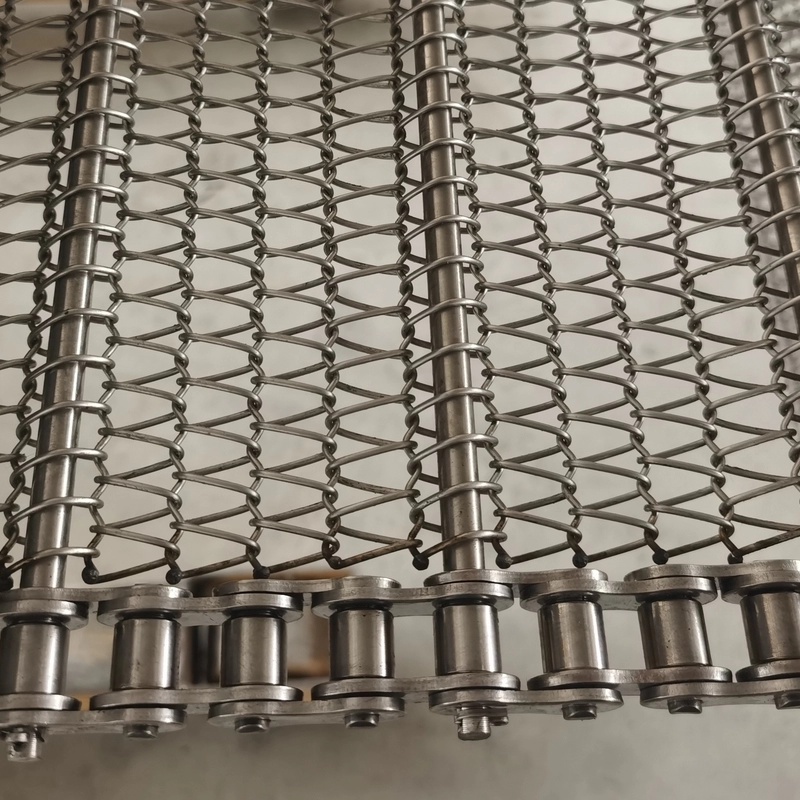

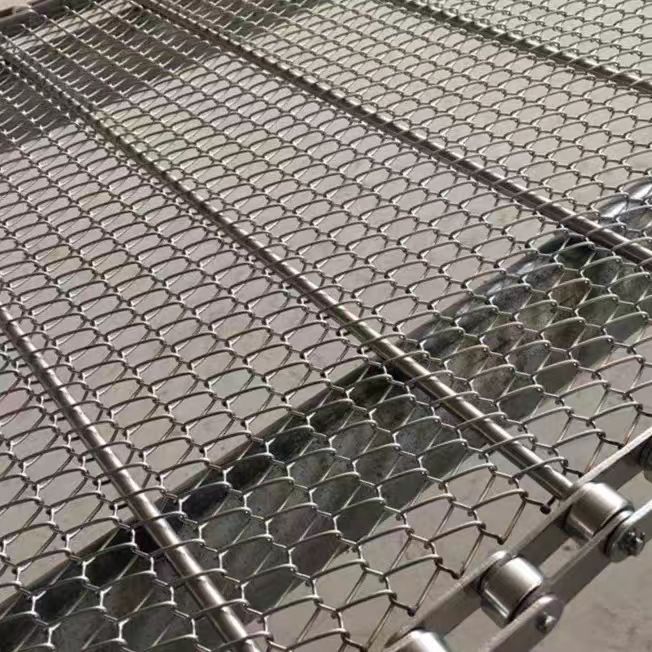

Flat spiral conveyor belt consists of a series of alternating single or double spiral wires, which can be round and flat, they can be added crimped or straight cross rods. And the alternating structure effectively reduces downtime. So flat spiral conveyor belt is an economic choice, it provides a flat loading surface for small products or easily broken products.
| Technical Parameters | |
|---|---|
| Material | stainless steel 304, 314, 316, 316L, carbon steel, copper steel, brass steel and other types are available |
| Surface treatment | galvanized, 3% chromium plate, manganese plated |
| Spiral diameter | 0.9–3.0 mm |
| Flat wire size (mm) | from 1 × 0.7 to 6 × 3 |
| Cross rod pitch | 4–33 mm |
| Belt speed | 0.5 m/min to 60 m/min |
| Cross wire diameter | 1.2–4.0 mm |
| Spiral wire pitch | 4–22 mm |
| Belt width | up to 5 meters or more upon your request |
| Edge type | welded edge, hook edge, laddered edge, chain link edge |

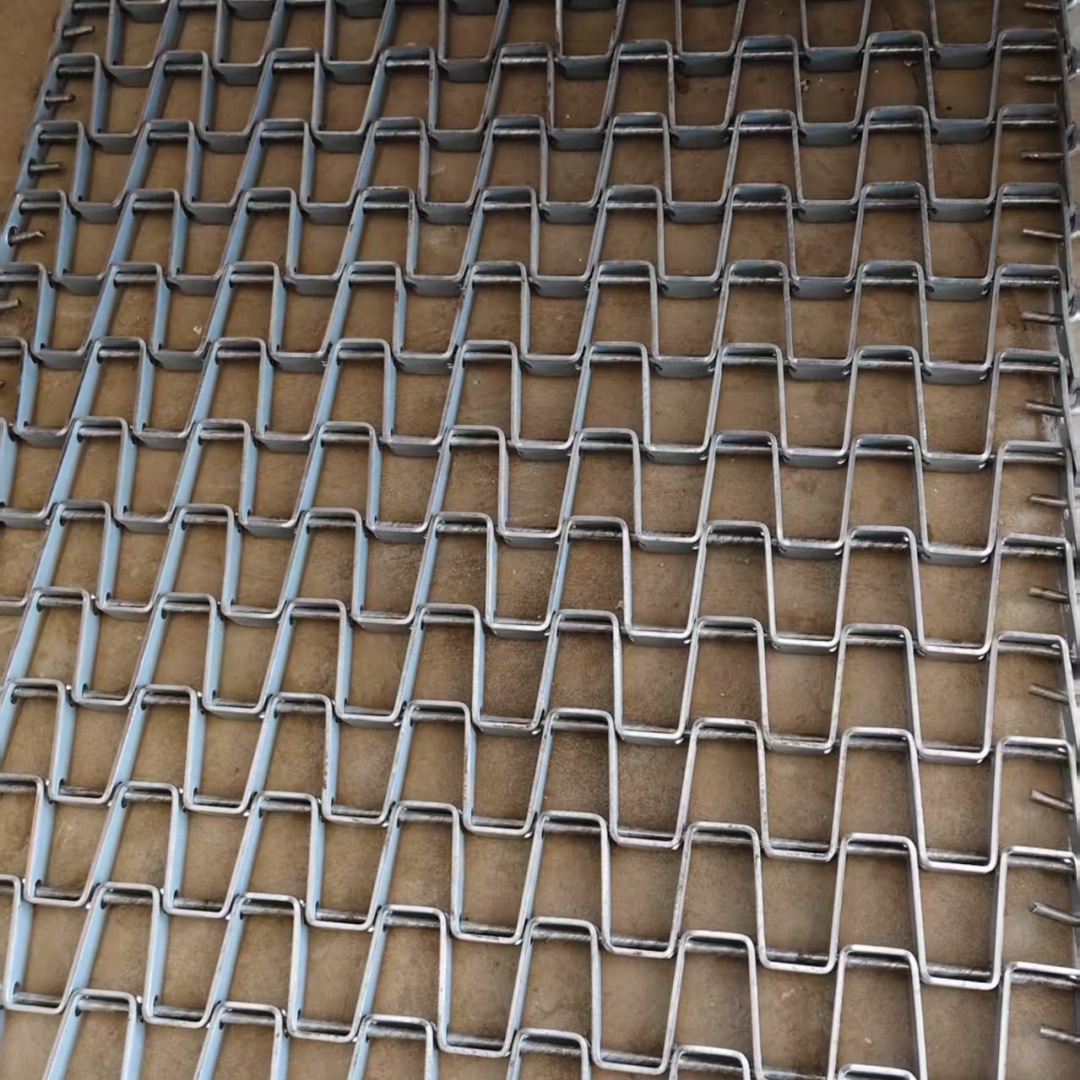

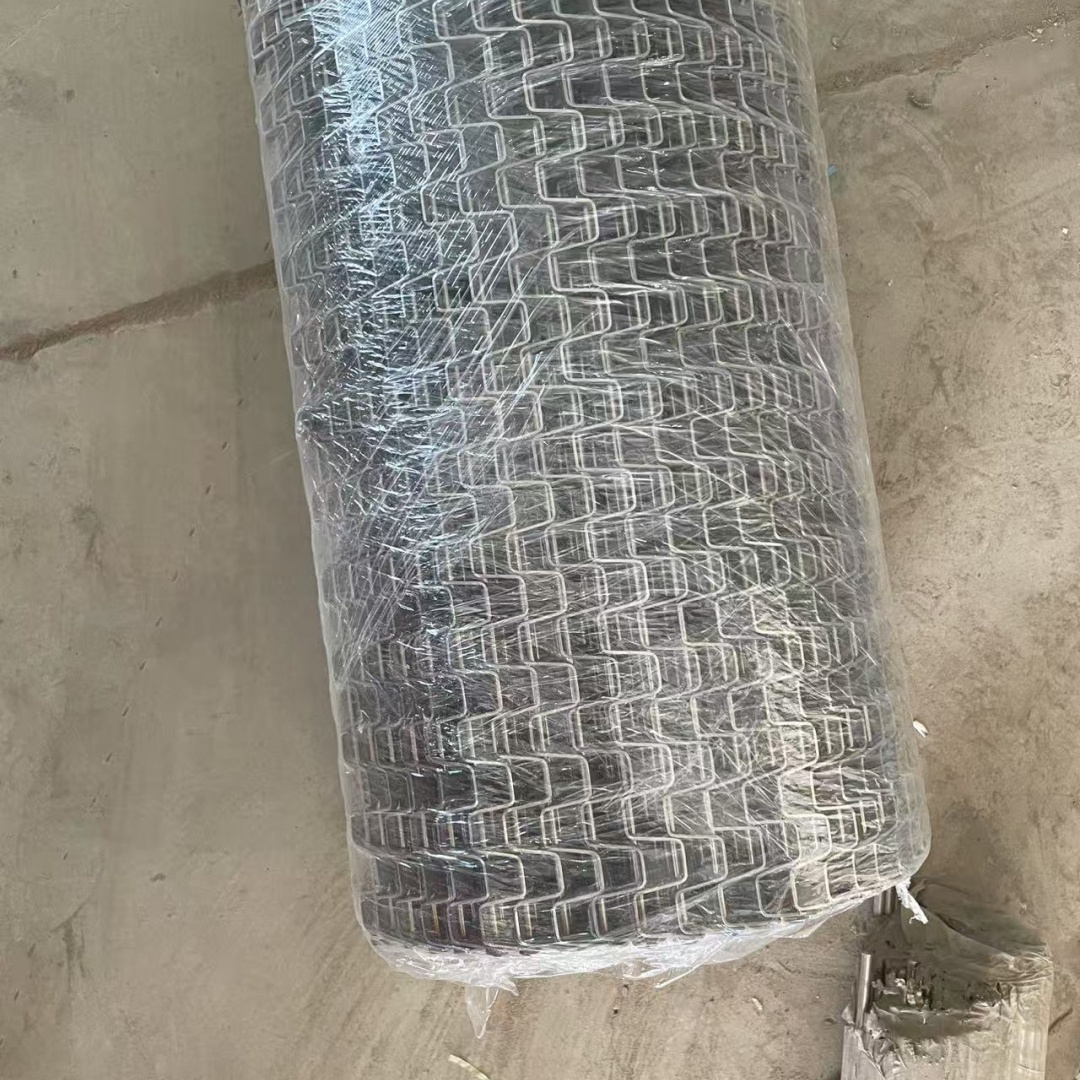

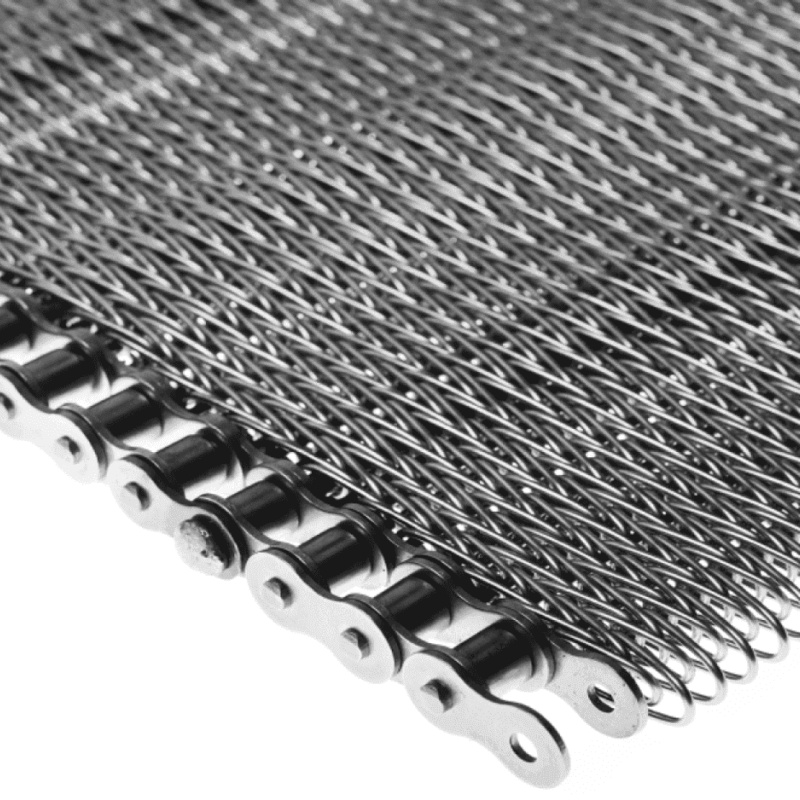

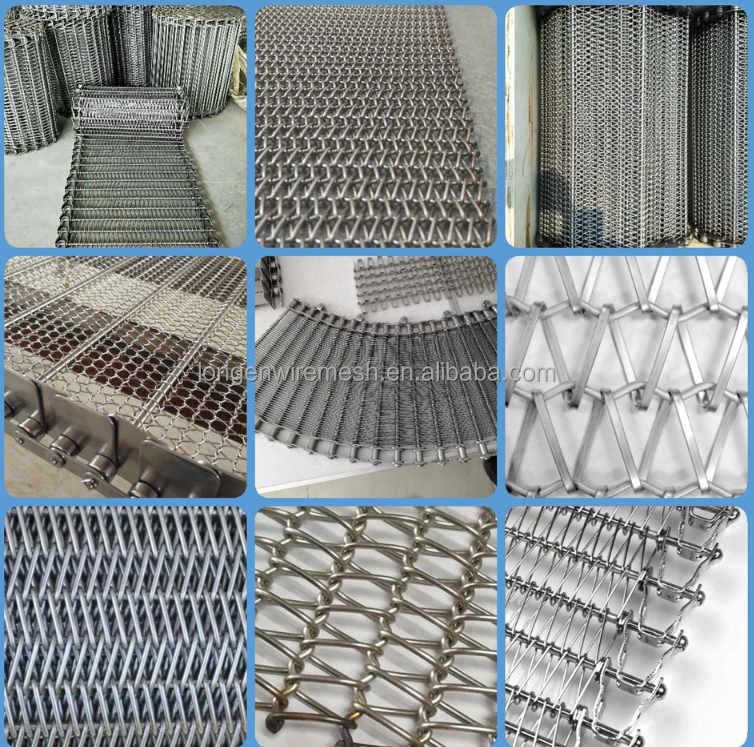

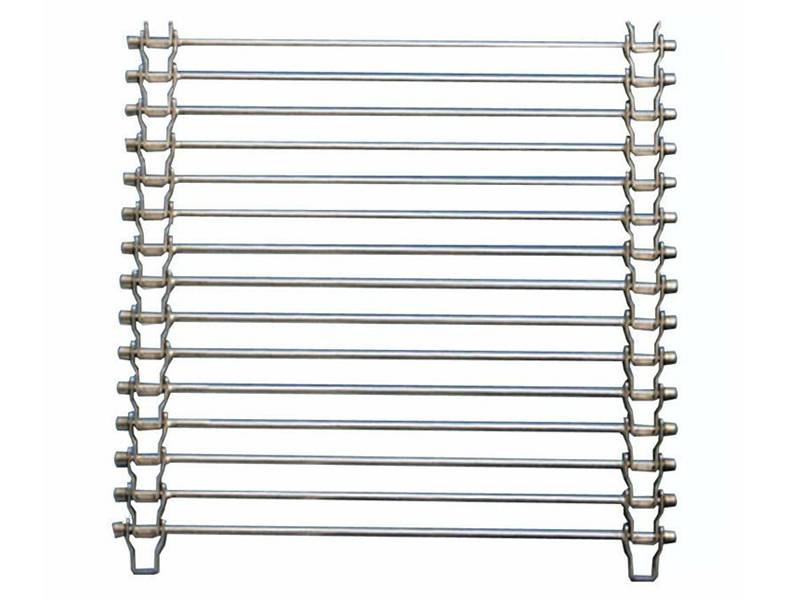

We can also supply the following related conveyor belt:
What can we do for you?
Continuous technological innovation and quality improvement are key elements to create value for customers. A robust management system based on ISO 9001 requirements has been established to ensure standard quality. The excellent manufacturing, service and support guarantee the best solutions to meet the different needs of customers.
