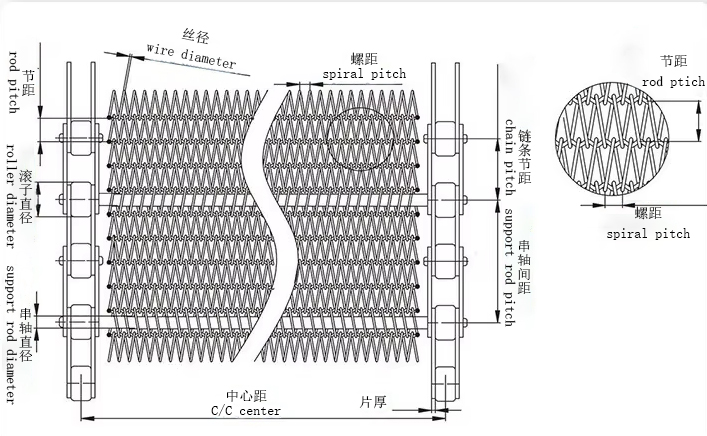

| Specification | Details |
|---|---|
| Item | Chain Link Wire Mesh Conveyor Belt |
| Wire diameter | 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm |
| Cross wire diameter | 1.2 mm – 4.0 mm. |
| Flat wire size | 1.0 mm × 0.7 mm to 6.0 mm × 3.0 mm |
| Spiral pitch | 2.8 mm to 40 mm |
| Rod pitch | 5 mm to 50.8 mm |
| Belt width | 200 mm to 5,000 mm |
| Working temperature | depending on the material (carbon steel 400°C, 304 750°C, 316 800°C, 310s 1000°C) |
| Pitch of roller chain | 12.7mm; 25.4mm; 31.75mm; 38.1mm; 50.8mm and so on |
