Z-Type Conveyor Metal Mesh Belt — Stable Conveying, Durable & Customizable for Industrial Use
Our Z-type conveyor metal mesh belt, also known as flat flex conveyor belt, chocolate conveyor belt or trapezoidal mesh belt, is a high-performance conveying component specially designed for industrial automation conveyor lines. Crafted from high-quality metal wires with precision processing, it integrates stability, durability and flexibility, efficiently meeting the continuous conveying needs of various industries and complex working conditions.
Product Introduction

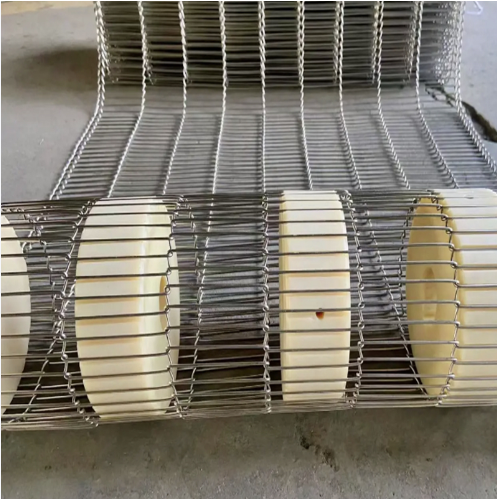

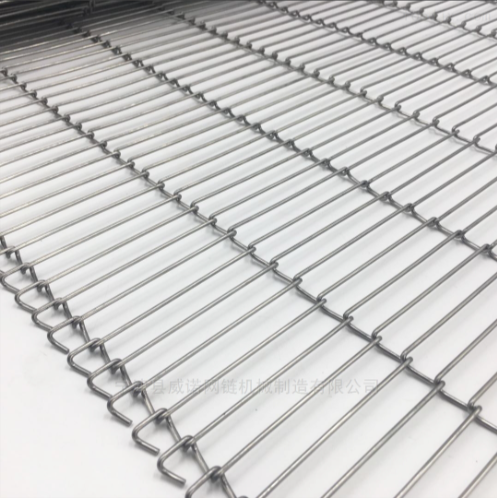

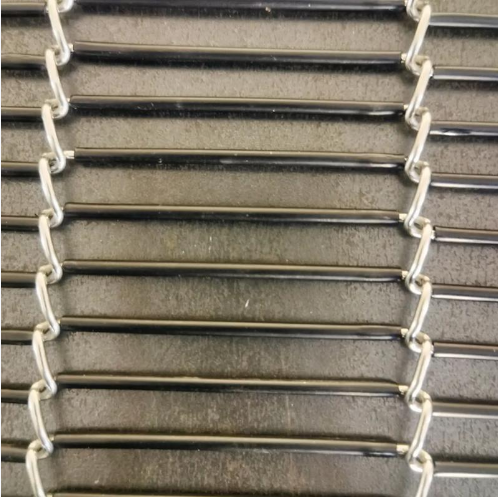

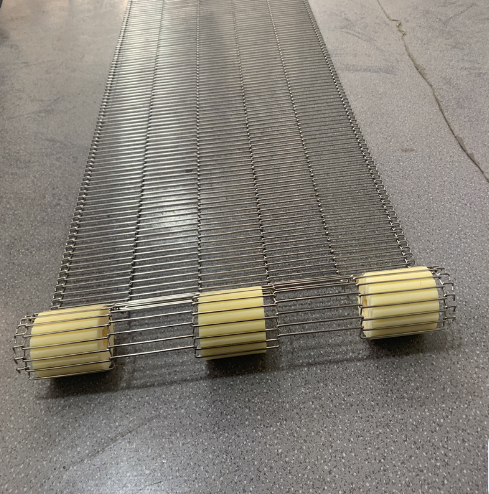

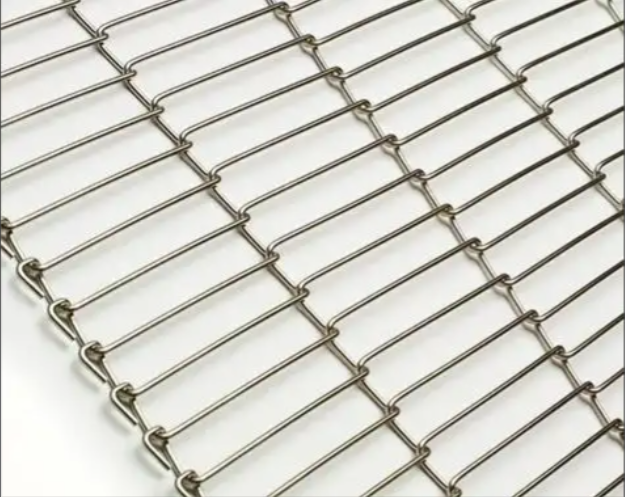

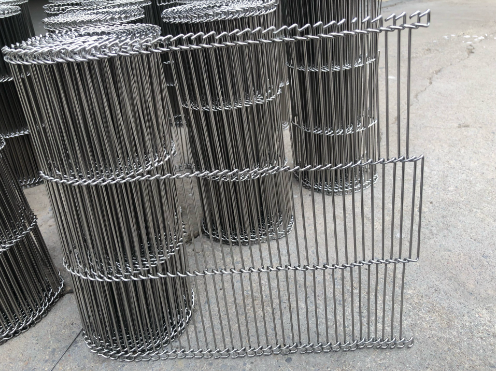

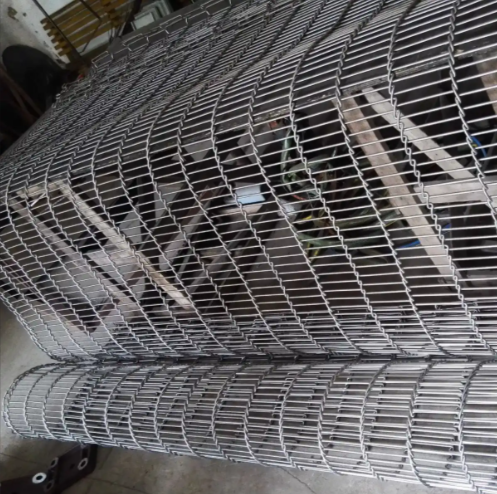

As a professional conveyor mesh belt, the Z-type metal mesh belt adopts a unique Z-shaped loop structure, featuring a lightweight single-layer design and sprocket-driven mode (stainless steel or plastic sprockets optional). This special structure effectively prevents slipping and deviation during high-speed or long-distance conveying, ensuring smooth and stable operation even in harsh environments.
With an opening rate of 70%-85%, the mesh belt offers excellent air permeability and heat exchange performance, making it ideal for conveying processes that require heating, cooling, drying or frying. Its surface is smooth and flat, with uniform tension and flexible rotation, which not only avoids material adhesion but also facilitates cleaning and daily maintenance. Made of high-quality metal materials, it boasts outstanding high-temperature resistance, corrosion resistance and pressure resistance, meeting FDA and food safety standards, and has a long service life to help enterprises reduce equipment replacement costs. It is available in single-edge (standard) and double-edge (special purpose) structures, suitable for both linear and curved conveyor equipment.
Common Specifications
We provide standard specifications and personalized customization services to perfectly match your conveyor equipment and production needs. The common specifications are as follows (customizable according to your drawings or specific requirements):
Material: Stainless Steel 201, 304, 316, 310S, 1Cr18Ni9Ti; Carbon Steel (optional based on working conditions)
Working Temperature: -40°C - 1150°C (varies by material; 304 stainless steel up to 800°C, 310S up to 1150°C)

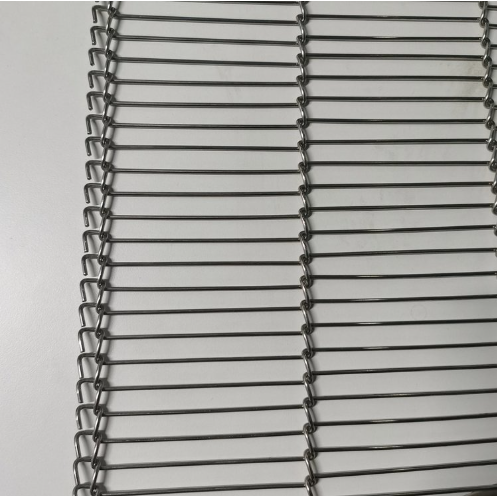

Structure: Single edge (standard), double edge (for special conveying needs)
Applications
With its excellent conveying performance, our Z-type conveyor metal mesh belt is widely used in various industrial fields, especially suitable for conveying light-weight, small-sized or easy-to-adhere products. The main application fields are as follows:
Food Industry: Conveying in baking (bread, biscuits, pizza), frying, freezing (quick-frozen dumplings, glutinous rice balls, seafood), drying, chocolate coating, candy processing, fruit and vegetable sorting, nut and snack production lines (perfectly suitable for artisanal and large-scale food processing).
Electronic Industry: Conveying and processing of PCB boards (curing, soldering, reflow soldering), electronic component cooling and conveying, SMT patch conveying lines.
Other Industries: Printing and dyeing industry (fabric conveying and drying), glass industry (annealing conveying), ceramic industry (sintering conveying), powder metallurgy, auto parts drying, pharmaceutical processing, coating and wrapping equipment, as well as scientific research and experimental units.
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of the Z-type loop structure?
The Z-shaped loop structure ensures positive drive when paired with sprockets. This prevents belt slippage, misalignment, and tracking issues even during high-speed or heavy-duty conveying processes.
Q2: Are Z-type metal mesh belts suitable for direct food contact?
Yes. Made from high-grade stainless steel like 304 or 316, our Z-type belts meet FDA and general food safety standards, making them highly sanitary and perfect for baking, frying, and chocolate coating.
Q3: What temperature range can these metal conveyor belts handle?
Depending on the material selected, the working temperature ranges from -40°C up to 1150°C. Standard 304 stainless steel handles up to 800°C, while high-grade 310S can go up to 1150°C for sintering or baking applications.
Q4: Why does the Z-type conveyor belt have a high opening rate?
With an opening rate of 70%-85%, it allows excellent air flow, fluid drainage, and heat distribution. This is highly beneficial for industrial cooling, heating, drying, frying, and coating processes.
Q5: Can I request customized dimensions for my conveying system?
Absolutely. We offer customized wire diameters (0.9mm - 3.5mm), pitch dimensions (4mm - 30mm), and belt widths (10mm - 3600mm) based on your specifications or technical engineering drawings.
Q6: What is the difference between single edge and double edge structures?
Single edge is the standard design for straightforward conveying. Double edge provides extra reinforcement and is typically used for heavy-duty, fast-speed, or curved conveying configurations.
