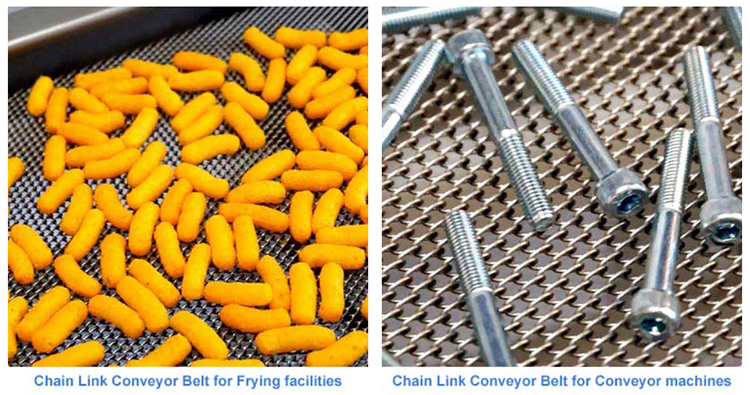

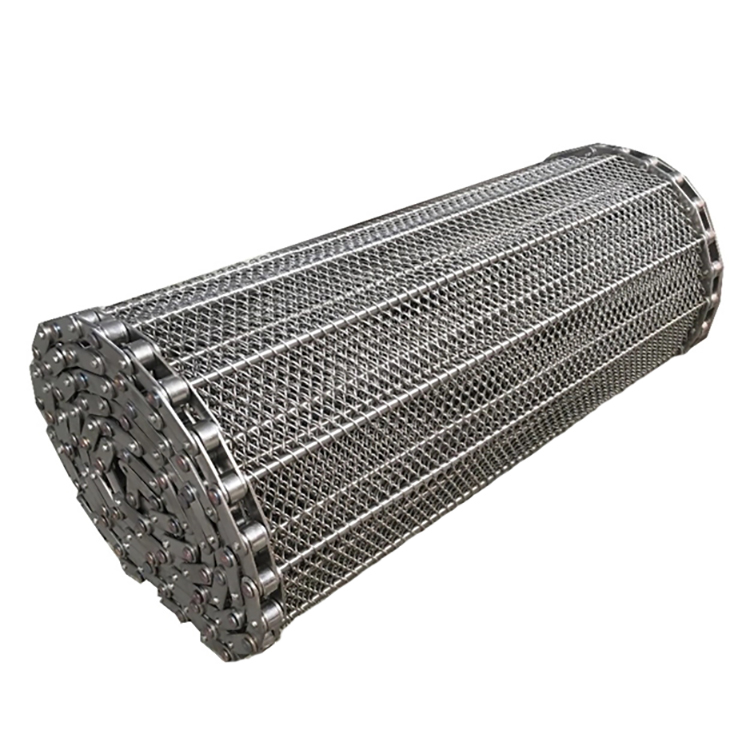

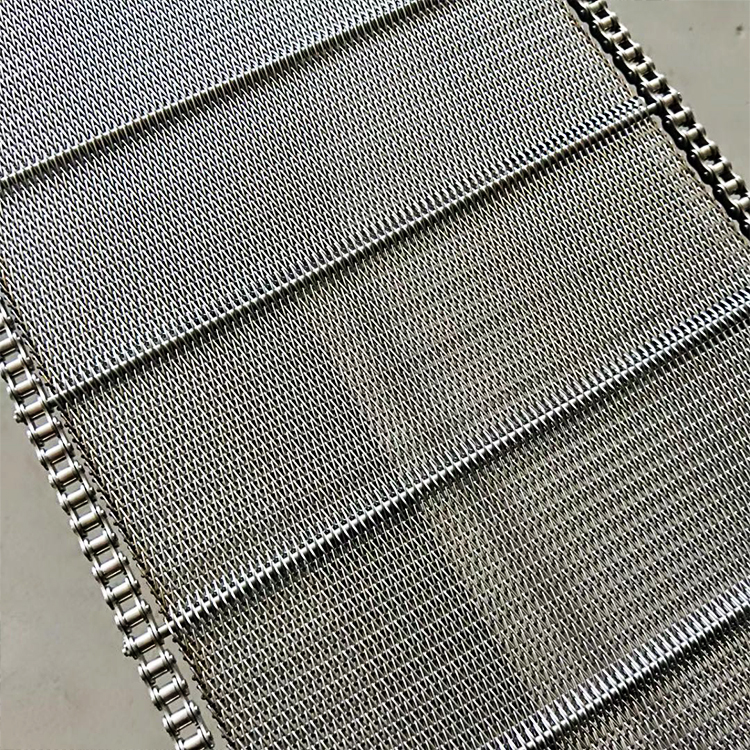

Chain Link Conveyor Belt, also named wire mesh belt or conventional mesh belt. Chain Link belt features a simplistic design, where successive spiral coils are interwoven to create an open mesh. Chain Link can be supplied with the edges either knuckled or welded. By keeping the belt design simple yet functional, our Chain Link belt offers end-users an economic and lightweight solution, suitable for light duty use in baking, washing, drying and cooling applications.
Chain link conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing. This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications. Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is the most important.

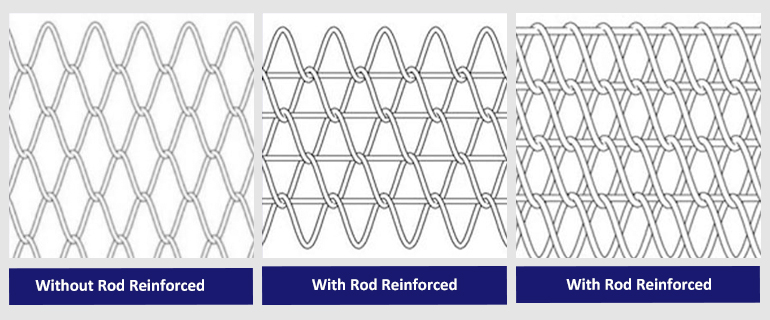

1) Belt Type

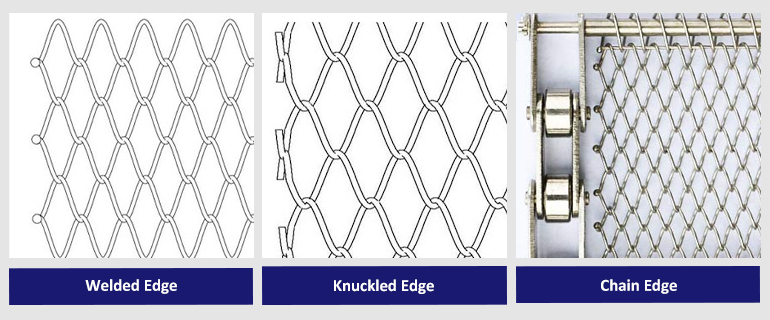

2) Edge Availability
3) Material Availability
| Material | Maximum Wire Operating Temperature °C |
|---|---|
| Carbon Steel | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum (3% Chrome) | 700 |
| 304 Stainless Steel | 750 |
| 321 Stainless Steel | 750 |
| 316 Stainless Steel | 800 |
| 316L Stainless Steel | 800 |
| 314 Stainless Steel | 1120 |
| 37/18 Nickel Chrome | 1120 |
| 80/20 Nickel Chrome | 1150 |
| Inconel 600 | 1150 |
| Inconel 601 | 1150 |
4) Specifications

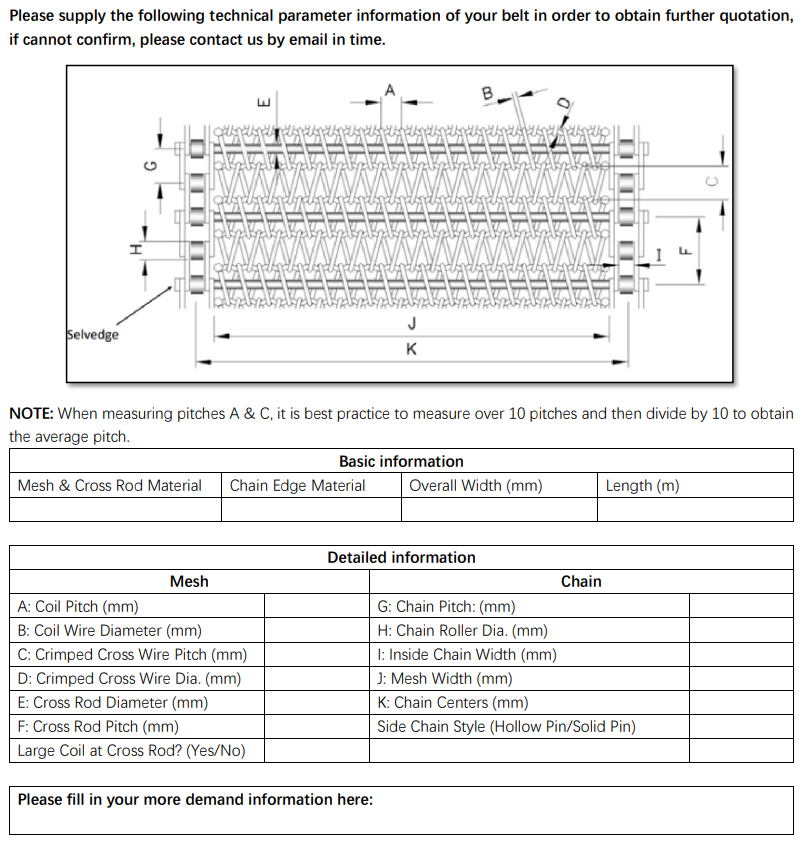

Enquiry Form of Chain Link Conveyor Belt

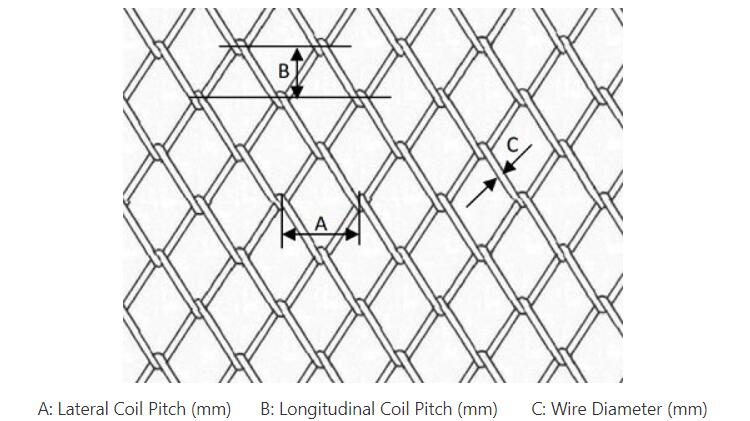

Specifications of Chain Link Belt Without Rod Reinforced
These are designed to suit the customer requirements but in general are available in lateral coil wire pitches varying from 5.08mm to 25.4mm, combined with a variety of wire diameters and longitudinal pitches to suit the application.

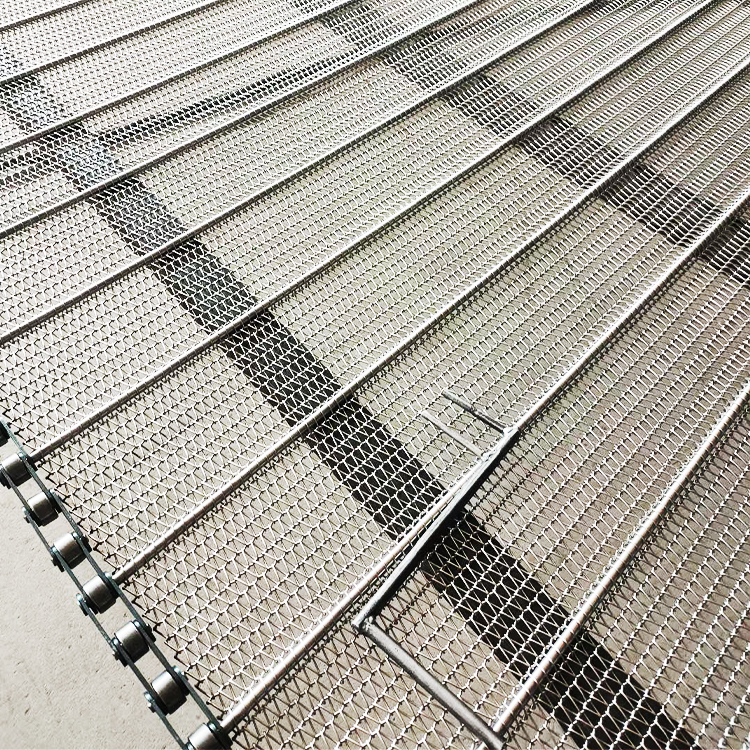

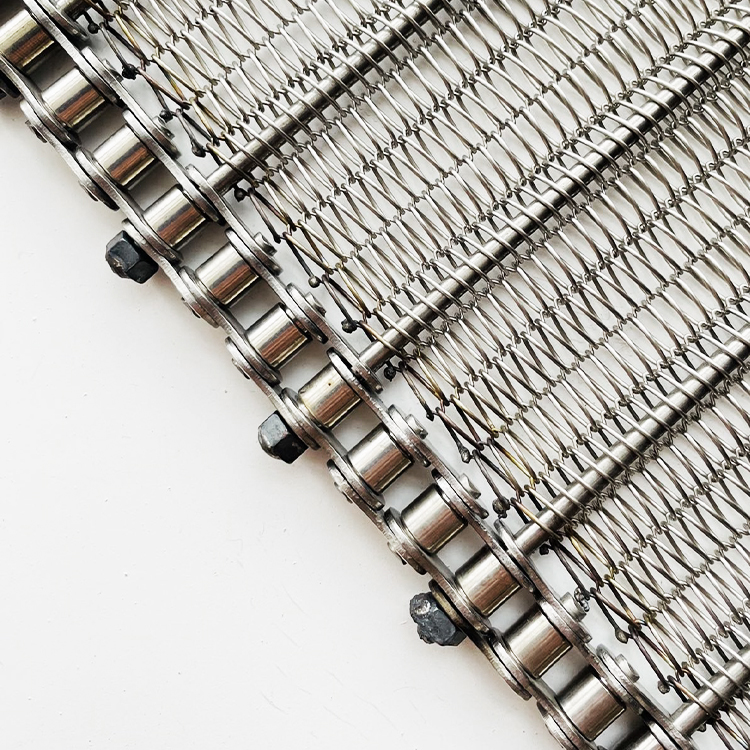

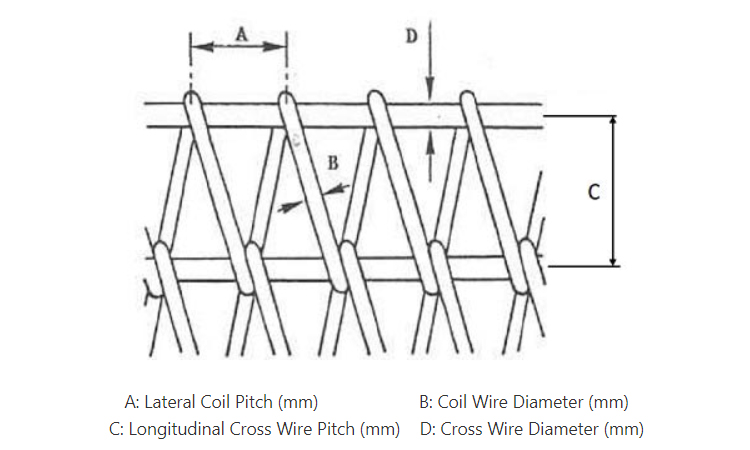

Specifications of Chain Link Belt With Rod Reinforced
| Specifications of Chain Link Belt With Rod Reinforced | |||
|---|---|---|---|
| Lateral Coil Pitch (mm) | Coil Wire Diameter (mm) | Longitudinal Cross Wire Pitch (mm) | Cross Wire Diameter (mm) |
| 16.93/15.24 | 2.03 | 16.93/19.05 | 2.64 |
| 2.64 | 2.95 | ||
| 2.95 | 3.25 | ||
| 3.25 | 4.06 | ||
| NOTE: Custom specification is available if you can't find the suitable size. | |||

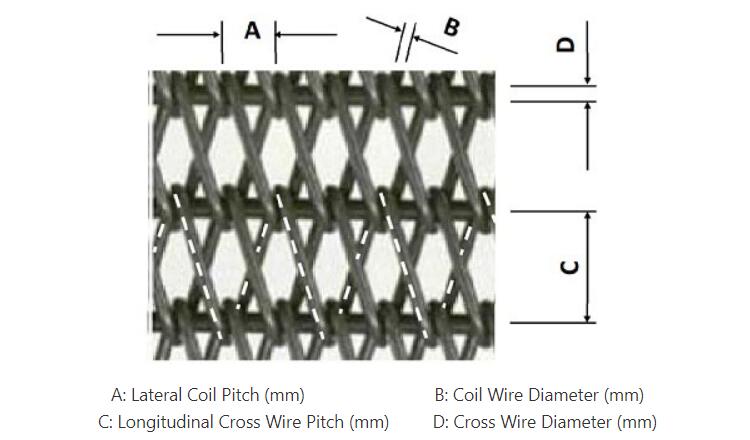

Specifications of Chain Duplex Link Belt With Rod Reinforced
| Specifications of Chain Duplex Link Belt With Rod Reinforced | |||
|---|---|---|---|
| Lateral Coil Pitch (mm) | Coil Wire Diameter (mm) | Longitudinal Cross Wire Pitch (mm) | Cross Wire Diameter (mm) |
| 8.47 | 2.03 | 16.93/19.05 | 2.64 |
| 2.64 | 2.95 | ||
| 2.95 | 3.25 | ||
| 3.25 | 4.06 | ||
| 5.08 | 2.03 | 10.16 | 2.64 |
| NOTE: Custom specification is available if you can't find the suitable size. | |||
