Customized Stainless Steel 304 316 Conveyor Belts Plate Link Conveyor Belt

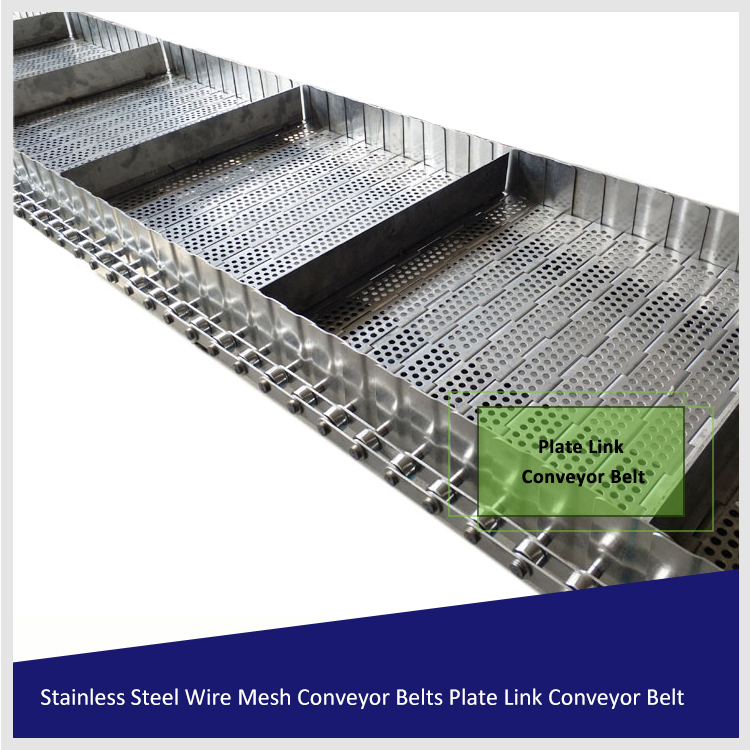

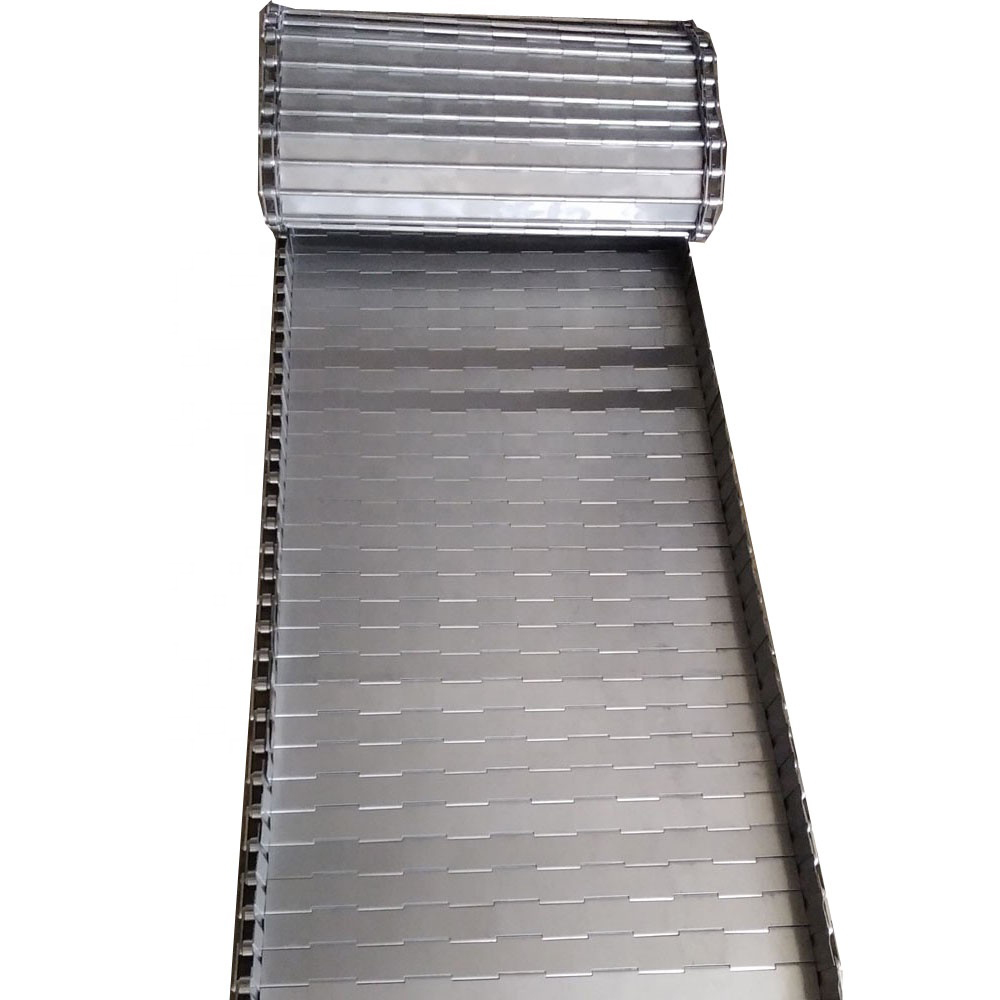

1. Plate Link Conveyor Belts Overview

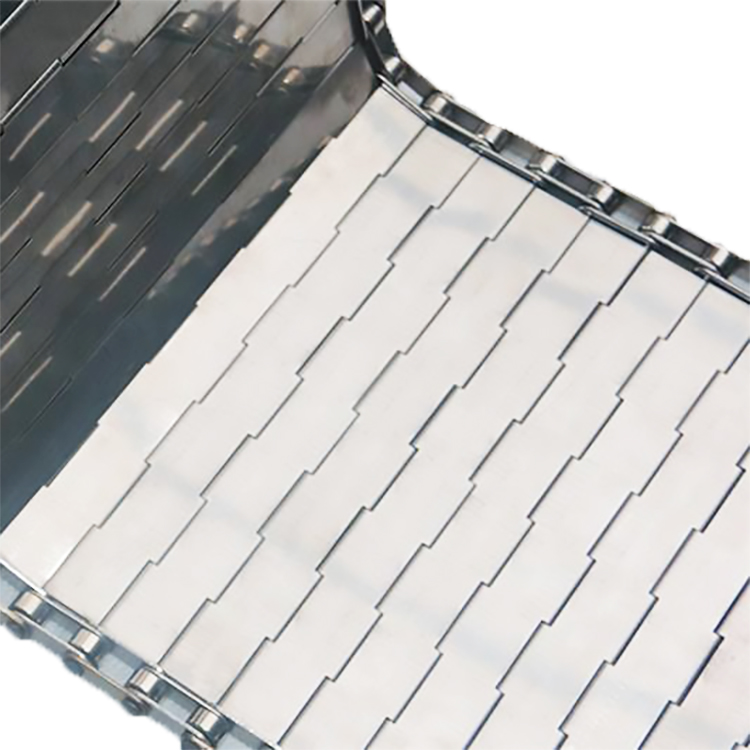

Plate Link Conveyor Belt is very strong, driven by stainless steel chain, made of stainless steel plate, and very suited to heavy load applications, running smoothly in the conveying process, easy to install and replace, and long in service life. Its self-supporting structure makes it be used over large widths without any support. The Plate Link belt features an extremely robust design and high load capacity, making it the perfect choice for arduous engineering processes such as presswork, die-casting and forging.

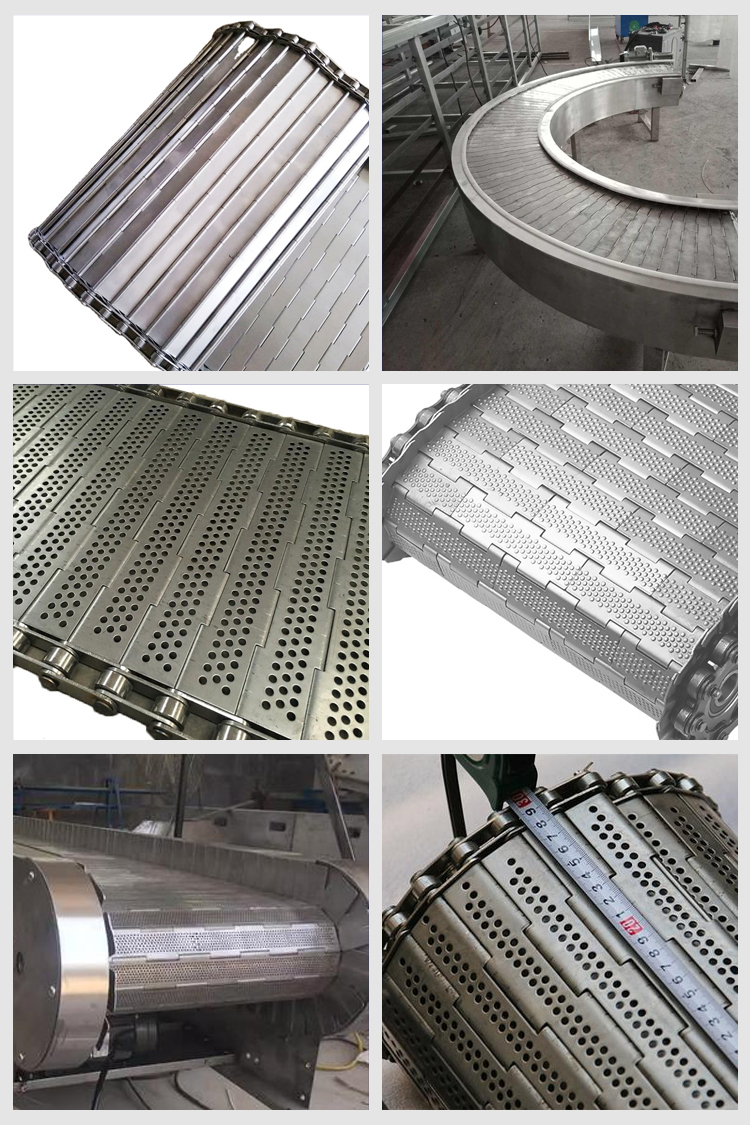

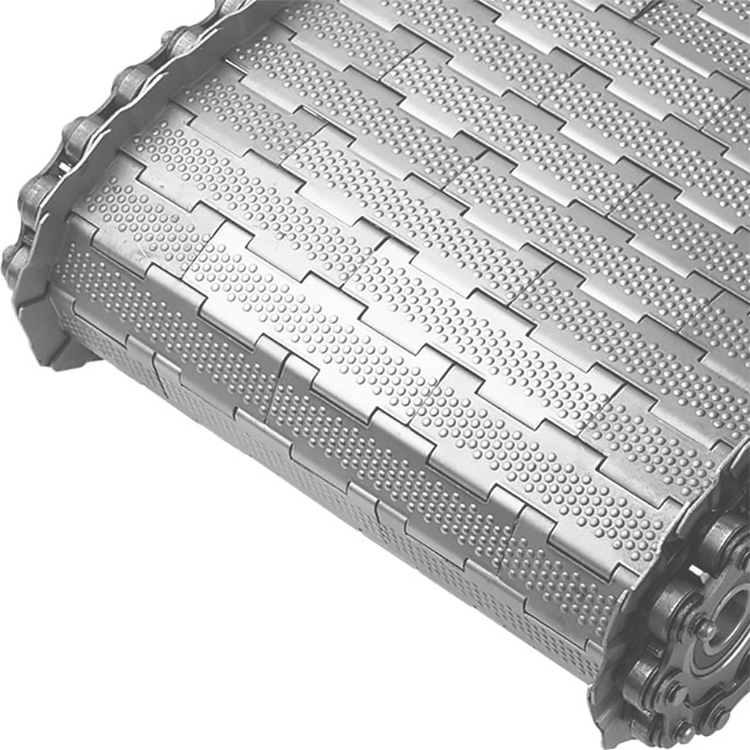

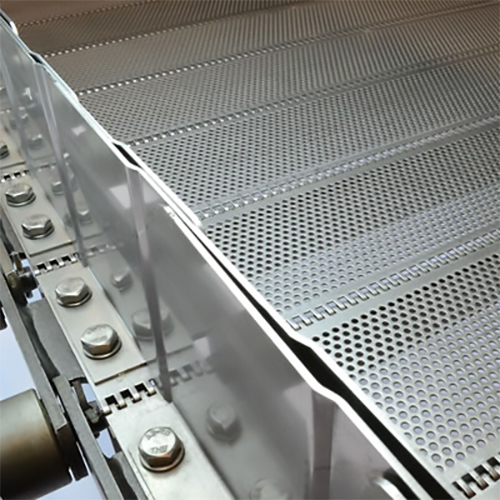

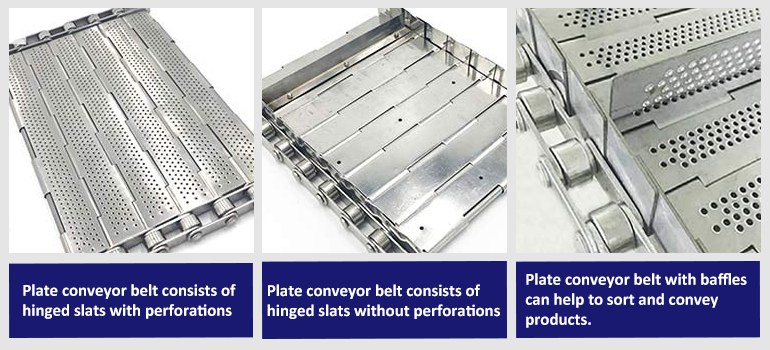

Plate conveyor belt consists of hinged slats with or without perforations. Perforated plate belt is ideal for drainage conveyor system. The size of perforation range can be custom, its possibility to have of al kinds of perforations to fit the product production line.

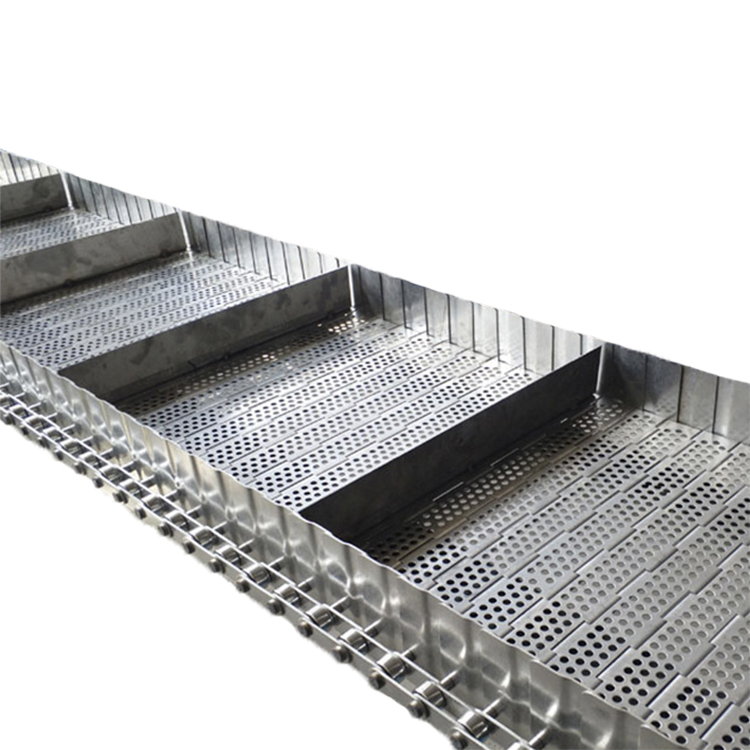

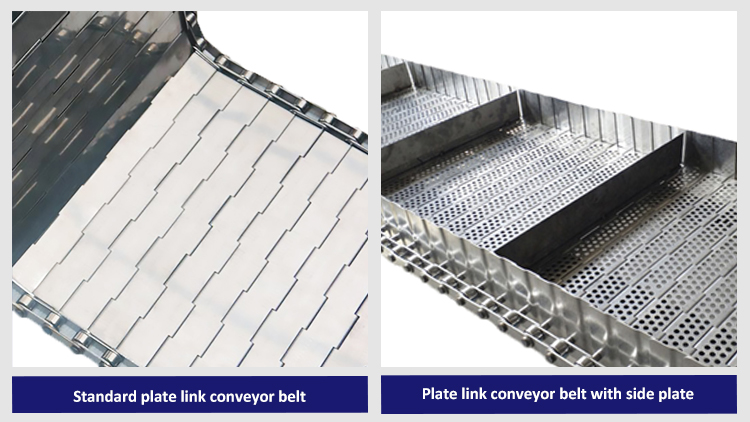

Hinged plate belts have side plates and cross flights in various combinations of height and thickness to suit different customers' requirements. They can satisfy light to heavy load capacity. Chain edge plate belts are also available in side plates and cross flights. The chains at both ends can be fixed with cotter pins or washers, which are convenient to disassemble and maintain.

The link plate belts are tailor made and can be executed with pitches in almost any width and length and plate thickness. The link plate belt is positively driven by sprockets, and can be used at conveyor speeds of less than about 120 meters per minute.

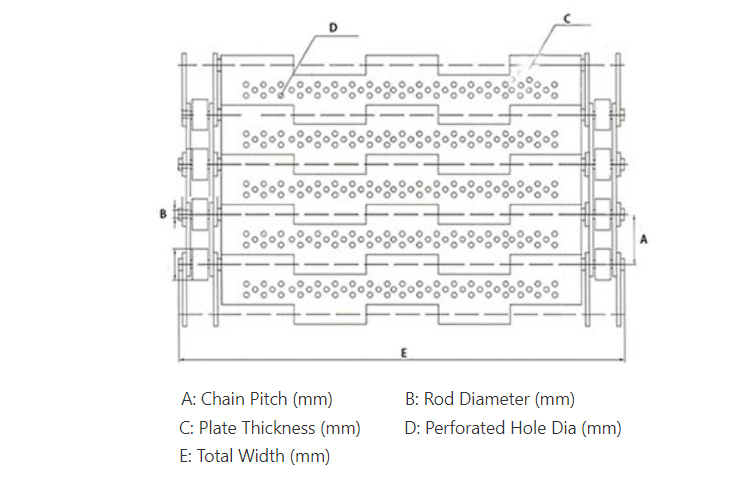

2. Plate Link Conveyor Belts Specification

The plate link conveyor belt can be made of steel, stainless steel AISI 304, AISI 316 or others, have superior corrosive resistance to suit most applications at elevated temperature.

3. Plate Link Conveyor Belts Features

Plate conveyor belt advantages:

• Temperature resistance, which can be used in production processes with temperatures of -30ºC to +600ºC in food and other industries.
• Corrosion and rust resistance make it possible be used in the corrosive environments.
• The baffles can be added onto the belt for convenient sorting and conveying.
• The side guards can be added onto the belt to prevent products from spillage.
• Chain link edge can ensure the smooth and high efficiency working.
• Curved perforated plate conveyor belt is available to suit more applications and equipment.
• Suitable for arduous engineering processes such as press work, die-casting and forging.
• Link plate belt needs minimal maintenance and will have a working life of many years.

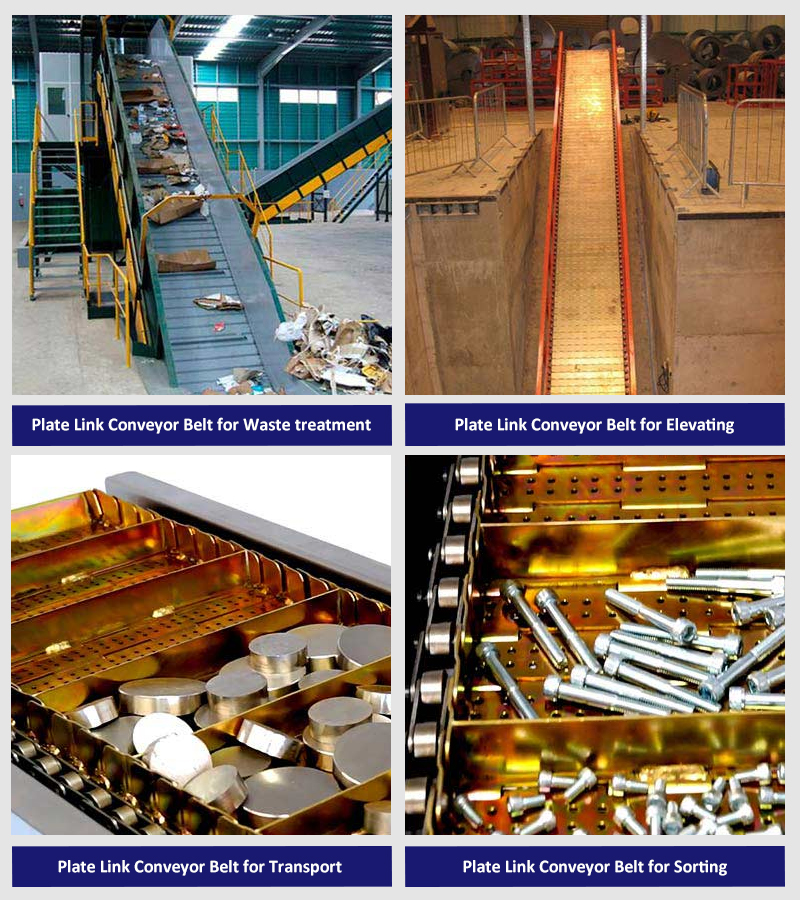

4. Plate Link Conveyor Belts Applications

Applications of plate link conveyor belt:

• Cooling systems
• Washing systems
• Waste treatment systems
• Blanching systems
• Sieving systems
• Drying systems
• Sorting systems
• Bread production systems
• Product handling systems
• Transport systems
• Drainage systems
• Elevating systems
• De-Elevating systems
