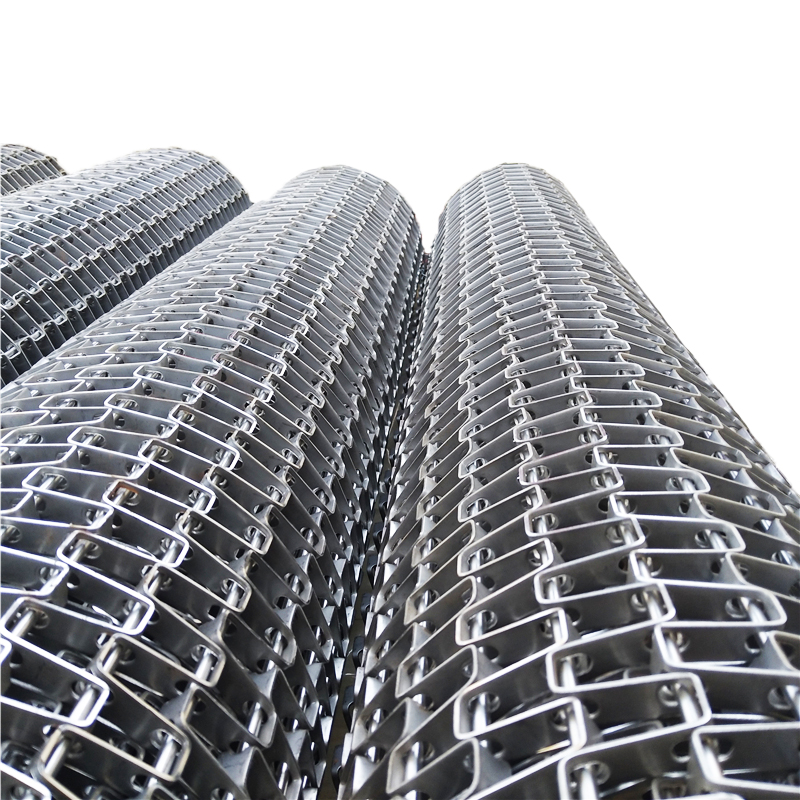

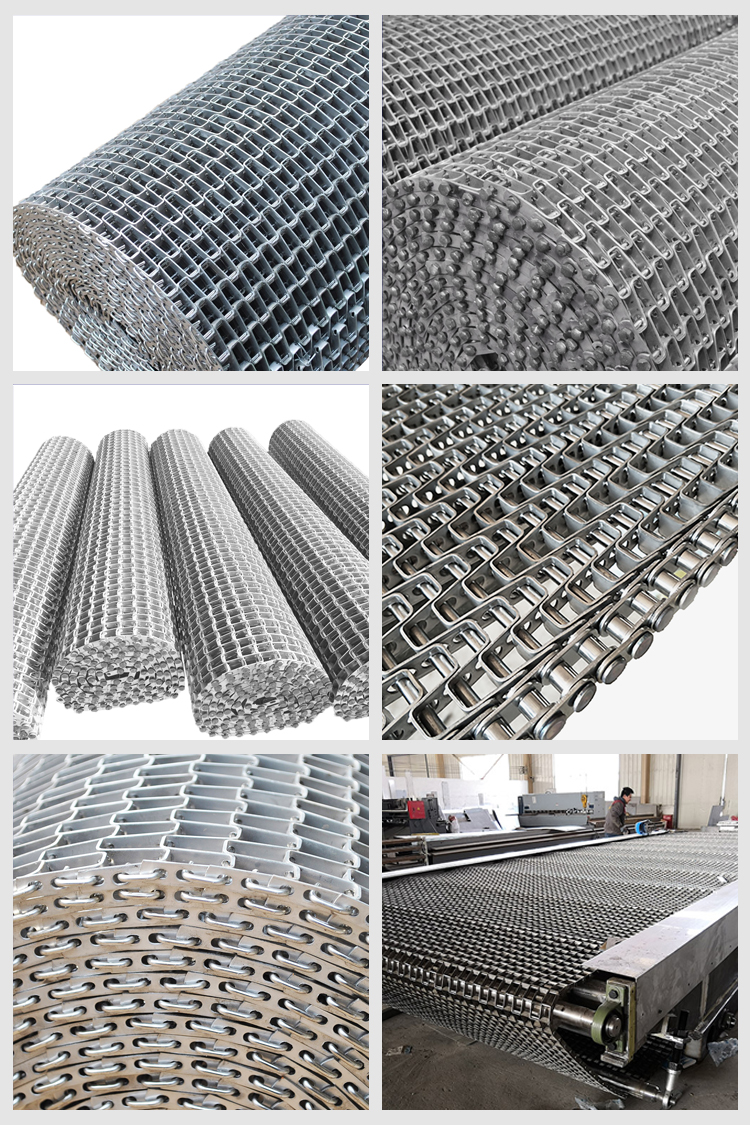

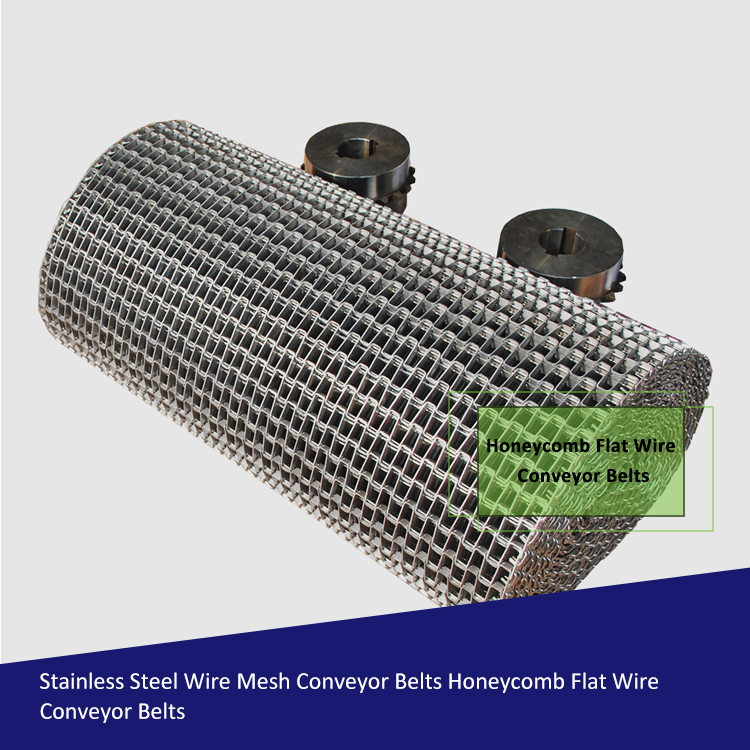

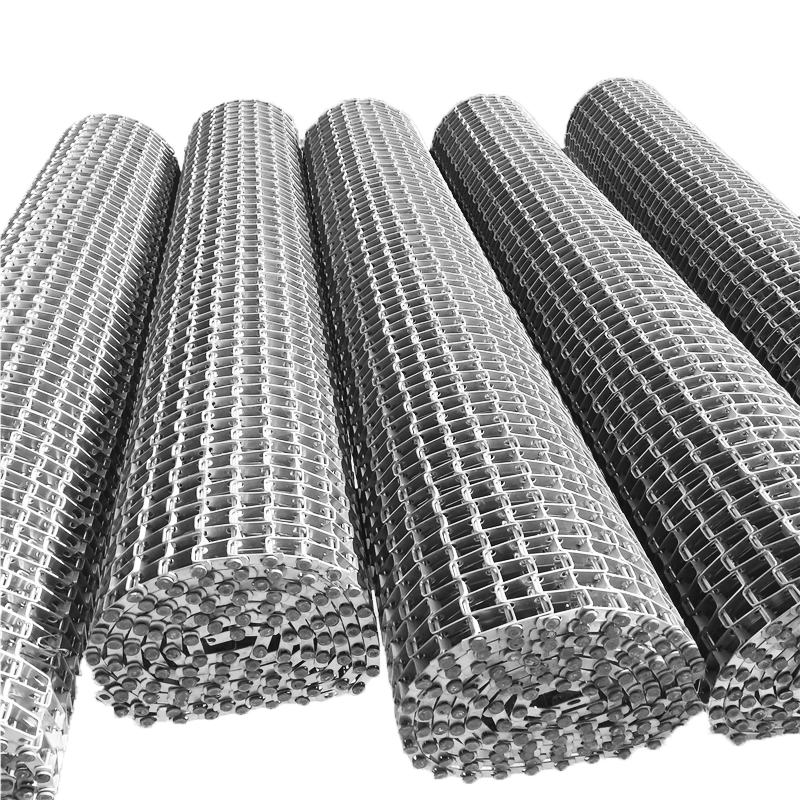

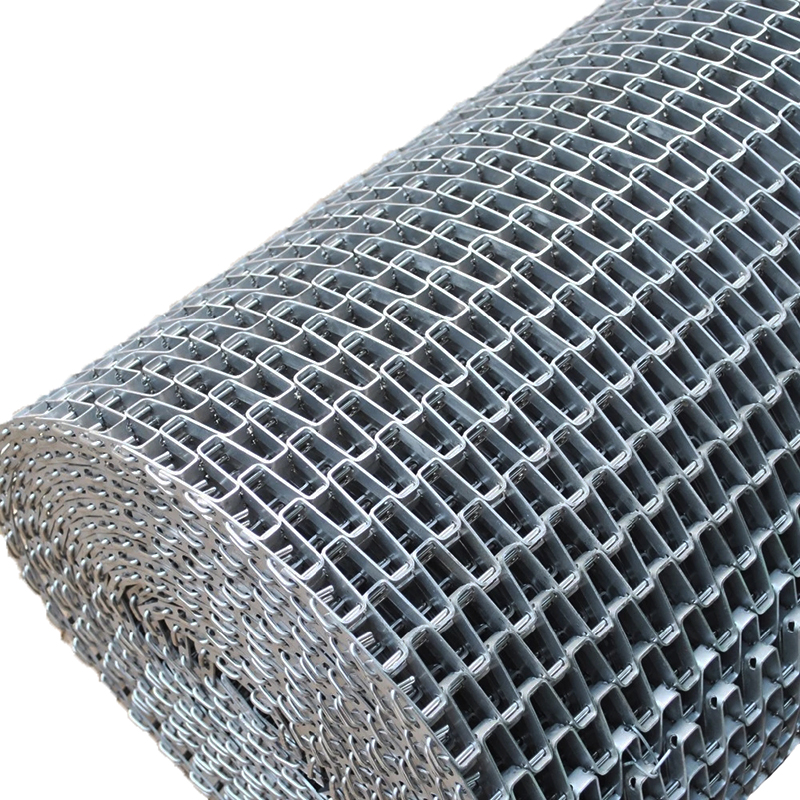

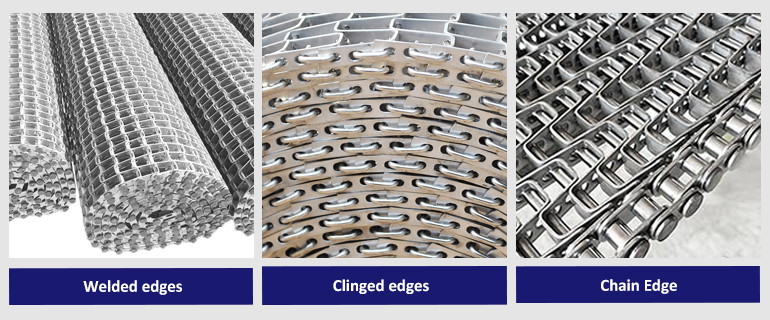

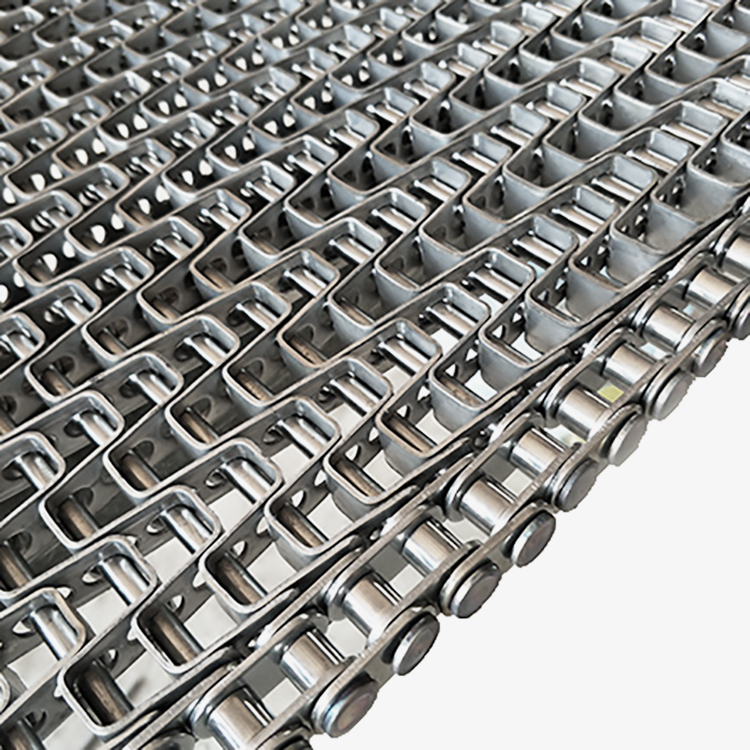

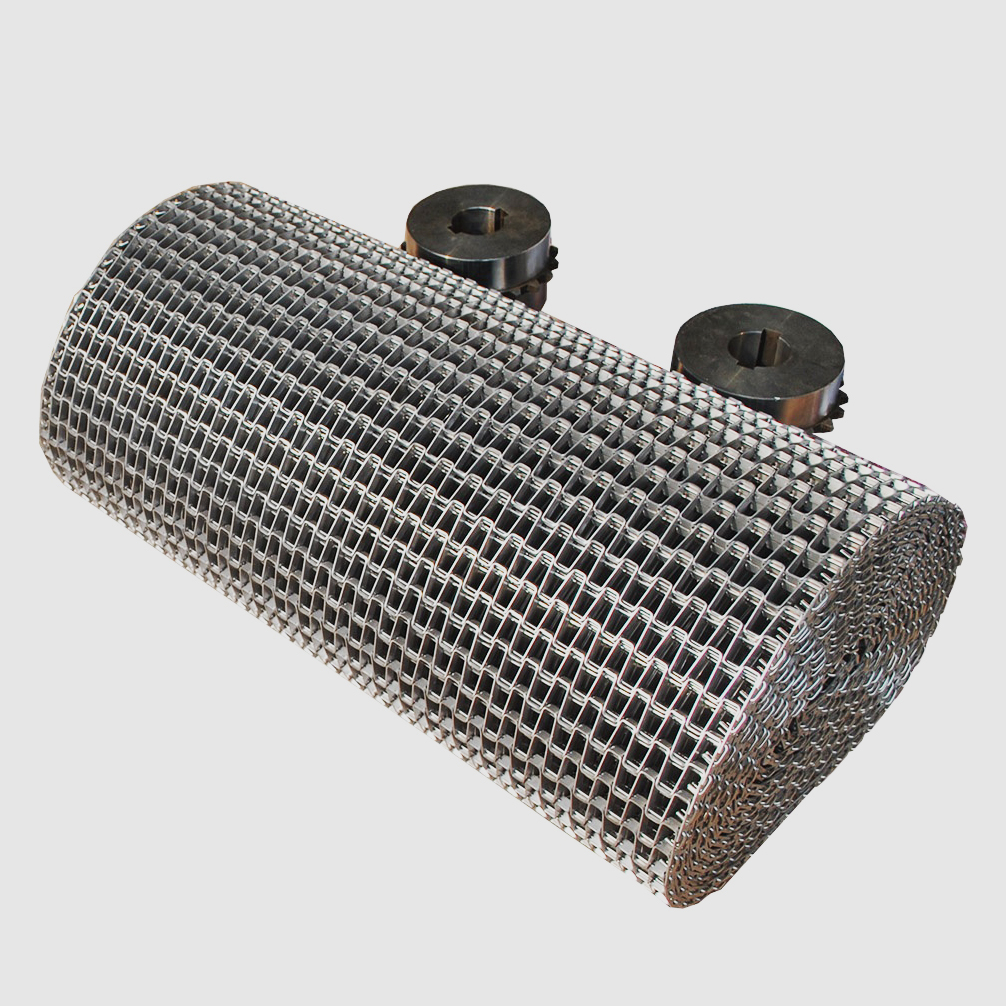

Honeycomb conveyor belt, also called flat wire conveyor belt. The honeycomb belt is constructed of cross rods and a flat metal strip. At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge. There are a number of predefined belt executions with different pitches and material dimensions. The belt can also be provided with side plates or flights. The flat wires are arranged in the form of lattice and jointed with the straight round rods. The material of flat wire belt are commonly high carbon steel, galvanized steel, stainless steel and other materials.
Manufacturing of Honeycomb Conveyor Belts began in 1987, and they are still among the most versatile and most economical straight-running belts available.
Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.
The Honeycomb belts is standard made of mild steel, galvanised mild steel, stainless steel AISI 304 and AISI 316. The belt needs minimal maintenance and will have a working life of many years, if used well.

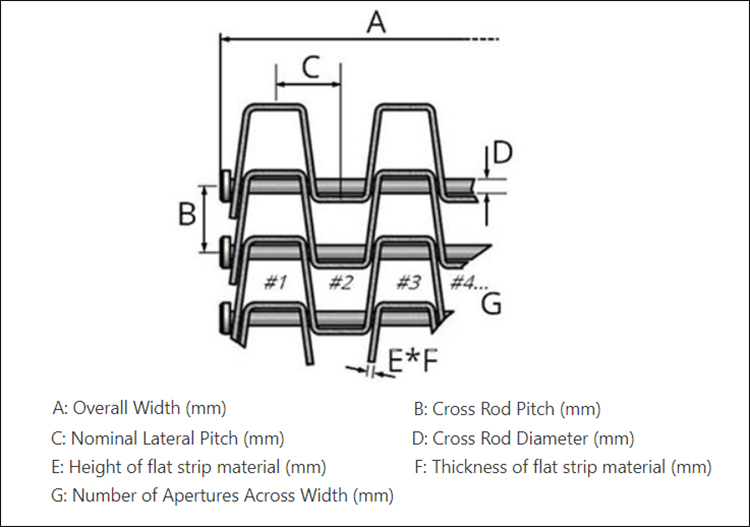

| Specifications of Honeycomb conveyor belt | ||||
|---|---|---|---|---|
| Item No. | Cross Rod Pitch (mm) | Nominal Lateral Pitch (mm) | Flat Strip (mm) | Cross Rod (mm) |
| H CB01 | 13.7 | 14.6 | 10x1 | 3 |
| H CB02 | 26.2 | 15.55 | 12x1.2 | 4 |
| H CB03 | 27.4 | 15.7 | 9.5x1.25 | 3 |
| H CB04 | 27.4 | 24.7 | 9.5x1.25 | 3 |
| H CB05 | 28.6 | 15 | 9.5x1.25 | 3 |
| H CB06 | 28.6 | 26.25 | 9.5x1.25 | 3 |
| H CB07 | 28.4 | 22.5 | 15x1.2 | 4 |
| NOTE: Custom specification is available if you can't find the suitable size. | ||||

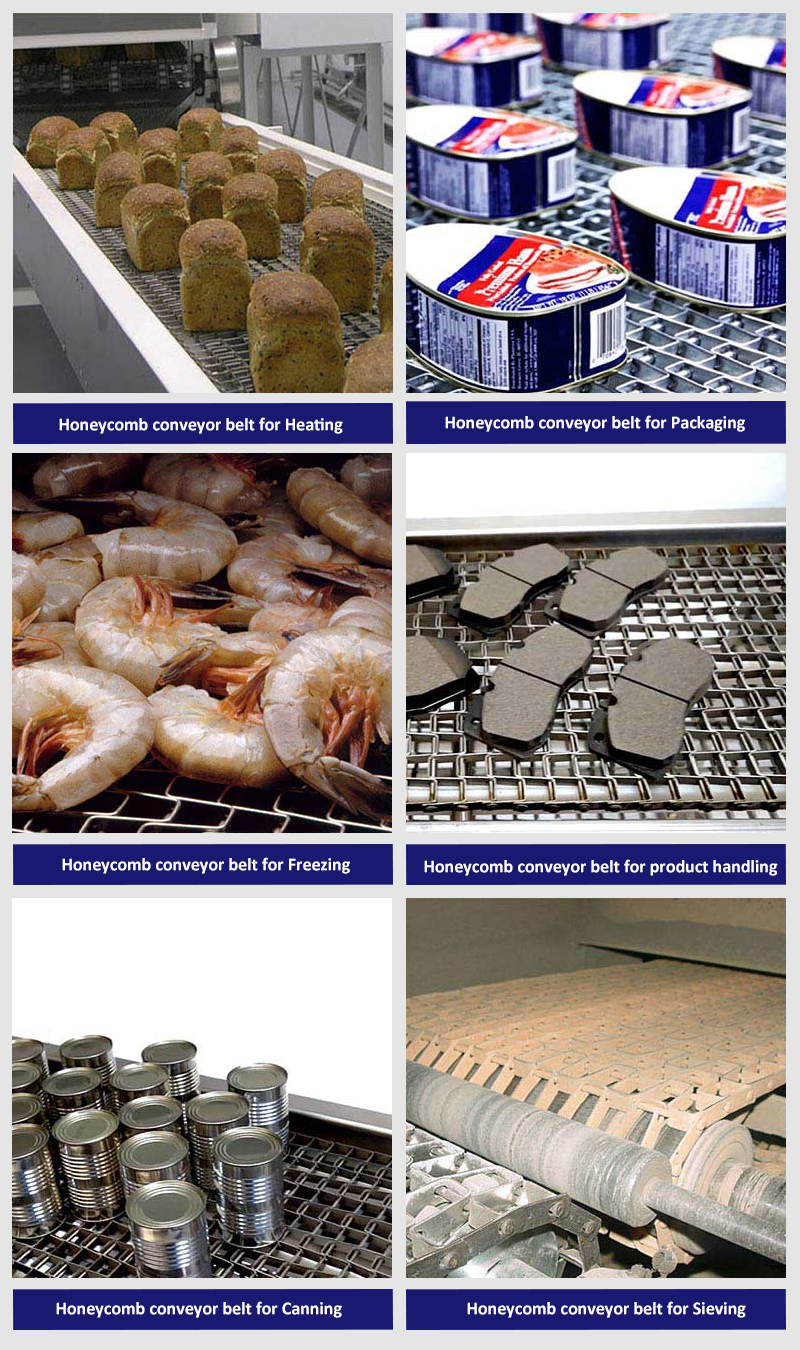

The Honeycomb belts, with high temperature resistance, large open area, flat surface is widely used in the following applications.
