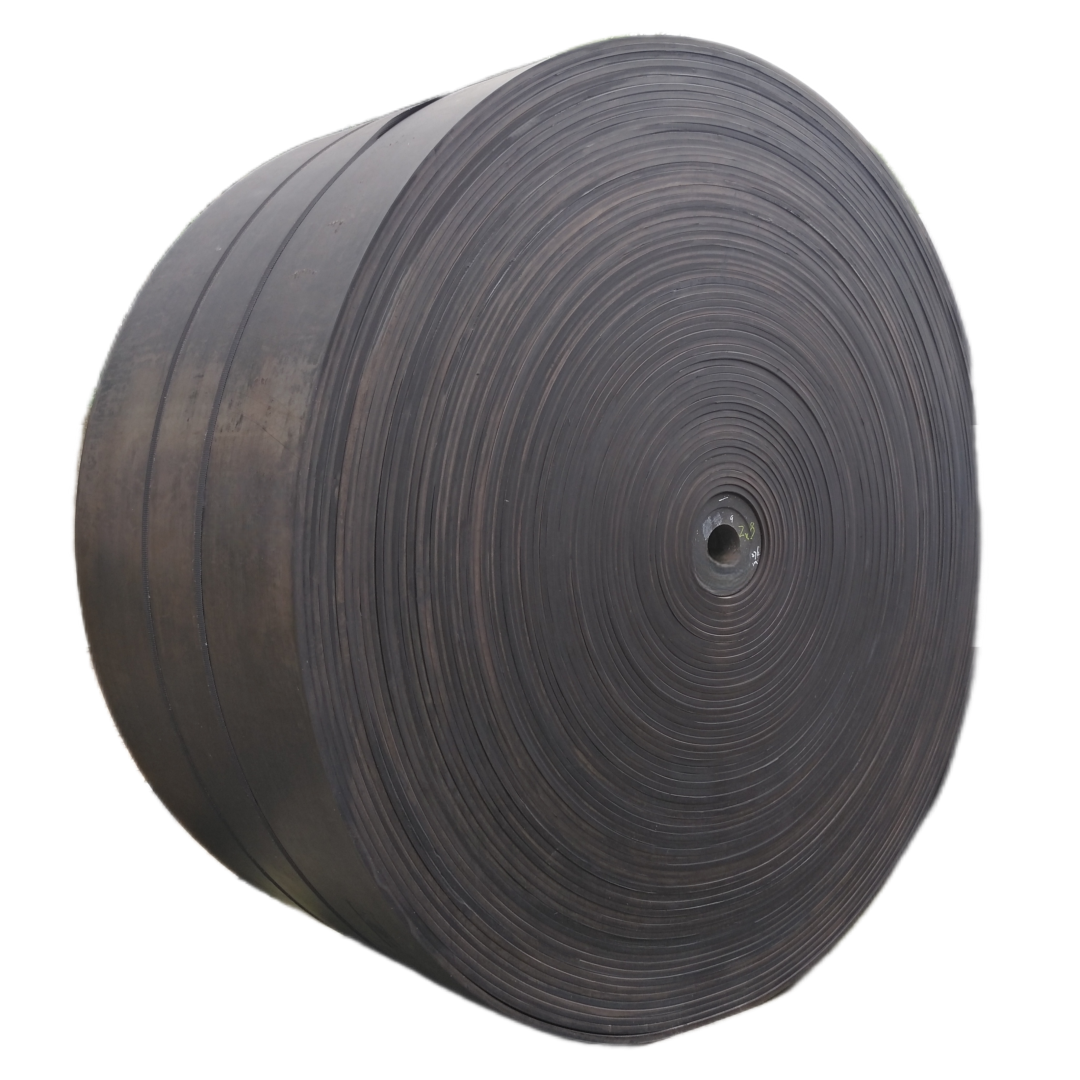

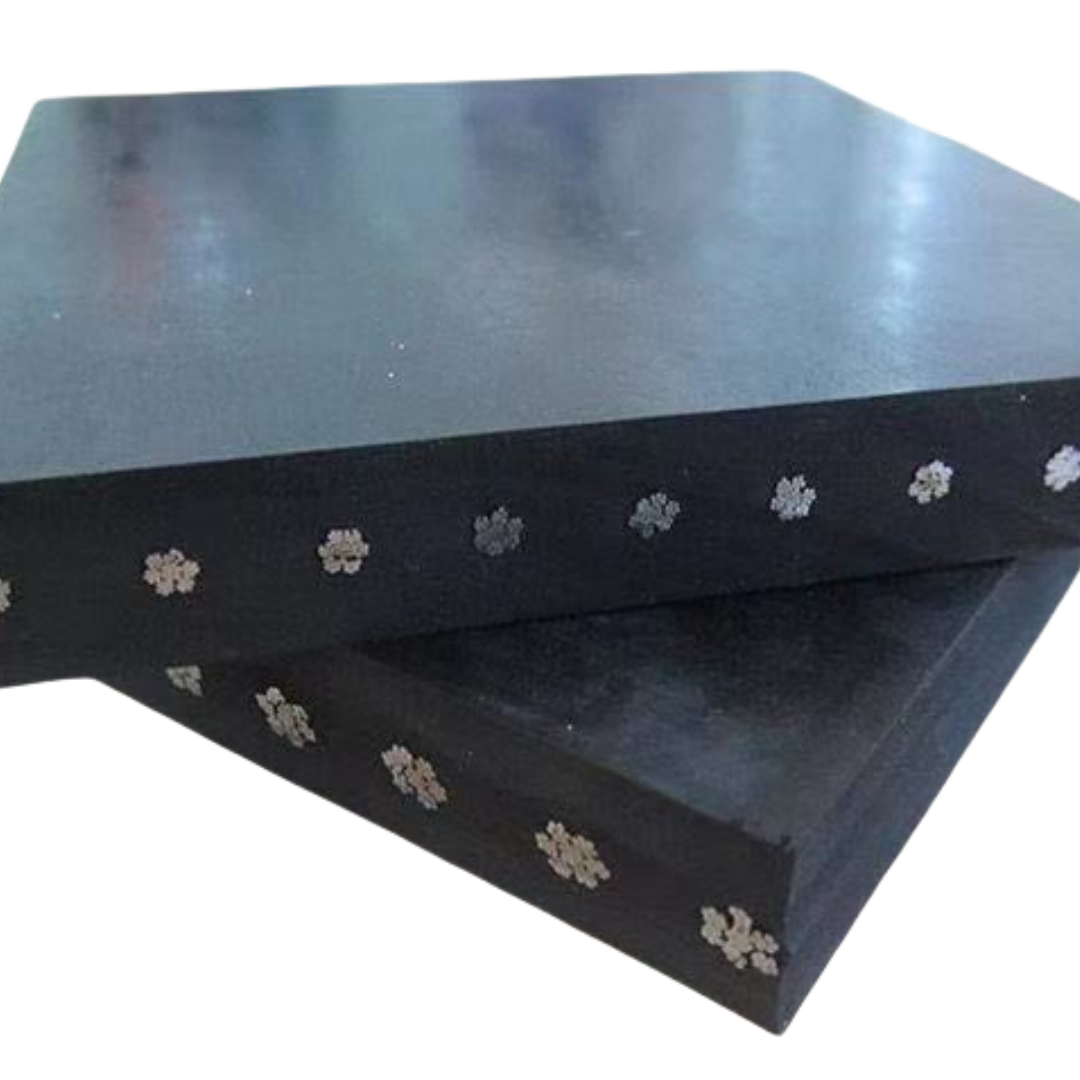

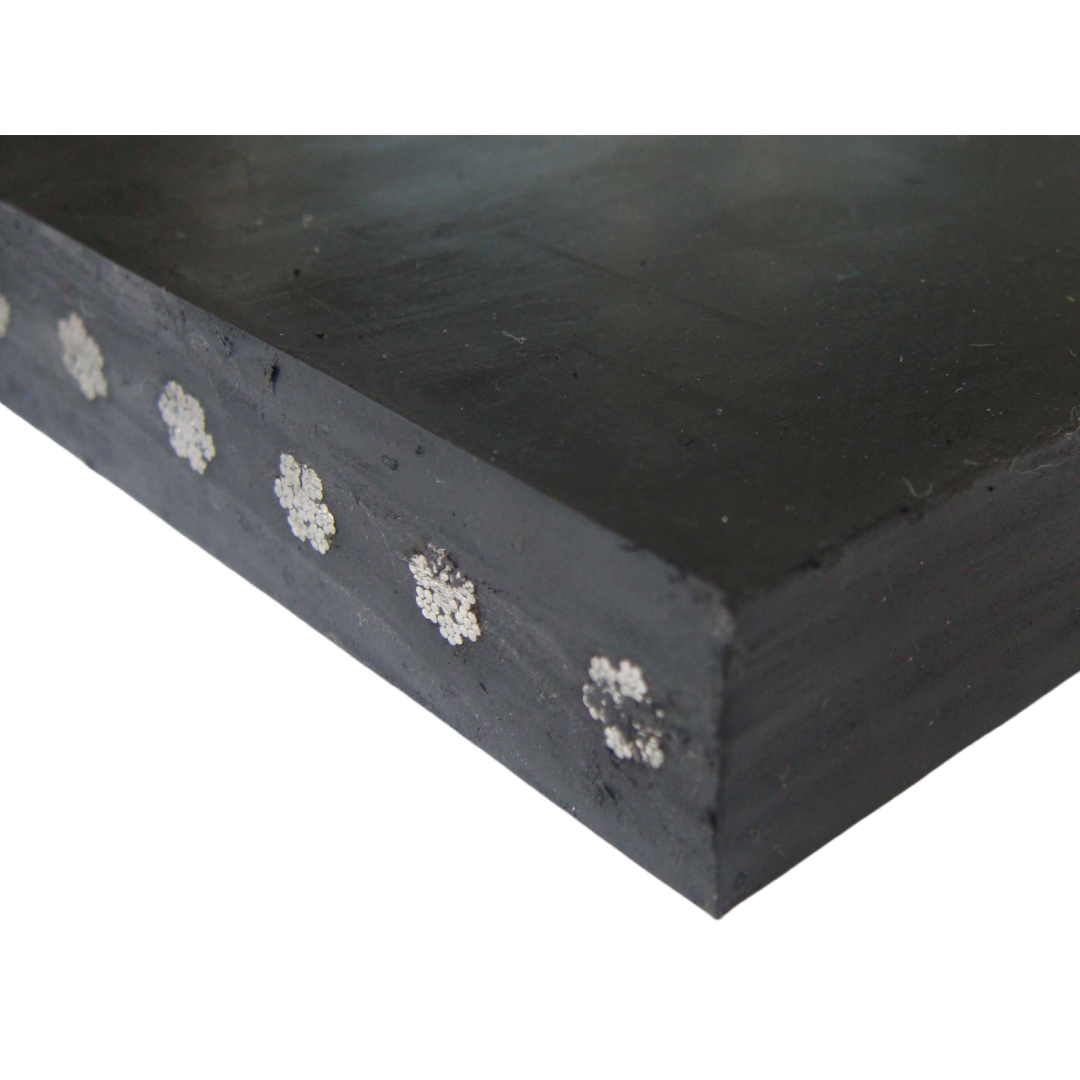

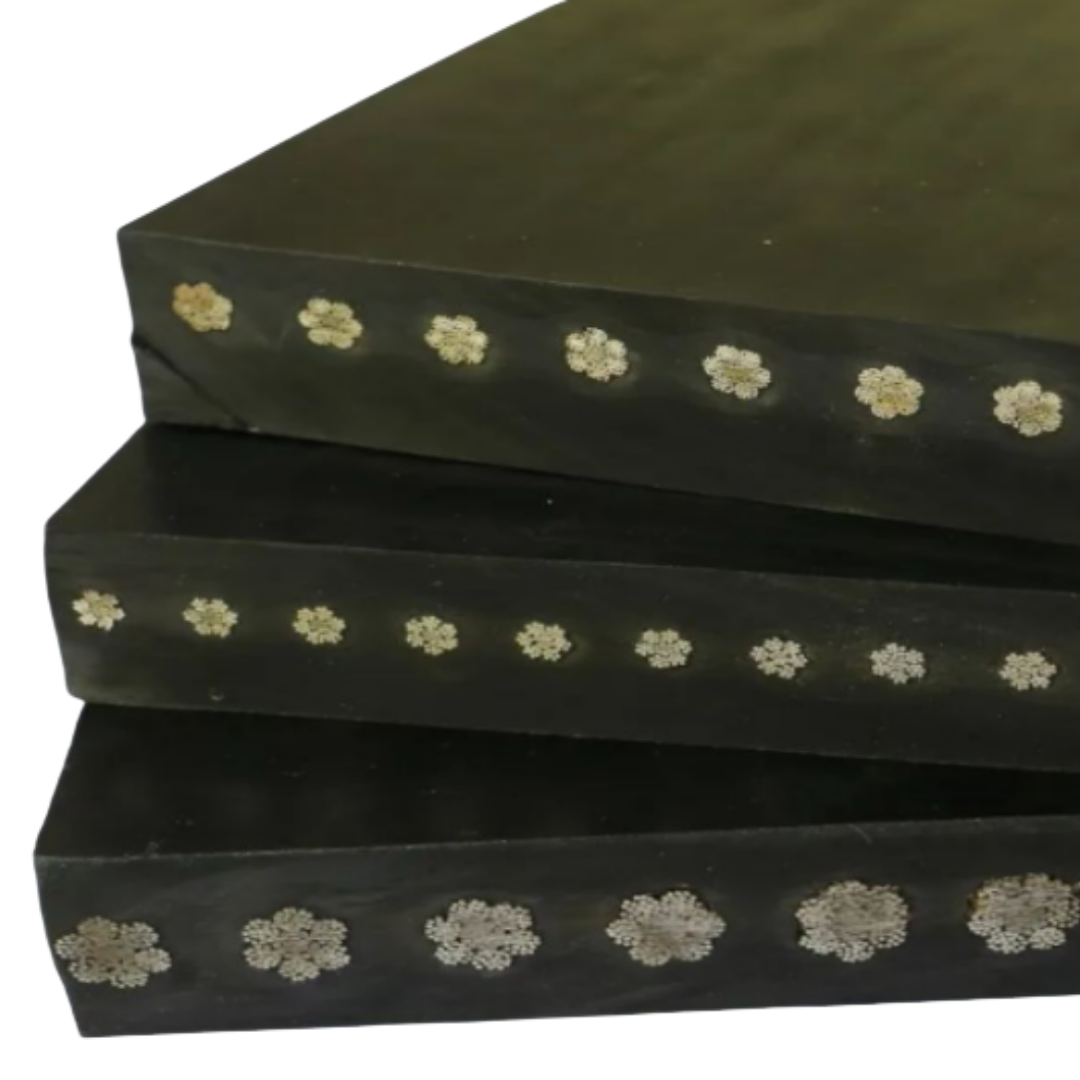

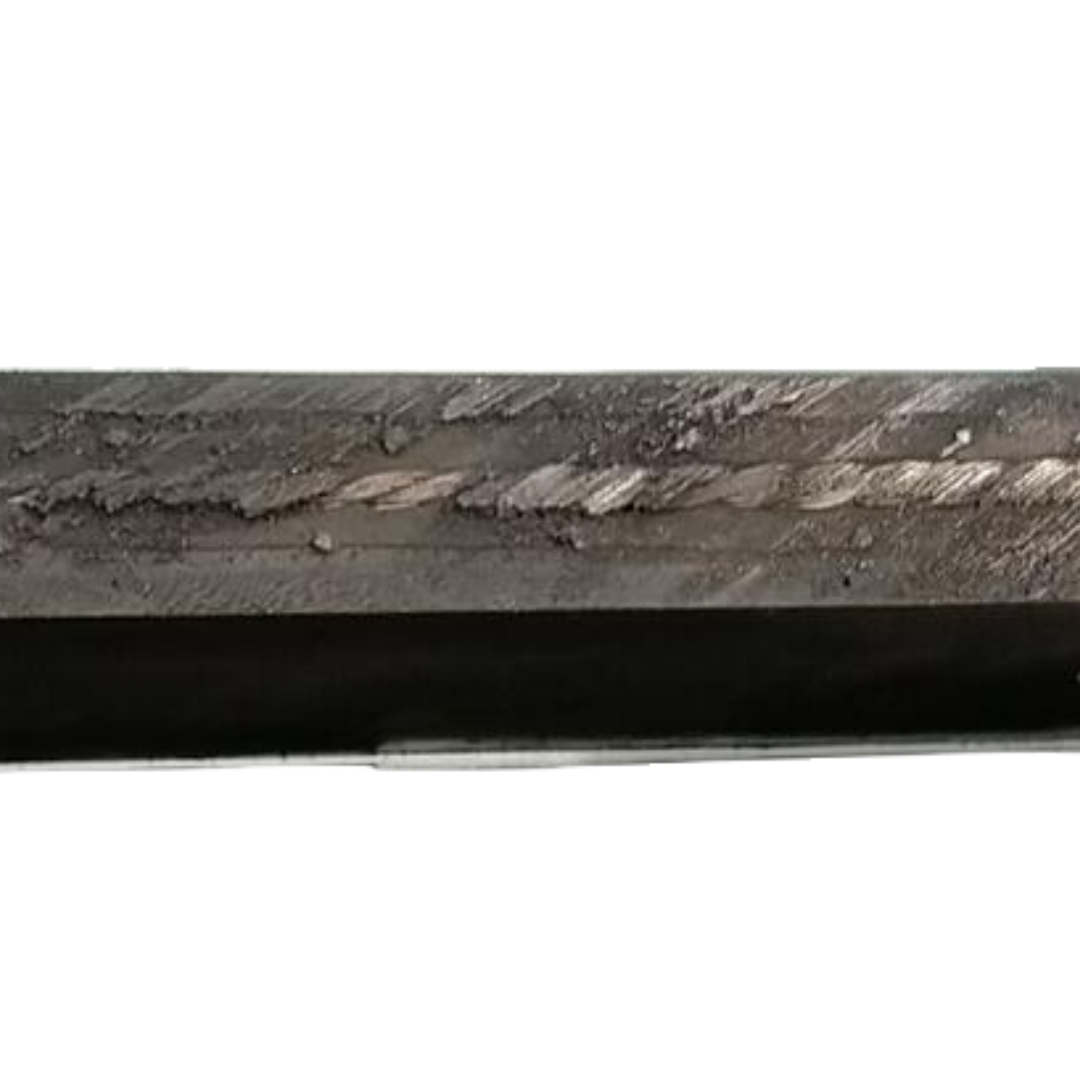

ST800 ST1000 ST2000 ST4000 High Temperature Resistance Rubber Conveyor Belt with Steel Cord New Condition

1 / 5

ST800 ST1000 ST2000 ST4000 High Temperature Resistance Rubber Conveyor Belt with Steel Cord New Condition

Send Inquiry

Product Description

EP Conveyor Belt

The belt, short for Ethylene Propylene conveyor belts, is a durable industrial belt reinforced with EP fabric plies.

It provides favorable tensile strength, low elongation, and outstanding resistance to chemicals, moisture, and aging. Being lightweight while still durable, it finds extensive application in sectors such as agriculture, logistics, and manufacturing, used for transporting common bulk materials over moderate-distance routes.

Structure Details

✓ Reinforcement: Core EP fabric plies for tensile strength and stability.
✓ Covers: A wear-resistant top rubber cover (for materials) and durable bottom rubber cover (for rollers).
✓ Edge Rubber: Sealed edges protect the core from damage and contamination.

Excellent Adaptability

Good Flexibility: Ideal for various hard and sharp ores, quartz, dark rock, riprap, granite, broken glass, scrap metal, ballast, etc. Offers high wear resistance and excellent low-temperature flexibility.

Cost-Effective: Direct factory delivery eliminates middlemen, ensuring high cost performance.

Key Features

★High strength
★High temperature resistance
★Excellent wear resistance
★Low elongation
★Dimensional stability
★Easy installation and maintenance

Technical Specifications

Fabric Type Specifications

Fabric type	Strength series					Cover thickness - mm		Width - mm	Length - m
Fabric type	2ply	3ply	4ply	5ply	6ply	Top	Bottom	Width - mm	Length - m
EP - 100	200	300	400	500	600	2—12	1—6	200—2500	50—300
EP - 150	300	450	600	750	900
EP - 200	400	600	800	1000	1200
EP - 250	500	750	1000	1250	1500
EP - 300	600	900	1200	1500	1800
EP - 350	700	1050	1400	1750	2100
EP - 400	800	1200	1600	2000	2400
EP - 500	1000	1500	2000	2500	3000

DIN 22102 Standards

Standards	Cover rubber			Adhesion
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	Cover to Ply (N/mm)		Ply to Ply (N/mm)
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	(≤1.5mm)	(>1.5mm)	Ply to Ply (N/mm)
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	400	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5

AS 1332 Standards

Standards	Cover rubber			Adhesion
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	Cover to Ply (N/mm)		Ply to Ply (N/mm)
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	(≤1.9mm)	(>1.9mm)	Ply to Ply (N/mm)
AS 1332 - N17	17	400	200	4	4.8	6
AS 1332 - M24	24	450	125	4	4.8	6

RMA Standards

Standards	Cover rubber			Adhesion
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	Cover to Ply (N/mm)		Ply to Ply (N/mm)
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	(≤1.6mm)	(>1.6mm)	Ply to Ply (N/mm)
RMA - I	17	400	200	3	4.4	4
RMA - II	14	400	250	3	4.4	4

SANS 1173 Standards

Standards	Cover rubber			Adhesion
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	Cover to Ply	Ply to Ply
	Tensile Strength (Mpa)	Elongation at break (%)	Abrasion (mm³)	N/mm	N/mm
A	18	400	70	5	7
C	20	400	150	5	7
M	25	450	120	5	7
N	17	400	150	5	7

OUR FACILITY

Focused on Rubber V belts and conveyor belts for more than 20 years. We design, make, sell and install various rubber belts, with a modern production line and advanced testing and control labs.

Frequently Asked Questions

Q1. Are you a manufacturer?

Yes, we have been selling and producing conveyor belts for more than 20 years!

Q2. What about the lead time?

1) 1--2 days for sample
2) 10~30 days according to order quantity (Formal order)

Q3. How to pay?

1) T/T, L/C, D/P through bank account
2) Select global pay

Q4. How about the package?

1) Inner is packed on round steel core with 30cm diameter and 12cmx12cm square hole. Outer is packed with one ply water-proof PP fabric.
2) We also provide steel pallets, iron pallets, frame packaging or other customized packaging.

Q5. What are the key features of the EP conveyor belt?

Our EP conveyor belts offer high strength, high temperature resistance, excellent wear resistance, low elongation, dimensional stability, and easy installation and maintenance.

Q6. What materials are suitable for these belts?

They are ideal for transporting hard and sharp materials such as various ores, quartz, dark rock, riprap, granite, broken glass, scrap metal, ballast, and other bulk industrial products.
