| Model NO. | China Fabric Conveyor Belt Manufacturer |
| Inside Material | Nylon |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Tensile Strength | Strong |

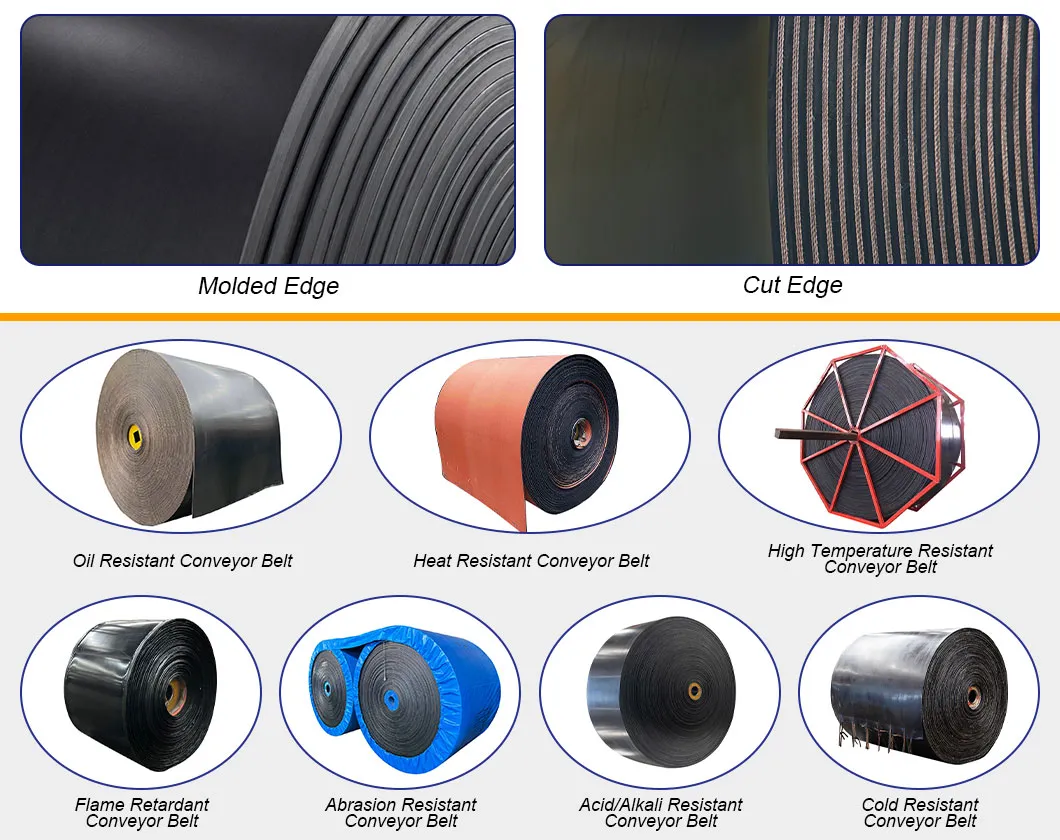

| Edge | Moulded Edge |
| Cover Rubber Grade | 10MPa, 12MPa, 14MPa, 15MPa, 17MPa, 20MPa, 25MPa |
| Strength | 1000n/mm |
| Number of Ply | 2-10 |
| Belt Width | 400-6000mm |
| Applications | Cement, Coal, Mine, Steel, Power, etc. |
| Product Names |
China Fabric Conveyor Belt/Rubber Conveyor Belt Steel Cord Conveyor Belt Manufacturer/Factory Oil/Heat/Fire/Cold Resistant Conveyor Belt Chevron/High Temperature Conveyor Belt Corrugated Sidewall Conveyor Belt Price Acid/Alkali/Abrasion Resistant Conveyor Belt Ep/Nn/Cc/Bucket Elevator Conveyor Belt Mine/High Temperature Conveyor Belt Pipe/Filter/Flame Retardant Conveyor Belt |
| Transport Package | Export Standard |
| Specification | NN100-NN500 |
| HS Code | 40101200 |
| Production Capacity | 10000m/Day |
| Package Size | 180.00cm * 140.00cm * 180.00cm |
| Package Gross Weight | 3000.000kg |
| Product Group | Available Configurations & Details |
|---|---|

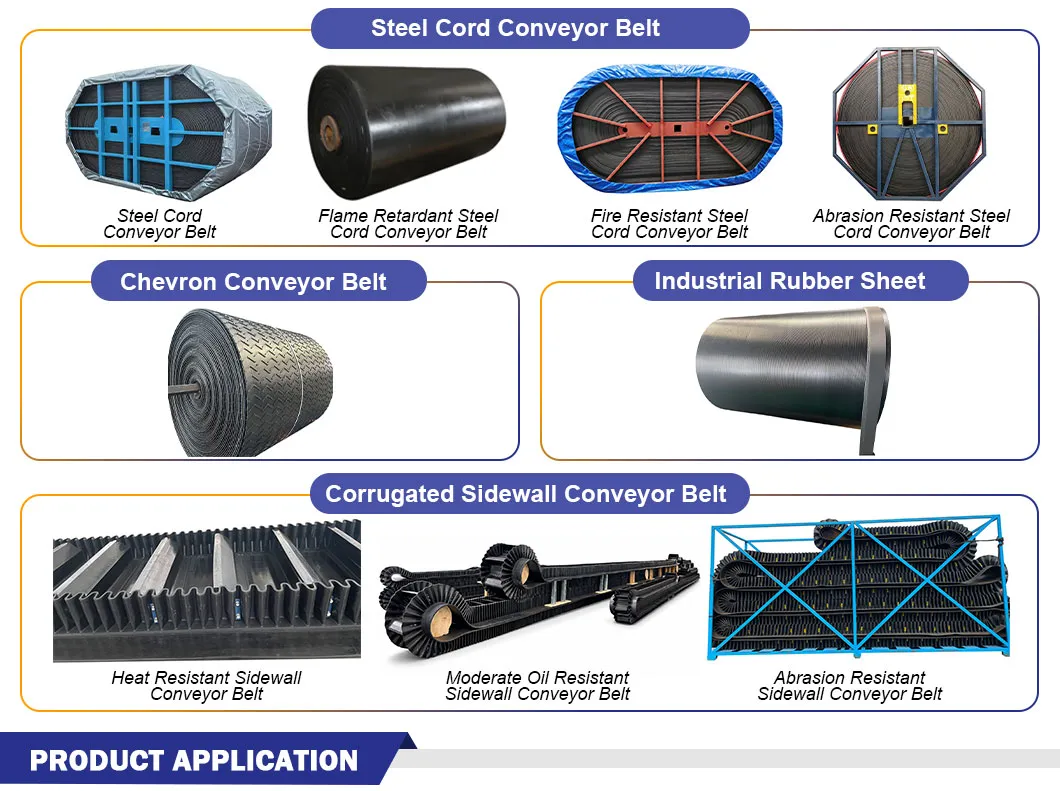

| Product Range | Multi-ply Fabric Conveyor Belt, Steel Cord Conveyor Belt, Chevron Conveyor Belt, Corrugated Sidewall Conveyor Belt, Pipe Conveyor Belt, Bucket Elevator Belt, Filter Conveyor Belt, Thin Conveyor Belt |
| Fabric Conveyor Belt | Oil Resistant Conveyor Belt, Heat Resistant Conveyor Belt, High Temperature Resistant Conveyor Belt, Flame Retardant Conveyor Belt, Fire Resistant Conveyor Belt, Abrasion Resistant Conveyor Belt, Acid Resistant Conveyor Belt, Alkali Resistant Conveyor Belt, Cold Resistant Conveyor Belt, White (FDA) Food Grade Fabric Conveyor Belt, FDA Food Grade Fabric Conveyor Belt, Chevron Fabric Conveyor Belt, Patterned Fabric Conveyor Belt, EP/NN/CC Fabric Conveyor Belt, PVC/PVG Fire Resistant Conveyor Belt |
| Steel Cord Conveyor Belt | Steel Cord Conveyor Belt for General Purpose, Flame Retardant Steel Cord Conveyor Belt, Fire Resistant Steel Cord Conveyor Belt for Mining, Heat Resistant Steel Cord Conveyor Belt, Abrasion Resistant Steel Cord Conveyor Belt, Cold Resistant Steel Cord Conveyor Belt |

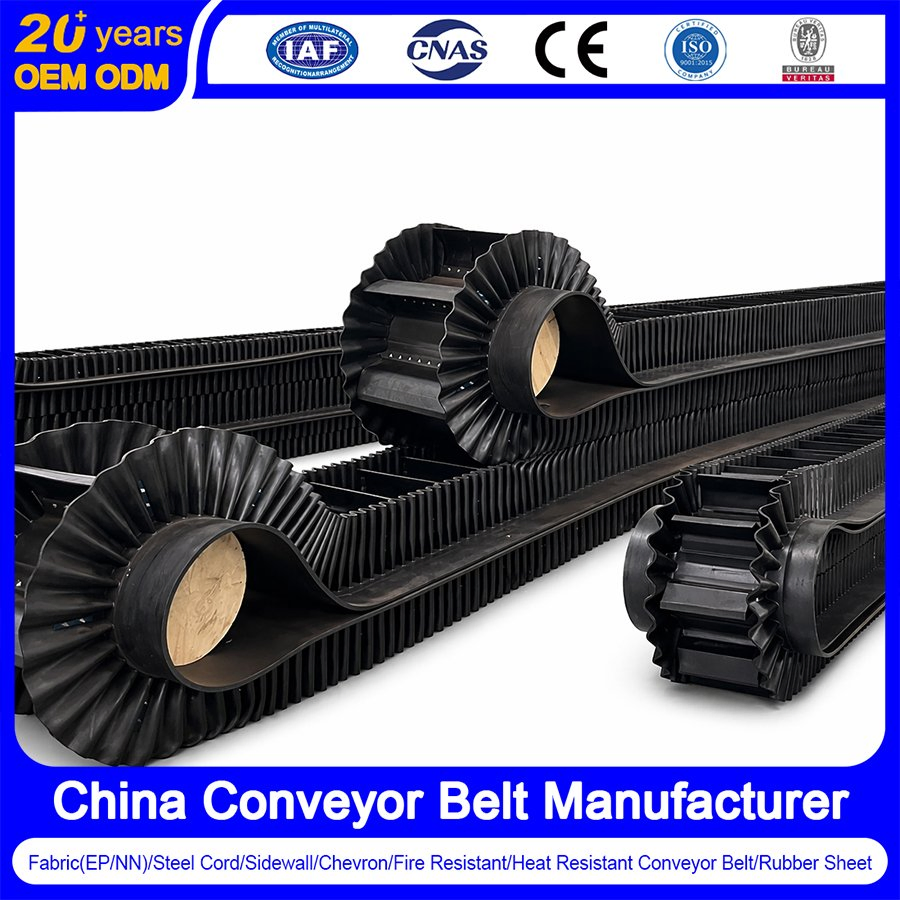

| Corrugated Sidewall Conveyor Belt | Heat Resistant Sidewall Conveyor Belt, Moderate Oil Resistant Sidewall Conveyor Belt, Abrasion Resistant Sidewall Conveyor Belt |
| Conveyor Belt Application | For mining, cement, steel, power plants, ports, chemical industry, building materials, fertilizer, recycling, grain handling, food processing, logistics, and other industrial material handling fields |

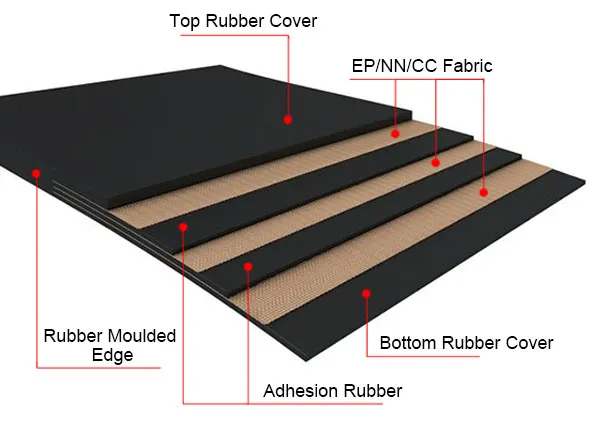

Nylon (NN) belt has the advantages of light belt body, good elasticity, high strength, impact resistance and grooving. It is suitable for conveying materials in medium and long distance, large volume and high speed.
Polyester (EP) belt has the advantages of high initial modulus, good thermal stability of belt body size, high strength, small elongation and impact resistance. It is suitable for conveying materials in medium and long distance, large volume and high speed.
| Cover Rubber Property (Custom configurations available upon request) | |
|---|---|
| Type | Features and Application |
| Conventional | Generally used for power, grain and block material. |
| Oil/Fat resistant | For oil, fat material conveying. |
| Acid/Alkali resistant | For Ph4-10 material conveying. |
| Heat resistant | T1≤100ºC, T2≤125ºC, T3≤150ºC, T4≤175ºC, T5≤200ºC, T6≤250ºC |
| High temperature resistant | For 200-600ºC material conveying. |
| Flame retardant/Self extinguish | Extinguishing the flame quickly. |
| Low temperature resistant | Cold up to -60ºC. |
| Abrasion resistant | Anti-shock, for hard and shaped material conveying. |
| Type | Textile Type | Strength Per Ply | Plies of Fabric | Cover Thickness (mm) | Belt Width | Cover Grade | |
|---|---|---|---|---|---|---|---|
| Min. (N/mm) | Top Cover | Bottom Cover | (mm) | ||||
| EP Belt | EP-100, EP-125, EP-150 | 100, 125, 150 | 2-8 | 2-16 | 0-10 | 300-3400 |
Abrasion resistant Impact resistant Heat resistant Oil resistant Acid/alkali resistant Fire resistant Etc. |
| EP-200, EP-250, EP-300 | 200, 250, 300 | ||||||
| EP-350, EP-400, EP-500 | 350, 400, 500 | ||||||
| NN Belt | NN-100, NN-125, NN-150, NN-200, NN-250, NN-300, NN-400, NN-500 | 100 - 500 | 2-10 | ||||
| CC Belt | CC56 | 56 | 3-12 | Standard Configurations Available | |||
Fabric (EP/NN) Conveyor belts are widely used in mining, cement, steel, power plants, ports, chemical industry, building materials, fertilizer, recycling, grain handling, food processing, logistics, and other industrial material handling fields. They are mainly designed for bulk material conveying, equipment wear protection, industrial lining, sealing, cushioning, anti-slip, insulation, and corrosion-resistant applications, helping customers handle heavy-duty, high-wear, high-impact, high-temperature, and complex working conditions more reliably.
We supply industrial conveyor belts and rubber products to customers in Southeast Asia, the Middle East, Central Asia, Africa, Europe, North America, and South America.
Our customers include conveyor belt distributors, importers, EPC contractors, mining project buyers, cement plant procurement teams, steel plant users, port operators, quarry companies, and maintenance buyers.
These customers usually need conveyor belts that can match real working conditions, support stable repeat orders, and meet project or replacement specifications. We provide customized belt width, thickness, strength class, ply number, cover grade, roll length, and standard-based production according to buyer requirements.
We are a professional manufacturer and export supplier of conveyor belts and industrial rubber sheets for mining, cement, steel, port, power plant, quarry, and other bulk material handling industries.
We provide EP conveyor belt, NN conveyor belt, steel cord conveyor belt, chevron conveyor belt, corrugated sidewall conveyor belt, heat resistant conveyor belt, flame resistant conveyor belt, cold resistant conveyor belt, oil resistant conveyor belt, bucket elevator belt, filter belt, industrial rubber sheet, mining rubber sheet, rubber lining sheet, and silicone sheet.
We focus on helping buyers solve practical application problems such as wear resistance, impact resistance, working-condition matching, replacement compatibility, and downtime reduction. Our team supports distributors, EPC contractors, industrial buyers, and project purchasers with clear technical communication, practical customization, and stable delivery.
Our manufacturing processes have passed ISO 9001, ISO 14001, ISO 45001, and CE certification. With strict quality control and full-process traceability from raw materials to finished products, we provide stable product quality and dependable supply for long-term cooperation.
We offer customization for belt type, width, thickness, cover grade, ply number, strength class, roll length, and rubber sheet specifications based on actual application requirements. Production can be arranged according to DIN, RMA, SANS, AS, ISO, or confirmed buyer standards.
With export experience and application-oriented service, we are committed to supplying reliable conveyor belt and rubber sheet solutions for both replacement orders and project-based procurement.
