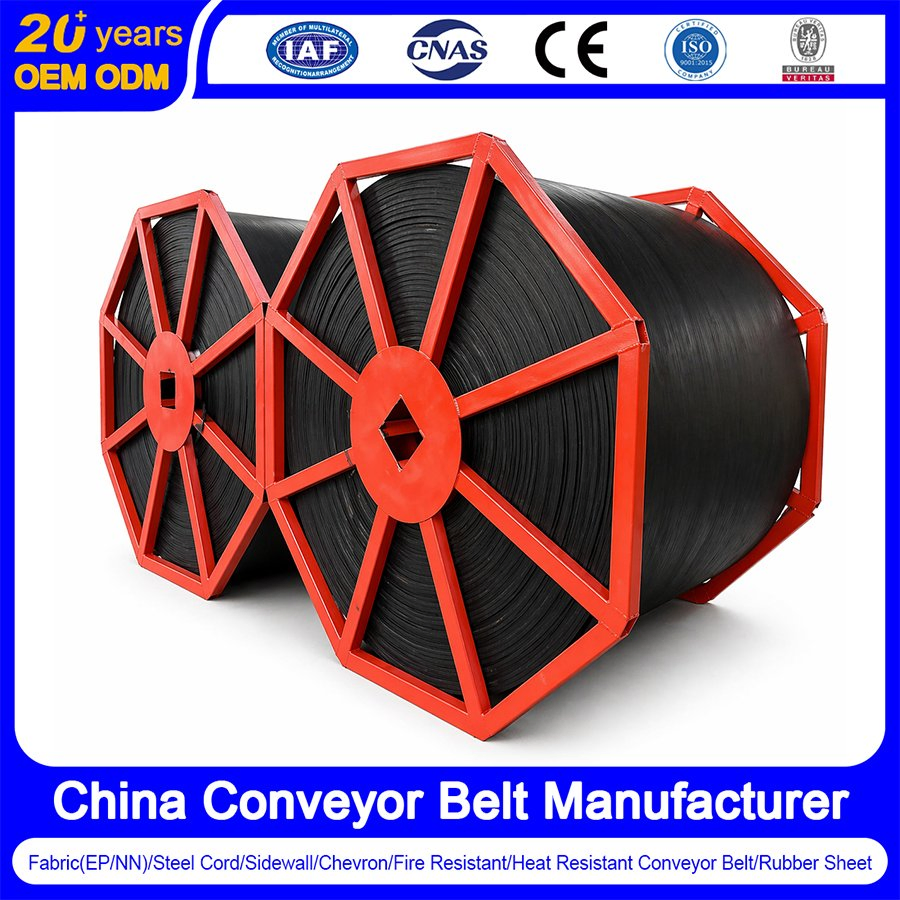

China Steel Cord Conveyor Belt Manufacturer
| Product Category | Product Types / Features Available |
|---|---|

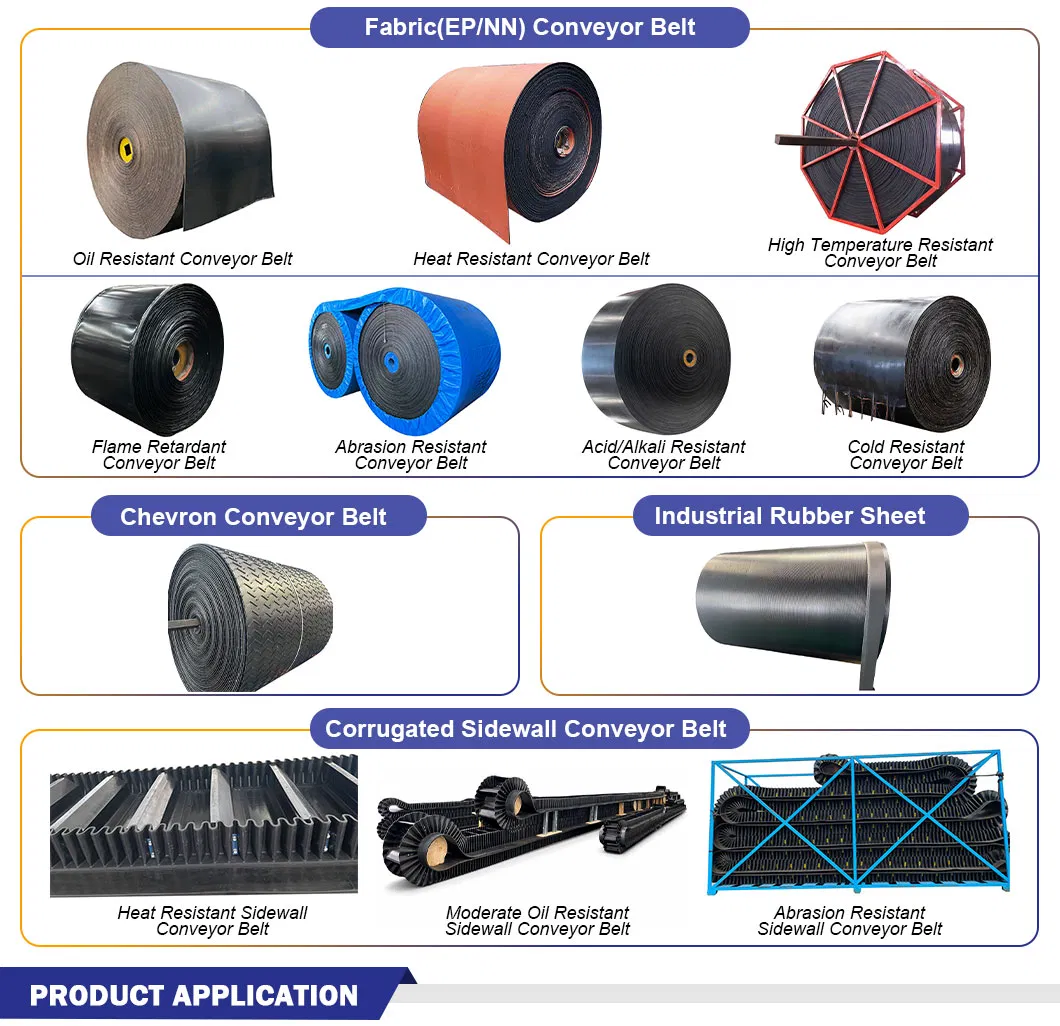

| Product Name | Multi-ply Fabric Conveyor Belt, Steel Cord Conveyor Belt, Chevron Conveyor Belt, Corrugated Sidewall Conveyor Belt, Pipe Conveyor Belt, Bucket Elevator Belt, Filter Conveyor Belt, Thin Conveyor Belt |

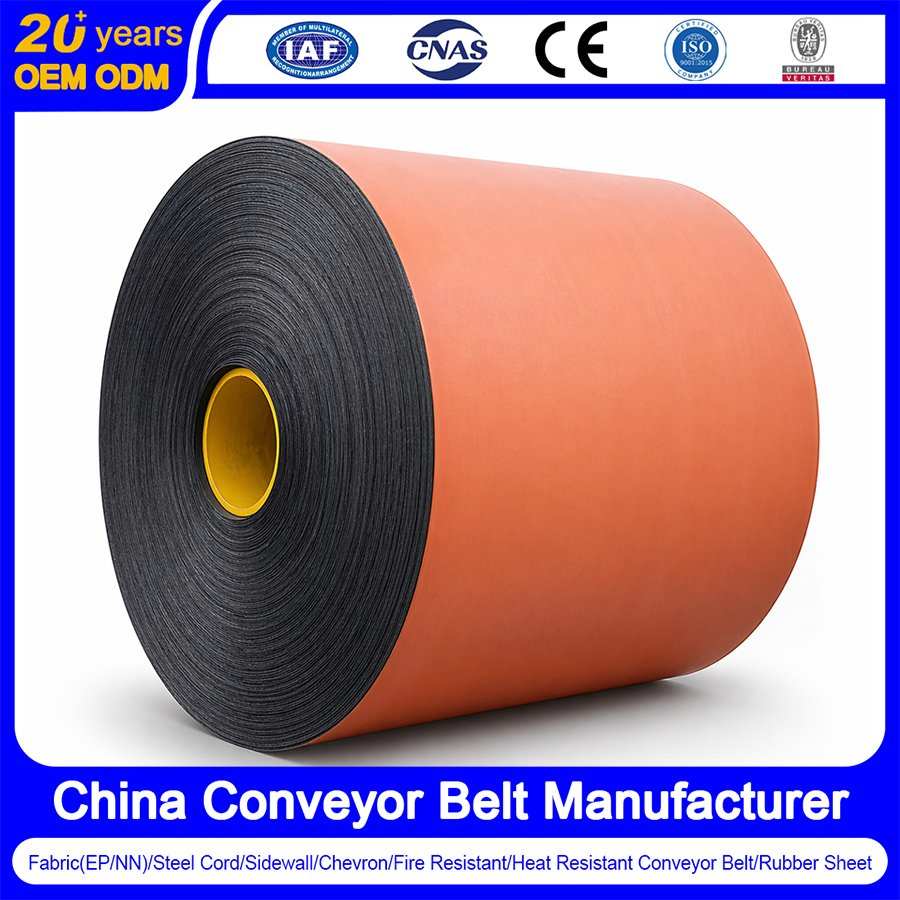

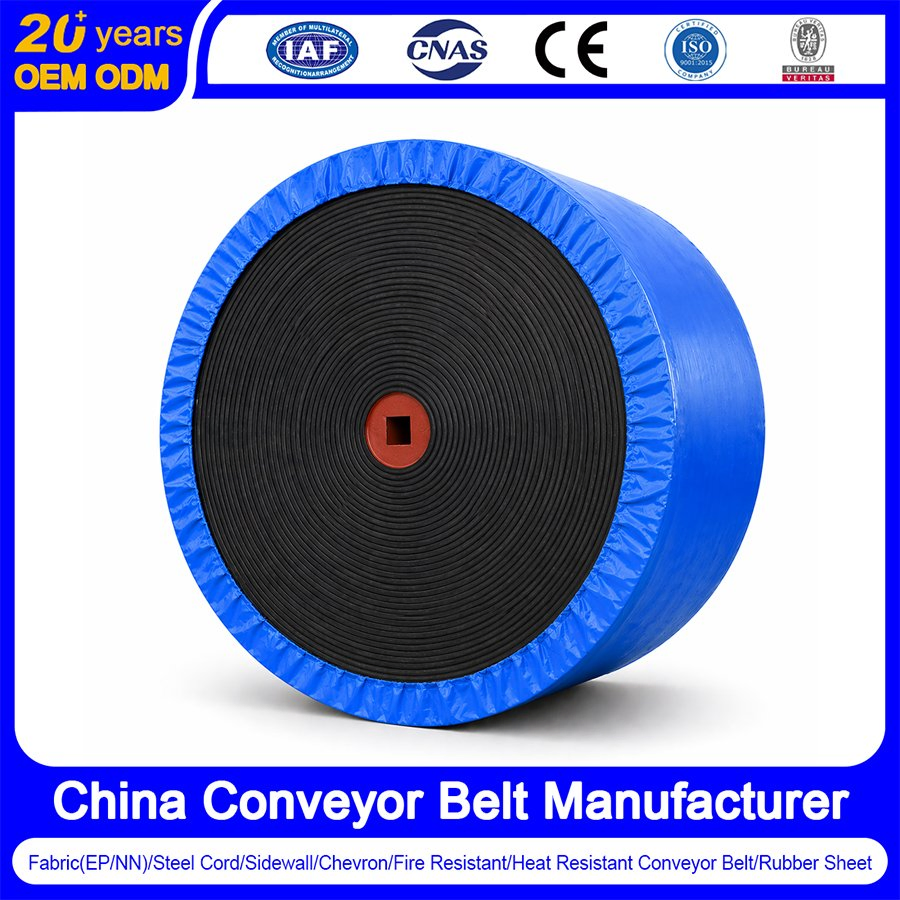

| Fabric Conveyor Belt | Oil Resistant, Heat Resistant, High Temperature Resistant, Flame Retardant, Fire Resistant, Abrasion Resistant, Acid/Alkali Resistant, Cold Resistant, White (FDA) Food Grade, Chevron Patterned, EP/NN/CC, PVC/PVG Fire Resistant |
| Steel Cord Conveyor Belt | Steel Cord for General Purpose, Flame Retardant, Fire Resistant for Mining, Heat Resistant, Abrasion Resistant, Cold Resistant |

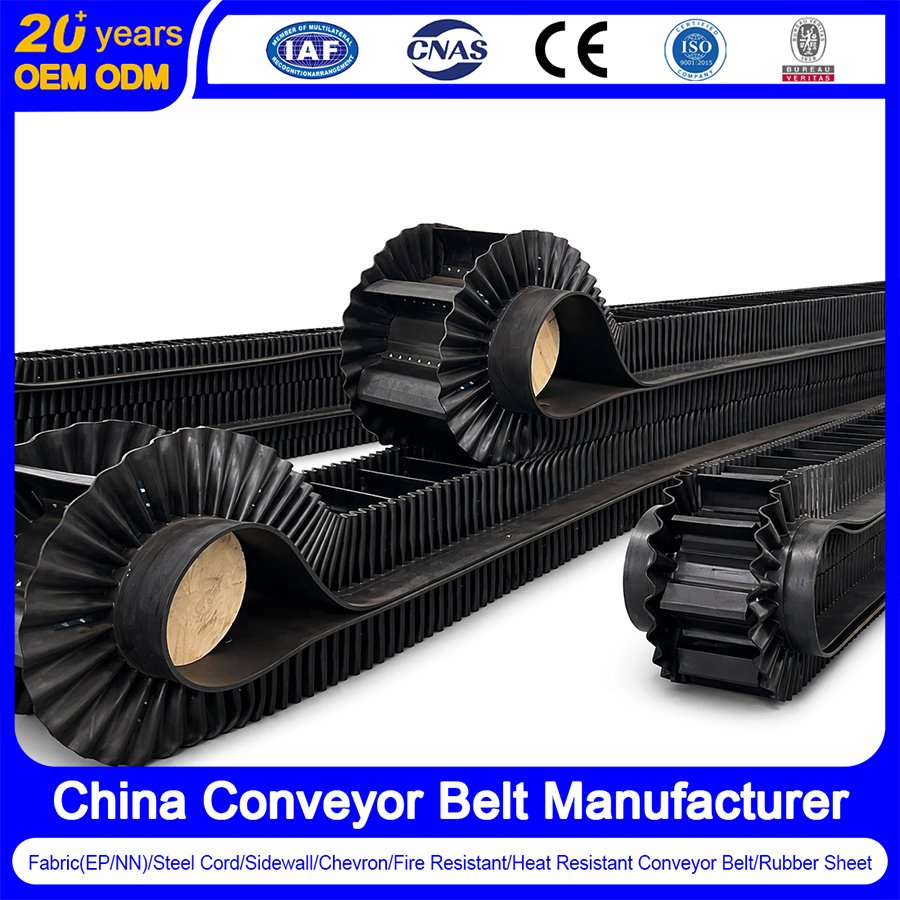

| Corrugated Sidewall Conveyor Belt | Heat Resistant, Moderate Oil Resistant, Abrasion Resistant |
| Conveyor Belt Application | For mining, cement, steel, power plants, ports, chemical industry, building materials, fertilizer, recycling, grain handling, food processing, logistics, and other industrial material handling fields |
| Type | Standard and main technical data |
|---|---|
| Conventional | DIN22131 JIS6369 |
| Fire resistant | Mt668 HG2539 DIN22131 |
| Conventional flame retardant | HG2539 II DIN22103 DIN22131 |
| Heat resistant | HG/T2297 ISO04195 |
| Abrasion resistant | DIN22131 W Shore abrasion ≤90mm³ |
| Acid, Alkali, Oil resistant | HG4846 HG/T3714 RMA MOR OR |
| Cold resistant | Fragility temperature -50ºC~20ºC HG/T3647 |
| Ozone resistant | Ozone density 50pphm 40ºC 72h no crack |

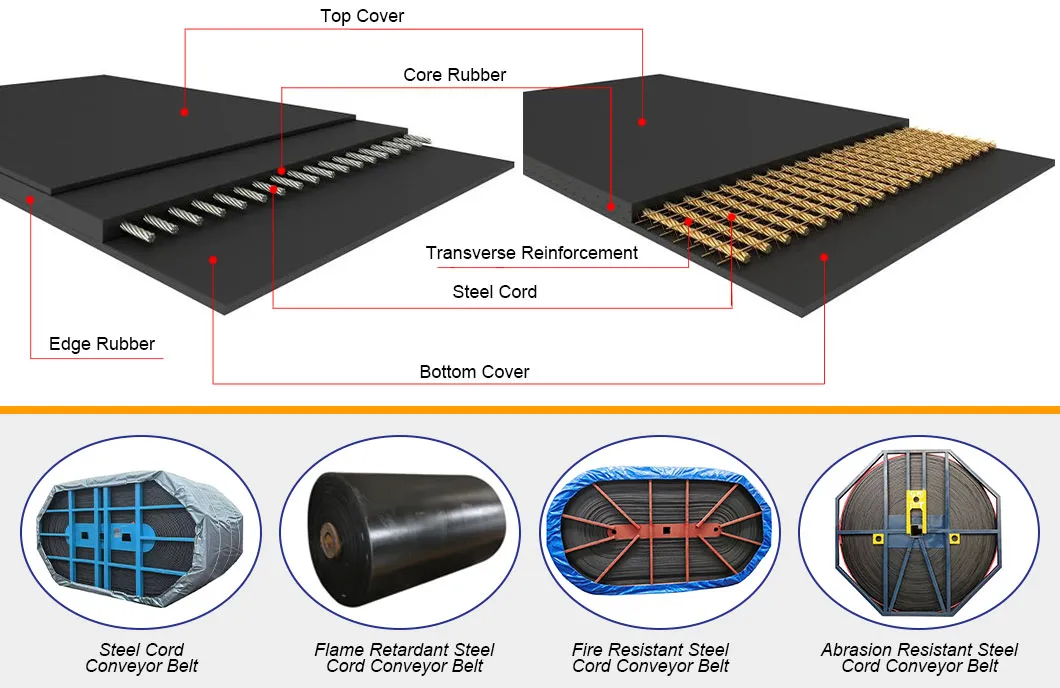

Steel cord conveyor belt is suitable for conveying massive, granular and powder materials in high-strength, long-distance and large volume situations.
| Specification Name | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength (N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max Dia of Cord (mm) | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.3 | 13.5 | 15.0 |
| Pitch of Cord (mm) | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 18 | 19 | 21 |
| Top Cover (mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Bottom Cover (mm) | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Weight (kg/m²) | 18 | 19.5 | 22.5 | 24 | 25.9 | 31.8 | 36.1 | 40.4 | 43.8 | 45 | 45.1 | 50.7 | 53.4 | 59.6 | 63.7 | 68.7 |
| Width (mm) | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | - | - | - | - | - | - | - |
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 59 | 55 | 55 | 54 | 49 | 45 |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 77 | 77 | 71 | 66 | 66 | 63 | 59 | 54 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 90 | 90 | 84 | 78 | 78 | 74 | 69 | 63 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 104 | 104 | 96 | 90 | 90 | 85 | 80 | 72 |
| 1800 | - | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 117 | 117 | 109 | 102 | 102 | 96 | 90 | 82 |
| 2000 | - | - | 159 | 159 | 159 | 159 | 128 | 128 | 130 | 130 | 121 | 113 | 113 | 107 | 101 | 91 |
| 2200 | - | - | - | - | - | 176 | 141 | 141 | 144 | 144 | 134 | 125 | 125 | 118 | 111 | 100 |

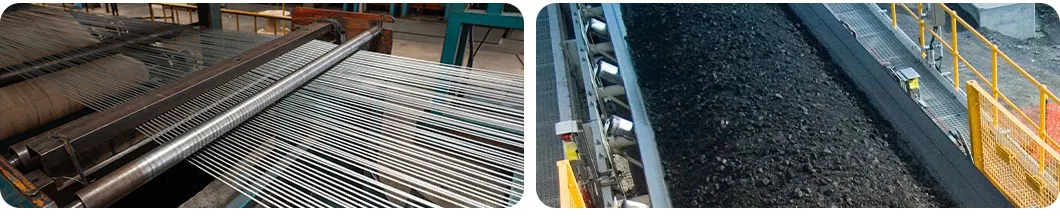

Steel cord conveyor belts are mainly used for long-distance, high-tension and heavy-duty material conveying in industries such as mining, cement plants, steel mills, power plants, ports, quarries and bulk material handling systems. They are suitable for transporting coal, ore, limestone, clinker, coke, aggregates and other heavy materials where high tensile strength, low elongation and stable running performance are required. For demanding working conditions, the belt cover can be customized with abrasion resistant, heat resistant, flame resistant or other rubber grades to better match the material type, conveyor length, load capacity and operating environment.
We serve industrial customers across Southeast Asia, the Middle East, Central Asia, Africa, Europe, North America, and South America.
Instead of focusing only on country coverage, we support customers according to their real application needs, including mining, cement, steel, port, quarry, power plant, and bulk material handling systems.
Our cooperation usually covers product selection, specification confirmation, customized production, quality inspection, export packing, and repeat order supply.
We are a professional manufacturer and export supplier of conveyor belts and industrial rubber sheets for mining, cement, steel, port, power plant, quarry, and other bulk material handling industries.
Under our brand, we provide EP conveyor belt, NN conveyor belt, steel cord conveyor belt, chevron conveyor belt, corrugated sidewall conveyor belt, heat resistant conveyor belt, flame resistant conveyor belt, cold resistant conveyor belt, oil resistant conveyor belt, bucket elevator belt, filter belt, industrial rubber sheet, mining rubber sheet, rubber lining sheet, and silicone sheet.
We focus on helping buyers solve practical application problems such as wear resistance, impact resistance, working-condition matching, replacement compatibility, and downtime reduction. Our team supports distributors, EPC contractors, industrial buyers, and project purchasers with clear technical communication, practical customization, and stable delivery.
We have passed ISO 9001, ISO 14001, ISO 45001, and CE certification. With strict quality control and full-process traceability from raw materials to finished products, we provide stable product quality and dependable supply for long-term cooperation.
We offer customization for belt type, width, thickness, cover grade, ply number, strength class, roll length, and rubber sheet specifications based on actual application requirements. Production can be arranged according to DIN, RMA, SANS, AS, ISO, or confirmed buyer standards.
With export experience and application-oriented service, we are committed to supplying reliable conveyor belt and rubber sheet solutions for both replacement orders and project-based procurement.
