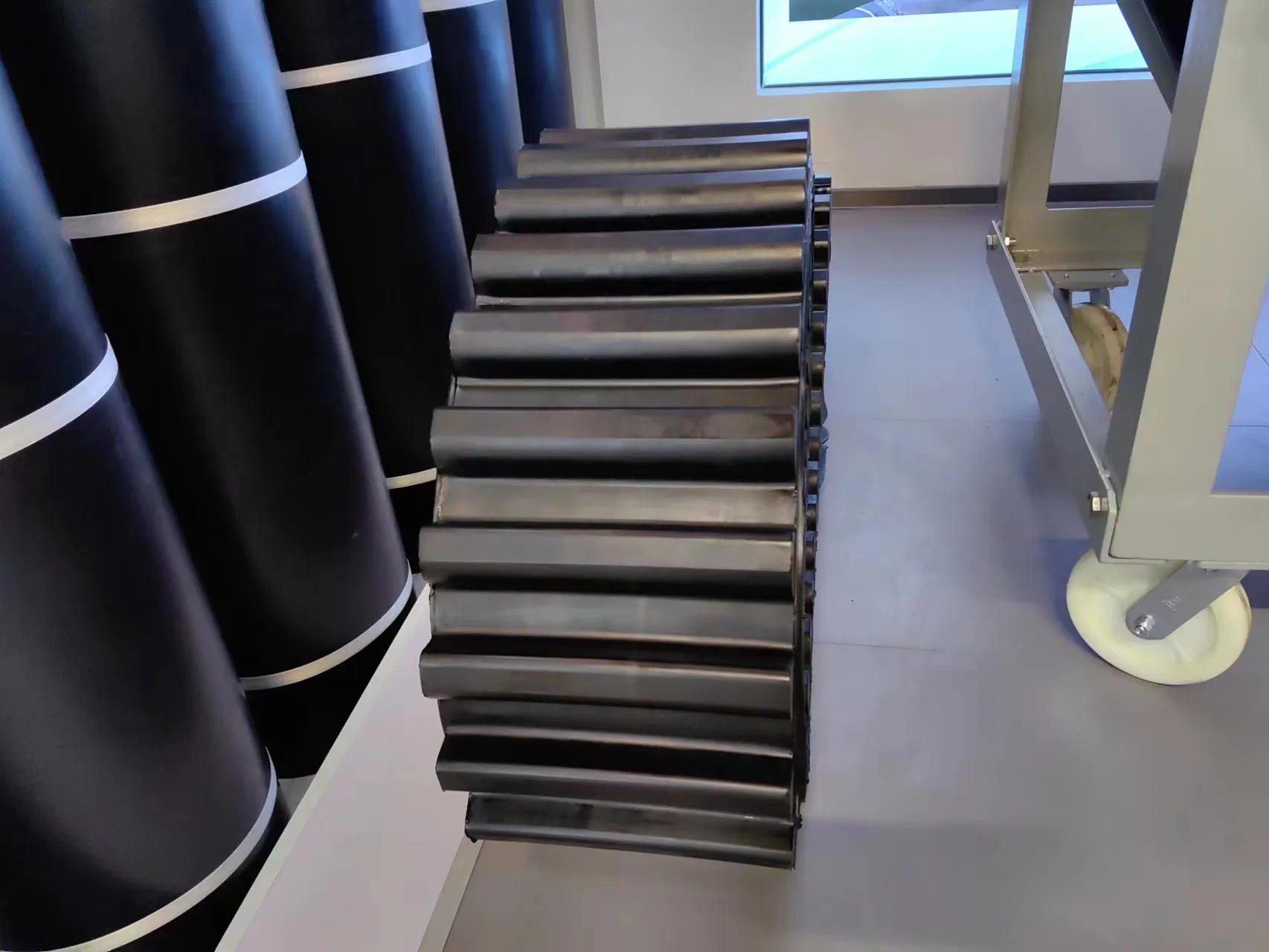

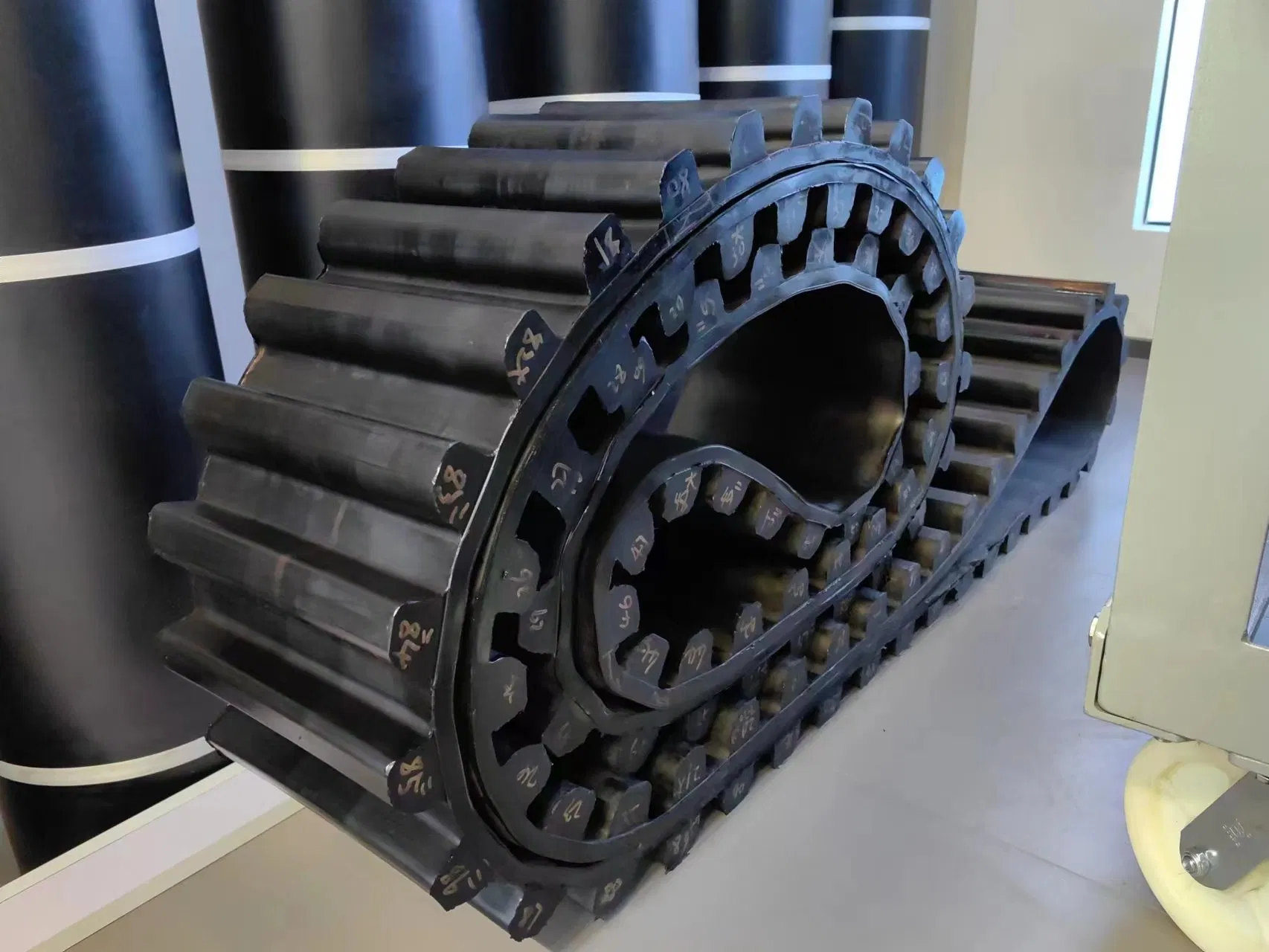

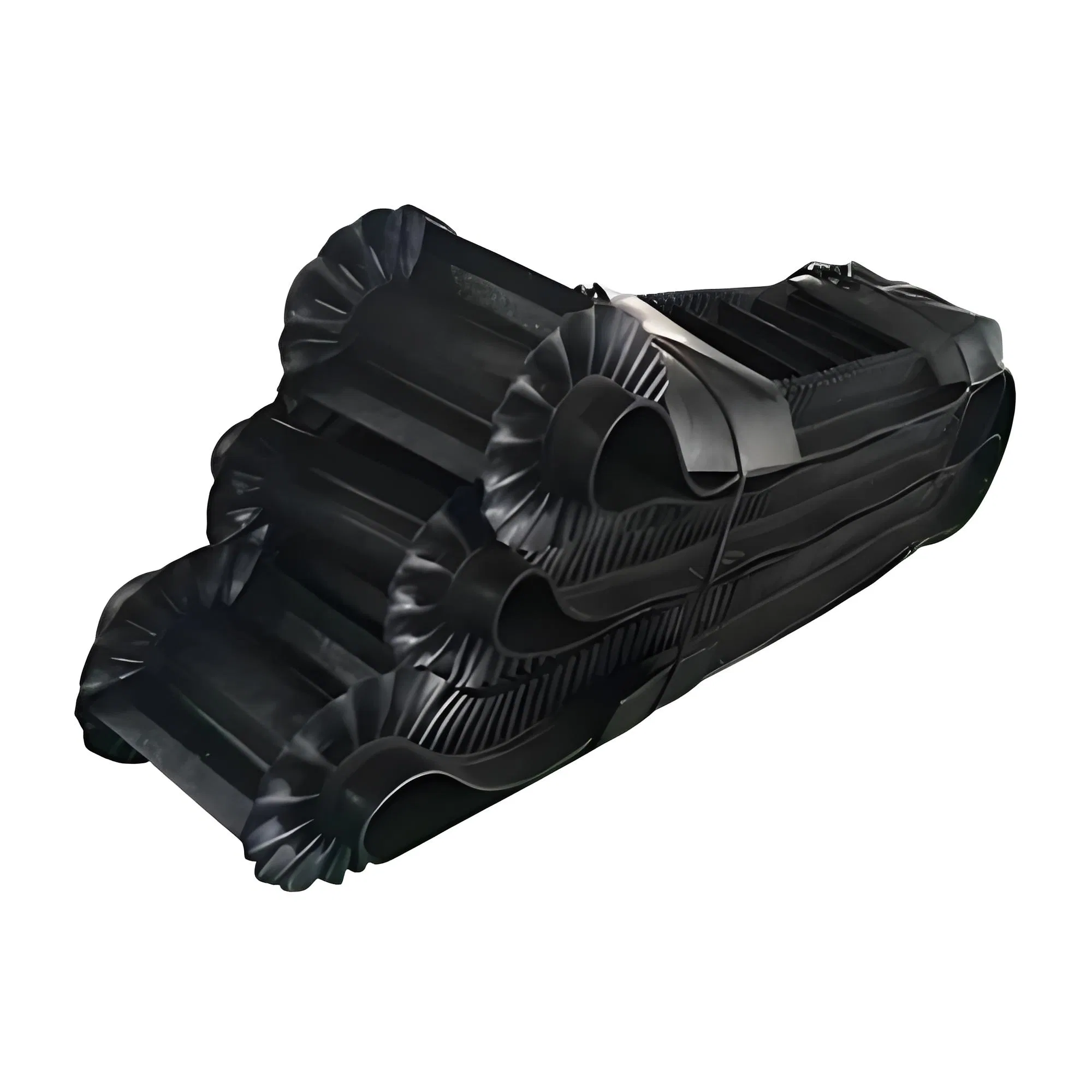

Heavy Duty Rubber Sidewall Conveyor Belt

Basic Info

Model NO.

EP 150

Inside Material

Polyester

Feature

Oil-Resistant, Acid/Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant

Tensile Strength

Strong

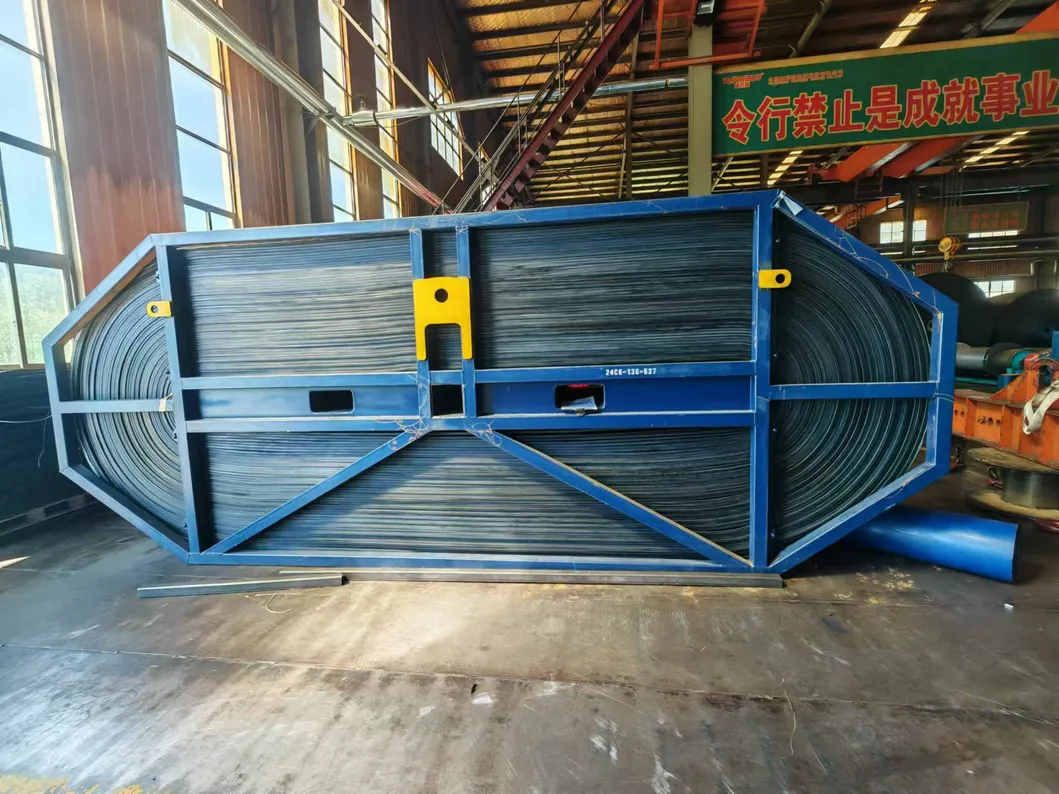

Package

Roll or Frame

Standard

DIN22102, RMA, AS, GB, JISK, SABS etc

Thickness

5mm-45mm

Certificate

ISO 9001

Application

Cement, Metallurgical, Steel Industry, etc

Transport Package

Roll

Specification

B 300-B 2400mm

HS Code

4010120000

Production Capacity

5000 Meter/Meters Per Day

Packaging & Delivery

Package Size

50.00cm * 50.00cm * 100.00cm

Package Gross Weight

5.000kg

Product Description

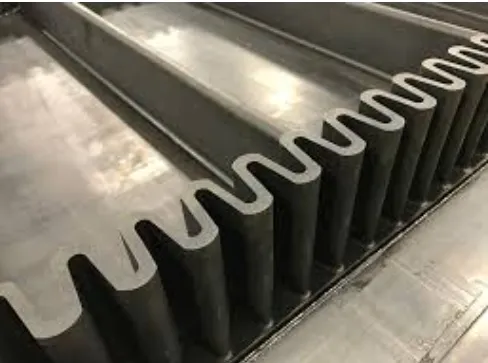

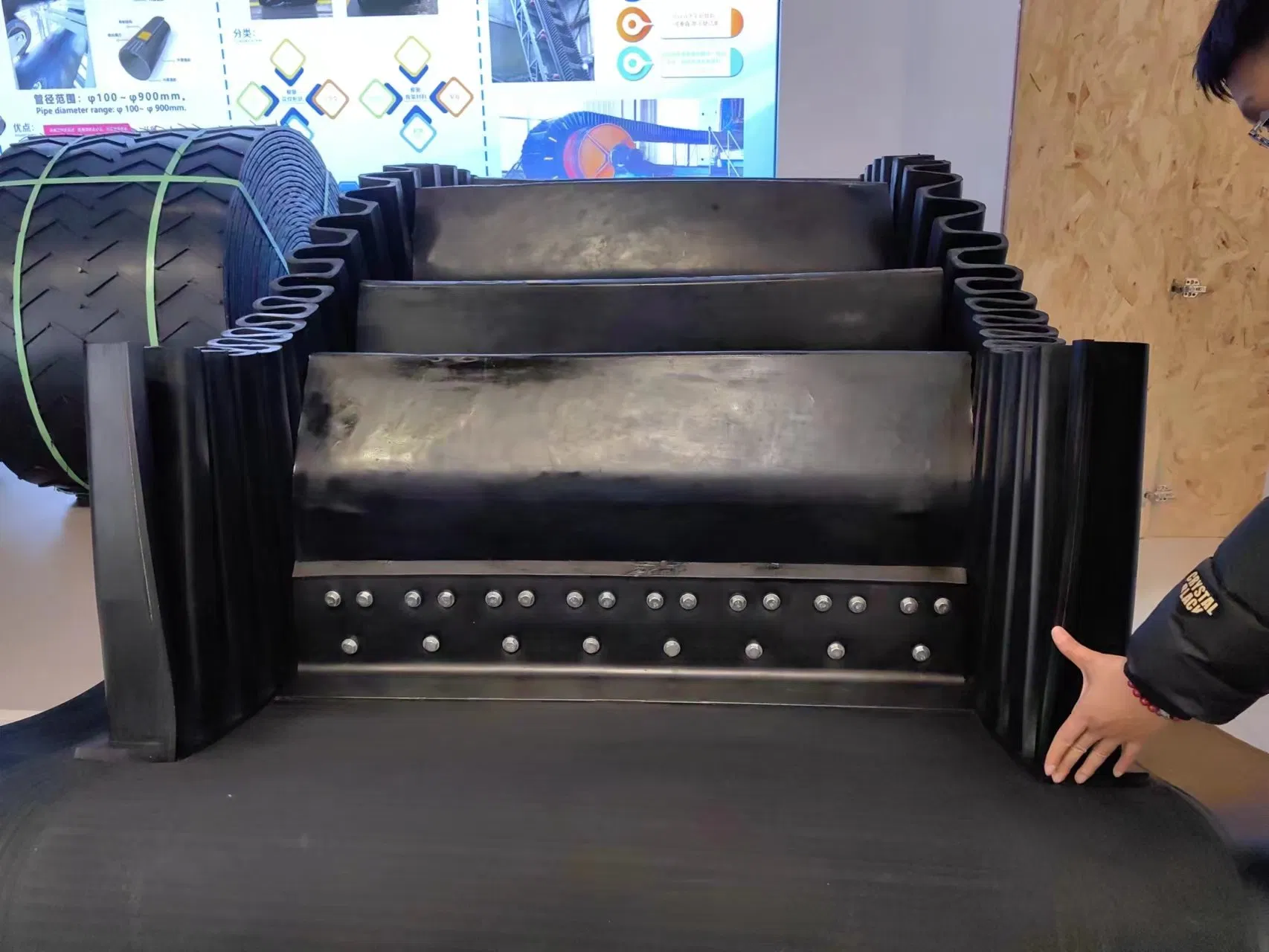

STRUCTURE

Sidewall conveyor belts are composed of three parts: base belt, sidewall and cleats.

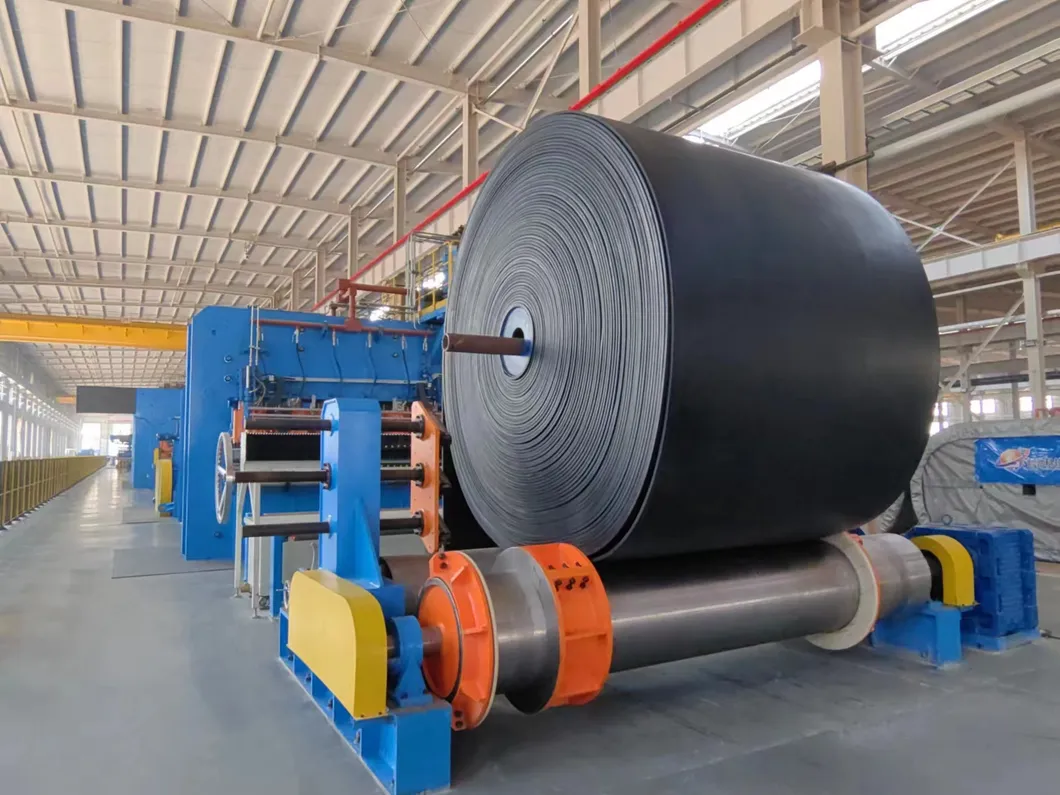

Base Belt

--- Any width can be produced

--- Any thickness can be produced

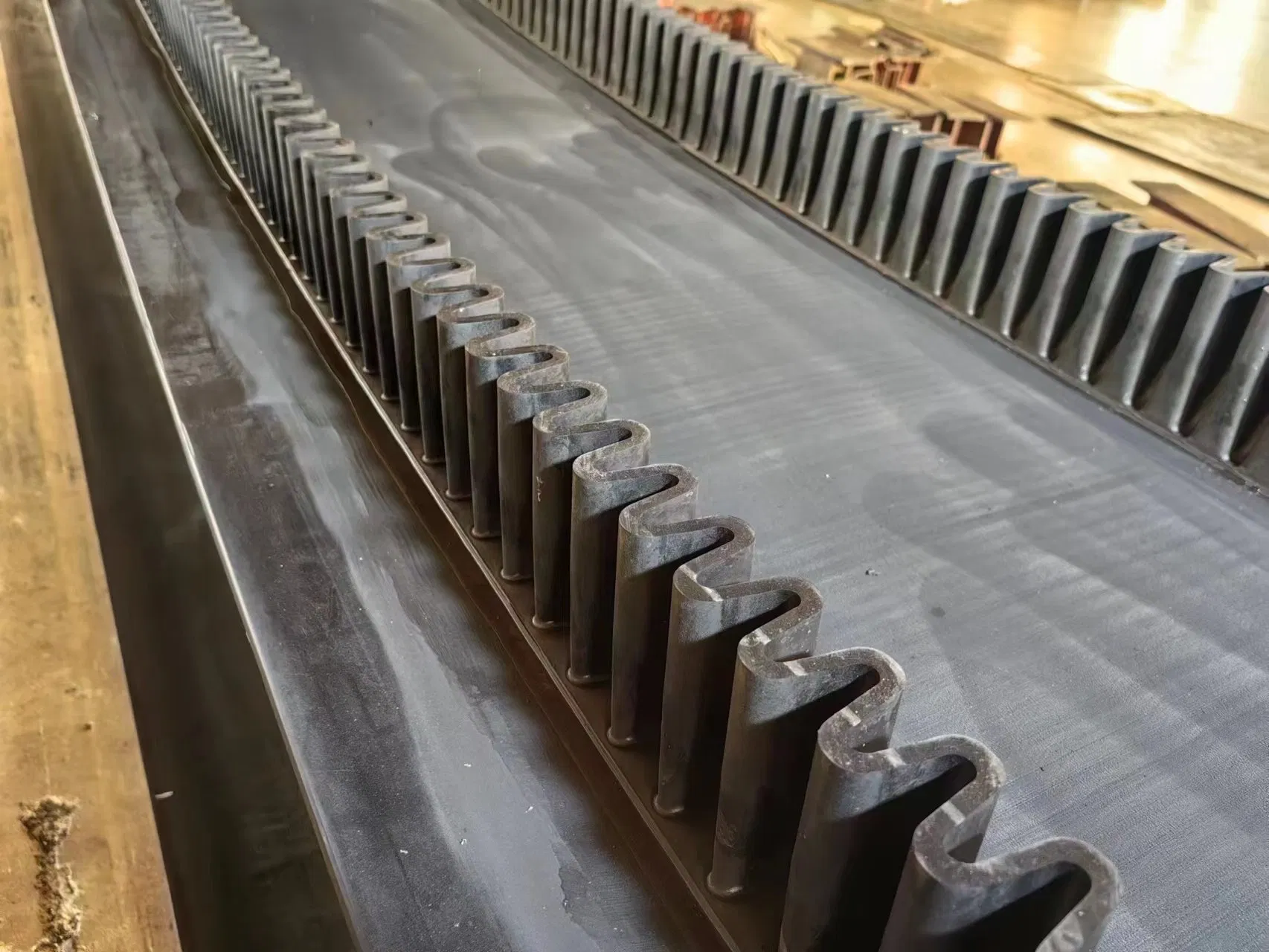

Sidewall

--- Fabric inside sidewall perfectly combines flexibility and strength to effectively avoid tearing.

--- Sidewall height ranges from 40mm to 400mm.

--- Fabric Sidewall is hot vulcanized on the base belt.

Cleats

--- Fabric inside cleats protects cleats from deformation caused by impact.

--- Cleats are the main part to carry materials in a high capacity and steep angle.

--- Available with TC or TCS type.

--- Cleats are also hot vulcanized on the base belt.

Technical Data
Base Belt Width (mm)	Sidewall Height (mm)	Cleat Height (mm)	Bf (mm)	Br (mm)	R (mm)
300	40	35	25	180	35
	60	55	50	120	40
	80	75	50	120	40
400	60	55	50	180	60
	80	75
	100	90
500	80	75	50	250	75
	100	90
	120	110
650	100	90	50	350	100
	120	110	50	350
	160	140	75	300
800	120	110	50	460	120
	160	140	75	410
	200	180	75	410
1000	160	140	75	550	150
	200	180
	240	220
1200	160	140	75	690	180
	200	180
	240	220
	300	280	105	630
1400	200	180	75 / 105	830 / 770	210
	240	220
	300	280
	400	360
1600	200	180	75	970	240
	240	220	75	970
	300	280	105	910
	400	360	105	910
1800	240	220	75	1110	270
	300	280	105	1050
	400	360	105	1050
	500	460	125	1010

Cover Grade Standards
Grade	Standard	Abrasion (mm³)	Breaking Strength (N/mm²)	Elongation at Break (%)
W	DIN22102	90	18	400
X	DIN22102	120	25	450
Y	DIN22102	150	20	450
Z	DIN22102	200	15	350
H	ISO15236	120	24	450
L	ISO15236	200	18	350
K	ISO15236	200	15	350
I	RMA	170	17	400
II	RMA	200	14	400

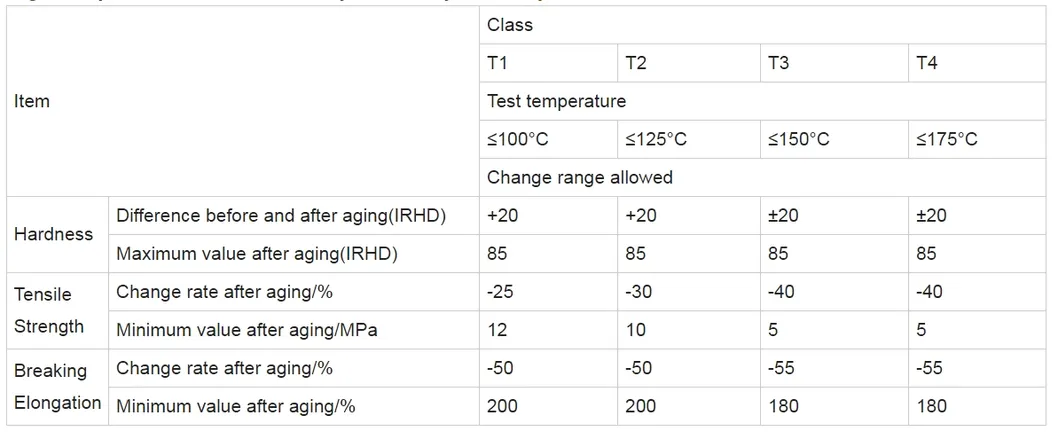

High Temperature Resistant Conveyor Belt Physical Properties

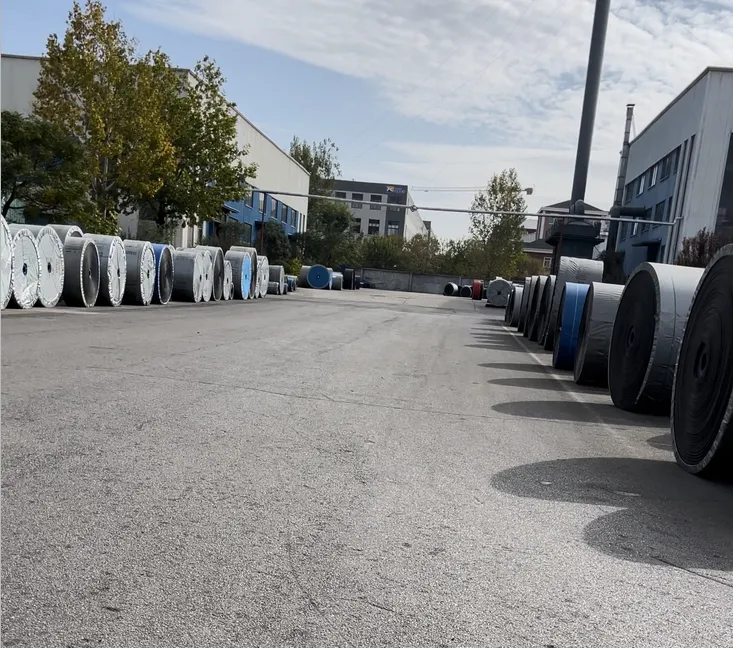

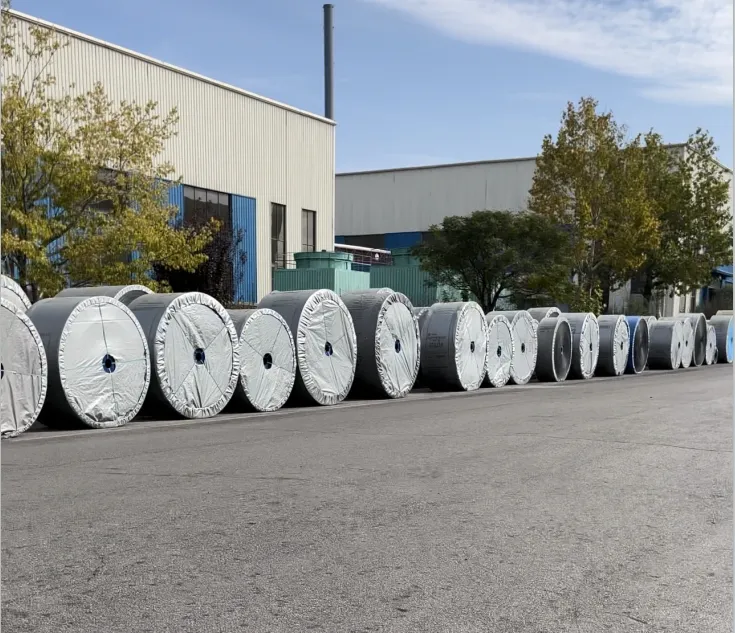

Company Profile

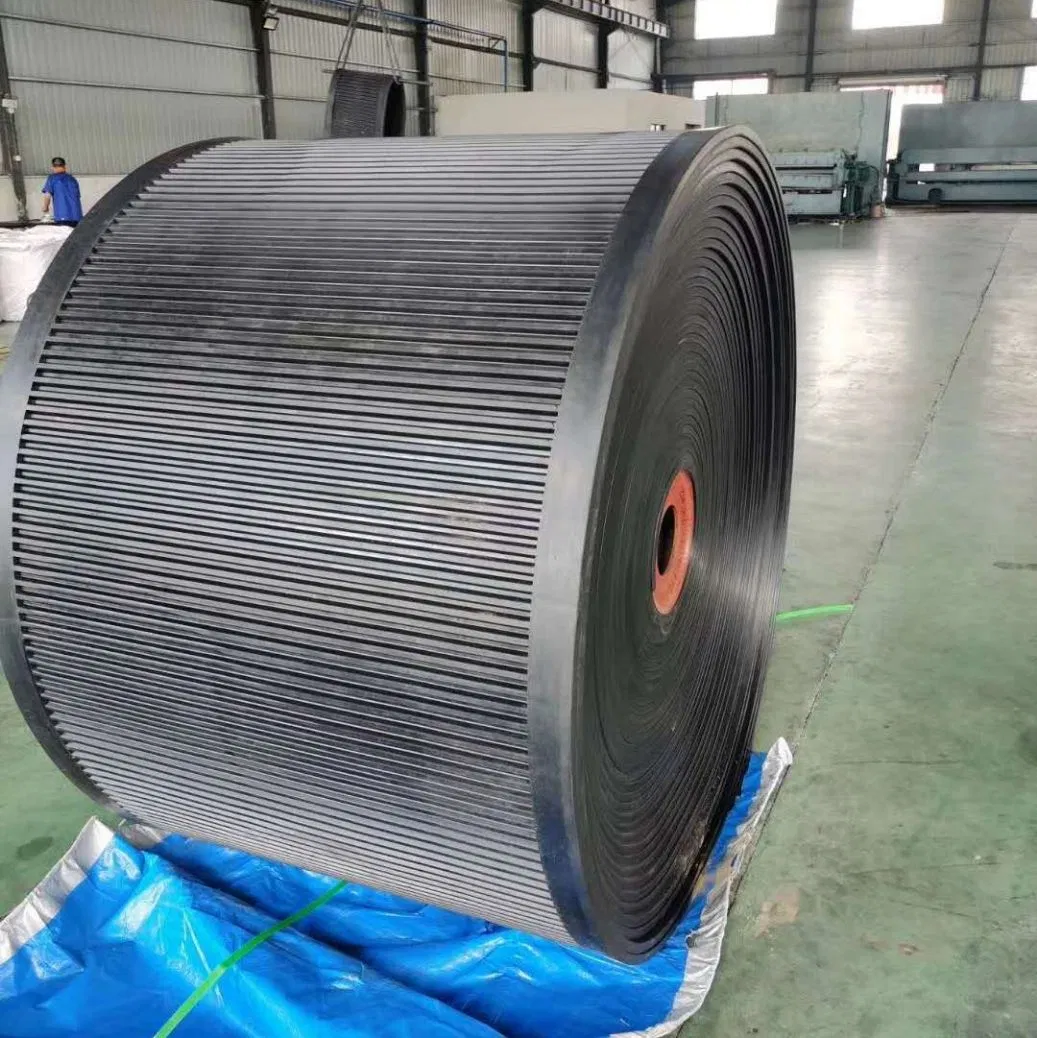

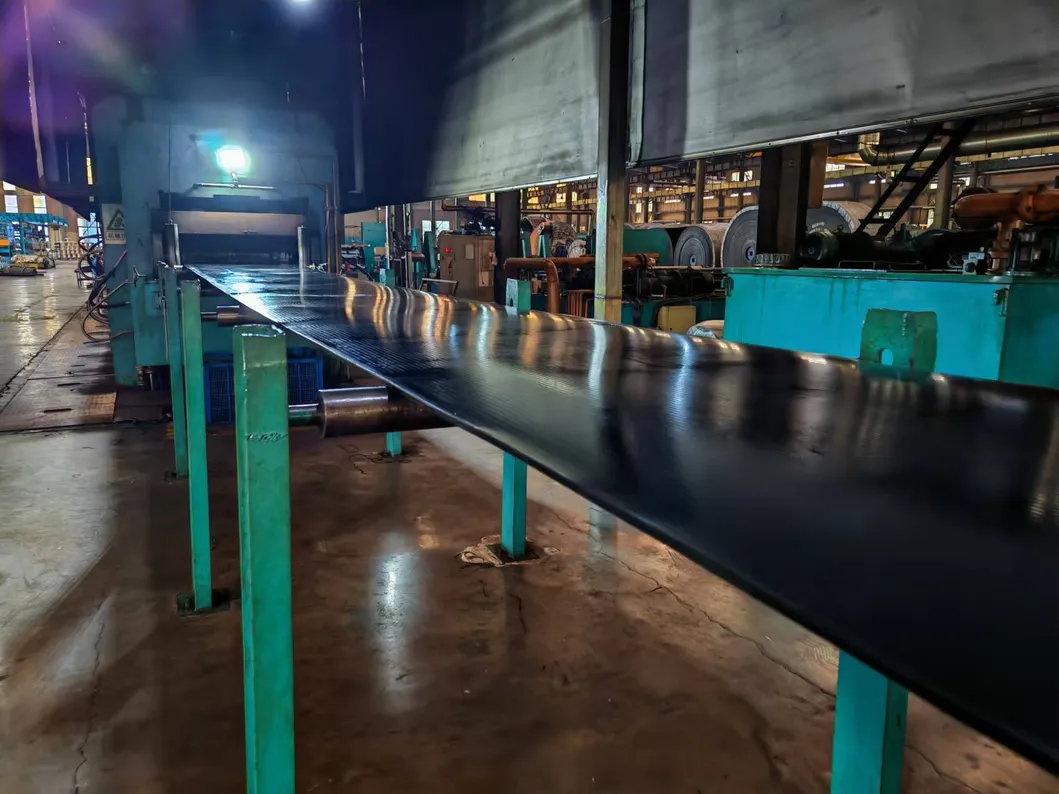

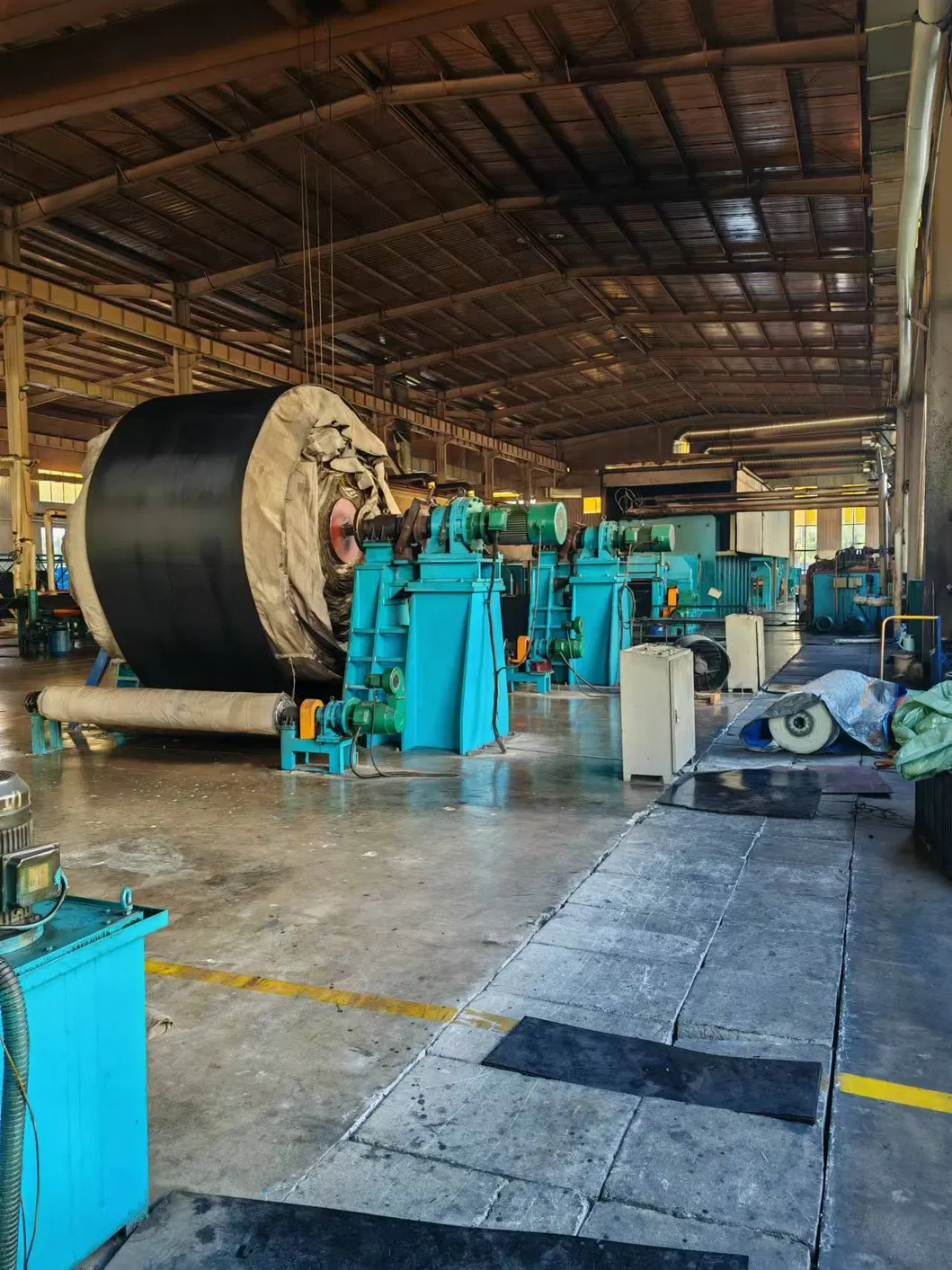

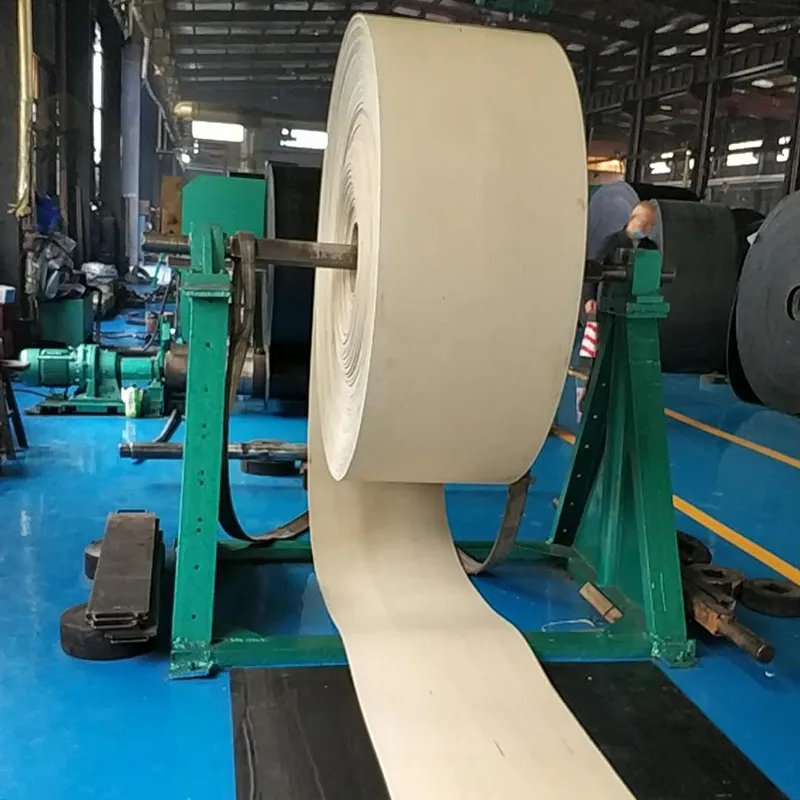

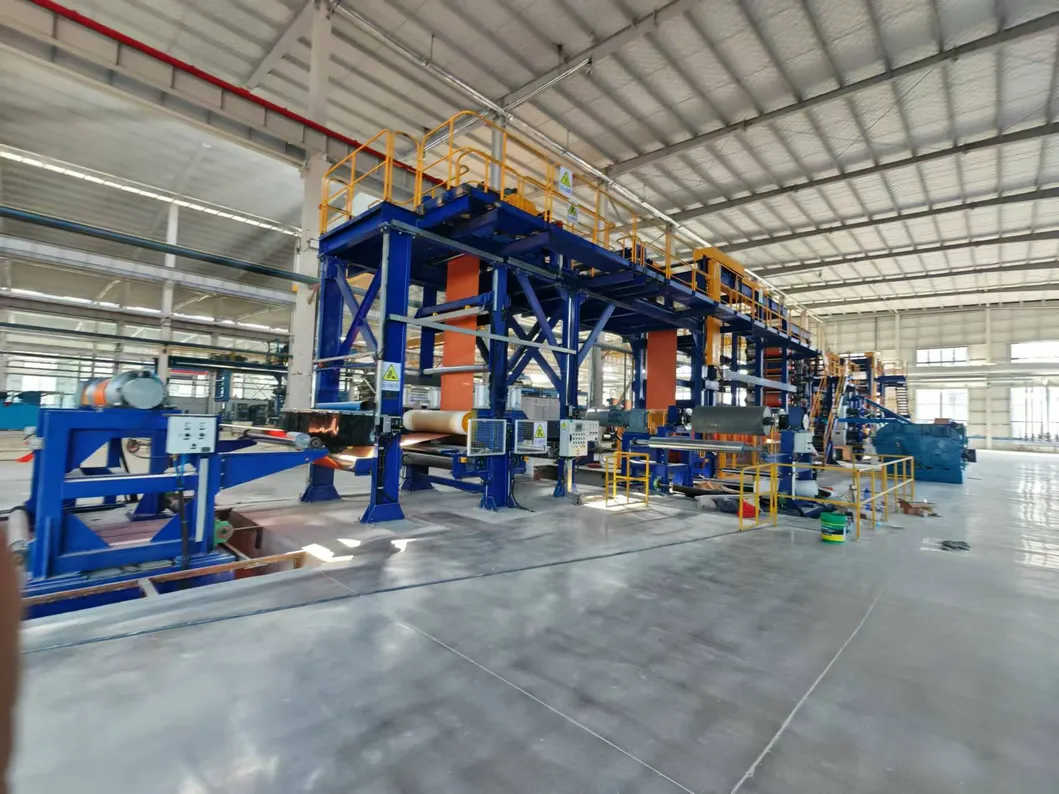

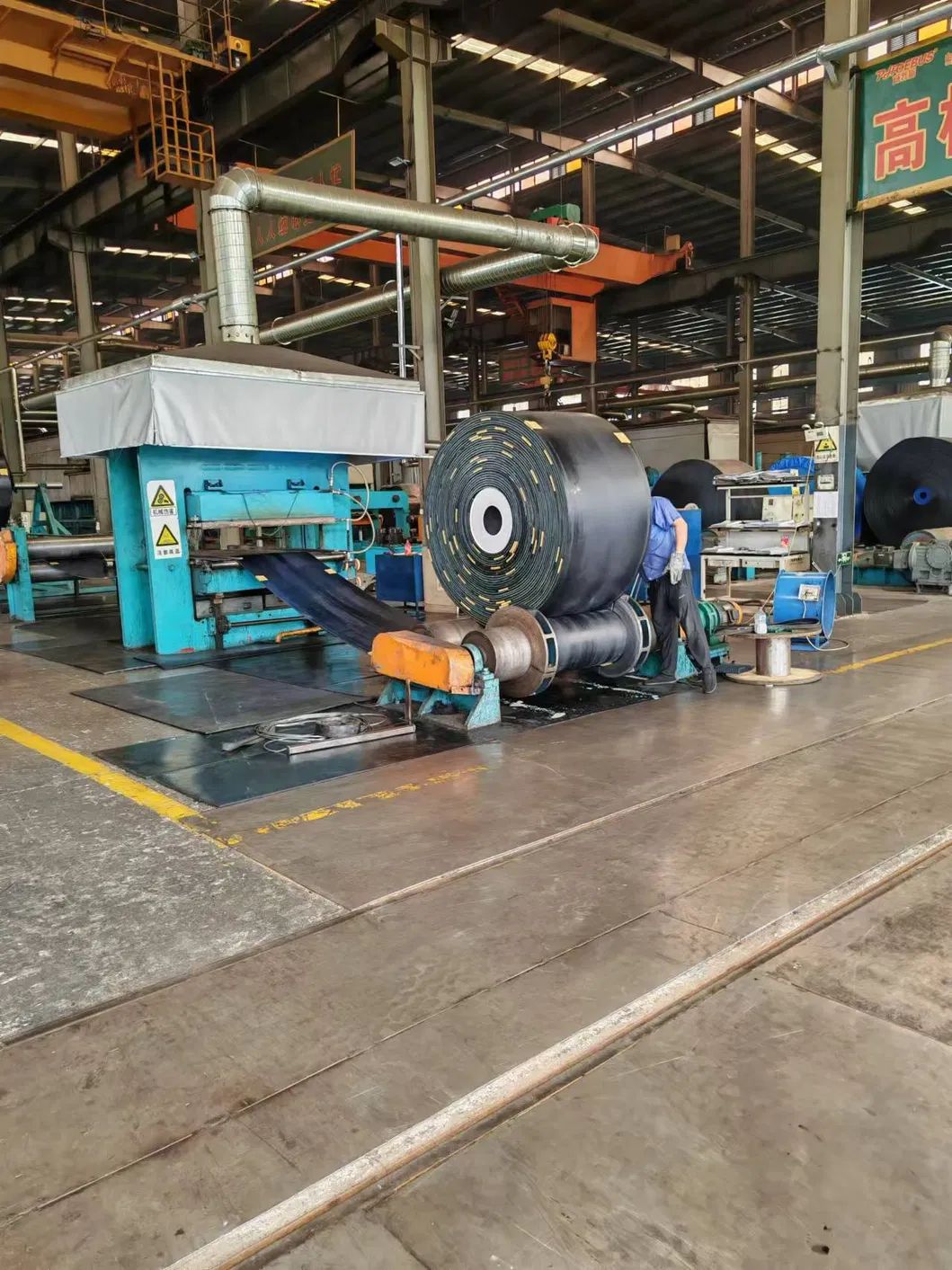

Our Produce Line

Max Available Width: 6600mm

A. EP conveyor belt production line
B. Steel cord conveyor belt production line
C. Ultra-wide conveyor belt production line

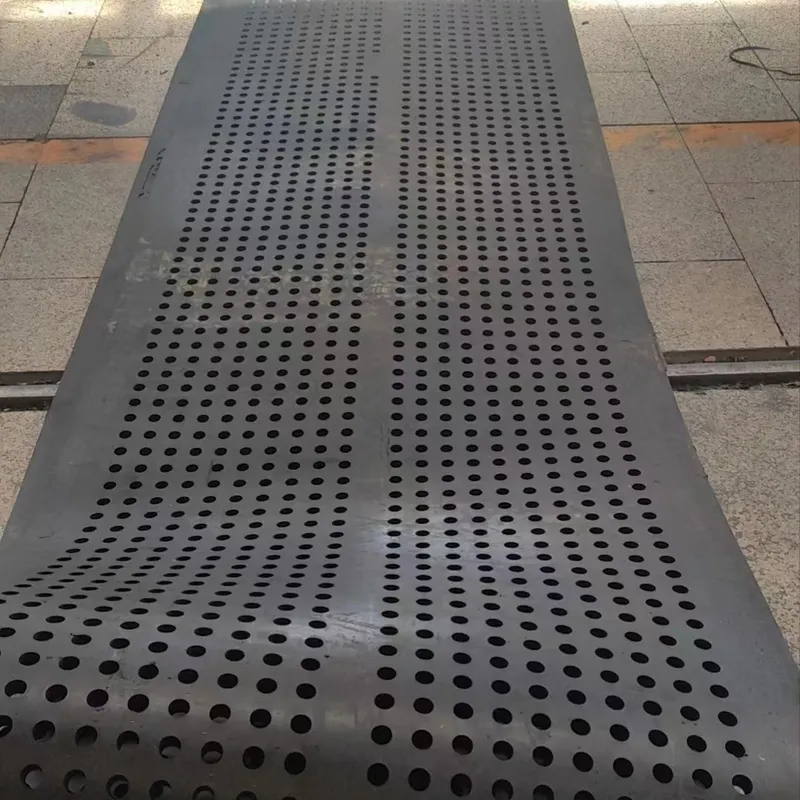

D. Filter conveyor belt production line

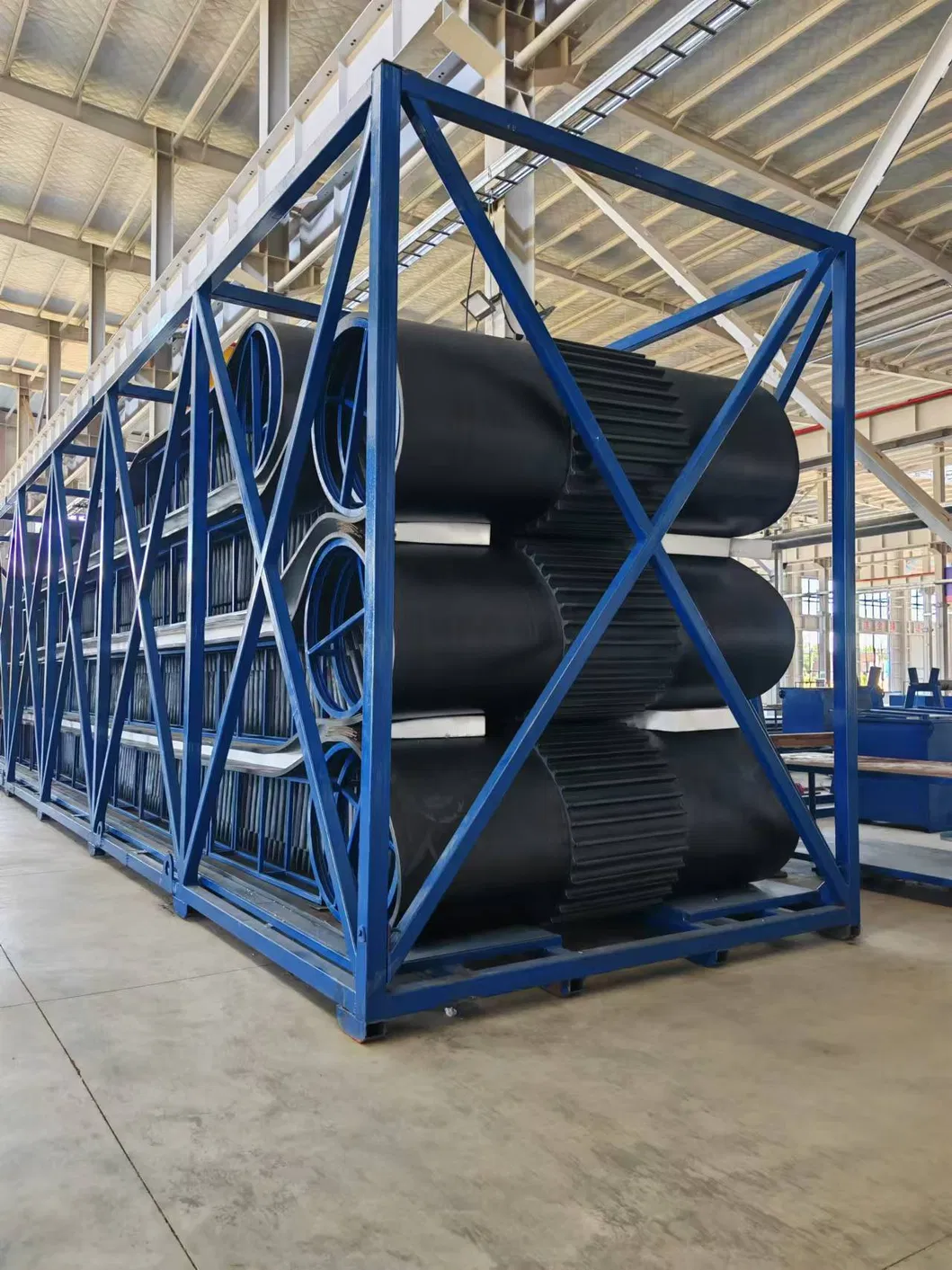

E. Sidewall conveyor belt production line
F. FDA white conveyor belt production line

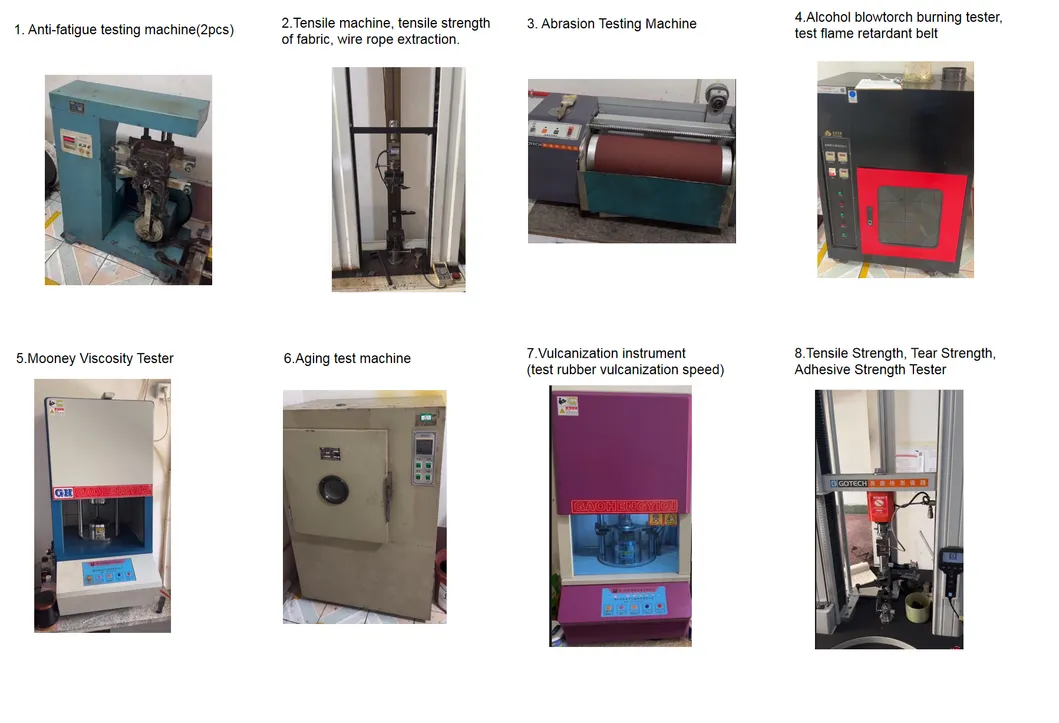

Our Laboratory

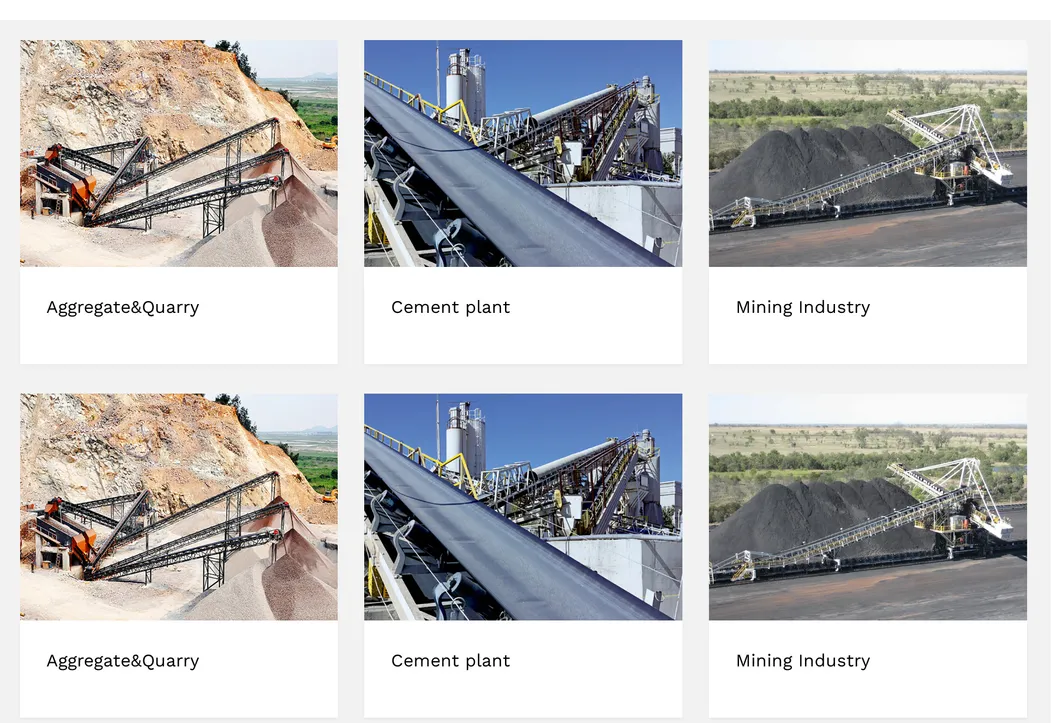

Application

FAQ

Q1. Are you a manufacturer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What products can you provide?

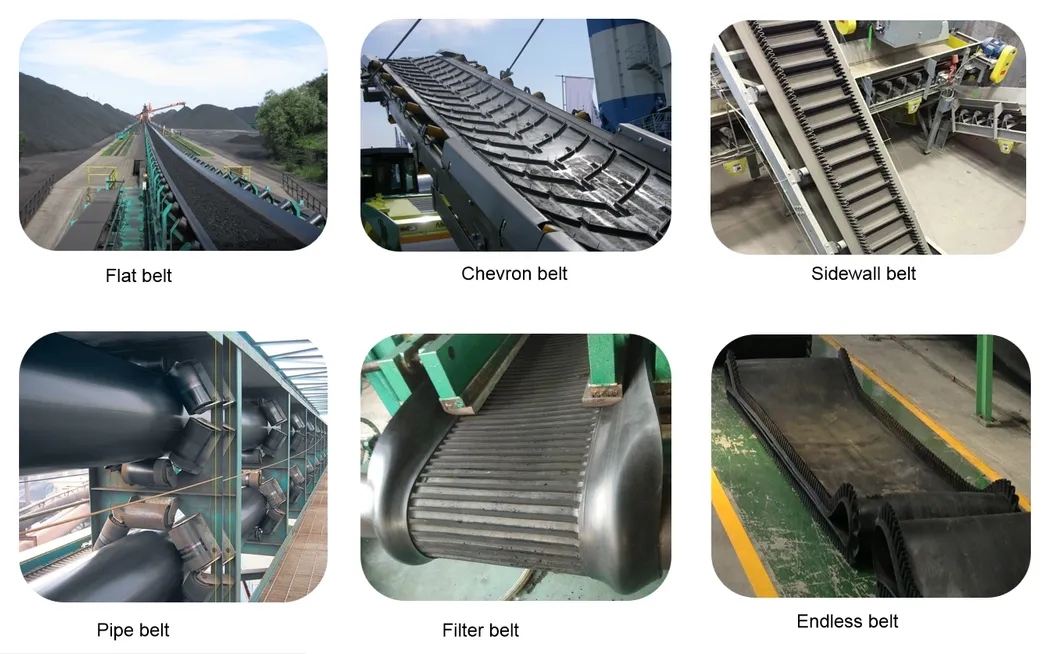

We mainly produce: ST cord conveyor belt, Sensor conveyor belt, Pip conveyor belt, Anti-tear conveyor belt, EPDM conveyor belt, High temperature resistant conveyor belt, Heat resistant conveyor belt, Fire resistant conveyor belt, EP conveyor belt, NN conveyor belt, SW fabric conveyor belt, Cotton conveyor belt, Chevron conveyor belt, Rough top conveyor belt, Oil resistant conveyor belt, Chemical resistant conveyor belt, Flat transmission belt, Rubber V belt.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 15--20 days for mass production. If urgent, we have a green channel.

Q4. How to pay?

T/T or L/C through bank account.

Q5. What manufacturing standards do the conveyor belts comply with?

The products are produced according to global standards, including DIN22102, RMA, AS, GB, JISK, SABS, and the processes are certified under ISO 9001.

Q6. What are the typical applications for these belts?

These belts are widely applied in cement, metallurgical, steel industries, and other heavy-duty bulk material handling applications.
