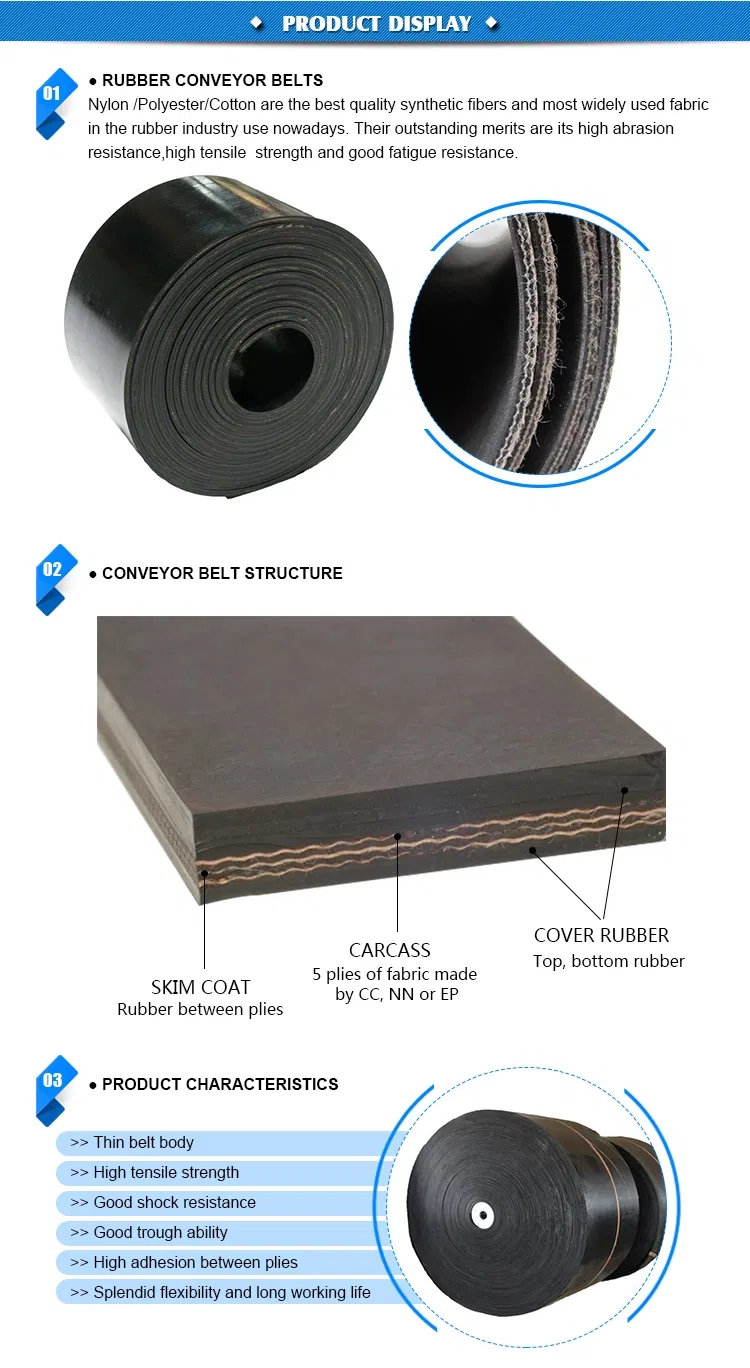

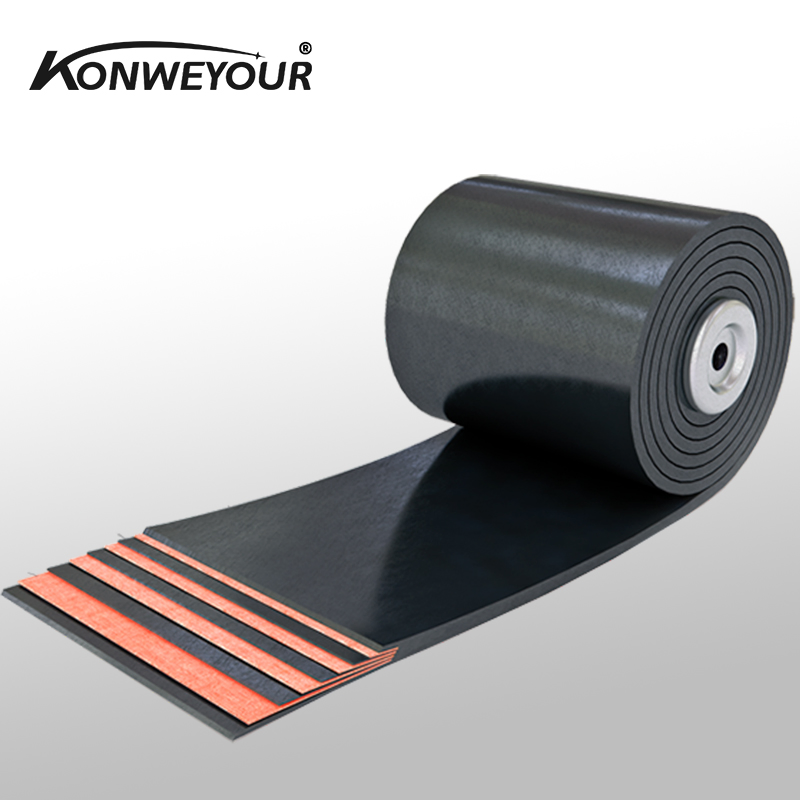

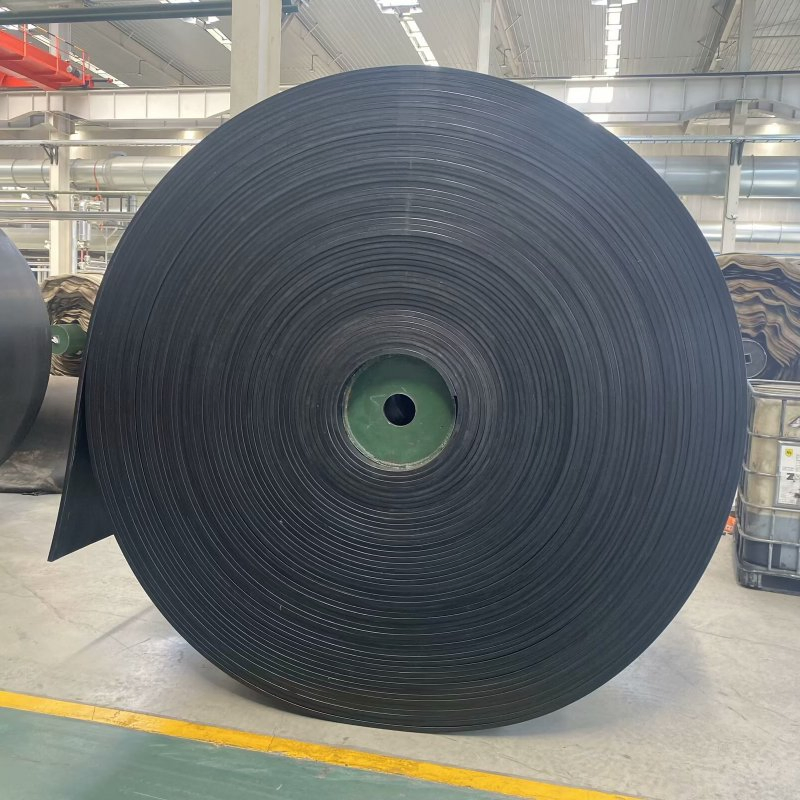

Conveyor belts, also known as transmission belts, are the transmission medium in conveyor belt systems. The conveyor belt system is one of the transmission systems, which includes a conveyor belt and at least two infinitely rotatable pulleys, with at least one of the pulleys being driven by power. The pulley with power drive is called the drive pulley, and the rest is called the idler pulley. The conveyor belt is driven by pulleys, which transport the items on the conveyor belt from one location to another. There are two occasions for industrial conveyor belts, namely, the material handling of conveying materials or objects in boxes or trays, and the Bulk material handling of conveying a large number of small items (such as grain, salt, coal, ore, sand, and overburden).
| Belt type | Fabric type | Single Fabric strength (N/mm) | Rubber cover thickness (mm) | Total thickness (mm) | Ply | Belt width (mm) | Belt length (m)/roll | |
|---|---|---|---|---|---|---|---|---|
| Top rubber | Bottom rubber | |||||||
| Cotton Canvas (CC) conveyor belt | CC-56 | 56 | 3.0-6.0 | 1.5-6.0 | 3-30 | 3-12 | 300-2800 | 200 |
| Nylon (NN) conveyor belt | NN100 | 100 | ||||||
| NN150 | 150 | |||||||
| NN200 | 200 | |||||||
| NN250 | 250 | |||||||
| NN300 | 300 | |||||||
| NN400 | 400 | |||||||
| NN500 | 500 | |||||||
| NN600 | 600 | |||||||
| Polyester (EP) conveyor belt | EP100 | 100 | ||||||
| EP150 | 150 | |||||||
| EP200 | 200 | |||||||
| EP250 | 250 | |||||||
| EP300 | 300 | |||||||
| EP350 | 350 | |||||||
| EP400 | 400 | |||||||
| EP500 | 500 | |||||||
| EP600 | 600 | |||||||
| Level Code | Tensile strength Mpa≥ | Elongation at break % ≥ | Wear mm3 ≤ |
|---|---|---|---|
| D | 18 | 400 | 90 |
| H | 25 | 450 | 120 |
| L | 20 | 400 | 150 |
| P | 14 | 350 | 200 |
| Note: D-strong wear working conditions; H-strong draw crack working condition; L-general working conditions; P-oil resistant, heat resistant, acid and alkali resistant, cold resistant and general flame resistant conveyor belt. | |||
The conveyor belt is a composite product of rubber, fiber, metal, or plastic and fabric used for carrying and transporting materials in the belt conveyor belt. Conveyor belts are widely used in cement, coking, metallurgy, chemical industry, steel and other industries.

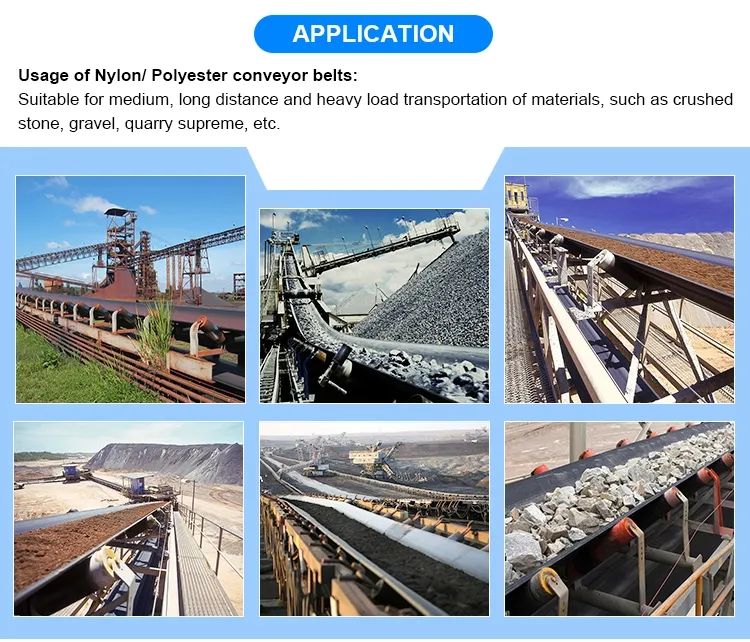

Conveyor belt and belt conveyor are widely used in agriculture, industrial and mining enterprises and transportation industry to transport various solid block and powder materials or finished articles. The conveyor belt can be used continuously, efficiently, and at a large angle. The conveyor belt is safe to operate. The conveyor belt is simple to use, easy to maintain, and low in freight. It can also shorten the transportation distance, reduce the project cost, and save manpower and material resources.
Common conveyor belt shall comply with GB7984-2001 standard.
Ordinary conveyor belt: covering layer: tensile strength is not less than 15Mpa, breaking elongation is not less than 350%, and abrasion is not less than 200mm3; The average value of longitudinal sample of interlaminar bonding strength between layers shall not be less than 3.2N/mm; The distance between the covering glue and the cloth layer shall not be less than 2.1N/mm; The longitudinal tensile elongation of full thickness shall not be less than 10%; The elongation of the longitudinal reference force of the full thickness shall not be greater than 1.5%.
The covering layer of nylon (NN) and polyester (EP) conveyor belts shall have a tensile strength of not less than 15Mpa and a elongation at break of not less than 350%. The average value of the longitudinal sample of the interlaminar adhesive strength shall be not less than 4.5N/mm between layers, not less than 3.2N/mm between the covering glue and the cloth, not less than 10% of the longitudinal tensile elongation of the full thickness, not more than 4% of the longitudinal reference force elongation of the full thickness. The covering glue shall be made of rubber and plastic, and the tensile strength coefficient of the skeleton at the national standard level, It can be lapped into a ring.
