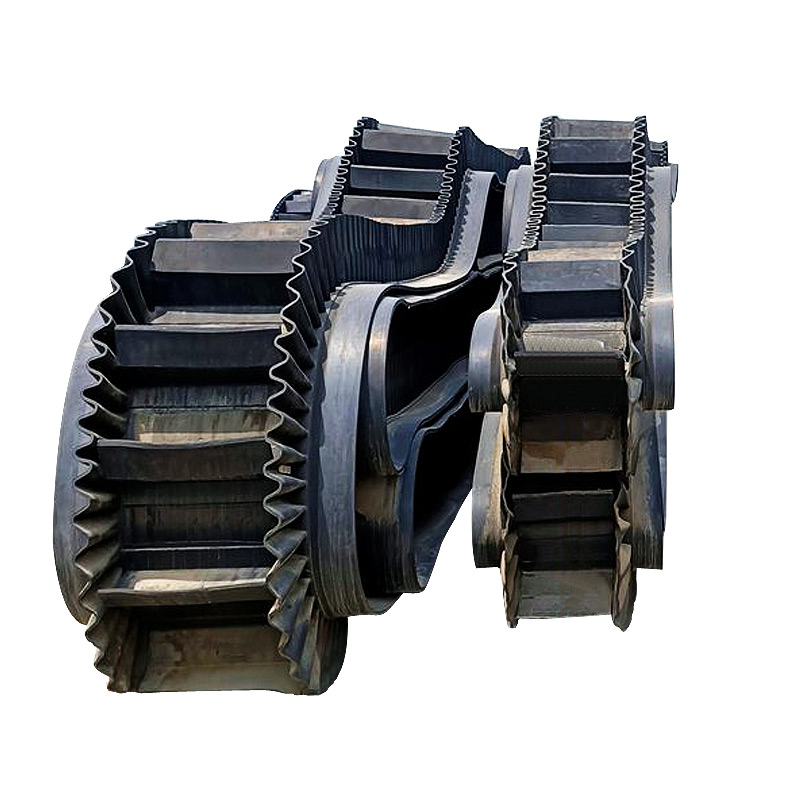

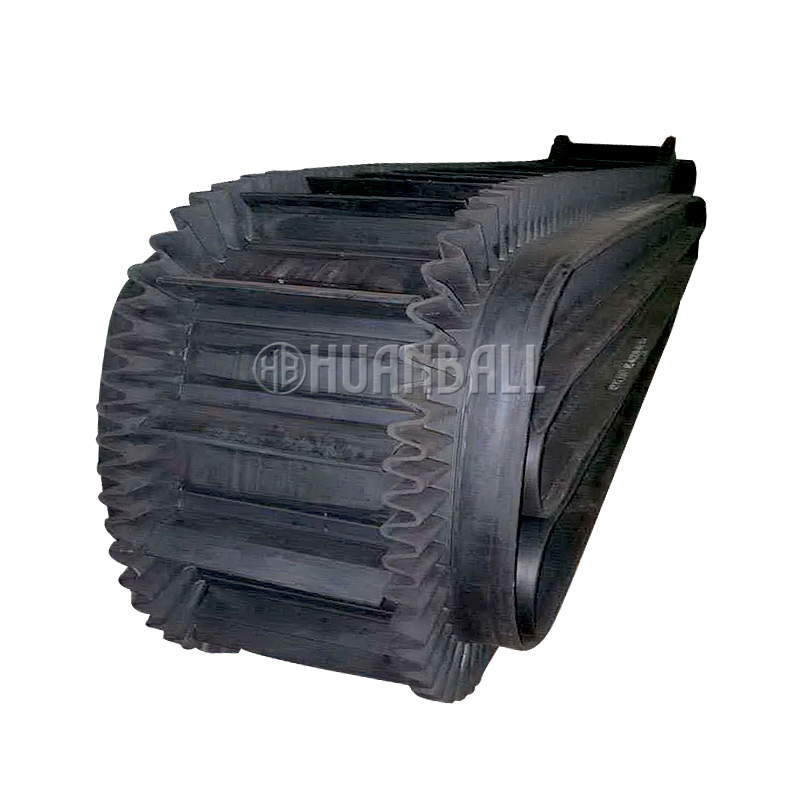

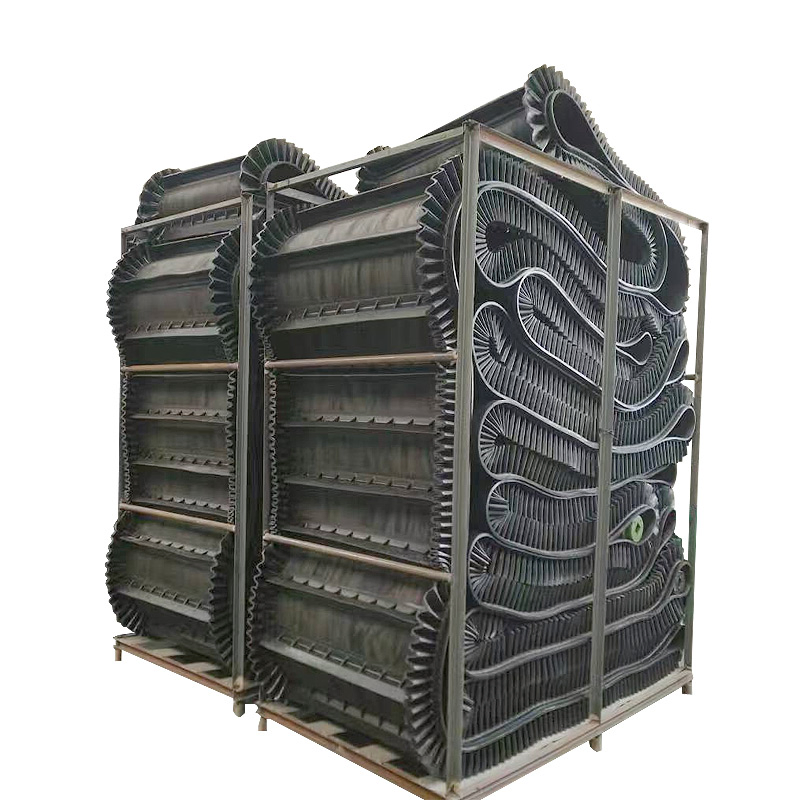

Sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space. The economy is achieved by single belt operation. A wide range of materials can be handled with less space requirement, no transfer points, low maintenance, and large capacity. Corrugated sidewall belts can be designed into a complete transportation system according to application needs.

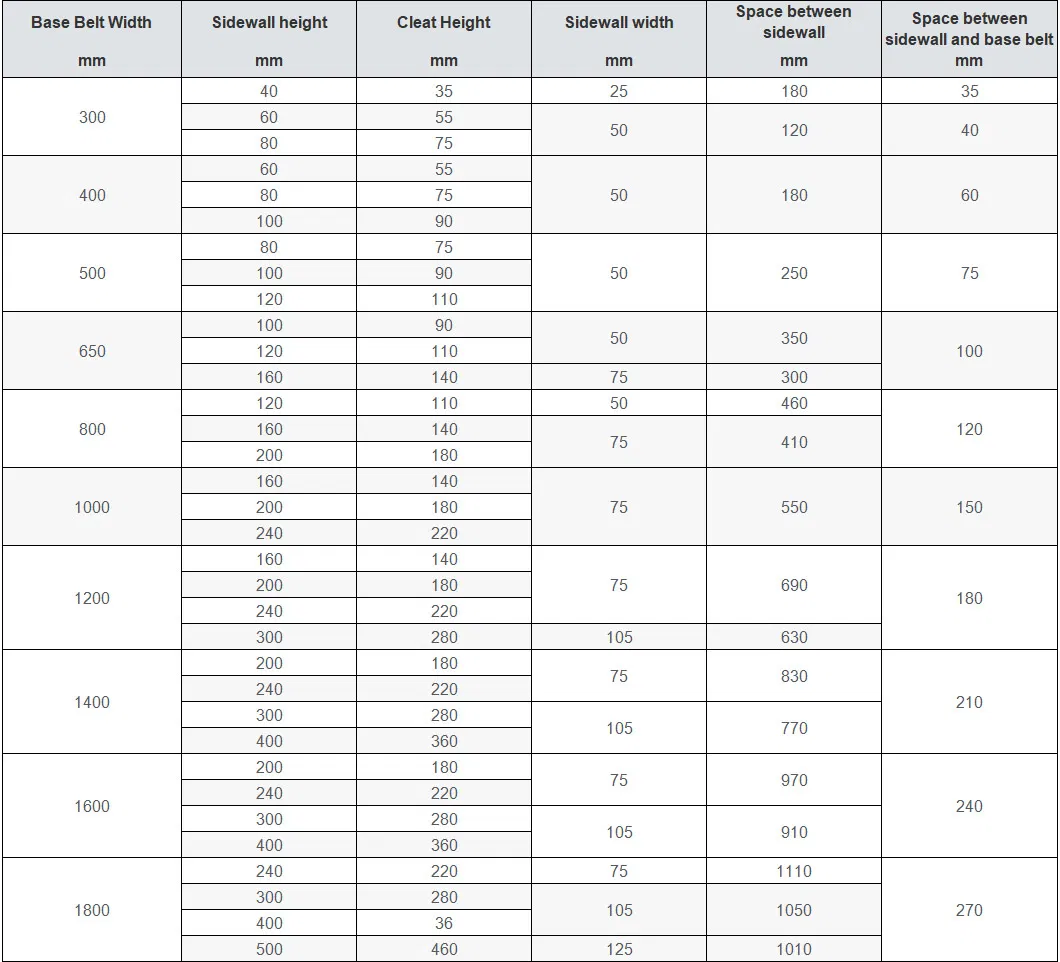

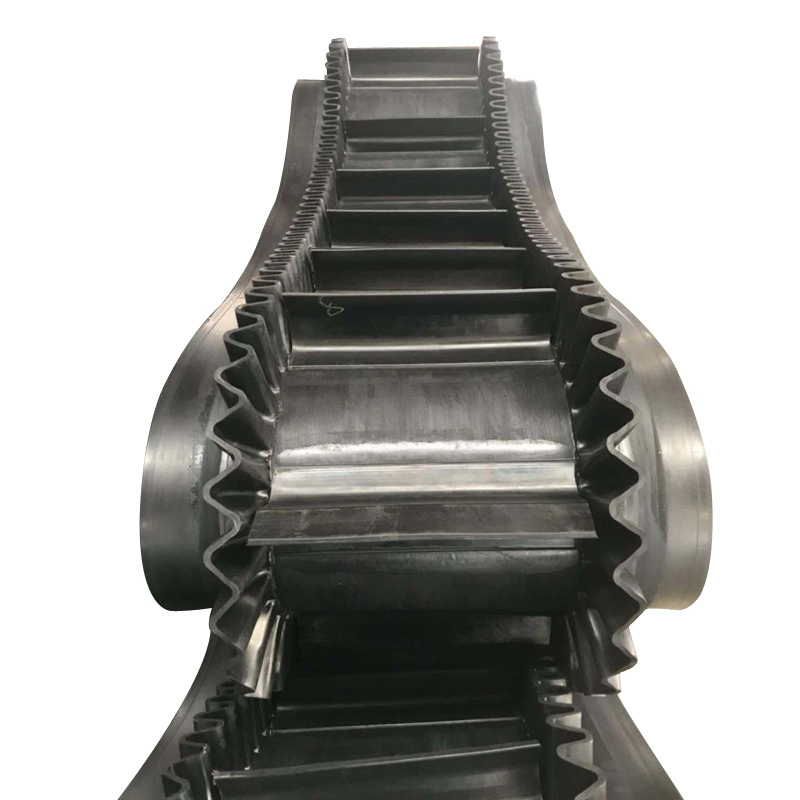

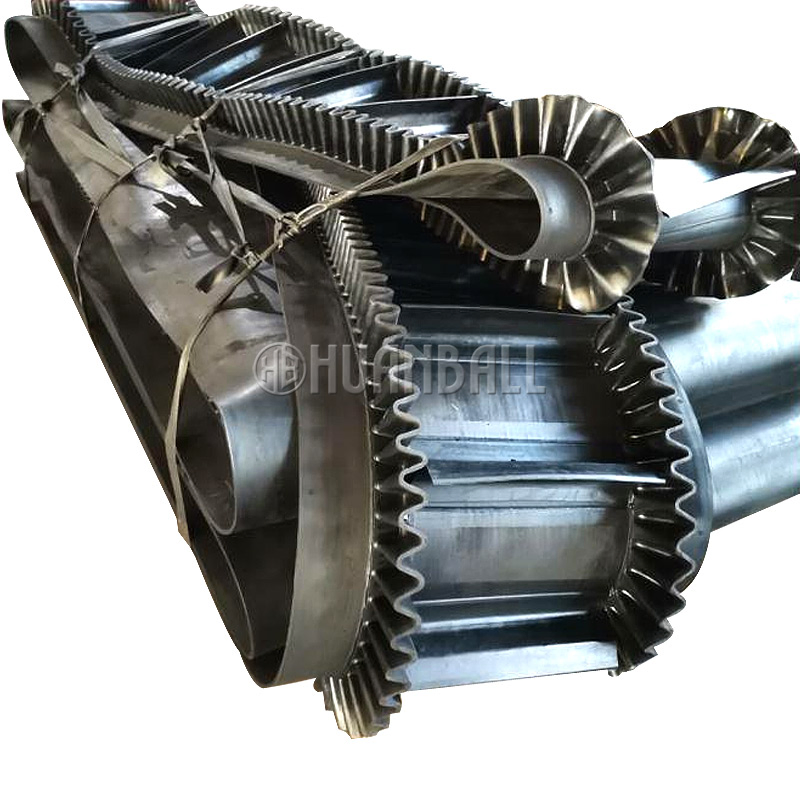

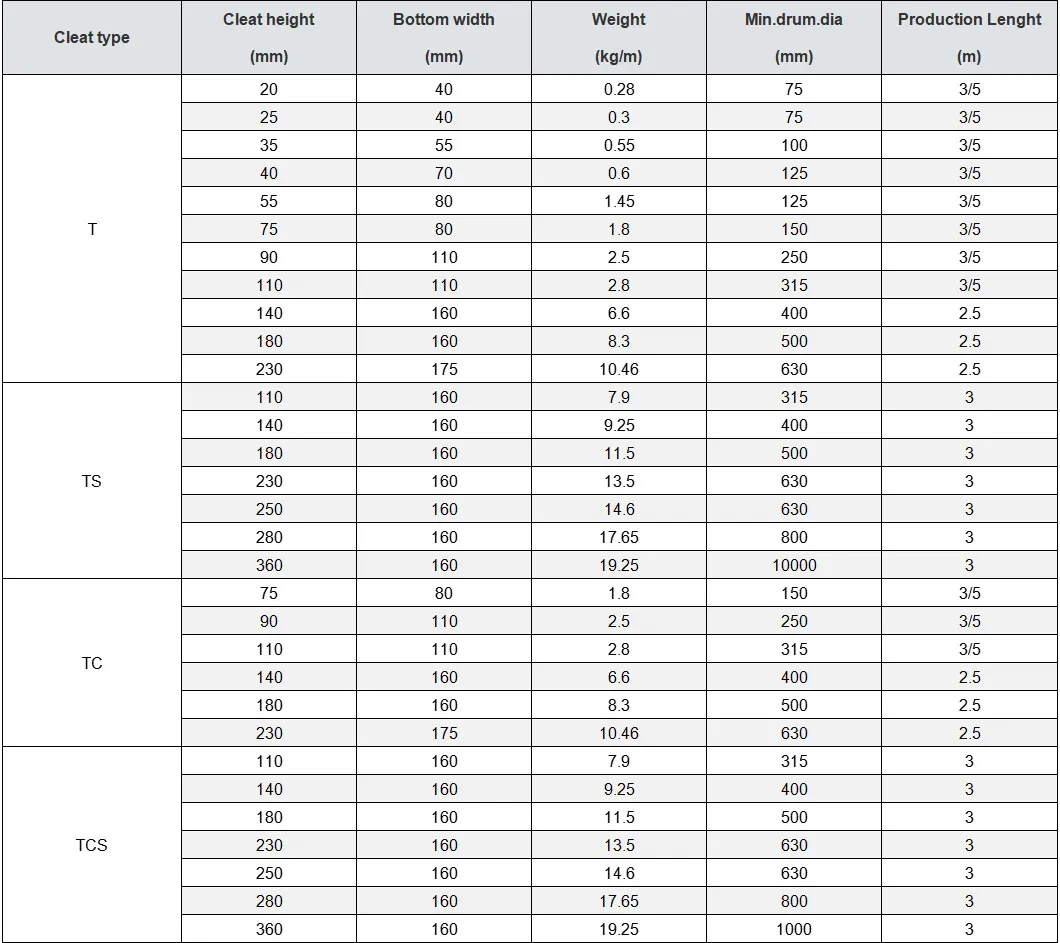

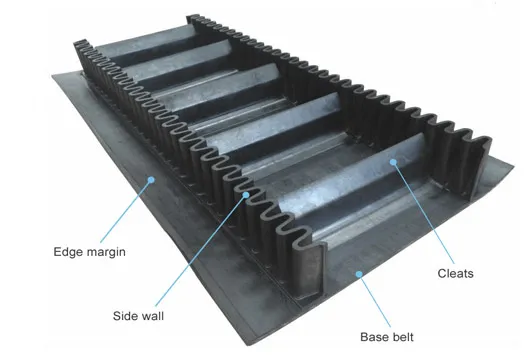

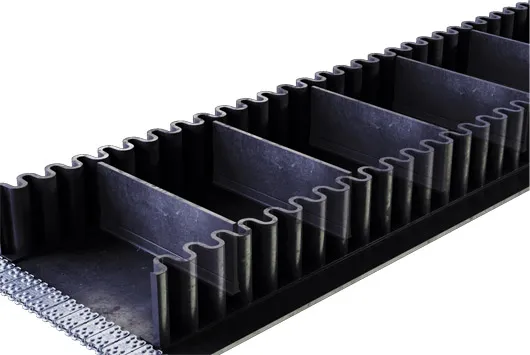

Sidewall conveyor belts are composed of three parts: base belt, sidewalls, and cleats. The sidewalls effectively protect bulk materials from sideslip and scattering. Cleats are the main component carrying materials at high capacity and steep angles, typically of the T or TC type. These parts are connected to the base belt via hot vulcanization, creating a super-strength bond.
| Parameter | Details |
|---|---|
| Product name | Sidewall Conveyor Belt |
| Material | Natural Rubber, Polyester, nylon fabric, Steel cord PVC/PU/PE, Plastic etc. |
| Functions | Efficiently transport large quantities of materials and products |
| Production standards | GB/T7984-2001, DIN22102, ISO-10247, BS-490, IS 1891, AS-1332, RMA, ARPM, JIS-K6322, SABS-1173 etc. |
| Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, 6+2, 7+2, 8+2 |
| Belt thickness (mm) | 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm |
| Belt width (mm) | 500, 600, 650, 700, 800, 1000, 1200, 1400, 1500, 1800, 2000, 2200, 2500 |
| Belt length (m) | 10, 20, 50, 100, 200, 250, 300, 500 |
| Belt edge type | Moulded (sealed) edge or cut edge |
| Cover Rubber grade | Rma1, Rma2, DIN-W, DIN-X, DIN-Y, DIN-K |

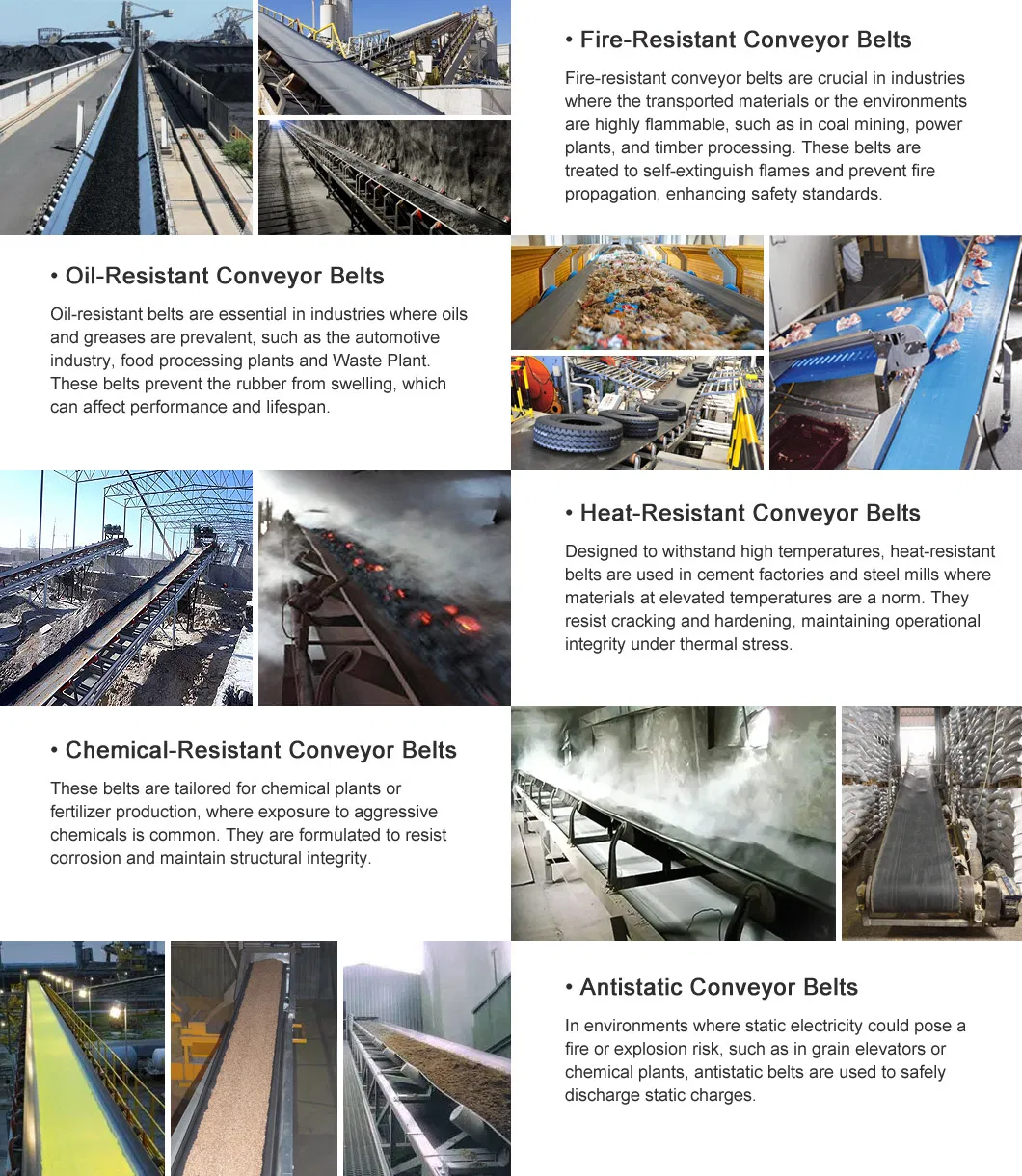

| Optional cover type | Flame-retardant, Heat resistant, Oil resistant, Cold resistant, Chemical resistant Supplied either with cut or moulded edges |

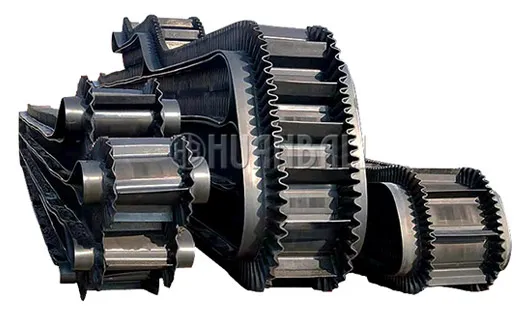

Corrugated sidewall conveyor belts are designed to elevate bulk materials in tight or confined spaces. They allow for steep-angle transport, reduce the footprint required, eliminate material transfer points, lower overall maintenance needs, and handle a very high material capacity.
The base belts and components are made from high-durability materials including natural rubber, polyester (EP), nylon fabric (NN), and steel cords, with optional cover compositions like PVC/PU/PE plastic to meet specific operational requirements.
Yes, we provide optional cover rubber grades specifically engineered for flame-retardant, heat-resistant, oil-resistant, cold-resistant, and chemical-resistant applications to ensure stability and wear resistance in harsh environments.
We offer comprehensive OEM & ODM customization services. You can customize the dimensions (belt width from 500-2500mm, thickness from 3-25mm), select the edge style (sealed/moulded or cut), customize product logos, and choose specific packaging and pallet configurations.
Yes. We provide free product samples and catalogs so you can verify the materials, thickness, and rubber qualities before committing to a larger order.

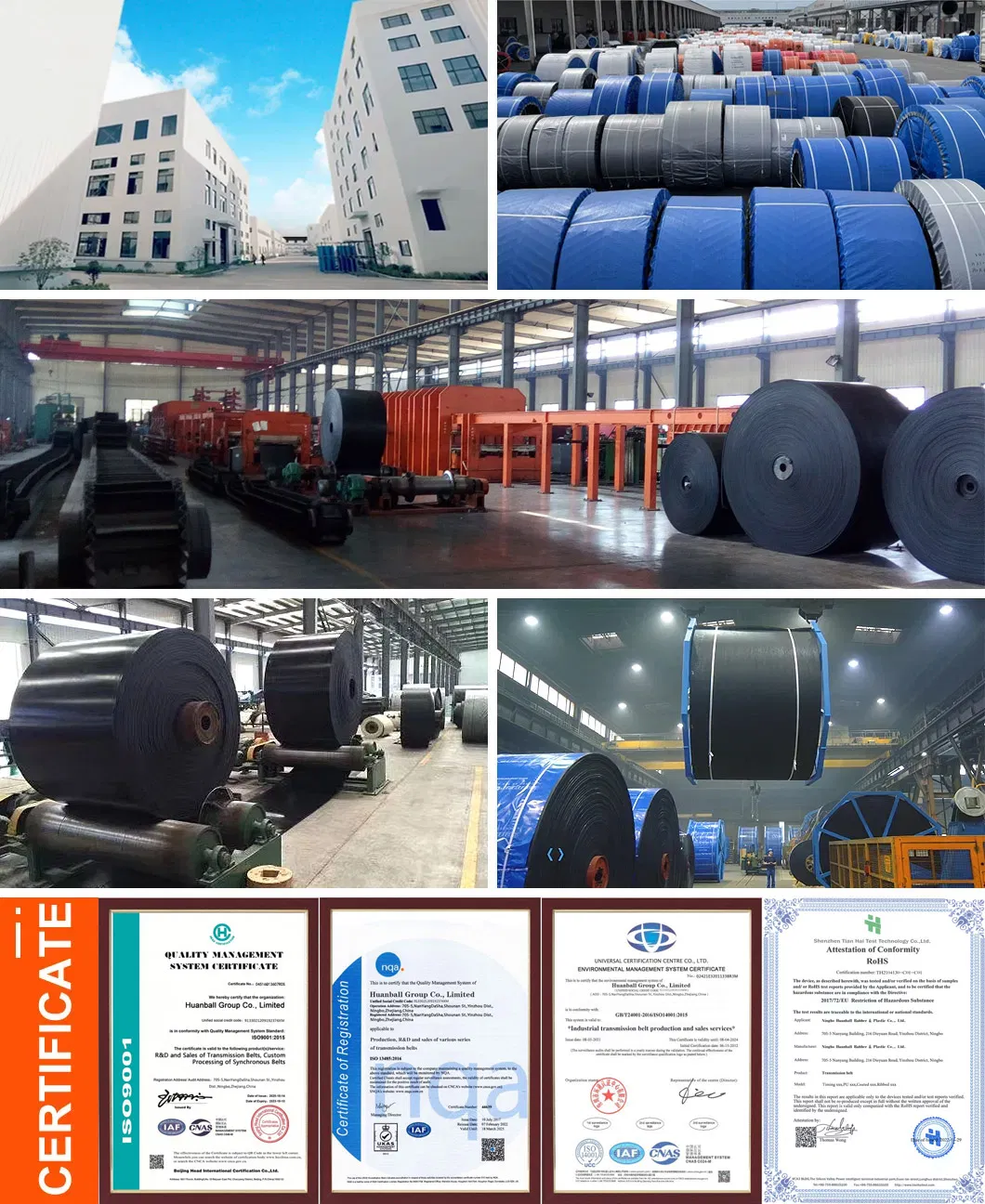

Our production meets major international standards, including GB/T7984-2001, DIN22102, ISO-10247, BS-490, IS 1891, AS-1332, RMA, ARPM, JIS-K6322, and SABS-1173. The facility operates under the ISO9001 and SGS quality control systems.
