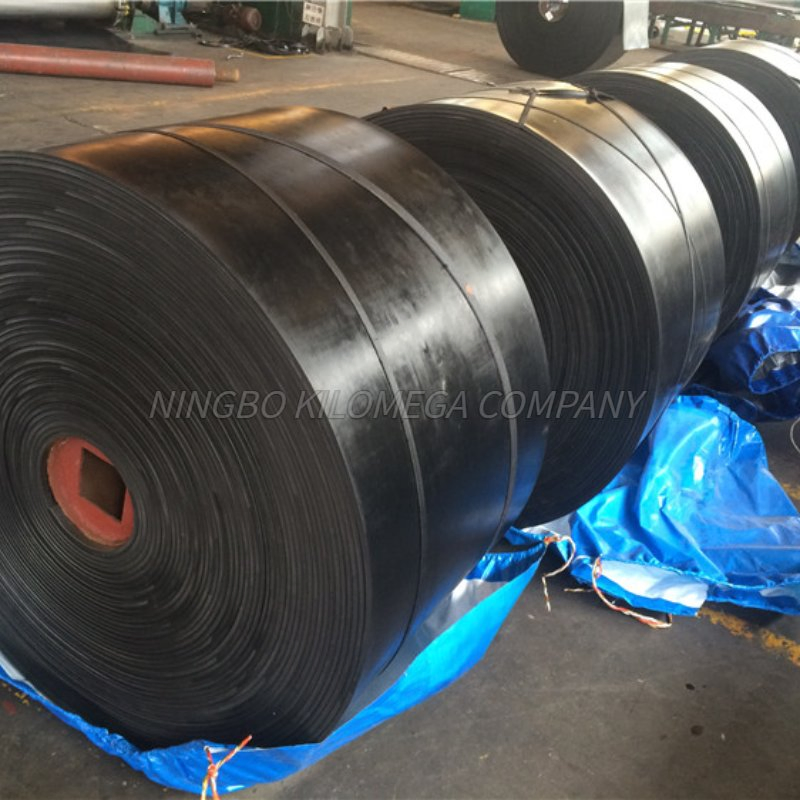

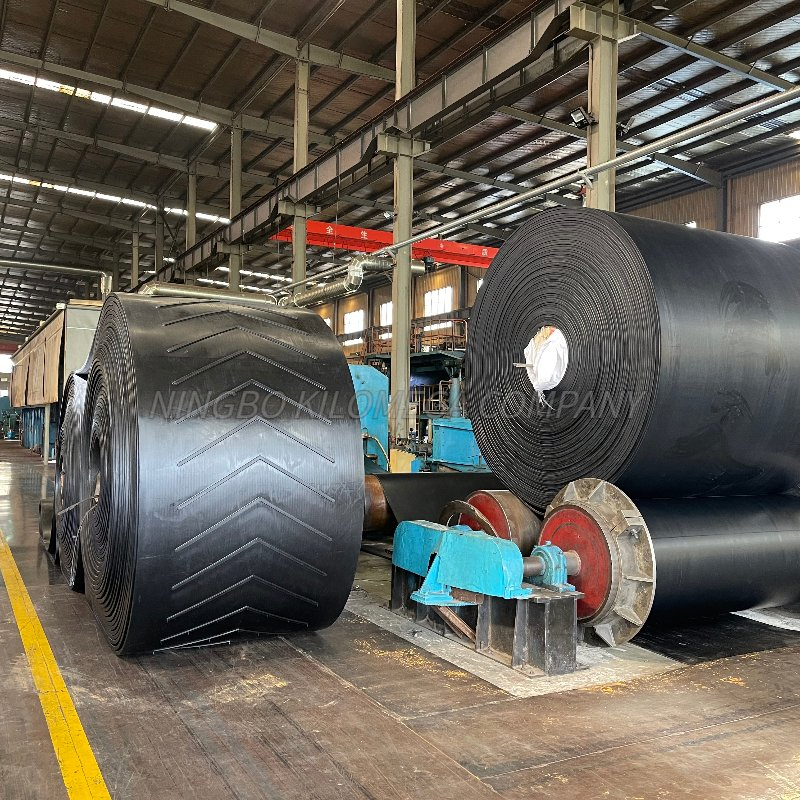

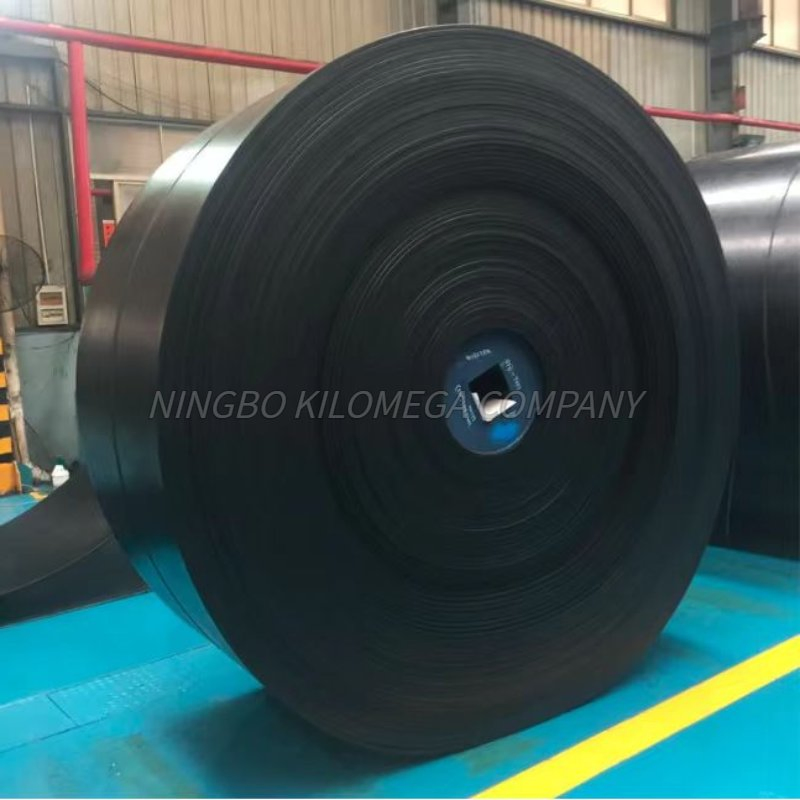

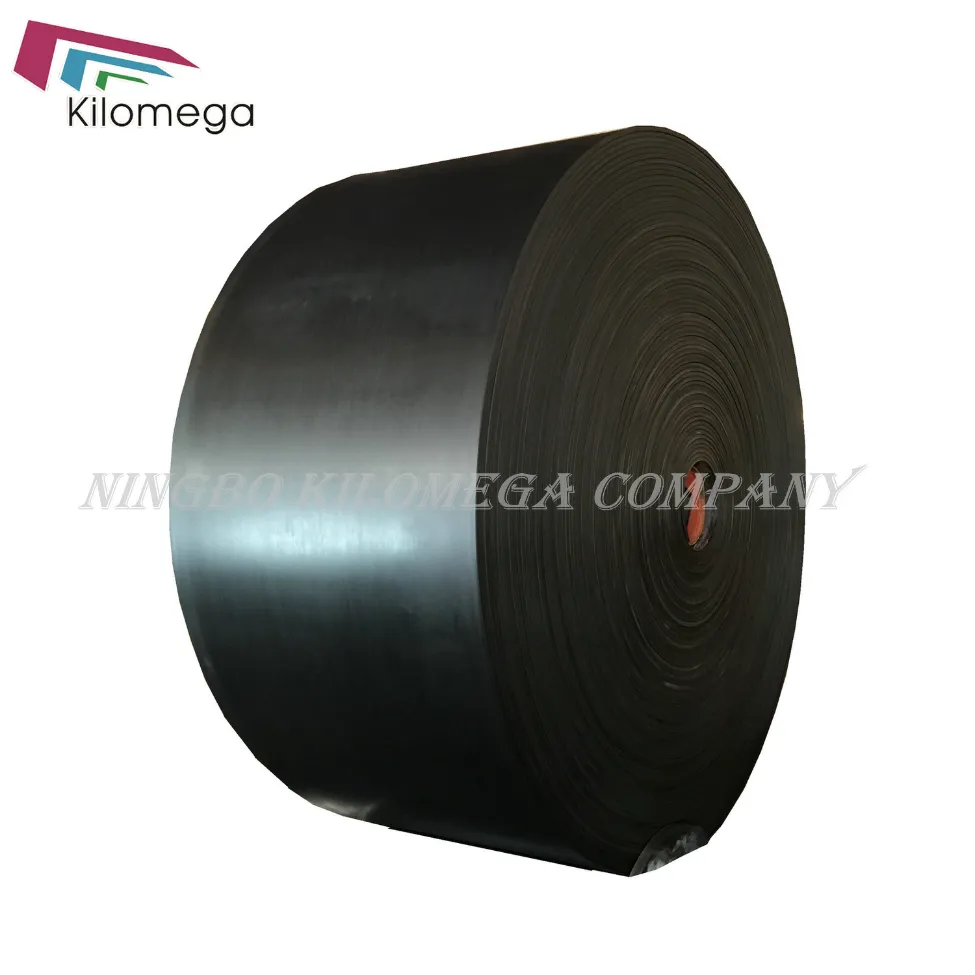

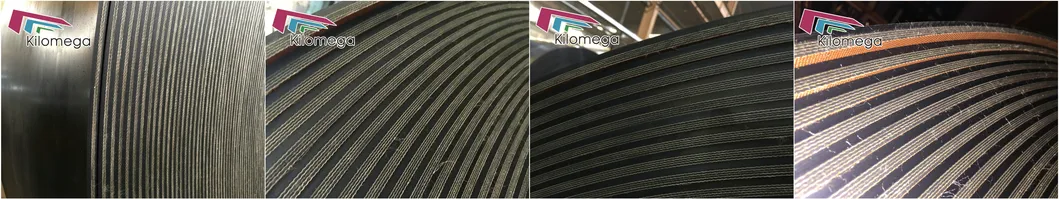

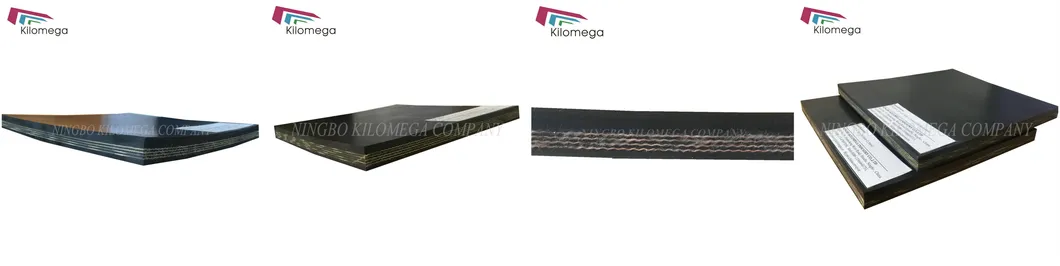

Polyester core conveyer belt is a multi-layer polyester canvas bonded together by a certain way, from top to bottom coverage of high strength, good wear-resistant flexible rubber, no special corrosion for the transmission of small and medium-sized block, powder, granular and other materials.
| No | Item | Data |
|---|---|---|
| 1 | Cover Rubber grade | 8MPA, 10MPA, 12MPA, 15MPA, 18MPA, 20MPA, 24MPA, 26MPA |
| 2 | Belt width (mm) | 400, 500, 600, 650, 700, 900, 800, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2200, 2500 |
| 3 | Tensile strength | EP200/2, EP315/2, EP315/3, EP400/3, EP500/3, EP600/3, EP400/4, EP500/4, EP630/4, EP800/4, EP1000/4, EP500/5, EP600/5, EP750/5, EP1000/5, EP1250/5, EP600/6, EP1200/6 |
| 4 | Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, 6+2, 7+2, 8+2 |
| 5 | Belt thickness | 4mm-25mm |
| 6 | Belt length | 50m, 100m, 200m, 250m, 300m |
| 7 | Belt edge type | Moulded (rubbered) edge or cut edge |
| Fabric specs | Ply thickness (mm/p) | Strength series (N/mm) | Cover Thickness (mm) | Width (mm) | Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | ||||
| EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0--8 | 0--4.5 | 400-2500 | ≤300m |
| EP100 | 0.75 | 200 | 300 | 400 | 500 | 600 | ||||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | 500--2500 | |||
| EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | ||||
| EP300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||||
| EP350 | 1.45 | - | 1050 | 1400 | 1750 | 2100 | 800--2500 | |||
| EP400 | 1.55 | - | - | 1600 | 2000 | 2400 | 1000--2500 | |||
| EP500 | 1.70 | - | - | 2000 | 2500 | 3000 | ||||

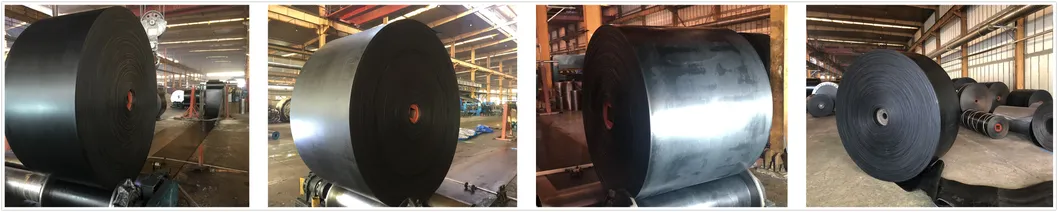

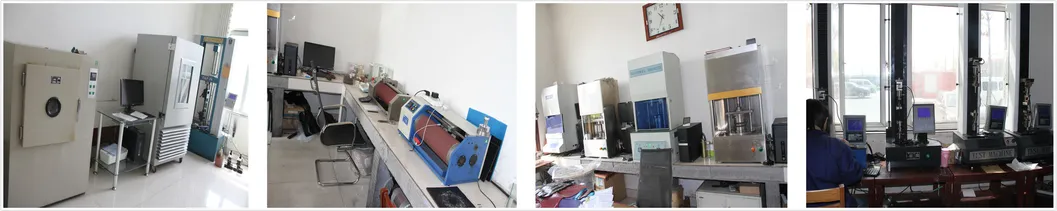

We have a dedicated Quality Control department to inspect all conveyor belts before shipment.
