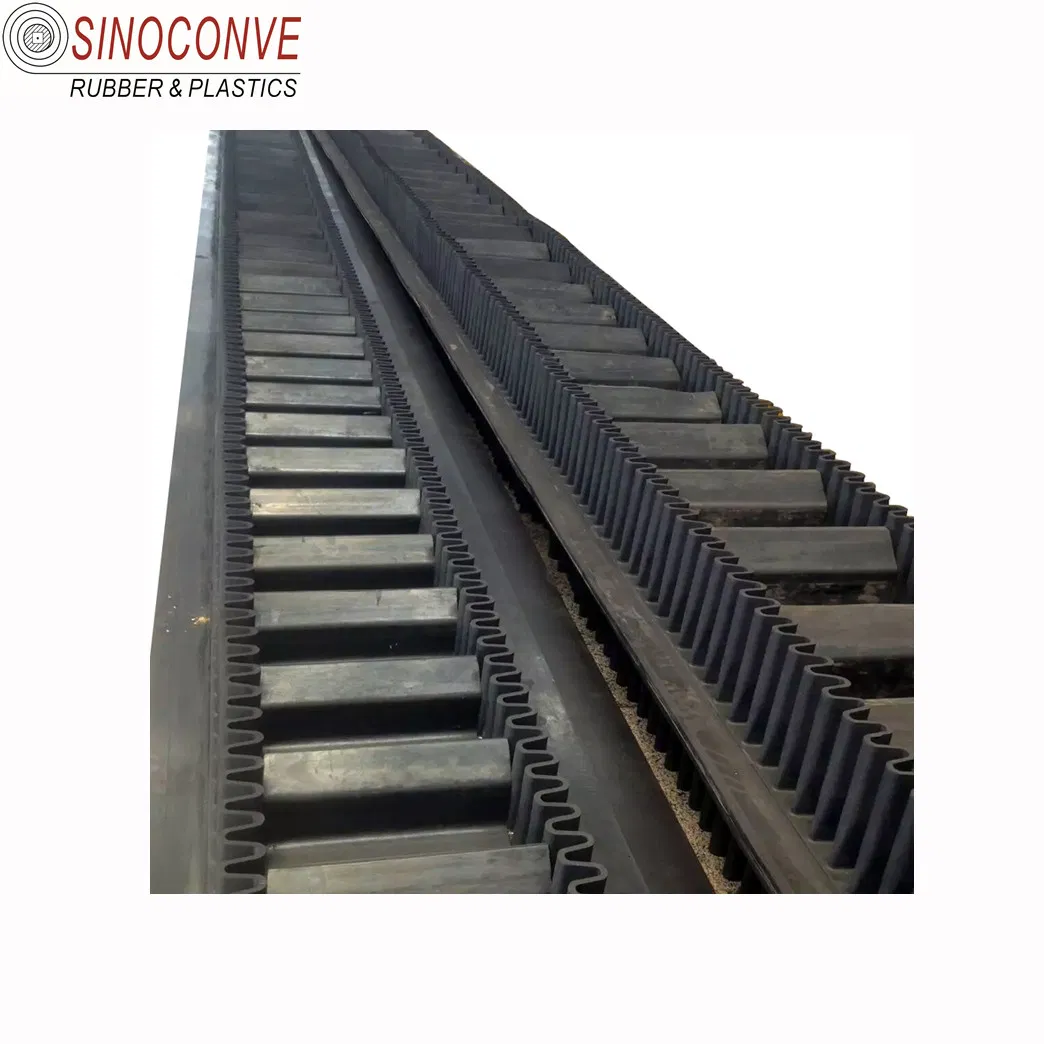

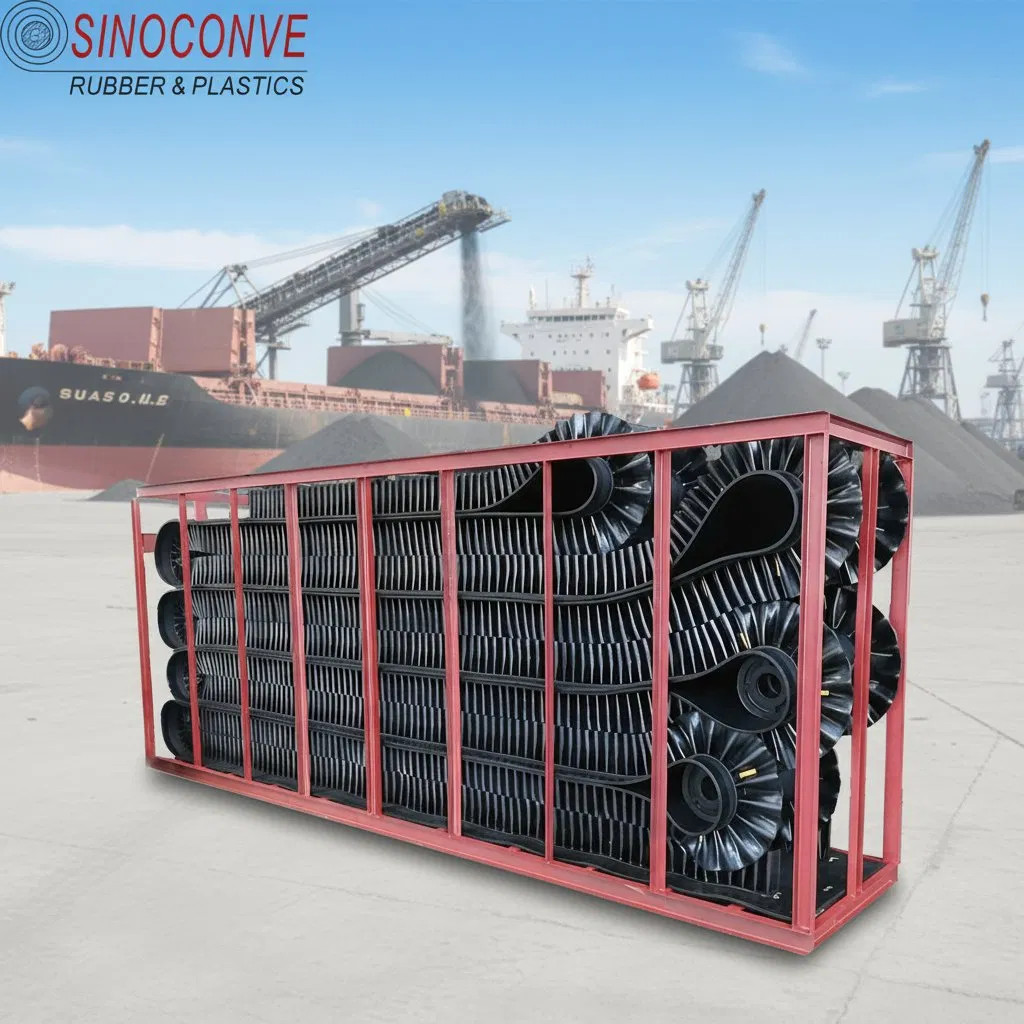

Hot Sale Cleted Large DIP Angle Endless T Ts Tc Tcs Type Waveform Skirt Sidewall Conveyor Belt for Industrial & Farm Wholesale Coal Mines for Efficient Material

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Basic Info.
Model NO. SIDEWALL CONVEYOR BELT
Inside Material Fabric
Feature Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength Strong
Vertical Corrugated Wall Stand Wave Conv 300-1400mm
Sidewall Height(H) 40-400mm
Cleat Height(H1) 35-360mm
Bottom Width of Sidewall(B1) 25-100mm
Cleat Width(B2) 120-830mm
Empty Width(B3) 35-210mm
Cleat Type T/Ts/Tc/Tcs
Specification 600/900/1200/1500
Origin China
HS Code 4010120000
📦 Packaging & Delivery
Package Size 100.00cm * 100.00cm * 100.00cm
Package Gross Weight 100.000kg
Transport Package Rolls
Conveyor Belt Banner
Product Description
HIGH STANDARD PRODUCTION

Our conveyor belts are designed to the highest standards to transport all types of bulk material, including mining, stone and earth handling, building industries, recycling, steel processing, wood, paper and pulp.

Property Features
  • Sidewall conveyor belts are composed of three parts: base belt, sidewall and cleats.
  • Possible to convey at steep angle with big capacity in a limited space.

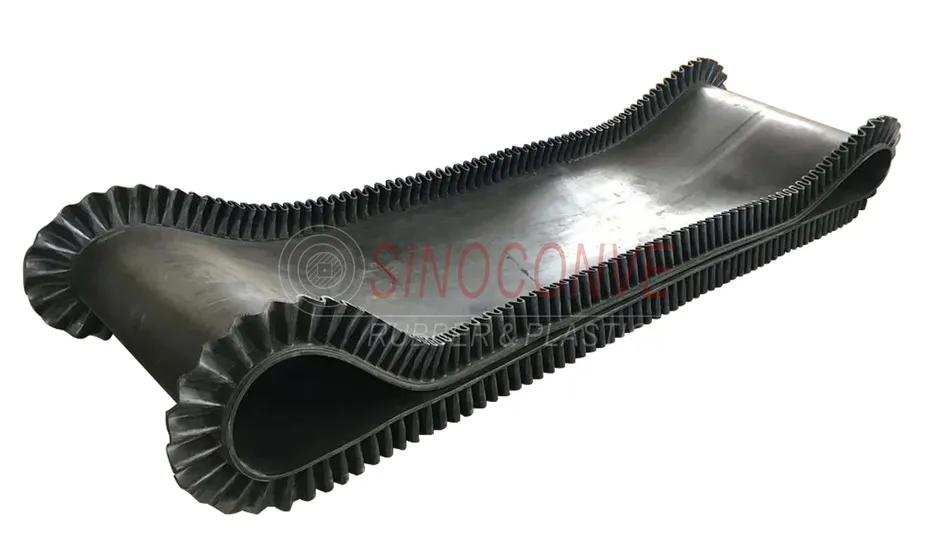

Property Image 1

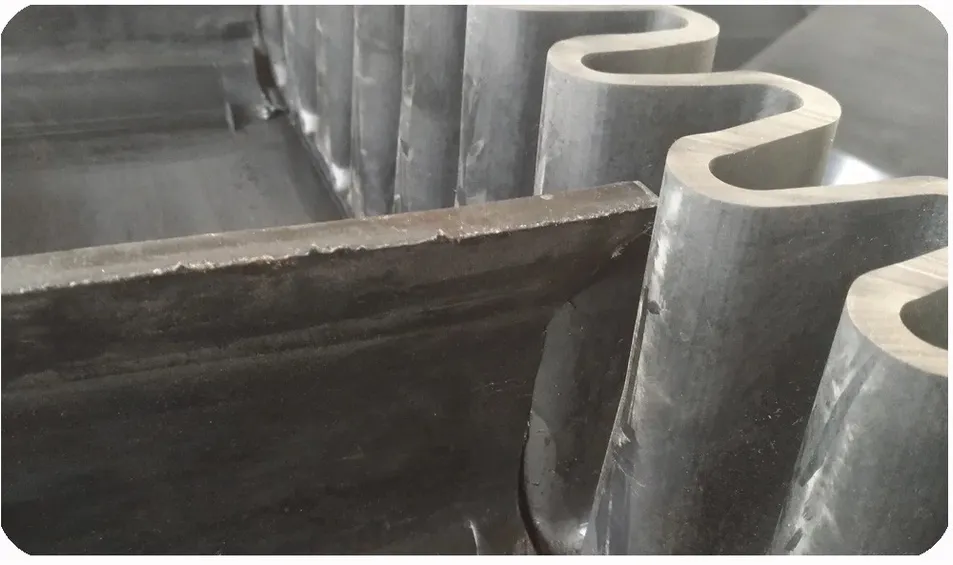

Property Image 2
Rigidity & Elongation
  • Special treated steel mesh inserted into both top cover and bottom cover, creating an excellent combination of longitudinal flexibility and transverse rigidity.
  • The entire steep angle conveyor belts are highly durable, low elongation and long lasting.

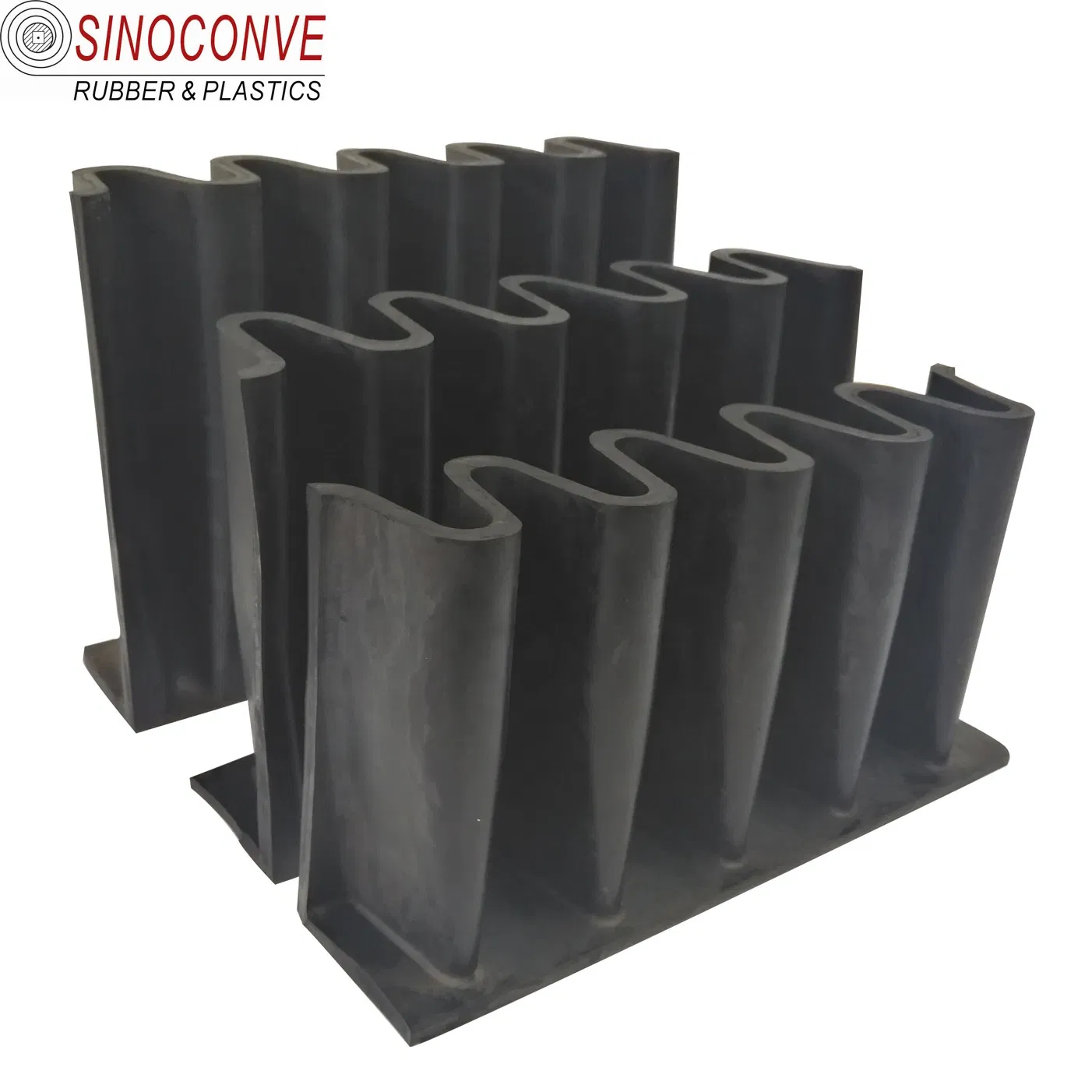

Sidewall Construction
  • Sidewall is hot vulcanized on the base belt.
  • High quality rubber to guarantee sidewall withstand highly stress and repeated flexing.
  • Fabric inside sidewall perfectly combine flexibility and strength to effectively avoid torn.
  • Sidewall height ranges from 40mm to 400mm.

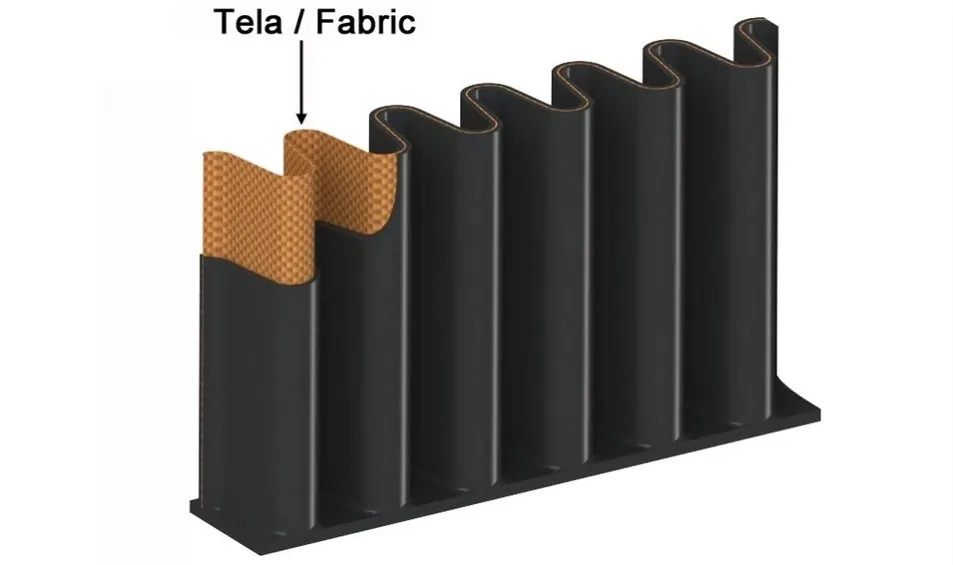

Sidewall details
Cleats details

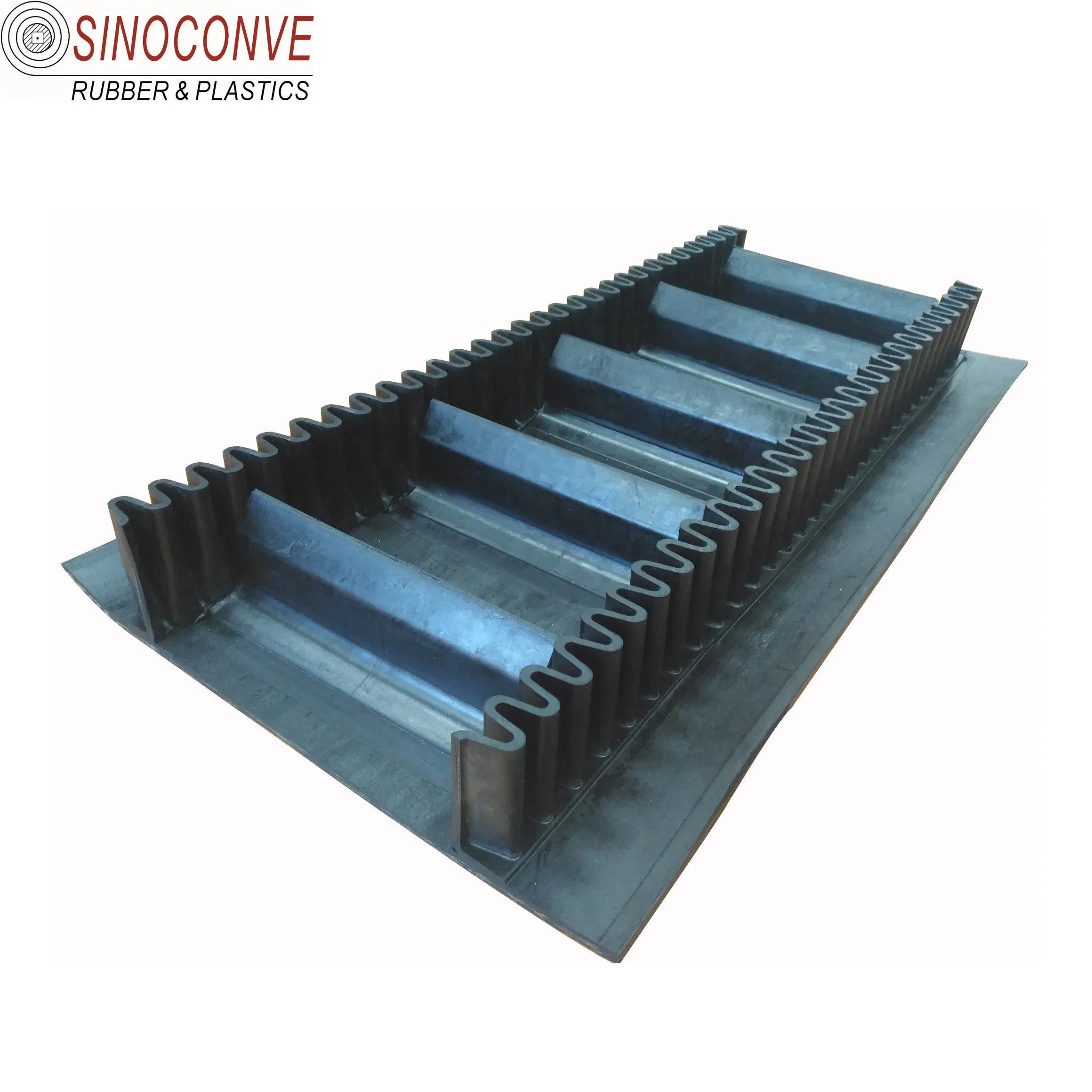

Cleat Structure
  • Cleats are also hot vulcanized on the base belt.
  • Fabric inside cleats protect cleats from deformation caused by impact.
  • Cleats are the main part to carry materials in a high capacity and steep angle.
  • Available with TC or TCS type.
  • Special compounds to extremely avoid deformation caused by impact.
Specification
Base belt width (B) Sidewall height (H) Cleat height (H1) Bottom width of sidewall (B1) Cleat width (B2) Empty width (B3)
300 40 35 25 180 35
60 55 50 120 40
80 75
400 60 55 50 180 60
80 75
100 90
500 80 75 50 250 75
100 90
120 110
650 100 90 50 350 100
120 110
160 140 75 300
800 120 110 50 460 120
160 140 75 410
200 180
1000 160 140 75 550 150
200 180
240 220
1200 160 140 75 690 180
200 180
240 220
300 260 100 640
1400 200 180 75 830 210
240 220
300 260 100 780
400 360

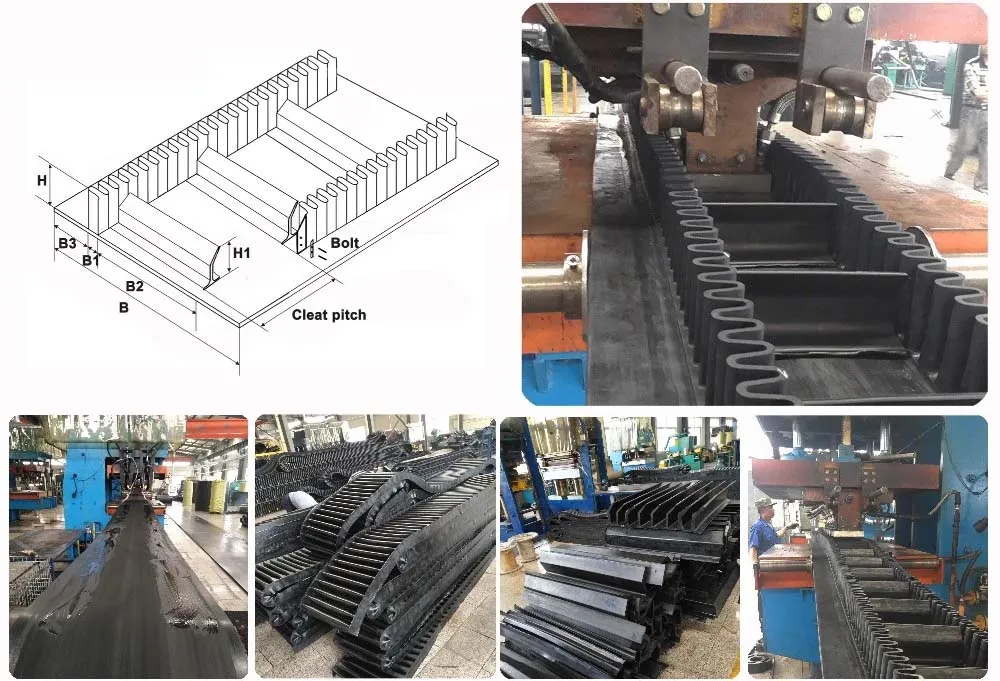

Specification diagram

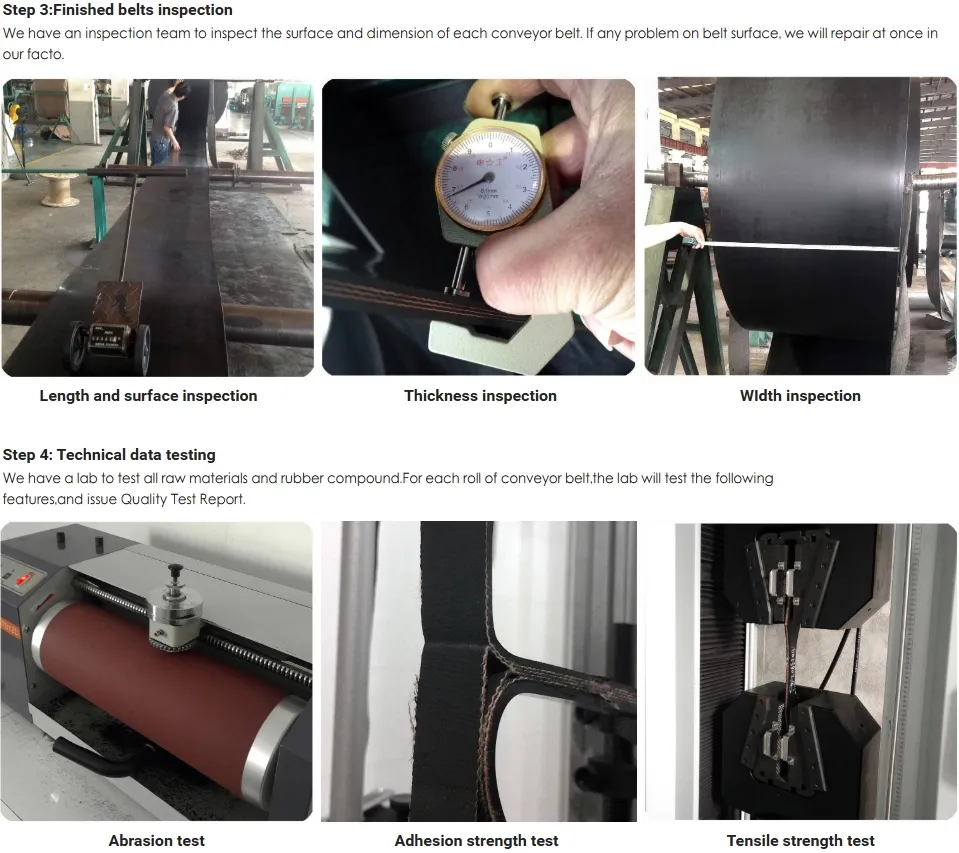

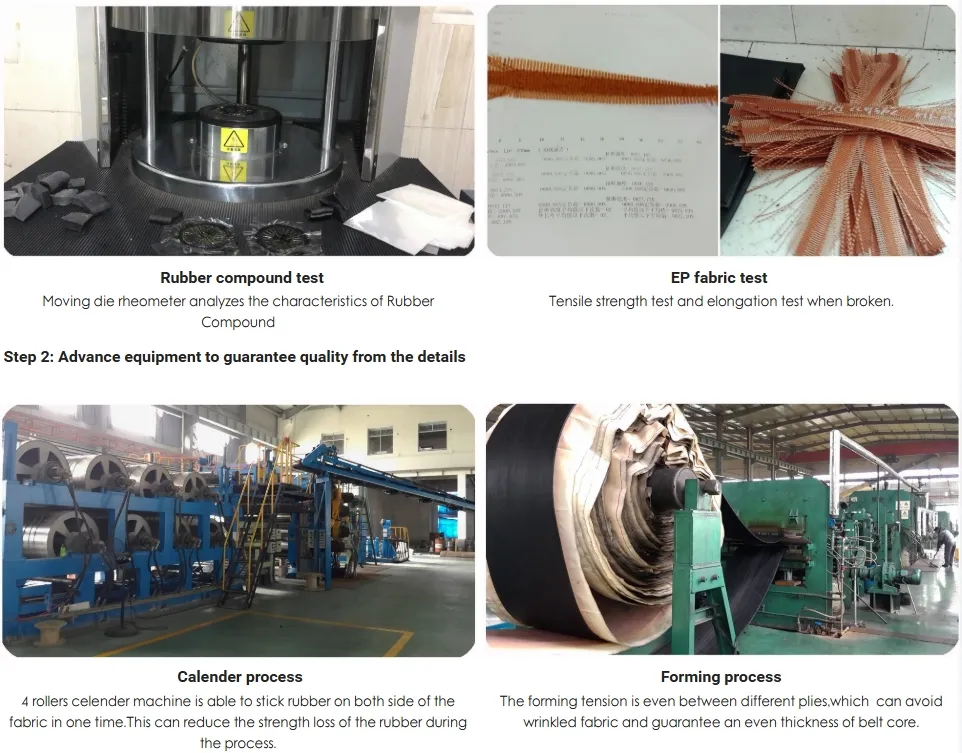

Quality Control
Step 1: Raw material inspection
Company Profile

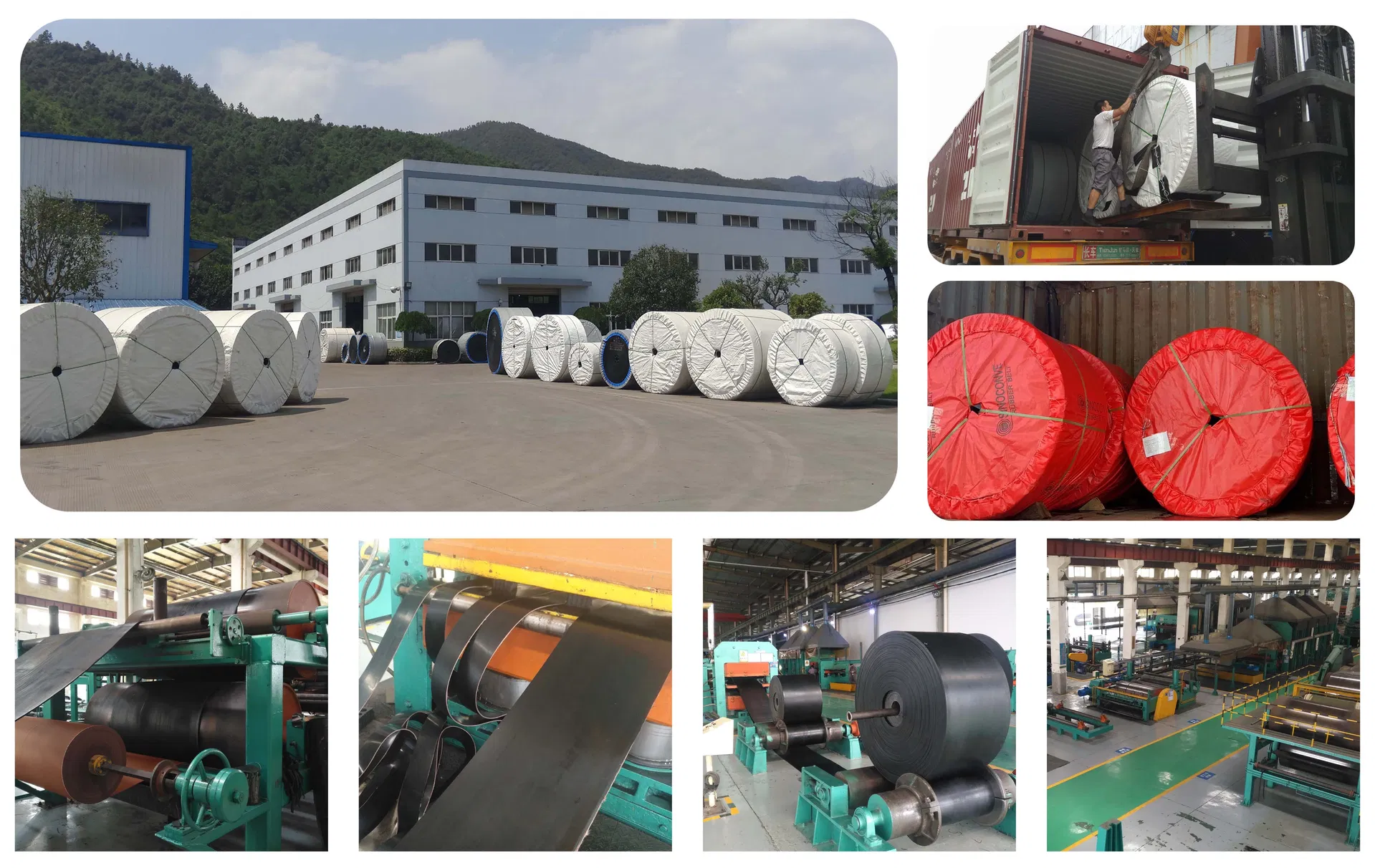

Company Facility
Cooperative Partner
Cooperative Partners Grid
Frequently Asked Questions
Are you a manufacturer?
Yes, we have been specialized in producing rubber conveyor belts and rubber V-belts for over 20 years.
What about the lead time?
It takes 3-5 days for sample preparation and 15-20 days for mass production. Urgent orders can be processed via our priority green channel.
What are your payment methods?
Payments can be made via T/T or L/C through standard bank transfer.

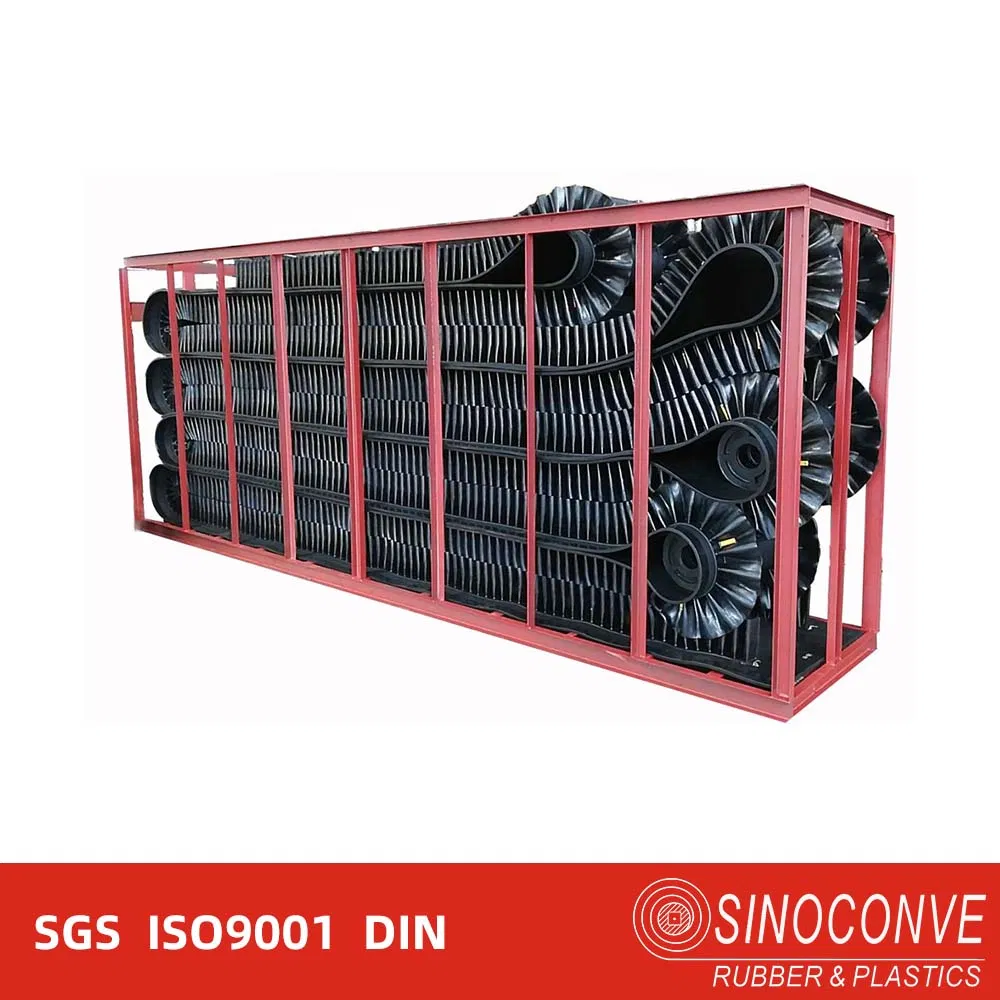

How are the conveyor belts packaged for delivery?
The inner packaging uses a round rubber core with a 30cm diameter and a 12cmx12cm square hole, while the outer layer is wrapped with a waterproof single-ply PP fabric.
What are the available heights for sidewalls and cleats?
Sidewall heights range from 40mm to 400mm, and cleat heights range from 35mm to 360mm to accommodate various steep-angle conveying requirements.
What is the advantage of fabric inside the sidewalls and cleats?
The fabric inside the sidewalls combines flexibility and strength to prevent tearing, and the fabric inside the cleats prevents deformation caused by heavy material impact.
