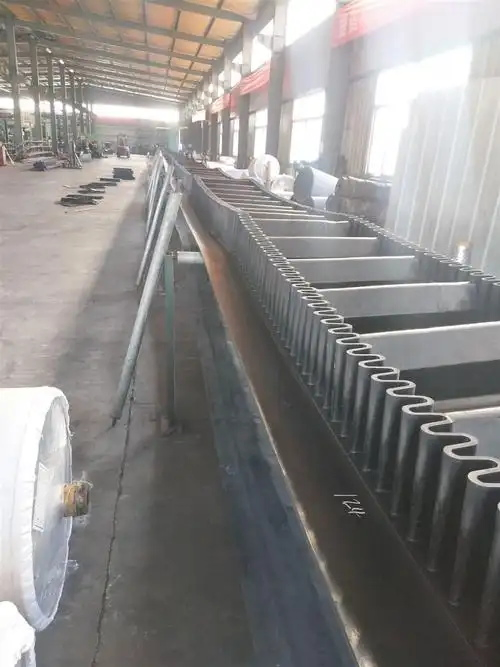

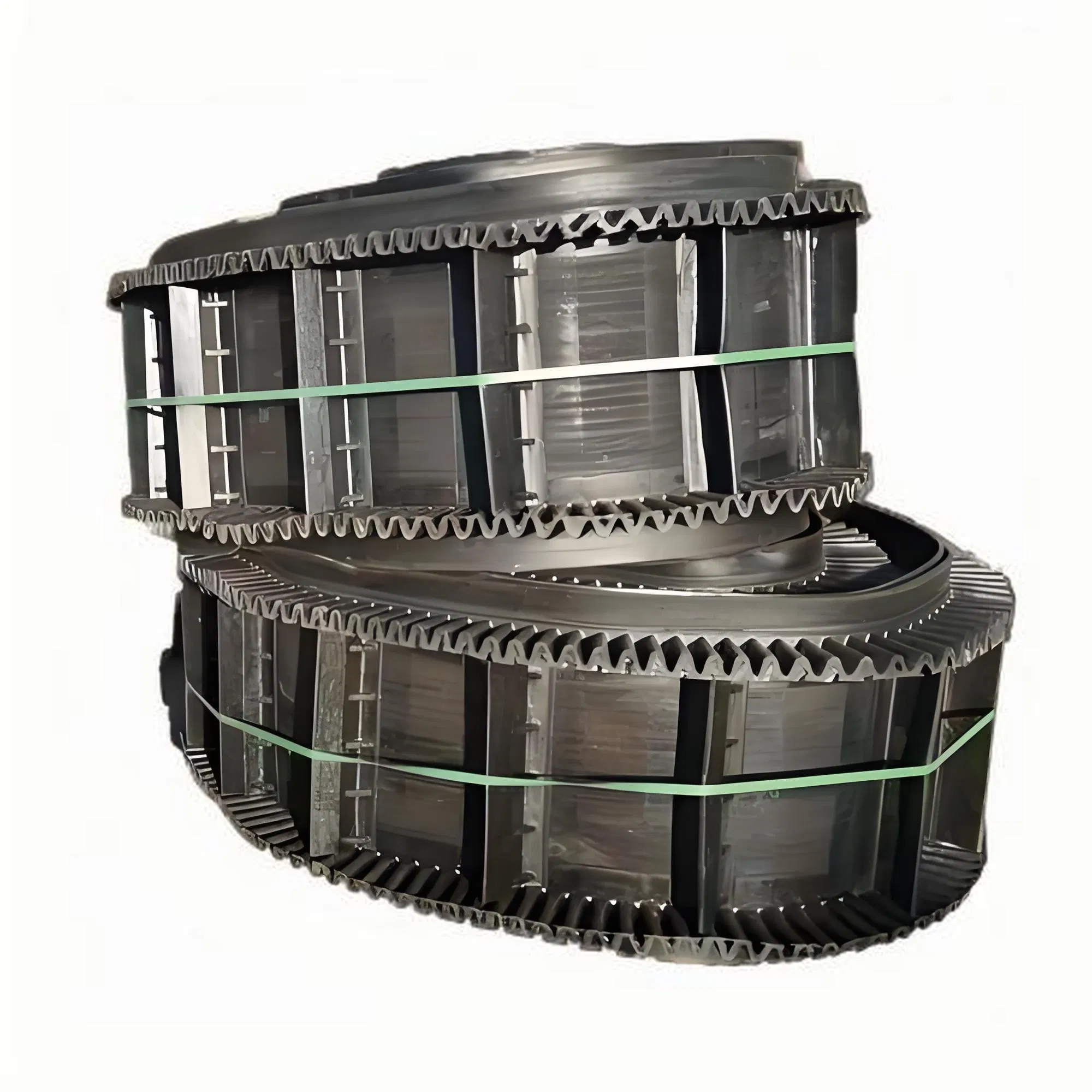

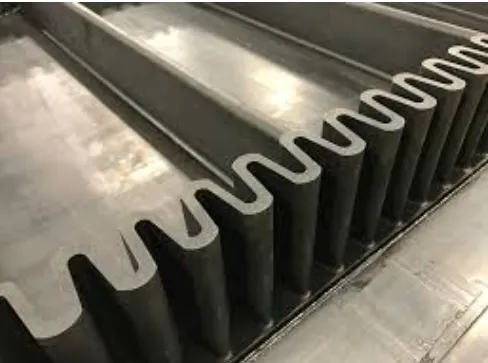

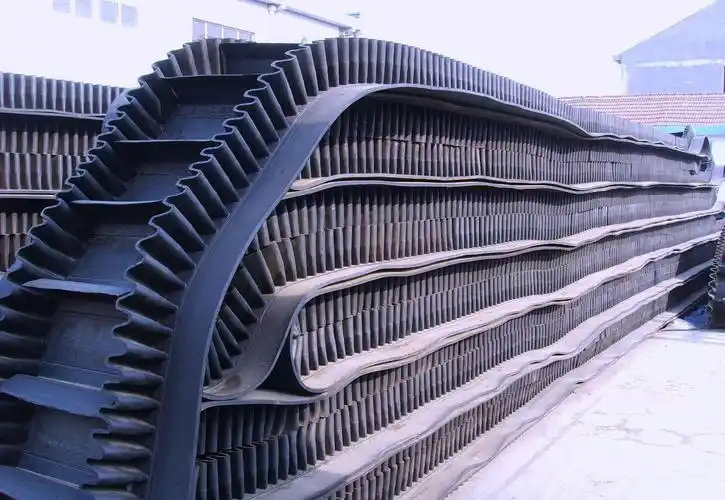

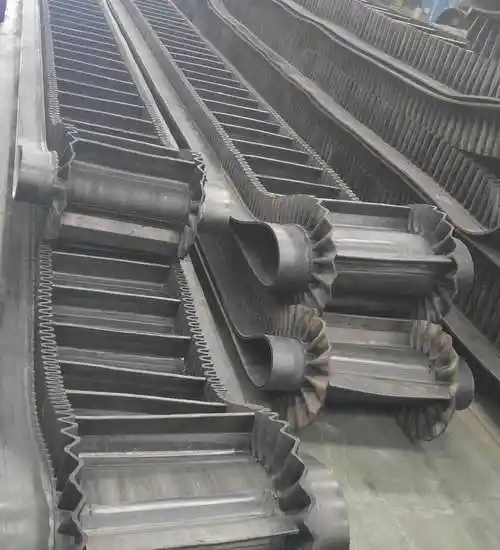

Structure: Sidewall conveyor belts are composed of three primary parts: the base belt, the sidewall, and the cleats. Each part is designed to work in harmony for optimal performance.

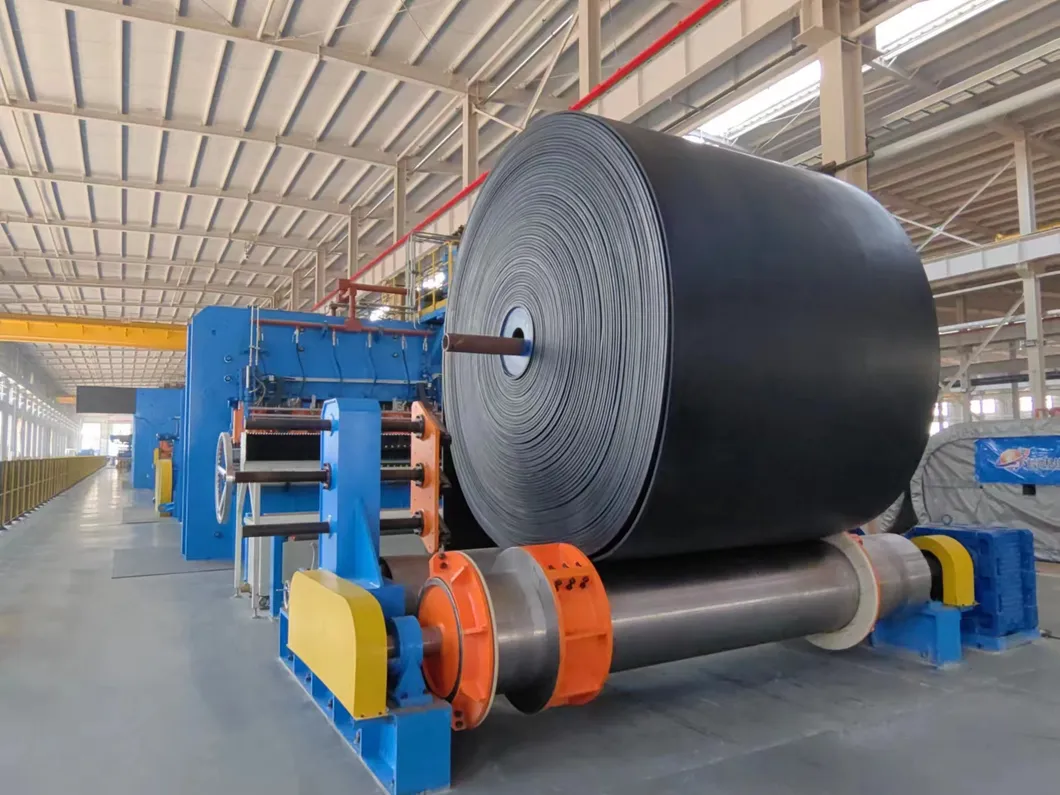

Base Belt: We can produce any width and thickness required to suit specific industrial needs.

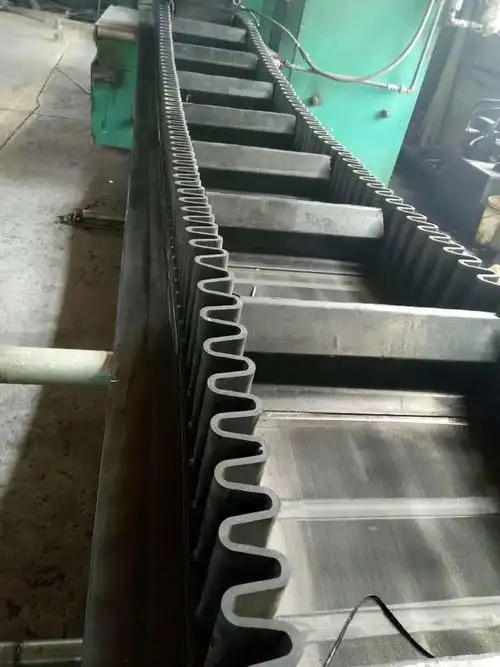

Sidewall: Fabric inside the sidewall perfectly combines flexibility and strength to effectively avoid tearing. Heights range from 40mm to 400mm and are hot vulcanized onto the base belt.
Cleats: Fabric-reinforced cleats are protected from deformation caused by impact. They are available in TC or TCS types and are also hot vulcanized onto the base belt for maximum durability.
| Base Belt Width (mm) | Sidewall Height (mm) | Cleat Height (mm) | Bf (mm) | Br (mm) | R (mm) |
|---|---|---|---|---|---|
| 300 | 40-80 | 35-75 | 25-50 | 120-180 | 35-40 |
| 400 | 60-100 | 55-90 | 50 | 180 | 60 |
| 500 | 80-120 | 75-110 | 50 | 250 | 75 |
| 650 | 100-160 | 90-140 | 50-75 | 300-350 | 100 |
| 800 | 120-200 | 110-180 | 50-75 | 410-460 | 120 |
| 1000 | 160-240 | 140-220 | 75 | 550 | 150 |
| 1200 | 160-300 | 140-280 | 75-105 | 630-690 | 180 |
| Grade | Abrasion (MM3) | Breaking Strength (N/MM2) | Elongation at Break (%) |
|---|---|---|---|
| W | 90 | 18 | 400 |
| X | 120 | 25 | 450 |
| Y | 150 | 20 | 450 |
| Z | 200 | 15 | 350 |
| H | 120 | 24 | 450 |

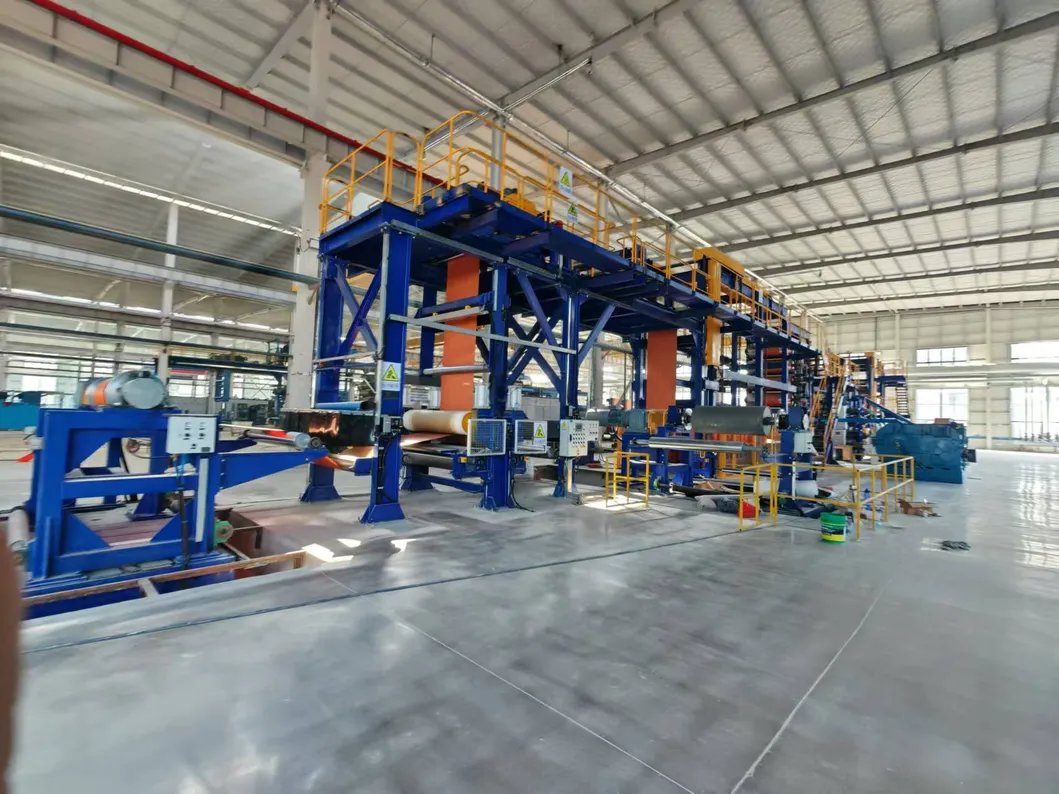

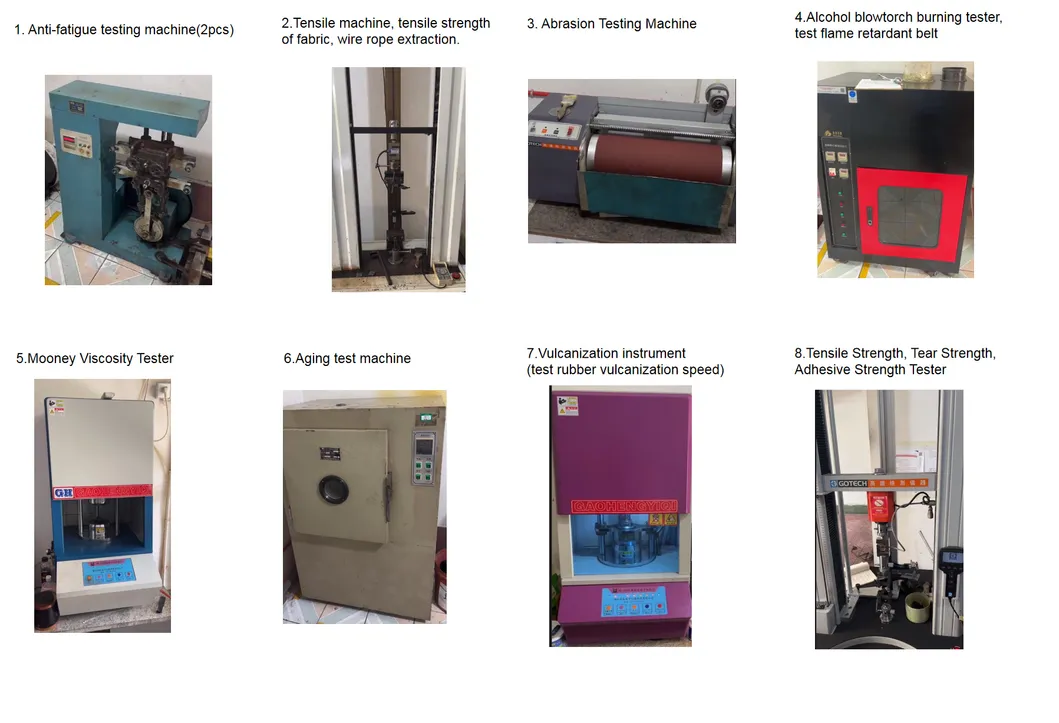

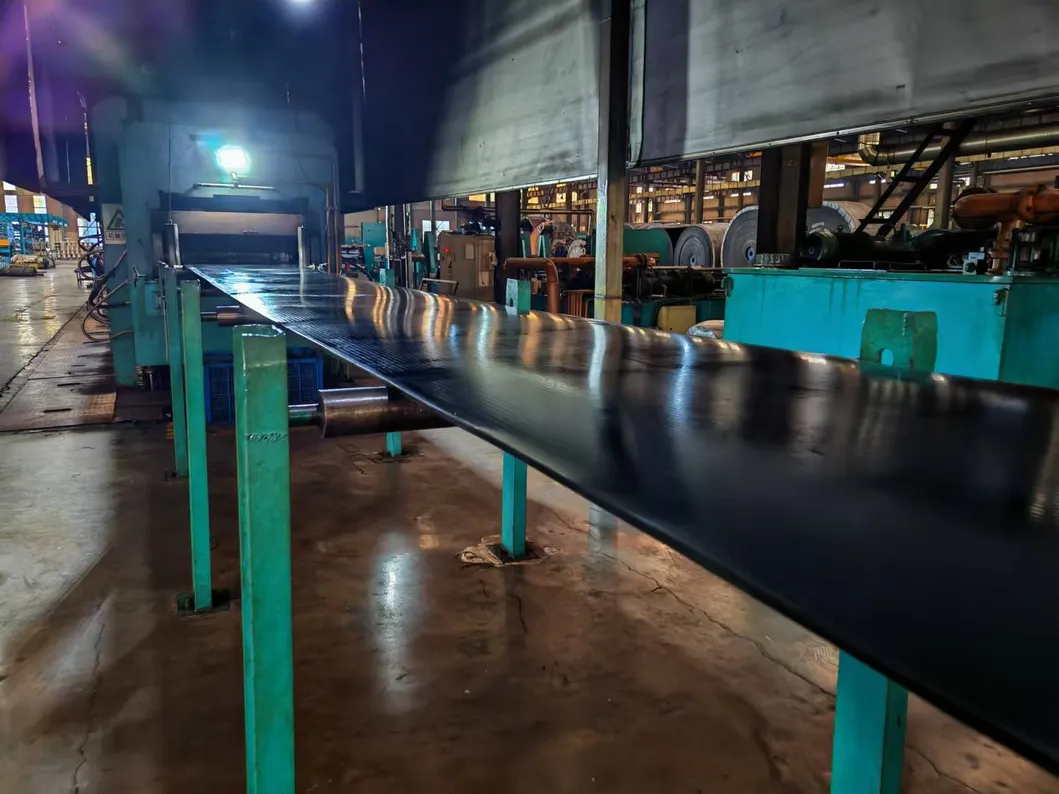

Our production capabilities include EP conveyor belts, steel cord belts, ultra-wide belts (up to 6600mm), and specialized filter or sidewall belts. All products undergo rigorous testing in our laboratory.
