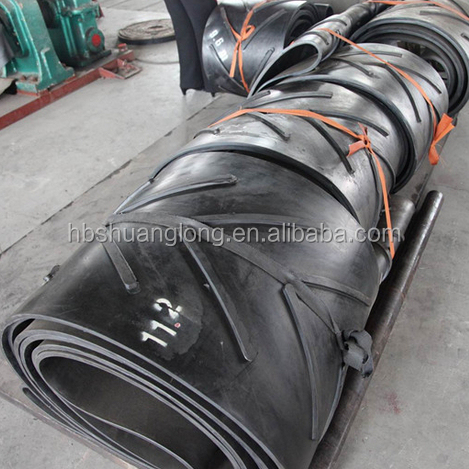

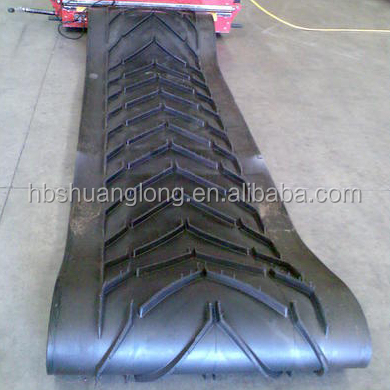

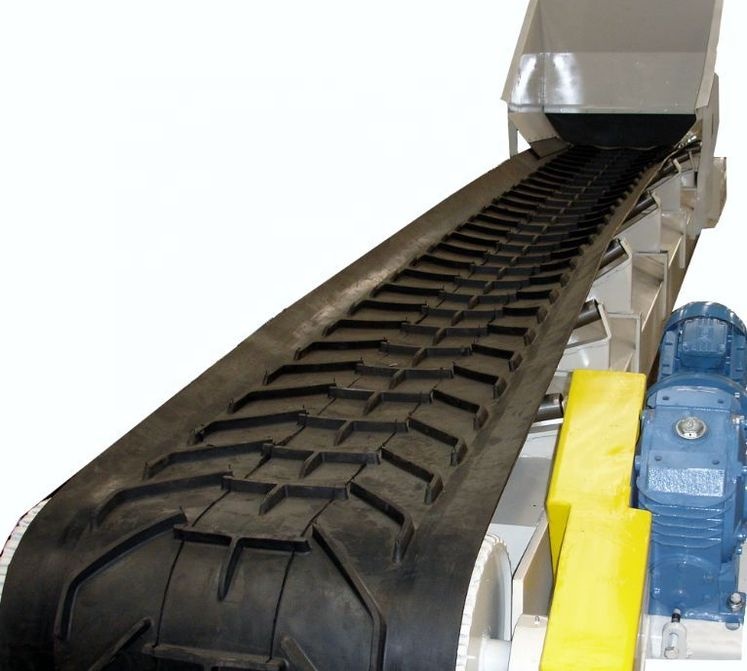

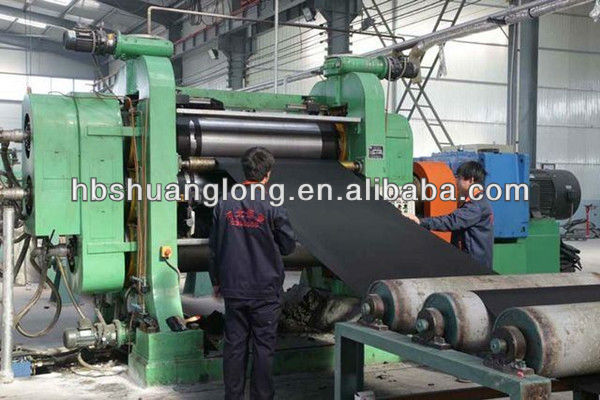

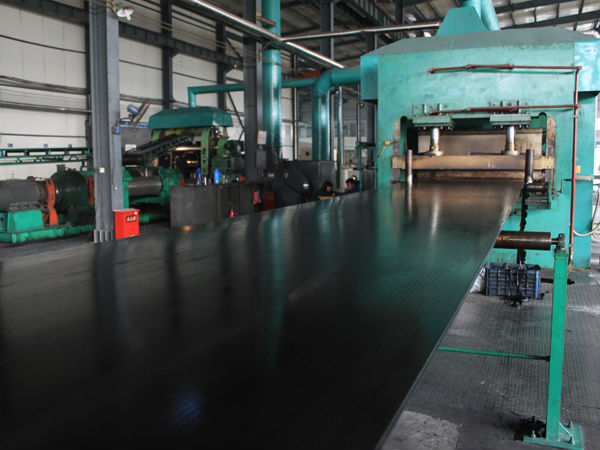

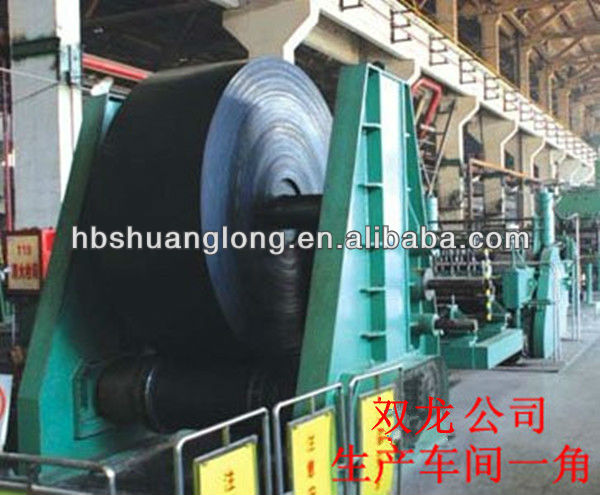

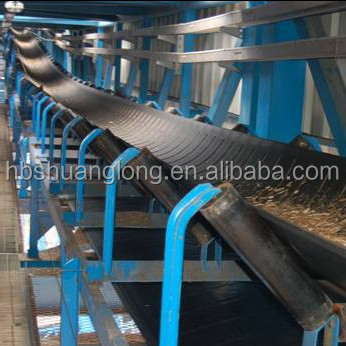

Chevron Conveyor Belts are used primarily when the angle of incline becomes too steep for a smooth conventional Conveyor Belt.
The Belt is fitted with integrally moulded Cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt.

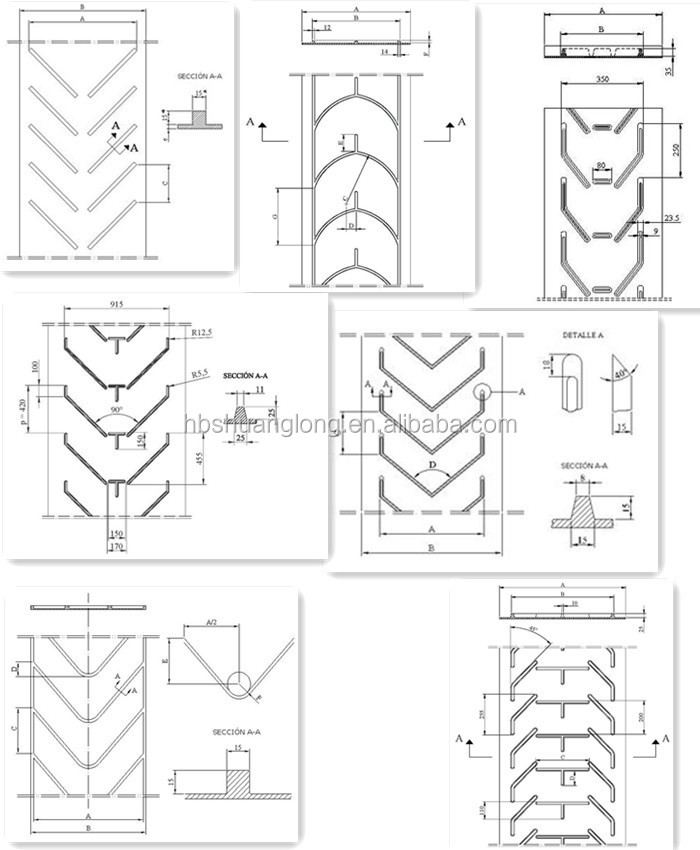

Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads. The angle of inclination that can be provided is up to 30° for Crusher application.

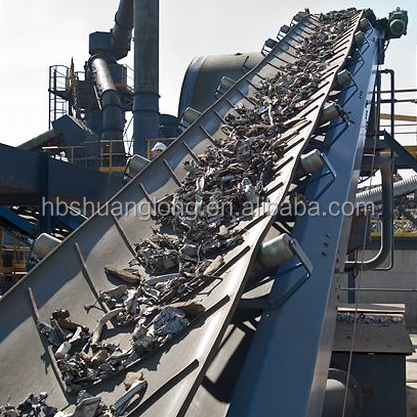

Anti-slip ripstop conveyor belt with cleats/chevron pattern belt is suitable for conveying bulk materials at large inclination angles, it can prevent materials from slipping down efficiently.

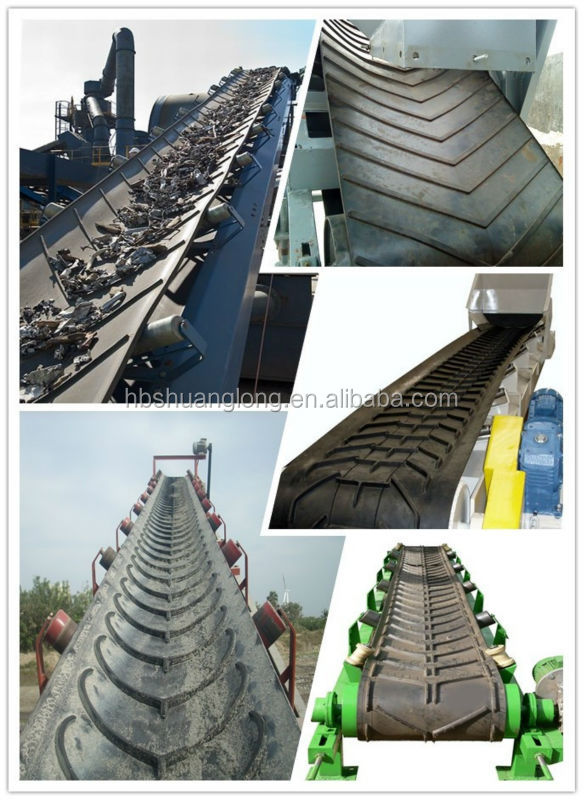

It is widely applied to the industries including ports, metallurgy, casting, coking, mining, thermoelectrical plant, steelworks, hydroelectric station construction site, coal mine, recycling, foundry, building materials, agriculture, quarry, sand factory, fertilizer or chemical plant and other bulk materials handling areas.

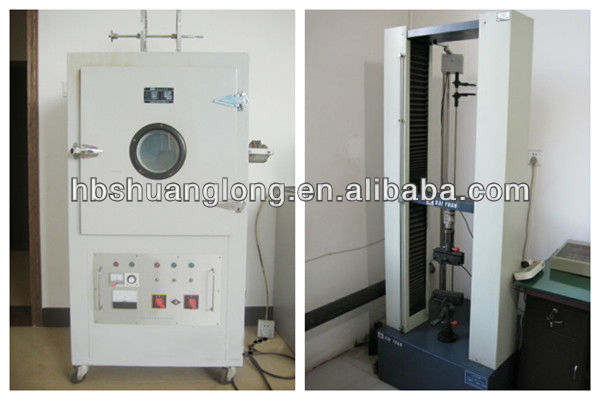

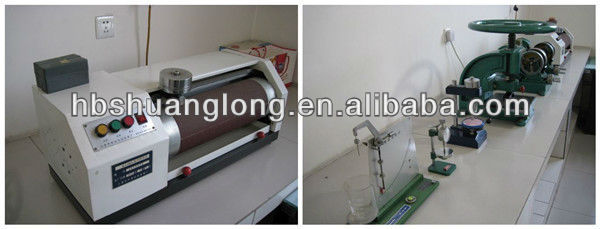

| Belt type | Fabric type | Single Fabric strength (N/mm) | Single fabric thickness (mm) | Rubber cover thickness (mm) | Ply | Belt width (mm) | |
|---|---|---|---|---|---|---|---|
| Top rubber | Bottom rubber | ||||||
| Cotton Canvas (CC) conveyor belt | CC-56 | 56 | 1.10 | 3.0/4.5/6.0 | 1.5/3.0 | 2-10 | 300-1800 |
| Nylon (NN) conveyor belt | NN100 | 100 | 0.70 | 2-10 | |||
| NN150 | 150 | 0.75 | 2-10 | ||||
| NN200 | 200 | 0.90 | |||||
| NN250 | 250 | 1.15 | |||||
| NN300 | 300 | 1.25 | |||||
| NN400 | 400 | 1.50 | |||||
| Polyester (EP) conveyor belt | EP100 | 100 | 0.75 | 2-10 | |||
| EP150 | 150 | 0.85 | 2-6 | ||||
| EP200 | 200 | 1.00 | |||||
| EP250 | 250 | 1.20 | |||||
| EP300 | 300 | 1.35 | |||||
| EP350 | 350 | 1.50 | |||||
| EP400 | 400 | 1.65 | |||||
| Grade of cover rubber | Tensile strength, Mpa, ≥ | Elongation at break, % ≥ | Abrasion loss, mm³ ≤ | Change rate of tensile strength and elongation at break after 70°C x 168h aging | ||||
|---|---|---|---|---|---|---|---|---|
| Laceration resistant type (H) | 24 | 450 | 120 | -25 ~ +25 | ||||
| Abrasion resistant type (D) | 18 | 400 | 100 | -25 ~ +25 | ||||
| Ordinary type (L) | 15 | 350 | 200 | -25 ~ +25 | ||||
| Item | Between the fabric layers | Between cover and belt carcass | |||||
|---|---|---|---|---|---|---|---|
| Cover thickness 0.8-1.5mm | Cover thickness >1.5mm | ||||||
| Average value of all samples, N/mm ≥ | 4.5 | 3.2 | 3.5 | ||||
| Lowest peak value of all samples, N/mm ≥ | 3.9 | 2.4 | 2.9 | ||||
| Remark: highest peak value of all samples shall not exceed 20N/mm | |||||||
