Modular belt conveyor widely used in beverage bottles, aluminum cans, pharmaceuticals, cosmetics, food and other industries transport, different mesh belt can be made into a storage bottle table, hoist, sterilization machines, vegetable washing machine, cold bottles and food transportation and other meat industry-specific equipment, which applies to all sectors of drying, dehumidification, cleaning, frozen and other technology.
Modular belt conveyor Specification
- Mesh material: PP, PE, ACETAL, NYLON or ect.

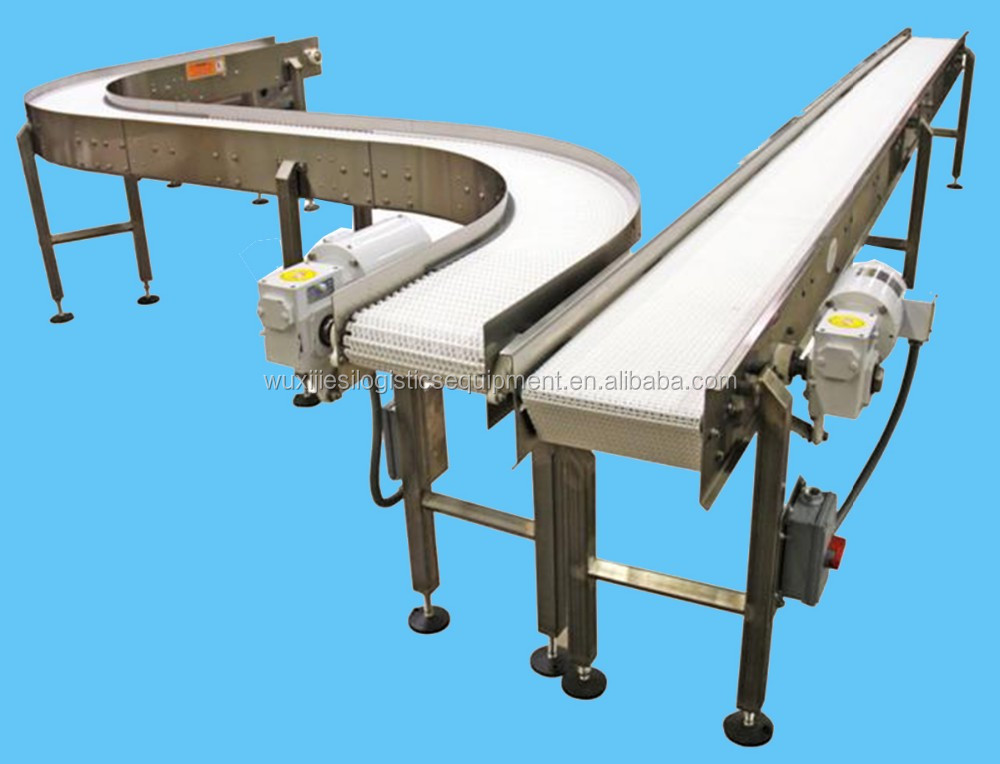

- Structural form: Horizontal, upgrading transport climbing, cornering and turning and other forms of transportation.
- Minimum turning radius: R=W*2.3 (note: W is mesh belt width)
- Mesh belt pitch: 12.7, 19.05, 25.4, 27.2, 38.1, 50.8 for option
- Opening rate from 2 to 48
- Ambient temperature: -10°C to 120°C
Modular belt conveyor Advantages
- Use environmental, health standards of plastic material, suitable for all walks of drying, dehumidification, cleaning, frozen and other processing.
- Make up for defects of traditional belt conveyor's belt tear, puncture, corrosion disadvantages, this provides customers with a secure, fast, and simple maintenance of transportation methods.
- Different materials belt conveyor play different role and meet the needs of different environments.
Modular belt conveyor Size
| Model |
MPL |
| BW Belt width (mm) |
200~600 |
| FW Width (mm) |
275~675 |
| Length L (cm) |
MIN900~9000 |
| Motor Power (W) |
100 200 400 |
| Voltage |
defined |
| Capacity |
MAX25kg/M |
Modular belt conveyor Speed
| Belt Speed Details |
Fixed Speed |
Variable Speed |
| Ratio |
Speed NO. |
50/60Hz |
Speed No. |
20~60Hz |
| 1/160 |
T1 |
3.0/3.6 |
H1 |
1.2~3.6 |
| 1/100 |
T2 |
4.9/5.9 |
H2 |
2.0~5.9 |
| 1/80 |
T3 |
6.1/7.3 |
H3 |
2.4~7.3 |
| 1/60 |
T4 |
8.1/9.8 |
H4 |
3.3~9.8 |
| 1/50 |
T5 |
9.8/11.7 |
H5 |
3.9~11.7 |
| 1/40 |
T6 |
12.2/14.6 |
H6 |
4.9~14.6 |
| 1/30 |
T7 |
16.3/19.5 |
H7 |
6.5~19.5 |
| 1/25 |
T8 |
19.5/23.4 |
H8 |
7.8~23.4 |
| Technical Parameters: |
| Rotate speed: 1500rpm/1800rpm (50/60Hz) |
Driving efficiency: 95% |
| Drive sprocket: PCD 109 mm |

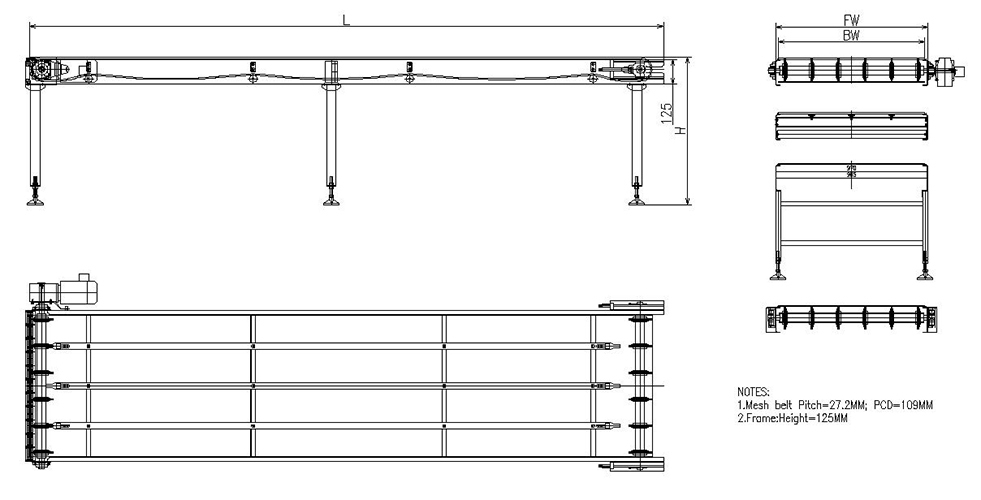

Drawing

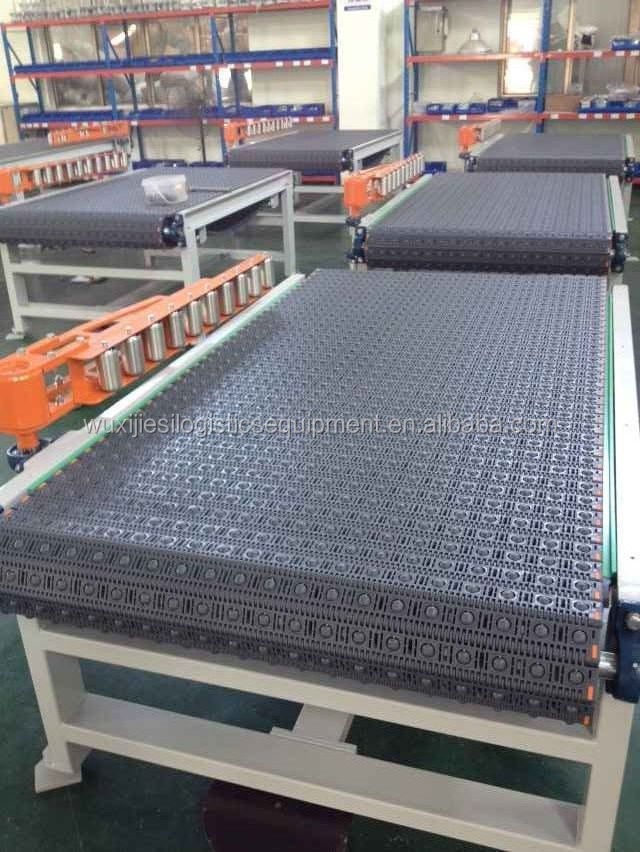

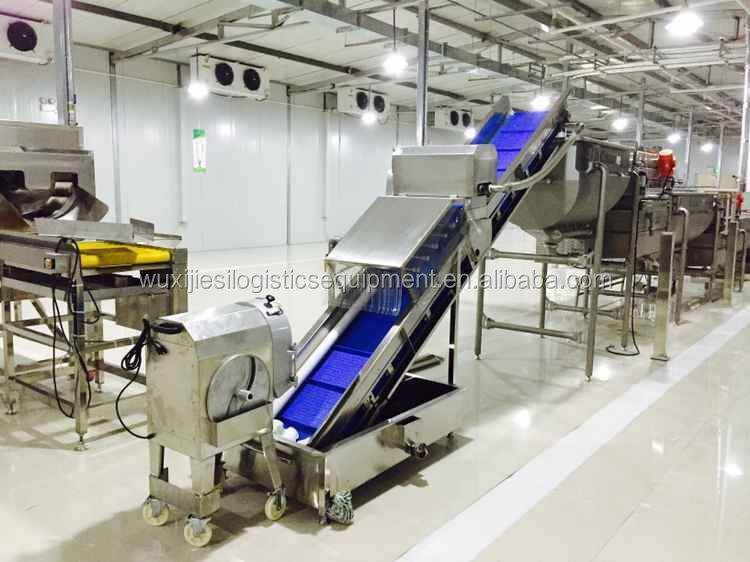

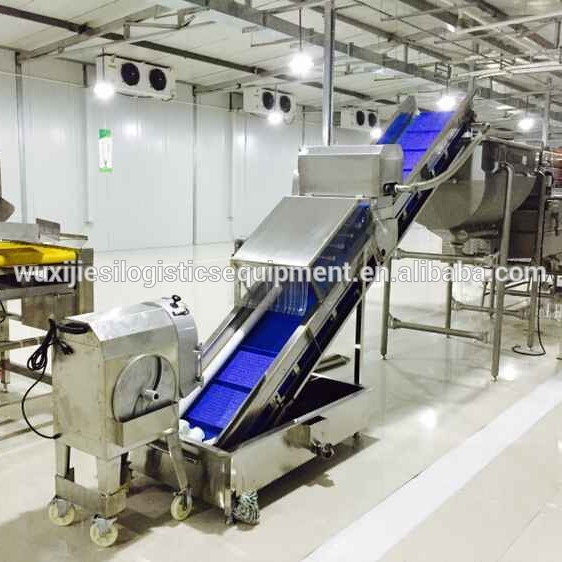

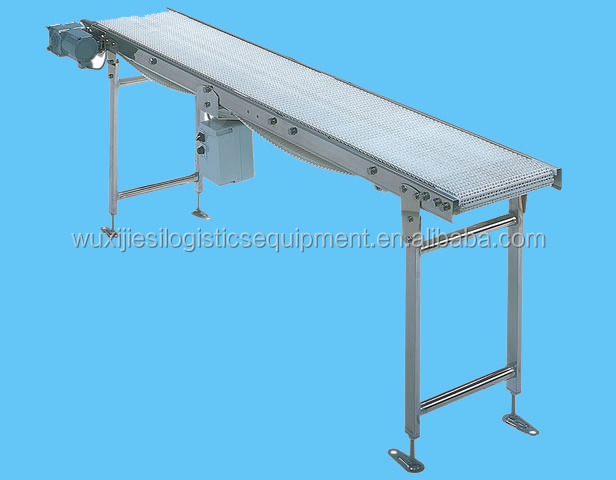

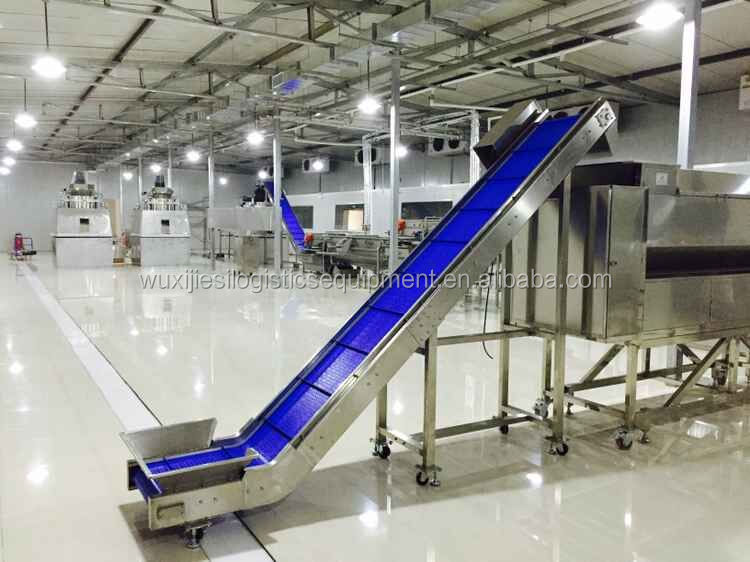

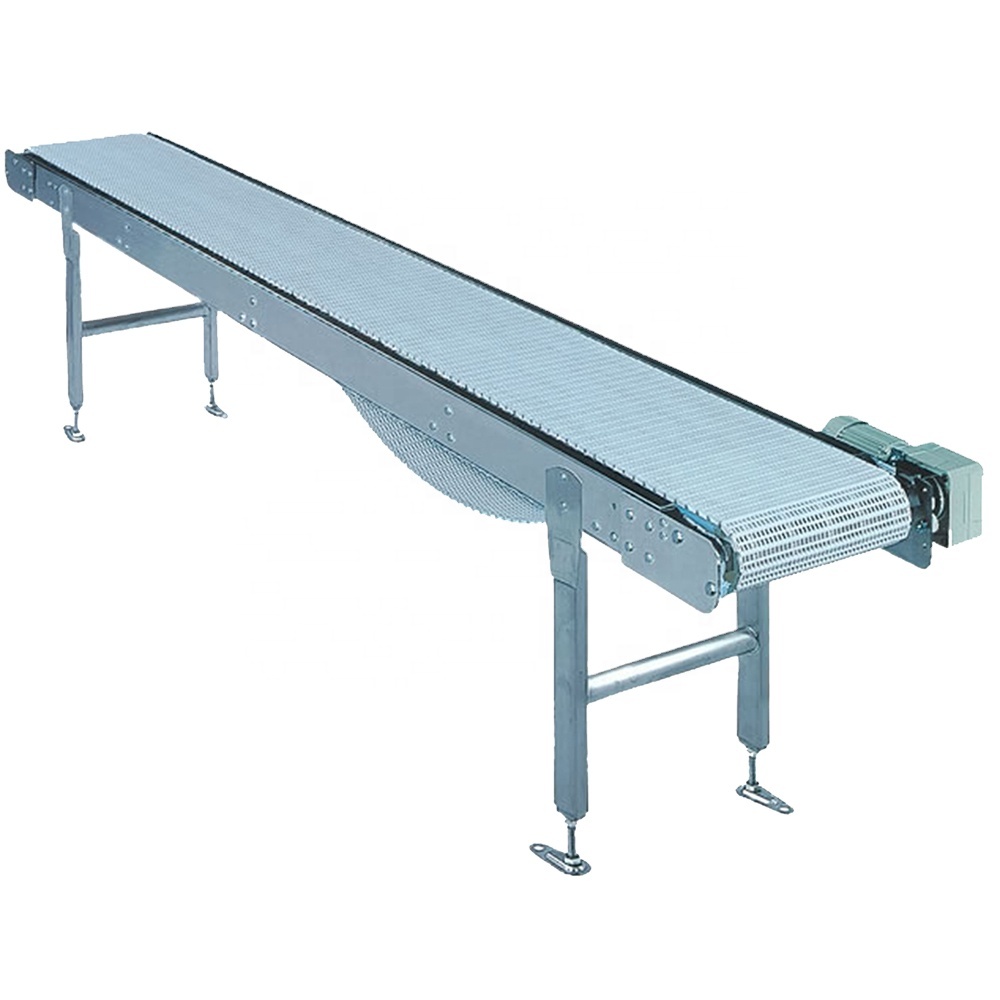

Pictures
Frequently Asked Questions
What industries are modular belt conveyors typically used in?
They are widely used in beverage bottles, aluminum cans, pharmaceuticals, cosmetics, food, and other industries for drying, dehumidification, cleaning, freezing, and general transport.
What materials are available for the mesh belt?
The mesh belts are available in materials such as PP, PE, ACETAL, NYLON, and other custom options depending on your environment needs.
What are the advantages of modular belt conveyors over traditional belt conveyors?
Modular belt conveyors overcome traditional vulnerabilities like belt tearing, puncture, and corrosion, providing a highly secure, fast, and simple maintenance transportation method.
Can these conveyors handle inclined or curved pathways?
Yes, they support multiple structural forms including horizontal, upgrading transport climbing, as well as cornering and turning configurations.
What is the ambient temperature tolerance for the conveyor?
The modular belt conveyor can operate efficiently within an ambient temperature range of -10°C to 120°C.
Does the MPL model support variable speed adjustment?
Yes, it supports both fixed speed configurations and variable speed options ranging from 20Hz to 60Hz depending on your operational needs.
