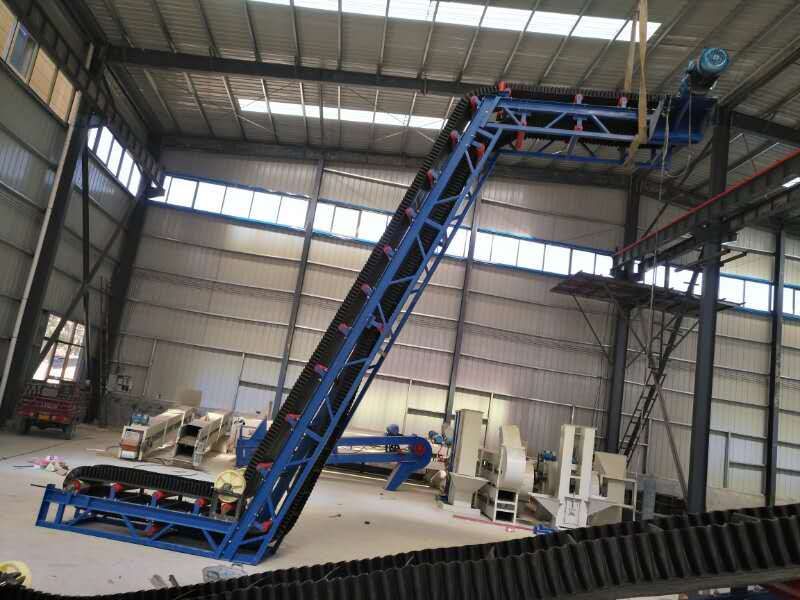

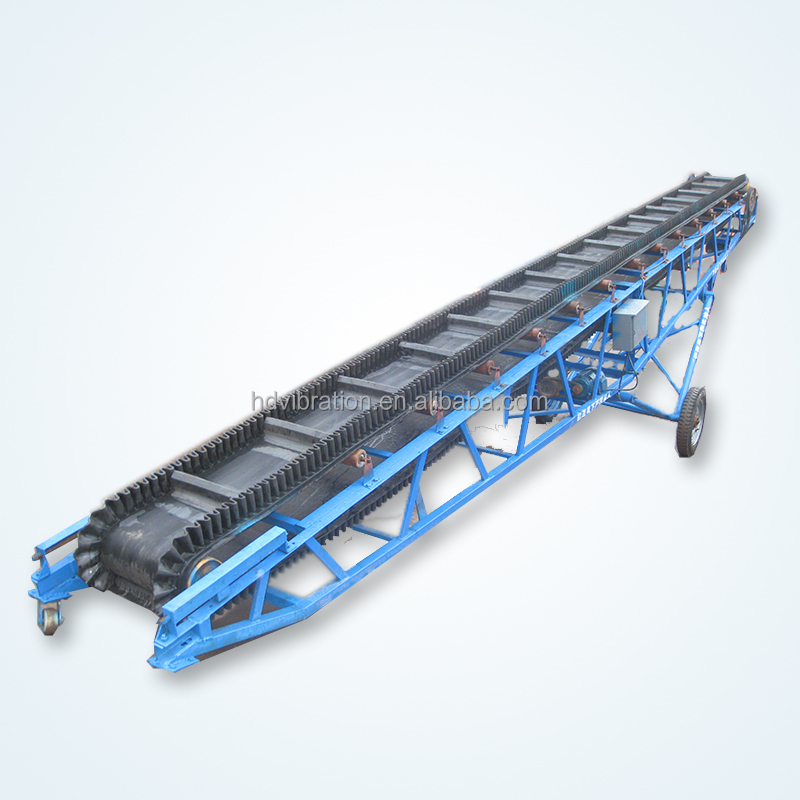

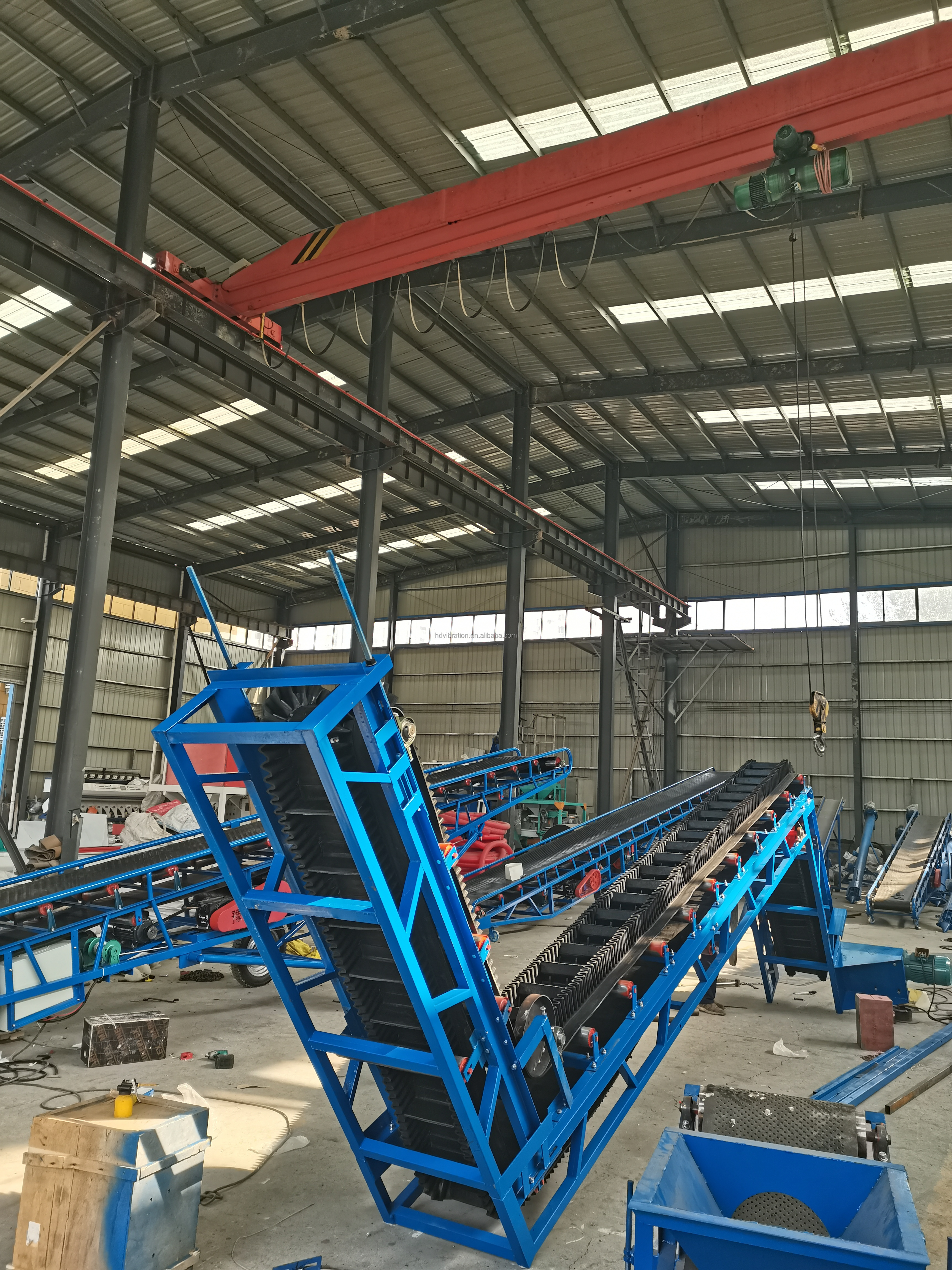

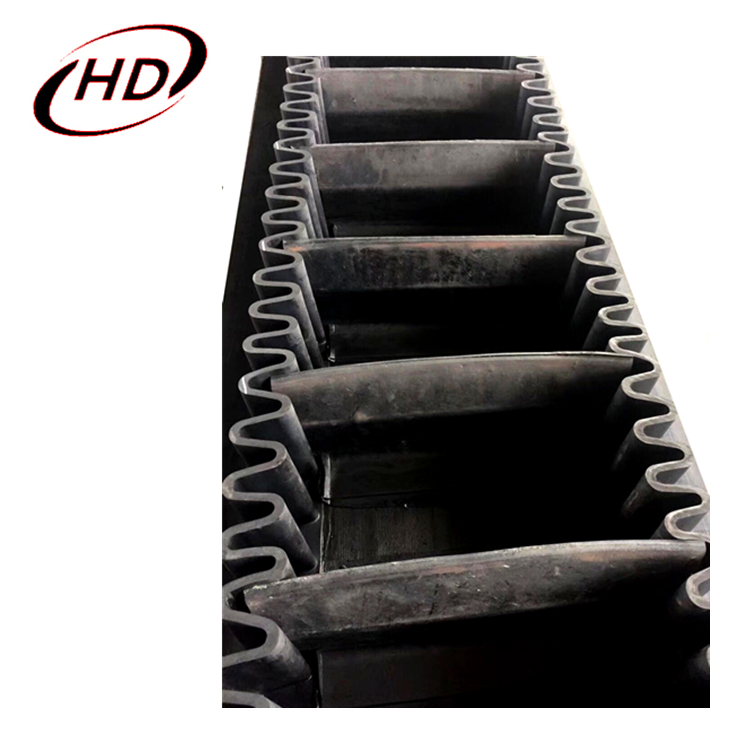

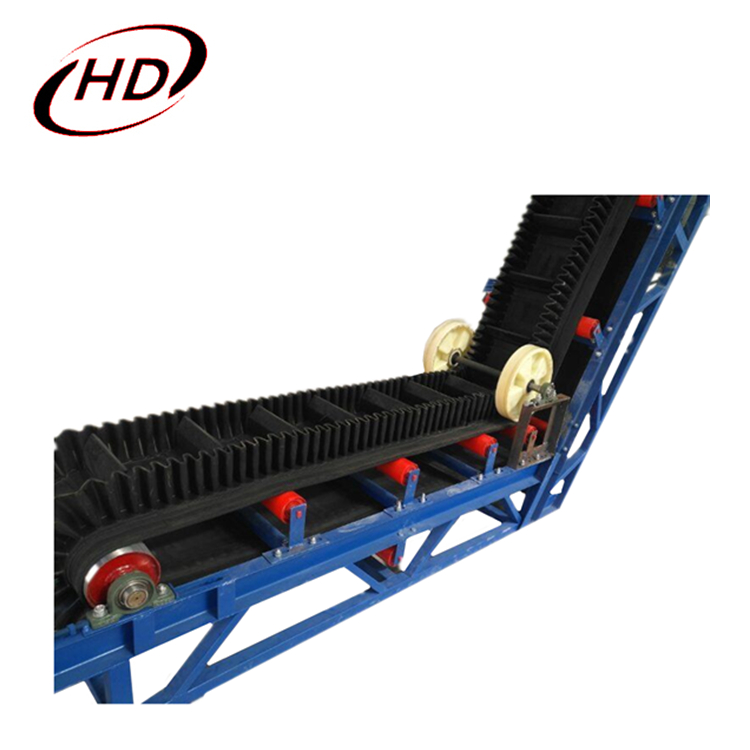

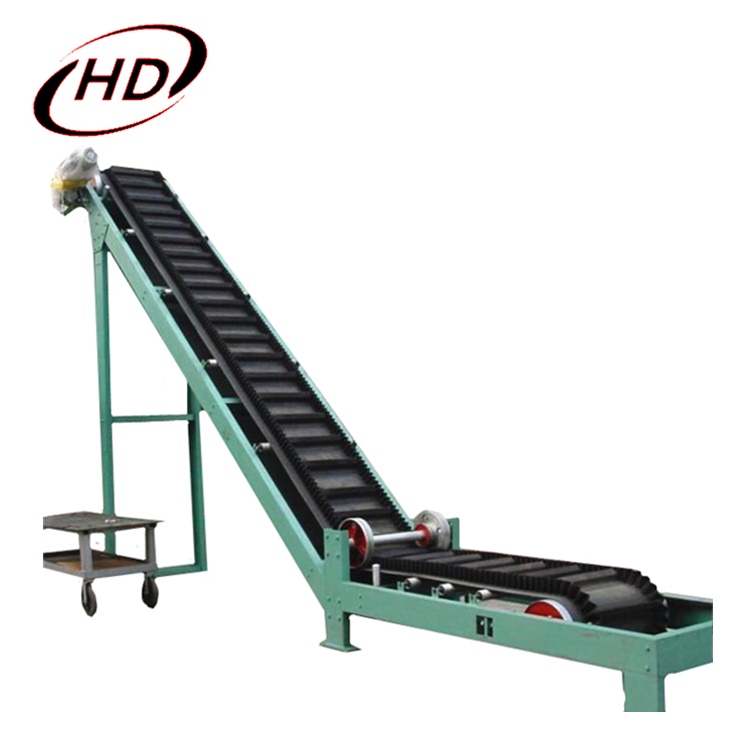

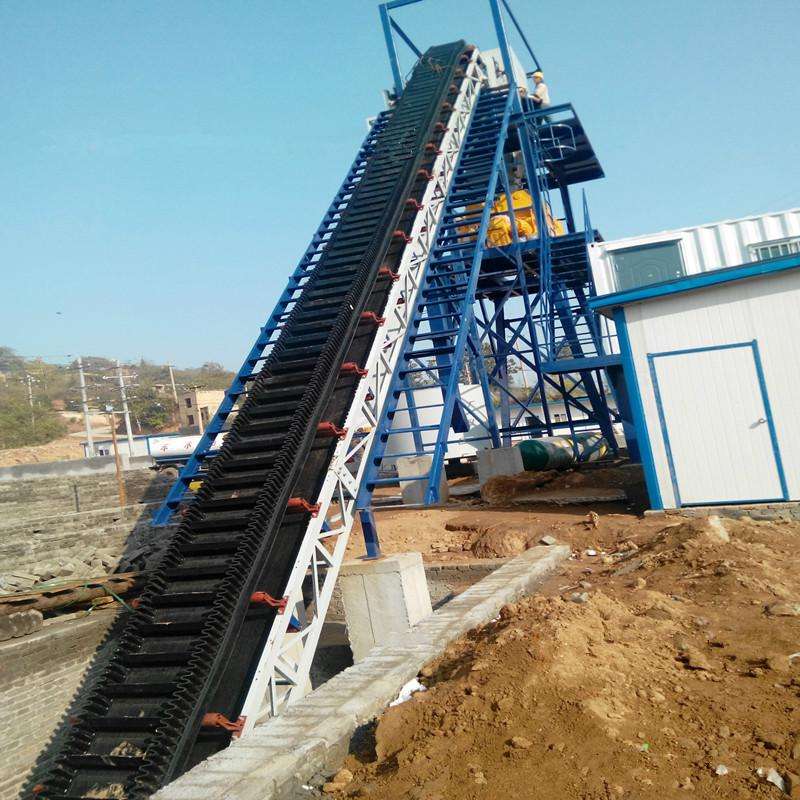

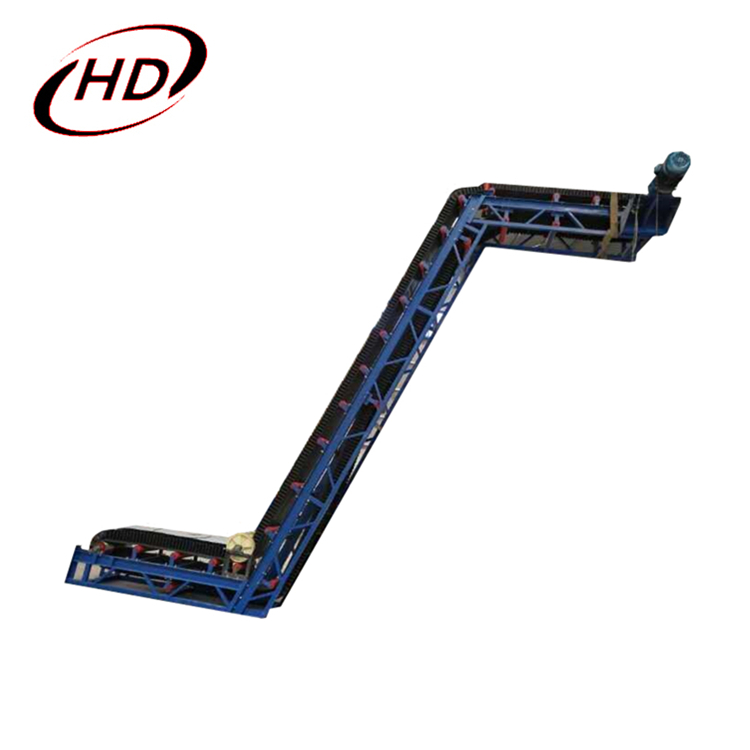

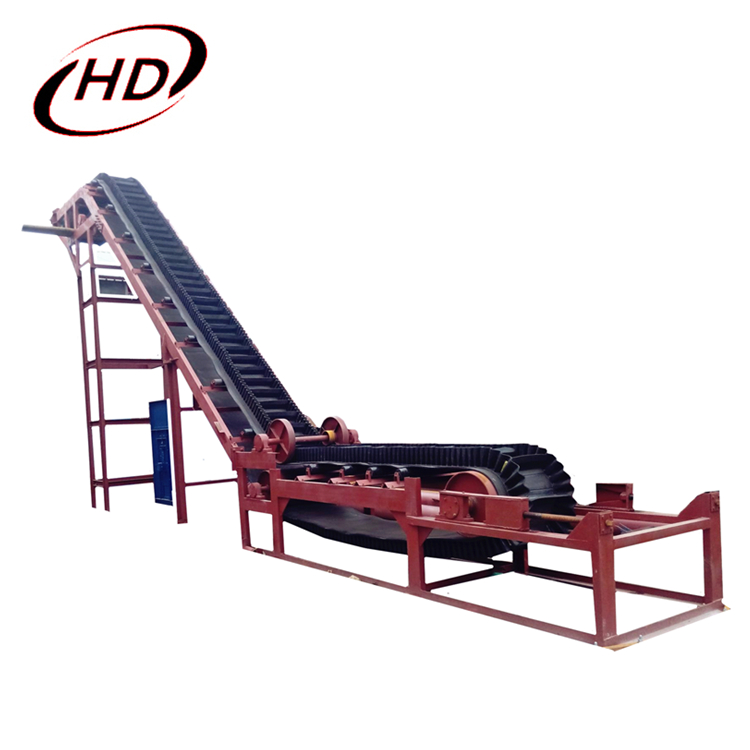

DJ sidewall belt conveyor (also called large dip corrugated belt conveyor) with a large inclination (90 degrees vertical) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks and other parties.
DT sidewall belt conveyor widely used in mining, gravel field, metallurgy, building materials, chemical industry, mineral processing, coal mining and other industries. It can convey bulk material like coal, cement, sand, cereal etc. And can convey lump material, such as rock.
| Belt Width (mm) | Conveyor Length (m) | Power (KW) | Speed (m/s) | Capacity (Tons/hour) |
|---|---|---|---|---|
| 500 | <12 | 3 | 1.3-1.6 | 78-191 |
| 12-20 | 4-4.5 | |||
| 20-30 | 5.5-7.5 | |||
| 650 | <12 | 4 | 1.3-1.6 | 131-323 |
| 12-20 | 5.5 | |||
| 20-30 | 7.5-11 | |||
| 800 | <6 | 4 | 1.3-1.6 | 278-546 |
| 6-15 | 5.5 | |||
| 15-30 | 7.5-15 | |||
| 1000 | <10 | 5.5-7.5 | 1.3-2.0 | 435-853 |
| 10-20 | 7.5-11 | |||
| 20-40 | 11-22 | |||
| 1200 | <10 | 7.5 | 1.3-2.0 | 655-1284 |
| 10-20 | 11 | |||
| 20-40 | 15-30 | |||
| 1400 | <10 | 11 | 1.3-2.0 | 893-1745 |
| 10-20 | 18.5 | |||
| 20-40 | 22-37 | |||
| 1600 | <10 | 15 | 1.3-2.0 | 1069-2195 |
| 10-20 | 22 | |||
| 20-40 | 30-45 |
Notes: The parameters above are just for reference. More models please inquiry us directly.
Rotary Vibrating Sieve
Mobile Belt Conveyor
Bucket Elevator
Q1: What payment terms do you accept?
A1: We accept TT, L/C, and Western Union for new customers.
Q2: What is the standard delivery time for orders?
A2: The normal delivery time is within 3 working days. For complete production lines or larger customized equipment, it may take longer. The exact delivery timeline will be confirmed upon placing the order.
Q3: How do you guarantee the quality of the equipment?
A3: We welcome you to visit our factory to inspect the product quality directly. Additionally, we will send you videos and pictures of your equipment before shipment.
Q4: What is the warranty period for your conveyors?
A4: All equipment comes with a 12-month warranty, which can be extended to 24 months upon request.
Q5: What are the packaging methods for shipping?

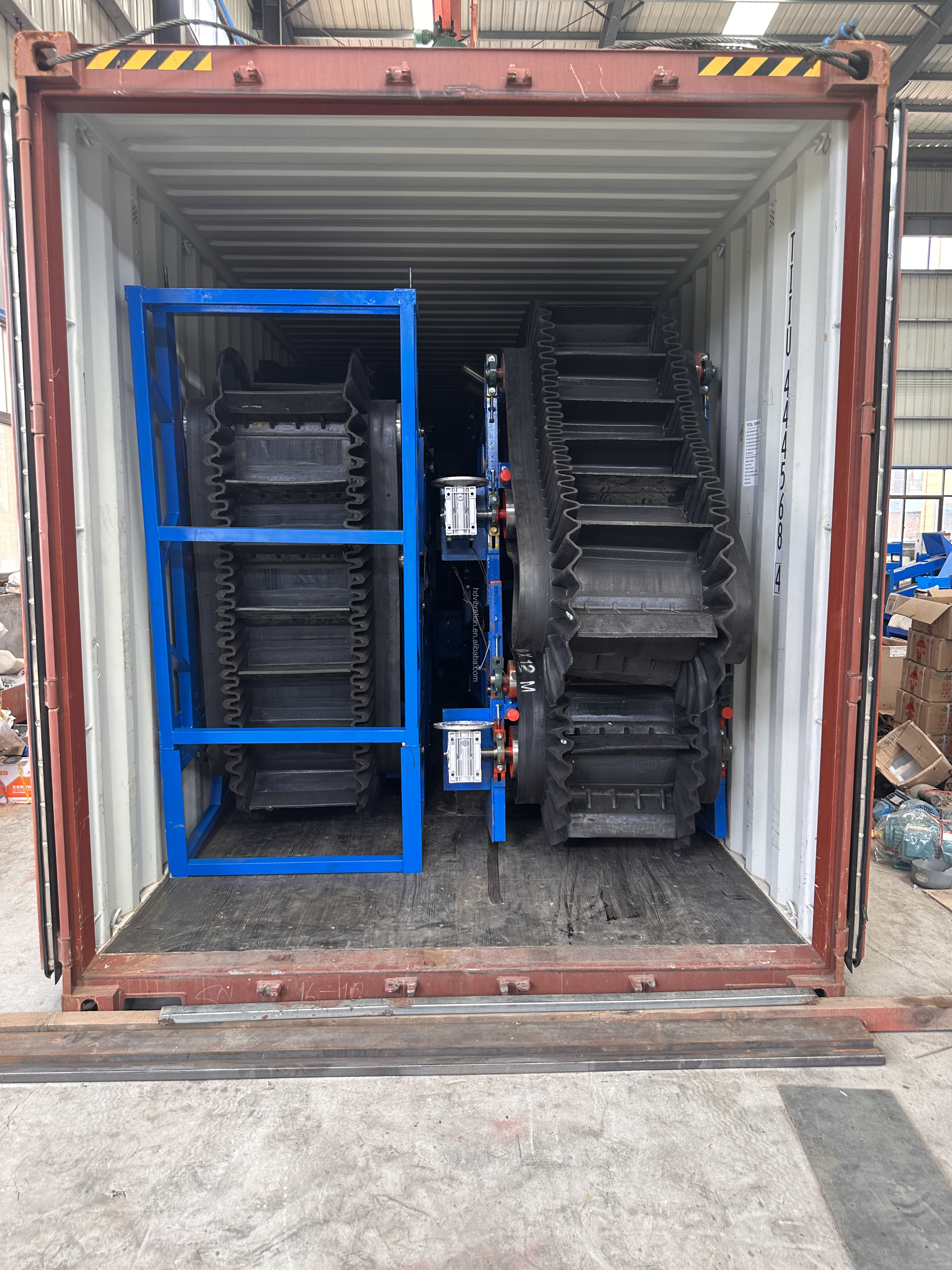

A5: We typically use wooden cases for small-sized equipment to ensure safety. For large-sized systems, they are loaded directly into containers.
Q6: What details are required to customize a sidewall belt conveyor?
A6: Please provide the required conveying capacity, type of material, conveying length, belt width, and the conveying inclination angle.
