Shuttle type food belt conveyor for pitch supply
Model: Food JBT
-
✦
Food grade belt conveyor is widely used in food, medicine, cosmetics, agriculture and other fields;
-
✦
This kind of belt conveyor is suitable for light and medium goods handling and transportation;
-
✦
This kind of belt conveyor generally adopts the head driving mode to ensure the cleanness of the surface of the belt; meanwhile, it is convenient for cleaning;
-
✦
Belt conveyor head can be installed with loosen a belt device,
-
✦
in the back of the belt is easy to clean.
Belt conveyor frame material: stainless steel;
Belt conveyor belt material: PU, White;
Belt conveyor standard: Japanese;
Belt conveyor type: Standard product.
Food grade belt conveyor Parameters
| Model |
Food JBT |
| BW Belt Width(mm) |
200~300 |
| FW Frame Width(mm) |
320~420 |
| Length(mm) |
Stretch out:2850; shorten time:1850 |
| Frame material |
Stainless steel |
| Belt material |
Food plastic belt |
| Driver position |
D:Down |
| Belt Speed |
Max42.4m/min |
| Motor Power |
90W |
| Voltage |
Custom |
| Carrying capacity |
MAX10kg/P |
Belt conveyor speed
| T1 |
2.9/3.4 |
H1 |
1.1~3.4 |
| T2 |
3.4/4.1 |
H2 |
1.4~4.1 |
| T3 |
4.3/5.1 |
H3 |
1.7~5.1 |
| T4 |
5.7/6.9 |
H4 |
2.3~6.9 |
| T5 |
6.9/8.2 |
H5 |
2.7~8.2 |
| T6 |
8.6/10.3 |
H6 |
3.4~10.3 |
| T7 |
10.3/12.4 |
H7 |
4.1~12.4 |
| T8 |
14.3/17.2 |
H8 |
5.7~17.2 |
| T9 |
17.2/20.6 |
H9 |
6.9~20.6 |
| T10 |
20.6/24.7 |
H10 |
8.2~24.7 |
| T11 |
28.6/34.3 |
H11 |
11.4~34.3 |
| T12 |
34.3/41.2 |
H12 |
13.7~41.2 |

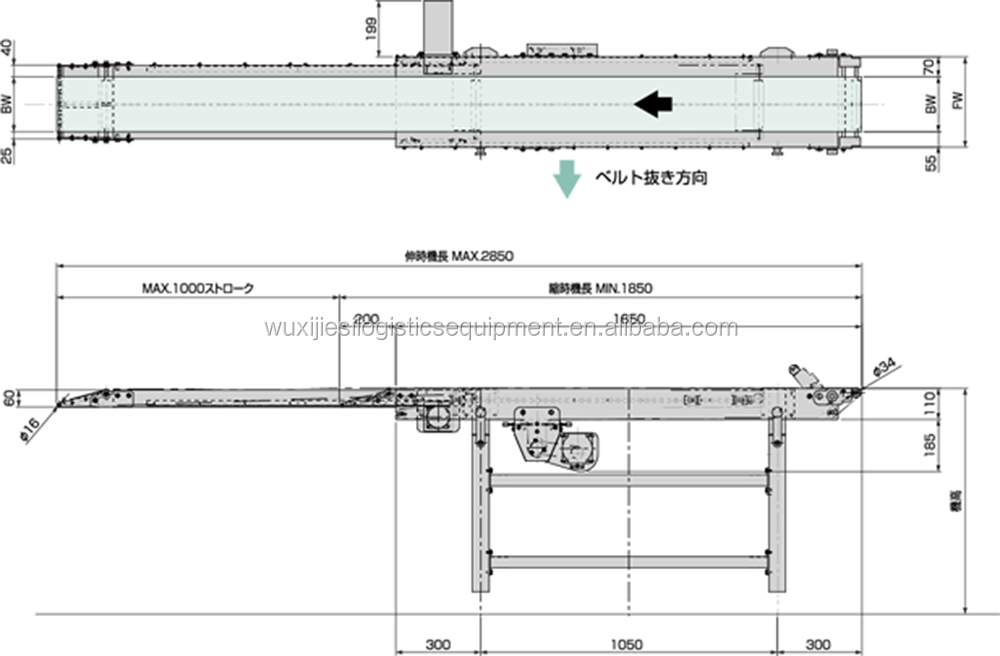

Belt conveyor Drawing

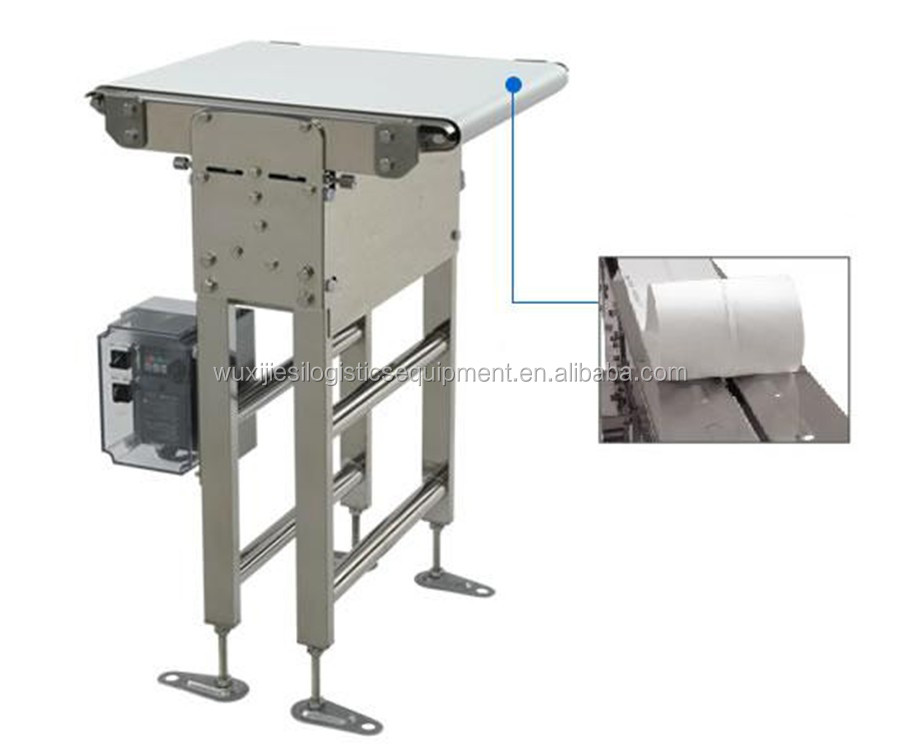

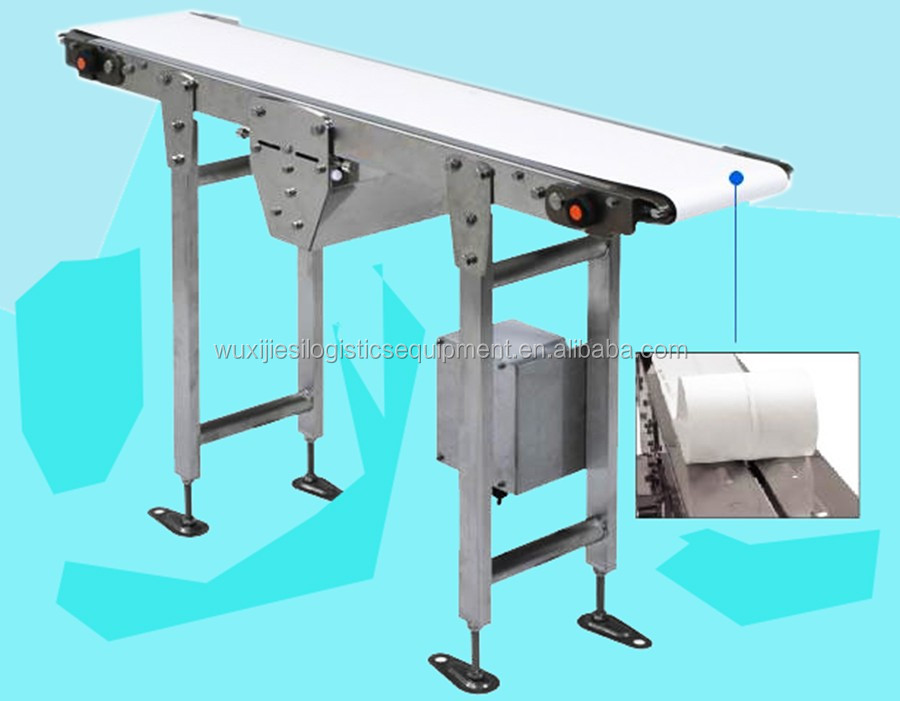

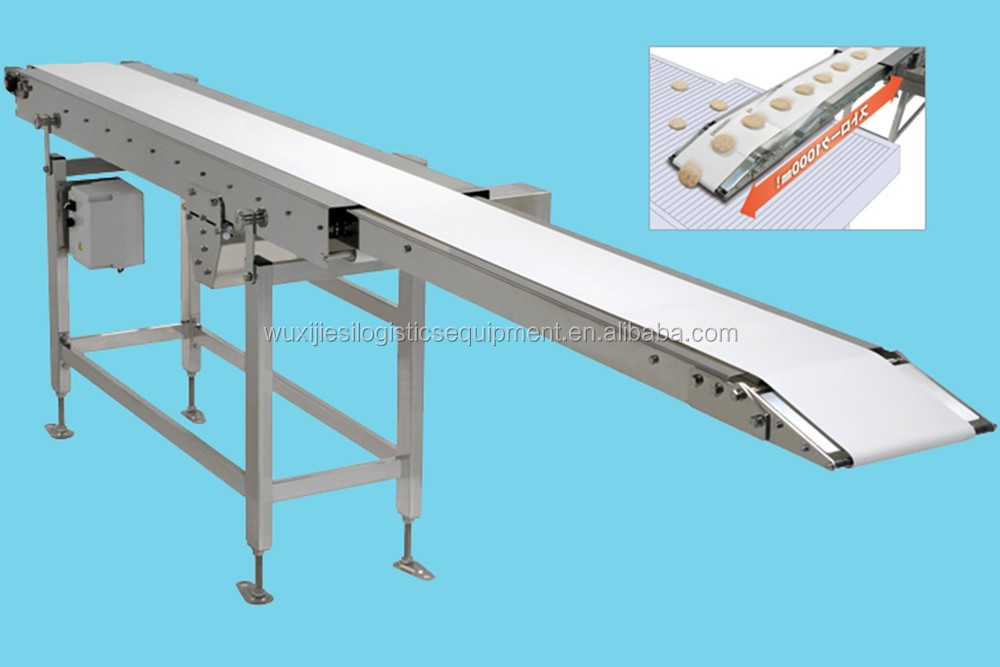

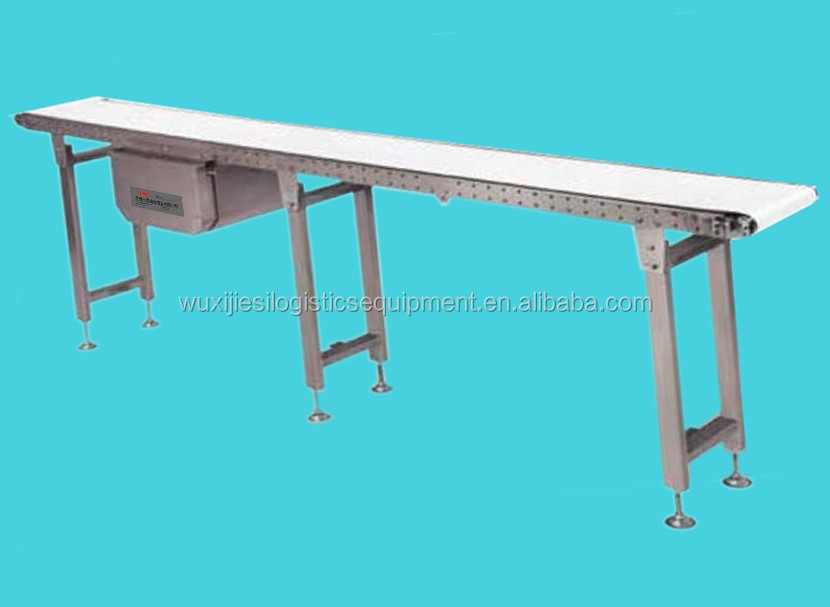

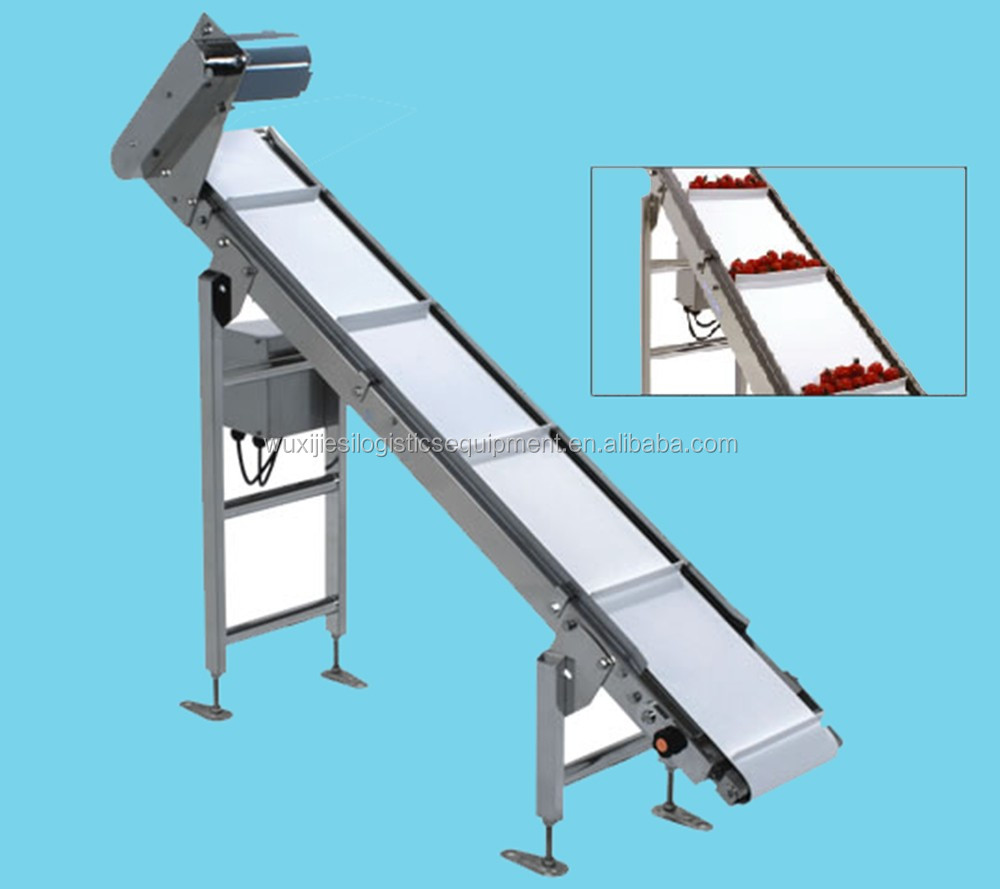

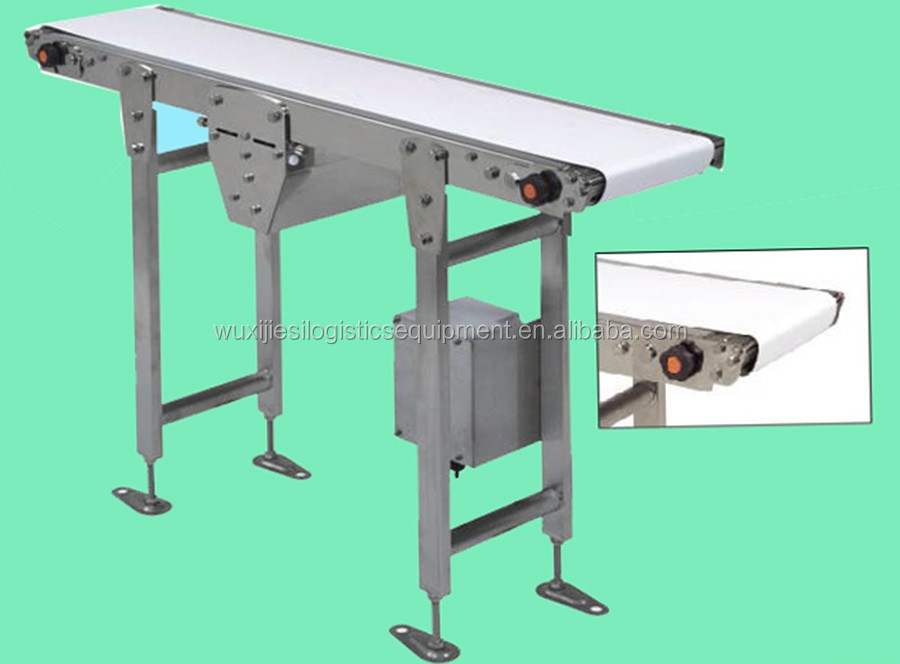

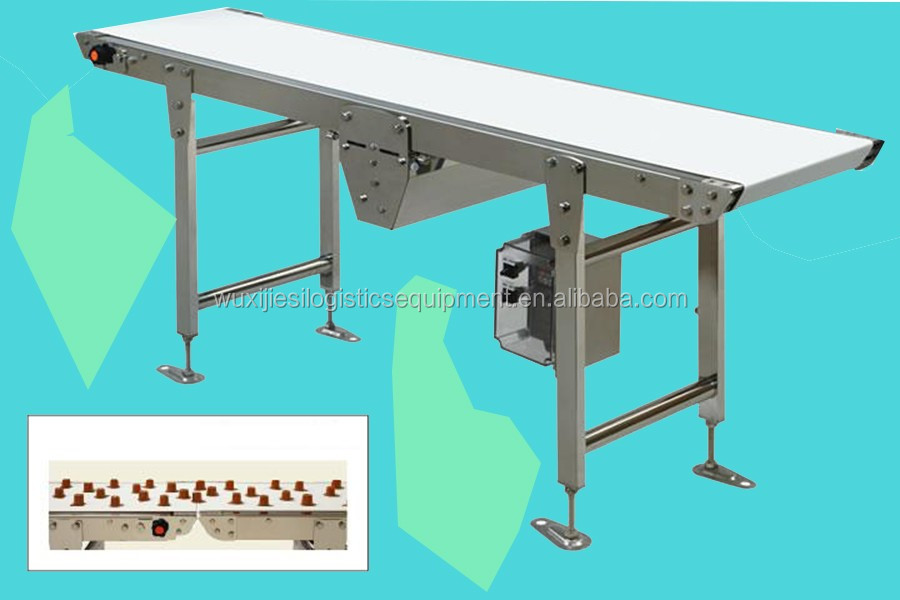

Belt conveyor pictures
WORKSHOP
Frequently Asked Questions
What applications are suitable for this food grade belt conveyor?
This food grade belt conveyor is widely used in fields that demand high hygiene standards, such as food processing, medicine manufacturing, cosmetics packaging, and agriculture.
What are the frame and belt materials of the Food JBT conveyor?
The frame of the conveyor is made of robust stainless steel, and the belt is made of white food-grade plastic (PU), complying with safety and sanitary requirements.
How does the driving system ensure cleanliness?
The conveyor adopts a head driving mode. This configuration is specifically designed to keep the surface of the belt clean and make overall maintenance and cleaning highly convenient.
Does the conveyor support belt tension release for cleaning?
Yes, the conveyor head can be installed with a loosen-belt device, which makes cleaning the back side of the belt very simple and efficient.
What is the carrying capacity and speed range of the conveyor?
The conveyor supports a maximum carrying capacity of 10kg/P. It offers variable speeds starting from 1.1m/min up to a maximum of 42.4m/min to suit different operations.
