Industrial Long Distance 100m Electric Belt Conveyor For Mining Cleated Belt Conveyor

Products Description

Industrial long distance 100m electric belt conveyor for mining cleated belt conveyor

The optimized flat belt conveyor and troughed belt conveyor are continuous conveyors for the transport of different bulk materials. Designed for maximum conveying capacity at continuous operation in conjunction with its high oil and grease resistant rubber sliding belt, and with the installation option for various systems for belt cleaning, safety and automatic operating, the flat belt conveyors are applicable for the transport of different materials like metal, waste, wood, biomass, coal, plastics, alternative fuel, fertilizer etc.

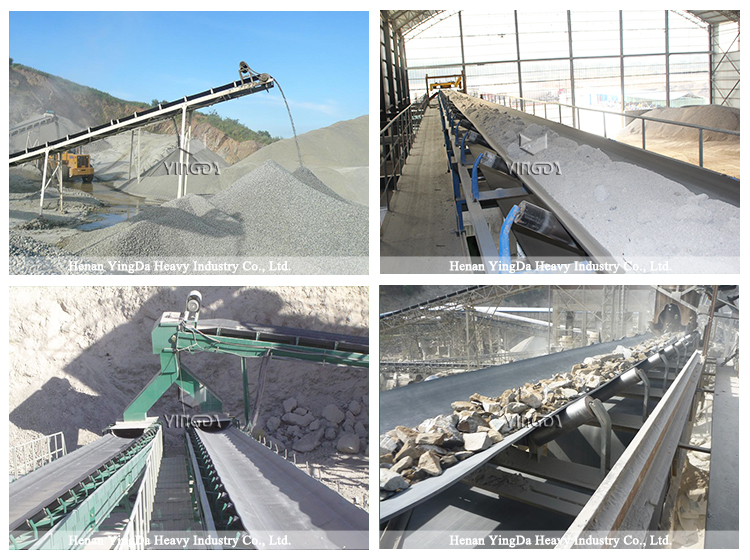

Industrial long distance belt conveyor for mining

Product Details

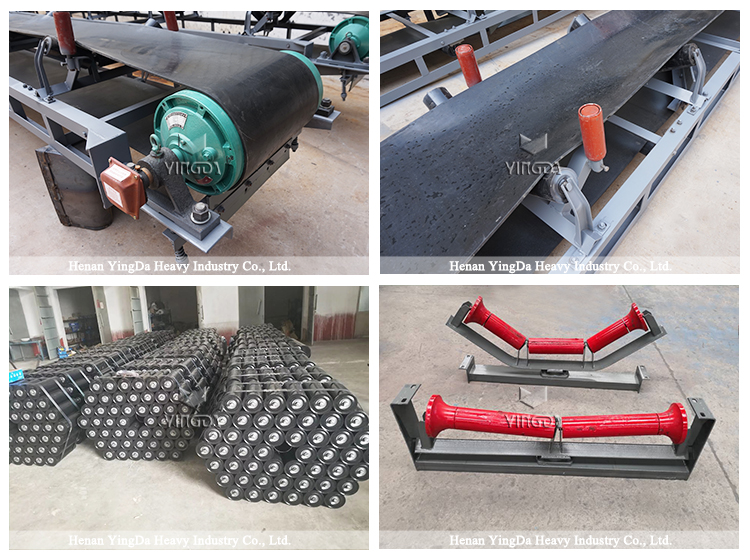

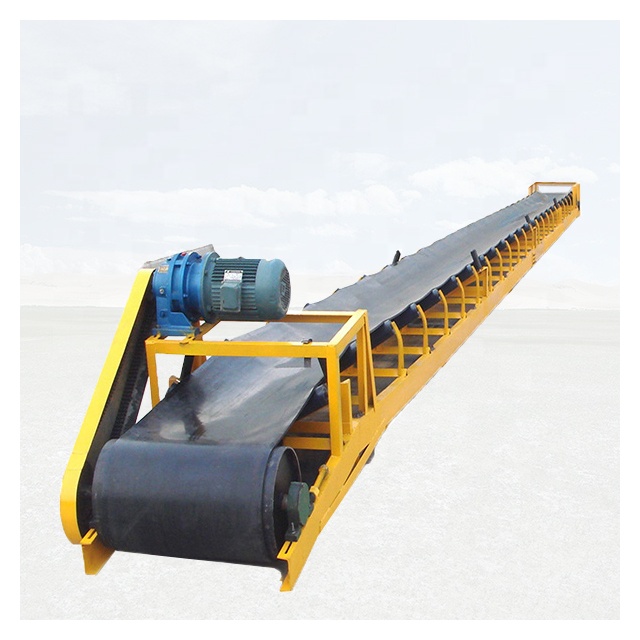

Complete belt conveyor consist of belt, idler, driving pulley, bracket, cleaners, tension device, drive unit, and other support frame. Also, some switch is needed when long transport distance.

Features

Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes
Non-Contact Accumulation
Zone Based
Unit loads conveyed long distances
Pallet loads with bottoms not suitable for roller or chain conveyor
Incline/Decline

Product Parameters

Belt width (mm)	Belt speed (m/s)
Belt width (mm)	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4	4.5
Delivery value (m³/h)	-
500	69	87	108	139	174	217	-	-	-
650	127	159	198	254	318	397	-	-	-
800	198	248	310	397	496	620	781	-	-
1000	324	405	507	649	811	1014	1278	1622	-
1200	-	593	742	951	1188	1486	1872	2377	2674
1400	-	825	1032	1321	1652	2065	2602	3304	3718
1600	-	-	-	-	2186	2783	3444	4373	4920

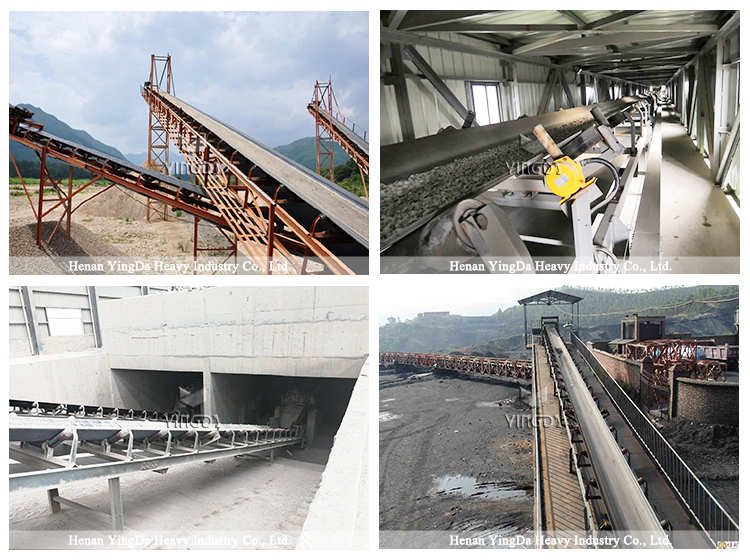

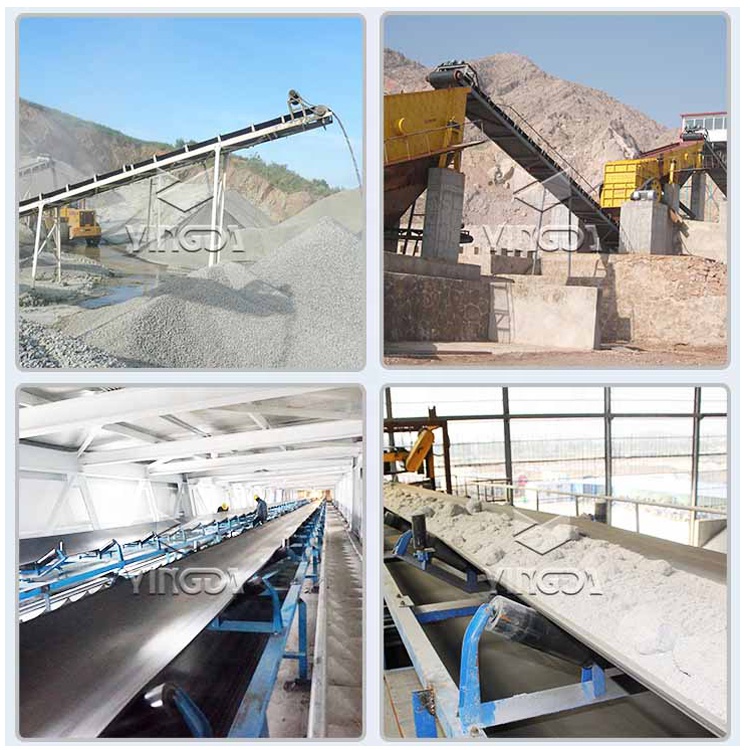

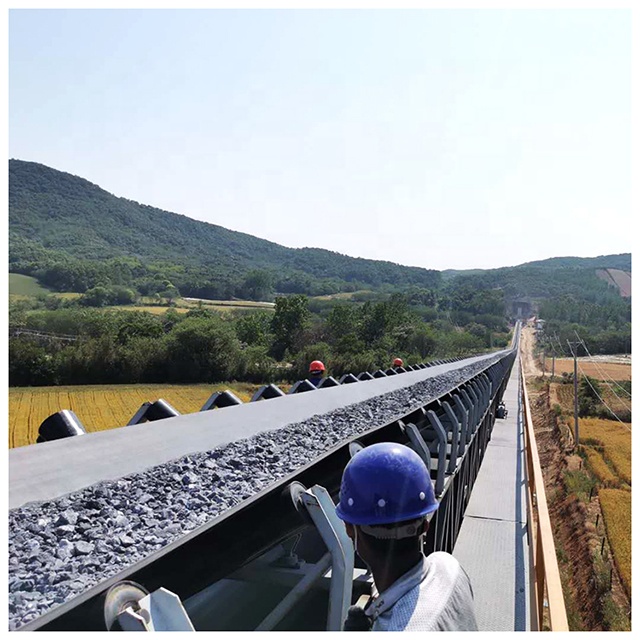

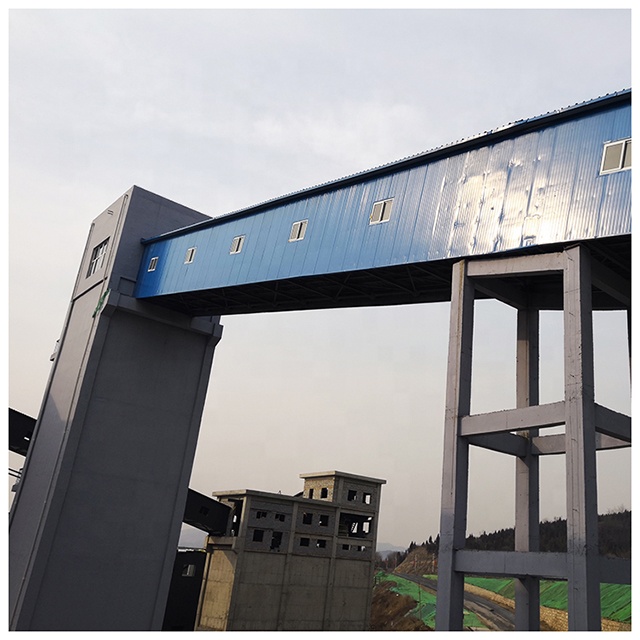

Customer Case

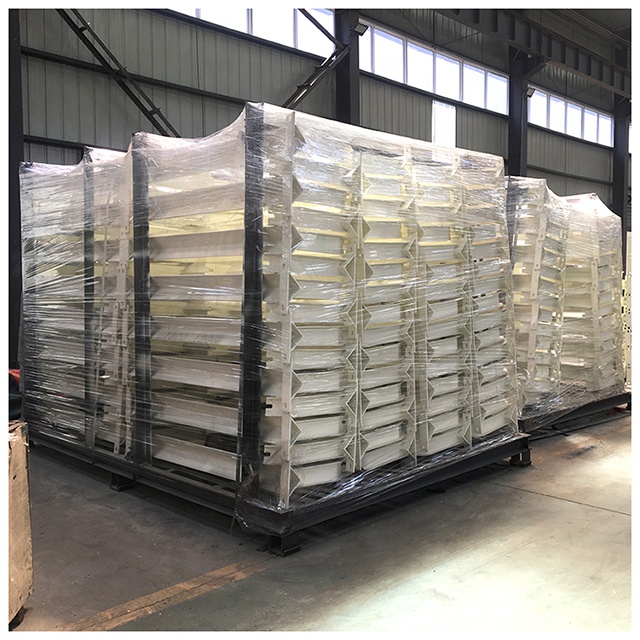

Product Packaging

Customer Visiting

Products Range

1. Bucket elevators TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.

2. Screw conveyors Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.

3. Belt conveyors Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.

4. Chain conveyors FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.

5. Apron feeders Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.

6. Other products Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.

7. Spare parts Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.

Frequently Asked Questions

What bulk materials can the long distance belt conveyor transport?

Our belt conveyors are ideal for conveying different materials such as metal, mining waste, wood chips, biomass, coal, plastics, alternative fuel, fertilizer, and other bulk solids.

Is the conveyor belt resistant to grease and oils?

Yes, our conveyors utilize highly oil and grease resistant rubber sliding belts, making them highly suitable for continuous operation in demanding oily or sticky bulk material transport conditions.

What components make up the entire belt conveyor system?

A complete belt conveyor includes the belt, idler, driving pulley, bracket, cleaners, tension device, drive unit, and structural support frame. Safety switches can also be integrated for long distances.

Can the belt conveyor handle inclined or declined elevation?

Yes, our industrial belt conveyors are designed to support both inclined and declined transport routing, allowing flexibility in layout design for mines and plant structures.

How do I determine the appropriate belt width and speed for my application?

The required width (typically ranging from 500mm to 1600mm) and speed (ranging from 0.8 m/s to 4.5 m/s) depend on the targeted volumetric capacity (m³/h) and structural requirements.
