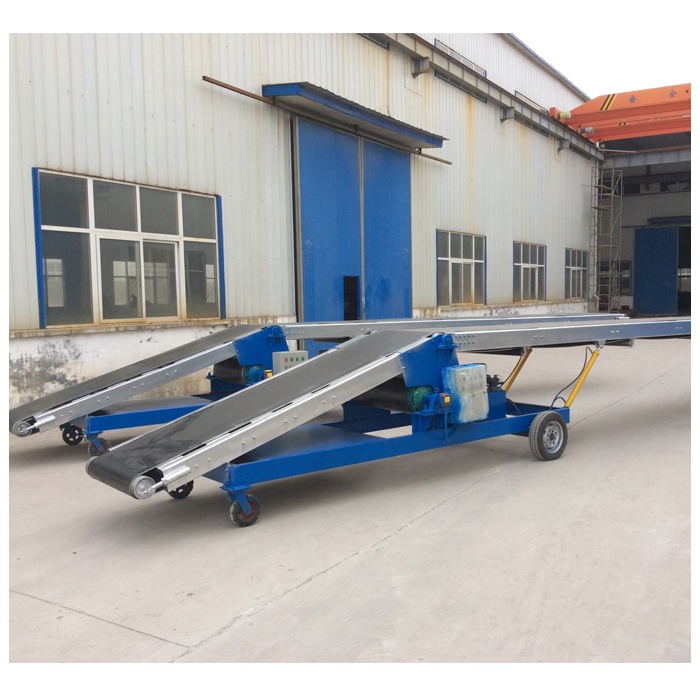

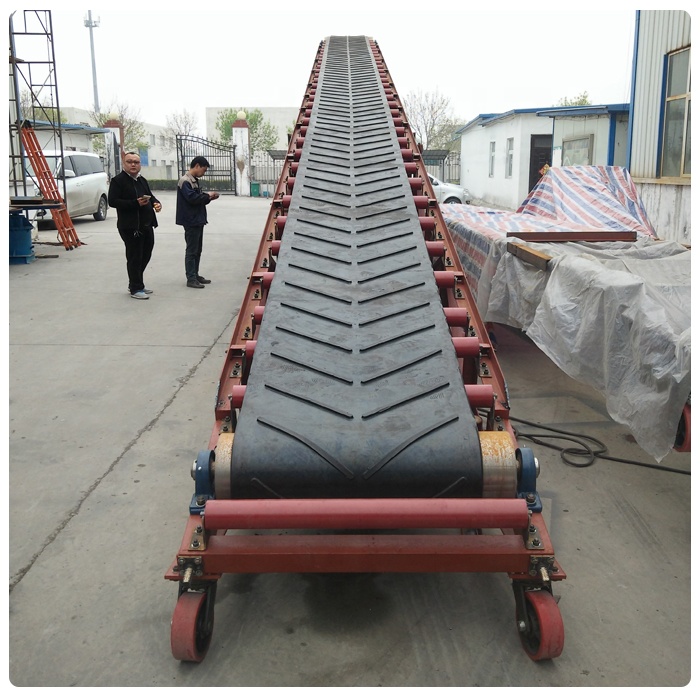

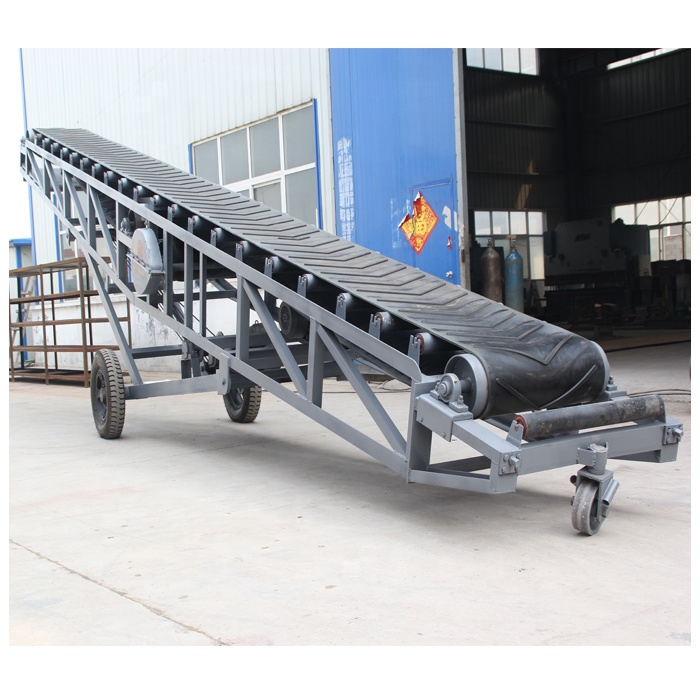

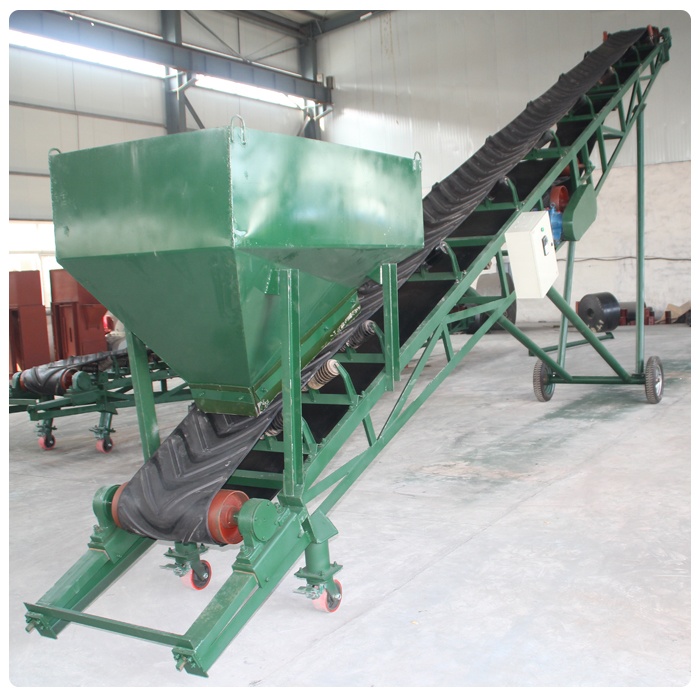

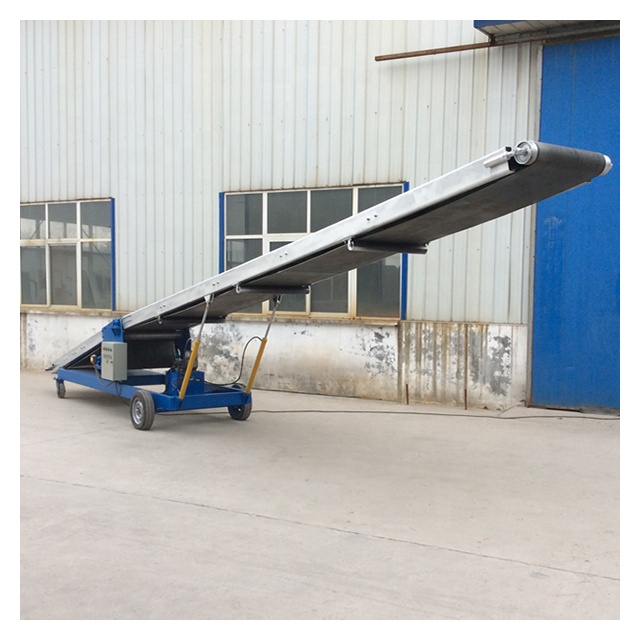

Mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m³. It can be also used in conveying packed bags or cartons.
| Item | DY400 | DY500 | DY650 | DY800 | DY1000 | |
|---|---|---|---|---|---|---|
| Length(m) | 3~25 | |||||
| Belt width(mm) | 400 | 500 | 650 | 800 | 1000 | |
| Belt speed(m/s) | 0.4~1.25 | |||||
| Lifting height(m) | 1.2~9.7 | |||||
| Conveying capacity | (t/h) | 40-80 | 70-145 | 130-265 | 200-330 | 320-500 |
| (pcs/h) | 800 | 1400 | 2600 | 3000 | 3500 | |
Professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
What materials can be transported by this mobile belt conveyor?
It is designed for conveying bulk materials like grain, sand, and crushed stone, as well as packaged items such as cartons and bags.
What capacities are available for conveying bulk materials?
Depending on the model and configuration, conveying capacity ranges from 40-80 t/h (for model DY400) up to 320-500 t/h (for model DY1000).
What are the available lengths and lifting heights?
The conveyor length ranges from 3 meters to 25 meters, and the lifting height can be configured from 1.2 meters to 9.7 meters to fit your operational requirements.
What belt widths are supported for packed items?
We offer standard belt widths of 400mm, 500mm, 650mm, 800mm, and 1000mm to match different sizes of cartons or bags.
What is the standard belt speed range?
The speed ranges between 0.4 m/s and 1.25 m/s, which ensures smooth and reliable material handling during operation.
Are there options for customized configurations?
Yes, configurations can be adjusted based on special requirements such as specific belt speeds, motor standards, material types, and structural changes.
