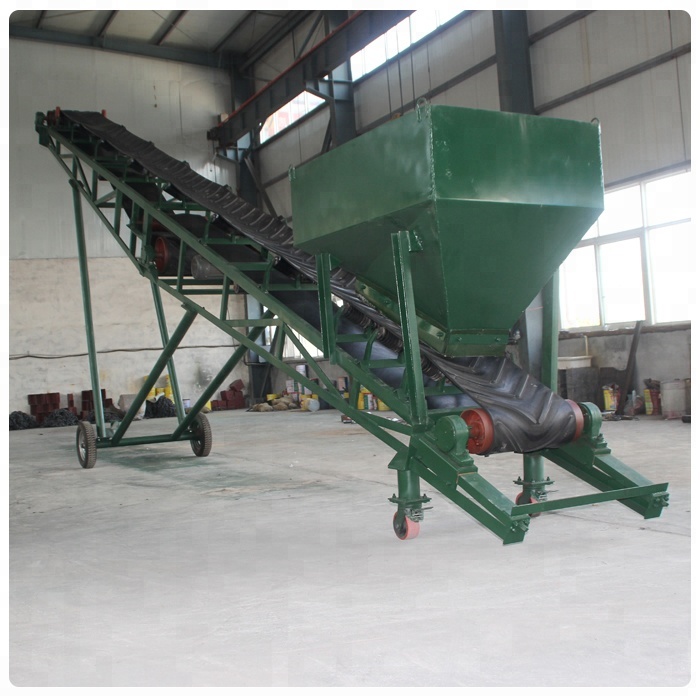

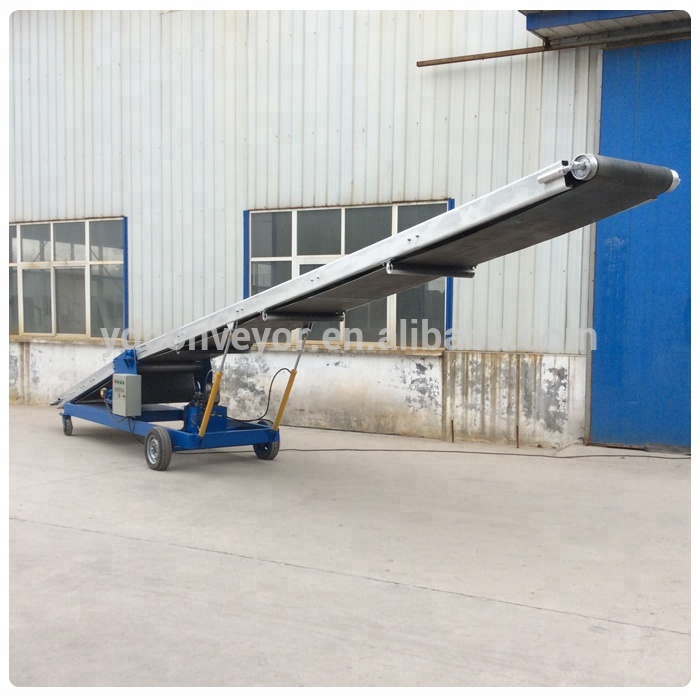

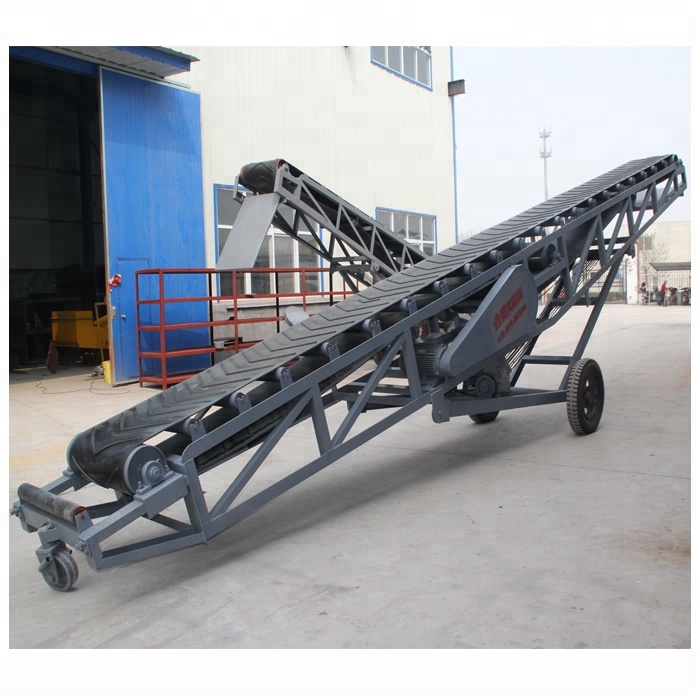

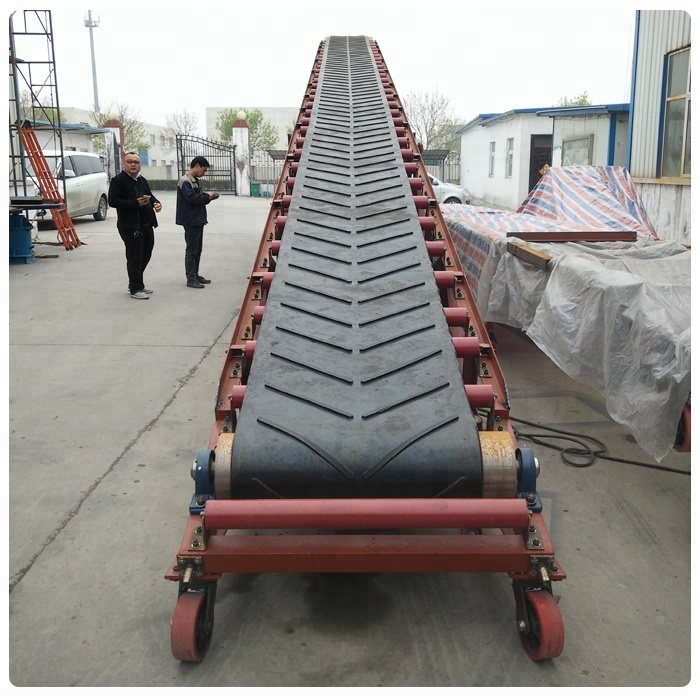

Mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m³. It can be also used in conveying packed bags or cartons.
| Item | DY400 | DY500 | DY650 | DY800 | DY1000 | |
| Length(m) | 3~25 | |||||
| Belt width(mm) | 400 | 500 | 650 | 800 | 1000 | |
| Belt speed(m/s) | 0.4~1.25 | |||||
| Lifting height(m) | 1.2~9.7 | |||||
| Conveying capacity | (t/h) | 40-80 | 70-145 | 130-265 | 200-330 | 320-500 |
| (pcs/h) | 800 | 1400 | 2600 | 3000 | 3500 | |
TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
It is suitable for transporting bulk materials such as grain, sand, and crushed stone, as well as packed items like bags and cartons.
The conveying capacity varies based on specifications, ranging from 40 to 500 tons per hour (t/h) for bulk materials, or 800 to 3500 pieces per hour (pcs/h) for packed goods.
Standard belt widths range from 400mm up to 1000mm. The lengths of the conveyor can range from 3 meters to 25 meters depending on your project requirements.
It has a belt speed range of 0.4 to 1.25 m/s, and offers a lifting height capability between 1.2 and 9.7 meters.
Yes. The conveyor length, discharge height, and overall dimensions can be configured according to the length and width of the cartons or bags being transported.
It is widely implemented across the chemical industry, coal mining, agricultural grain storage, light industry, power transmission departments, and other transportation sectors.
